前言

本篇文章纯粹记录个人完善黑苹果过程，如有不对的地方，还请多多指教。

DSDT补丁

DSDT如何打补丁？

提取DSDT,SSDT
网上有很多种提取的教程，大致有三种方案
1. 在windows使用AIDA64进行提取
2. 在linux进行提取
3. 在clover按F4进行提取（推荐，最简单）
4. mac下使用MacIASL进行提取
  我这里使用的是第三种方案提取，直接在clover界面按F4就可以提取完成，存储位置就在EFI/Clover/ACPI/origin/，然后将DSDT.aml与SSDT.aml复制出来即可。

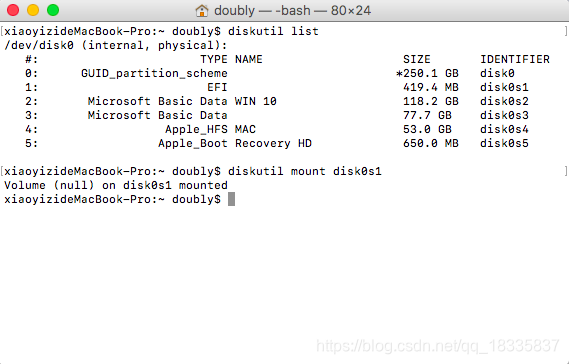

挂载EFI分区方法

#查看EFI分区的IDENTIFIER
diskutil list
#挂在分区
diskutil mount disk0s1

在这里插入图片描述

反编译dsdt（参考链接）
在提取完成之后，则需要对dsdt进行反编译。下载isal，解压后放在/usr/bin目录下。
为了避免反编译出现更多的错误，先建立refs.txt，

#用到的命令

#定位到用户根目录
cd ~
#创建refs.txt
touch refs.txt
#编辑refs.txt
vi refs.txt
#键盘按‘I’键进入编辑模式，然后粘贴下面代码
#粘贴完成后依次按esc，shift+:
#输入wq，并回车保存
#查看文件是否编辑正确，如果打印出的内容正是粘贴内容则OK
cat refs.txt

粘贴内容：

External(MDBG, MethodObj, 1)
External(_GPE.MMTB, MethodObj, 0)
External(_SB.PCI0.LPCB.H_EC.ECWT, MethodObj, 2)
External(_SB.PCI0.LPCB.H_EC.ECRD, MethodObj, 1)
External(_SB.PCI0.LPCB.H_EC.ECMD, MethodObj, 1)
External(_SB.PCI0.PEG0.PEGP.SGPO, MethodObj, 2)
External(_SB.PCI0.GFX0.DD02._BCM, MethodObj, 1)
External(_SB.PCI0.SAT0.SDSM, MethodObj, 4)
External(_GPE.VHOV, MethodObj, 3)
External(_SB.PCI0.XHC.RHUB.TPLD, MethodObj, 2)

前面的文件准备完成后，开始反编译。打开终端，将存放DSDT,SSDT的文件夹拖入终端，回车就可以定位到该文件夹，输入如下指令：

iasl -da -dl -fe ~/refs.txt *.aml

反编译完成。

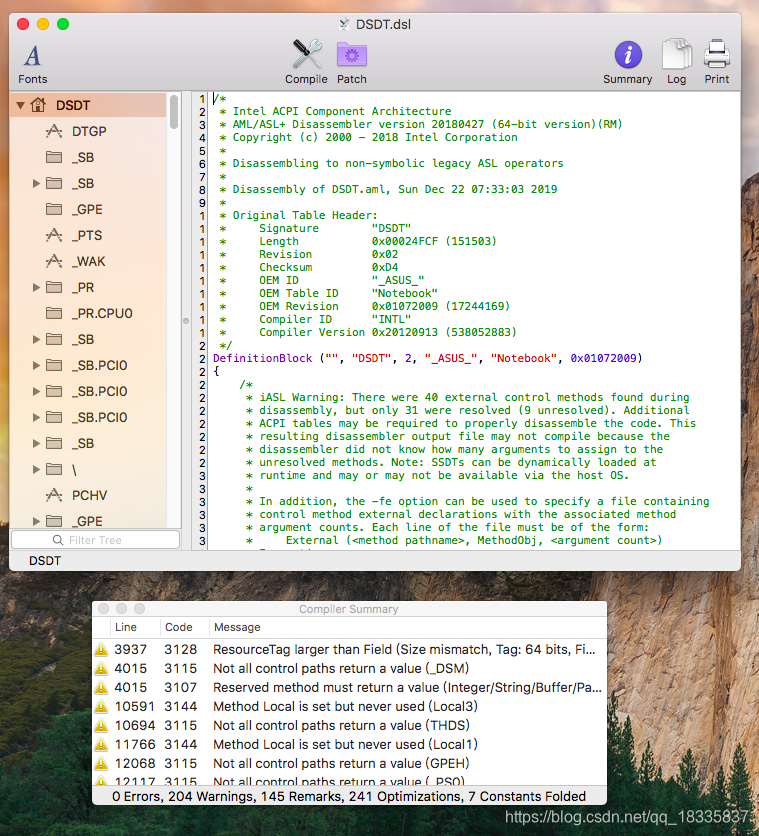

用MacISAL打开反编译的DSDT.dsl，点击上方的compile，查看弹出的compiler Summary框底部是否显示有错，如图我的是0 error没有错误，有错误的可以根据报错百度修正错误。
打入补丁

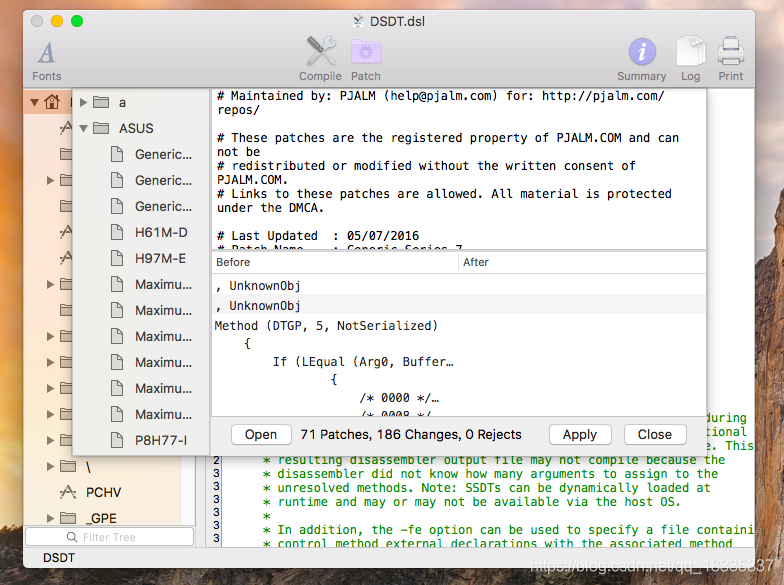

点击上方的Patch，粘贴补丁代码，点击Apply应用，应用完成后，点击Close关掉即可。

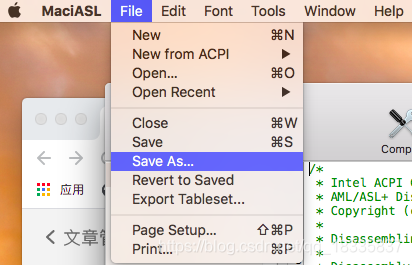

然后再次点击Compile进行编译，如果有错继续修正错误。没错就点击顶部状态栏的File->Save as

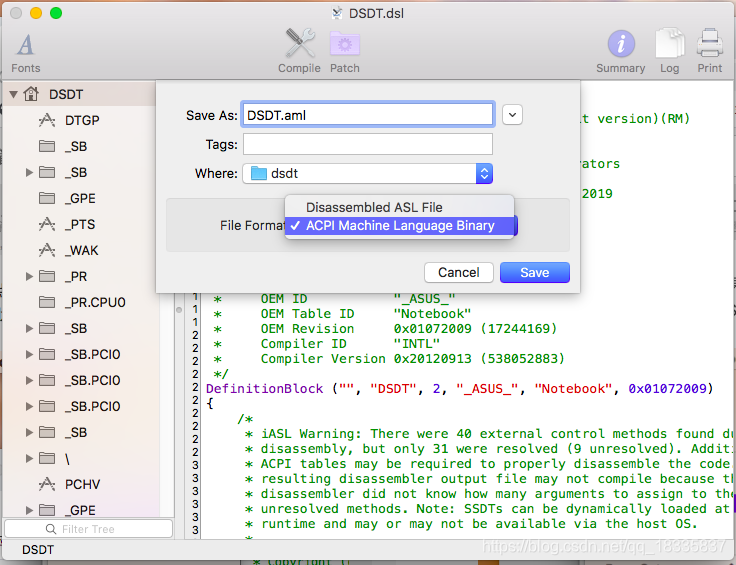

文件格式选择ACPI Machine Language Binary，即aml格式。

保存为DSDT.aml后，将打好补丁的DSDT放到EFI\Clover\ACPI\Patch目录下，然后重启即可。

补丁列表

电池电量补丁
这个补丁我是直接打的ASUS-N55SL的补丁，可以直接打上

#Maintained by: RehabMan for: Laptop Patches
#battery_ASUS-N55SL.txt

# created by RehabMan 8/12/2013
# created originally for jesselid

# works for:
#  ASUS N55SL, BIOS rev. 204
#  ASUS VivoBook series
#  ASUS Zenbook UX31A
#  ASUS UX301LA
#  ASUS X553E-SX399V
#  ASUS F501A
#  ASUS K55VM
#  ASUS U46SV, BIOS rev. 2.04
#  ASUS N43
#  ASUS PU500CA (90NB00F1-M01120)
#  ASUS N73SV
#  ASUS X401A-WX108
#  ASUS F551CA Bios rev. 207
#  ASUS S551LB VivoBook
#  ASUS ZenBook UX32VD
#  ASUS ZenBook UX32V
#  ASUS F550L-X455H
#  ASUS X53S
#  ASUS K550JD-XX003H
#  ASUS G53SX
#  ASUS K56CB
#  ASUS UX305
#  ASUS N550LF (per gabberZ)
#  ASUS TP300LA
#  ASUS X200LA
#  ASUS TP500LA (per haimann951)
#  ASUS U46E (per jacopers)
#  ASUS N550JK (per sonicmule)
#  ASUS K46CM
#  ASUS N76-VB-T4038H (per Tamshiii)
#  ASUS Zenbook Pro UX501VW (per Jingu)
#  ASUS G751JY (per Going Bald)
#  ASUS S300CA (per mugen441)
#  ASUS F556UA-AB32 (per Jdazzle44)
#  ASUS UX306UA (per MaraficeEye)
#  ASUS N550JV (per Xracer99)
#  ASUS X540LA (per arg274)
#  ASUS X540LJ (per palash)
#  ASUS X550VX (per vualeks)
#  ASUS UX330UA (per fluxo)
#  ASUS UX303UB (per CyanTech)
#  ASUS K550JK (per m3ftwz)
#  ASUS TP500LB (per Archangeliques)
#  ASUS X556UA (per ben9923)
#  ASUS UX410 (per minhquang211090)
#  ASUS N552VW (per nicolas2121)
#  ASUS Vivobook NV752 (per tmazzoni)
#  ASUS Strix FX502VM/GL502VM (per benspoonder)
#  ASUS X53E (per REvandenBerg)
#  ASUS UX430 (per starcentral)
# ...
#  and many others

into method label B1B2 remove_entry;
into definitionblock code_regex . insert
begin
Method (B1B2, 2, NotSerialized) { Return (Or (Arg0, ShiftLeft (Arg1, 8))) }\n
end;

# not really for battery, but might come in handy to read fan speed(s)
into device label EC0 code_regex TAH0,\s+16 replace_matched begin TH00,8,TH01,8 end;
into device label EC0 code_regex TAH1,\s+16 replace_matched begin TH10,8,TH11,8 end;
into method label TACH code_regex \(TAH0, replace_matched begin (B1B2(TH00,TH01), end;
into method label TACH code_regex \(TAH1, replace_matched begin (B1B2(TH10,TH11), end;
into method label GFAN code_regex \(\\_SB\.PCI0\.LPCB\.EC0\.TAH0, replace_matched begin (B1B2(\\_SB.PCI0.LPCB.EC0.TH00,\\_SB.PCI0.LPCB.EC0.TH01), end;

# battery EC
into device label EC0 code_regex B0SN,\s+16 replace_matched begin B0S0,8,B0S1,8 end;
into device label EC0 code_regex B1SN,\s+16 replace_matched begin B1S0,8,B1S1,8 end;
into method label BIFA code_regex \(B0SN, replace_matched begin (B1B2(B0S0,B0S1), end;
into method label BIFA code_regex \(B1SN, replace_matched begin (B1B2(B1S0,B1S1), end;
into device label EC0 code_regex DT2B,\s+16 replace_matched begin T2B0,8,T2B1,8 end;
into method label SMBR code_regex \(DT2B, replace_matched begin (B1B2(T2B0,T2B1), end;
into method label SMBW code_regex Store\s+\(([^,]*),\s+DT2B\) replace_matched
begin
Store(%1,T2B0) Store(ShiftRight(%1,8),T2B1)
end;

into device label EC0 insert
begin
Method (RDBA, 0, Serialized)\n
{\n
    Name (TEMP, Buffer(0x20) { })\n
    Store (BA00, Index(TEMP, 0x00))\n
    Store (BA01, Index(TEMP, 0x01))\n
    Store (BA02, Index(TEMP, 0x02))\n
    Store (BA03, Index(TEMP, 0x03))\n
    Store (BA04, Index(TEMP, 0x04))\n
    Store (BA05, Index(TEMP, 0x05))\n
    Store (BA06, Index(TEMP, 0x06))\n
    Store (BA07, Index(TEMP, 0x07))\n
    Store (BA08, Index(TEMP, 0x08))\n
    Store (BA09, Index(TEMP, 0x09))\n
    Store (BA0A, Index(TEMP, 0x0A))\n
    Store (BA0B, Index(TEMP, 0x0B))\n
    Store (BA0C, Index(TEMP, 0x0C))\n
    Store (BA0D, Index(TEMP, 0x0D))\n
    Store (BA0E, Index(TEMP, 0x0E))\n
    Store (BA0F, Index(TEMP, 0x0F))\n
    Store (BA10, Index(TEMP, 0x10))\n
    Store (BA11, Index(TEMP, 0x11))\n
    Store (BA12, Index(TEMP, 0x12))\n
    Store (BA13, Index(TEMP, 0x13))\n
    Store (BA14, Index(TEMP, 0x14))\n
    Store (BA15, Index(TEMP, 0x15))\n
    Store (BA16, Index(TEMP, 0x16))\n
    Store (BA17, Index(TEMP, 0x17))\n
    Store (BA18, Index(TEMP, 0x18))\n
    Store (BA19, Index(TEMP, 0x19))\n
    Store (BA1A, Index(TEMP, 0x1A))\n
    Store (BA1B, Index(TEMP, 0x1B))\n
    Store (BA1C, Index(TEMP, 0x1C))\n
    Store (BA1D, Index(TEMP, 0x1D))\n
    Store (BA1E, Index(TEMP, 0x1E))\n
    Store (BA1F, Index(TEMP, 0x1F))\n
    Return (TEMP)\n
}\n
end;

into device label EC0 insert
begin
Method (WRBA, 1, Serialized)\n
{\n
    Name (TEMP, Buffer(0x20) { })\n
    Store (Arg0, TEMP)\n
    Store (DerefOf(Index(TEMP, 0x00)), BA00)\n
    Store (DerefOf(Index(TEMP, 0x01)), BA01)\n
    Store (DerefOf(Index(TEMP, 0x02)), BA02)\n
    Store (DerefOf(Index(TEMP, 0x03)), BA03)\n
    Store (DerefOf(Index(TEMP, 0x04)), BA04)\n
    Store (DerefOf(Index(TEMP, 0x05)), BA05)\n
    Store (DerefOf(Index(TEMP, 0x06)), BA06)\n
    Store (DerefOf(Index(TEMP, 0x07)), BA07)\n
    Store (DerefOf(Index(TEMP, 0x08)), BA08)\n
    Store (DerefOf(Index(TEMP, 0x09)), BA09)\n
    Store (DerefOf(Index(TEMP, 0x0A)), BA0A)\n
    Store (DerefOf(Index(TEMP, 0x0B)), BA0B)\n
    Store (DerefOf(Index(TEMP, 0x0C)), BA0C)\n
    Store (DerefOf(Index(TEMP, 0x0D)), BA0D)\n
    Store (DerefOf(Index(TEMP, 0x0E)), BA0E)\n
    Store (DerefOf(Index(TEMP, 0x0F)), BA0F)\n
    Store (DerefOf(Index(TEMP, 0x10)), BA10)\n
    Store (DerefOf(Index(TEMP, 0x11)), BA11)\n
    Store (DerefOf(Index(TEMP, 0x12)), BA12)\n
    Store (DerefOf(Index(TEMP, 0x13)), BA13)\n
    Store (DerefOf(Index(TEMP, 0x14)), BA14)\n
    Store (DerefOf(Index(TEMP, 0x15)), BA15)\n
    Store (DerefOf(Index(TEMP, 0x16)), BA16)\n
    Store (DerefOf(Index(TEMP, 0x17)), BA17)\n
    Store (DerefOf(Index(TEMP, 0x18)), BA18)\n
    Store (DerefOf(Index(TEMP, 0x19)), BA19)\n
    Store (DerefOf(Index(TEMP, 0x1A)), BA1A)\n
    Store (DerefOf(Index(TEMP, 0x1B)), BA1B)\n
    Store (DerefOf(Index(TEMP, 0x1C)), BA1C)\n
    Store (DerefOf(Index(TEMP, 0x1D)), BA1D)\n
    Store (DerefOf(Index(TEMP, 0x1E)), BA1E)\n
    Store (DerefOf(Index(TEMP, 0x1F)), BA1F)\n
}\n
end;

into device label EC0 code_regex BDAT,\s+256 replace_matched
begin
//BDAT, 256,\n
BA00,8,BA01,8,BA02,8,BA03,8,\n
BA04,8,BA05,8,BA06,8,BA07,8,\n
BA08,8,BA09,8,BA0A,8,BA0B,8,\n
BA0C,8,BA0D,8,BA0E,8,BA0F,8,\n
BA10,8,BA11,8,BA12,8,BA13,8,\n
BA14,8,BA15,8,BA16,8,BA17,8,\n
BA18,8,BA19,8,BA1A,8,BA1B,8,\n
BA1C,8,BA1D,8,BA1E,8,BA1F,8\n
end;

into method label SMBR code_regex \(BDAT, replaceall_matched begin (RDBA(), end;
into method label SMBR code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end;
into method label SMBW code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end;
into method label ECSB code_regex Store\s\((.*),\sBDAT\) replaceall_matched begin WRBA(%1) end;
into method label ECSB code_regex \(BDAT, replaceall_matched begin (RDBA(), end;


into device label EC0 insert
begin
Method (RDBB, 0, Serialized)\n
{\n
    Name (TEMP, Buffer(0x20) { })\n
    Store (BB00, Index(TEMP, 0x00))\n
    Store (BB01, Index(TEMP, 0x01))\n
    Store (BB02, Index(TEMP, 0x02))\n
    Store (BB03, Index(TEMP, 0x03))\n
    Store (BB04, Index(TEMP, 0x04))\n
    Store (BB05, Index(TEMP, 0x05))\n
    Store (BB06, Index(TEMP, 0x06))\n
    Store (BB07, Index(TEMP, 0x07))\n
    Store (BB08, Index(TEMP, 0x08))\n
    Store (BB09, Index(TEMP, 0x09))\n
    Store (BB0A, Index(TEMP, 0x0A))\n
    Store (BB0B, Index(TEMP, 0x0B))\n
    Store (BB0C, Index(TEMP, 0x0C))\n
    Store (BB0D, Index(TEMP, 0x0D))\n
    Store (BB0E, Index(TEMP, 0x0E))\n
    Store (BB0F, Index(TEMP, 0x0F))\n
    Store (BB10, Index(TEMP, 0x10))\n
    Store (BB11, Index(TEMP, 0x11))\n
    Store (BB12, Index(TEMP, 0x12))\n
    Store (BB13, Index(TEMP, 0x13))\n
    Store (BB14, Index(TEMP, 0x14))\n
    Store (BB15, Index(TEMP, 0x15))\n
    Store (BB16, Index(TEMP, 0x16))\n
    Store (BB17, Index(TEMP, 0x17))\n
    Store (BB18, Index(TEMP, 0x18))\n
    Store (BB19, Index(TEMP, 0x19))\n
    Store (BB1A, Index(TEMP, 0x1A))\n
    Store (BB1B, Index(TEMP, 0x1B))\n
    Store (BB1C, Index(TEMP, 0x1C))\n
    Store (BB1D, Index(TEMP, 0x1D))\n
    Store (BB1E, Index(TEMP, 0x1E))\n
    Store (BB1F, Index(TEMP, 0x1F))\n
    Return (TEMP)\n
}\n
end;

into device label EC0 insert
begin
Method (WRBB, 1, Serialized)\n
{\n
    Name (TEMP, Buffer(0x20) { })\n
    Store (Arg0, TEMP)\n
    Store (DerefOf(Index(TEMP, 0x00)), BB00)\n
    Store (DerefOf(Index(TEMP, 0x01)), BB01)\n
    Store (DerefOf(Index(TEMP, 0x02)), BB02)\n
    Store (DerefOf(Index(TEMP, 0x03)), BB03)\n
    Store (DerefOf(Index(TEMP, 0x04)), BB04)\n
    Store (DerefOf(Index(TEMP, 0x05)), BB05)\n
    Store (DerefOf(Index(TEMP, 0x06)), BB06)\n
    Store (DerefOf(Index(TEMP, 0x07)), BB07)\n
    Store (DerefOf(Index(TEMP, 0x08)), BB08)\n
    Store (DerefOf(Index(TEMP, 0x09)), BB09)\n
    Store (DerefOf(Index(TEMP, 0x0A)), BB0A)\n
    Store (DerefOf(Index(TEMP, 0x0B)), BB0B)\n
    Store (DerefOf(Index(TEMP, 0x0C)), BB0C)\n
    Store (DerefOf(Index(TEMP, 0x0D)), BB0D)\n
    Store (DerefOf(Index(TEMP, 0x0E)), BB0E)\n
    Store (DerefOf(Index(TEMP, 0x0F)), BB0F)\n
    Store (DerefOf(Index(TEMP, 0x10)), BB10)\n
    Store (DerefOf(Index(TEMP, 0x11)), BB11)\n
    Store (DerefOf(Index(TEMP, 0x12)), BB12)\n
    Store (DerefOf(Index(TEMP, 0x13)), BB13)\n
    Store (DerefOf(Index(TEMP, 0x14)), BB14)\n
    Store (DerefOf(Index(TEMP, 0x15)), BB15)\n
    Store (DerefOf(Index(TEMP, 0x16)), BB16)\n
    Store (DerefOf(Index(TEMP, 0x17)), BB17)\n
    Store (DerefOf(Index(TEMP, 0x18)), BB18)\n
    Store (DerefOf(Index(TEMP, 0x19)), BB19)\n
    Store (DerefOf(Index(TEMP, 0x1A)), BB1A)\n
    Store (DerefOf(Index(TEMP, 0x1B)), BB1B)\n
    Store (DerefOf(Index(TEMP, 0x1C)), BB1C)\n
    Store (DerefOf(Index(TEMP, 0x1D)), BB1D)\n
    Store (DerefOf(Index(TEMP, 0x1E)), BB1E)\n
    Store (DerefOf(Index(TEMP, 0x1F)), BB1F)\n
}\n
end;

into device label EC0 code_regex BDA2,\s+256 replace_matched
begin
//BDA2, 256,\n
BB00,8,BB01,8,BB02,8,BB03,8,\n
BB04,8,BB05,8,BB06,8,BB07,8,\n
BB08,8,BB09,8,BB0A,8,BB0B,8,\n
BB0C,8,BB0D,8,BB0E,8,BB0F,8,\n
BB10,8,BB11,8,BB12,8,BB13,8,\n
BB14,8,BB15,8,BB16,8,BB17,8,\n
BB18,8,BB19,8,BB1A,8,BB1B,8,\n
BB1C,8,BB1D,8,BB1E,8,BB1F,8\n
end;

into method label SMBR code_regex \(BDA2, replaceall_matched begin (RDBB(), end;
into method label SMBR code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end;
into method label SMBW code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end;
into method label ECSB code_regex Store\s\((.*),\sBDA2\) replaceall_matched begin WRBB(%1) end;
into method label ECSB code_regex \(BDA2, replaceall_matched begin (RDBB(), end;

# additional work for _BIX method present in some ASUS laptops

into device label EC0 code_regex B0C3,\s+16 replace_matched begin XC30,8,XC31,8 end;
into device label EC0 code_regex B1C3,\s+16 replace_matched begin YC30,8,YC31,8 end;
into_all method label _BIX code_regex \(\^\^LPCB\.EC0\.B0C3, replaceall_matched begin (B1B2(^^LPCB.EC0.XC30,^^LPCB.EC0.XC31), end;
into_all method label _BIX code_regex \(\^\^LPCB\.EC0\.B1C3, replaceall_matched begin (B1B2(^^LPCB.EC0.YC30,^^LPCB.EC0.YC31), end;
into_all method label _BIX code_regex \(B0C3, replaceall_matched begin (B1B2(XC30,XC31), end;

# or could remove the _BIX method if it turns out not to work

#into_all method label _BIX remove_entry;

#fix logic error in some newer ASUS DSDTs (issue #23)
into method label FBST code_regex If\s\(CHGS\s\(Zero\)\)[\s]+\{[\s]+Store\s\(0x02,\sLocal0\)[\s]+\}[\s]+Else[\s]+\{[\s]+Store\s\(One,\sLocal0\)[\s]+\} replaceall_matched
begin
If (CHGS (Zero))\n
{\n
    Store (0x02, Local0)\n
}\n
Else\n
{\n
    Store (Zero, Local0)\n
}
end;

键盘背光补丁
按照文章内容直接搜索Device (ATKD)，在下面的{后面回车加入如下代码

Name (BOFF, Zero)
            Method (SKBL, 1, NotSerialized)
            {
                If (Or (LEqual (Arg0, 0xED), LEqual (Arg0, 0xFD)))
                {
                    If (And (LEqual (Arg0, 0xED), LEqual (BOFF, 0xEA)))
                    {
                        Store (Zero, Local0)
                        Store (Arg0, BOFF)
                    }
                    Else
                    {
                        If (And (LEqual (Arg0, 0xFD), LEqual (BOFF, 0xFA)))
                        {
                            Store (Zero, Local0)
                            Store (Arg0, BOFF)
                        }
                        Else
                        {
                            Return (BOFF)
                        }
                    }
                }
                Else
                {
                    If (Or (LEqual (Arg0, 0xEA), LEqual (Arg0, 0xFA)))
                    {
                        Store (KBLV, Local0)
                        Store (Arg0, BOFF)
                    }
                    Else
                    {
                        Store (Arg0, Local0)
                        Store (Arg0, KBLV)
                    }
                }

                Store (DerefOf (Index (PWKB, Local0)), Local1)
                ^^PCI0.LPCB.EC0.WRAM (0x04B1, Local1) // Haswell/Ivy
                ^^PCI0.LPCB.EC0.WRAM (0x044B, Local1) // Sandy/Ivy
                Return (Local0)
            }

            Method (GKBL, 1, NotSerialized)
            {
                If (LEqual (Arg0, 0xFF))
                {
                    Return (BOFF)
                }

                Return (KBLV)
            }

关机不断电补丁

# Change method _PTS where Arg0 is 0x05 (shutdown)
#
into method label _PTS code_regex_not If\s*\(LEqual\s*\(Arg0,\s*0x05\)\) code_regex ^((?:.|\n)*)$ replace_matched
begin
        If (LEqual (Arg0, 0x05))\n
        {\n
            Store (Zero, SLPE)\n
            Sleep (0x10)\n
        }\n
        Else\n
        {\n
%1
        }
end;
into definitionblock code_regex . code_regex_not OperationRegion\s*\(PMRS insert
begin
OperationRegion (PMRS, SystemIO, 0x0430, One)\n
Field (PMRS, ByteAcc, NoLock, Preserve)\n
{\n
        ,   4, \n
    SLPE,   1\n
}
end

自动背光补丁

# Insert method ALSS into ATKD device for reading ambient illuminance values in my driver
into method label ALSS parent_label ATKD remove_entry;
into device label ATKD insert begin
Method (ALSS, 0, NotSerialized)\n
            {\n
                Return (^^PCI0.LPCB.EC0.RALS ())\n
            }
end;

睡眠立即唤醒
这里我找到的有两种方法，第一种是USB定制，不仅解决睡眠立即唤醒，同时也可以解决USB3.0的问题；第二种则是通过屏蔽dsdt唤醒方法实现睡眠。这里推荐使用第一种，方法参考黑果小兵教程链接（另附视频教程链接）；下面介绍第二种方法：

在终端中查看唤醒原因

log show --start '2019-12-23 09:20:00' --end '2019-12-23 09:25:00' |grep 'Wake reason'

我的查询结果为

2019-12-23 09:24:45.440325+0800 0x73       Default     0x0                  0      kernel: (AppleACPIPlatform) Wake reason: HDEF XHC

可以看到后面有HDEF XHC两个原因，在dsdt中搜索Device(HDEF)，将其下面的_PRW方法注释删除都行，然后保存重启再次尝试。如果依然唤醒则重复这些动作，后面的原因变了则继续使用该方法注释删除，直到能够睡眠即可。
