Spring boot中使用POI导出Excel,导出插入图片,定位图片位置

导出Excel数据文章多不胜数
惊了!7 行代码优雅地实现 Excel 文件导出功能?
这篇文章可以用阿里的EasyExcel的jar包导出数据比较快
真的非常简单,有兴趣的童鞋自己可以试试,
具体使用哪个看需求,毕竟阿里EasyExcel这个相对来说帖子和经验都比较少.个性化定制的话,估计还是项目进度为先使用poi

我们需求是一行数据里还插入了图片

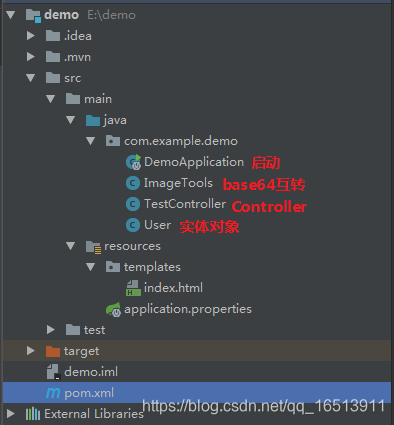

话不多说上代码吧.目录结构很简单
在这里插入图片描述
pom.xml ,添加依赖

    <dependencies>
		<dependency>
			<groupId>org.apache.poi</groupId>
			<artifactId>poi-ooxml</artifactId>
			<version>3.8</version>
		</dependency>
		<dependency>
			<groupId>org.apache.poi</groupId>
			<artifactId>poi-scratchpad</artifactId>
			<version>3.8</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-thymeleaf</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
			<version>1.5.9.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

在templates/index.html

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8"/>
    <title>Title</title>
</head>
<body>
<form action="/upFile" method="post" enctype="multipart/form-data">

    <input type="file" name="file"  />
    <input type="submit" title="提交" />
</form>
</body>
</html>

user.java

    private Integer id;
    private String name;
    private String more;

    public User(Integer id, String name, String more) {
       this.id= id;
       this.name= name;
       this.more = more;
    }
    //set  get 略
package com.example.demo;

import org.apache.poi.hssf.usermodel.*;
import org.apache.poi.ss.usermodel.ClientAnchor;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.multipart.MultipartFile;

import javax.imageio.ImageIO;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.awt.image.BufferedImage;
import java.io.*;
import java.util.ArrayList;
import java.util.List;

@Controller
public class TestController {
    @RequestMapping("/index")
    public String index(){
        return "index";
    }


    @Autowired
    HttpServletRequest request;

    @PostMapping("/upFile")
    public void upFile(@RequestParam("file") MultipartFile file, HttpServletResponse response) throws IOException {
        //文件名称
        String filename = file.getOriginalFilename();
        //文件后缀(后缀检查略过)
        String prefix= filename.substring(filename.lastIndexOf("."));
        File newFile = File.createTempFile(System.currentTimeMillis()+"",prefix);
        file.transferTo(newFile);


        //转码BASE64可以存储数据库
        //OSS
        String imageToBase64 = ImageTools.ImageToBase64(newFile.getPath());
        //String filepath = request.getSession().getServletContext().getRealPath("/") + "upload" + filename;
        ImageTools.Base64ToImage(imageToBase64,newFile.getPath());






        BufferedImage bufferImg ;//图片一
        ByteArrayOutputStream byteArrayOut = new ByteArrayOutputStream();
        //读图片
        bufferImg = ImageIO.read(newFile);
        ImageIO.write(bufferImg, "png", byteArrayOut);
        // 创建一个工作薄
        HSSFWorkbook wb = new HSSFWorkbook();
        //创建一个sheet
        HSSFSheet sheet = wb.createSheet("sheet1");

        HSSFPatriarch patriarch = sheet.createDrawingPatriarch();


        HSSFRow row = sheet.createRow(0);
        HSSFCellStyle style = wb.createCellStyle();
        //设置水平对齐的样式为居中对齐;
        style.setAlignment(HSSFCellStyle.ALIGN_CENTER);
        //设置垂直对齐的样式为居中对齐;
        style.setVerticalAlignment(HSSFCellStyle.VERTICAL_CENTER);
        String[] excelHeader = { "序号", "名字", "备注","图片"};
        for (int i = 0; i < excelHeader.length; i++) {
            HSSFCell cell = row.createCell(i);
            cell.setCellValue(excelHeader[i]);
            cell.setCellStyle(style);
            sheet.autoSizeColumn(i);
            //设置列宽
            sheet.setColumnWidth(i, 256*30+184);
            // sheet.SetColumnWidth(i, 100 * 256);
        }


        List<User> list = createModeList();
        for (int i = 0; i < list.size(); i++) {
            row = sheet.createRow(i + 1);
            row.setHeight((short) (35.7*30));
            User user = list.get(i);
            //设置样式 每列都是水平垂直居中
            HSSFCell cell = row.createCell(0);
            cell.setCellValue(user.getId());
            cell.setCellStyle(style);

            HSSFCell cell1 = row.createCell(1);
            cell1.setCellValue(user.getName());
            cell1.setCellStyle(style);

            HSSFCell cell2 = row.createCell(2);
            cell2.setCellValue(user.getShortname());
            cell2.setCellStyle(style);

            /**
             * 该构造函数有8个参数
             * 前四个参数是控制图片在单元格的位置,分别是图片距离单元格left,top,right,bottom的像素距离
             * 后四个参数,前连个表示图片左上角所在的cellNum和 rowNum,后天个参数对应的表示图片右下角所在的cellNum和 rowNum,
             * excel中的cellNum和rowNum的index都是从0开始的
             */
            HSSFClientAnchor anchor = new HSSFClientAnchor(0, 0, 0, 0,
                    (short) 3, (i + 1), (short) 4, (i+2));
            anchor.setAnchorType(ClientAnchor.MOVE_DONT_RESIZE);
            // 插入图片
            patriarch.createPicture(anchor, wb.addPicture(byteArrayOut
                    .toByteArray(), HSSFWorkbook.PICTURE_TYPE_JPEG)).resize(0.5);
        }

        response.setContentType("application/vnd.ms-excel");
        //设置文件名称
        response.setHeader("Content-disposition", "attachment;filename=export.xls");
        OutputStream outputStream = response.getOutputStream();
        wb.write(outputStream);
        outputStream.flush();
        outputStream.close();
		//try catch这些关闭流略

    }

    private List<User> createModeList(){
        List<User> infArray = new ArrayList();
        for(int i=0;i<20;i++) {
            infArray.add(new User(i,i+"姓名","name"+i+i+i));
        }
        return infArray;
    }
}

base64我自己记录一下,也贴这里记录吧,估计现在图片存储现在都是OSS了

    public static String ImageToBase64(String imgPath) {
        InputStream in=null;
        byte[] data=null;
        try{
            in = new FileInputStream(imgPath);
            data = new byte[in.available()];
            in.read(data);
            in.close();
        }catch (IOException e){
            e.printStackTrace();
        }
        BASE64Encoder encoder = new BASE64Encoder();
        return encoder.encode(data);
    }
    public static  boolean Base64ToImage(String base64, String imgFilePath) {
        // 对字节数组字符串进行Base64解码并生成图片
        if (base64 == null) // 图像数据为空
            return false;
        BASE64Decoder decoder = new BASE64Decoder();
        try {
            // Base64解码
            byte[] b = decoder.decodeBuffer(base64);
            for (int i = 0; i < b.length; ++i) {
                if (b[i] < 0) {// 调整异常数据
                    b[i] += 256;
                }
            }
            OutputStream out = new FileOutputStream(imgFilePath);
            out.write(b);
            out.flush();
            out.close();
            return true;
        } catch (Exception e) {
            return false;
        }

    }

最后相貌平平启动类

@SpringBootApplication
public class DemoApplication {

	public static void main(String[] args) {
		SpringApplication.run(DemoApplication.class, args);
	}

}

访问Controller中的index路径
返回index页面
在这里插入图片描述
选择文件提交,提交到upFile路径,然后执行会在浏览器下载一个Excel
因为我的代码不完善,简单设置了水平垂直居中列宽

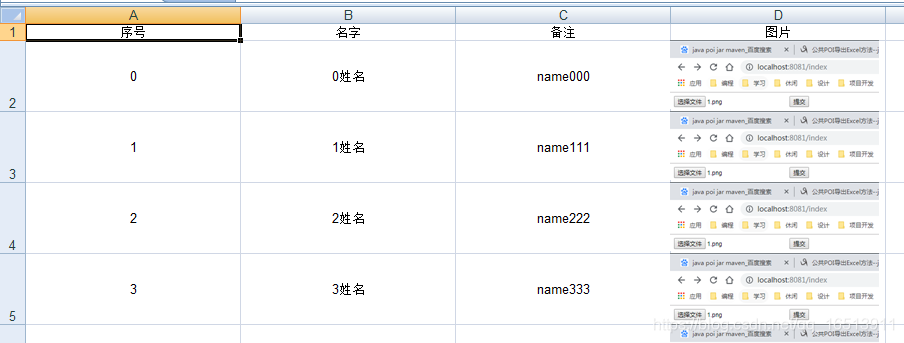

打开以后是这样的
在这里插入图片描述

收获备注:

  1. 解决Excel无法在筛选时携带图片跟着筛选,毕竟图片都"飘"在了单元格上面
    需要在插入前那边添加
	anchor.setAnchorType(ClientAnchor.MOVE_DONT_RESIZE);

ClientAnchor有三个值,我分别试了试根据效果添加注释

    int MOVE_AND_RESIZE = 0;//跟随单元格扩大或者缩小,就是你拖动单元格的时候,图片大小也在变
    int MOVE_DONT_RESIZE = 2;//图片固定在该单元格在左上角,并且随着单元格移动
    int DONT_MOVE_AND_RESIZE = 3;//固定在Excel某个位置,像牛皮广告一样不会动
  1. 导出Excel中的图片比例缩放问题?
    解决:在这行插入图片最后加上resize,里面double类型的缩放比例倍数
    当然加了这个左上角可以固定你想要的单元格,右下角那边就不算了
//添加了resize方法,这边最后两个参数就失效了
//后四个参数,前两个表示图片左上角所在的cellNum和 rowNum
//后两个参数对应的表示图片右下角所在的cellNum和 rowNum,
 HSSFClientAnchor anchor = new HSSFClientAnchor(0, 0, 0, 0,
                    (short) 3, (i + 1), (short) 4, (i+2));
//resize可以放大缩小
 patriarch.createPicture(anchor,
 		wb.addPicture(byteArrayOut.toByteArray(),
		 HSSFWorkbook.PICTURE_TYPE_JPEG)).resize(0.3);
  1. 设置Excel列宽列高数据不准确,参考了其他文章
//设置0列的宽度
sheet.setColumnWidth(0, 256*width+184);
//设置该行的高度
row.setHeight((short) (35.7*30));

参考文章:
