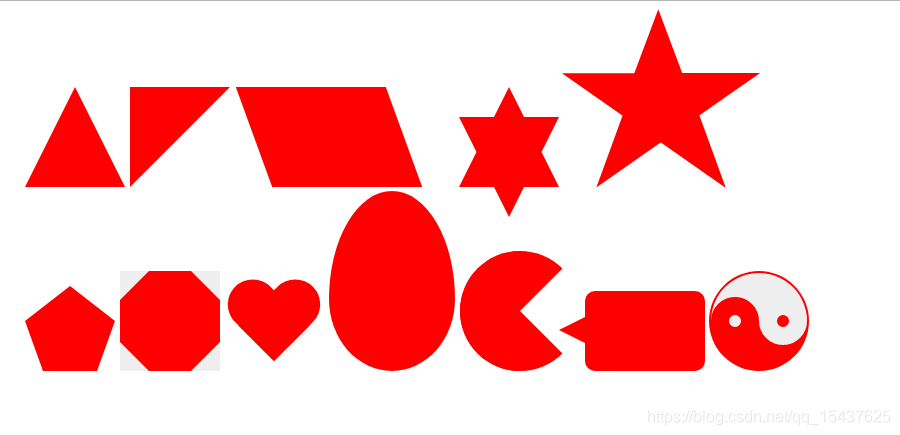

用纯CSS绘制的图形
代码如下
<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>test</title>
</head>
<body>
<style>
  ul {
    width: 800px;
    height: 800px;
  }

  li {
    display: inline-block;
  }

  .triangle-up {
    width: 0;
    height: 0;
    border-left: 50px solid transparent;
    border-right: 50px solid transparent;
    border-bottom: 100px solid red;
  }

  .triangle-topleft {
    width: 0;
    height: 0;
    border-top: 100px solid red;
    border-right: 100px solid transparent;
  }

  .parallelogram {
    width: 150px;
    height: 100px;
    margin-left: 20px;
    -webkit-transform: skew(20deg);
    -moz-transform: skew(20deg);
    -o-transform: skew(20deg);
    background: red;
  }

  .star-six {
    margin-left: 50px;
    width: 0;
    height: 0;
    border-left: 50px solid transparent;
    border-right: 50px solid transparent;
    border-bottom: 100px solid red;
    position: relative;
  }

  .star-six:after {
    width: 0;
    height: 0;
    border-left: 50px solid transparent;
    border-right: 50px solid transparent;
    border-top: 100px solid red;
    position: absolute;
    content: "";
    top: 30px;
    left: -50px;
  }

  .star-five {
    margin: 50px 0;
    position: relative;
    /*display: block;*/
    color: red;
    width: 0px;
    height: 0px;
    border-right: 100px solid transparent;
    border-bottom: 70px solid red;
    border-left: 100px solid transparent;
    -moz-transform: rotate(35deg);
    -webkit-transform: rotate(35deg);
    -ms-transform: rotate(35deg);
    -o-transform: rotate(35deg);
  }

  .star-five:before {
    border-bottom: 80px solid red;
    border-left: 30px solid transparent;
    border-right: 30px solid transparent;
    position: absolute;
    height: 0;
    width: 0;
    top: -45px;
    left: -65px;
    display: block;
    content: '';
    -webkit-transform: rotate(-35deg);
    -moz-transform: rotate(-35deg);
    -ms-transform: rotate(-35deg);
    -o-transform: rotate(-35deg);

  }

  .star-five:after {
    position: absolute;
    display: block;
    color: red;
    top: 3px;
    left: -105px;
    width: 0px;
    height: 0px;
    border-right: 100px solid transparent;
    border-bottom: 70px solid red;
    border-left: 100px solid transparent;
    -webkit-transform: rotate(-70deg);
    -moz-transform: rotate(-70deg);
    -ms-transform: rotate(-70deg);
    -o-transform: rotate(-70deg);
    content: '';
  }

  .pentagon {
    position: relative;
    width: 54px;
    border-width: 50px 18px 0;
    border-style: solid;
    border-color: red transparent;
  }

  .pentagon:before {
    content: "";
    position: absolute;
    height: 0;
    width: 0;
    top: -85px;
    left: -18px;
    border-width: 0 45px 35px;
    border-style: solid;
    border-color: transparent transparent red;
  }

  .octagon {
    width: 100px;
    height: 100px;
    background: red;
    position: relative;

  }

  .octagon:before {
    content: "";
    position: absolute;
    top: 0;
    left: 0;
    border-bottom: 29px solid red;
    border-left: 29px solid #eee;
    border-right: 29px solid #eee;
    width: 42px;
    height: 0;
  }

  .octagon:after {
    content: "";
    position: absolute;
    bottom: 0;
    left: 0;
    border-top: 29px solid red;
    border-left: 29px solid #eee;
    border-right: 29px solid #eee;
    width: 42px;
    height: 0;
  }

  .heart {
    position: relative;
    width: 100px;
    height: 90px;
  }

  .heart:before,
  .heart:after {
    position: absolute;
    content: "";
    left: 50px;
    top: 0;
    width: 50px;
    height: 80px;
    background: red;
    -moz-border-radius: 50px 50px 0 0;
    border-radius: 50px 50px 0 0;
    -webkit-transform: rotate(-45deg);
    -moz-transform: rotate(-45deg);
    -ms-transform: rotate(-45deg);
    -o-transform: rotate(-45deg);
    transform: rotate(-45deg);
    -webkit-transform-origin: 0 100%;
    -moz-transform-origin: 0 100%;
    -ms-transform-origin: 0 100%;
    -o-transform-origin: 0 100%;
    transform-origin: 0 100%;
  }

  .heart:after {
    left: 0;
    -webkit-transform: rotate(45deg);
    -moz-transform: rotate(45deg);
    -ms-transform: rotate(45deg);
    -o-transform: rotate(45deg);
    transform: rotate(45deg);
    -webkit-transform-origin: 100% 100%;
    -moz-transform-origin: 100% 100%;
    -ms-transform-origin: 100% 100%;
    -o-transform-origin: 100% 100%;
    transform-origin: 100% 100%;
  }

  .egg {
    /*display:block;*/
    width: 126px;
    height: 180px;
    background-color: red;
    -webkit-border-radius: 63px 63px 63px 63px / 108px 108px 72px 72px;
    border-radius: 50% 50% 50% 50%  / 60% 60% 40% 40%;
  }

  .pacman {
    width: 0px;
    height: 0px;
    border-right: 60px solid transparent;
    border-top: 60px solid red;
    border-left: 60px solid red;
    border-bottom: 60px solid red;
    border-top-left-radius: 60px;
    border-top-right-radius: 60px;
    border-bottom-left-radius: 60px;
    border-bottom-right-radius: 60px;
  }

  .talkbubble {
    width: 120px;
    height: 80px;
    background: red;
    position: relative;
    -moz-border-radius: 10px;
    -webkit-border-radius: 10px;
    border-radius: 10px;
  }

  .talkbubble:before {
    content: "";
    position: absolute;
    right: 100%;
    top: 26px;
    width: 0;
    height: 0;
    border-top: 13px solid transparent;
    border-right: 26px solid red;
    border-bottom: 13px solid transparent;
  }

  .yin-yang {
    width: 96px;
    height: 48px;
    background: #eee;
    border-color: red;
    border-style: solid;
    border-width: 2px 2px 50px 2px;
    border-radius: 100%;
    position: relative;
  }

  .yin-yang:before {
    content: "";
    position: absolute;
    top: 50%;
    left: 0;
    background: #eee;
    border: 18px solid red;
    border-radius: 100%;
    width: 12px;
    height: 12px;
  }

  .yin-yang:after {
    content: "";
    position: absolute;
    top: 50%;
    left: 50%;
    background: red;
    border: 18px solid #eee;
    border-radius: 100%;
    width: 12px;
    height: 12px;
  }
</style>
<ul>
  <li class="triangle-up"></li>
  <li class="triangle-topleft"></li>
  <li class="parallelogram"></li>
  <li class="star-six"></li>
  <li class="star-five"></li>
  <li class="pentagon"></li>
  <li class="octagon"></li>
  <li class="heart"></li>
  <li class="egg"></li>
  <li class="pacman"></li>
  <li class="talkbubble"></li>
  <li class="yin-yang"></li>
</ul>
</body>
</html>
