Nacos源码分析之Raft协议(二)----心跳包发送

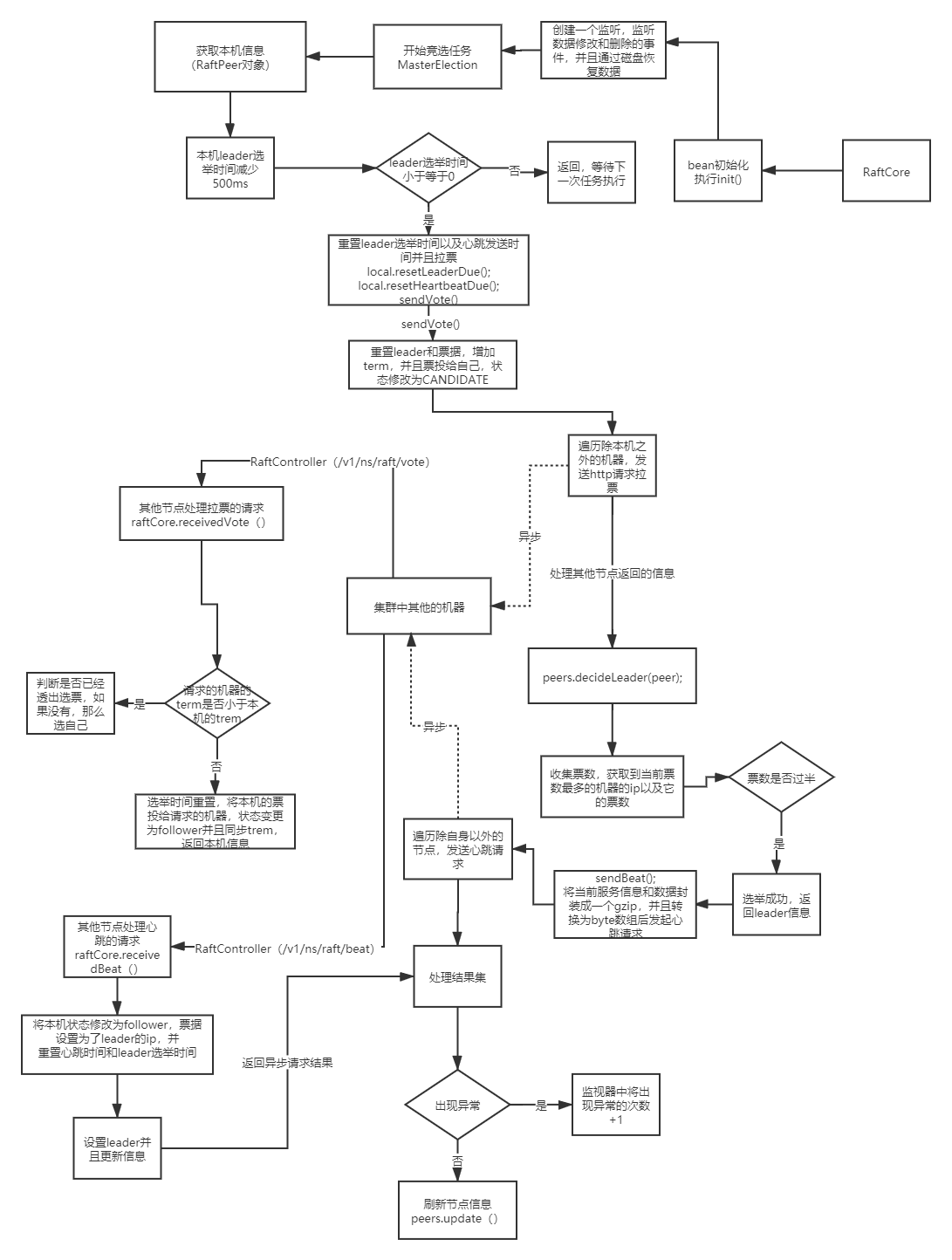

leader选举流程

前言

（本篇文章基于Nacos 1.3.2版本）
关于raft协议其实主要分为3个部分
1.leader选举
2.发送心跳包
3.同步数据，保证数据的一致性
上篇文章已经分析了leader选举相关的代码，还有不懂的小伙伴请点击传送门

Nacos源码分析之发送心跳包源码分析

在RaftCore的init()方法中注册了一个每500ms执行一次的心跳任务

GlobalExecutor.registerHeartbeat(new HeartBeat());

public class HeartBeat implements Runnable {

        @Override
        public void run() {
            try {

                if (!peers.isReady()) {
                    return;
                }
                RaftPeer local = peers.local();
                //初始值为0-5000ms的随机值，进来一次减少500ms
                local.heartbeatDueMs -= GlobalExecutor.TICK_PERIOD_MS;
                if (local.heartbeatDueMs > 0) {
                    return;
                }
                //重置心跳时间
                local.resetHeartbeatDue();
                //小于等于0时发送心跳请求
                sendBeat();
            } catch (Exception e) {
                Loggers.RAFT.warn("[RAFT] error while sending beat {}", e);
            }

        }

这个方法中主要是看是否达到了发送心跳的时间，达到了就走发送心跳的逻辑sendBeat()；

private void sendBeat() throws IOException, InterruptedException {
            RaftPeer local = peers.local();
            //判断如果是单机模式，或者自己不是leader就直接return
            if (ApplicationUtils.getStandaloneMode() || local.state != RaftPeer.State.LEADER) {
                return;
            }
            if (Loggers.RAFT.isDebugEnabled()) {
                Loggers.RAFT.debug("[RAFT] send beat with {} keys.", datums.size());
            }
            //重置leader选举时间
            local.resetLeaderDue();

            // build data
            ObjectNode packet = JacksonUtils.createEmptyJsonNode();
            packet.replace("peer", JacksonUtils.transferToJsonNode(local));

            ArrayNode array = JacksonUtils.createEmptyArrayNode();

            if (switchDomain.isSendBeatOnly()) {
                Loggers.RAFT.info("[SEND-BEAT-ONLY] {}", String.valueOf(switchDomain.isSendBeatOnly()));
            }
            //将信息封装成一个gzip，并且转换为byte数组后发起心跳请求
            if (!switchDomain.isSendBeatOnly()) {
                for (Datum datum : datums.values()) {

                    ObjectNode element = JacksonUtils.createEmptyJsonNode();

                    if (KeyBuilder.matchServiceMetaKey(datum.key)) {
                        element.put("key", KeyBuilder.briefServiceMetaKey(datum.key));
                    } else if (KeyBuilder.matchInstanceListKey(datum.key)) {
                        element.put("key", KeyBuilder.briefInstanceListkey(datum.key));
                    }
                    element.put("timestamp", datum.timestamp.get());

                    array.add(element);
                }
            }

            packet.replace("datums", array);
            // broadcast
            Map<String, String> params = new HashMap<String, String>(1);
            params.put("beat", JacksonUtils.toJson(packet));

            String content = JacksonUtils.toJson(params);

            ByteArrayOutputStream out = new ByteArrayOutputStream();
            GZIPOutputStream gzip = new GZIPOutputStream(out);
            gzip.write(content.getBytes(StandardCharsets.UTF_8));
            gzip.close();

            byte[] compressedBytes = out.toByteArray();
            String compressedContent = new String(compressedBytes, StandardCharsets.UTF_8);

            if (Loggers.RAFT.isDebugEnabled()) {
                Loggers.RAFT.debug("raw beat data size: {}, size of compressed data: {}", content.length(),
                        compressedContent.length());
            }
            //遍历除自身以外的节点，发送心跳请求
            for (final String server : peers.allServersWithoutMySelf()) {
                try {
                    final String url = buildUrl(server, API_BEAT);
                    if (Loggers.RAFT.isDebugEnabled()) {
                        Loggers.RAFT.debug("send beat to server " + server);
                    }
                    HttpClient.asyncHttpPostLarge(url, null, compressedBytes, new AsyncCompletionHandler<Integer>() {
                        @Override
                        public Integer onCompleted(Response response) throws Exception {
                            if (response.getStatusCode() != HttpURLConnection.HTTP_OK) {
                                Loggers.RAFT.error("NACOS-RAFT beat failed: {}, peer: {}", response.getResponseBody(),
                                        server);
                                MetricsMonitor.getLeaderSendBeatFailedException().increment();
                                return 1;
                            }
                            //接收到结果后刷新节点信息
                            peers.update(JacksonUtils.toObj(response.getResponseBody(), RaftPeer.class));
                            if (Loggers.RAFT.isDebugEnabled()) {
                                Loggers.RAFT.debug("receive beat response from: {}", url);
                            }
                            return 0;
                        }

                        @Override
                        public void onThrowable(Throwable t) {
                            //出现异常时监视器发送心跳失败的次数+1
                            Loggers.RAFT.error("NACOS-RAFT error while sending heart-beat to peer: {} {}", server, t);
                            MetricsMonitor.getLeaderSendBeatFailedException().increment();
                        }
                    });
                } catch (Exception e) {
                    Loggers.RAFT.error("error while sending heart-beat to peer: {} {}", server, e);
                    MetricsMonitor.getLeaderSendBeatFailedException().increment();
                }
            }

        }
    }

这一段很长的代码，其实它主要就是干了以下几件事&#
