Lock Key Cuts/Teeth Recognition using Python and OpenCV 🗝️🔍

1. 项目背景与技术选型

锁匙齿纹识别（Lock Key Cuts/Teeth Recognition）是一项具有实际应用价值的计算机视觉技术，可应用于智能门锁系统、钥匙复制设备和安防领域。本概念验证(POC)项目使用Python和OpenCV实现了一套完整的钥匙齿纹识别方案。

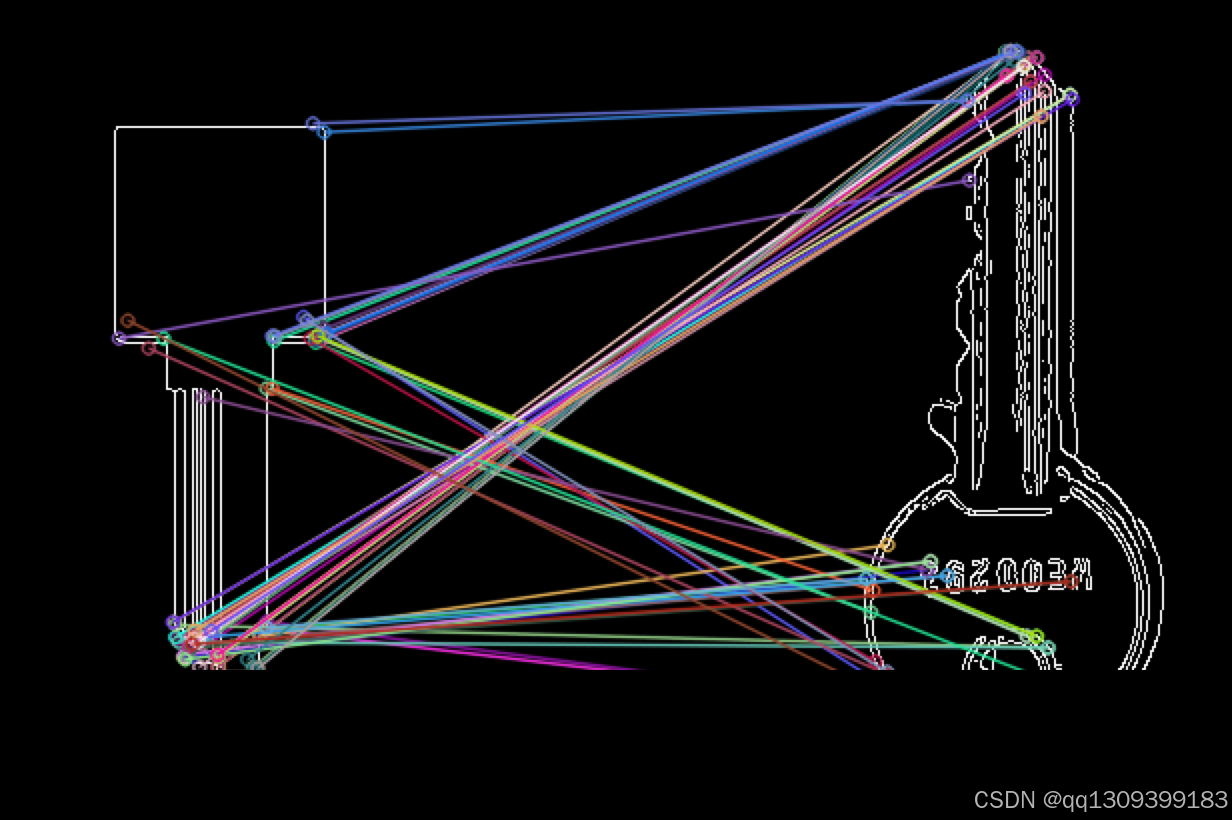

在这里插入图片描述

技术栈选择理由：

OpenCV：计算机视觉领域事实标准库，提供丰富的图像处理功能
Feature Matching：相比深度学习方案，传统特征匹配方法在小样本场景下更高效
Python：快速原型开发，丰富的科学计算生态

2. 系统架构设计

系统处理流程分为四个核心模块：

图像采集 → 预处理 → 特征提取 → 匹配识别

3. 详细实现步骤

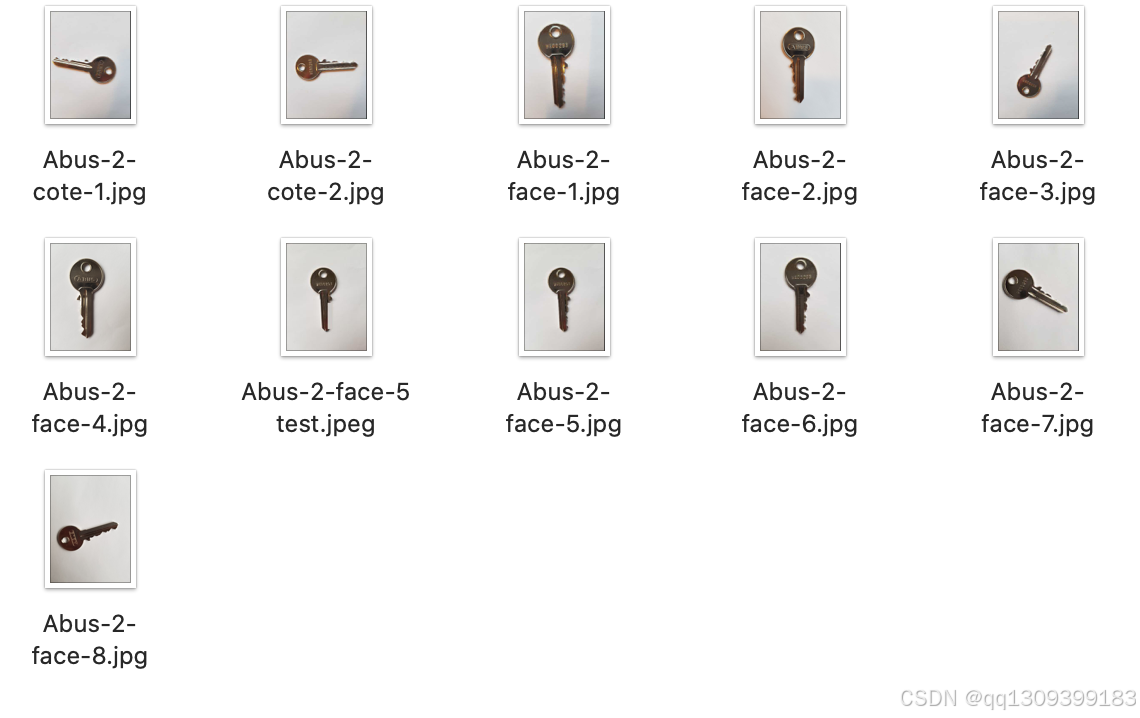

3.1 图像采集与预处理

import cv2
import numpy as np

def preprocess_key_image(img_path):
    # 读取图像
    img = cv2.imread(img_path)

    # 转换为灰度图
    gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)

    # 高斯模糊降噪
    blurred = cv2.GaussianBlur(gray, (5, 5), 0)

    # 自适应阈值二值化
    binary = cv2.adaptiveThreshold(blurred, 255,
                                  cv2.ADAPTIVE_THRESH_GAUSSIAN_C,
                                  cv2.THRESH_BINARY_INV, 11, 2)

    # 形态学操作增强齿纹特征
    kernel = np.ones((3,3), np.uint8)
    processed = cv2.morphologyEx(binary, cv2.MORPH_CLOSE, kernel)

    return processed

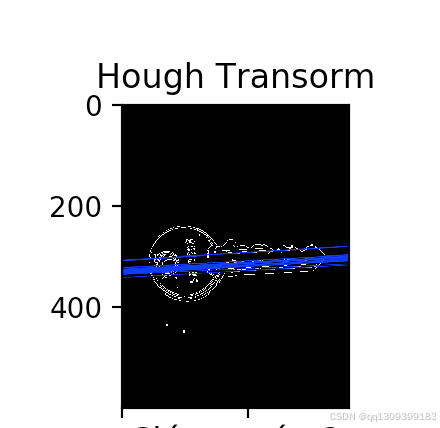

在这里插入图片描述

3.2 关键特征提取

采用多特征融合策略提高识别鲁棒性：

def extract_key_features(image):
    # 轮廓检测
    contours, _ = cv2.findContours(image, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)

    # SIFT特征提取
    sift = cv2.SIFT_create()
    kp, des = sift.detectAndCompute(image, None)

    # 齿纹高度特征
    heights = []
    for cnt in contours:
        x,y,w,h = cv2.boundingRect(cnt)
        heights.append(h)

    # 齿纹间距特征
    spacing = []
    if len(kp) > 1:
        kp = sorted(kp, key=lambda x: x.pt[0])
        for i in range(1, len(kp)):
            spacing.append(kp[i].pt[0] - kp[i-1].pt[0])

    return {
        'sift_descriptors': des,
        'contour_heights': heights,
        'teeth_spacing': spacing
    }

3.3 特征匹配与识别

def match_keys(query_features, template_features, threshold=0.7):
    # SIFT描述子匹配
    bf = cv2.BFMatcher()
    matches = bf.knnMatch(query_features['sift_descriptors'],
                         template_features['sift_descriptors'], k=2)

    # 应用比率测试
    good_matches = []
    for m,n in matches:
        if m.distance < threshold * n.distance:
            good_matches.append(m)

    # 计算匹配分数
    match_score = len(good_matches) / min(len(query_features['sift_descriptors']),
                                        len(template_features['sift_descriptors']))

    # 齿纹高度相似度
    height_sim = cv2.compareHist(
        np.array(query_features['contour_heights']).astype(np.float32),
        np.array(template_features['contour_heights']).astype(np.float32),
        cv2.HISTCMP_CORREL)

    # 综合评分
    total_score = 0.6*match_score + 0.4*height_sim

    return total_score

4. 性能优化技巧

4.1 实时性优化

# 使用FLANN加速特征匹配
def create_flann_matcher():
    FLANN_INDEX_KDTREE = 1
    index_params = dict(algorithm=FLANN_INDEX_KDTREE, trees=5)
    search_params = dict(checks=50)
    return cv2.FlannBasedMatcher(index_params, search_params)

4.2 鲁棒性增强

# 添加光照不变性处理
def enhance_illumination_invariance(img):
    lab = cv2.cvtColor(img, cv2.COLOR_BGR2LAB)
    l, a, b = cv2.split(lab)
    clahe = cv2.createCLAHE(clipLimit=3.0, tileGridSize=(8,8))
    cl = clahe.apply(l)
    limg = cv2.merge((cl,a,b))
    return cv2.cvtColor(limg, cv2.COLOR_LAB2BGR)

5. 实际应用示例

# 钥匙数据库初始化
key_database = {
    'house_key1': extract_key_features(preprocess_key_image('keys/house1.jpg')),
    'car_key1': extract_key_features(preprocess_key_image('keys/car1.jpg'))
}

# 新钥匙识别
new_key = preprocess_key_image('keys/unknown.jpg')
new_features = extract_key_features(new_key)

best_match = None
best_score = 0
for name, features in key_database.items():
    score = match_keys(new_features, features)
    if score > best_score:
        best_score = score
        best_match = name

print(f"最佳匹配: {best_match} (置信度: {best_score:.2f})")
