天空盒子，分为两个章节来讲解。本章主要讲解D3D12 DDS工具和实现环境纹理

DDS工具介绍

DirectXTex纹理处理库, DDS是一种图片格式,由NVIDIA公司开发。大部分3D游戏引擎都可以使用DDS格式的图片用作贴图，也可以制作法线贴图。通过安装DDS插件后可以在PhotoShop中打开。全部完整源代码下载:GitHub - microsoft/DirectXTex: DirectXTex texture processing library

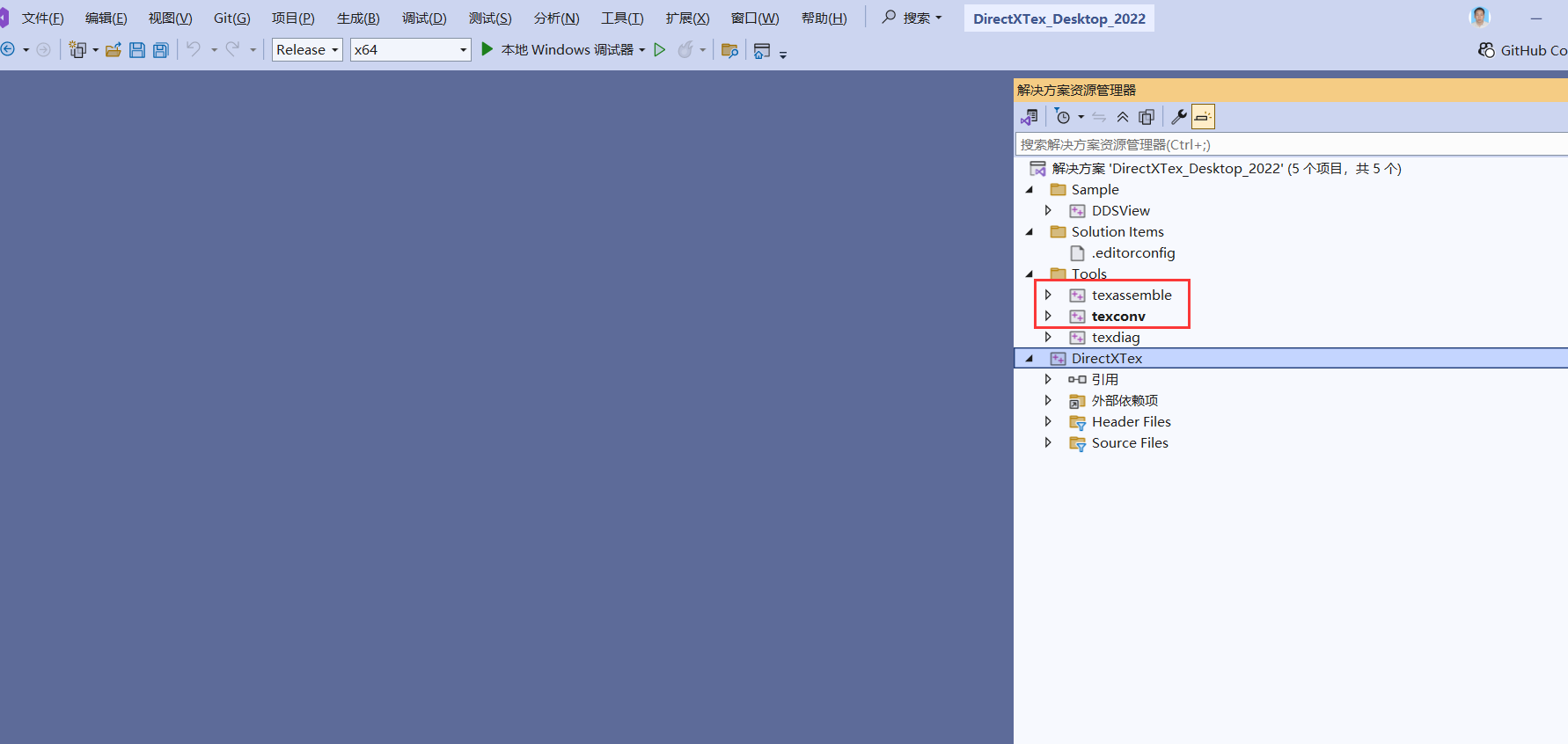

选择编译DirectXTex_Desktop_2019.sln或DirectXTex_Desktop_2022.sln

Texconv.exe

Texconv.exe  -f R8G8B8A8_UNORM 1.jpg -y

把1.jpg换成 1.dds

Texassemble.exe

texassemble.exe cube -o out.dds format:R8G8B8A8_UNORM  1.png 2.png 3.png 4.png 5.png 6.png

输出立方体贴图dds

准备工作

用Texassemble.exe工具制作立方体贴图

天空盒子纹理通常是一个立方体贴图（Cube Map），它包含了六个面的纹理图像。准备了六张图片，图片自己画上数字分别是12346。观察点是在立方体内面或是中心点，就像进入到房间后关门，能看到的范围。这就是作为背景环境纹理。图片如下：

背景环境纹理-立方体贴图：

工程代码整理

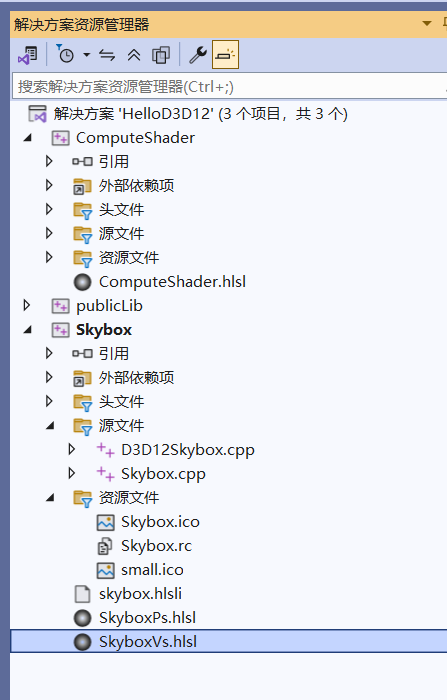

增加publicLib工程，把之前代码整理成一个LIB库，一些通用操作封装成一基类，用继承方式实现差异操作，以提高代码质量。

#pragma once
#include "..\publicLib\CD3D12Basic.h"
#include "..\publicLib\D2DText.h"
#include "..\publicLib\D3D12Observer.h"


struct SSKYBOX_FRAME_MVP_BUFFER
{
	XMFLOAT4X4 xm4X4MVP;
};


struct  SKYBOX_VERTEX
{
public:
	XMFLOAT4 v4Position;

public:
	SKYBOX_VERTEX() :v4Position() {}
	SKYBOX_VERTEX(float x, float y, float z)
		:v4Position(x, y, z, 1.0f)
	{
	}
	SKYBOX_VERTEX& operator = (const SKYBOX_VERTEX& vt)
	{
		v4Position = vt.v4Position;
	}
};



class CD3D12Skybox :public CD3D12Basic
{

public:
    void OnInit(HWND h);
    void OnRender(void);
	void UpdateData(void);

protected:
	void PopulateCommandList(void);

private:
    void LayoutRootSignature();
    void CreateShaderResourceViewInfo();
	void InitializeVertexBuffer(ComPtr<ID3D12Resource>& vertexBuffer, D3D12_VERTEX_BUFFER_VIEW& vertexBufferView);

    void CreateConstantBufferViewInfo(D3D12_CPU_DESCRIPTOR_HANDLE hCPUDesc);
	void  CreateGpuGraphicsPipelineState(ComPtr<ID3D12Device>device);

    ComPtr<ID3D12Resource> m_ddsBackgroundRes;
	SSKYBOX_FRAME_MVP_BUFFER* m_pMVPSkyboxData = nullptr;
	CD3D12Observer m_dx12Observer;
};

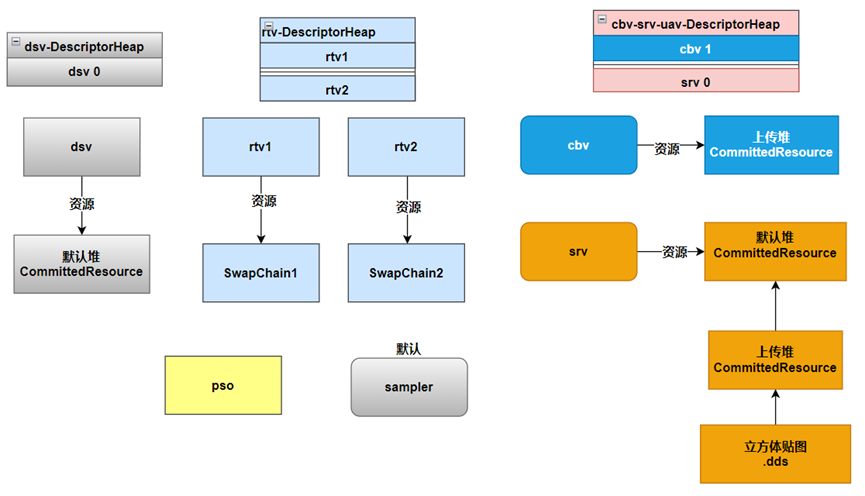

与第二、三章的代码功能差不多。这里列出资源情况：

1. 新增点 “深度模板视图” CommittedResource默认堆资源，这里没有用上传堆，也就是默认设置，创建代码

void CD3D12Basic::CreateDepthStencilViewDefault(void)
{

	CreateDescriptorHeap(m_device, m_depthStencilViewHeap, D3D12_DESCRIPTOR_HEAP_TYPE_DSV);


	CD3DX12_HEAP_PROPERTIES heapdes = CD3DX12_HEAP_PROPERTIES(D3D12_HEAP_TYPE_DEFAULT,0,0);
	CD3DX12_RESOURCE_DESC resDesc = CD3DX12_RESOURCE_DESC::Tex2D(DXGI_FORMAT_D32_FLOAT, m_nW, m_nH);
	resDesc.Flags = D3D12_RESOURCE_FLAG_ALLOW_DEPTH_STENCIL;
	D3D12_CLEAR_VALUE depthOptimizedClearValue = {};
	depthOptimizedClearValue.Format = DXGI_FORMAT_D32_FLOAT;
	depthOptimizedClearValue.DepthStencil.Depth = 1.0f;
	depthOptimizedClearValue.DepthStencil.Stencil = 0;

	CreateCommittedResource(m_device, heapdes, D3D12_HEAP_FLAG_NONE,resDesc, D3D12_RESOURCE_STATE_DEPTH_WRITE,m_depthStencilViewBuffer, &depthOptimizedClearValue);

	D3D12_DEPTH_STENCIL_VIEW_DESC stDepthStencilDesc = {};
	stDepthStencilDesc.Format = DXGI_FORMAT_D32_FLOAT;
	stDepthStencilDesc.ViewDimension = D3D12_DSV_DIMENSION_TEXTURE2D;
	stDepthStencilDesc.Flags = D3D12_DSV_FLAG_NONE;

	m_device->CreateDepthStencilView(m_depthStencilViewBuffer.Get()
		, &stDepthStencilDesc
		, m_depthStencilViewHeap->GetCPUDescriptorHandleForHeapStart());
}

2. 交换链与RTV其实是绑定在一起的，RTV要引用交换链的资源。

3.CBV与SRV,共用一个描述符堆，SRV的资源必须是默认堆资源(位GPU上)，CBV的资源可以是上传堆(简单化)

环境纹理

1.加载立方体贴图

api函数LoadDDSTextureFromFileEx(),会返一个CommittedResource默认堆资源和资源数据，

我们要创建一个CommittedResource上传资源，然后提交资源数据到默认堆资源上。代码：

void CD3D12Basic::LoadCommittedResourceFromDDSFile(wstring pathFile, ComPtr<ID3D12Resource>& ddsRes, ComPtr<ID3D12CommandQueue> commandQueue, ComPtr<ID3D12GraphicsCommandList> commandList, ComPtr<ID3D12Fence> fence, UINT64 fenceValue,D3D12_RESOURCE_STATES stateAfter)
{
	unique_ptr<uint8_t[]> ddsData;
	vector<D3D12_SUBRESOURCE_DATA> subresources;
	LoadDDSFromFile(pathFile, ddsRes, ddsData, subresources);
	HANDLE  fenceEvent = CreateEvent(NULL,false,false,NULL);
	ComPtr<ID3D12Resource> uploadRes;
	auto size = GetRequiredIntermediateSize(ddsRes.Get(), 0, subresources.size());

	CreateCommittedResource(m_device, CD3DX12_HEAP_PROPERTIES(D3D12_HEAP_TYPE_UPLOAD)
		, D3D12_HEAP_FLAG_NONE, CD3DX12_RESOURCE_DESC::Buffer(size), D3D12_RESOURCE_STATE_GENERIC_READ, uploadRes);

	UpdateSubresources(commandList.Get(), ddsRes.Get(), uploadRes.Get(), 0, 0, subresources.size(), subresources.data());


	auto barrier = CD3DX12_RESOURCE_BARRIER::Transition(ddsRes.Get(), D3D12_RESOURCE_STATE_COPY_DEST, stateAfter);
	commandList->ResourceBarrier(1, &barrier);

	ThrowIfFailed(commandList->Close());
	ID3D12CommandList* ppCommandLists[] = { commandList.Get() };
	commandQueue->ExecuteCommandLists(_countof(ppCommandLists), ppCommandLists);
	WaitForFenceCompletion(commandQueue, fence, fenceEvent, fenceValue);
	CloseHandle(fenceEvent);
}

1. UpdateSubresources（）去复制资源到上传堆上

2.ExecuteCommandLists()命令队列去执行把上传堆数据复制到默认堆上

3. WaitForFenceCompletion()用围栏等GPU执行完成

4. 创建SRV，指定用默认堆资源，代码：

void CD3D12Skybox::CreateShaderResourceViewInfo()
{
	D3D12_RESOURCE_DESC resDesc = m_ddsBackgroundRes->GetDesc();
	D3D12_SHADER_RESOURCE_VIEW_DESC stSRVDesc = {};
	stSRVDesc.Shader4ComponentMapping = D3D12_DEFAULT_SHADER_4_COMPONENT_MAPPING;
	stSRVDesc.Format = resDesc.Format;
	stSRVDesc.ViewDimension = D3D12_SRV_DIMENSION_TEXTURECUBE;
	stSRVDesc.Texture2D.MipLevels = resDesc.MipLevels;

	CreateShaderResourceView(m_device, m_ddsBackgroundRes.Get(), stSRVDesc, m_cbvSrvUavDescriptorHeap->GetCPUDescriptorHandleForHeapStart());
}

2.顶点数据Vertex

1.定义顶点数据结构

struct  SKYBOX_VERTEX
{
public:
	XMFLOAT4 v4Position;

public:
	SKYBOX_VERTEX() :v4Position() {}
	SKYBOX_VERTEX(float x, float y, float z)
		:v4Position(x, y, z, 1.0f)
	{
	}
	SKYBOX_VERTEX& operator = (const SKYBOX_VERTEX& vt)
	{
		v4Position = vt.v4Position;
	}
};

2. 设置显示视图区大小

环境纹理要满窗口显示 D3D12可视图范围是是-1到1，要定义两个三角形顶点，代码如下

	SKYBOX_VERTEX data[4] = {  };
	float pos = 1.125f;

	data[0].v4Position = XMFLOAT4(pos, pos, 1.0f, 1.0f);
	data[1].v4Position = XMFLOAT4(pos, -pos, 1.0f, 1.0f);
	data[2].v4Position = XMFLOAT4(-pos, pos, 1.0f, 1.0f);
	data[3].v4Position = XMFLOAT4(-pos, -pos, 1.0f, 1.0f);

1x,y设置为1.125或-1.125 是为窗口只能显示部分环境纹理

XMFLOAT4使用左手坐标，z值设置1最里面（最远端）从观察点看先看到 -1点再到0点，最后1

3. 增加顶点缓冲资源为了简单化用上传堆,填充D3D12_VERTEX_BUFFER_VIEW 结构，完整代码

void CD3D12Skybox::InitializeVertexBuffer(ComPtr<ID3D12Resource>& vertexBuffer, D3D12_VERTEX_BUFFER_VIEW& vertexBufferView)
{
	SKYBOX_VERTEX data[4] = {  };
	float pos = 1.125f;

	data[0].v4Position = XMFLOAT4(pos, pos, 1.0f, 1.0f);
	data[1].v4Position = XMFLOAT4(pos, -pos, 1.0f, 1.0f);
	data[2].v4Position = XMFLOAT4(-pos, pos, 1.0f, 1.0f);
	data[3].v4Position = XMFLOAT4(-pos, -pos, 1.0f, 1.0f);

	int cbvSize = sizeof(data);
	CreateCommittedResource(m_device, CD3DX12_HEAP_PROPERTIES(D3D12_HEAP_TYPE_UPLOAD), D3D12_HEAP_FLAG_NONE, CD3DX12_RESOURCE_DESC::Buffer(cbvSize), D3D12_RESOURCE_STATE_GENERIC_READ, vertexBuffer);

	SKYBOX_VERTEX* pVertexDataBegin = nullptr;
	vertexBuffer->Map(0, nullptr, (void**)&pVertexDataBegin);
	memcpy(pVertexDataBegin, &data, cbvSize);
	vertexBuffer->Unmap(0, nullptr);

	vertexBufferView.BufferLocation = vertexBuffer->GetGPUVirtualAddress();
	vertexBufferView.StrideInBytes = sizeof(SKYBOX_VERTEX);
	vertexBufferView.SizeInBytes = cbvSize;

}

3.创建常量缓冲区

设置常量缓冲区目的是cpu计算出计算3D世界空间矩阵转换，投影空间矩阵相乘观察空间矩阵的结果放在常量缓冲区， HSLS程序再乘局部空间矩阵最终得到裁剪空间（第三章有这部份说明）

1.定义数据结构

struct SSKYBOX_FRAME_MVP_BUFFER
{
	XMFLOAT4X4 xm4X4MVP;
};

2. 创建常量缓冲区数据源引用一个上传堆资源，代码

void CD3D12Skybox::CreateConstantBufferViewInfo(D3D12_CPU_DESCRIPTOR_HANDLE hCPUDesc)
{
	int cbvSize = sizeof(SSKYBOX_FRAME_MVP_BUFFER);
	cbvSize = UPPER_ALING_DIV(cbvSize, 256);
	CreateCommittedResource(m_device, CD3DX12_HEAP_PROPERTIES(D3D12_HEAP_TYPE_UPLOAD), D3D12_HEAP_FLAG_NONE, CD3DX12_RESOURCE_DESC::Buffer(cbvSize), D3D12_RESOURCE_STATE_GENERIC_READ, m_cbvResource);

	D3D12_CONSTANT_BUFFER_VIEW_DESC cbvDesc = {};
	cbvDesc.BufferLocation = m_cbvResource->GetGPUVirtualAddress();
	cbvDesc.SizeInBytes = cbvSize;
	D3D12_CPU_DESCRIPTOR_HANDLE startCbv = GetCPUDescriptorHandleForHeapStart(m_cbvSrvUavDescriptorHeap,1);
	CreateConstantBufferView(m_device,  cbvDesc, startCbv);
	m_cbvResource->Map(0, nullptr, (void**)&m_pMVPSkyboxData);

}

3. 计算观察空间矩阵相乘投影空间矩阵的代码

void CD3D12Skybox::UpdateData(void)
{

#if 0
	static ULONGLONG n64tmFrameStart = 0;
	static double dYAngle = 0;
	XMFLOAT3 move = {};
	double dbPalstance = 15.0f * XM_PI / 180.0f;
	ULONGLONG n64tmCurrent = ::GetTickCount64();

	dYAngle += ((n64tmCurrent - n64tmFrameStart) / 1000.0f) * dbPalstance;
	n64tmFrameStart = n64tmCurrent;

	if (dYAngle > XM_2PI)
	{
		dYAngle = fmod(dYAngle, XM_2PI);
	}

	XMMATRIX model = XMMatrixRotationY(static_cast<float>(dYAngle));
	XMMATRIX xmView = m_dx12Observer.GetViewMatrix();
	XMMATRIX xmProj = m_dx12Observer.GetProjectionMatrix(1.2f, (FLOAT)m_nW / (FLOAT)m_nH);

	XMMATRIX modelView = XMMatrixMultiply(model, xmView);

	XMMATRIX xmMVp = XMMatrixMultiply(modelView, xmProj);

	xmMVp = XMMatrixInverse(nullptr, xmMVp);
	//xmMVp = XMMatrixTranspose(xmMVp);
	XMStoreFloat4x4(&m_pMVPSkyboxData->xm4X4MVP, xmMVp);
#else

	XMMATRIX xmView = m_dx12Observer.GetViewMatrix();
	XMMATRIX xmProj = m_dx12Observer.GetProjectionMatrix(1.2f, (FLOAT)m_nW / (FLOAT)m_nH);
	XMMATRIX xmMVp = XMMatrixMultiply(xmView, xmProj);

	xmMVp = XMMatrixInverse(nullptr, xmMVp);
	XMStoreFloat4x4(&m_pMVPSkyboxData->xm4X4MVP, xmMVp);

#endif
}

注释部分是实现一个自动旋转功能，世界空间乘观察空间乘投影空间矩阵的结HSLS

4.HSLS程序

1.自定义数据结构 skybox.hlsli

struct VSInput
{
    float4 pos : POSITION;
};

struct PSInput
{
    float4 pos : SV_POSITION;
    float3 tex : TEXCOORD;
};

2.顶点着色器 SkyboxVs.hlsl

cbuffer SceneConstantBuffer : register(b0)
{
    row_major matrix viewProjection;
}

PSInput main(VSInput pos : VSInput)
{
    PSInput output;
    output.pos = pos.pos;
    output.tex = normalize(mul(pos.pos, viewProjection));
    return output;
}

	D3D12_INPUT_ELEMENT_DESC inputElementDescs[] =
	{
		{ "VSInput", 0, DXGI_FORMAT_R32G32B32A32_FLOAT, 0, 0, D3D12_INPUT_CLASSIFICATION_PER_VERTEX_DATA, 0 }
	};

viewProjection是常量缓冲区的值，顶点着色器要输出顶点位置，PSInput 做为参数传到像素着色器，所以用SV_POSITION标记输出.(SV_POSITION表示顶点在屏幕空间中的位置,POSITION表示模型空间中的位置)，如果用

struct PSInput
{
    //float4 pos : SV_POSITION;
    float4 pos : POSITION;
    float3 tex : TEXCOORD;
};

运行时就会报错

D3D12 ERROR: ID3D12Device::CreateGraphicsPipelineState: Rasterization Unit is enabled (PixelShader is not NULL or Depth/Stencil test is enabled and RasterizedStream is not D3D12_SO_NO_RASTERIZED_STREAM) but position is not provided by the last shader before the Rasterization Unit. [ STATE_CREATION ERROR #682: CREATEGRAPHICSPIPELINESTATE_POSITION_NOT_PRESENT]

3.像素着色器 SkyboxPs.hlsl

#include "skybox.hlsli"

TextureCube environmentCube : register(t0);
SamplerState samp : register(s0);


float4 main(PSInput input) : SV_TARGET
{
    return environmentCube.Sample(samp, input.tex);
}

SRV用了立方体贴图所以 hlsl用TextureCube 纹理

逆矩阵

现在知道屏幕坐标pos.pos ，求世界坐标，通过逆矩阵 xmMVp = XMMatrixInverse(nullptr, xmMVp); 世界坐标= 屏幕坐标 * MVP的逆矩阵, output.tex = normalize(mul(pos.pos, viewProjection)); 详情见第三章-逆矩阵

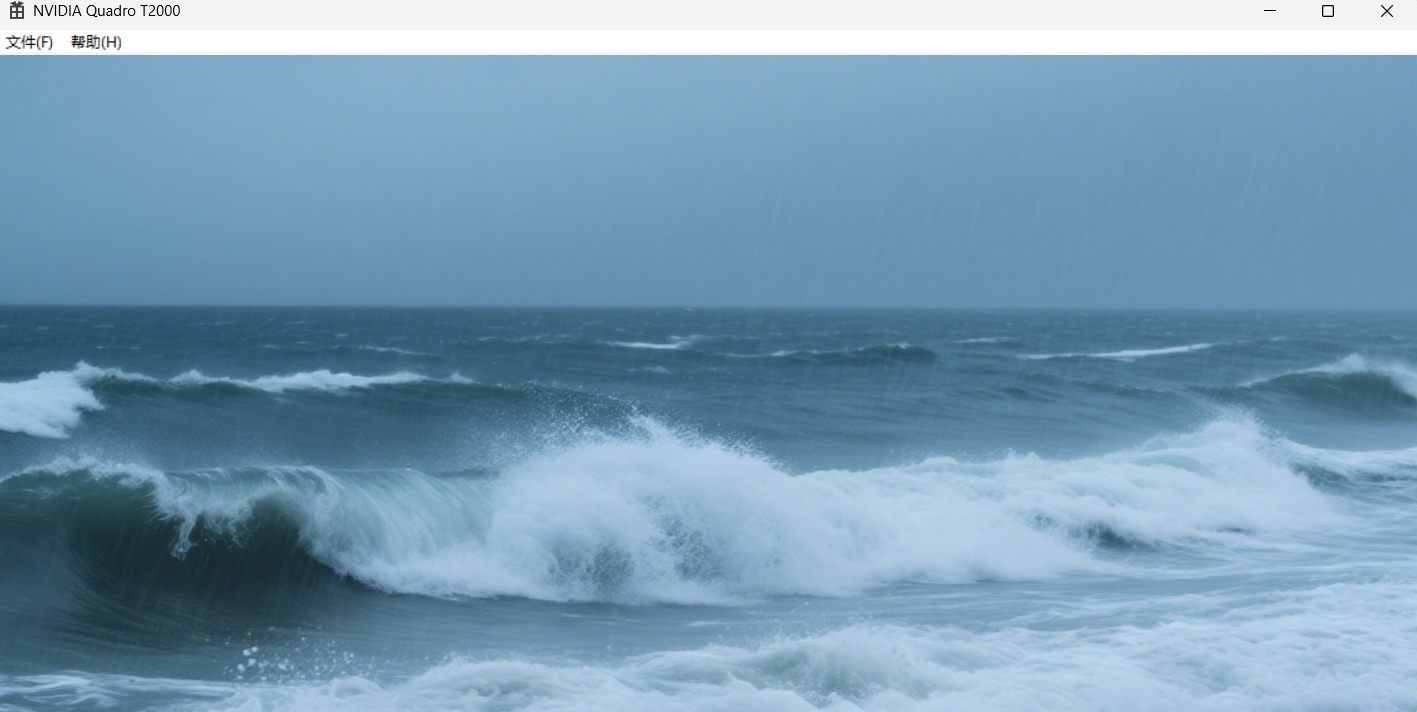

运行效果

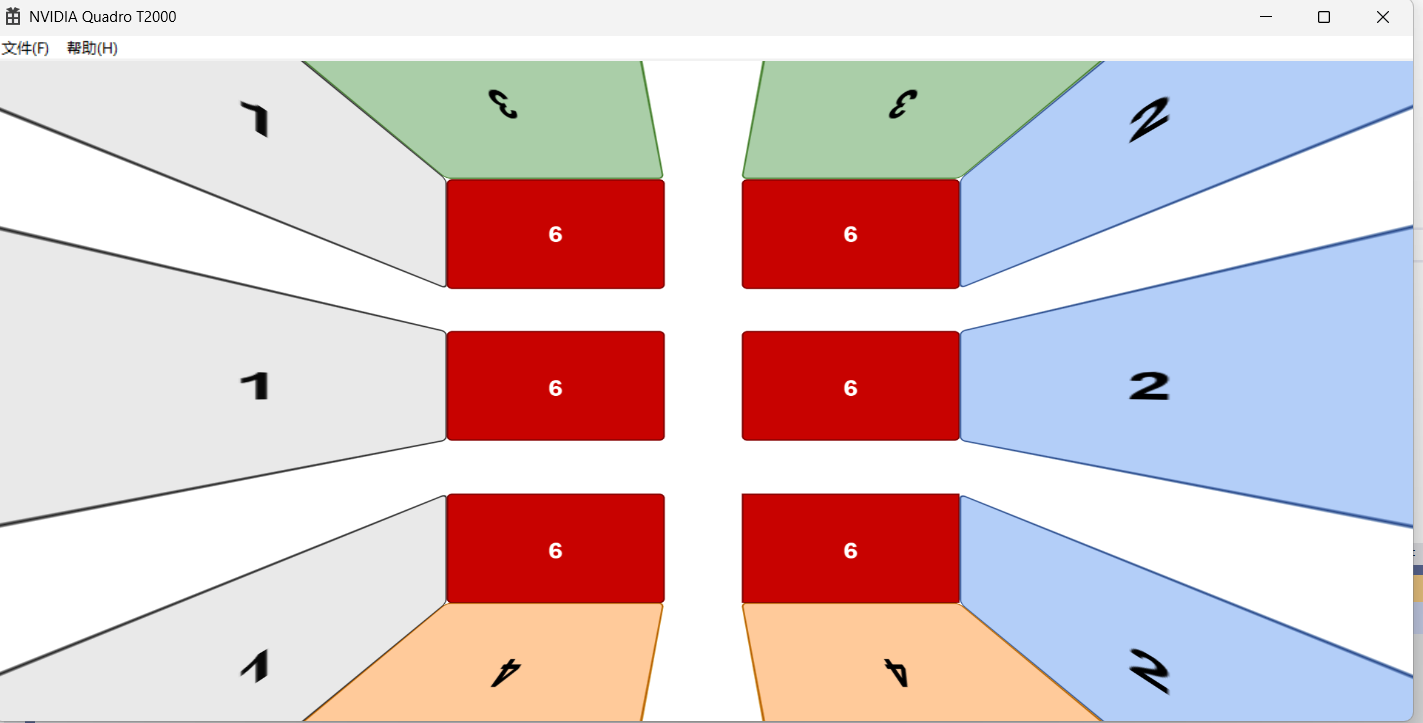

1.设置透视投影矩阵视场角度2.0

XMMATRIX xmProj = m_dx12Observer.GetProjectionMatrix(1.2f, (FLOAT)m_nW / (FLOAT)m_nH);

效果：

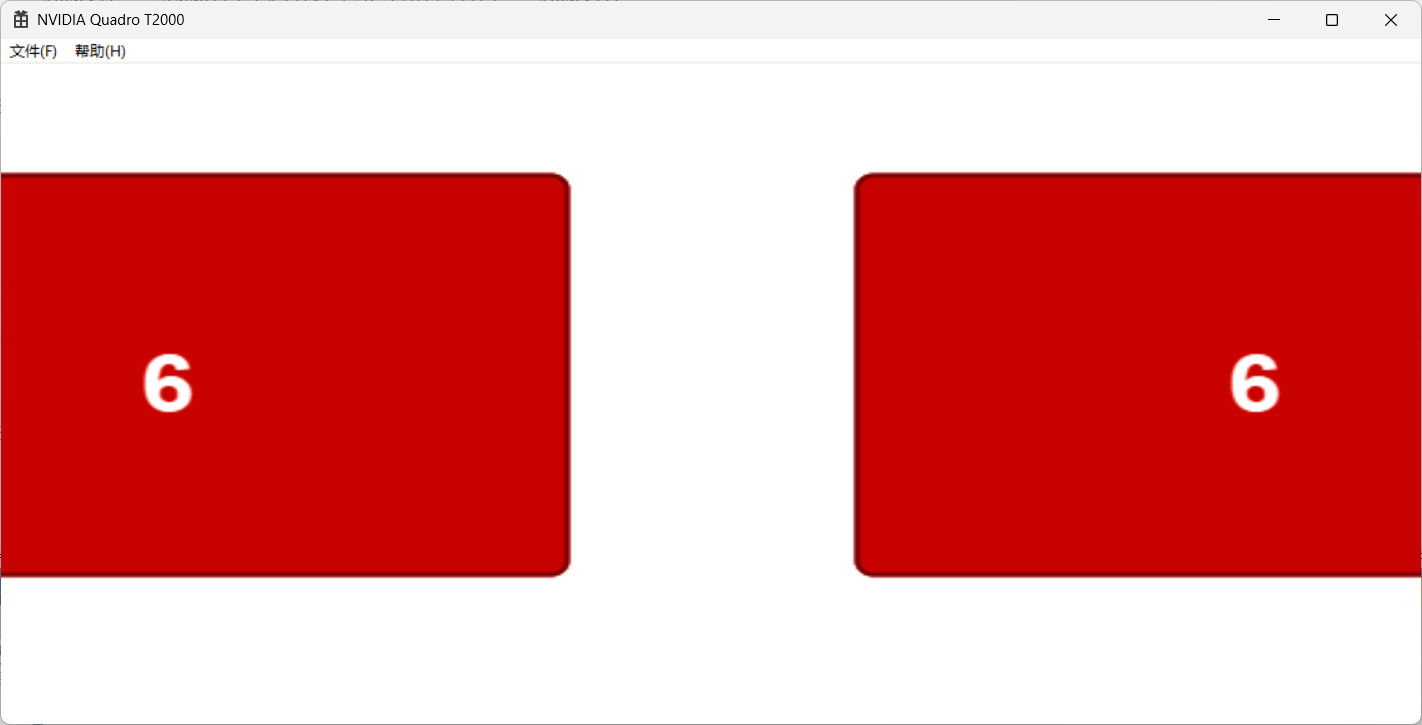

2.设置透视投影矩阵视场角度0.8

XMMATRIX xmProj = m_dx12Observer.GetProjectionMatrix(0.8f, (FLOAT)m_nW / (FLOAT)m_nH);

效果：

3. 更换资源立方体贴图，透视投影矩阵视场角度0.8
