Spring mvc框架搭建

Spring MVC HelloWorld Using Maven in Eclipse

框架下载地址： https://github.com/qinzhaokun/noise.git

Java developers often rely on examples to learn Spring framework. Simple examples are often a key learning resource. There are many Spring MVC HelloWorld applications. However, most of them are outdated (do not integrate Maven, use old version of Spring, etc) or not complete (missing key steps or file hierarchy view). Therefore can not lead to a perfectly working Hello World. In this article, I will show steps for creating a Spring MVC HelloWorld application using Maven in Eclipse. All files's content and locations are illustrated.

Prerequisite

• Windows 7, Java 7, Eclipse Kepler Java EE
• Tomcat 7 (How to install Tomcat 7 on Eclipse)

Step 1: Create a Maven Project

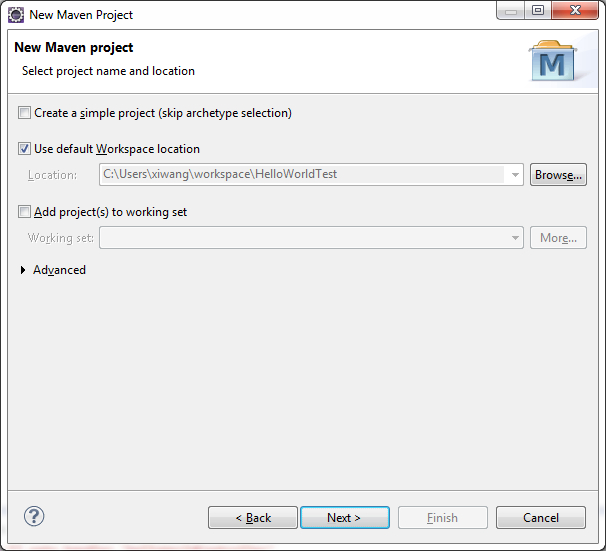

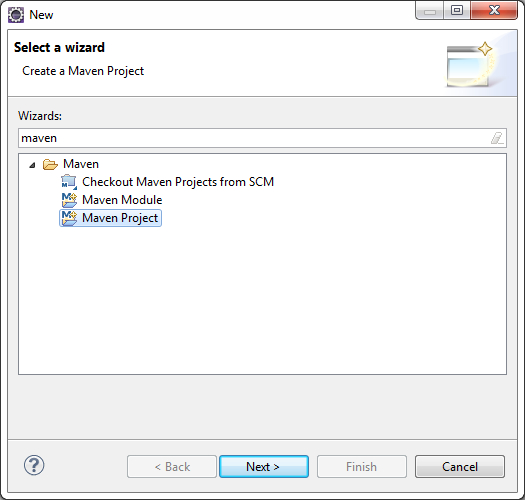

Create a Maven project by following the following steps:

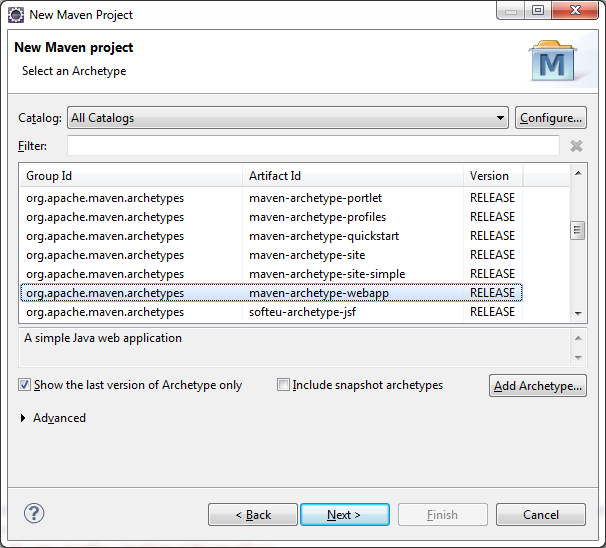

Select "webapp".

GroupId identifies the project uniquely across all projects, so we need to enforce a naming schema. ArtifactId is the name of the jar without version. For more information about each field, check out the official page about maven naming convention. (You can do this later. It makes more sense, when you complete the project first.)

After the Maven project is created, the project in the Navigator view should look like the following:

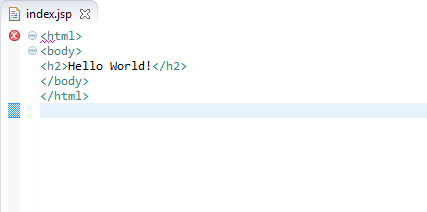

As shown above, there is an error marked with red. If you open index.jsp file, you can see the error message:

The superclass "javax.servlet.http.HttpServlet" was not found on the Java Build Path

To fix the problem, right click on project -> Properties -> Java Build Path -> Add Library...-> Server Runtime -> Apache Tomcat -> Finish.

Step 2: Configure Spring

To make a Spring web application, we need to configure several xml files. First of all, we need to add Spring dependencies. Edit the automatically generated pom.xml file to be the following:

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.programcreek</groupId>
	<artifactId>HelloWorld</artifactId>
	<packaging>war</packaging>
	<version>0.0.1-SNAPSHOT</version>
	<name>HelloWorld Maven Webapp</name>
	<url>http://maven.apache.org</url>

	<properties>
		<spring.version>4.0.1.RELEASE</spring.version>
	</properties>
	<dependencies>
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>3.8.1</version>
			<scope>test</scope>
		</dependency>
		<!-- Spring dependencies -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>

	</dependencies>


	<build>
		<finalName>HelloWorld</finalName>
	</build>
</project>

Edit the default web.xml.

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0">


	<display-name>Archetype Created Web Application</display-name>

	<servlet>
		<servlet-name>dispatcher</servlet-name>
		<servlet-class>
			org.springframework.web.servlet.DispatcherServlet
		</servlet-class>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>dispatcher</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>/WEB-INF/dispatcher-servlet.xml</param-value>
	</context-param>

	<listener>
		<listener-class>
			org.springframework.web.context.ContextLoaderListener
		</listener-class>
	</listener>
</web-app>

Create an xml file "dispatcher-servlet.xml" under the same directory of web.xml.

<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">

	<context:component-scan base-package="com.programcreek.helloworld.controller" />

	<bean
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix">
			<value>/WEB-INF/views/</value>
		</property>
		<property name="suffix">
			<value>.jsp</value>
		</property>
	</bean>
</beans>

In the above xml file, base-package specifies the package of the controllers. prefix specifies the directory of views, and it is set to be /WEB-INF/views/, which means views directory should be created under WEB-INF. suffix specifies the file extension of views. For example, given a view "helloworld", the view will be located as /WEB-INF/views/helloworld.jsp. You can figure this out later in Step 3.

Step 3: Create Spring Controller and View

Create the HelloWorldController under src/main/java/ directory.

HelloWorldController.java

package com.programcreek.helloworld.controller;

import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class HelloWorldController {
	String message = "Welcome to Spring MVC!";

	@RequestMapping("/hello")
	public ModelAndView showMessage(
			@RequestParam(value = "name", required = false, defaultValue = "World") String name) {
		System.out.println("in controller");

		ModelAndView mv = new ModelAndView("helloworld");
		mv.addObject("message", message);
		mv.addObject("name", name);
		return mv;
	}
}

In the code above, @RequestMapping annotation maps web requests onto specific handler classes and/or handler methods, in this case, showMessage(). It provides a consistent style between Servlet and Portlet environments, with the semantics adapting to the concrete environment.

RequestParam indicates that a method parameter should be bound to a web request parameter. In this case, we also make it not required and give it a default value.

new ModelAndView("helloworld") determines that helloworld is the target view.

index.jsp

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"

pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Spring 4 MVC - HelloWorld Index Page</title>
</head>
<body>

	<center>
		<h2>Hello World</h2>
		<h3>
			<a href="hello?name=Eric">Click Here</a>
		</h3>
	</center>
</body>
</html>

Create the helloworld.jsp file under /WEB-INF/views/ directory.

helloworld.jsp

<%@ page language="java" contentType="text/html; charset=ISO-8859-1" pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Spring 4 MVC -HelloWorld</title>
</head>
<body>
	<center>
		<h2>Hello World</h2>
		<h2>
			${message} ${name}
		</h2>
	</center>
</body>
</html>

${variable} will be converted to the value of the variable.

Final Navigator view of the project:

Step 4: Run on Server

Right click the project and select Run As --> Run on Server.
