Kubeadm 1.24.x安装教程

第一章 基本环境配置

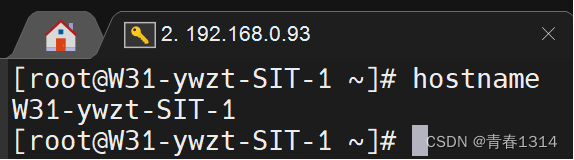

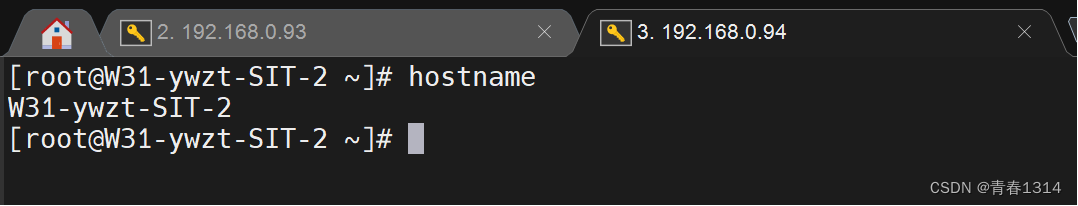

1.1 配置hosts  所有节点

修改/etc/hosts如下：

192.168.0.93 W31-ywzt-SIT-1 192.168.0.94 W31-ywzt-SIT-2

1.2 CentOS 7安装yum源如下 所有节点

curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo yum install -y yum-utils device-mapper-persistent-data lvm2 yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo cat <<EOF > /etc/yum.repos.d/kubernetes.repo [kubernetes] name=Kubernetes baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/ enabled=1 gpgcheck=0 repo_gpgcheck=0 gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg EOF sed -i -e '/mirrors.cloud.aliyuncs.com/d' -e '/mirrors.aliyuncs.com/d' /etc/yum.repos.d/CentOS-Base.repo

1.3 安装必备工具 所有节点

yum install wget jq psmisc vim net-tools telnet yum-utils device-mapper-persistent-data lvm2 git -y

1.4 关闭防火墙、selinux、dnsmasq 所有节点

systemctl disable --now firewalld systemctl disable --now dnsmasq systemctl disable --now NetworkManager setenforce 0 sed -i 's#SELINUX=enforcing#SELINUX=disabled#g' /etc/sysconfig/selinux sed -i 's#SELINUX=enforcing#SELINUX=disabled#g' /etc/selinux/config

1.5 关闭swap分区  所有节点

swapoff -a && sysctl -w vm.swappiness=0 sed -ri '/^[^#]*swap/s@^@#@' /etc/fstab

1.6 安装ntpdate  所有节点

rpm -ivh http://mirrors.wlnmp.com/centos/wlnmp-release-centos.noarch.rpm yum install ntpdate -y

1.7 同步时间 所有节点

ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime echo 'Asia/Shanghai' >/etc/timezone ntpdate time2.aliyun.com # 加入到crontab    crontab -e */5 * * * * /usr/sbin/ntpdate time2.aliyun.com

1.8 配置limit  所有节点

ulimit -SHn 65535 vim /etc/security/limits.conf # 末尾添加如下内容 * soft nofile 65536 * hard nofile 131072 * soft nproc 65535 * hard nproc 655350 * soft memlock unlimited * hard memlock unlimited

1.9 升级系统  所有节点

yum update -y --exclude=kernel*   #CentOS7需要升级，CentOS8可以按需升级系统

第二章 内核配置

CentOS7 需要升级内核至4.18+，本地升级的版本为4.19

2.1 master节点下载内核  （或者直接上传内核） master节点

cd /root wget http://193.49.22.109/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-devel-4.19.12-1.el7.elrepo.x86_64.rpm wget http://193.49.22.109/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-4.19.12-1.el7.elrepo.x86_64.rpm

2.2 从master节点传到其他节点  master节点

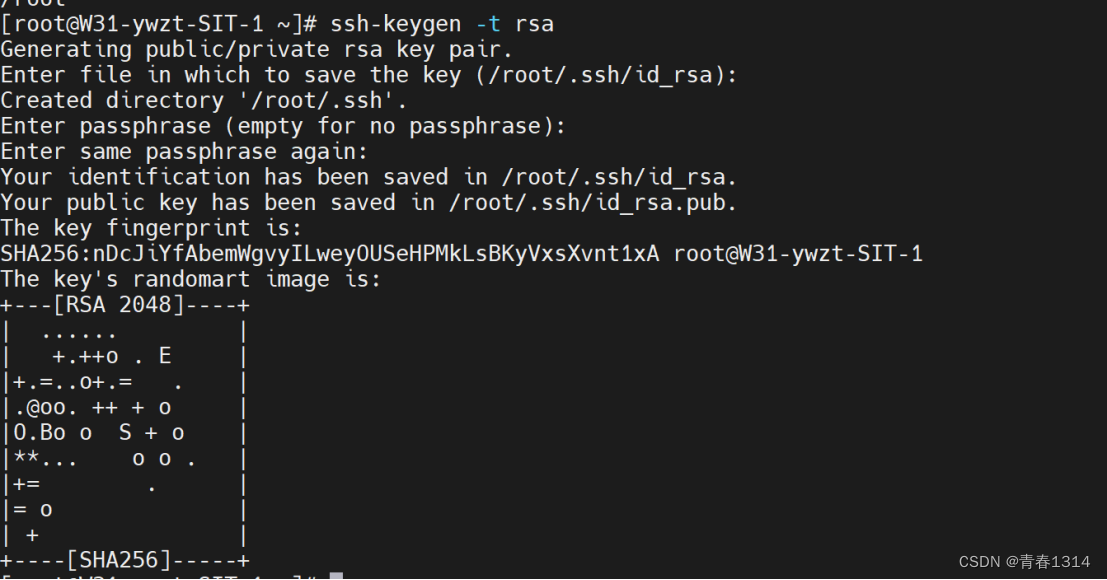

master节点免密钥登录其他节点，密钥配置如下:

ssh-keygen -t rsa

for i in W31-ywzt-SIT-1 W31-ywzt-SIT-2;do ssh-copy-id -i .ssh/id_rsa.pub $i;done

从master节点传到其他节点：

for i in W31-ywzt-SIT-2;do scp kernel-ml-4.19.12-1.el7.elrepo.x86_64.rpm kernel-ml-devel-4.19.12-1.el7.elrepo.x86_64.rpm $i:/root/ ; done

2.3 安装内核  所有节点

cd /root && yum localinstall -y kernel-ml*

2.4 更改内核启动顺序  所有节点

grub2-set-default  0 && grub2-mkconfig -o /etc/grub2.cfg grubby --args="user_namespace.enable=1" --update-kernel="$(grubby --default-kernel)"

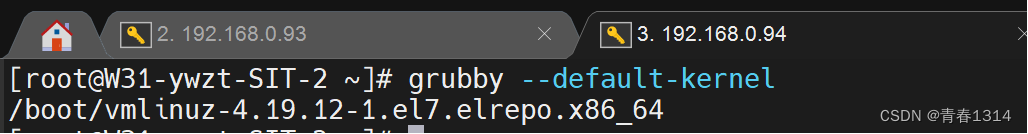

2.5 检查默认内核是不是4.19  所有节点

grubby --default-kernel

2.6 所有节点重启，然后检查内核是不是4.19  所有节点

reboot uname -a

2.7 安装ipvsadm  所有节点

yum install ipvsadm ipset sysstat conntrack libseccomp -y

2.8 配置ipvs模块  所有节点

在内核4.19+版本nf_conntrack_ipv4已经改为nf_conntrack， 4.18以下使用nf_conntrack_ipv4即可：

modprobe -- ip_vs modprobe -- ip_vs_rr modprobe -- ip_vs_wrr modprobe -- ip_vs_sh modprobe -- nf_conntrack vi /etc/modules-load.d/ipvs.conf # 加入以下内容 ip_vs ip_vs_lc ip_vs_wlc ip_vs_rr ip_vs_wrr ip_vs_lblc ip_vs_lblcr ip_vs_dh ip_vs_sh ip_vs_fo ip_vs_nq ip_vs_sed ip_vs_ftp ip_vs_sh nf_conntrack ip_tables ip_set xt_set ipt_set ipt_rpfilter ipt_REJECT ipip

然后执行systemctl enable --now systemd-modules-load.service即可

2.9 配置k8s内核  所有节点

cat <<EOF > /etc/sysctl.d/k8s.conf net.ipv4.ip_forward = 1 net.bridge.bridge-nf-call-iptables = 1 net.bridge.bridge-nf-call-ip6tables = 1 fs.may_detach_mounts = 1 net.ipv4.conf.all.route_localnet = 1 vm.overcommit_memory=1 vm.panic_on_oom=0 fs.inotify.max_user_watches=89100 fs.file-max=52706963 fs.nr_open=52706963 net.netfilter.nf_conntrack_max=2310720 net.ipv4.tcp_keepalive_time = 600 net.ipv4.tcp_keepalive_probes = 3 net.ipv4.tcp_keepalive_intvl =15 net.ipv4.tcp_max_tw_buckets = 36000 net.ipv4.tcp_tw_reuse = 1 net.ipv4.tcp_max_orphans = 327680 net.ipv4.tcp_orphan_retries = 3 net.ipv4.tcp_syncookies = 1 net.ipv4.tcp_max_syn_backlog = 16384 net.ipv4.ip_conntrack_max = 65536 net.ipv4.tcp_max_syn_backlog = 16384 net.ipv4.tcp_timestamps = 0 net.core.somaxconn = 16384 EOF sysctl --system

2.10 重启服务器，保证重启后内核依旧加载 所有节点

reboot

lsmod | grep --color=auto -e ip_vs -e nf_conntrack
