初识DispatcherServlet

1.简介

DispatcherServlet是整个SpringMVC框架的入口，充当一个前端控制器，所有的请求会先到DispatcherServlet然后转发到具体的Controller进行处理，故DispatcherServlet是学习SpringMVC框架的入口

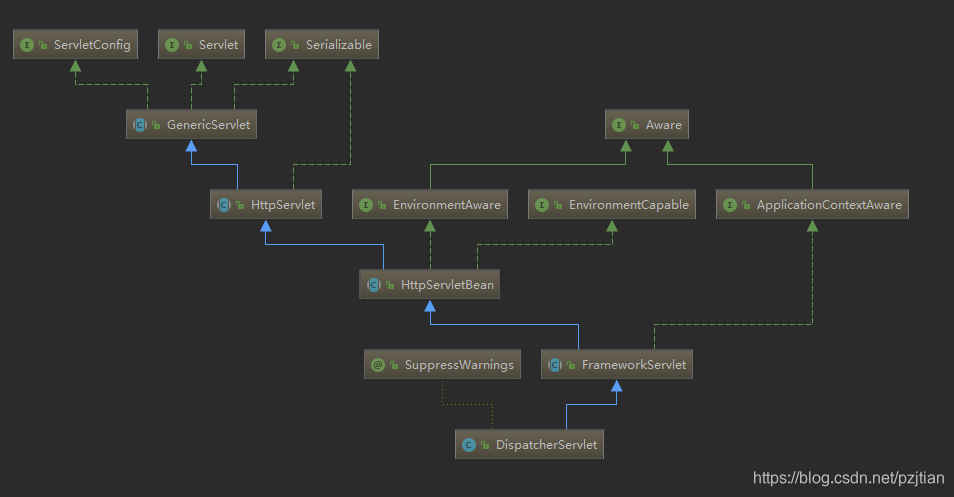

2.类结构图

从类结构图可以看出，DispatcherServlet最终继承自Servlet，或者说它就是一个Servlet，当然从类名也可以很明确的知道。既然是Servlet，那DispatcherServlet的生命周期必然也是调用init()方法进行初始化、doService()进行具体的请求处理、destroy()进行销毁。

3.初始化init()

初始化的具体实现在HttpServletBean中


	/**
	 * 主要作用是读取Servlet的初始化配置，将配置设置到Bean的属性上，最终初始化配置会设置到BeanWrapper上
	**/
	@Override
	public final void init() throws ServletException {
		if (logger.isDebugEnabled()) {
			logger.debug("Initializing servlet '" + getServletName() + "'");
		}

		// 把初始化参数设置到Bean的属性上
		try {
			PropertyValues pvs = new ServletConfigPropertyValues(getServletConfig(), this.requiredProperties);
			BeanWrapper bw = PropertyAccessorFactory.forBeanPropertyAccess(this);
			ResourceLoader resourceLoader = new ServletContextResourceLoader(getServletContext());
			bw.registerCustomEditor(Resource.class, new ResourceEditor(resourceLoader, getEnvironment()));
			initBeanWrapper(bw);
			bw.setPropertyValues(pvs, true);
		}
		catch (BeansException ex) {
			logger.error("Failed to set bean properties on servlet '" + getServletName() + "'", ex);
			throw ex;
		}

		// 让子类执行初始化
		initServletBean();

		if (logger.isDebugEnabled()) {
			logger.debug("Servlet '" + getServletName() + "' configured successfully");
		}
	}

FrameworkServlet的initServletBean()方法

@Override
	protected final void initServletBean() throws ServletException {
		getServletContext().log("Initializing Spring FrameworkServlet '" + getServletName() + "'");
		if (this.logger.isInfoEnabled()) {
			this.logger.info("FrameworkServlet '" + getServletName() + "': initialization started");
		}
		long startTime = System.currentTimeMillis();

		try {
			//初始化WebApplicationContext
			this.webApplicationContext = initWebApplicationContext();
			initFrameworkServlet();
		}
		catch (ServletException ex) {
			this.logger.error("Context initialization failed", ex);
			throw ex;
		}
		catch (RuntimeException ex) {
			this.logger.error("Context initialization failed", ex);
			throw ex;
		}

		if (this.logger.isInfoEnabled()) {
			long elapsedTime = System.currentTimeMillis() - startTime;
			this.logger.info("FrameworkServlet '" + getServletName() + "': initialization completed in " +
					elapsedTime + " ms");
		}
	}

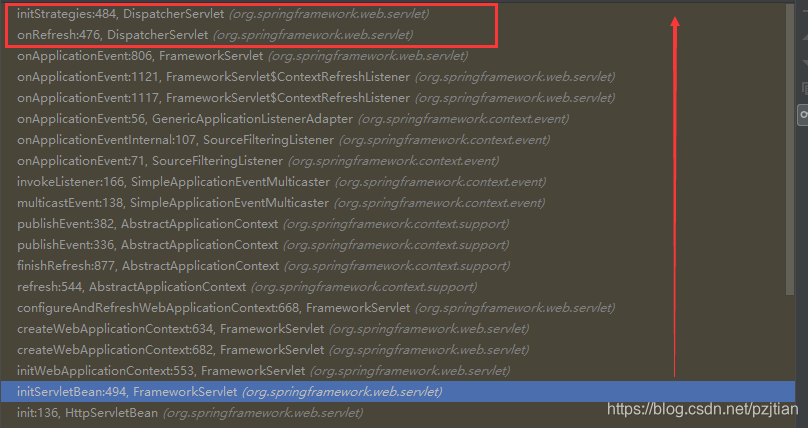

跟踪初始化的调用栈可以看出，最后会到DispatcherServlet的initStrategies()方法，执行SpringMVC相关处理的初始化，具体代码如下：

protected void initStrategies(ApplicationContext context) {
		initMultipartResolver(context);
		initLocaleResolver(context);
		initThemeResolver(context);
		initHandlerMappings(context);
		initHandlerAdapters(context);
		initHandlerExceptionResolvers(context);
		initRequestToViewNameTranslator(context);
		initViewResolvers(context);
		initFlashMapManager(context);
	}

从各个init方法的名称，就大致可以看出来方法初始化的用途。
至此，我们来总结一下DispatcherServlet的初始化过程
HttpServletBean（init）–> FrameworkServlet(initServletBean、initWebApplicationContext) -->…省略Spring的初始化…–>DispatcherServlet(onRefresh、initStrategies)

4.逻辑处理doService()方法

@Override
	protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
		if (logger.isDebugEnabled()) {
			String resumed = WebAsyncUtils.getAsyncManager(request).hasConcurrentResult() ? " resumed" : "";
			logger.debug("DispatcherServlet with name '" + getServletName() + "'" + resumed +
					" processing " + request.getMethod() + " request for [" + getRequestUri(request) + "]");
		}

		// Keep a snapshot of the request attributes in case of an include,
		// to be able to restore the original attributes after the include.
		//将request中springMVC相关的参数put到attributesSnapshot中
		Map<String, Object> attributesSnapshot = null;
		if (WebUtils.isIncludeRequest(request)) {
			attributesSnapshot = new HashMap<String, Object>();
			Enumeration<?> attrNames = request.getAttributeNames();
			while (attrNames.hasMoreElements()) {
				String attrName = (String) attrNames.nextElement();
				if (this.cleanupAfterInclude || attrName.startsWith("org.springframework.web.servlet")) {
					attributesSnapshot.put(attrName, request.getAttribute(attrName));
				}
			}
		}

		// Make framework objects available to handlers and view objects.
		//将框架相关的变量对象放到当前请求的request中
		request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
		request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
		request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
		request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());

		FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
		if (inputFlashMap != null) {
			request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
		}
		request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
		request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);

		try {
		   //请求处理的主要逻辑方法
			doDispatch(request, response);
		}
		finally {
			if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
				// Restore the original attribute snapshot, in case of an include.
				if (attributesSnapshot != null) {
					restoreAttributesAfterInclude(request, attributesSnapshot);
				}
			}
		}
	}

从doService方法可以看出，先从request请求的Attribute中将spring.web.servlet相关的参数取出放入到一个Map(attributesSnapshot )中，然后将框架相关的对象放到request中，调用doDispatch方法

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
		HttpServletRequest processedRequest = request;
		HandlerExecutionChain mappedHandler = null;
		boolean multipartRequestParsed = false;

		WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

		try {
			ModelAndView mv = null;
			Exception dispatchException = null;

			try {
			//校验是不是文件上传请求
				processedRequest = checkMultipart(request);
				multipartRequestParsed = (processedRequest != request);

				// Determine handler for the current request.
				//通过HandlerMapping获取handler执行链（HandlerExecutionChain）
				mappedHandler = getHandler(processedRequest);
				if (mappedHandler == null || mappedHandler.getHandler() == null) {
					noHandlerFound(processedRequest, response);
					return;
				}

				// Determine handler adapter for the current request.
				//通过handler获取HandlerAdapter
				HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

				// Process last-modified header, if supported by the handler.
				String method = request.getMethod();
				boolean isGet = "GET".equals(method);
				if (isGet || "HEAD".equals(method)) {
					long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
					if (logger.isDebugEnabled()) {
						logger.debug("Last-Modified value for [" + getRequestUri(request) + "] is: " + lastModified);
					}
					if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
						return;
					}
				}

				if (!mappedHandler.applyPreHandle(processedRequest, response)) {
					return;
				}

				// Actually invoke the handler.
				//通过HandlerAdapter调用实际的处理逻辑,返回ModelAndView
				mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

				if (asyncManager.isConcurrentHandlingStarted()) {
					return;
				}

				applyDefaultViewName(processedRequest, mv);
				mappedHandler.applyPostHandle(processedRequest, response, mv);
			}
			catch (Exception ex) {
				dispatchException = ex;
			}
			catch (Throwable err) {
				// As of 4.3, we're processing Errors thrown from handler methods as well,
				// making them available for @ExceptionHandler methods and other scenarios.
				dispatchException = new NestedServletException("Handler dispatch failed", err);
			}
			//处理ModelAndView，将结果返回给前台展示
			processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
		}
		catch (Exception ex) {
			triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
		}
		catch (Throwable err) {
			triggerAfterCompletion(processedRequest, response, mappedHandler,
					new NestedServletException("Handler processing failed", err));
		}
		finally {
			if (asyncManager.isConcurrentHandlingStarted()) {
				// Instead of postHandle and afterCompletion
				if (mappedHandler != null) {
					mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
				}
			}
			else {
				// Clean up any resources used by a multipart request.
				if (multipartRequestParsed) {
					cleanupMultipart(processedRequest);
				}
			}
		}
	}

doDispatch方法可以说是SpringMVC的主流程方法，方法里面就可以看出来一个Web请求的所有处理流程
1.通过HandlerMapping来获取Handler，返回HandlerExecutionChain
2.根据获取到的Handler得到HandlerAdapter
3.HandlerAdapter调用hander方法，调用实际处理逻辑方法（找到Controller里面对应的处理方法），返回ModelAndView
4.处理ModelAndView，将结果返回给前台展示

后面会详细分析各个处理步骤各自做了哪些事~
