最常见的比如USB,Universal Serial Bus,提供了对外连接的接口,不同设备可通过USB接口进行连接,连接的标准也统一了外围设备接口。
还有 PCI、ISA、Thunderbolt 等总线,都是为解决不同设备间的通信问题。

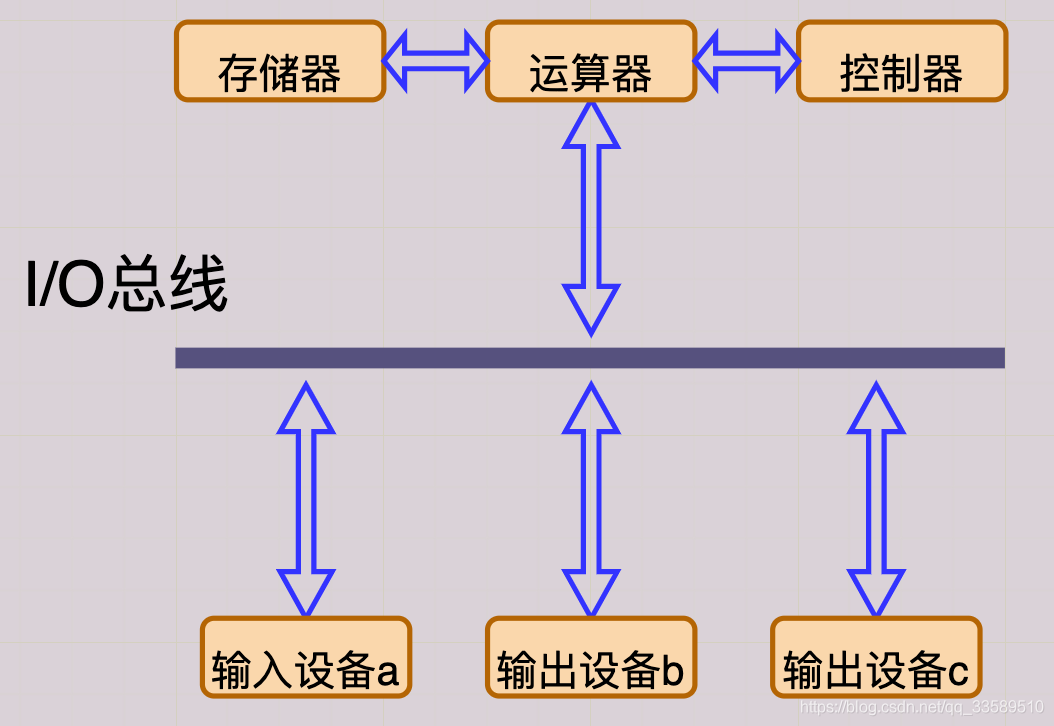

试想如果没有总线,当我们需要新加一个输入设备后,为了维持与各个设备的通信又得加一堆线路。而有了 I/O 总线后就像下图达到解耦清晰而统一。

分类

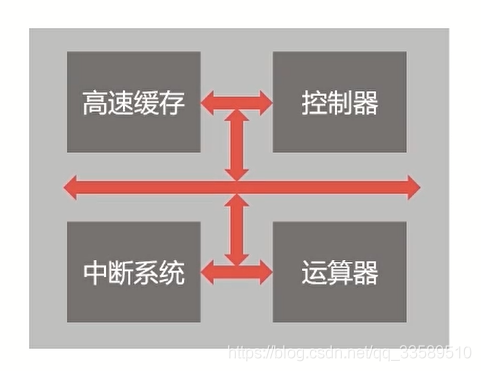

片内总线

芯片内部的总线,寄存器与寄存器之间,寄存器与控制器、运算器之间。高集成度芯片内部的信息传输线。

系统总
