《Python机器学习基础教程》1.7.3笔记

本文解决在使用Python进行机器学习时遇到的三个常见问题:pandas版本更新导致的scatter_matrix属性错误,matplotlib版本更新引起的DeprecationWarning警告,以及图形显示缺失。提供了详细的解决方案,包括代码修改和版本回退。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

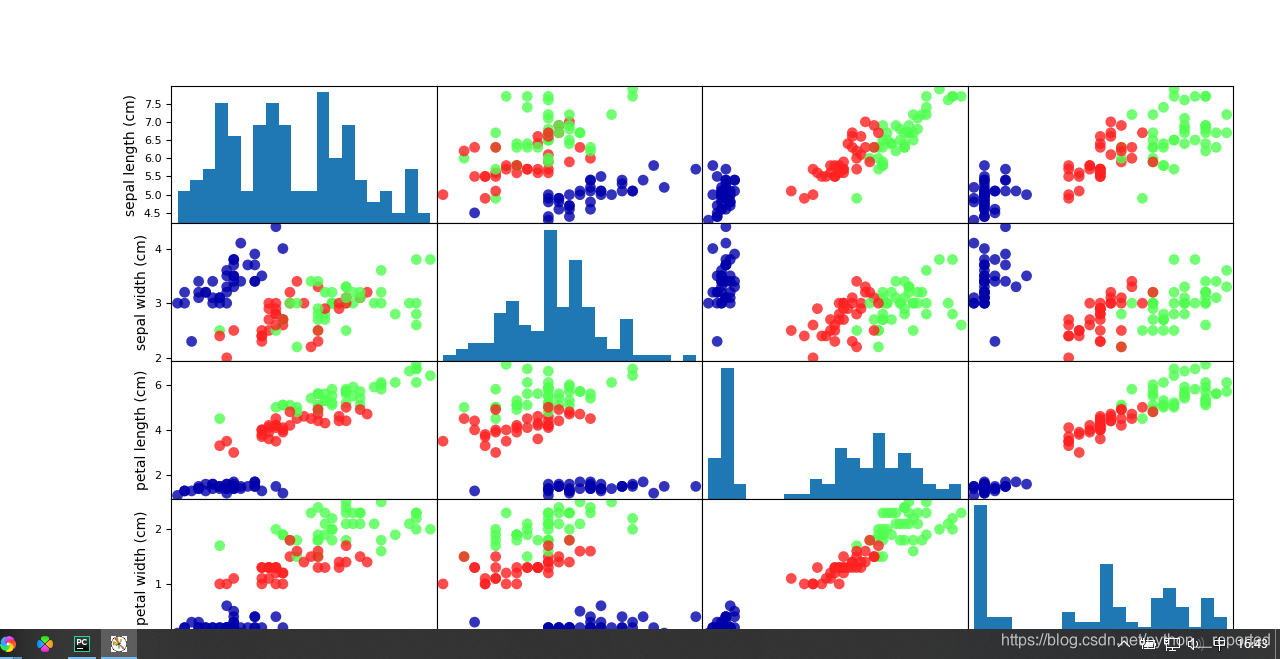

成果展示:
在这里插入图片描述

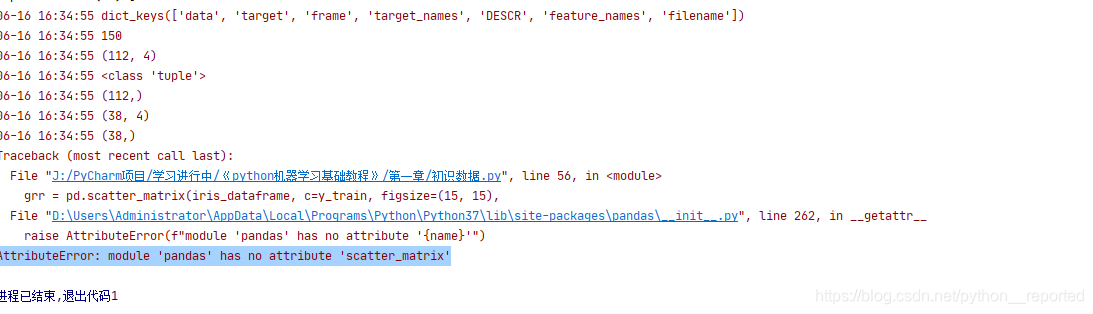

第一个报错:AttributeError: module ‘pandas’ has no attribute ‘scatter_matrix’

报错内容:

AttributeError: module 'pandas' has no attribute 'scatter_matrix'

在这里插入图片描述
原因:pandas版本更改
需要在前面增加plotting.即

grr = pd.plotting.scatter_matrix(iris_dataframe, c=y_train, figsize=(15, 15),
                       marker='o', hist_kwds={'bins': 20}, s=60,
                       alpha=.8, cmap=mglearn.cm3)

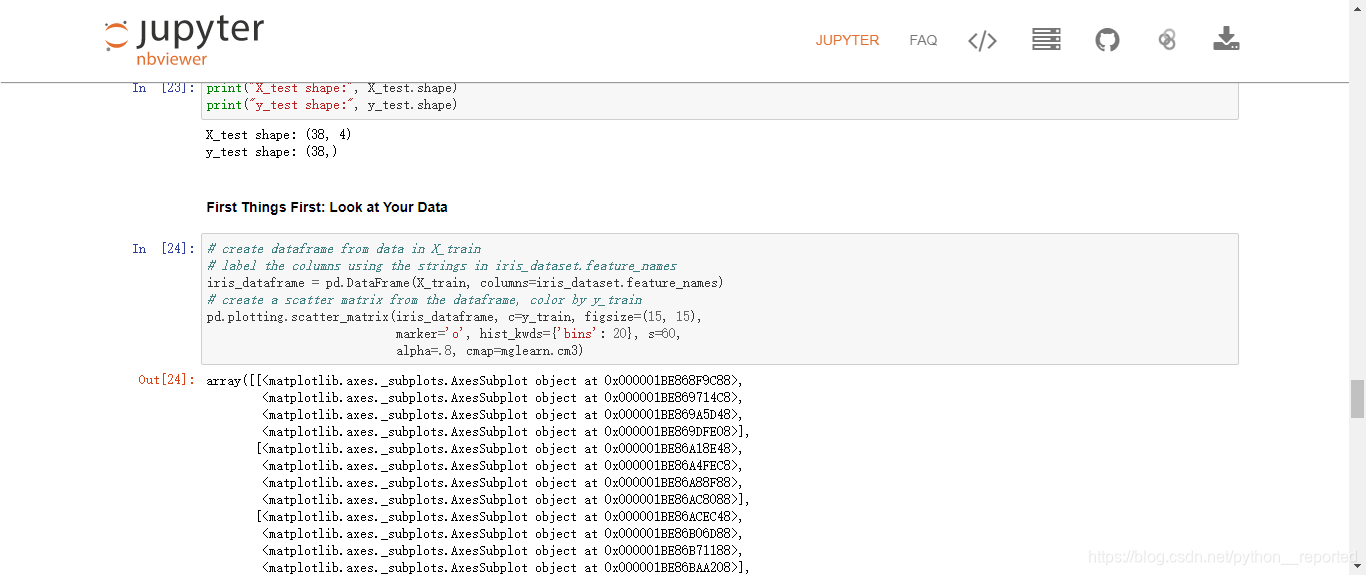

这个报错在源码中已经修改过来了
在这里插入图片描述

第二个报错:MatplotlibDeprecationWarning: The colNum attribute was deprecated in Matplotlib 3.2 and will be removed two minor relea

报错内容:

MatplotlibDeprecationWarning:  The colNum attribute was deprecated in Matplotlib 3.2 and will be removed two minor relea.....

原因:matlplotlib版本更改

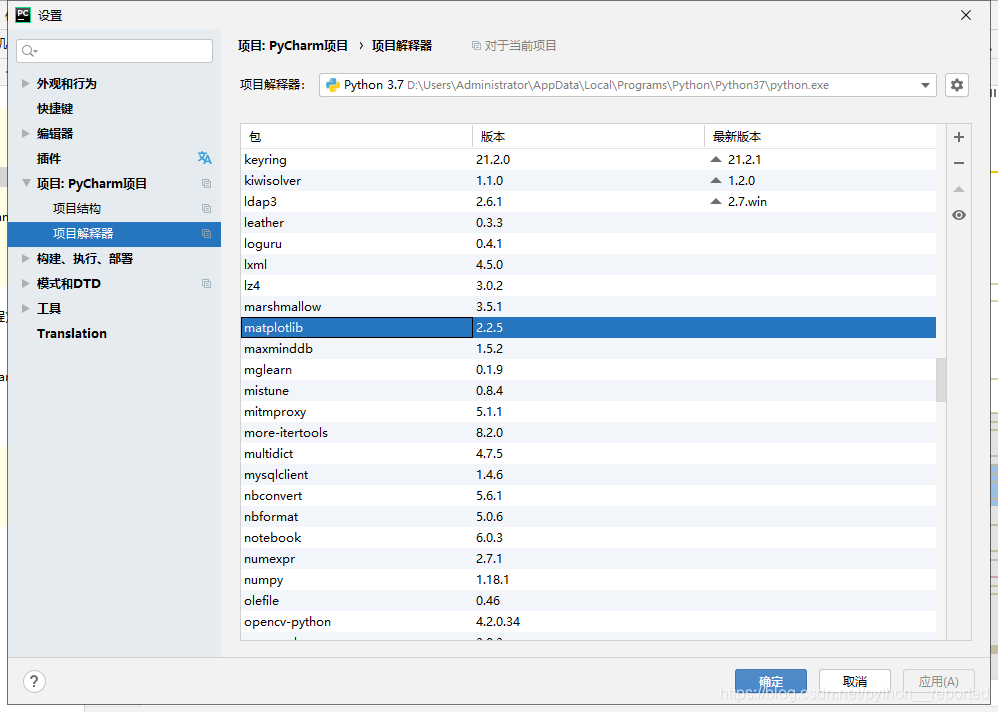

方法:卸载最新版本,换成之前的版本,我换成了2.2.5
在这里插入图片描述

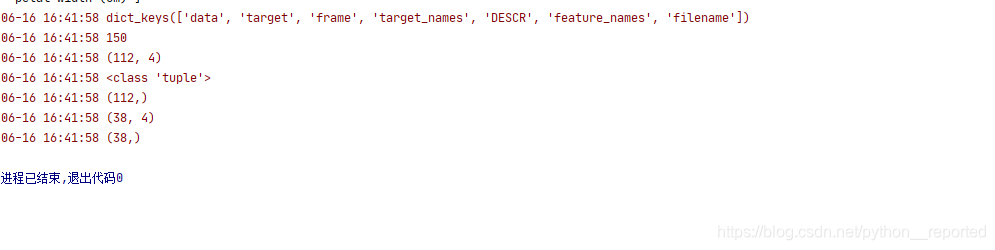

第三个问题:没有图形显示

在pycharm中换成旧版本仍然无法输出,但是也没有报错。
在这里插入图片描述

原因:如同matplotlib绘图一样需要进行展示,即plt.show()

方法:增加show()的命令

import matplotlib.pyplot as plt
grr = pd.plotting.scatter_matrix(iris_dataframe, c=y_train, figsize=(15, 15),
                       marker='o', hist_kwds={'bins': 20}, s=60,
                       alpha=.8, cmap=mglearn.cm3)
plt.show()

展示成果
在这里插入图片描述
