57-QINQ（802.1Q in 802.1Q）扩展vlan技术

最新推荐文章于 2025-11-24 14:30:12 发布

原创最新推荐文章于 2025-11-24 14:30:12 发布 · 194 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#网络

跨运营商的二层VPN技术

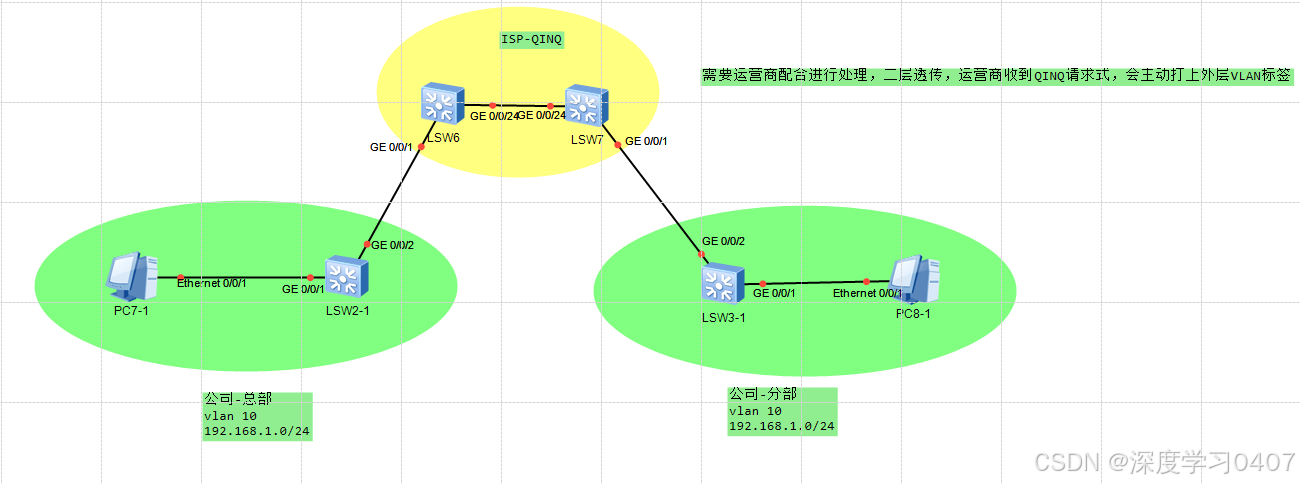

在这里插入图片描述

LSW2-1:
vlan 10
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 10
LSW6:
vlan 100
interface GigabitEthernet0/0/1
 port link-type dot1q-tunnel
 port default vlan 100
#
interface GigabitEthernet0/0/24
 port link-type trunk
 port trunk allow-pass vlan 100
LSW7:
vlan 100
interface GigabitEthernet0/0/1
 port link-type dot1q-tunnel
 port default vlan 100
#
interface GigabitEthernet0/0/24
 port link-type trunk
 port trunk allow-pass vlan 100
LSW3-1:
vlan 10
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 10
