普罗米修斯全方位监控安装部署

安装普罗米修斯

wget

https://github.com/prometheus/prometheus/releases/download/v2.3.2/prometheus-2.3.2.linux-amd64.tar.gz

tar -xvf prometheus-2.3.2.linux-amd64.tar.gz

启动

./prometheus

网页端口 ip:9090
安装kafka_exporter

wget https://github.com/danielqsj/kafka_exporter/releases/download/v1.2.0/kafka_exporter-1.2.0.linux-amd64.tar.gz

tar -zxvf kafka_exporter-1.2.0.linux-amd64.tar.gz

启动

./kafka_exporter --kafka.server=kafkaIP或者域名:9092 &
整合kafka 和 prometheus

修改prometheus.xml

- job_name: ‘kafka’

static_configs:

- targets: [‘192.168.248.136:9308’]

labels:

instance: kafka@192.168.248.136

重启prometheus

安装alterManager

wget https://github.com/prometheus/alertmanager/releases/download/v0.15.2/alertmanager-0.15.2.linux-amd64.tar.gz

解压

tar -xvf alertmanager-0.15.2.linux-amd64.tar.gz

启动

./alertmanager
安装部署Grafana

安装

yum

install https://s3-us-west-2.amazonaws.com/grafana-releases/release/grafana-5.1.3-1.x86_64.rpm

自启动

systemctl start grafana-server

systemctl daemon-reload

systemctl enable grafana-server

systemctl stop grafana-server

安装grafana-zabbix插件(Using grafana-cli tool)

grafana-cli plugins list-remote

grafana-cli plugins install alexanderzobnin-zabbix-app

启动grafana

systemctl start grafana-server

页面访问 ip:3000

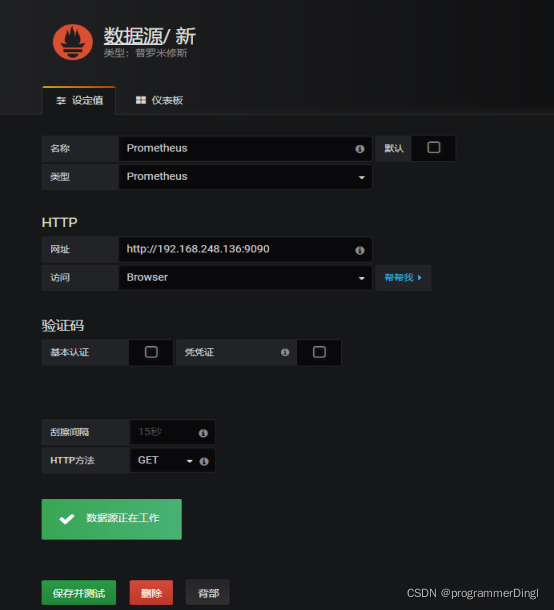

添加数据源 add Source

$[外链图片转存失败,源站可能有防盗链机制,建议将图失败,源站可能有防盗链机制,建议将图片保存下来直接上传片保存上传(im8sMuNkyhaT-1646302447805)(C:\Users\86188\AppData\Roaming\Typora\typora-user-images\image-202033181333017.png49)(C:\Users\86188\AppData\Roaming\Typora\typora-user-images\image-20220303181334917.png)]$

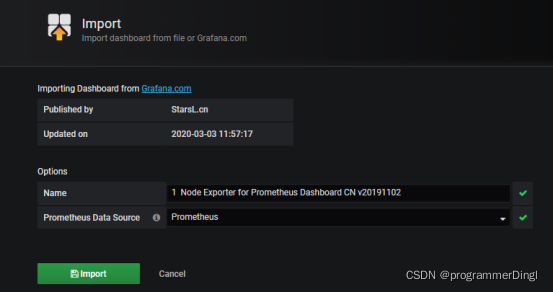

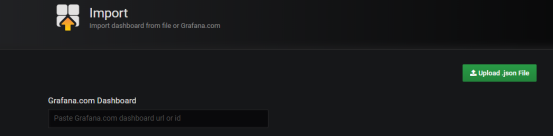

import导入仪表盘 7589

$[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-pa5lkYga-1646302447807)(C:\Users\86188\AppData\Roaming\Typora\typora-user-images\image-20220303181329995.png)]$

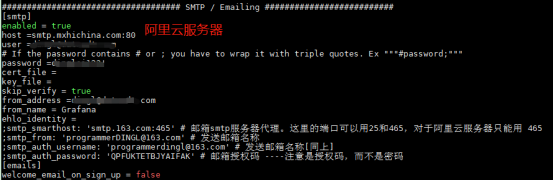

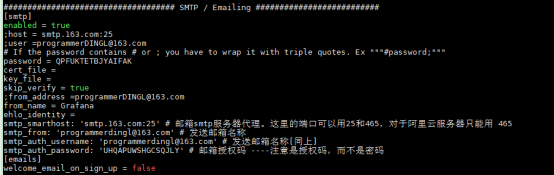

配置邮箱地址

/etc/grafana/grafana.ini
在这里插入图片描述

enabled = true

host = smtp.163.com:25

user =programmerDINGL@163.com

password = QPFUKTETBJYAIFAK（SMTP授权码）

安装node_exporter （cpu监控）

wget https://github.com/prometheus/node_exporter/releases/download/v0.18.0/node_exporter-0.18.0.linux-amd64.tar.gz

解压

tar -zxvf node_exporter-0.18.0.linux-amd64.tar.gz

重启promethus

整合grafana node_exporter

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-2wtQ8kgx-1646302447814)(C:\Users\86188\AppData\Roaming\Typora\typora-user-images\image-20220303181220825.png)]
8.0.linux-amd64.tar.gz

重启promethus

整合grafana node_exporter
