二、新建spring cloud alibaba项目并注册服务到nacos

1. 新建spring cloud alibaba项目

1.1 新建maven项目

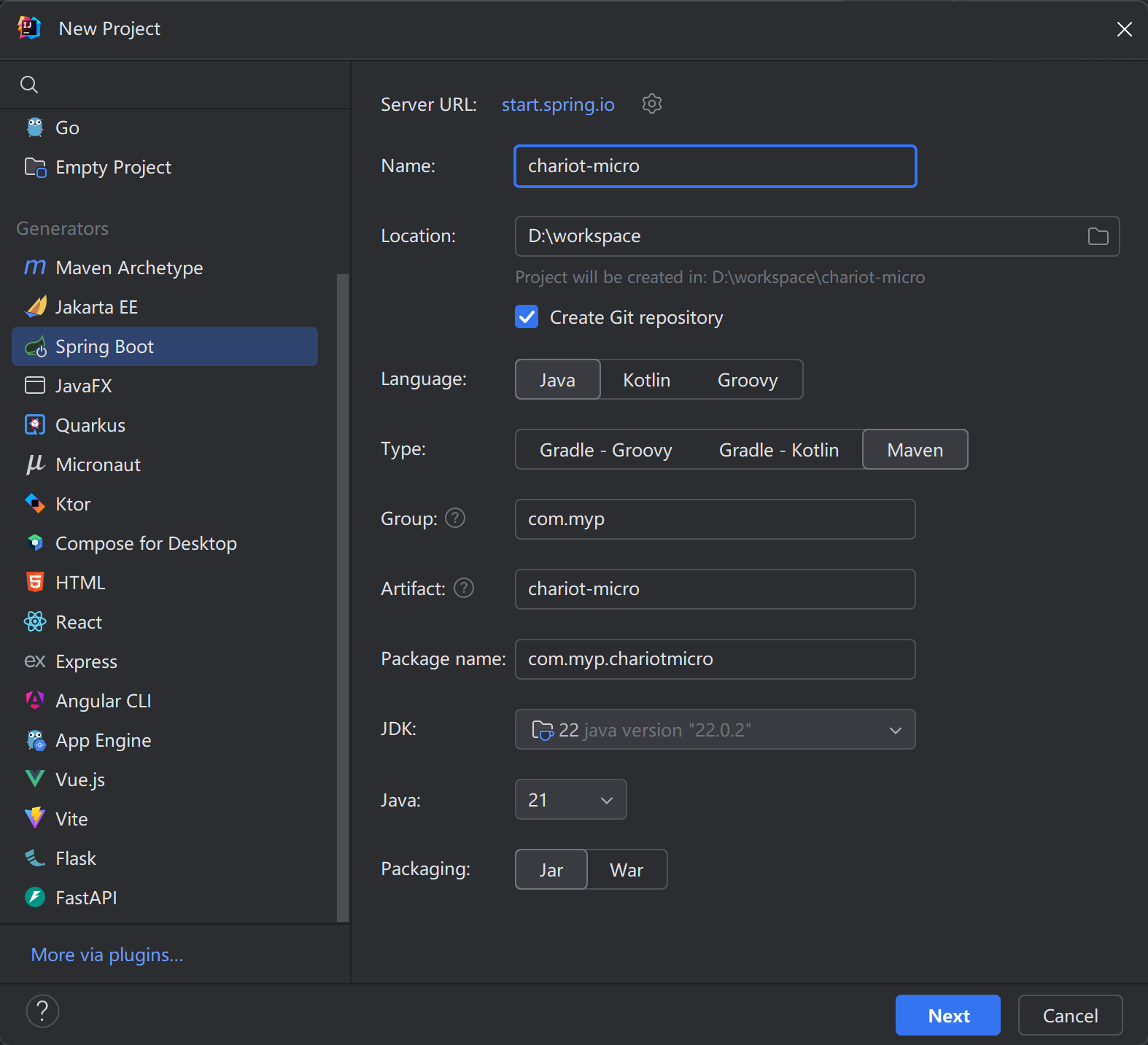

1.1.1 创建项目

新建chariot-micro项目，语言选择java，构建工具选择maven，jdk使用本地的22.0.2，java级别选择21，打包方式为Jar。如下图所示：

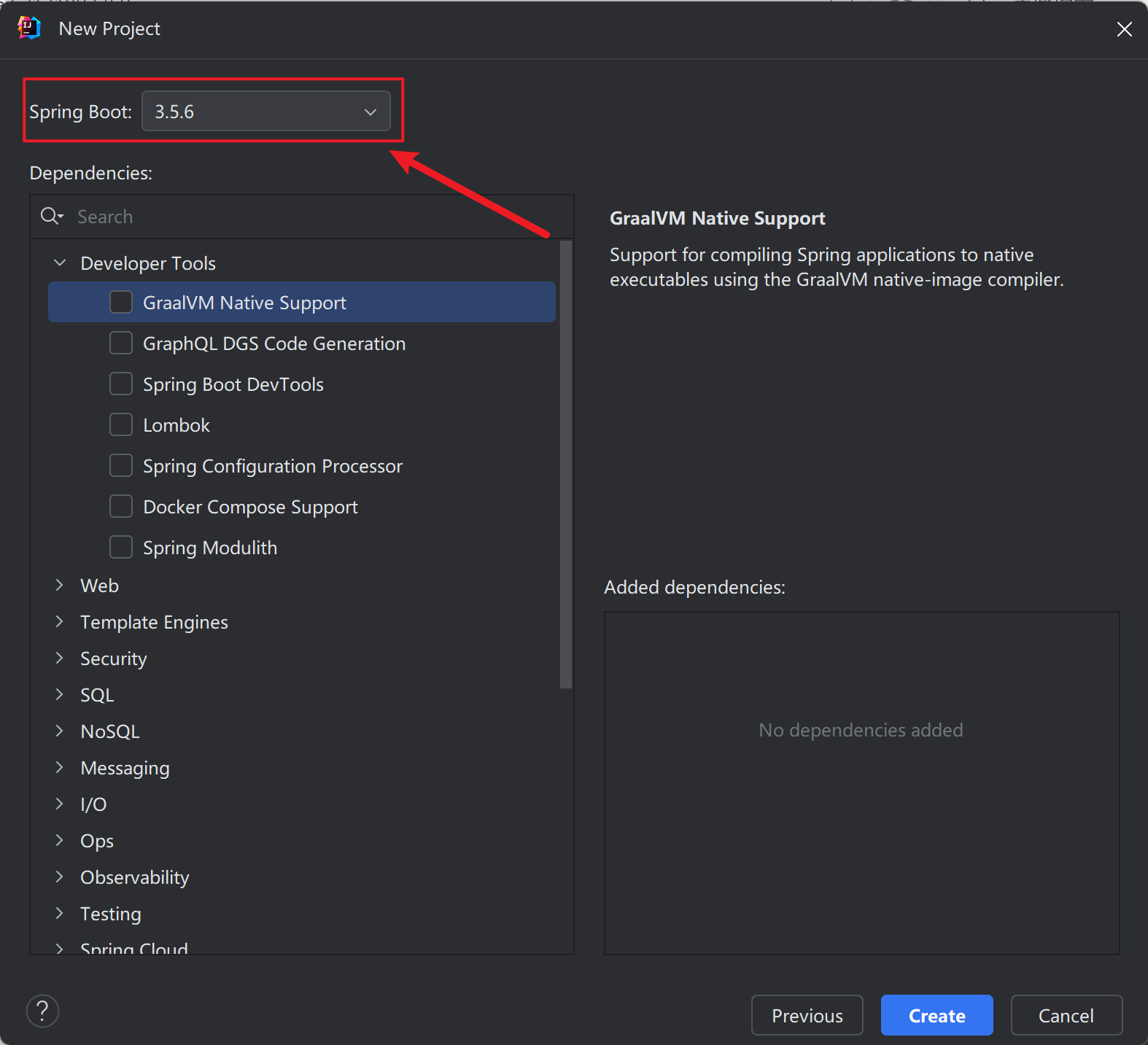

1.1.2 选择spring boot版本

选择spring boot版本为3.5.6，依赖全部不选择。

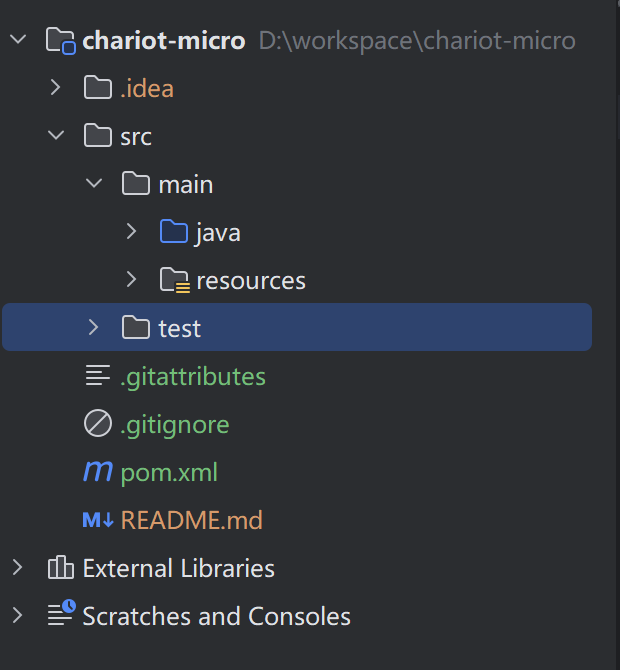

点击【Create】按钮，生成项目，整理项目文件如下图所示：

1.1.3 父项目文件整理

• 主项目pom文件内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>3.3.13</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<groupId>com.myp</groupId>
	<artifactId>chariot-micro</artifactId>
	<version>0.0.1</version>
	<name>chariot-micro</name>
	<description>chariot-micro</description>
	<modules>
		<module>chariot-micro-pay</module>
		<module>chariot-micro-order</module>
	</modules>

	<!-- 关键：打包类型必须为 pom -->
	<packaging>pom</packaging>

	<!-- 版本号 -->
	<properties>
		<java.version>21</java.version>
		<spring-cloud-alibaba.version>2023.0.3.3</spring-cloud-alibaba.version>
		<spring-cloud.version>2023.0.3</spring-cloud.version>
	</properties>

	<!-- 子父项目统一组件版本 -->
	<dependencyManagement>
		<dependencies>
			<!-- Spring Cloud 版本管理依赖，用于统一管理Spring Cloud相关组件的版本 -->
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
			<!-- Spring Cloud Alibaba 版本管理依赖，用于统一管理Spring Cloud Alibaba相关组件的版本 -->
			<dependency>
				<groupId>com.alibaba.cloud</groupId>
				<artifactId>spring-cloud-alibaba-dependencies</artifactId>
				<version>${spring-cloud-alibaba.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>

		<!-- nacos 服务发现依赖，用于实现微服务的注册与发现功能 -->
		<dependency>
			<groupId>com.alibaba.cloud</groupId>
			<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
		</dependency>
	</dependencies>

</project>

删除src文件，新建订单模块(chariot-micro-order)、新建支付模块(chariot-micro-pay)

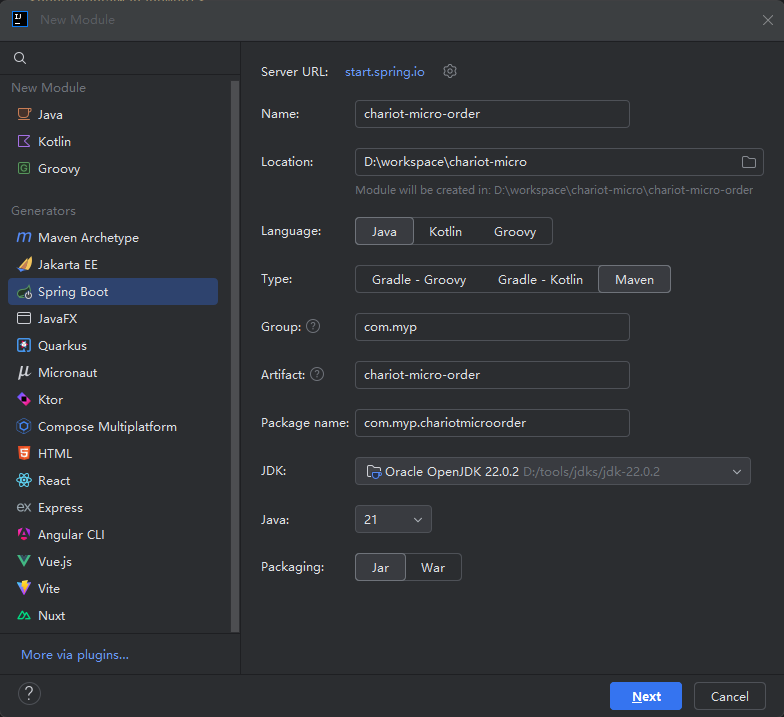

1.1.4 新建订单模块chariot-micro-order)并注册服务到nacos

pom文件内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.myp</groupId>
        <artifactId>chariot-micro</artifactId>
        <version>0.0.1</version>
    </parent>

    <artifactId>chariot-micro-order</artifactId>

    <properties>
        <maven.compiler.source>22</maven.compiler.source>
        <maven.compiler.target>22</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

application.yml内容如下：

server:
  port: 8071

spring:
  application:
    name: order-service
  cloud:
    # 注册服务到nacos
    nacos:
      discovery:
        group: ORDER_GROUP
        server-addr: 127.0.0.1:8848

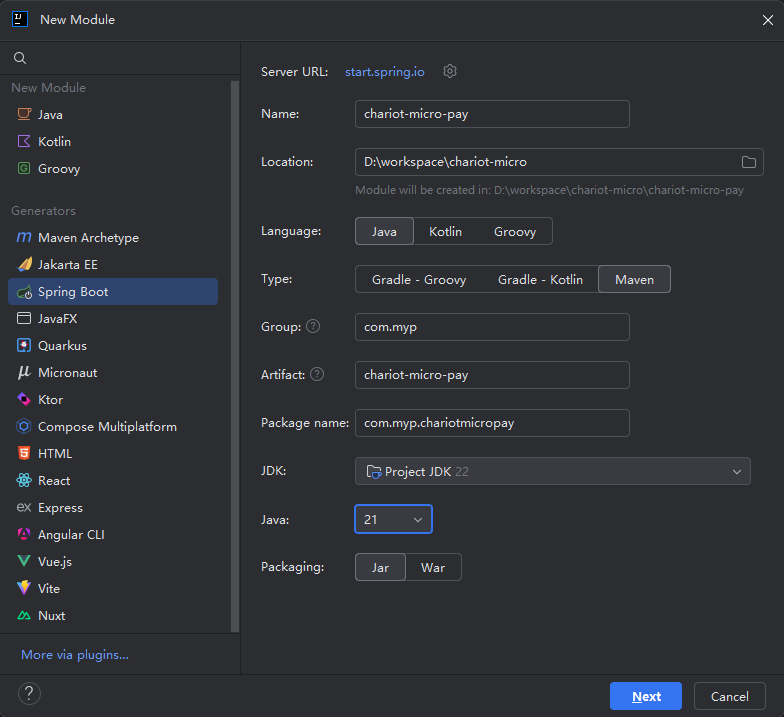

1.1.5 新建支付模块(chariot-micro-pay)并注册服务到nacos

pom文件内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.myp</groupId>
        <artifactId>chariot-micro</artifactId>
        <version>0.0.1</version>
    </parent>

    <artifactId>chariot-micro-pay</artifactId>

    <properties>
        <maven.compiler.source>22</maven.compiler.source>
        <maven.compiler.target>22</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

application.yml内容如下：

server:
  port: 8091

spring:
  application:
    name: pay-service
  cloud:
    # 注册服务到nacos
    nacos:
      discovery:
        group: PAY_GROUP
        server-addr: 127.0.0.1:8848

2. 验证服务注册到nacos是否成功

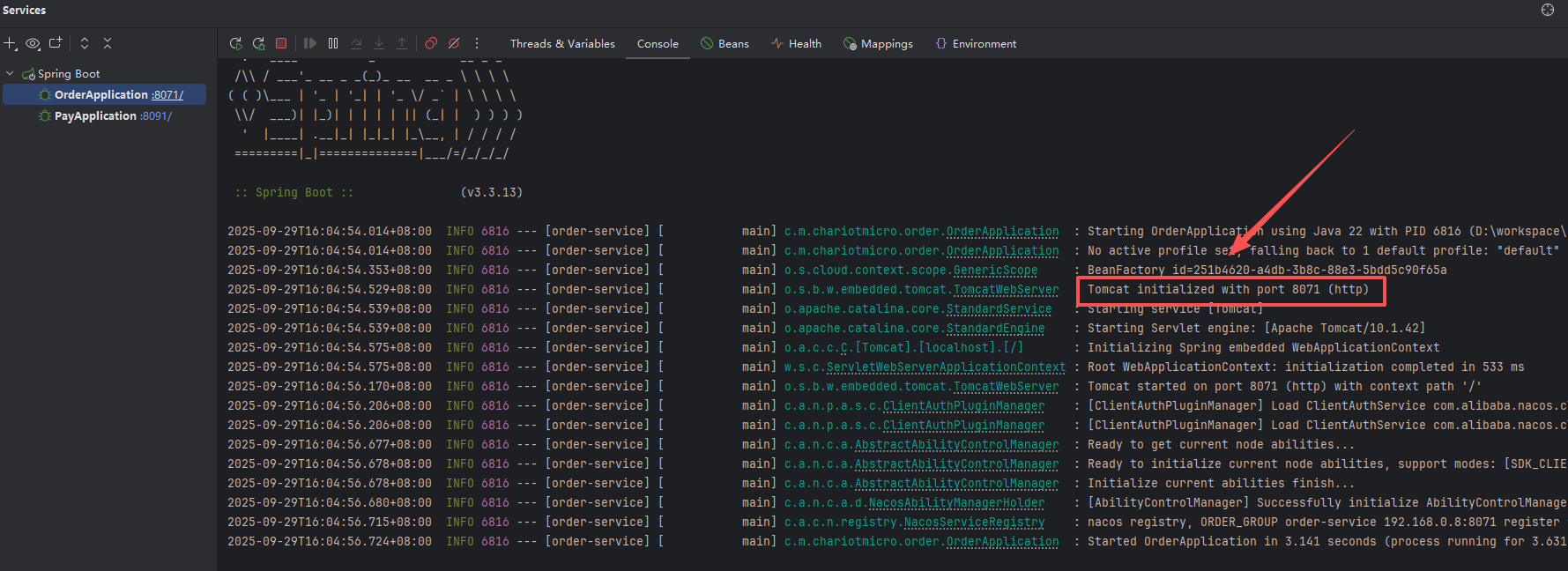

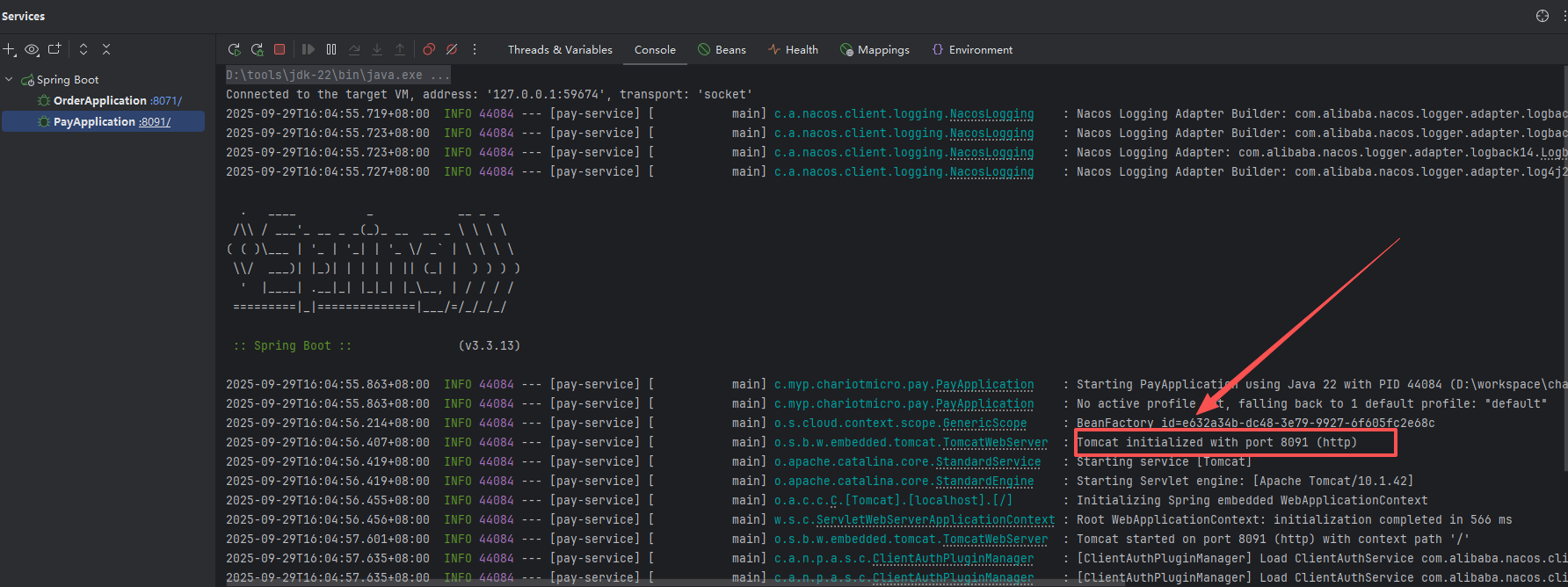

2.1 启动订单服务(chariot-micro-order)和支付服务(chariot-micro-pay)

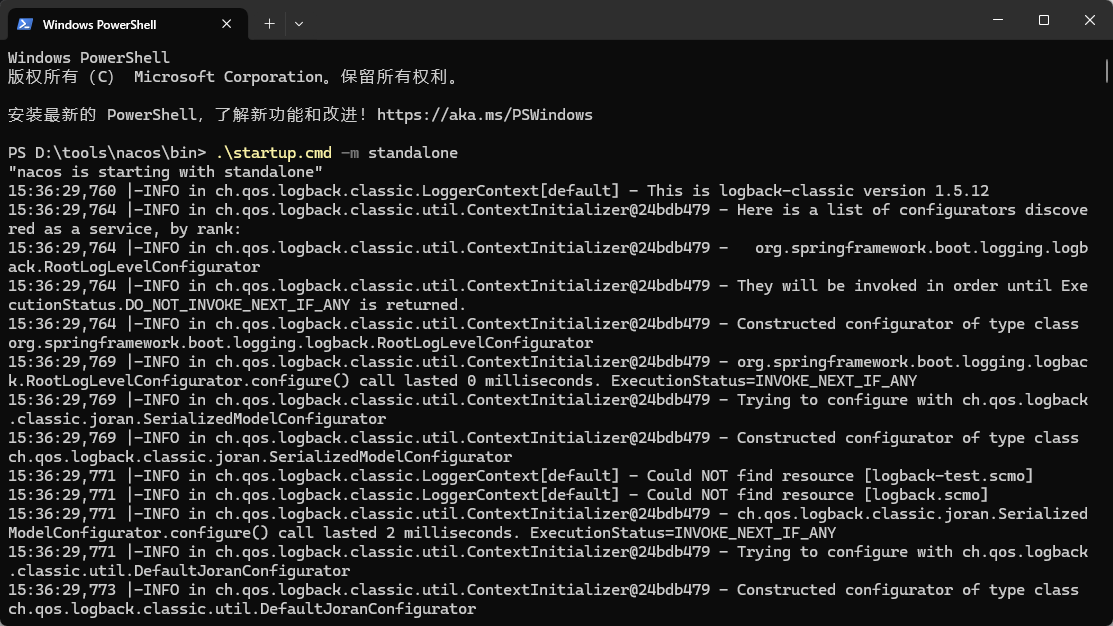

2.2 启动nacos

打开cmd窗口，cd到nacos下的bin文件夹，执行启动nacos命令 .\startup.cmd -m standalone。

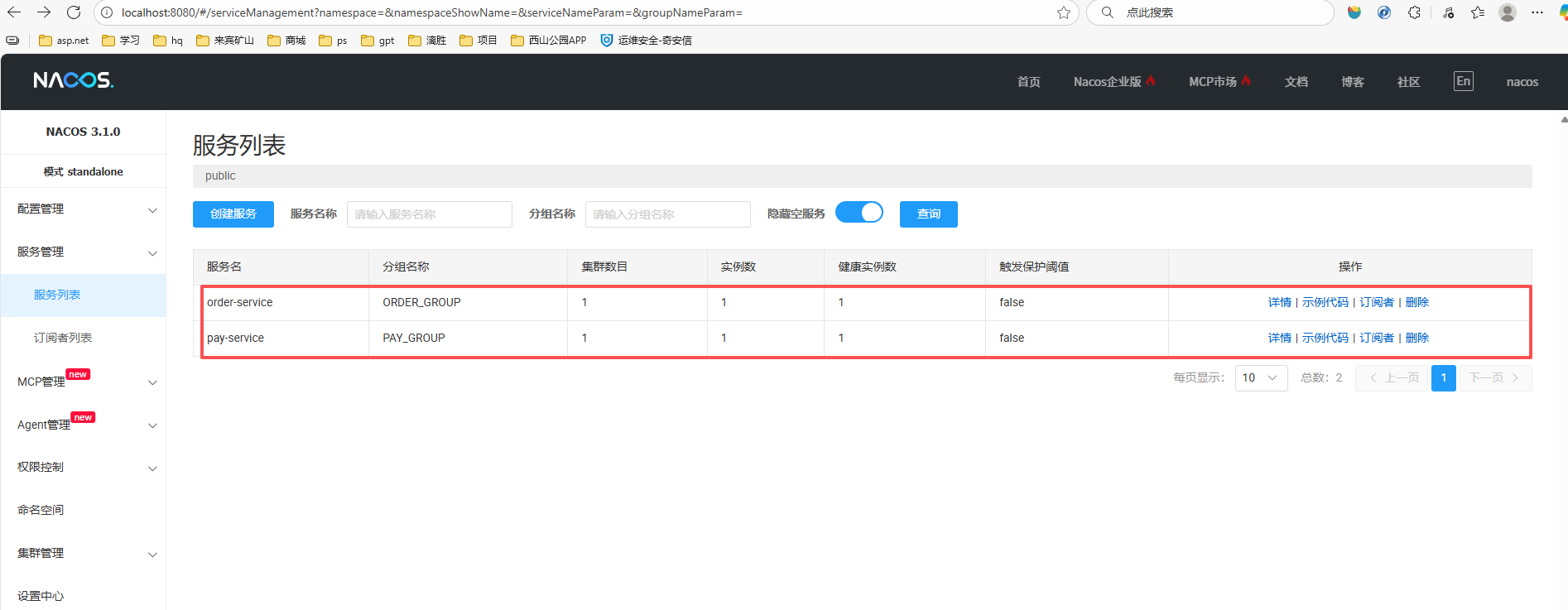

2.3 在nacos管理界面查看服务

在nacos管理界面中出现了order-service服务和pay-service
