本文深入讲解了观察者模式的基本理论，包括模式动机、角色定义及其实现代码。同时介绍了Java中观察者模式的现成接口，如Observer和Observable类，并通过实例展示了其应用。最后提到了RxJava中观察者模式的广泛应用。

参考：

https://www.cnblogs.com/geek6/p/3951677.html

https://www.cnblogs.com/java-my-life/archive/2012/05/16/2502279.html

https://blog.youkuaiyun.com/niunai112/article/details/79900699

http://c.biancheng.net/view/1390.html

https://www.runoob.com/design-pattern/observer-pattern.html

一：基本理论

观察者模式可以说是用的超级多了，先看基本概念

建立一种对象与对象之间的依赖关系，一个对象发生改变时将自动通知其他对象，其他对象将相应做出反应。在此，发生改变的对象称为观察目标，而被通知的对象称为观察者，一个观察目标可以对应多个观察者，而且这些观察者之间没有相互联系，可以根据需要增加和删除观察者，使得系统更易于扩展，这就是观察者模式的模式动机。

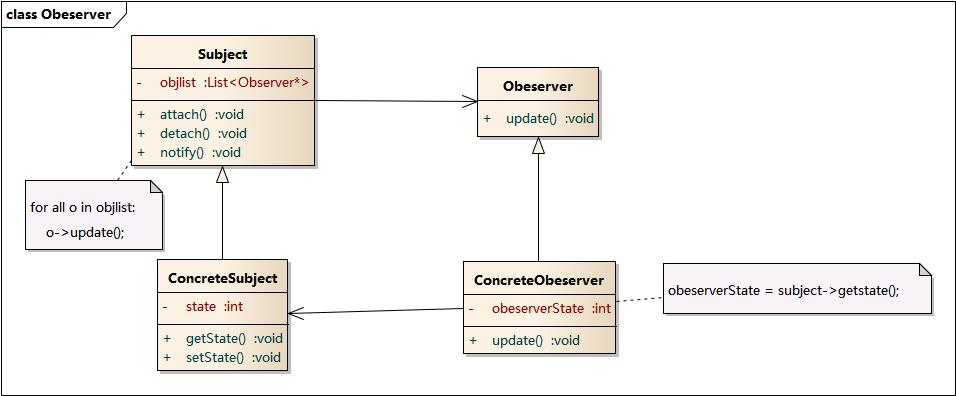

观察者模式包含如下角色：

Subject: 目标
ConcreteSubject: 具体目标
Observer: 观察者
ConcreteObserver: 具体观察者

../_images/Obeserver.jpg

代码：

public interface Observer {
    public void update();
}
public class Observer1 implements Observer {

    @Override
    public void update() {
        System.out.println("observer1 has received!");
    }
}
public class Observer2 implements Observer {

    @Override
    public void update() {
        System.out.println("observer2 has received!");
    }

}

public interface Subject {

    /*增加观察者*/
    public void add(Observer observer);

    /*删除观察者*/
    public void del(Observer observer);

    /*通知所有的观察者*/
    public void notifyObservers();

    /*自身的操作*/
    public void operation();
}
public abstract class AbstractSubject implements Subject {

    private Vector<Observer> vector = new Vector<Observer>();
    @Override
    public void add(Observer observer) {
        vector.add(observer);
    }

    @Override
    public void del(Observer observer) {
        vector.remove(observer);
    }

    @Override
    public void notifyObservers() {
        Enumeration<Observer> enumo = vector.elements();
        while(enumo.hasMoreElements()){
            enumo.nextElement().update();
        }
    }
}
public class MySubject extends AbstractSubject {

    @Override
    public void operation() {
        System.out.println("update self!");
        notifyObservers();
    }

}

public class ObserverTest {

    public static void main(String[] args) {
        Subject sub = new MySubject();
        sub.add(new Observer1());
        sub.add(new Observer2());

        sub.operation();
    }

}

二：Java中提供的现成接口

比较常用的设计模式，JDK中都会提供现成的实现

比如动态代理，有InvocationHandler这个类

观察者模式也同样有现成的支持

/**
 * A class can implement the <code>Observer</code> interface when it
 * wants to be informed of changes in observable objects.
 *
 * @author  Chris Warth
 * @see     java.util.Observable
 * @since   JDK1.0
 */
public interface Observer {
    /**
     * This method is called whenever the observed object is changed. An
     * application calls an <tt>Observable</tt> object's
     * <code>notifyObservers</code> method to have all the object's
     * observers notified of the change.
     *
     * @param   o     the observable object.
     * @param   arg   an argument passed to the <code>notifyObservers</code>
     *                 method.
     */
    void update(Observable o, Object arg);
}

/**
 * This class represents an observable object, or "data"
 * in the model-view paradigm. It can be subclassed to represent an
 * object that the application wants to have observed.
 * <p>
 * An observable object can have one or more observers. An observer
 * may be any object that implements interface <tt>Observer</tt>. After an
 * observable instance changes, an application calling the
 * <code>Observable</code>'s <code>notifyObservers</code> method
 * causes all of its observers to be notified of the change by a call
 * to their <code>update</code> method.
 * <p>
 * The order in which notifications will be delivered is unspecified.
 * The default implementation provided in the Observable class will
 * notify Observers in the order in which they registered interest, but
 * subclasses may change this order, use no guaranteed order, deliver
 * notifications on separate threads, or may guarantee that their
 * subclass follows this order, as they choose.
 * <p>
 * Note that this notification mechanism has nothing to do with threads
 * and is completely separate from the <tt>wait</tt> and <tt>notify</tt>
 * mechanism of class <tt>Object</tt>.
 * <p>
 * When an observable object is newly created, its set of observers is
 * empty. Two observers are considered the same if and only if the
 * <tt>equals</tt> method returns true for them.
 *
 * @author  Chris Warth
 * @see     java.util.Observable#notifyObservers()
 * @see     java.util.Observable#notifyObservers(java.lang.Object)
 * @see     java.util.Observer
 * @see     java.util.Observer#update(java.util.Observable, java.lang.Object)
 * @since   JDK1.0
 */
public class Observable {

里面有各种接口都是和观察者模式有关的。

三现实中的例子

Rxjava用观察者模式用的比较多，后面讲Rxjava的时候细讲
