1. ConfigController

     服务端对外提供的接口是/listener

    @PostMapping("/listener")
    @Secured(action = ActionTypes.READ, signType = SignType.CONFIG)
    public void listener(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {

        request.setAttribute("org.apache.catalina.ASYNC_SUPPORTED", true);
        String probeModify = request.getParameter("Listening-Configs");
        if (StringUtils.isBlank(probeModify)) {
            LOGGER.warn("invalid probeModify is blank");
            throw new IllegalArgumentException("invalid probeModify");
        }

        probeModify = URLDecoder.decode(probeModify, Constants.ENCODE);

        Map<String, String> clientMd5Map;
        try {
            clientMd5Map = MD5Util.getClientMd5Map(probeModify);
        } catch (Throwable e) {
            throw new IllegalArgumentException("invalid probeModify");
        }

        // do long-polling
        //进行长轮询
        inner.doPollingConfig(request, response, clientMd5Map, probeModify.length());
    }

   通过 doPollingConfig 方法执行长轮询请求处理

    /**
     * long polling the config.
     */
    public String doPollingConfig(HttpServletRequest request, HttpServletResponse response,
            Map<String, String> clientMd5Map, int probeRequestSize) throws IOException {

        // Long polling.
        if (LongPollingService.isSupportLongPolling(request)) {
             // 处理长轮询请求
            longPollingService.addLongPollingClient(request, response, clientMd5Map, probeRequestSize);
            return HttpServletResponse.SC_OK + "";
        }

        // Compatible with short polling logic.
        List<String> changedGroups = MD5Util.compareMd5(request, response, clientMd5Map);

        // Compatible with short polling result.
        String oldResult = MD5Util.compareMd5OldResult(changedGroups);
        String newResult = MD5Util.compareMd5ResultString(changedGroups);

        String version = request.getHeader(Constants.CLIENT_VERSION_HEADER);
        if (version == null) {
            version = "2.0.0";
        }
        int versionNum = Protocol.getVersionNumber(version);

        // Before 2.0.4 version, return value is put into header.
        if (versionNum < START_LONG_POLLING_VERSION_NUM) {
            response.addHeader(Constants.PROBE_MODIFY_RESPONSE, oldResult);
            response.addHeader(Constants.PROBE_MODIFY_RESPONSE_NEW, newResult);
        } else {
            request.setAttribute("content", newResult);
        }

        // Disable cache.
        response.setHeader("Pragma", "no-cache");
        response.setDateHeader("Expires", 0);
        response.setHeader("Cache-Control", "no-cache,no-store");
        response.setStatus(HttpServletResponse.SC_OK);
        return HttpServletResponse.SC_OK + "";
    }

2. LongPollingService

public void addLongPollingClient(HttpServletRequest req, HttpServletResponse rsp, Map<String, String> clientMd5Map,
            int probeRequestSize) {

        String str = req.getHeader(LongPollingService.LONG_POLLING_HEADER);
        String noHangUpFlag = req.getHeader(LongPollingService.LONG_POLLING_NO_HANG_UP_HEADER);
        final String appName = req.getHeader(RequestUtil.CLIENT_APPNAME_HEADER);
        final String tag = req.getHeader("Vipserver-Tag");
        int delayTime = SwitchService.getSwitchInteger(SwitchService.FIXED_DELAY_TIME, 500);

        // Add delay time for LoadBalance, and one response is returned 500 ms in advance to avoid client timeout.
        //实际超时29.5s
        long timeout = Math.max(10000, Long.parseLong(str) - delayTime);
        if (isFixedPolling()) {
            timeout = Math.max(10000, getFixedPollingInterval());
            // Do nothing but set fix polling timeout.
        } else {
            long start = System.currentTimeMillis();
            //客户端提交的md5与服务端当前md5对比，如果值不同，说明服务端的配置项发生过变更
            List<String> changedGroups = MD5Util.compareMd5(req, rsp, clientMd5Map);
            if (changedGroups.size() > 0) {
                //直接返回响应
                generateResponse(req, rsp, changedGroups);
                LogUtil.CLIENT_LOG.info("{}|{}|{}|{}|{}|{}|{}", System.currentTimeMillis() - start, "instant",
                        RequestUtil.getRemoteIp(req), "polling", clientMd5Map.size(), probeRequestSize,
                        changedGroups.size());
                return;
            } else if (noHangUpFlag != null && noHangUpFlag.equalsIgnoreCase(TRUE_STR)) {
                //不挂起请求
                LogUtil.CLIENT_LOG.info("{}|{}|{}|{}|{}|{}|{}", System.currentTimeMillis() - start, "nohangup",
                        RequestUtil.getRemoteIp(req), "polling", clientMd5Map.size(), probeRequestSize,
                        changedGroups.size());
                return;
            }
        }
        String ip = RequestUtil.getRemoteIp(req);

        // Must be called by http thread, or send response.
        //开启异步请求
        final AsyncContext asyncContext = req.startAsync();

        // AsyncContext.setTimeout() is incorrect, Control by oneself
        asyncContext.setTimeout(0L);

        //提交到线程池
        ConfigExecutor.executeLongPolling(
                new ClientLongPolling(asyncContext, clientMd5Map, ip, probeRequestSize, timeout, appName, tag));
    }

 使用AsyncContext, 将请求异步化，直接挂起。创建 ClientLongPolling 的调度任务，提交给 scheuduler 定时线程池延后29.5s执行。这里每个长轮询任务都带有 asyncContext 对象， asyncContext 中持有客户端的请求，使得每个请求可以延迟响应，等延时到达或者配置有变更之后，调用  asyncContext.complete() 响应完成。

3.  ClientLongPolling

 在该线程的run()  方法中，会执行定时任务， 每次29.5s 之后，服务端会结束本次请求，把请求对象从长轮询请求集合中删除掉，返回响应给客户端。然后客户端会发起新一轮请求，重复这个过程。

 class ClientLongPolling implements Runnable {

        @Override
        public void run() {
            //延时任务
            asyncTimeoutFuture = ConfigExecutor.scheduleLongPolling(() -> {
                try {
                    getRetainIps().put(ClientLongPolling.this.ip, System.currentTimeMillis());

                    // Delete subscriber's relations.
                    // 时间到了，从集合中删除本次请求，结束本次客户端轮询
                    boolean removeFlag = allSubs.remove(ClientLongPolling.this);

                    if (removeFlag) {
                        if (isFixedPolling()) {
                            LogUtil.CLIENT_LOG
                                    .info("{}|{}|{}|{}|{}|{}", (System.currentTimeMillis() - createTime), "fix",
                                            RequestUtil.getRemoteIp((HttpServletRequest) asyncContext.getRequest()),
                                            "polling", clientMd5Map.size(), probeRequestSize);
                            List<String> changedGroups = MD5Util
                                    .compareMd5((HttpServletRequest) asyncContext.getRequest(),
                                            (HttpServletResponse) asyncContext.getResponse(), clientMd5Map);
                            if (changedGroups.size() > 0) {
                                //发送本次轮询请求的响应给客户端
                                sendResponse(changedGroups);
                            } else {
                                sendResponse(null);
                            }
                        } else {
                            LogUtil.CLIENT_LOG
                                    .info("{}|{}|{}|{}|{}|{}", (System.currentTimeMillis() - createTime), "timeout",
                                            RequestUtil.getRemoteIp((HttpServletRequest) asyncContext.getRequest()),
                                            "polling", clientMd5Map.size(), probeRequestSize);
                            sendResponse(null);
                        }
                    } else {
                        LogUtil.DEFAULT_LOG.warn("client subsciber's relations delete fail.");
                    }
                } catch (Throwable t) {
                    LogUtil.DEFAULT_LOG.error("long polling error:" + t.getMessage(), t.getCause());
                }

            }, timeoutTime, TimeUnit.MILLISECONDS);

            //添加客户端轮询请求到集合中
            allSubs.add(this);
        }

    /**
     * ClientLongPolling subscibers.
     */
    final Queue<ClientLongPolling> allSubs;

allSubs 是一个队列， 它会保存所有正在被挂起的客户端长轮询请求任务。

4.  数据变更

    如果在长轮询请求挂起的期间， 发生了数据配置的变更，会触发事件，从而执行数据变更调度任务DataChangeTask。

  ConfigController  的 publishConfig  方法中， 会发布配置，会产生数据变动事件

  ConfigChangePublisher.notifyConfigChange(
                        new ConfigDataChangeEvent(false, configForm.getDataId(), configForm.getGroup(),
                                configForm.getNamespaceId(), time.getTime()));

    在 LongPollingService 的构造方法中，订阅了数据变更事件，并在事件触发时执行一个数据变更调度任务。

public LongPollingService() {
        allSubs = new ConcurrentLinkedQueue<>();

        ConfigExecutor.scheduleLongPolling(new StatTask(), 0L, 10L, TimeUnit.SECONDS);

        // Register LocalDataChangeEvent to NotifyCenter.
        NotifyCenter.registerToPublisher(LocalDataChangeEvent.class, NotifyCenter.ringBufferSize);

        // Register A Subscriber to subscribe LocalDataChangeEvent.
        // 订阅监听数据变更
        NotifyCenter.registerSubscriber(new Subscriber() {

            @Override
            public void onEvent(Event event) {
                if (isFixedPolling()) {
                    // Ignore.
                } else {
                    if (event instanceof LocalDataChangeEvent) {
                        LocalDataChangeEvent evt = (LocalDataChangeEvent) event;
                        // 执行数据变更调度任务
                        ConfigExecutor.executeLongPolling(new DataChangeTask(evt.groupKey, evt.isBeta, evt.betaIps));
                    }
                }
            }

            @Override
            public Class<? extends Event> subscribeType() {
                return LocalDataChangeEvent.class;
            }
        });

    }
class DataChangeTask implements Runnable {

        @Override
        public void run() {
            try {
                ConfigCacheService.getContentBetaMd5(groupKey);
                for (Iterator<ClientLongPolling> iter = allSubs.iterator(); iter.hasNext(); ) {
                    ClientLongPolling clientSub = iter.next();
                    // 根据groupKey名称查询客户端长轮询请求
                    if (clientSub.clientMd5Map.containsKey(groupKey)) {
                        // If published tag is not in the beta list, then it skipped.
                        if (isBeta && !CollectionUtils.contains(betaIps, clientSub.ip)) {
                            continue;
                        }

                        // If published tag is not in the tag list, then it skipped.
                        if (StringUtils.isNotBlank(tag) && !tag.equals(clientSub.tag)) {
                            continue;
                        }

                        getRetainIps().put(clientSub.ip, System.currentTimeMillis());
                        //移除长轮询请求任务
                        iter.remove(); // Delete subscribers' relationships.
                        LogUtil.CLIENT_LOG
                                .info("{}|{}|{}|{}|{}|{}|{}", (System.currentTimeMillis() - changeTime), "in-advance",
                                        RequestUtil
                                                .getRemoteIp((HttpServletRequest) clientSub.asyncContext.getRequest()),
                                        "polling", clientSub.clientMd5Map.size(), clientSub.probeRequestSize, groupKey);
                        //向客户端发送已经变更的配置项，结束本次请求
                        clientSub.sendResponse(Arrays.asList(groupKey));
                    }
                }

            } catch (Throwable t) {
                LogUtil.DEFAULT_LOG.error("data change error: {}", ExceptionUtil.getStackTrace(t));
            }
        }

DataChangeTask 任务主要做的是 遍历 allSubs队列， 查询到包含当前变更的groupKey的 ClientLongPolling任务，实现数据变更推送给客户端，并从 allSubs队列中剔除此长轮询任务。

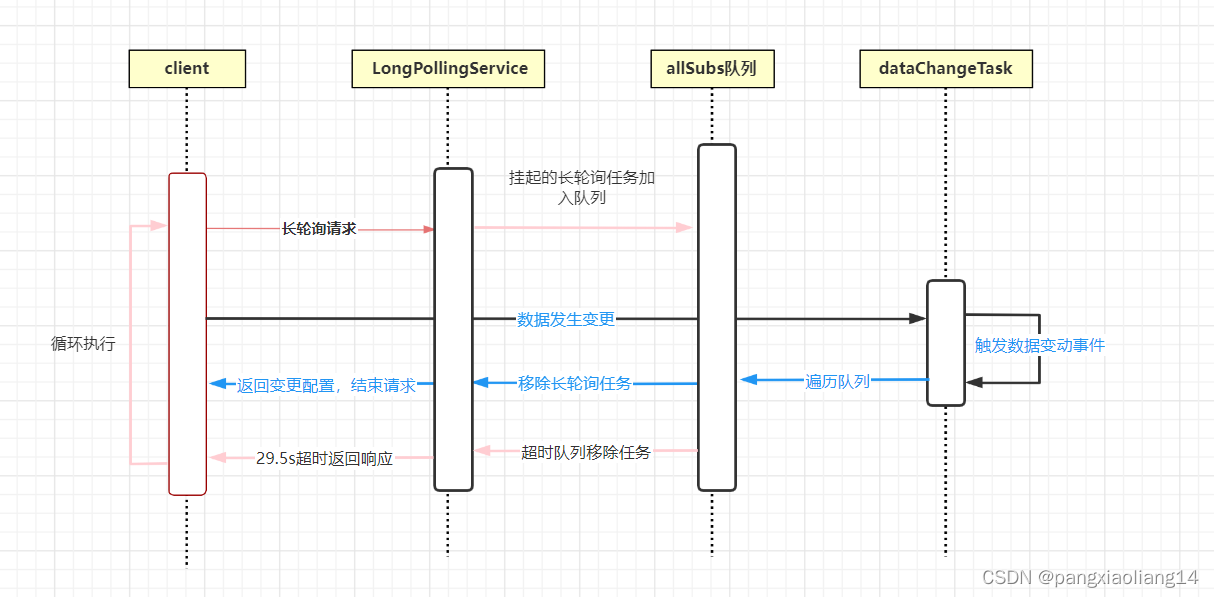

整体的流程图如下所示：

 整体流程总结：

1.客户端发起订阅请求

 2. 服务端接收到请求之后，去查询数据是否变更，如果有变更直接返回，然后客户端回到步骤1.如果没有变更，则挂起当前请求一段时间，默认29.5秒

3. 如果在此期间，客户端监听的数据一直没变更，等29.5秒之后，移除请求对象，结束本次请求，客户端又回到步骤1，重新发起长轮询。如果在此期间，发生配置变更，服务端会遍历队列，查询监听变更配置项的客户端请求对象，然后返回响应，本次请求提前结束，客户端回到步骤1, 继续发起长轮询。
