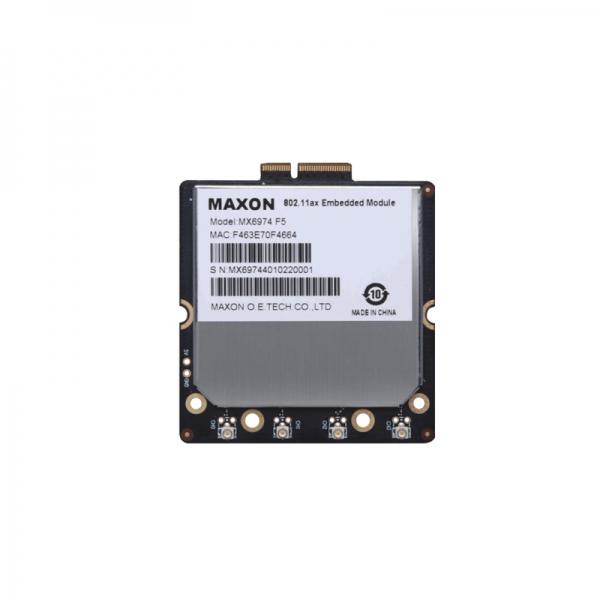

Qualcomm QCN9074 4x4 MIMO 802.11ax MX6974 F5 WIFI6 Module

Nanjing MaXon Photoelectric Technology Co., Ltd. is a national high-tech enterprise focusing on industrial communication, integrating product research and development, manufacturing, sales and service. Adhering to the concept of "connect what you think, think what you connect", the company continues to create more convenient and cost-effective communication solutions for customers.Please feel free to contact us at chf@maxonc.com. Check out our website, social media and online platforms for more details.

Description

MX6974 F5 802.11ax Embedded Wireless modules that adopts M.2 E-key and supports PCI Express 3.0 protocol. It adopts Qualcomm® 802.11ax Wi-Fi technology, supports the 5180-5850GHz frequency band, has AP and STA functions with 4x4 MIMO and 4 spatial streams, suitable for applications of 5GHz IEEE802.11a/n/ac/ax. It is equipped with a dynamic frequency selection (DFS) function which has higher transmission efficiency than the previous generation.

Specifications

Type: Wireless Module

Chip: QCN9074

IEEE Standard: IEEE 802.11ax

Connector: PCI Express 3.0, M.2 E-key

Working voltage: 3.3V/5V

Frequency range: 5G：5.180GHz~5.850GHz

Modulation technology: 802.11n：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM）

802.11ac：OFDM（BPSK，QPSK，16-QAM，64-QAM，256-QAM）

802.11ax：OFDMA （BPSK，QPSK，DBPSK，DQPSK，16-QAM，64-QAM， 256-QAM，1024-QAM，4096-QAM）

Power (per chain): 802.11ax：Max. 21dBm

Power consumption: ≦15W

Receiving Sensitivity: 11ax:

HE20 MCS0 <-89dBm / MCS11 <-64dBm

HE40 MCS0 <-89dBm / MCS11 <-60dBm

HE80 MCS0 <-86dBm / MCS11 <-58dBm

Antenna Connector: 4 x U. FL

Operating Environment: Temperature: -20°C to 70°C/-4 ~ 158℉; Humidity: 95% (non-condensing)

Storage Environment: Temperature: -40°C to 90°C/-40 ~ 194℉; Humidity: 90% (non-condensing)

Certification: RoHS/REACH

Weight: 20g

Dimensions (W*H*D): 60 x 57 x 4.2 mm (±0.1mm)

Radio Frequency Parameters

Frequency	Rate	Transmit Power (per chain)	Tolerance	Receive Sensitivity	Tolerance
802.11a	6Mbps	21dBm	±2dB	-91dBm	±2dB
	9Mbps	21dBm	±2dB	---	±2dB
	12Mbps	21dBm	±2dB	---	±2dB
	18Mbps	21dBm	±2dB	---	±2dB
	24Mbps	20dBm	±2dB	---	±2dB
	36Mbps	20dBm	±2dB	---	±2dB
	48Mbps	17dBm	±2dB	---	±2dB
	54Mbps	17dBm	±2dB	-74dBm	±2dB
802.11n/ac VHT20	MCS0	21dBm	±2dB	-91dBm	±2dB
	MCS1	21dBm	±2dB	---	±2dB
	MCS2	21dBm	±2dB	---	±2dB
	MCS3	21dBm	±2dB	---	±2dB
	MCS4	20dBm	±2dB	---	±2dB
	MCS5	20dBm	±2dB	---	±2dB
