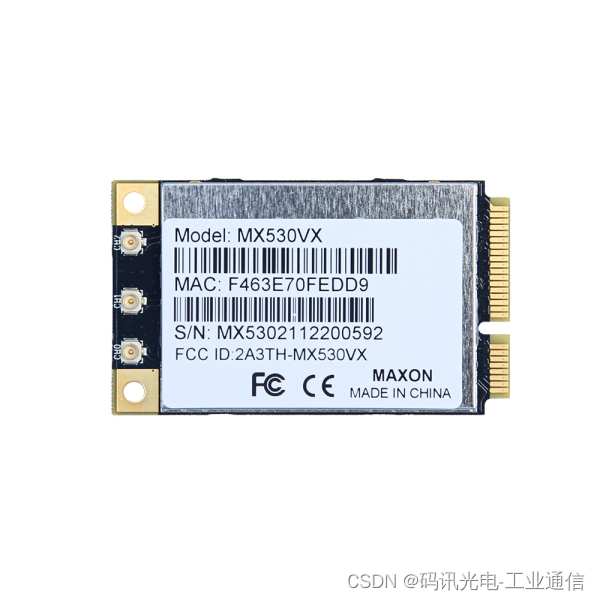

Key Features
- Designed for Dual Band Wireless Access Points
- Qualcomm Atheros QCA9880
- 2.4GHz max 21dBm & 5GHz max 20dBmoutput
- power (per chain)
- IEEE 802.11ac compliant & backward compatible with 802.11a/b/g/n/ac
- 3x3 MIMO Technology, up to 1300Mbps
- Mini PCI Express edge connector
- Supports Spatial Multiplexing, Cyclic-Delay Diversity
- (CDD), Low-Density Parity Check (LDPC) Codes, Maximal
- Ratio Combining (MRC), Space Time Block Code (STBC)
- Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w
- standards
- Supports Dynamic Frequency Selection (DFS)
- Cards are individually calibrated for Quality Assurance
Nanjing MaXon Photoelectric Technology Co., Ltd. is a national high-tech enterprise focusing on industrial communication, integrating product research and development, manufacturing, sales and service. Adhering to the concept of "connect what you think, think what you connect", the company continues to create more convenient and cost-effective communication solutions for customers.Please feel free to contact us at chf@maxonc.com. Check out our website, social media and online platforms for more details.
Specifications
| Chipset | QCA9880 |
| Reference Design | XB140-020 |
| Host Interface | Mini PCI Express 1.1 Standard |
| Operating Voltage | 3.3V DC |
| Antenna Connector | 3x U. FL |
| Frequency Range | 2.4GHz: 2.412GHz to 2.472GHz, or 5GHz: 5.150GHz to 5.825GHz,selectable dual band |
| Certification | FCC & CE Certified, REACH & RoHS Compliance |
| Power Consumption | 5W (Max) |
| Supported Operating System | Qualcomm Atheros reference wireless drivers or OpenWRT/LEDE with ath10k wireless drivers, |
| Modulation Techniques | OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM |
| Environmental Temperature | Operating: -20°C to 70°C, Storage: -40°C to 90°C |
| Environmental Humidity, non-condensing | Operating: 5% to 95%, Storage: Max. 90% |
| ESD Sensitivity | Class 1C |
| Dimensions (W × H × D) | 30.0mm × 50.9mm × 3.2mm |
Radio Frequency Parameters
| Rate | Transmit Power (per chain) | Tolerance | Receive Sensitivity | Tolerance | |
| 2.4GHz 802.11b | 1Mbps | 21dBm | ±1.5dB | -95dBm | ±1.5dB |
| 2Mbps | 21dBm | ±1.5dB | -94dBm | ±1.5dB | |
| 5.5Mbps | 21dBm | ±1.5dB | -92dBm | ±1.5dB | |
| 11Mbps | 20dBm | ±1.5dB | -90dBm | ±1.5dB | |
| 2.4GHz 802.11g | 6Mbps | 21dBm | ±1.5dB | -94dBm | ±1.5dB |
| 9Mbps | 21dBm | ±1.5dB | -93dBm | ±1.5dB | |
| 12Mbps | 21dBm | ±1.5dB | -92dBm | ±1.5dB | |
| 18Mbps | 21dBm | ±1.5dB | -90dBm | ±1.5dB | |
| 24Mbps | 21dBm | ±1.5dB | -88dBm | ±1.5dB | |
| 36Mbps | 20dBm | ±1.5dB | -85dBm | ±1.5dB | |
| 48Mbps | 19dBm | ±1.5dB | -81dBm | ±1.5dB | |
| 54Mbps | 18dBm | ±1.5dB | -75dBm | ±1.5dB | |
| 2.4GHz 802.11n HT20 | MCS 0 | 21dBm | ±1.5dB | -93dBm | ±1.5dB |
| MCS 1 | 21dBm | ±1.5dB | -91dBm | ±1.5dB | |
| MCS 2 | 21dBm | ±1.5dB | -89dBm | ±1.5dB | |
| MCS 3 | 20dBm | ±1.5dB | -84dBm | ±1.5dB | |
| MCS 4 | 20dBm | ±1.5dB | -83dBm | ±1.5dB | |
| MCS 5 | 20dBm | ±1.5dB | -78dBm | ±1.5dB | |
| MCS 6 | 18dBm | ±1.5dB | -78dBm | ±1.5dB | |
| MCS 7 | 16dBm | ±1.5dB | -73dBm | ±1.5dB | |
| 2.4GHz 802.11n HT40 | MCS 0 | 20dBm | ±1.5dB | -92dBm | ±1.5dB |
| MCS 1 | 20dBm | ±1.5dB | -88dBm | ±1.5dB | |
| MCS 2 | 20dBm | ±1.5dB | -85dBm | ±1.5dB | |
| MCS 3 | 19dBm | ±1.5dB | -82dBm | ±1.5dB | |
| MCS 4 | 19dBm | ±1.5dB | -79dBm | ±1.5dB | |
| MCS 5 | 19dBm | ±1.5dB | -75dBm | ±1.5dB | |
| MCS 6 | 18dBm | ±1.5dB | -75dBm | ±1.5dB | |
| MCS 7 | 16dBm | ±1.5dB | -71dBm | ±1.5dB | |
| 5GHz 802.11a | 6Mbps | 20dBm | ±1.5dB | -94dBm | ±1.5dB |
| 9Mbps | 20dBm | ±1.5dB | -94dBm | ±1.5dB | |
| 12Mbps | 20dBm | ±1.5dB | -92dBm | ±1.5dB | |
| 18Mbps | 20dBm | ±1.5dB | -90dBm | ±1.5dB | |
| 24Mbps | 20dBm | ±1.5dB | -86dBm | ±1.5dB | |
| 36Mbps | 18dBm | ±1.5dB | -84dBm | ±1.5dB | |
| 48Mbps | 16dBm | ±1.5dB | -81dBm | ±1.5dB | |
| 54Mbps | 15dBm | ±1.5dB | -77dBm | ±1.5dB | |
| 5GHz 802.11n/ac VHT20 | MCS 0 | 19dBm | ±1.5dB | -93dBm | ±1.5dB |
| MCS 1 | 19dBm | ±1.5dB | -90dBm | ±1.5dB | |
| MCS 2 | 19dBm | ±1.5dB | -87dBm | ±1.5dB | |
| MCS 3 | 18dBm | ±1.5dB | -83dBm | ±1.5dB | |
| MCS 4 | 18dBm | ±1.5dB | -80dBm | ±1.5dB | |
| MCS 5 | 17dBm | ±1.5dB | -77dBm | ±1.5dB | |
| MCS 6 | 16dBm | ±1.5dB | -74dBm | ±1.5dB | |
| MCS 7 | 14dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 8 | 13dBm | ±1.5dB | -70dBm | ±1.5dB | |
| 5GHz 802.11n/ac VHT40 | MCS 0 | 18dBm | ±1.5dB | -90dBm | ±1.5dB |
| MCS 1 | 18dBm | ±1.5dB | -88dBm | ±1.5dB | |
| MCS 2 | 18dBm | ±1.5dB | -85dBm | ±1.5dB | |
| MCS 3 | 17dBm | ±1.5dB | -82dBm | ±1.5dB | |
| MCS 4 | 17dBm | ±1.5dB | -79dBm | ±1.5dB | |
| MCS 5 | 16dBm | ±1.5dB | -75dBm | ±1.5dB | |
| MCS 6 | 15dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 7 | 14dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 8 | 13dBm | ±1.5dB | -69dBm | ±1.5dB | |
| MCS 9 | 13dBm | ±1.5dB | -66dBm | ±1.5dB | |
| 5GHz 802.11n/ac VHT80 | MCS 0 | 18dBm | ±1.5dB | -88dBm | ±1.5dB |
| MCS 1 | 18dBm | ±1.5dB | -86dBm | ±1.5dB | |
| MCS 2 | 18dBm | ±1.5dB | -84dBm | ±1.5dB | |
| MCS 3 | 17dBm | ±1.5dB | -81dBm | ±1.5dB | |
| MCS 4 | 17dBm | ±1.5dB | -77dBm | ±1.5dB | |
| MCS 5 | 16dBm | ±1.5dB | -74dBm | ±1.5dB | |
| MCS 6 | 15dBm | ±1.5dB | -73dBm | ±1.5dB | |
| MCS 7 | 14dBm | ±1.5dB | -70dBm | ±1.5dB | |
| MCS 8 | 13dBm | ±1.5dB | -67dBm | ±1.5dB | |
| MCS 9 | 13dBm | ±1.5dB | -62dBm | ±1.5dB |
