sharding-jdbc线程池异步切换数据源-小记

最新推荐文章于 2025-06-11 09:23:09 发布

原创最新推荐文章于 2025-06-11 09:23:09 发布 · 502 阅读

CC 4.0 BY-SA版权

文章标签：

<dependency>
    <groupId>org.apache.shardingsphere</groupId>
    <artifactId>shardingsphere-jdbc</artifactId>
    <version>5.5.1</version>
</dependency>

# https://shardingsphere.apache.org/index_zh.html
mode:
  # 运行模式类型。可选配置：内存模式 Memory、单机模式 Standalone、集群模式 Cluster - 目前为单机模式
  type: Standalone

dataSources:
  ds:
    dataSourceClassName: com.zaxxer.hikari.HikariDataSource
    driverClassName: com.mysql.cj.jdbc.Driver
    jdbcUrl: jdbc:mysql://127.0.0.1:3307/big_market?useUnicode=true&characterEncoding=utf8&autoReconnect=true&zeroDateTimeBehavior=convertToNull&serverTimezone=UTC&useSSL=true
    username: root
    password: 123456
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 15
    minPoolSize: 5

  ds_0:
    dataSourceClassName: com.zaxxer.hikari.HikariDataSource
    driverClassName: com.mysql.cj.jdbc.Driver
    jdbcUrl: jdbc:mysql://127.0.0.1:3307/big_market_01?useUnicode=true&characterEncoding=utf8&autoReconnect=true&zeroDateTimeBehavior=convertToNull&serverTimezone=UTC&useSSL=true
    username: root
    password: 123456
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 15
    minPoolSize: 5

  ds_1:
    dataSourceClassName: com.zaxxer.hikari.HikariDataSource
    driverClassName: com.mysql.cj.jdbc.Driver
    jdbcUrl: jdbc:mysql://127.0.0.1:3307/big_market_02?useUnicode=true&characterEncoding=utf8&autoReconnect=true&zeroDateTimeBehavior=convertToNull&serverTimezone=UTC&useSSL=true
    username: root
    password: 123456
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 15
    minPoolSize: 5

rules:
  - !SHARDING
    # 库的路由
    defaultDatabaseStrategy:
      standard:
        shardingColumn: user_id
        shardingAlgorithmName: database_inline
    # 表的路由
    tables:
      raffle_activity_account:
        actualDataNodes: ds_$->{0..1}.raffle_activity_account
      raffle_activity_account_month:
        actualDataNodes: ds_$->{0..1}.raffle_activity_account_month
      raffle_activity_account_day:
        actualDataNodes: ds_$->{0..1}.raffle_activity_account_day
      task:
        actualDataNodes: ds_$->{0..1}.task
        #自定义的分库策略,当自定义的时候就每次需要手动设置库
        databaseStrategy:
          hint:
            shardingAlgorithmName: hint_class_based
      # 领取活动表(签到等获得抽奖机会)
      raffle_activity_order:
        actualDataNodes: ds_$->{0..1}.raffle_activity_order_00$->{0..3}
        tableStrategy:
          standard:
            shardingColumn: user_id
            shardingAlgorithmName: raffle_activity_order_inline
      # 参与活动订单表(参与活动)
      user_raffle_order:
        actualDataNodes: ds_$->{0..1}.user_raffle_order_00$->{0..3}
        tableStrategy:
          standard:
            shardingColumn: user_id
            shardingAlgorithmName: user_raffle_order_inline
      # 用户中奖记录表
      user_award_record:
        actualDataNodes: ds_$->{0..1}.user_award_record_00$->{0..3}
        tableStrategy:
          standard:
            shardingColumn: user_id
            shardingAlgorithmName: user_award_record_inline
    # 路由算法
    shardingAlgorithms:
      # 库-路由算法 2是两个库，库的数量。库的数量用哈希模2来计算。
      database_inline:
        type: INLINE
        props:
          algorithm-expression: ds_$->{Math.abs(user_id.hashCode()) % 2}
      # 表-路由算法 4是一个库里，表的数量。4 - 1 为了获得 011 这样的二进制值。不推荐 user_order_$->{Math.abs(user_id.hashCode()) % 2} 作为表的路由
      raffle_activity_order_inline:
        type: INLINE
        props:
          algorithm-expression: raffle_activity_order_00$->{(user_id.hashCode() ^ (user_id.hashCode()) >>> 16) & (4 - 1)}
      user_raffle_order_inline:
        type: INLINE
        props:
          algorithm-expression: user_raffle_order_00$->{(user_id.hashCode() ^ (user_id.hashCode()) >>> 16) & (4 - 1)}
      user_award_record_inline:
        type: INLINE
        props:
          algorithm-expression: user_award_record_00$->{(user_id.hashCode() ^ (user_id.hashCode()) >>> 16) & (4 - 1)}
      hint_class_based:
        type: CLASS_BASED
        props:
          strategy: HINT
          algorithmClassName: com.yw.infrastructure.hint.MyDatasourceRoutingAlgorithm
  #表不路由，需要加载全部单表
  - !SINGLE
    tables:
      - "ds.*"



      # 加载全部单表
props:
  # 是否在日志中打印 SQL。
  # 打印 SQL 可以帮助开发者快速定位系统问题。日志内容包含：逻辑 SQL，真实 SQL 和 SQL 解析结果。
  # 如果开启配置，日志将使用 Topic ShardingSphere-SQL，日志级别是 INFO。 false
  sql-show: true
  # 是否在日志中打印简单风格的 SQL。false
  sql-simple: true
  # 用于设置任务处理线程池的大小。每个 ShardingSphereDataSource 使用一个独立的线程池，同一个 JVM 的不同数据源不共享线程池。
  executor-size: 20
  # 查询请求在每个数据库实例中所能使用的最大连接数。1
  max-connections-size-per-query: 1
  # 在程序启动和更新时，是否检查分片元数据的结构一致性。
  check-table-metadata-enabled: false
  # 在程序启动和更新时，是否检查重复表。false
  check-duplicate-table-enabled: false

package com.yw.trigger.job;

import com.alibaba.fastjson2.JSON;
import com.xxl.job.core.handler.annotation.XxlJob;
import com.yw.domain.award.model.entity.TaskEntity;
import com.yw.domain.task.service.ITaskService;
import com.yw.types.exception.AppException;
import lombok.extern.slf4j.Slf4j;
import org.apache.shardingsphere.infra.hint.HintManager;
import org.redisson.api.RLock;
import org.redisson.api.RedissonClient;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.List;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicReference;

/**
 * 扫描库表对失败的发奖任务进行重新发送mq
 *
 * @author: yuanwen
 * @since: 2024/11/18
 */
@Service
@Slf4j
public class ScanSendAwardTaskJob {

    @Resource
    private ITaskService taskService;

    @Resource
    private ThreadPoolExecutor threadPoolExecutor;

    @Resource
    private RedissonClient redissonClient;

    private final String DB_1 = "0";

    private final String DB_2 = "1";

    //这里的corn表达式表示每隔5秒执行一次
    //0/5表示从0秒开始到第五秒
    // 0/5  *  *  *  *   ?
    // 秒   分  时 日 月 指定星期
//    @Scheduled(cron = "0/5 * * * * ?")
    @XxlJob(value = "ScanSendAwardTask_DB1")
    public void scanSendAwardTaskDB1() {
        //加入分布式锁
        RLock lock = redissonClient.getLock("big-market-SendMessageTaskJob_DB1");
        try {
            //采用分布式锁，防止分布式部署导致多个线程扫描到同一个任务导致重复发送
            boolean isLock = lock.tryLock(3, TimeUnit.SECONDS);
            if (!isLock) return;
            //分为2库，多线程异步来扫描
            threadPoolExecutor.execute(() -> {
                //扫描发送奖品任务列表
                HintManager hintManager = taskService.scanDataSource(DB_1);
                List<TaskEntity> failTasks = taskService.queryFailTaskList();
                log.info("扫描发送奖品任务列表:{}", JSON.toJSONString(failTasks));
                //发送失败奖品列表也使用多线程来加快速度
                failTasks.forEach(task ->
                                threadPoolExecutor.execute(() -> {
                                    hintManager.setDatabaseShardingValue("ds_" + DB_1);
                                    //这部分无需传递，底层待研究
//                            //传递给当前线程的子线程
////                           taskService.scanDataSource(DB_1);
//                            hintManager.setDatabaseShardingValue("ds_" + DB_1);
                                    try {
                                        //重新发奖并更新任务状态
                                        taskService.sendTaskMessage(task);
                                        taskService.updateTaskSendMessageCompleted(task.getUserId(), task.getMessageId());
                                        log.info("补偿发送奖品任务成功:{}", JSON.toJSONString(task));
                                    } catch (Exception e) {
                                        //发送失败处理
                                        log.error("发送奖品任务失败:task:{},message:{}", JSON.toJSONString(task), e.getMessage());
                                        taskService.updateTaskSendMessageFailed(task.getUserId(), task.getMessageId());
                                    }
                                })
                );
                //清除当前循环中的分片键
                hintManager.close();
            });
        } catch (Exception e) {
            log.error("扫描发送奖品任务失败:{}", e.getMessage());
            throw new AppException("扫描发送奖品任务失败", e);
        } finally {
            lock.unlock();
        }
    }


    @XxlJob(value = "ScanSendAwardTask_DB2")
    public void scanSendAwardTaskDB2() {
        //加入分布式锁
        RLock lock = redissonClient.getLock("big-market-SendMessageTaskJob_DB2");
        try {
            //采用分布式锁，防止分布式部署导致多个线程扫描到同一个任务导致重复发送
            boolean isLock = lock.tryLock(3, TimeUnit.SECONDS);
            if (!isLock) return;
            //分为2库，多线程异步来扫描
            threadPoolExecutor.execute(() -> {
                //扫描发送奖品任务列表
                HintManager hintManager = taskService.scanDataSource(DB_2);
                List<TaskEntity> failTasks = taskService.queryFailTaskList();
                log.info("扫描发送奖品任务列表:{}", JSON.toJSONString(failTasks));
                //发送失败奖品列表也使用多线程来加快速度
                failTasks.forEach(task ->
                                threadPoolExecutor.execute(() -> {
                                    hintManager.setDatabaseShardingValue("ds_" + DB_1);
                                    //这部分无需传递，底层待研究
//                            //传递给当前线程的子线程
////                           taskService.scanDataSource(DB_1);
//                            hintManager.setDatabaseShardingValue("ds_" + DB_1);
                                    try {
                                        //重新发奖并更新任务状态
                                        taskService.sendTaskMessage(task);
                                        taskService.updateTaskSendMessageCompleted(task.getUserId(), task.getMessageId());
                                        log.info("补偿发送奖品任务成功:{}", JSON.toJSONString(task));
                                    } catch (Exception e) {
                                        //发送失败处理
                                        log.error("发送奖品任务失败:task:{},message:{}", JSON.toJSONString(task), e.getMessage());
                                        taskService.updateTaskSendMessageFailed(task.getUserId(), task.getMessageId());
                                    }
                                })
                );
                //清除当前循环中的分片键
                hintManager.close();
            });
        } catch (Exception e) {
            log.error("扫描发送奖品任务失败:{}", e.getMessage());
            throw new AppException("扫描发送奖品任务失败", e);
        } finally {
            lock.unlock();
        }
    }
}

public HintManager scanDataSource(String hit) {
        HintManager hintManager = HintManager.getInstance();
        hintManager.setDatabaseShardingValue("ds_" + hit);
        return hintManager;
    }

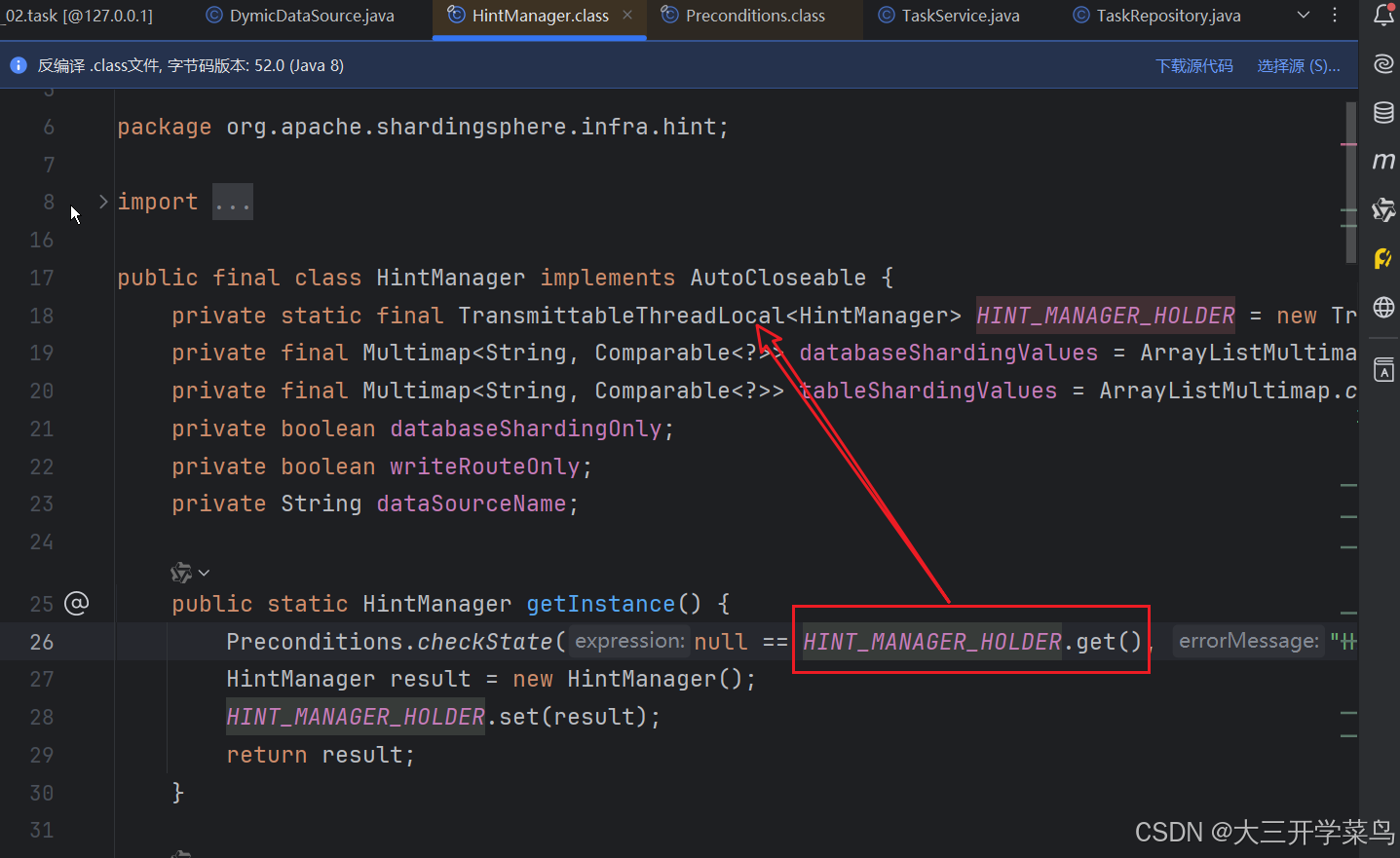

这里面的HintManager.getInstance()源码是涉及到，本次场景中是线程池去异步执行任务，且task是自定义的切换数据源

TransmittableThreadLocal，该类的详情文章：ThreadLocal垮线程池传递数据解决方案
