【springMvc学习记录之一】spring DispatcherServlet

                    【springMvc学习记录之一】DispatcherServlet

springMvc model-view-controller (MVC)是spring为web开发提供的一个框架。这个框架就是围绕DispatcherServlet 类来设计。

springMvc框架类似于其他mvc框架，都是由请求驱动的(request-driven)。

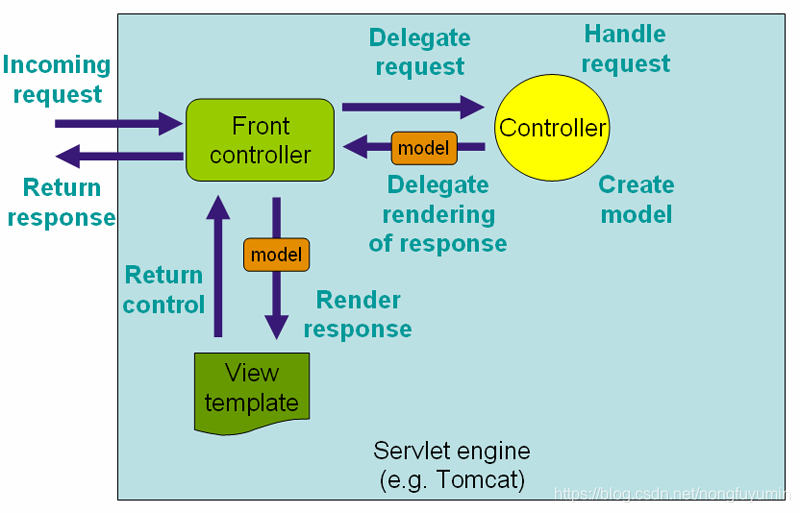

DispatcherServlet类的作用就是接收request请求、转发request到对应的handler，spring web mvc的工作流程如下图所示

DispatcherServlet本质上是一个servlet，所以与普通的servlet一样，需要在web.xml中配置映射规则

<web-app>
    <servlet>
        <servlet-name>example</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>example</servlet-name>
        <url-pattern>/example/*</url-pattern>
    </servlet-mapping>

</web-app>

每个DispatcherServlet都有对应的web应用上下文WebApplicationContext，WebApplicationContext上下文包含了servlet实例与其他上下文直接共享的beans

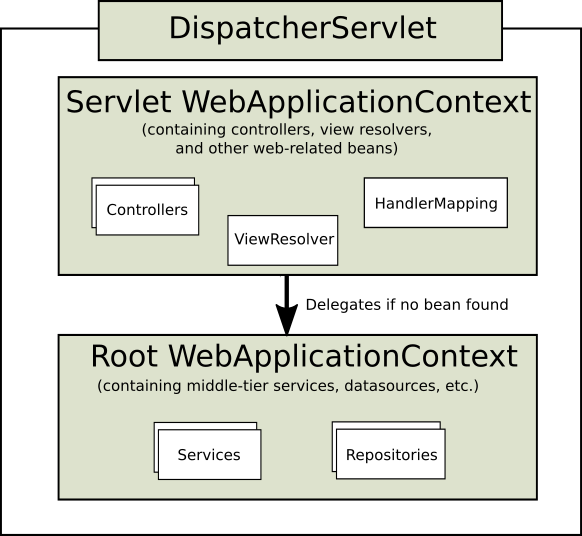

spring web mvc中的各种容器的层次关系如下图

springMvc默认的配置文件名为WEB-INF目录下的[servlet-name]-servlet.xml文件，如下所示

<web-app>
    <servlet>
        <servlet-name>golfing</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>golfing</servlet-name>
        <url-pattern>/golfing/*</url-pattern>
    </servlet-mapping>
</web-app>

不指定配置文件的情况下，需要在WEB-INF目录下有个golfing-servlet.xml配置文件，这个文件包含了应用所需要的所有bean定义，当然你也可以指定springMvc的文件配置名称，web.xml配置如下

<web-app>
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>/WEB-INF/root-context.xml</param-value>
    </context-param>
    <servlet>
        <servlet-name>dispatcher</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value></param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>dispatcher</servlet-name>
        <url-pattern>/*</url-pattern>
    </servlet-mapping>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
</web-app>

，也可以通过java config来配置

public class GolfingWebAppInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {

    @Override
    protected Class<?>[] getRootConfigClasses() {
        // GolfingAppConfig defines beans that would be in root-context.xml
        return new Class<?>[] { GolfingAppConfig.class };
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        // GolfingWebConfig defines beans that would be in golfing-servlet.xml
        return new Class<?>[] { GolfingWebConfig.class };
    }

    @Override
    protected String[] getServletMappings() {
        return new String[] { "/golfing/*" };
    }
}

DispatcherServlet使用一些特殊的bean去处理请求与渲染视图，这些bean是springMvc的一部分，你可以通过WebApplicationContext来指定使用哪些特殊的bean，

WebApplicationContext中的一些特殊的bean

DispatcherServlet使用一些默认bean来处理请求，这个配置写在DispatcherServlet.properties文件中

# Default implementation classes for DispatcherServlet's strategy interfaces.
# Used as fallback when no matching beans are found in the DispatcherServlet context.
# Not meant to be customized by application developers.

org.springframework.web.servlet.LocaleResolver=org.springframework.web.servlet.i18n.AcceptHeaderLocaleResolver

org.springframework.web.servlet.ThemeResolver=org.springframework.web.servlet.theme.FixedThemeResolver

org.springframework.web.servlet.HandlerMapping=org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping,\
	org.springframework.web.servlet.mvc.annotation.DefaultAnnotationHandlerMapping

org.springframework.web.servlet.HandlerAdapter=org.springframework.web.servlet.mvc.HttpRequestHandlerAdapter,\
	org.springframework.web.servlet.mvc.SimpleControllerHandlerAdapter,\
	org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerAdapter

org.springframework.web.servlet.HandlerExceptionResolver=org.springframework.web.servlet.mvc.annotation.AnnotationMethodHandlerExceptionResolver,\
	org.springframework.web.servlet.mvc.annotation.ResponseStatusExceptionResolver,\
	org.springframework.web.servlet.mvc.support.DefaultHandlerExceptionResolver

org.springframework.web.servlet.RequestToViewNameTranslator=org.springframework.web.servlet.view.DefaultRequestToViewNameTranslator

org.springframework.web.servlet.ViewResolver=org.springframework.web.servlet.view.InternalResourceViewResolver

org.springframework.web.servlet.FlashMapManager=org.springframework.web.servlet.support.SessionFlashMapManager

来总结下DispatcherServlet处理请求的流程

• 为request绑定web上下文WebApplicationContext ，key为DispatcherServlet.WEB_APPLICATION_CONTEXT_ATTRIBUTE
• 为request绑定locale resolver解析器
• 为request绑定theme resolver视图解析器
• 如果指定了文件解析器，request将会包装成MultipartHttpServletRequest
• 寻找对应的handler
• 处理逻辑
• 渲染视图
•
