部署 haproxy+keepalived

本次部署一个三节点高可用 haproxy+keepalived 集群，分别为：192.168.21.224、192.168.21.225、192.168.21.226。VIP 地址 192.168.17.21

安装 haproxy+keepalived

yum install -y haproxy keepalived

注： 3台 haproxy+keepalived 节点都需安装

配置 keepalived

节点1:192.168.21.224

cat > keepalived.conf <<EOF

global_defs {

router_id 192.168.21.224

}

vrrp_script check_haproxy {

script "/etc/keepalived/check_haproxy.sh"

interval 3

}

vrrp_instance VI-kube-master {

state MASTER

priority 120

dont_track_primary

interface eth0

virtual_router_id 68

advert_int 3

track_script {

check-haproxy

}

virtual_ipaddress {

192.168.17.21

}

EOF

VIP 所在的接口（interface ${VIP_IF}）为 eth0；
使用 killall -0 haproxy 命令检查所在节点的 haproxy 进程是否正常。如果异常则将权重减少（-30）,从而触发重新选主过程；
router_id、virtual_router_id 用于标识属于该 HA 的 keepalived 实例，如果有多套 keepalived HA，则必须各不相同；

节点2:192.168.21.225

cat > keepalived.conf <<EOF

global_defs {

router_id 192.168.21.225

}

vrrp_script check_haproxy {

script "/etc/keepalived/check_haproxy.sh"

interval 3

}

vrrp_instance VI-kube-master {

state BACKUP

priority 110

dont_track_primary

interface

virtual_router_id 68

advert_int 3

track_script {

check-haproxy

}

virtual_ipaddress {

192.168.17.21

}

EOF

节点3:192.168.21.226

cat > keepalived.conf <<EOF

global_defs {

router_id 192.168.21.225

}

vrrp_script check_haproxy {

script "/etc/keepalived/check_haproxy.sh"

interval 3

}

vrrp_instance VI-kube-master {

state BACKUP

priority 110

dont_track_primary

interface

virtual_router_id 68

advert_int 3

track_script {

check-haproxy

}

virtual_ipaddress {

192.168.17.21

}

EOF

注意：

VIP 所在的接口（interface ${VIP_IF}）为 eth0；
使用 killall -0 haproxy 命令检查所在节点的 haproxy 进程是否正常。如果异常则将权重减少（-30）,从而触发重新选主过程；
router_id、virtual_router_id 用于标识属于该 HA 的 keepalived 实例，如果有多套 keepalived HA，则必须各不相同；
priority 的值必须小于 master 的值；

检测脚本 vi /etc/keepalived/check_haproxy.sh

#!/bin/bash

flag=$(systemctl status haproxy &> /dev/null;echo $?)

if [[ $flag != 0 ]];then

echo "haproxy is down,close the keepalived"

systemctl stop keepalived

修改keepalived启动文件 vi /usr/lib/systemd/system/keepalived.service 以下部分:

[Unit]

Description=LVS and VRRP High Availability Monitor

After=syslog.target network-online.target haproxy.service

Requires=haproxy.service

keepalived配置文件三台主机基本一样，除了state，主节点配置为MASTER，备节点配置BACKUP，优化级参数priority，主节点设置最高，备节点依次递减
自定义的检测脚本作用是检测本机haproxy服务状态，如果不正常就停止本机keepalived，释放VIP
这里没有考虑keepalived脑裂的问题，后期可以在脚本中加入相关检测

配置 haproxy

3台节点配置一样

cat > haproxy.cfg <<EOF

global

log /dev/log local0

log /dev/log local1 notice

chroot /var/lib/haproxy

stats socket /var/run/haproxy-admin.sock mode 660 level admin

stats timeout 30s

user haproxy

group haproxy

daemon

nbproc 1

defaults

log global

timeout connect 5000

timeout client 10m

timeout server 10m

listen admin_stats

bind 0.0.0.0:10080

mode http

log 127.0.0.1 local0 err

stats refresh 30s

stats uri /status

stats realm welcome login\ Haproxy

stats auth admin:123456

stats hide-version

stats admin if TRUE

listen kube-master

bind 0.0.0.0:8443

mode tcp

option tcplog

balance source

server 192.168.21.224 192.168.21.224:6443 check inter 2000 fall 2 rise 2 weight 1

server 192.168.21.225 192.168.21.225:6443 check inter 2000 fall 2 rise 2 weight 1

server 192.168.21.226 192.168.21.226:6443 check inter 2000 fall 2 rise 2 weight 1

EOF

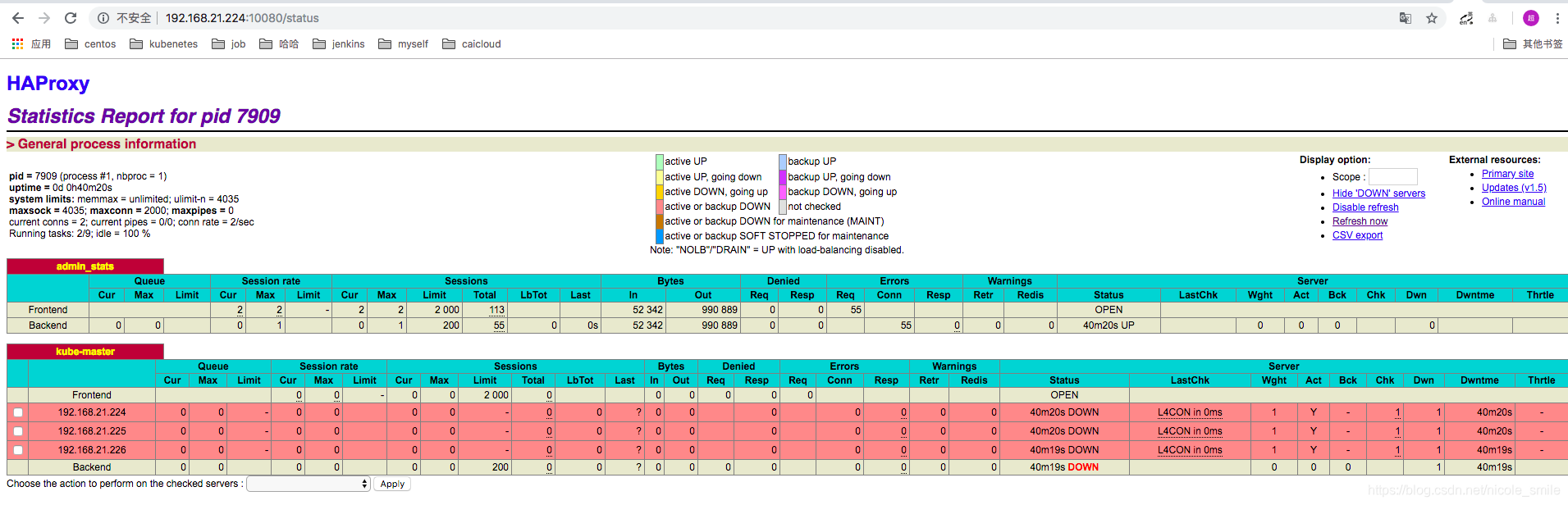

haproxy 在 10080 端口输出 status 信息；
haproxy 监听所有接口的 8443 端口，该端口与环境变量 ${KUBE_APISERVER} 指定的端口必须一致；
server 字段列出所有 kube-apiserver 监听的 IP 和端口；

启动 haproxy+keepalived

3个节点都启动

systemctl daemon-reload

systemctl enable haproxy

systemctl enable keepalived

systemctl start haproxy

systemctl start keepalived

如果没有什么报错，那应该就可以在主节点 192.168.21.224 上面看到eth0网卡已绑定VIP: 192.168.17.21

[root@c821v224 ~]# ip a

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1

link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

inet 127.0.0.1/8 scope host lo
