JVM栈调优与实战

原创 已于 2023-05-09 17:51:36 修改 · 3.7k 阅读 · 6 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY 版权协议，转载请附上原文出处链接和本声明。
文章标签：

#java #power #多线程 #信息安全 #jvm

于 2021-02-03 07:01:00 首次发布
本文介绍Java栈的重要性和使用jstack工具分析线程状态的方法。通过实例演示如何定位CPU过高、死循环及死锁等问题，并提供测试代码帮助理解。

Java栈里面最重要的就是线程了。一般程序发生死循环、死锁、线程Hang住 等问题，我们都需要从栈上去分析原因。

jstack

一般出现CPU过高、线程假死等问题，都可以利用 jstack 命令来讲栈信息导出分析具体原因。 我们先来看一个案例：

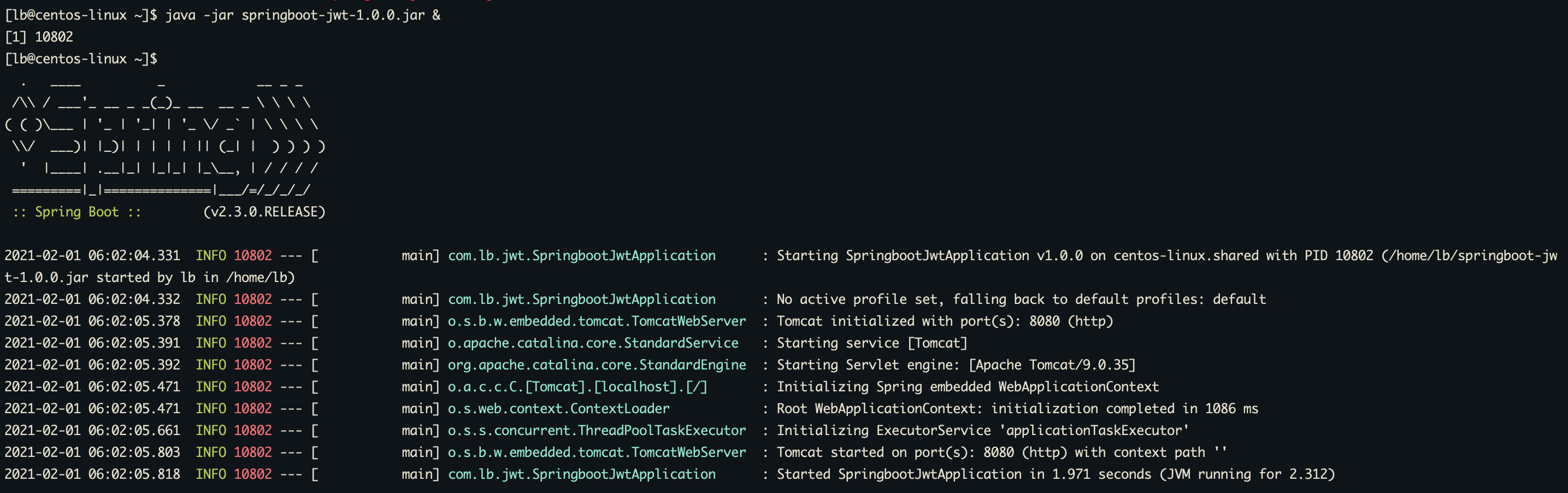

  1. 启动应用
java -jar springboot-jwt-1.0.0.jar &

  1. 打印栈信息，并生成到一个app.txt文件内
jstack 10802 > app.txt
  1. 下载 app.txt 文件到本地
[lb@centos-linux ~]$ sz app.txt

内容如下：

2021-02-01 06:05:46
Full thread dump Java HotSpot(TM) 64-Bit Server VM (25.271-b09 mixed mode):
# `#129 `内部标识号
# daemon 守护线程
# prio=9 优先级
# os_prio=0 系统级优先级
# tid=0x00007fa5a8001000 线程16进制ID
# nid=0x3943  进程16进制ID
"Attach Listener" #129 daemon prio=9 os_prio=0 tid=0x00007fa5a8001000 nid=0x3943 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

"DestroyJavaVM" #128 prio=5 os_prio=0 tid=0x00007fa5d8009800 nid=0x2a33 waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE
# Tomcat
"http-nio-8080-Acceptor" #126 daemon prio=5 os_prio=0 tid=0x00007fa5d8bd8800 nid=0x2ad7 runnable [0x00007fa5970f1000]
   java.lang.Thread.State: RUNNABLE
	at sun.nio.ch.ServerSocketChannelImpl.accept0(Native Method)
	at sun.nio.ch.ServerSocketChannelImpl.accept(ServerSocketChannelImpl.java:424)
	at sun.nio.ch.ServerSocketChannelImpl.accept(ServerSocketChannelImpl.java:252)
	- locked <0x00000000f9188878> (a java.lang.Object)
	at org.apache.tomcat.util.net.NioEndpoint.serverSocketAccept(NioEndpoint.java:469)
	at org.apache.tomcat.util.net.NioEndpoint.serverSocketAccept(NioEndpoint.java:71)
	at org.apache.tomcat.util.net.Acceptor.run(Acceptor.java:95)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-ClientPoller" #125 daemon prio=5 os_prio=0 tid=0x00007fa5d8b42000 nid=0x2ad6 runnable [0x00007fa5971f2000]
   java.lang.Thread.State: RUNNABLE
	at sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
	at sun.nio.ch.EPollArrayWrapper.poll(EPollArrayWrapper.java:269)
	at sun.nio.ch.EPollSelectorImpl.doSelect(EPollSelectorImpl.java:93)
	at sun.nio.ch.SelectorImpl.lockAndDoSelect(SelectorImpl.java:86)
	- locked <0x00000000f9415be8> (a sun.nio.ch.Util$3)
	- locked <0x00000000f9415bd8> (a java.util.Collections$UnmodifiableSet)
	- locked <0x00000000f9415ac0> (a sun.nio.ch.EPollSelectorImpl)
	at sun.nio.ch.SelectorImpl.select(SelectorImpl.java:97)
	at org.apache.tomcat.util.net.NioEndpoint$Poller.run(NioEndpoint.java:709)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-10" #124 daemon prio=5 os_prio=0 tid=0x00007fa5d8bc0800 nid=0x2ad5 waiting on condition [0x00007fa5972f3000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-9" #123 daemon prio=5 os_prio=0 tid=0x00007fa5d8ad7000 nid=0x2ad4 waiting on condition [0x00007fa5973f4000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-8" #122 daemon prio=5 os_prio=0 tid=0x00007fa5d8ad5000 nid=0x2ad3 waiting on condition [0x00007fa5974f5000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-7" #121 daemon prio=5 os_prio=0 tid=0x00007fa5d8a43000 nid=0x2ad2 waiting on condition [0x00007fa5975f6000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-6" #120 daemon prio=5 os_prio=0 tid=0x00007fa5d8a41000 nid=0x2ad1 waiting on condition [0x00007fa5976f7000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-5" #119 daemon prio=5 os_prio=0 tid=0x00007fa5d8a3f000 nid=0x2ad0 waiting on condition [0x00007fa5977f8000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-4" #118 daemon prio=5 os_prio=0 tid=0x00007fa5d8999000 nid=0x2acf waiting on condition [0x00007fa5978f9000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-3" #117 daemon prio=5 os_prio=0 tid=0x00007fa5d8997000 nid=0x2ace waiting on condition [0x00007fa5979fa000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-2" #116 daemon prio=5 os_prio=0 tid=0x00007fa5d8996000 nid=0x2acd waiting on condition [0x00007fa597afb000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-exec-1" #115 daemon prio=5 os_prio=0 tid=0x00007fa5d84e2800 nid=0x2acc waiting on condition [0x00007fa597bfc000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000f92c6e08> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.LinkedBlockingQueue.take(LinkedBlockingQueue.java:442)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:107)
	at org.apache.tomcat.util.threads.TaskQueue.take(TaskQueue.java:33)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"http-nio-8080-BlockPoller" #114 daemon prio=5 os_prio=0 tid=0x00007fa5d8af1800 nid=0x2acb runnable [0x00007fa597cfd000]
   java.lang.Thread.State: RUNNABLE
	at sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
	at sun.nio.ch.EPollArrayWrapper.poll(EPollArrayWrapper.java:269)
	at sun.nio.ch.EPollSelectorImpl.doSelect(EPollSelectorImpl.java:93)
	at sun.nio.ch.SelectorImpl.lockAndDoSelect(SelectorImpl.java:86)
	- locked <0x00000000f918cdf8> (a sun.nio.ch.Util$3)
	- locked <0x00000000f918cd70> (a java.util.Collections$UnmodifiableSet)
	- locked <0x00000000f918c9a8> (a sun.nio.ch.EPollSelectorImpl)
	at sun.nio.ch.SelectorImpl.select(SelectorImpl.java:97)
	at org.apache.tomcat.util.net.NioBlockingSelector$BlockPoller.run(NioBlockingSelector.java:313)

"container-0" #113 prio=5 os_prio=0 tid=0x00007fa5d8ad0800 nid=0x2aca waiting on condition [0x00007fa597ffe000]
   java.lang.Thread.State: TIMED_WAITING (sleeping)
	at java.lang.Thread.sleep(Native Method)
	at org.apache.catalina.core.StandardServer.await(StandardServer.java:570)
	at org.springframework.boot.web.embedded.tomcat.TomcatWebServer$1.run(TomcatWebServer.java:197)

"Catalina-utility-2" #112 prio=1 os_prio=0 tid=0x00007fa5d8acf800 nid=0x2ac9 waiting on condition [0x00007fa5c81f0000]
   java.lang.Thread.State: TIMED_WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000ffcd9e58> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.parkNanos(LockSupport.java:215)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.awaitNanos(AbstractQueuedSynchronizer.java:2078)
	at java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:1093)
	at java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:809)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"Catalina-utility-1" #111 prio=1 os_prio=0 tid=0x00007fa5d8cd7800 nid=0x2ac8 waiting on condition [0x00007fa5c82f1000]
   java.lang.Thread.State: WAITING (parking)
	at sun.misc.Unsafe.park(Native Method)
	- parking to wait for  <0x00000000ffcd9e58> (a java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject)
	at java.util.concurrent.locks.LockSupport.park(LockSupport.java:175)
	at java.util.concurrent.locks.AbstractQueuedSynchronizer$ConditionObject.await(AbstractQueuedSynchronizer.java:2039)
	at java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:1088)
	at java.util.concurrent.ScheduledThreadPoolExecutor$DelayedWorkQueue.take(ScheduledThreadPoolExecutor.java:809)
	at java.util.concurrent.ThreadPoolExecutor.getTask(ThreadPoolExecutor.java:1074)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1134)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
	at java.lang.Thread.run(Thread.java:748)

"Service Thread" #7 daemon prio=9 os_prio=0 tid=0x00007fa5d8149800 nid=0x2a3c runnable [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

"C1 CompilerThread1" #6 daemon prio=9 os_prio=0 tid=0x00007fa5d813e800 nid=0x2a3b waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

"C2 CompilerThread0" #5 daemon prio=9 os_prio=0 tid=0x00007fa5d813b800 nid=0x2a3a waiting on condition [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

"Signal Dispatcher" #4 daemon prio=9 os_prio=0 tid=0x00007fa5d813a000 nid=0x2a39 runnable [0x0000000000000000]
   java.lang.Thread.State: RUNNABLE

"Finalizer" #3 daemon prio=8 os_prio=0 tid=0x00007fa5d8109000 nid=0x2a38 in Object.wait() [0x00007fa5c88f7000]
   java.lang.Thread.State: WAITING (on object monitor)
	at java.lang.Object.wait(Native Method)
	- waiting on <0x00000000e358fc40> (a java.lang.ref.ReferenceQueue$Lock)
	at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:144)
	- locked <0x00000000e358fc40> (a java.lang.ref.ReferenceQueue$Lock)
	at java.lang.ref.ReferenceQueue.remove(ReferenceQueue.java:165)
	at java.lang.ref.Finalizer$FinalizerThread.run(Finalizer.java:216)

"Reference Handler" #2 daemon prio=10 os_prio=0 tid=0x00007fa5d8104800 nid=0x2a37 in Object.wait() [0x00007fa5c89f8000]
   java.lang.Thread.State: WAITING (on object monitor)
	at java.lang.Object.wait(Native Method)
	- waiting on <0x00000000e349aa18> (a java.lang.ref.Reference$Lock)
	at java.lang.Object.wait(Object.java:502)
	at java.lang.ref.Reference.tryHandlePending(Reference.java:191)
	- locked <0x00000000e349aa18> (a java.lang.ref.Reference$Lock)
	at java.lang.ref.Reference$ReferenceHandler.run(Reference.java:153)

"VM Thread" os_prio=0 tid=0x00007fa5d80fa800 nid=0x2a36 runnable

"GC task thread#0 (ParallelGC)" os_prio=0 tid=0x00007fa5d801e800 nid=0x2a34 runnable

"GC task thread#1 (ParallelGC)" os_prio=0 tid=0x00007fa5d8020800 nid=0x2a35 runnable

"VM Periodic Task Thread" os_prio=0 tid=0x00007fa5d814c800 nid=0x2a3d waiting on condition

JNI global references: 1064

配置JVM栈大小

我们来模拟一个栈递归调用深度异常

  1. 编写测试代码
public class JvmStackRecursionDemo {

    private static int count;

    private static void counterRecursion(){
        count ++ ;
        counterRecursion();
    }

    /**
     * JVM args : -Xss1m
     */
    public static void main(String[] args) {
        try{
            counterRecursion();
        }catch (Throwable t){
            System.err.println("count="+count);
            t.printStackTrace();
        }
    }
}
  1. 指定JVM参数： -Xss10m (栈空间为10MB)
  2. 运行测试代码
count=257082
java.lang.StackOverflowError
	at com.lb.gc.JvmStackRecursionDemo.counterRecursion(JvmStackRecursionDemo.java:16)
	at com.lb.gc.JvmStackRecursionDemo.counterRecursion(JvmStackRecursionDemo.java:16)
	at com.lb.gc.JvmStackRecursionDemo.counterRecursion(JvmStackRecursionDemo.java:16)
	at com.lb.gc.JvmStackRecursionDemo.counterRecursion(JvmStackRecursionDemo.java:16)
	at com.lb.gc.JvmStackRecursionDemo.counterRecursion(JvmStackRecursionDemo.java:16)
	at com.lb.gc.JvmStackRecursionDemo.counterRecursion(JvmStackRecursionDemo.java:16)
	...

CPU过高如何处理？

基本流程：

  1. 找出10进制的线程号 top -Hp <应用进程ID>
  2. 转换为16进制 printf "%x" <线程号>
  3. jstack > <文件名> 导出栈信息，查找线程ID nid
  1. 测试代码
@RestController
public class JvmStackDeadStackDemo {

    @GetMapping("deadLoop")
    public String deadLoop()throws Exception{
        while (true){
            System.err.println("running forever");
        }
    }
}
  1. 启动 ( & 代表后台启动 )
java -jar springboot-jwt-1.0.0.jar &
  1. 执行死循环
curl locahost:8081/deadLoop

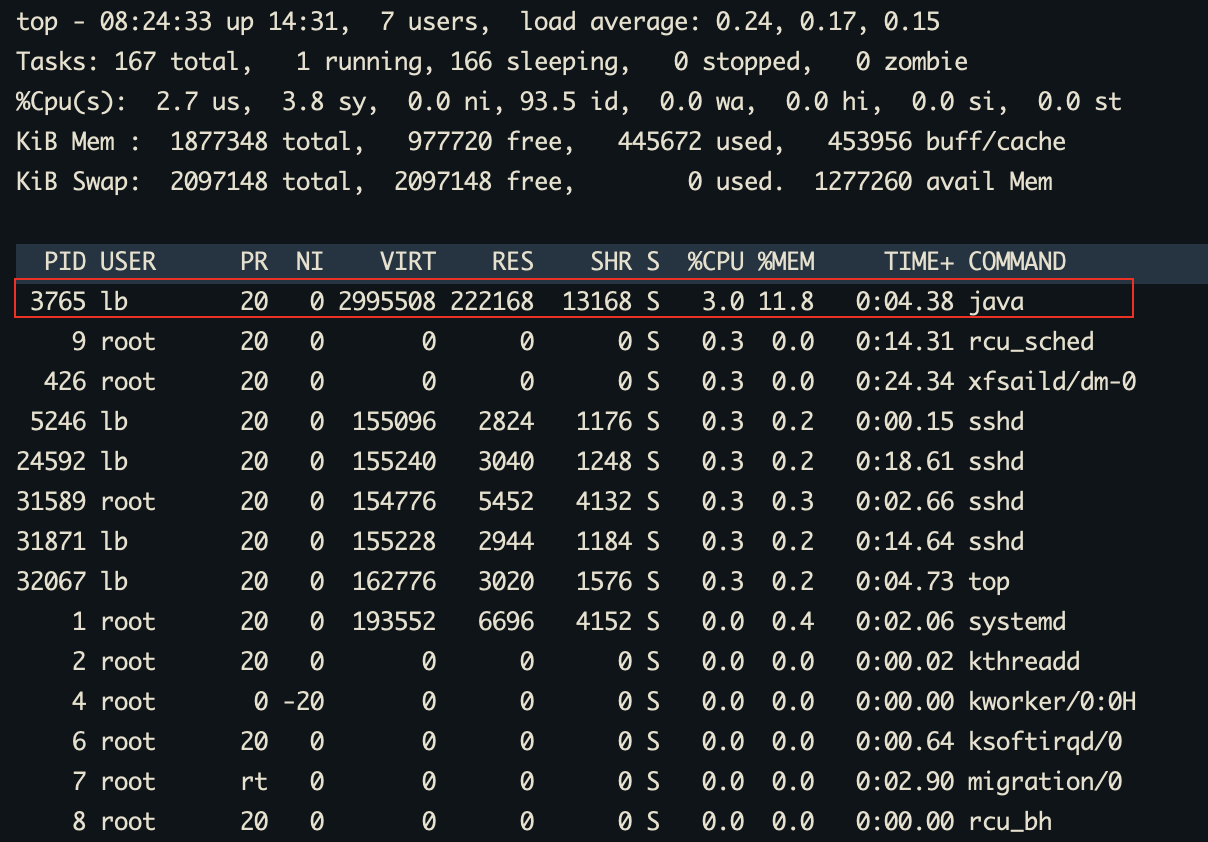

  1. 查看系统进程信息
top

可以看出 3765 这个进程CPU占用率最高

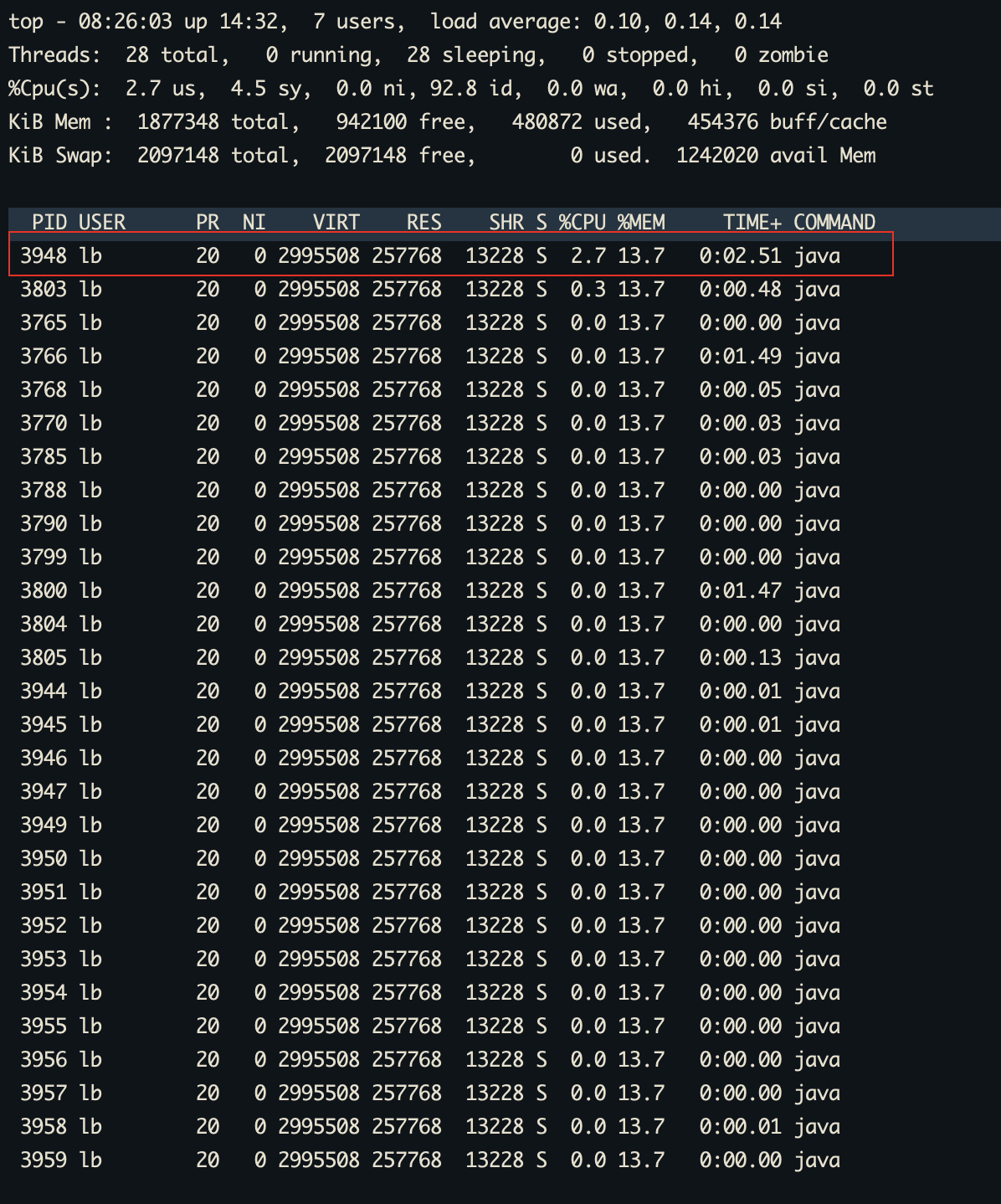

  1. 查看进程的详细信息
top -Hp 3765

可以看出 3948 这个线程占用率最高

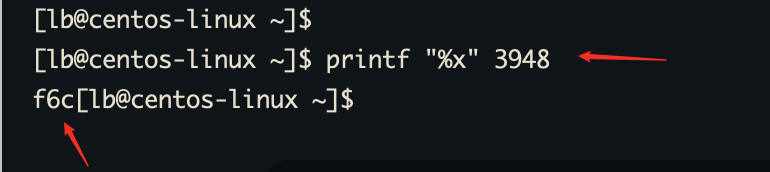

  1. 将3948转为16进制
printf "%x" 3948

  1. 导出栈信息
# 查看进程号
[lb@centos-linux ~]$ jps -l
18482 sun.tools.jps.Jps
3765 springboot-jwt-1.0.0.jar
# 生成栈信息
[lb@centos-linux ~]$ jstack 3765 > jstac-3765.txt
[lb@centos-linux ~]$ ls
jstac-3765.txt  jstack.txt  libs  servers  soft  springboot-jwt-1.0.0.jar
  1. 查看栈信息，搜索16进制线程号关键字 f6c

nid=0xf6c ,其中0x是补位不用关注

如何排查死锁问题

关于死锁问题很简单，比如2个对象相互持有对方的锁，又想要执行下去， 就会出现死锁。 解决思路：

  1. 导出栈信息 jstack pid > jstack.txt
  2. 搜索 deadlock 关键字
  1. 编写死锁测试代码
    @GetMapping("deadLock")
    public String deadLock(){
        Object lock1 = new Object();
        Object lock2 = new Object();
        new Thread(() -> {
            // 获取自己的锁
            synchronized (lock1){
                try {
                    Thread.sleep(2000L);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                // 获取他人的锁
                synchronized (lock2){
                    System.err.println("thread1 try hold lock2");
                }
            }
        },"thread1").start();

        new Thread(() -> {
            // 获取自己的锁
            synchronized (lock2){
                try {
                    Thread.sleep(2000L);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                // 获取他人的锁
                synchronized (lock1){
                    System.err.println("thread2 try hold lock1");
                }
            }
        },"thread2").start();

        return "deadLock";
    }
  1. 启动应用
java -jar springboot-jwt-1.0.0.jar &
  1. 执行死锁代码
 curl localhost:8081/deadLock
 # 得到响应结果
 deadLock
  1. 导出栈信息
jstack 18899 > deadlock.txt

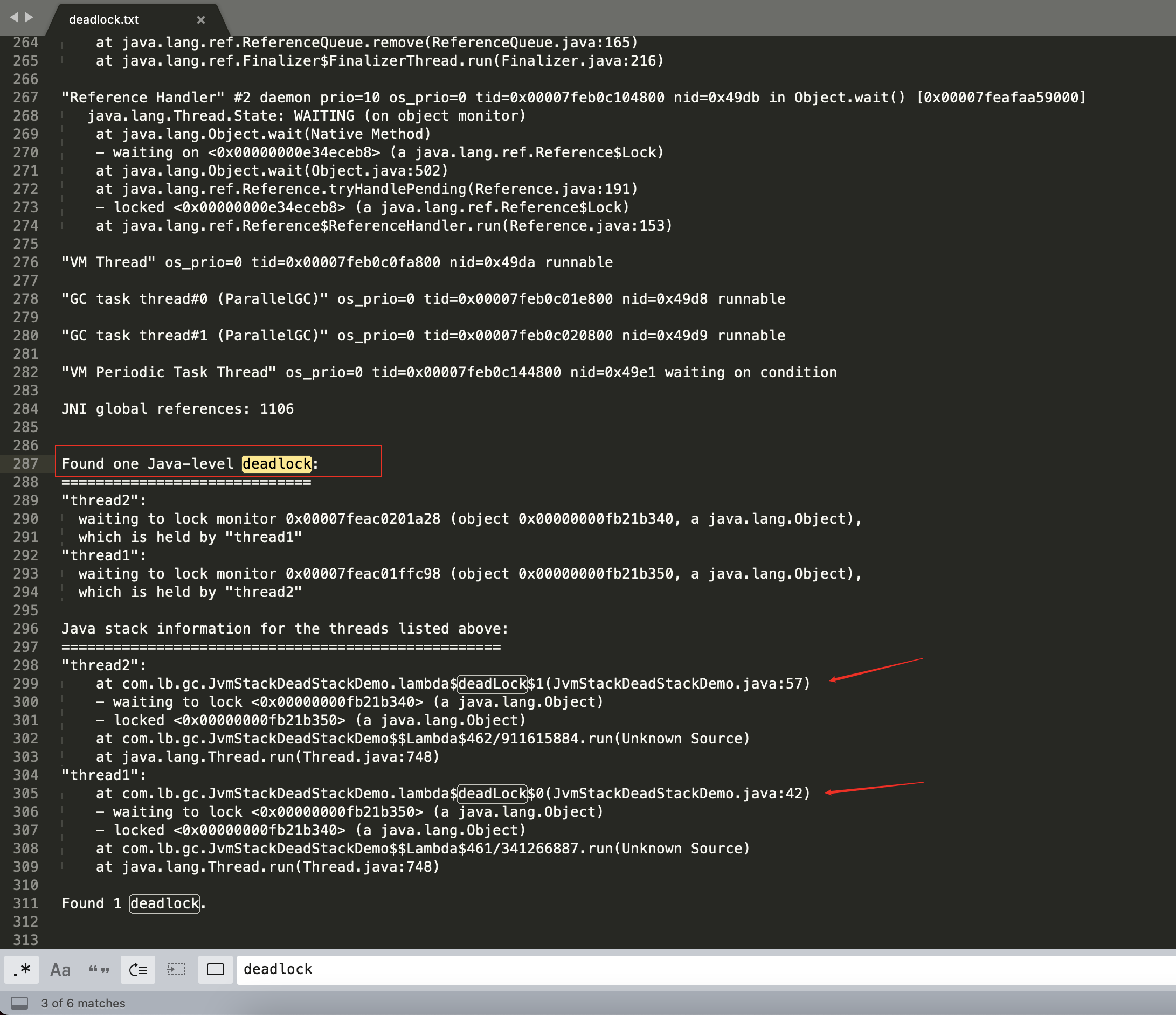

  1. 查找 deadlock 关键字

留白1108
关注
JVM监控和故障处理工具
ystyaoshengting的专栏
02-08 922
JDK监控和故障处理工具 名称 主要用途 jps JVM Process Status Tool ,显示指定系统内所有的HotSpot虚拟机进程 jstat JVM Statistics Monitoring Tool ,用于收集HotSpot虚拟机各方面的运行数据 jinfo Configuration Info forJava,显示虚拟机配置信息 ...
Apache Tomcat 9：Windows服务启动失败排查过程
fengyuzaitu_126_com的博客
06-17 957
场景 环境部署版本：apache-tomcat-9.0.7，由于该版本被安全扫描出漏洞，因此进行了升级，升级版本：apache-tomcat-9.0.39。Windows环境下手动执行startup.bat脚本启动正常，但是通过Windows服务形式启动，服务异常退出 日志分析 1catalina.2021-05-19.log java.lang.OutOfMemoryError: Java heap space at java.nio.HeapByteBuffer.(HeapBy...
开始协议处理句柄[http-nio-8080]_从golibp2p开始
weixin_42521949的博客
12-27 2140
这里是从一系列关于libp2p的go实现教程开始，go-libp2p我们会讲述go的安装，go模块的设置，启动libp2p节点，并在它们之间发送消息。安装gogo-libp2p推荐使用包含modules feature的go版本，也就意味着你必须使用1.11或以上版本。你可以按照official installation instructions安装go的最新版本。安装成功后，你应该...
sun.nio.ch.EPollArrayWrapper.epollWait(Native Method)
夏季版
04-09 9679
关于springboot访问tomcat,线程http-nio-8080-exec的来源问题
热门推荐
jslzcydd的博客
03-12 2万+
最近在看并发操作时候，例如jmeter进行接口压测（本地自己的springboot2的环境），发现一个有趣的现象，就是关于线程http-nio-8080-exec-1，http-nio-8080-exec-2等等的出现。但是这个线程数不管我的压测数是多少这个线程数不会超过10.抱着好奇的心去搜索了一下相关的文章，但是没有看到比较合适的。然后就只有自己去跟了一下源码。在此自己总结一下。 两个问题： 1、这个http-nio-8080-exec东西是怎么来的 2、为什么这个线程数不超过10 把这两个问题其
JVM性能调优实战项目.zip
最新发布
11-17
在深入探究JVM性能调优实战项目之前，我们首先需要了解JVM（Java虚拟机）的基本概念。JVM是运行所有Java程序的假想计算机，是Java程序运行环境的重要组成部分。它负责在不同操作系统平台上，将Java字节码转换成特定...
JVM性能调优实战项目-深入剖析与实践优化.docx
11-05
JVM性能调优实战项目需要综合运用监控工具、参数调优技巧和代码优化方法。通过对代码和JVM运行状态的深入分析，不断地调整和优化，可以显著提升Java应用的性能和稳定性，满足日益增长的业务需求。
JVM调优：深入理解与实战指南
weixin_65837469的博客
07-09 929
其中，堆是JVM所管理的最大一块内存区域，用于存放对象实例，是垃圾收集器管理的主要区域。VisualVM是一款功能强大的JVM监控和调优工具，它集成了多种JVM监控和故障分析工具，如堆转储分析器（Heap Dump Analyzer）、线程转储分析器（Thread Dump Analyzer）等。JConsole是JDK自带的一个基于JMX（Java Management Extensions）的监控工具，它可以连接正在运行的Java应用程序，实时监控内存使用情况、线程状态、类加载情况等。
Java高并发编程与JVM性能调优实战 视频教程 下载下载因为太大存百度云盘1.zip
06-25
《Java高并发编程与JVM性能调优实战》是一门深度探讨Java开发中高并发处理和JVM优化的视频教程。课程旨在帮助开发者提升在大规模并发环境下的编程能力，同时掌握JVM性能优化技巧，以实现更高效、稳定的Java应用程序...
Java高并发编程与JVM性能调优实战 视频教程 下载下载因为太大存百度云盘2.zip
06-25
《Java高并发编程与JVM性能调优实战》是一门深度探讨Java开发中高并发处理和JVM优化的视频教程。课程旨在帮助开发者提升在大规模并发环境下的编程能力，同时掌握JVM性能优化技巧，以实现更高效、稳定的Java应用程序...
Java线程泄露的分析与处理
weixin_33725126的博客
04-27 503
1. 生产环境的异常现象及初步分析最近发现系统程序内存消耗越来越大，开始并没特别注意，就简单调了一下jvm参数。但直到前些天内存爆满，持续Full GC，这肯定出现了内存泄露。原以为哪里出现了比较低级的错误，所以很直接想到先去看看程序是在跑哪段代码。jstack -l <pid>以后，居然有上千个线程，而且都是属于RUNNING并WAIT的状态。I/Odispa...
tomcat 异常
pach0237的专栏
12-27 7177
27-Dec-2017 14:14:05.581 INFO [http-nio-8080-exec-3] org.apache.coyote.http11.Http11Processor.service Error parsing HTTP request header  Note: further occurrences of HTTP header parsing errors will b
使用arthas排查tomcat异常
Fake_Armour
11-17 5901
背景 前不久上线了一个新服务，是和操作redis相关的业务，正常来说请求的平均响应时间应该小于5ms，99分位线正常也应该在10ms以内。但是上线后通过监控发现存在个别周期性响应时间超过100ms的请求，通过监控平台发现请求在Tomcat Servlet Process阶段时出现了超过100ms的Gap，怀疑是某些东西影响了tomcat导致的，所以想通过arthas追踪发现出现问题的请求。 Arthas arthas是阿里开源的一个线上诊断工具，能够通过一些方法追踪线上调用，用于诊断一些不方便排查的线上问题
java nio 死循环_Java NIO的一些总结
weixin_34552443的博客
02-16 941
channel在linux系统中也是一种文件,Channelsareanalogousto"filedescriptors"foundinUnix-likeoperatingsystems.故一个Selector管理的channel也有数目限制, 若超过限制会报如下错误:java.io.IOException:Toomanyopenfilesatsun.nio.ch....
java线程使用不当,java多线程使用不当造成的问题
weixin_36403106的博客
03-11 976
下面的thread dump是在CPU使用高的情况下采集的jstack的数据。"pool-19-thread-50" prio=10 tid=0x00007fd1b8001000 nid=0x11bb2 runnable [0x00007fd41f018000]java.lang.Thread.State: RUNNABLEat sun.nio.ch.EPollArrayWrapper.epoll...
java runnable wait_Java线程的6种状态及切换(透彻讲解)
weixin_39528366的博客
02-16 1103
Java线程的6种状态分析想起来写一下Java线程状态，还是源起与最近的一次问题定位，当时碰到一个偶先超时的问题，使用jstack命令打印出堆栈信息之后，例如"transport-vert.x-eventloop-thread-11" #37 prio=5 os_prio=0 tid=0x00007f628d0f8800 nid=0x2a32 runnable [0x00007f62631f800...
java多线程使用不当造成的问题
关注系统性能调优
06-06 1万+
下面的thread dump是在CPU使用高的情况下采集的jstack的数据。 "pool-19-thread-50" prio=10 tid=0x00007fd1b8001000 nid=0x11bb2 runnable [0x00007fd41f018000]    java.lang.Thread.State: RUNNABLE at sun.nio.ch.EPollArrayWrap
内存或者 cpu 占用率过高如何排查
★慕名斋★
09-07 2347
排查原因：客服反馈说系统访问缓慢 一、 在排查问题的过程中针对 CPU 的问题， 使用以下命令组合来排查问题 模拟过程: ①示例代码： package com.sunxxx.task; import org.slf4j.Logger; import org.slf4j.LoggerFactory; import org.springframework.scheduling.annotation.EnableScheduling; import org.springframework.schedu
jvm（java虚拟机）线程堆栈jstack（2）
liaomingwu的专栏
01-08 2337
jvm（java虚拟机）命令行线程堆栈工具jstack
深入理解JVM GC调优：算法与实战
- **本地方法栈(Native Method Stack)**：与Java栈类似，但服务于本地方法。 - **程序计数器(Program Counter Register)**：每个线程都有的小内存区域，记录当前线程正在执行的字节码指令地址。 GC的主要任务是...
评论
成就一亿技术人!
拼手气红包6.0元
还能输入1000个字符

红包 添加红包
表情包 插入表情
表情包 代码片
 条评论被折叠 查看
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
