本文详细介绍了如何在Spring Boot应用中结合Nacos实现动态路由，包括配置步骤、核心类设置以及静态路由与动态路由的区别。动态路由通过路由协议自动更新，适合大规模网络，而静态路由则在安全和效率上有优势。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

gateway 集成 nacos 实现动态路由，前几篇单独分析gateway网关时，仅介绍了静态路由的原理和使用，今天我们先分析动态路由，然后介绍一下两者的区别和优缺点。

一、动态路由实战分析：

1、构建一个springboot 服务，去掉web相关的jar:

       <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

加上：

       <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webflux</artifactId>
        </dependency>

引入相关核心jar

artifactId>common-gateway</artifactId>
    <packaging>jar</packaging>
    <version>1.0-SNAPSHOT</version>
    <name>common-gateway</name>
    <description>网关服务</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-gateway</artifactId>
        </dependency>

        <!-- springboot web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-webflux</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-openfeign</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-loadbalancer</artifactId>
        </dependency>

        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-core</artifactId>
        </dependency>
        <dependency>
            <groupId>ch.qos.logback</groupId>
            <artifactId>logback-classic</artifactId>
        </dependency>

    </dependencies>

2、项目中yaml配置：

spring:
  main:
    web-application-type: reactive
  application:
    name: @project.artifactId@
    version: @project.version@
  cloud:
    nacos:
      config:
        namespace: common
        file-extension: yaml
        shared-configs:
          - data-id: common-shared-config.yaml
            group: common
            refresh: true
loggingRoot: logs

3、idea中nacos环境配置：

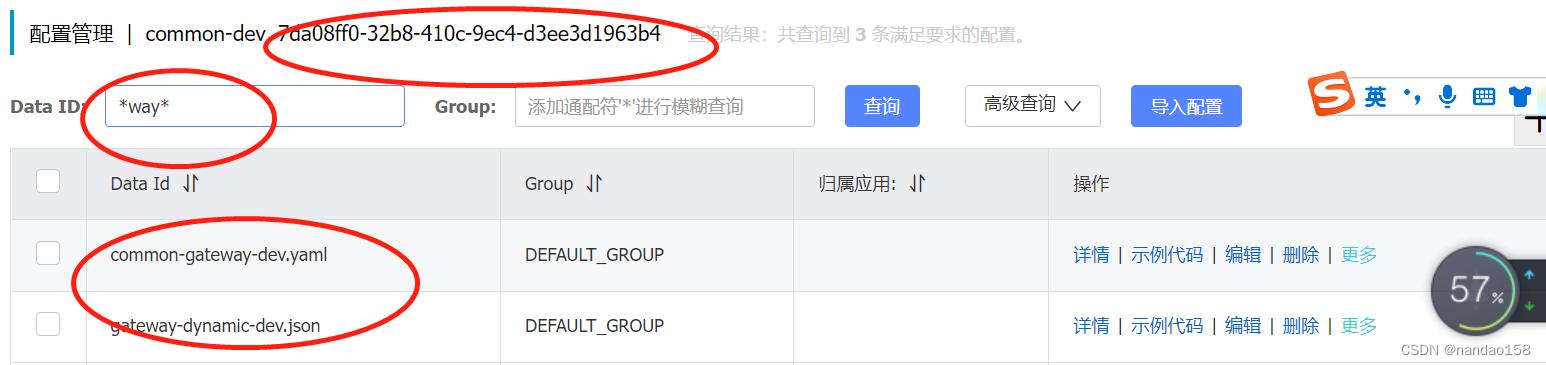

4、nacos页面查找配置：

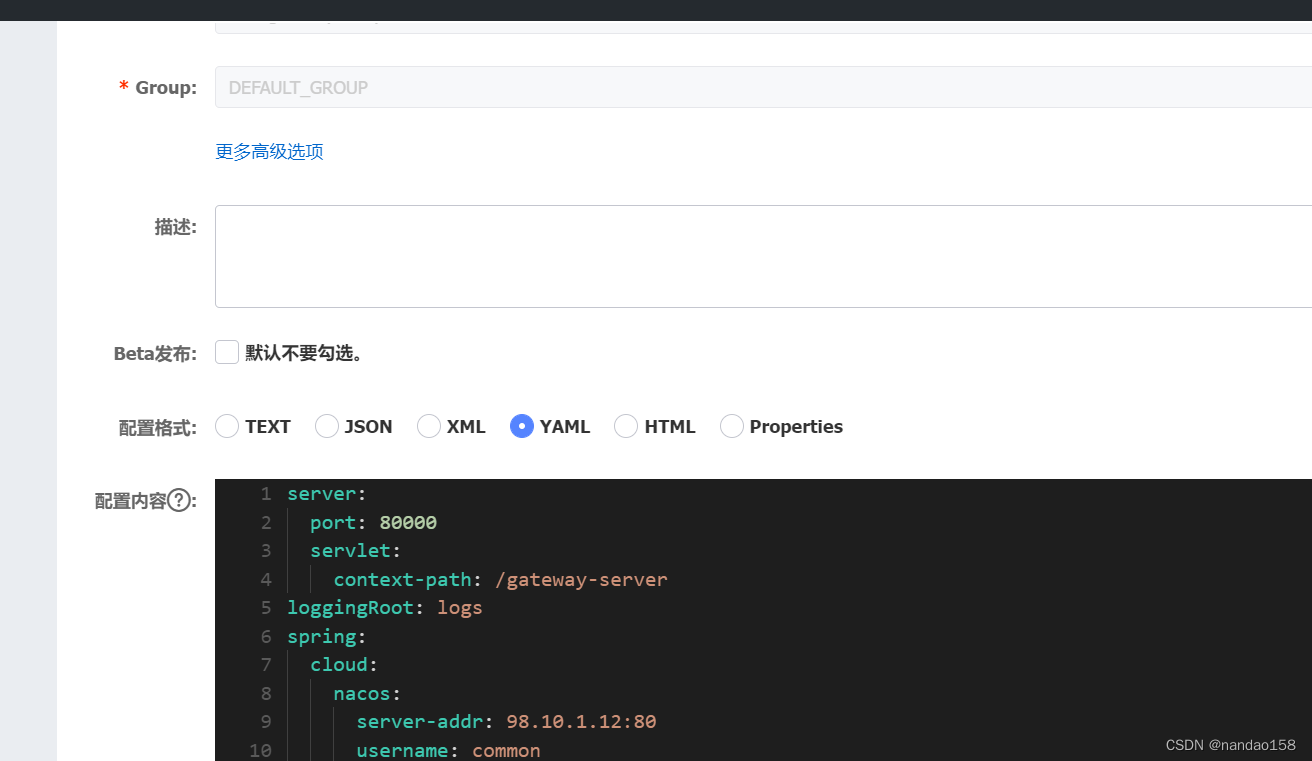

5、在 common-gateway-dev.yaml 处点击详情查看：

配置内容：

server:
  port: 80000
  servlet:
    context-path: /gateway-server
loggingRoot: logs
spring:
  cloud:
    nacos:
      server-addr: 98.10.1.12:80
      username: common
      password: common
      config:
        refresh-enabled: true
      discovery:
        namespace: 7da18ff0-32b8-490c-9ec4-d3ee3d1963b4
        group: DEFAULT_GROUP

  gateway:
    globalcors:
      cors-configurations:
        '[/**]':
          allow-credentials: true
          allowed-origins: "*"
          allowed-methods: "*"
          allowed-headers: "*"
      add-to-simple-url-handler-mapping: true
management:
  endpoints:
    web:
      exposure:
        include: "*"
dynamic:
  route:
    enabled: true
    dataId: gateway-dynamic-dev.json
    group: DEFAULT_GROUP
    namespace: 7da18ff0-32b8-490c-9ec4-d3ee3d1963b4
    serverAddr: 98.10.1.12:80
    username: common
    password: common
filter:
  authorize:
    ignoreuris:
      - /api/good-api/v
      - /api/good-server/v
      - /api/goodorder-api/v
      - /api/goodorder-server/v
route:
  interfaces:
    -
      code: auth-server
      interfaceApi: /api/auth-server/test/test1
      serviceName: common-auth-server

profile: env
erpx:
  internal:
    address: localhost

里面包含一个json路由配置文件：gateway-dynamic-dev.json，点开详情，内容如下：


[{
    "id": "goods-api",
    "order": 9,
    "predicates": [{
        "args": {
            "pattern": "/api/goods-api/**"
        },
        "name": "Path"
    }],
    "filters":[{
        "args": {
            "_genkey_0": "2"
        },
        "name": "StripPrefix"
    }],
    "uri": "lb://common-goods-xapi"
},
{
    "id": "goods-server",
    "order": 9,
    "predicates": [{
        "args": {
            "pattern": "/api/goods-server/**"
        },
        "name": "Path"
    }],
    "filters":[{
        "args": {
            "_genkey_0": "2"
        },
        "name": "StripPrefix"
    }],
    "uri": "lb://common-goods-server"
},
{
    "id": "goodorder-api",
    "order": 34,
    "predicates": [{
        "args": {
            "pattern": "/api/goodorder-api/**"
        },
        "name": "Path"
    }],
    "filters":[{
        "args": {
            "_genkey_0": "2"
        },
        "name": "StripPrefix"
    }],
    "uri": "lb://common-goodorder-api"
},
{
    "id": "goodorder-server",
    "order": 35,
    "predicates": [{
        "args": {
            "pattern": "/api/goodorder-server/**"
        },
        "name": "Path"
    }],
    "filters":[{
        "args": {
            "_genkey_0": "2"
        },
        "name": "StripPrefix"
    }],
    "uri": "lb://common-goodorder-server"
}]

6、核心类配置：

1）过滤地址配置：

package com.example.nandao.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.reactive.CorsWebFilter;
import org.springframework.web.cors.reactive.UrlBasedCorsConfigurationSource;
import org.springframework.web.util.pattern.PathPatternParser;


@Configuration
public class ComCorsConfig {

  @Bean
  public CorsWebFilter corsFilter() {
    CorsConfiguration config = new CorsConfiguration();
    config.addAllowedMethod("*");
    config.addAllowedOrigin("*");
    config.addAllowedHeader("*");

    UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource(new PathPatternParser());
    source.registerCorsConfiguration("/**", config);

    return new CorsWebFilter(source);
  }
}

2）提取路由参数配置：

package com.example.nandao.config;

import lombok.Data;
import org.springframework.boot.autoconfigure.condition.ConditionalOnBean;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

/**
 * @Description 加载动态路由配置，通过此配置加载配置文件 gateway-dynamic-dev.json 里的路由信息
 **/
@Data
@Component
//https://blog.youkuaiyun.com/weixin_38357164/article/details/101030680
//https://www.jianshu.com/p/9f2c129047c8
//https://www.cnblogs.com/ushowtime/p/15993816.html
@ConfigurationProperties(prefix = "dynamic.route")
//只要存在 ComDynamicRouteConfig 类，便会初始化 ComDynamicRouteProperties 类
@ConditionalOnBean( ComDynamicRouteConfig.class)
public class ComDynamicRouteProperties {

  /**
   * nacos 配置管理  dataId
   */
  private String dataId;
  /**
   * nacos 配置管理 group
   */
  private String group;
  /**
   * nacos 服务地址
   */
  private String serverAddr;

  /**
   * 启动动态路由的标志，默认关闭
   */
  private boolean enabled = false;

  private String namespace;

  private String username;

  private String password;

}

3）动态路由配置：

package com.example.nandao.config;

import com.alibaba.fastjson.JSONObject;
import com.alibaba.nacos.api.NacosFactory;
import com.alibaba.nacos.api.PropertyKeyConst;
import com.alibaba.nacos.api.config.ConfigService;
import com.alibaba.nacos.api.config.listener.AbstractListener;
import com.alibaba.nacos.api.exception.NacosException;
import com.example.nandao.service.impl.ComDynamicRouteServiceImpl;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.cloud.gateway.route.RouteDefinition;
import org.springframework.context.annotation.Configuration;

import javax.annotation.PostConstruct;
import java.util.ArrayList;
import java.util.List;
import java.util.Properties;

/**
 * @Description 核心配置
 **/
@Slf4j
@Configuration
@ConditionalOnProperty(name = "dynamic.route.enabled", matchIfMissing = true)
public class ComDynamicRouteConfig {

  private static final List<String> ROUTE_LIST = new ArrayList<>();

  @Autowired//依赖注入，先初始化完成
  private ComDynamicRouteProperties properties;

  @Autowired
  private ComDynamicRouteServiceImpl dynamicRouteService;

  @PostConstruct
  private void init() {
    dynamicRouteByNacosListener();
  }

  private void dynamicRouteByNacosListener() {

    try {
      Properties prop = new Properties();
      prop.setProperty(PropertyKeyConst.NAMESPACE, properties.getNamespace());
      prop.setProperty(PropertyKeyConst.SERVER_ADDR, properties.getServerAddr());
      prop.setProperty(PropertyKeyConst.USERNAME, properties.getUsername());
      prop.setProperty(PropertyKeyConst.PASSWORD, properties.getPassword());

      ConfigService configService = NacosFactory.createConfigService(prop);
      //ConfigService configService = NacosFactory.createConfigService(properties.getServerAddr());
      String content = configService.getConfigAndSignListener(
          properties.getDataId(),
          properties.getGroup(),
          5000,
          new AbstractListener() {
            @Override
            public void receiveConfigInfo(String configInfo) {
              statsConfig(configInfo);
            }
          });
      statsConfig(content);
    } catch (NacosException e) {
      log.error("nacos 获取动态路由配置和监听异常", e);
    }
  }

  private void statsConfig(String configInfo) {

    try {
      clearRoute();
      List<RouteDefinition> gatewayRouteDefinitions = JSONObject.parseArray(configInfo, RouteDefinition.class);
      for (RouteDefinition routeDefinition : gatewayRouteDefinitions) {
        addRoute(routeDefinition);
      }
    } catch (Exception e) {
      log.error("statsConfig异常", e);
    }
  }

  private void clearRoute() {
    for(String id : ROUTE_LIST) {
      dynamicRouteService.delete(id);
    }
    ROUTE_LIST.clear();
  }

  private void addRoute(RouteDefinition definition) {
    dynamicRouteService.add(definition);
    ROUTE_LIST.add(definition.getId());
  }

}

4）动态路由的增删改查：

package com.example.nandao.service.impl;

import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.gateway.event.RefreshRoutesEvent;
import org.springframework.cloud.gateway.route.RouteDefinition;
import org.springframework.cloud.gateway.route.RouteDefinitionWriter;
import org.springframework.context.ApplicationEventPublisher;
import org.springframework.context.ApplicationEventPublisherAware;
import org.springframework.stereotype.Service;
import reactor.core.publisher.Mono;

@Slf4j
@Service
public class ComDynamicRouteServiceImpl implements ApplicationEventPublisherAware {

    private ApplicationEventPublisher publisher;

    @Autowired
    private RouteDefinitionWriter routeDefinitionWriter;

    /**
     * 增加路由
     * @param definition
     * @return
     */
    public void add(RouteDefinition definition) {
        try {
            routeDefinitionWriter.save(Mono.just(definition)).subscribe();
            this.publisher.publishEvent(new RefreshRoutesEvent(this));
        } catch (Exception ex) {
            log.error(String.format("add -> save route fail【routeId: %s】", definition.getId()), ex);
        }
    }

    /**
     * 更新路由
     * @param definition
     * @return
     */
    public void update(RouteDefinition definition){

        try {
            this.routeDefinitionWriter.delete(Mono.just(definition.getId()));
        } catch (Exception ex) {
            log.error(String.format("update -> update route fail【routeId: %s】", definition.getId()), ex);
        }
        try {
            routeDefinitionWriter.save(Mono.just(definition)).subscribe();
            this.publisher.publishEvent(new RefreshRoutesEvent(this));
        } catch (Exception ex) {
            log.error(String.format("update -> save route fail【routeId: %s】", definition.getId()), ex);
        }
    }

    /**
     * 删除路由
     * @param id
     * @return
     */
    public void delete(String id) {
        try {
            this.routeDefinitionWriter.delete(Mono.just(id)).subscribe();
            this.publisher.publishEvent(new RefreshRoutesEvent(this));
        } catch (Exception ex) {
            log.error(String.format("delete -> delete route fail【routeId: %s】", id), ex);
        }
    }

    @Override
    public void setApplicationEventPublisher(ApplicationEventPublisher applicationEventPublisher) {
        this.publisher = applicationEventPublisher;
    }

}

5）boot核心启动类：

package com.example.nandao;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@EnableDiscoveryClient
@SpringBootApplication
public class NandaoApplication {

    public static void main(String[] args) {
        SpringApplication.run(NandaoApplication.class, args);
    }

}

到此基本配置大概完成，注释也很清晰。

二、静态路由和动态路由的区别：

1、静态路由特点：

静态路由必须由管理员手工指定。当网络拓扑发生变化时，需要管理员手工更新配置。
同时静态路由只适合简单小型的网络，当网络结构复杂、路由条目繁多的时候，静态路由将难以胜任。静态路由是管理员通过手动配置的，不便于拓展网络拓扑，一旦网络拓扑发生改变，
静态路由配置量会很大。动态路由是路由器通过网络协议，动态的学习路由，当网络拓扑发生变化的时候，路由器会根据路由协议自动学习新的路由。

2、动态路由特点：

动态路由通过网络中运行的路由协议收集网络信息。当网络拓扑发生变化时，路由器会自动更新路由信息，不必管理员手工去更新。动态路由，因为OSPF，RIP等路由协议都会周期更新，所以他的更新量会很大，会很占带宽。

3、两者对比：

通过对比后可以发现，动态路由协议更适用于大规模的网络部署。使用静态路由的好处是网络安全保密性高。动态路由因为需要路由器之间频繁地交换各自的路由表，而对路由表的分析可以揭示网络的拓扑结构和网络地址等信息。

4、精炼总结：

静态路由：安全，占用带宽小，简单，高效，转发效率高。
动态路由：灵活性高。

到此，关于动态路由的原理和使用分享完毕，下篇我们分析网关中的过滤器使用，敬请期待！
