什么是SeekBar控件,SeekBar控件其实就是一个高级点的进度条，就像我们在听歌，看电影用的播放器上的进度条一样，是可以拖动的，可以改变进度的一个进度条控件！就是下面这个样子

seekbar对应的方法和属性

android:thumb---seekbar上绘制的thumb（可拖动的那个图标）


   1public  void setOnSeekBarChangeListener (SeekBar.OnSeekBarChangeListener l)

   2

   3//设置一个监听器以接受seekbar进度改变时的通知。同时提供用户在SeekBar上开始和停止触摸手势时的通知。

   4

   5//参数 l        SeekBar的通知监听对象

   6

   7//参见     SeekBar.OnSeekBarChangeListener

1.在res/layout目录下定义一个布局文件seekbar.xml


   01<?xml version="1.0" encoding="utf-8"?>

   02<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"

   03    android:layout_width="fill_parent"

   04    android:layout_height="fill_parent"

   05    >

   06    <LinearLayout

   07        android:layout_width="fill_parent"

   08        android:layout_height="fill_parent"

   09         android:orientation="vertical"

   10        >

   11            <TextView

   12                android:id="@+id/text"

   13                android:layout_width="fill_parent"

   14                android:layout_height="wrap_content"

   15                android:text="我是SeekBar=进度为："

   16                android:lines="2"

   17                android:textColor="#11ddff"

   18               />

   19            <SeekBar

   20                 android:id="@+id/seekbar_btn_id"

   21                 android:layout_width="fill_parent"

   22                 android:layout_height="wrap_content"

   23             />

   24            <ImageView

   25                android:id="@+id/seekbar_imageview_id"

   26                android:layout_width="fill_parent"

   27                android:layout_height="wrap_content"

   28                android:src="@drawable/gallery_01"

   29                android:lines="6"

   30                android:textColor="#11ddff"

   31                />

   32            <LinearLayout

   33                    android:layout_width="fill_parent"

   34                    android:layout_height="fill_parent"

   35                     android:orientation="horizontal">

   36                    <TextView

   37                       android:layout_width="wrap_content"

   38                        android:layout_height="wrap_content"

   39                        android:text="拖到切换图片"

   40                        />

   41                    <SeekBar

   42                     android:id="@+id/seekbar_hand_id"

   43                     android:layout_width="fill_parent"

   44                     android:layout_height="wrap_content"

   45                     />

   46             </LinearLayout>

   47             <LinearLayout

   48                    android:layout_width="fill_parent"

   49                    android:layout_height="fill_parent"

   50                     android:orientation="horizontal">

   51                       <TextView

   52                        android:id="@+id/seekbar_liang_id"

   53                        android:layout_width="wrap_content"

   54                        android:layout_height="wrap_content"

   55                        android:text="改变屏幕亮度"

   56                        android:textColor="#11ddff"

   57                       />

   58                        <SeekBar

   59                             android:id="@+id/seekbar_hang_id1"

   60                             android:layout_width="fill_parent"

   61                             android:layout_height="wrap_content"

   62                         />

   63             </LinearLayout>

   64      </LinearLayout>

   65</ScrollView>

2.代码文件SeekBarDemo.java如下：


   001package  com.test;

   002

   003import  android.app.Activity;

   004import  android.content.Intent;

   005import  android.os.Bundle;

   006import  android.os.Handler;

   007import  android.text.method.ScrollingMovementMethod;

   008import  android.view.View;

   009import  android.view.WindowManager;

   010import  android.view.View.OnClickListener;

   011import  android.widget.Button;

   012import  android.widget.ImageView;

   013import  android.widget.SeekBar;

   014import  android.widget.SeekBar.OnSeekBarChangeListener;

   015import  android.widget.TextView;

   016

   017public  class SeekBarDemo extends Activity {

   018

   019    private SeekBar  seekBar,seekBar2,seekBar3;

   020    private TextView textview,textview2;

   021    private  ImageView  imageView;

   022    //标记是否需要刷新

   023    private boolean flag=true;

   024    private Handler hangler=new Handler();

   025    ////

   026    private  int []  arrayImage =new int[]{R.drawable.gallery_01,

   027            R.drawable.gallery_02,R.drawable.gallery_03,R.drawable.gallery_04,R.drawable.gallery_05,R.drawable.gallery_06};

   028

   029    @Override

   030    protected void onCreate(Bundle savedInstanceState) {

   031        // TODO Auto-generated method stub

   032        super.onCreate(savedInstanceState);

   033        setContentView(R.layout.seekbar);

   034

   035        seekBar=(SeekBar)findViewById(R.id.seekbar_btn_id);

   036        seekBar2=(SeekBar)findViewById(R.id.seekbar_hand_id);//第二个

   037        seekBar2=(SeekBar)findViewById(R.id.seekbar_hand_id);//第二个

   038        seekBar3=(SeekBar)findViewById(R.id.seekbar_hang_id1);//第san个

   039        textview=(TextView)findViewById(R.id.text);

   040        //设置拖动条的最大值，其将为该拖动条显示的基数

   041        seekBar.setMax(100);

   042        //为该方法seekbar注册一个监听，当seekbar发生改变时调用1中的对应方法

   043        seekBar.setOnSeekBarChangeListener(onSeekbar);

   044        imageView = (ImageView)findViewById(R.id.seekbar_imageview_id);

   045        refresh();

   046        ///////

   047         this.seekBar2.setMax(arrayImage.length);

   048        this.seekBar3.setMax(100);

   049        this.seekBar2.setOnSeekBarChangeListener(seekbar);

   050        this.seekBar3.setOnSeekBarChangeListener(seekbar);

   051    }

   052    //第二个seekBar

   053    private  OnSeekBarChangeListener  seekbar = new OnSeekBarChangeListener() {

   054

   055        @Override

   056        public void onStopTrackingTouch(SeekBar seekBar) {

   057            // TODO Auto-generated method stub

   058

   059        }

   060

   061        @Override

   062        public void onStartTrackingTouch(SeekBar seekBar) {

   063            // TODO Auto-generated method stub

   064

   065        }

   066

   067        @Override

   068        public void onProgressChanged(SeekBar seekBar, int progress,

   069                boolean fromUser) {

   070            // TODO Auto-generated method stub

   071            if(seekBar.getId()==R.id.seekbar_hand_id)

   072            {

   073                imageView.setImageResource(arrayImage[seekBar2.getProgress()]);

   074            }

   075            if(seekBar.getId()==R.id.seekbar_hang_id1)

   076            {

   077                setScreenBrightness((float) seekBar

   078                        .getProgress() / 100);

   079            }

   080

   081

   082        }

   083    };

   084    //表示屏幕亮度的方法

   085    private void setScreenBrightness(float num) {   // 0 ~ 1表示亮度

   086        WindowManager.LayoutParams layoutParams = super.getWindow().getAttributes() ;   // 取得屏幕的属性

   087        layoutParams.screenBrightness = num ;   // 设置屏幕亮度

   088        super.getWindow().setAttributes(layoutParams) ; // 重新设置窗口的属性

   089    }

   090    //第一个sekbar

   091    private  OnSeekBarChangeListener  onSeekbar=new OnSeekBarChangeListener() {

   092

   093        @Override

   094        //当游标移动停止的时候调用该方法

   095        public void onStopTrackingTouch(SeekBar seekBar) {

   096        //设置标记为需要刷新

   097            flag=true;

   098       //创建时就开始自动更新该拖动条

   099            refresh();

   100        }

   101

   102

   103        @Override

   104        //当游标开始移动时调用该方法

   105        public void onStartTrackingTouch(SeekBar seekBar) {

   106        //停止刷新

   107            flag=false;

   108        }

   109

   110        @Override

   111        //当进度条游标被改变或者进度条改变时调用该方法

   112        public void onProgressChanged(SeekBar seekBar, int progress,

   113                boolean fromUser) {

   114            //更改textView的内容

   115            textview.setText("进度为："+progress+"%");

   116

   117        }

   118

   119    };

   120    //该方法自动更新该拖动条

   121    private void refresh() {

   122        new Thread(new  Runnable() {

   123

   124            @Override

   125            public void run() {

   126                // TODO Auto-generated method stub

   127                //当进度不到1000，就更新status

   128                while(flag && seekBar.getProgress()<100)

   129                {

   130                    try {

   131                        //暂停1秒

   132                        Thread.sleep(1000);

   133                    } catch (InterruptedException e) {

   134                        // TODO: handle exception

   135                        e.printStackTrace();

   136                    }

   137                    //将一个Runnable对象添加到消息队列当中，

   138                    //并且当执行到该对象时执行run()方法

   139                    hangler.post(new Runnable() {

   140

   141                        @Override

   142                        public void run() {

   143                            // 重新设置进度条当前的值

   144                            seekBar.setProgress(seekBar.getProgress()+1);

   145

   146                        }

   147                    });

   148                }

   149            }

   150        }).start();

   151       }

   152}

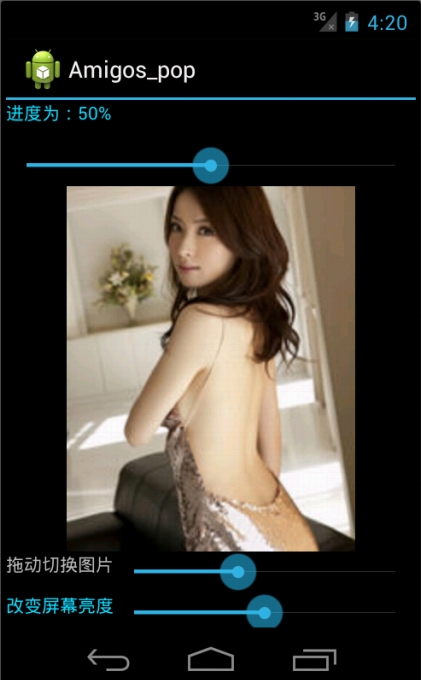

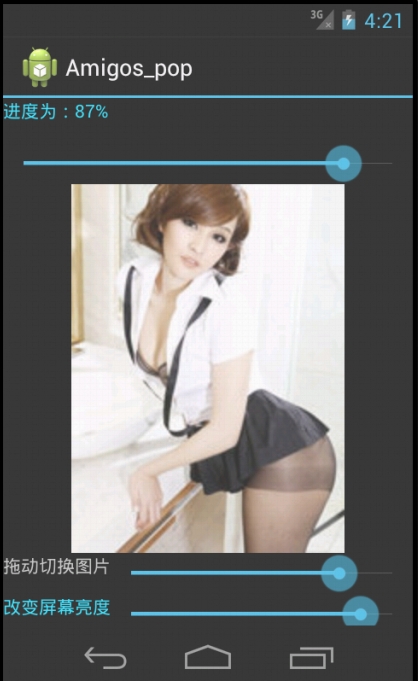

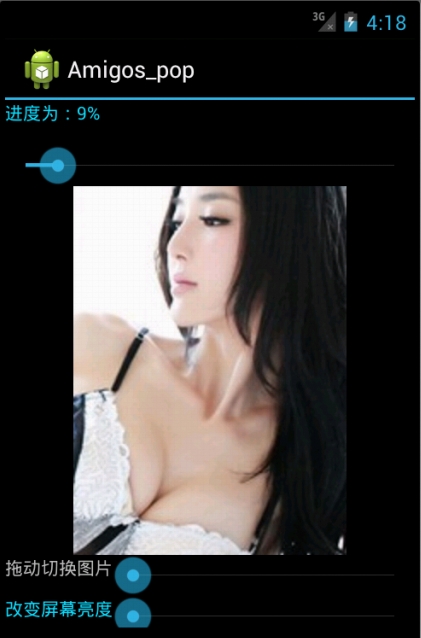

三：执行效果如下：
