前言

对于多租户的SAAS系统，所有的操作都是以组织为单位的，所以相对于传统的单用户系统的用户权限管理，增加了一层组织的维度，一个注册企业下，又可以有完整的用户权限管理系统。

数据模型设计

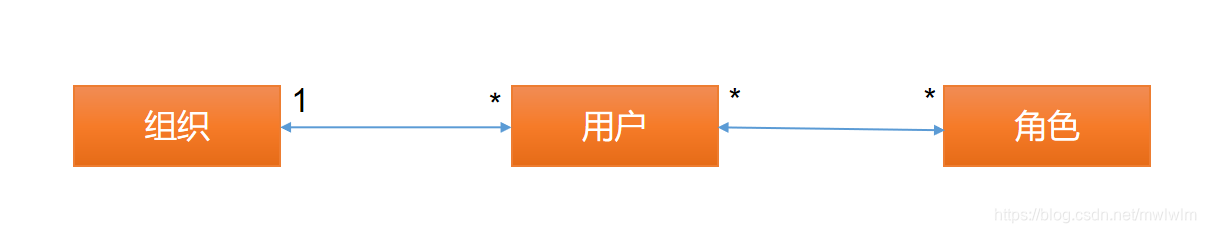

如下是用权限系统的关系图：
在这里插入图片描述
组织在SAAS系统中的一切资源的最高阶组织形式，所以其他的对象都应该有一个组织的属性，对于用户也是如从，应该属于某个组织，组织与用户的关系应该是一对多的关系，如下是组织的Model对象。

class Organization(db.Model):
    """
    Create a Organization table
    """
    __tablename__ = 'organizations'
    id = db.Column(db.Integer, primary_key=True)
    name = db.Column(db.String(64), unique=True)
    key=db.Column(db.String(64), unique=True)
    country = db.Column(db.String(64))
    state = db.Column(db.String(64))
    city = db.Column(db.String(64))
    address = db.Column(db.String(64))
    status = db.Column(db.Integer)#0:disable,1:enable,2:temp for first register
    description = db.Column(db.String(200))
    users = db.relationship('User', backref='Organization',
                                lazy='dynamic',cascade='all, delete-orphan', passive_deletes = True)

用户用户可以登录到系统进行相关功能的操作，每个用户都属于某个组织，可以根据权限操作此组织下的资源，数据。每个用户都有一组角色信息，根据角色来判断其权限，如下是用户的model，由于后续将使用Flask-login进行用户登录注册的管理，所以User类继承自UserMixin，在其中扩展了Organization_id与组织相关联，其他的属性可以根据需求进行扩展。

class User(UserMixin, db.Model):
    """
    Create an User table
    """

    # Ensures table will be named in plural and not in singular
    # as is the name of the model
    __tablename__ = 'users'

    id = db.Column(db.Integer, primary_key=True)
    email = db.Column(db.String(60), index=True, unique=True)
    username = db.Column(db.String(60), index=True)
    first_name = db.Column(db.String(60), index=True)
    last_name = db.Column(db.String(60), index=True)
    mobilephone = db.Column(db.String(20),index=True)
    password_hash = db.Column(db.String(128))
    active = db.Column(db.Boolean())
    confirmed_at = db.Column(db.DateTime())
    organization_id = db.Column(db.Integer, db.ForeignKey('organizations.id'))
    status = db.Column(db.Integer)#0:disable,1:enable
    avatar = db.Column(db.String(60))# avatar pic name

    roles_user = db.relationship('Role_User', backref='User',
                                 lazy='dynamic',cascade='all, delete-orphan', passive_deletes = True)

    @property
    def password(self):
        """
        Prevent pasword from being accessed
        """
        raise AttributeError(_('password is not a readable attribute.'))

    @password.setter
    def password(self, password):
        """
        Set password to a hashed password
        """
        self.password_hash = generate_password_hash(password)

    def check_password_hash(self, password):
        return check_password_hash(self.password_hash,password)

    def verify_password(self, password):
        """
        Check if hashed password matches actual password
        """
        return check_password_hash(self.password_hash, password)

    def has_permission(self,permission):
        """
        Check if hashed the permission
        """
        for ru in self.roles_user:
            role=Role.query.filter(Role.id==ru.role_id).first()
            if role.name==permission:
                return True
        return False

has_permission函数根据权限名称来检索此用户是否有对应的角色权限

角色：每个角色表示一组操作的权限，可以操作系统相应的资源数据，用户与角色是多对多的关系，如下是角色的model，与用户类对象通过Role_User表进行关联。

class Role(db.Model):
    """
    Create a Role table
    """

    __tablename__ = 'roles'

    id = db.Column(db.Integer, primary_key=True)
    name = db.Column(db.String(60))
    status = db.Column(db.Integer)#0:disable,1:enable
    description = db.Column(db.String(100))
    caption = db.Column(db.String(60))

    users = db.relationship('Role_User', backref='Role',
                                 lazy='dynamic',cascade='all, delete-orphan', passive_deletes = True)

    def __repr__(self):
        return '<Role: {}>'.format(self.name)


class Role_User(db.Model):
    """
    Create a Role_User table
    """

    __tablename__ = 'role_users'

    id = db.Column(db.Integer, primary_key=True)
    user_id = db.Column(db.Integer, db.ForeignKey('users.id'))
    role_id = db.Column(db.Integer, db.ForeignKey('roles.id'))

    def __repr__(self):
        return '<Role_User: {}>'.format(self.name)

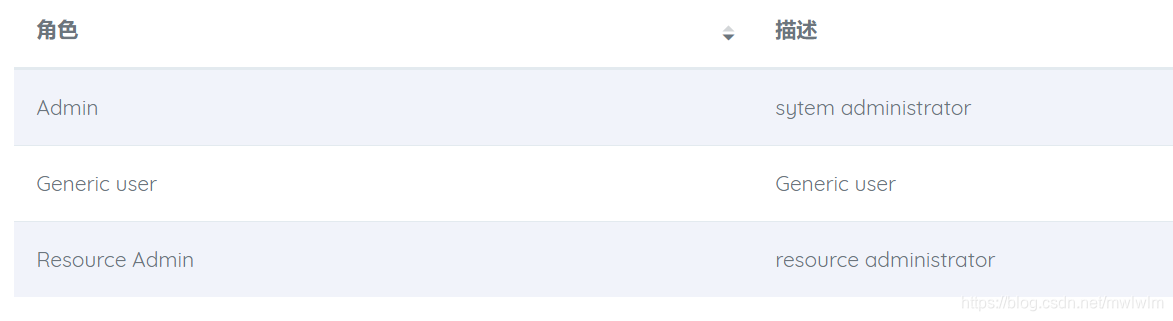

在本系统中设立如下三种角色：
在这里插入图片描述

Admin，企业的系统管理员，可以进行所有的操作，而且可以新建新的用户
Generic user，普通用户，只能进行功能性的操作，如SPC分析，田口实验设计
Resource Admin，资源管理，可以对企业资源进行管理，如设备，生产线，实验室等

页面表单form设计

对用户的操作，我们主要有如下三个操作，每个操作都对应相应的form。

用户登录
用户通过email，和密码来登录，同时有remember me的属性，所以只需要此三给元素即可，而且都为必填字段。同时有validate_email函数对输入email进行验证，判断是否已经注册，对于输入数据格式的验证本系统中都在前端网页验证。

class LoginForm(FlaskForm):
    """
    Form for users to login
    """
    email = StringField('Email Address', validators=[DataRequired(), Email()])

    password = PasswordField('Password', validators=[DataRequired(message= _('the password can not be null.'))])
    remember_me = BooleanField('Remember me')
    submit = SubmitField('Sign In')

    def validate_email(self, field):
        if not User.query.filter_by(email=field.data).first():
            raise ValidationError(_('Invalid email.'))

用户注册
在这里我们只通过简单的邮件地址注册，并对输入的密码进行两次校验，所以验证函数有三个，分别对邮件是否已被注册，是否同意用户协议，两次输入密码是否一致进行校验。

class RegistrationForm(FlaskForm):
    """
    Form for users to create new account
    """
    email = StringField('Email', validators=[DataRequired(), Email()])
    password = PasswordField('Password', validators=[DataRequired(message= _('the password can not be null.'))])
    password_again = PasswordField('Password again', validators=[DataRequired(message= _('the password again can not be null.'))])

    agree_policy = BooleanField('Agree Policy')
    submit = SubmitField('Register')

    def validate_email(self, field):
        if User.query.filter_by(email=field.data).first():
            raise ValidationError(_('Email is already in use.'))

    def validate_agree_policy(self, field):
        if not field.data:
            raise ValidationError('you must agree the policy.')

    def validate_password_again(self, field):
        if field.data!=self._fields['password'].data:
            raise ValidationError('Inconsistent password twice')

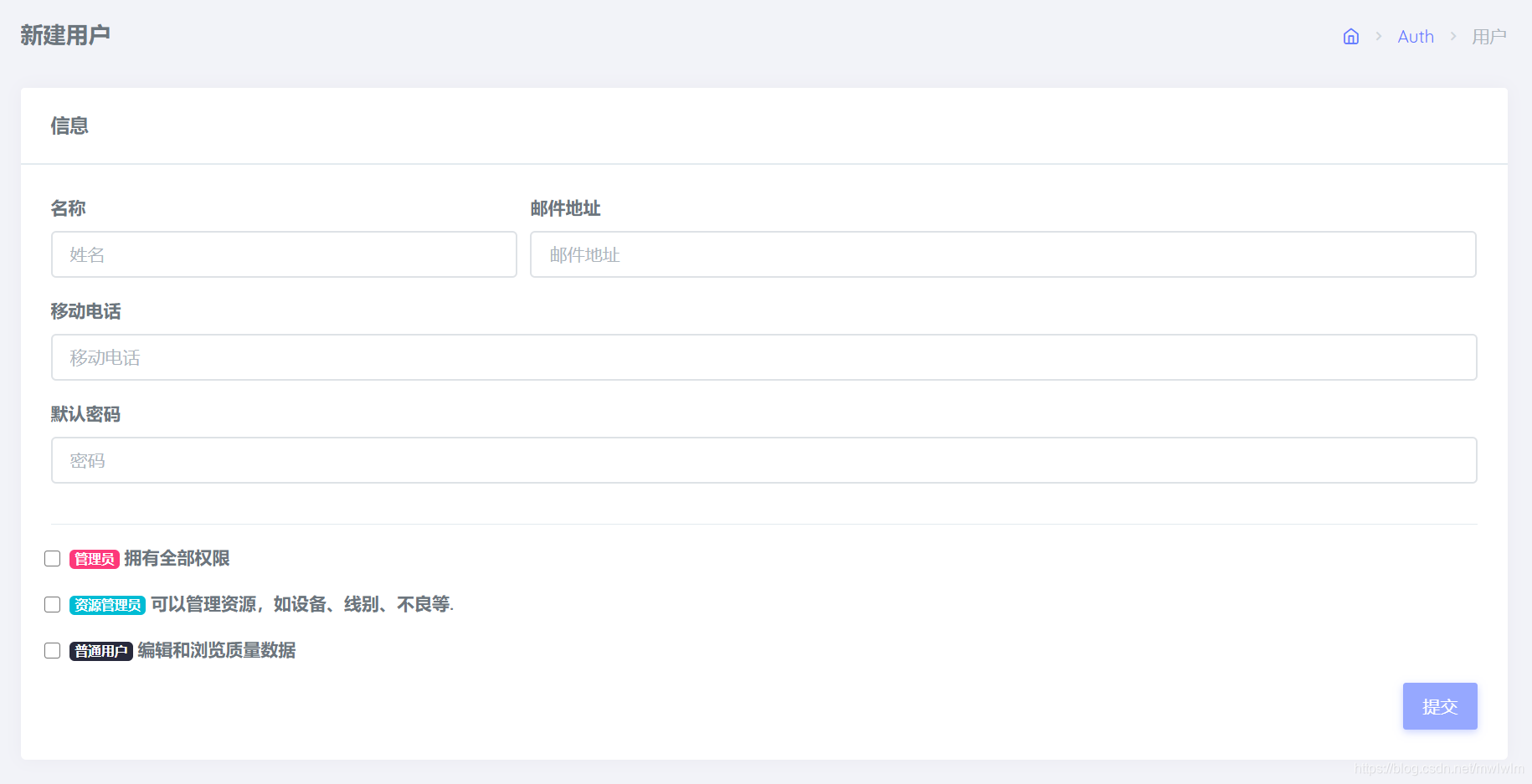

新建/编辑用户
企业管理员可以新建用户，并分配角色，对已有用户进行编辑，角色修改，对应于UserForm，此form类中对用户名称，邮件地址，移动电话，角色都进行验证，保证相关数据的正确性。同时在这里增加了对企业license中用户数量进行验证

class UserForm(FlaskForm):
    """
    Form for edit user
    """
    user_id = IntegerField('id')
    email = StringField('email', validators=[DataRequired()])
    username = StringField('username', validators=[DataRequired()])
    mobilephone = StringField('mobile phone')
    password = PasswordField('password')
    is_admin = StringField('is admin')
    is_resource_admin = StringField('is resource admin')
    is_generic_user = StringField('is generic user')
    submit = SubmitField('Submit')
    def validate_email(self, field):
        if self._fields['user_id'].data == -1:
            if User.query.filter(User.email==field.data).first():
                raise ValidationError(_('The user email is already in use.'))
        else:
            if User.query.filter(User.email==field.data,User.id!=self._fields['user_id'].data).first():
                raise ValidationError(_('The user email is already in use.'))
    def validate_mobilephone(self, field):
        if self._fields['user_id'].data == -1:
            if User.query.filter(User.mobilephone==field.data,User.organization_id==current_user.organization_id).first():
                raise ValidationError(_('The user mobilephone is already in use.'))
        else:
            if User.query.filter(User.mobilephone==field.data,User.organization_id==current_user.organization_id,User.id!=self._fields['user_id'].data).first():
                raise ValidationError(_('The user mobilephone is already in use.'))
    def validate_password(self, field):
        if self._fields['user_id'].data == -1:
            if field.data is None:
                raise ValidationError(_('the password can not be null.'))

    def validate_is_admin(self, field):
        if self._fields['user_id'].data == -1:
            if field.data=='is_admin':
                licenses =Organization_License.query.filter(Organization_License.organization_id==current_user.organization_id,Organization_License.license_id==License.id,License.name=='admin_numbers').first()
                quantity =Role_User.query.filter(Role_User.user_id==current_user.id,Role_User.role_id==Role.id,Role.name=='admin').count()
                if quantity>=licenses.quantity:
                    raise ValidationError(_('the numbers of admin you have created has more than the numbers of your license.'))

    def validate_is_resource_admin(self, field):
        if self._fields['user_id'].data == -1:
            if field.data=='is_resource_admin':
                licenses =Organization_License.query.filter(Organization_License.organization_id==current_user.organization_id,Organization_License.license_id==License.id,License.name=='resource_admin_numbers').first()
                quantity =Role_User.query.filter(Role_User.user_id==current_user.id,Role_User.role_id==Role.id,Role.name=='admin').count()
                if quantity>=licenses.quantity:
                    raise ValidationError(_('the numbers of resource admin you have created has more than the numbers of your license.'))

    def validate_is_generic_user(self, field):
        if self._fields['user_id'].data == -1:
            if field.data=='is_generic_user':
                licenses =Organization_License.query.filter(Organization_License.organization_id==current_user.organization_id,Organization_License.license_id==License.id,License.name=='generic_user_numbers').first()
                quantity =Role_User.query.filter(Role_User.user_id==current_user.id,Role_User.role_id==Role.id,Role.name=='admin').count()
                if quantity>=licenses.quantity:
                    raise ValidationError(_('the numbers of generic user you have created has more than the numbers of your license.'))

前端Web页面设计

前端页面都使用bootstrap进行设计，对应数据格式的常规验证都在前端进行，都是基本的h5页面，这里只贴代码

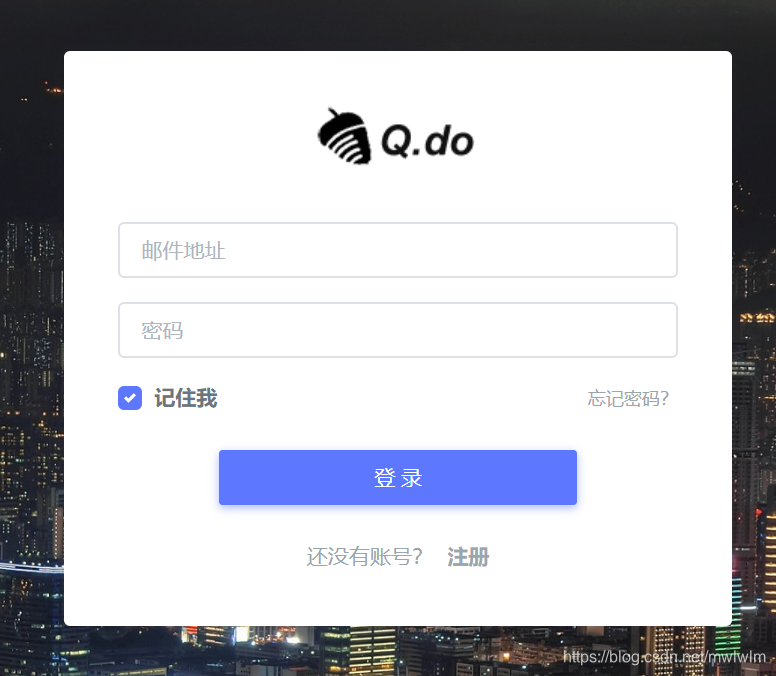

登录页面

<body class="authentication-bg">

    <div class="account-pages mt-5 mb-1">
        <div class="container">
            <div class="row justify-content-center">
                <div class="col-lg-5">
                    <div class="card mb-0">

                        <!-- Logo -->
                        <div class="card-body pt-4 pb-0 text-center">
                            <a href="index.html">
                                <span><img src="/static/assets/images/logo-qdo-dark.png" alt=""></span>
                            </a>
                        </div>

                        <div class="card-body p-4">
                            <form method="post" action="/login" name="login" class="needs-validation" novalidate>
                                {{ form.csrf_token }}
                                <div class="form-group">
                                    <input class="form-control" type="email" id="email" name="email" required placeholder="{{_('Enter your email')}}">
                                    <div class="invalid-feedback">
                                        {{_('Please provide a valid email.')}}
                                    </div>
                                </div>
                                <div class="form-group">
                                    <input class="form-control" type="password" required id="password" name="password" placeholder="{{_('Enter your password')}}">
                                    <div class="invalid-feedback">
                                        {{_('Please input the correct password.')}}
                                    </div>
                                </div>
                                <div class="form-group mb-3">
                                    <a href="pages-recoverpw.html" class="text-muted float-right"><small>{{_('Forgot your password?')}}</small></a>
                                    <div class="custom-control custom-checkbox">
                                        <input type="checkbox" name="remember_me" class="custom-control-input" id="checkbox-signin" checked>
                                        <label class="custom-control-label" for="checkbox-signin">{{_('Remember me')}}</label>
                                    </div>
                                </div>
                                {% if form.errors %}
                                <ul class="errors" style="color:#FF0033">
                                    {% for field_name, field_errors in form.errors|dictsort if field_errors %}
                                    {% for error in field_errors %}
                                    {{ form[field_name].label }}: {{ error }}
                                    {% endfor %}
                                    {% endfor %}
                                </ul>
                                {% endif %}
                                <div class="row justify-content-center">
                                    <div class="col-8">
                                        <div class="form-group mb-0">
                                            <button class="btn btn-primary btn-block" type="submit" name="Sign in">{{_(' Log In ')}}</button>
                                        </div>
                                    </div>
                                </div>
                            </form>
                            <div class="row mt-3">
                                <div class="col-12 text-center">
                                    <p class="text-muted mb-0">{{_('Do not have an account?')}} <a href="{{ url_for('auth.register') }}" class="text-muted ml-1"><b>{{_('Sign Up')}}</b></a></p>
                                </div>
                            </div>
                        </div>

                    </div>


                </div> <!-- end col -->
            </div>
            <!-- end row -->
        </div>
        <!-- end container -->
    </div>
    <!-- end page -->

    <!-- Required js -->
    <script src="/static/assets/js/app.js"></script>

</body>

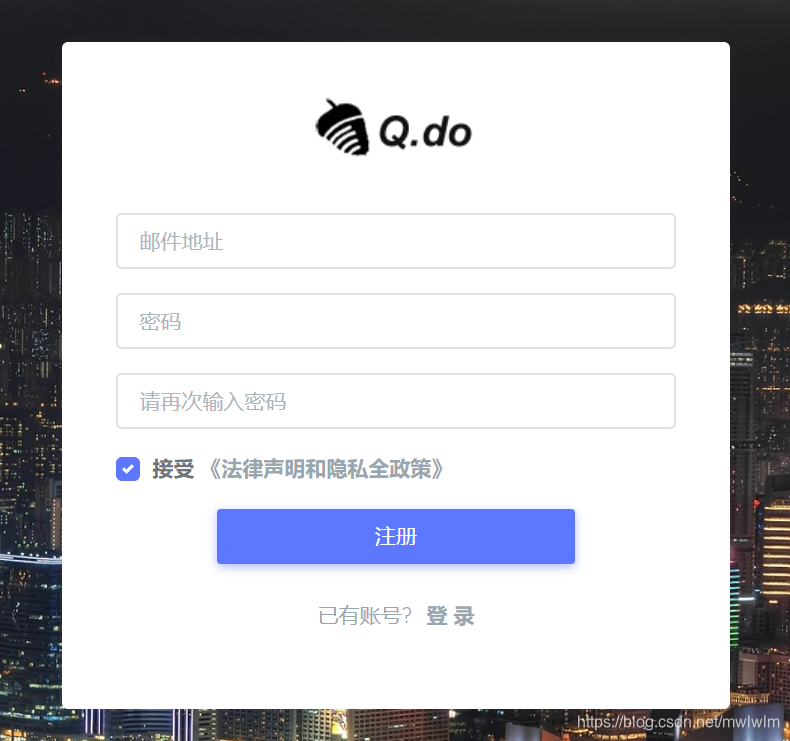

注册页面

<body class="authentication-bg">

    <div class="account-pages mt-5 mb-1">
        <div class="container">
            <div class="row justify-content-center">
                <div class="col-lg-5">
                    <div class="card mb-0">
                        <!-- Logo-->
                        <div class="card-body pt-4 pb-0 text-center">
                            <a href="index.html">
                                <span><img src="/static/assets/images/logo-qdo-dark.png" alt=""></span>
                            </a>
                        </div>

                        <div class="card-body p-4">

                            <form method="post" action="/register" class="needs-validation" novalidate>
                                {{ form.csrf_token }}
                                <div class="form-group">
                                    <input class="form-control" type="email" id="email" name="email" required placeholder="{{_('Enter your email')}}">
                                    <div class="invalid-feedback">
                                        {{_('Please provide a valid email.')}}
                                    </div>
                                </div>

                                <div class="form-group">
                                    <input class="form-control" type="password" required id="password" name="password" placeholder="{{_('Enter your password')}}">
                                    <div class="invalid-feedback">
                                        {{_('Please input the correct password.')}}
                                    </div>
                                </div>

                                <div class="form-group">
                                    <input class="form-control" type="password" required id="password_again" name="password_again" placeholder="{{_('Enter your password again')}}">
                                    <div class="invalid-feedback">
                                        {{_('Please input the correct password again.')}}
                                    </div>
                                </div>

                                <div class="form-group">
                                    <div class="custom-control custom-checkbox">
                                        <input type="checkbox" class="custom-control-input" name="agree_policy" checked id="agree_policy">
                                        <label class="custom-control-label" for="agree_policy">{{_('I accept')}} <a href="#" class="text-muted">{{_('Terms &amp; Conditions')}}</a></label>
                                        <div class="invalid-feedback">
                                            {{_('Please acceept the agree policy')}}
                                        </div>
                                    </div>
                                </div>
                                {% if form.errors %}
                                <ul class="errors">
                                    {% for field_name, field_errors in form.errors|dictsort if field_errors %}
                                    {% for error in field_errors %}
                                    <span style="color:#FF0033">
                                        <li>{{ form[field_name].label }}: {{ error }}</li>
                                    </span>
                                    {% endfor %}
                                    {% endfor %}
                                </ul>
                                {% endif %}
                                <div class="row justify-content-center">
                                    <div class="col-8">
                                        <div class="form-group mb-0">
                                            <button class="btn btn-primary btn-block" type="submit"> {{_('Sign Up')}} </button>
                                        </div>
                                    </div>
                                </div>

                            </form>
                            <div class="row mt-3">
                                <div class="col-12 text-center">
                                    <p class="text-muted">{{_('Already have account?')}} <a href="{{ url_for('auth.login') }}" class="text-muted ml-1"><b>{{_('Log In')}}</b></a></p>
                                </div>
                            </div>
                        </div>
                    </div>
                </div>
            </div>
        </div>
        <!-- end container -->
    </div>
    <!-- end page -->

    <!-- Required js -->
    <script src="/static/assets/js/app.js"></script>

</body>

新建/编辑用户

{% extends "layout.html" %}

{% block content %}

<!-- Start Content-->
    <div class="container-fluid">

        <!-- start page title -->
        <div class="row">
            <div class="col-12">
                <div class="page-title-box">
                    <div class="page-title-right">
                        <ol class="breadcrumb m-0">
                            <li class="breadcrumb-item"><a href="javascript: void(0);"><i class="feather icon-home"></i></a></li>
                            <li class="breadcrumb-item"><a href="javascript: void(0);">{{_('Auth')}}</a></li>
                            <li class="breadcrumb-item active">{{_('Users')}}</li>
                        </ol>
                    </div>
                    <h4 class="page-title">{{_('New User')}}</h4>
                </div>
            </div>
        </div>
        <!-- end page title -->
        <!-- form -->
        <div class="card">
            <div class="card-header">
                <h5>{{_('Info')}}</h5>
            </div>
            <div class="card-body">
                <form class="needs-validation" novalidate method="post" action="{{ url_for('auth.user_add')}}" name="user_add">
                    {{ form.csrf_token }}
                    <div class="form-row">
                        <div class="form-group col-md-4">
                            <input type="hidden" id="user_id" name="user_id" value="-1" />
                            <label for="username">{{_('Name')}}</label>
                            <input class="form-control" type="text" id="username" name="username" required placeholder={{_('Enter your name')}}>
                            <div class="invalid-feedback">
                                {{_('Please input a valid name.')}}
                            </div>
                        </div>
                        <div class="form-group col-md-8">
                            <label for="email">{{_('Email address')}}</label>
                            <input class="form-control" type="email" id="email" name="email" required placeholder={{_('Enter your email')}}>
                            <div class="invalid-feedback">
                                {{_('Please input a valid email.')}}
                            </div>
                        </div>
                    </div>
                    <div class="form-row">
                        <div class="form-group col-md-12">
                            <label for="mobilephone">{{_('Mobile Phone')}}</label>
                            <input class="form-control" type="text" id="mobilephone" name="mobilephone" required placeholder={{_('Enter your mobilephone')}}>
                            <div class="invalid-feedback">
                                {{_('Please input a valid mobile phone number.')}}
                            </div>
                        </div>

                    </div>
                    <div class="form-row">
                        <div class="form-group col-md-12">
                            <label for="password">{{_('Default Password')}}</label>
                            <input class="form-control" type="password" required id="password" name="password" placeholder={{_('Enter your password')}}>
                            <div class="invalid-feedback">
                                Please input the correct password.')}}
                            </div>
                        </div>
                    </div>
                    <hr>
                    <div class="form-group col-md-12">
                        <input type="checkbox" class="form-check-input" id="is_admin" name="is_admin" value="is_admin">
                        <span class="badge badge-danger">{{_('is Admin')}}</span>
                        <label class="form-check-label" for="c_user.has_permission('admin')">{{_('It has the whole permissions.')}}</label>
                    </div>
                    <div class="form-group col-md-12">
                        <input type="checkbox" class="form-check-input" id="is_resource_admin" name="is_resource_admin" value="is_resource_admin">
                        <span class="badge badge-info">{{_('is Resource Admin')}}</span>
                        <label class="form-check-label" for="is_resource_admin">{{_('It can manage the resource, like eqp, line, defect...')}}</label>
                    </div>
                    <div class="form-group col-md-12">
                        <input type="checkbox" class="form-check-input" id="is_generic_user" name="is_generic_user" value="is_generic_user">
                        <span class="badge badge-dark">{{_('is Generic User')}}</span>
                        <label class="form-check-label" for="is_generic_user">{{_('It can edit and view the quality data')}}</label>
                    </div>
                    {% if form.errors %}
                    <ul class="errors" style="color:#FF0033">
                        {% for field_name, field_errors in form.errors|dictsort if field_errors %}
                        {% for error in field_errors %}
                        {{ form[field_name].label }}: {{ error }}
                        {% endfor %}
                        {% endfor %}
                    </ul>
                    {% endif %}
                    {% if c_user.status!=0 %}
                    <button type="submit" class="btn  btn-primary float-right">{{_('Submit')}}</button>
                    {% else %}
                    <button type="submit" class="btn  btn-primary float-right" disabled>{{_('Submit')}}</button>
                    {% endif %}
                </form>
            </div>
        </div>
    </div> <!-- container -->
        {% endblock %}

功能逻辑

注册登录都使用Flask-login，只是在注册页面，增加了为新用户新建一个临时的组织信息。

@auth.route('/register', methods=['GET', 'POST'])
def register():
    """
    Handle requests to the /register route
    Add an user to the database through the registration form
    """
    form = RegistrationForm()

    if form.validate_on_submit():

        new_organization=Organization();
        new_organization.name=form.email.data
        new_organization.description=form.email.data
        new_organization.country="China"
        new_organization.state="ShangHai"
        new_organization.city="ShangHai"
        new_organization.address="ShangHai"
        new_organization.status=2#temp status
        new_organization.key=str(uuid.uuid4()).upper().replace('-','')
        db.session.add(new_organization)
        db.session.flush()

        user = User(email=form.email.data,username=form.email.data,password=form.password.data,organization_id=new_organization.id,status=1)
        db.session.add(user)
        db.session.flush()
        role = Role.query.filter(Role.name=='admin').first()
        user_role=Role_User(user_id=user.id,role_id=role.id)
        db.session.add(user_role)

        db.session.commit()
        flash(_('You have successfully registered! You may now login.'))

        # redirect to the login page
        return redirect(url_for('auth.login'))

    # load registration template
    return render_template('register.html', form=form, title='Register')

新建用户
新建用户操作是由组织管理员完成，需要添加用户信息，同时为用户分配的角色，需要操作user，role_user两张表

@auth.route('/users/add', methods=['GET', 'POST'])
@login_required
def user_add():
    """
    Add a users to the database
    """

    form = UserForm()
    if form.validate_on_submit():
        user = User(email=form.email.data,username=form.username.data,password=form.password.data,
                    mobilephone=form.mobilephone.data,
                    organization_id=current_user.organization_id)

        try:
            # add user to the database
            db.session.add(user)
            db.session.flush()

            if form.is_admin.data=='is_admin':
                admin_role = Role.query.filter(Role.name=='admin').first()
                user_role=Role_User(user_id=user.id,role_id=admin_role.id)
                db.session.add(user_role)

            if form.is_resource_admin.data=='is_resource_admin':
                resource_admin_role = Role.query.filter(Role.name=='resource_admin').first()
                user_role=Role_User(user_id=user.id,role_id=resource_admin_role.id)
                db.session.add(user_role)

            if form.is_generic_user.data=='is_generic_user':
                generic_user_role = Role.query.filter(Role.name=='generic_user').first()
                user_role=Role_User(user_id=user.id,role_id=generic_user_role.id)
                db.session.add(user_role)

            db.session.commit()
            flash(_('You have successfully added a new user.'))
        except Exception as e:
            # in case user name already exists
            db.session.rollback()
            flash(_('User name already exists.'))
            current_app.logger.exception(e)

        # redirect to the user page
        return redirect(url_for('auth.users_list'))

    # load user template
    return render_template('user_add.html',c_user=current_user,
                           form=form, title='Add user')
