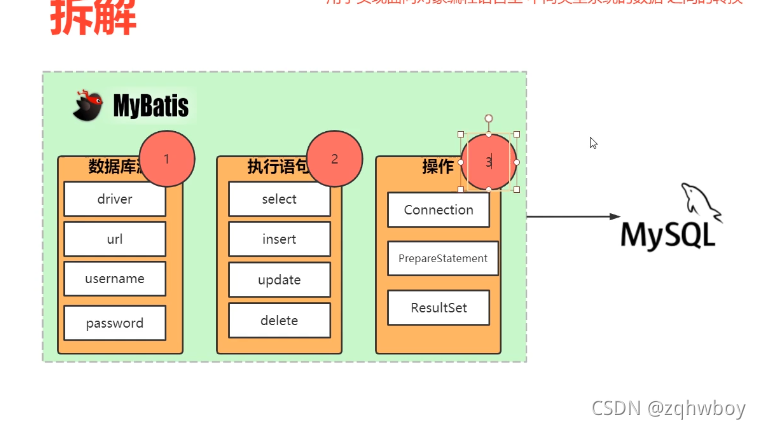

Mybatis技术的本质

1. Mybatis技术的本质

ORM框架:Object Relational Mapping

用于实现面向对象的编程语言里,不同类型系统数据 之间的转换

2.用源码去验证Mybatis如何获取数据库源的:

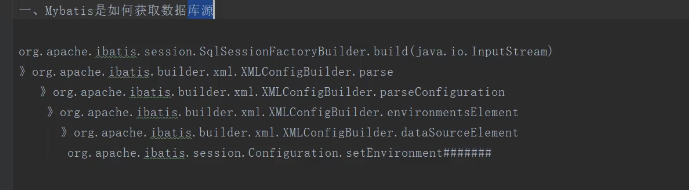

下面是层层调用结构

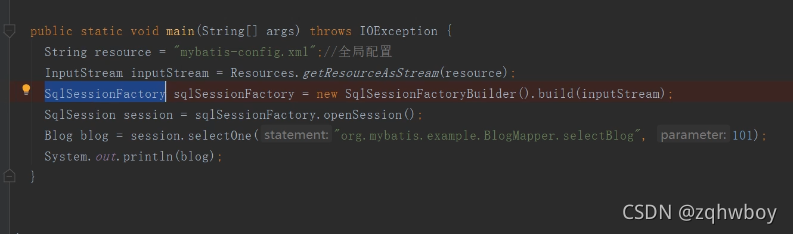

然后我们自己从上面打断点的地方dubug开始看源码是否如这样(验证才是检验真理的标准)

调用build方法
1. SqlSessionFactory build(InputStream inputStream)

2.XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
            var5 = this.build(parser.parse());

   public Configuration parse() {
        if (this.parsed) {//刚开始parsed是false 保证xml文件只被加载一次
            throw new BuilderException("Each XMLConfigBuilder can only be used once.");
        } else {
            this.parsed = true; //设置为true
            this.parseConfiguration(this.parser.evalNode("/configuration"));
            return this.configuration;
        }
    }

同时通过第四步,你也知道mybatis.xml文件中各个属性设置的顺序,因为他们读取的顺序是受dtd约束的.(比如你把properties放在后面,那么在读environment时候不能用$取其中文件)

4. root其实就是去用来存拿到的配置文件,打断点可以看出来其值
private void parseConfiguration(XNode root) {
        try {
            this.propertiesElement(root.evalNode("properties"));
            Properties settings = this.settingsAsProperties(root.evalNode("settings"));
            this.loadCustomVfs(settings);
            this.loadCustomLogImpl(settings);
            this.typeAliasesElement(root.evalNode("typeAliases"));
            this.pluginElement(root.evalNode("plugins"));
            this.objectFactoryElement(root.evalNode("objectFactory"));
            this.objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
            this.reflectorFactoryElement(root.evalNode("reflectorFactory"));
            this.settingsElement(settings);
            this.environmentsElement(root.evalNode("environments"));
            this.databaseIdProviderElement(root.evalNode("databaseIdProvider"));
            this.typeHandlerElement(root.evalNode("typeHandlers"));
            this.mapperElement(root.evalNode("mappers"));//解析map配置文件
        } catch (Exception var3) {
            throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + var3, var3);
        }
    }

5.把上面你的其中一个方法点开,你会发现他会把配置文件的信息里面的东西塞进到configuration中
private void environmentsElement(XNode context) throws Exception {
        if (context != null) {
            if (this.environment == null) {
                this.environment = context.getStringAttribute("default");//得到默认注册的环境
            }

            Iterator var2 = context.getChildren().iterator();

            while(var2.hasNext()) {
                XNode child = (XNode)var2.next();
                String id = child.getStringAttribute("id");
                //只有与默认环境匹配才会进去,如果默认环境没有会throw new BuilderException("No environment specified.");
                if (this.isSpecifiedEnvironment(id)) {
                    TransactionFactory txFactory = this.transactionManagerElement(child.evalNode("transactionManager"));
                    //得到数据源工厂
                    DataSourceFactory dsFactory = this.dataSourceElement(child.evalNode("dataSource"));
                    //数据源工厂去得到数据源
                    DataSource dataSource = dsFactory.getDataSource();
                    Builder environmentBuilder = (new Builder(id)).transactionFactory(txFactory).dataSource(dataSource);
                    this.configuration.setEnvironment(environmentBuilder.build());//全局配置设置这个属性
                }
            }
        }

    }
先说下最后一行代码build底层是取new Environment把信息啥的传进去掉有参
public Environment build() {
    return new Environment(this.id, this.transactionFactory, this.dataSource);
}

 6.
private DataSourceFactory dataSourceElement(XNode context) throws Exception {
        if (context != null) {
            String type = context.getStringAttribute("type");
            //name value以键值对形式取出来  properties.setProperty(name, value);
            Properties props = context.getChildrenAsProperties();
            //resolveClass(type)得到的是一个class对象,通过newInstanc去创建一个dataSource工厂
            DataSourceFactory factory = (DataSourceFactory)this.resolveClass(type).newInstance();
            //数据源工厂中设置属性
            factory.setProperties(props);
            return factory;
        } else {
            throw new BuilderException("Environment declaration requires a DataSourceFactory.");
        }
    }

7.返回的是个class
protected <T> Class<? extends T> resolveClass(String alias) {
    if (alias == null) {
        return null;
    } else {
        try {
            //这个alias在这里是POOLED
            return this.resolveAlias(alias);
        } catch (Exception var3) {
            throw new BuilderException("Error resolving class. Cause: " + var3, var3);
        }
    }
}

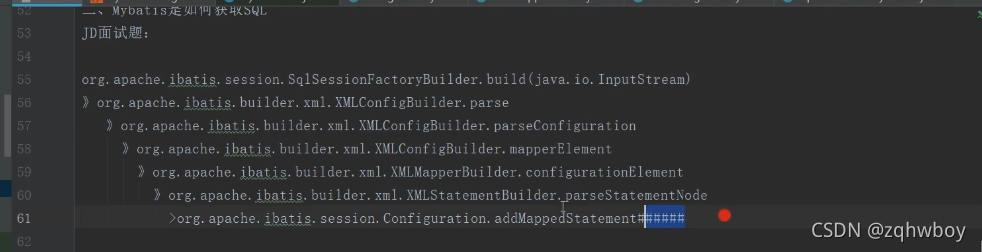

6. mybatis如何执行sql语句

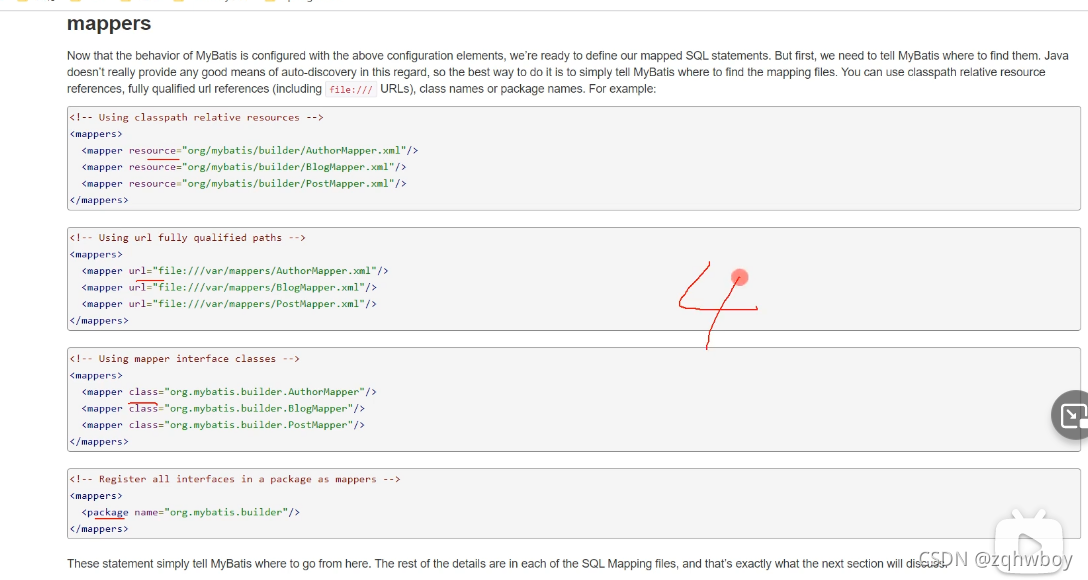

JD面试题:mybatis解析Mapping有几种方式

4种

前面几步和如何获取数据库源一样

package优先级最高 其次resource 然后 url 最后mapperClass

private void mapperElement(XNode parent) throws Exception {
    if (parent != null) {
        Iterator var2 = parent.getChildren().iterator();

        while(true) {
            while(var2.hasNext()) {
                XNode child = (XNode)var2.next();
                String resource;
                if ("package".equals(child.getName())) {
                    resource = child.getStringAttribute("name");
                    this.configuration.addMappers(resource);
                } else {
                    resource = child.getStringAttribute("resource");
                    String url = child.getStringAttribute("url");
                    String mapperClass = child.getStringAttribute("class");
                    XMLMapperBuilder mapperParser;
                    InputStream inputStream;
                    if (resource != null && url == null && mapperClass == null) {
                        ErrorContext.instance().resource(resource);
                        inputStream = Resources.getResourceAsStream(resource);
                        mapperParser = new XMLMapperBuilder(inputStream, this.configuration, resource, this.configuration.getSqlFragments());
                        mapperParser.parse();
                    } else if (resource == null && url != null && mapperClass == null) {
                        ErrorContext.instance().resource(url);
                        inputStream = Resources.getUrlAsStream(url);
                        mapperParser = new XMLMapperBuilder(inputStream, this.configuration, url, this.configuration.getSqlFragments());
                        mapperParser.parse();
                    } else {
                        if (resource != null || url != null || mapperClass == null) {
                            throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
                        }

                        Class<?> mapperInterface = Resources.classForName(mapperClass);
                        this.configuration.addMapper(mapperInterface);
                    }
                }
            }

            return;
        }
    }
}

2.如果是resource引入的mapper.xml那么会走mapperParser.parse();,然后进入下面这个方法
private void configurationElement(XNode context) {
    try {
        String namespace = context.getStringAttribute("namespace");
        if (namespace != null && !namespace.equals("")) {
            this.builderAssistant.setCurrentNamespace(namespace);


 /*这放在了configuration. */           this.cacheRefElement(context.evalNode("cache-ref"));
            this.cacheElement(context.evalNode("cache"));

    /*这放在了 builderAssistant. */           this.parameterMapElement(context.evalNodes("/mapper/parameterMap"));
            this.resultMapElements(context.evalNodes("/mapper/resultMap"));
            this.sqlElement(context.evalNodes("/mapper/sql"));
            this.buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
        } else {
            throw new BuilderException("Mapper's namespace cannot be empty");
        }
    } catch (Exception var3) {
        throw new BuilderException("Error parsing Mapper XML. The XML location is '" + this.resource + "'. Cause: " + var3, var3);
    }
}

private void buildStatementFromContext(List<XNode> list) {
    if (this.configuration.getDatabaseId() != null) {
        this.buildStatementFromContext(list, this.configuration.getDatabaseId());
    }

    this.buildStatementFromContext(list, (String)null);
}

private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
    Iterator var3 = list.iterator();

    while(var3.hasNext()) {
        XNode context = (XNode)var3.next();
        XMLStatementBuilder statementParser = new XMLStatementBuilder(this.configuration, this.builderAssistant, context, requiredDatabaseId);

        try {
            statementParser.parseStatementNode();
        } catch (IncompleteElementException var7) {
            this.configuration.addIncompleteStatement(statementParser);
        }
    }

}

context就是你写在mapper.xml中的sql,在这标签上你可能有各种参数 ,通过context可以拿到,最后拿到后放进addMappedStatement

public void parseStatementNode() {
    String id = this.context.getStringAttribute("id");
    String databaseId = this.context.getStringAttribute("databaseId");
    if (this.databaseIdMatchesCurrent(id, databaseId, this.requiredDatabaseId)) {
        String nodeName = this.context.getNode().getNodeName();
        SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
        boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
        boolean flushCache = this.context.getBooleanAttribute("flushCache", !isSelect);
        boolean useCache = this.context.getBooleanAttribute("useCache", isSelect);
        boolean resultOrdered = this.context.getBooleanAttribute("resultOrdered", false);
        XMLIncludeTransformer includeParser = new XMLIncludeTransformer(this.configuration, this.builderAssistant);
        includeParser.applyIncludes(this.context.getNode());
        String parameterType = this.context.getStringAttribute("parameterType");
        Class<?> parameterTypeClass = this.resolveClass(parameterType);
        String lang = this.context.getStringAttribute("lang");
        LanguageDriver langDriver = this.getLanguageDriver(lang);
        this.processSelectKeyNodes(id, parameterTypeClass, langDriver);
        String keyStatementId = id + "!selectKey";
        keyStatementId = this.builderAssistant.applyCurrentNamespace(keyStatementId, true);
        Object keyGenerator;
        if (this.configuration.hasKeyGenerator(keyStatementId)) {
            keyGenerator = this.configuration.getKeyGenerator(keyStatementId);
        } else {
            keyGenerator = this.context.getBooleanAttribute("useGeneratedKeys", this.configuration.isUseGeneratedKeys() && SqlCommandType.INSERT.equals(sqlCommandType)) ? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
        }

        SqlSource sqlSource = langDriver.createSqlSource(this.configuration, this.context, parameterTypeClass);
        StatementType statementType = StatementType.valueOf(this.context.getStringAttribute("statementType", StatementType.PREPARED.toString()));
        Integer fetchSize = this.context.getIntAttribute("fetchSize");
        Integer timeout = this.context.getIntAttribute("timeout");
        String parameterMap = this.context.getStringAttribute("parameterMap");
        String resultType = this.context.getStringAttribute("resultType");
        Class<?> resultTypeClass = this.resolveClass(resultType);
        String resultMap = this.context.getStringAttribute("resultMap");
        String resultSetType = this.context.getStringAttribute("resultSetType");
        ResultSetType resultSetTypeEnum = this.resolveResultSetType(resultSetType);
        if (resultSetTypeEnum == null) {
            resultSetTypeEnum = this.configuration.getDefaultResultSetType();
        }

        String keyProperty = this.context.getStringAttribute("keyProperty");
        String keyColumn = this.context.getStringAttribute("keyColumn");
        String resultSets = this.context.getStringAttribute("resultSets");
        this.builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType, fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass, resultSetTypeEnum, flushCache, useCache, resultOrdered, (KeyGenerator)keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
    }
}

最后都会加入Configuration中,Configuration就是我们的全局配置

public MappedStatement addMappedStatement(String id, SqlSource sqlSource, StatementType statementType, SqlCommandType sqlCommandType, Integer fetchSize, Integer timeout, String parameterMap, Class<?> parameterType, String resultMap, Class<?> resultType, ResultSetType resultSetType, boolean flushCache, boolean useCache, boolean resultOrdered, KeyGenerator keyGenerator, String keyProperty, String keyColumn, String databaseId, LanguageDriver lang, String resultSets) {
    if (this.unresolvedCacheRef) {
        throw new IncompleteElementException("Cache-ref not yet resolved");
    } else {
        id = this.applyCurrentNamespace(id, false);
        boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
        org.apache.ibatis.mapping.MappedStatement.Builder statementBuilder = (new org.apache.ibatis.mapping.MappedStatement.Builder(this.configuration, id, sqlSource, sqlCommandType)).resource(this.resource).fetchSize(fetchSize).timeout(timeout).statementType(statementType).keyGenerator(keyGenerator).keyProperty(keyProperty).keyColumn(keyColumn).databaseId(databaseId).lang(lang).resultOrdered(resultOrdered).resultSets(resultSets).resultMaps(this.getStatementResultMaps(resultMap, resultType, id)).resultSetType(resultSetType).flushCacheRequired((Boolean)this.valueOrDefault(flushCache, !isSelect)).useCache((Boolean)this.valueOrDefault(useCache, isSelect)).cache(this.currentCache);
        ParameterMap statementParameterMap = this.getStatementParameterMap(parameterMap, parameterType, id);
        if (statementParameterMap != null) {
            statementBuilder.parameterMap(statementParameterMap);
        }

        MappedStatement statement = statementBuilder.build();
        this.configuration.addMappedStatement(statement);
        return statement;
    }
}

7.Mybatis如何去操作

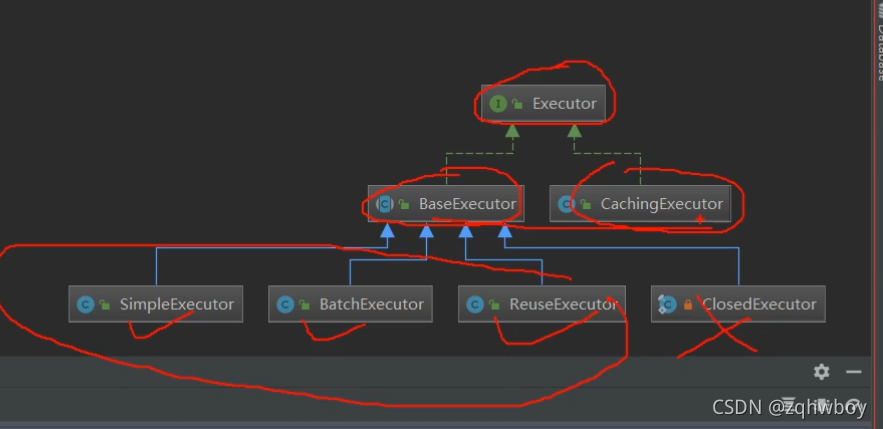

先说说执行器,主要有三种,默认的是SimpleExecutor,空参构造器new的时候里面赋的默认值

public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
    executorType = executorType == null ? this.defaultExecutorType : executorType;
    executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
    Object executor;
    if (ExecutorType.BATCH == executorType) {
        executor = new BatchExecutor(this, transaction);
    } else if (ExecutorType.REUSE == executorType) {
        executor = new ReuseExecutor(this, transaction);
    } else {
        executor = new SimpleExecutor(this, transaction);
    }
//默认是true,一级缓存开启
    if (this.cacheEnabled) {
        executor = new CachingExecutor((Executor)executor);
    }

    Executor executor = (Executor)this.interceptorChain.pluginAll(executor);
    return executor;
}

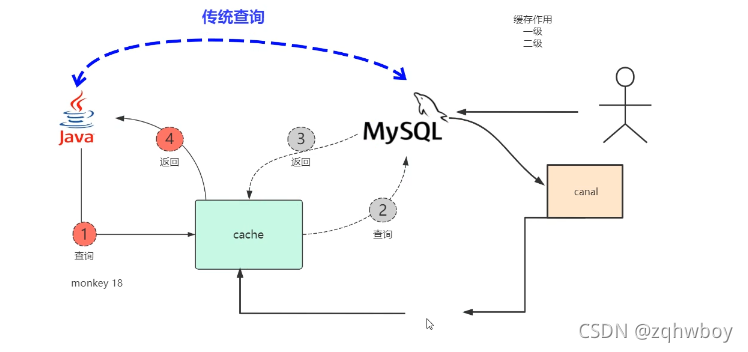

mybatis一级缓存默认是开启的,二级缓存默认是关闭的

通过源码看到在new 执行器的时候会默认开启一级缓存,因为cacheEnabled默认值为true,空参构造默认值为true

mybatis是先执行一级缓存还是二级缓存?

先执行二级缓存

调用DefaultSqlSession去赋值

public DefaultSqlSession(Configuration configuration, Executor executor, boolean autoCommit) {
    this.configuration = configuration;
    this.executor = executor;
    this.dirty = false;
    this.autoCommit = autoCommit;
}

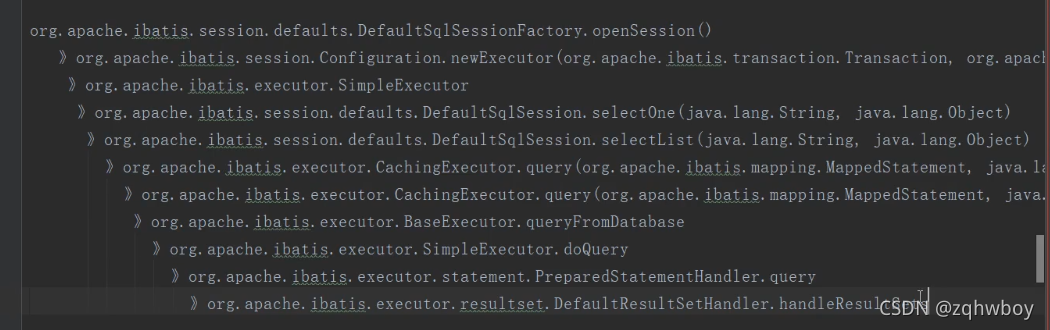

其实openSession就是创建了一个执行器

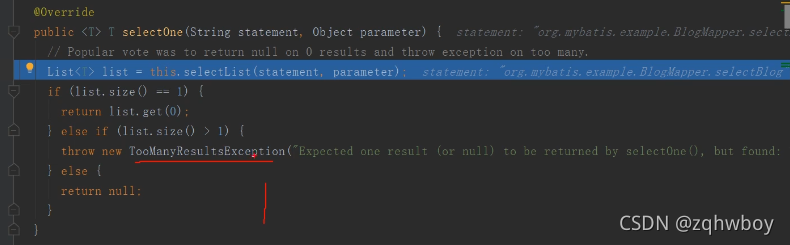

干活的还是selectOne方法

selectOne方法会去调用selectList方法

public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
    List var5;
    try {
        //getMapperStatement这里是从里面取,前面我们把sql存在这里了
        MappedStatement ms = this.configuration.getMappedStatement(statement);
        //wrapCollection(parameter)判断参数是什么类型的
        var5 = this.executor.query(ms, this.wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
    } catch (Exception var9) {
        throw ExceptionFactory.wrapException("Error querying database.  Cause: " + var9, var9);
    } finally {
        ErrorContext.instance().reset();
    }

    return var5;
}

通过深入源码,这里statement其实就是名字,这个标签的方法名字(可以自己进去点点看看)

public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler) throws SQLException {

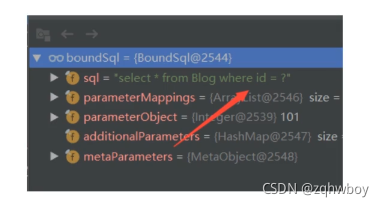

//得到绑定的sql  这里面sql是:select * from user where id= ? (好比是这条语句,那么他的这里得到绑定sql就有?号)
    BoundSql boundSql = ms.getBoundSql(parameterObject);
    //一级缓存中存的key的名字创建
    CacheKey key = this.createCacheKey(ms, parameterObject, rowBounds, boundSql);
    return this.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}

CacheKey的需要四个参数 id(mapper中方法的名字,起始页 每页多少 sql)
CacheKey cacheKey = new CacheKey();
cacheKey.update(ms.getId());
cacheKey.update(rowBounds.getOffset());
cacheKey.update(rowBounds.getLimit());
cacheKey.update(boundSql.getSql());

阿里有道面试题

A系统给B系统一个sql,如何判断这个sql是一个正确的sql???

1. 执行sql 去判断肯定不可以,如果是删库跑路的那不是要被裁了

2. 正则sql 不可以,有些特殊字符和正则有冲突

3. 语法引擎正确答案

再接着说说上面源码中的缓存创建

    CacheKey key = this.createCacheKey(ms, parameterObject, rowBounds, boundSql);

public <E> List<E> query(MappedStatement ms, Object parameterObject, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    Cache cache = ms.getCache();
    //cache!=null说明在xml中加了标签开启了二级缓存
    if (cache != null) {
        this.flushCacheIfRequired(ms);
        if (ms.isUseCache() && resultHandler == null) {
            this.ensureNoOutParams(ms, boundSql);
            List<E> list = (List)this.tcm.getObject(cache, key);
            //没有从二级缓存拿到,那么就会接着执行下面的
            if (list == null) {
                list = this.delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
                this.tcm.putObject(cache, key, list);
            }

            return list;
        }
    }

    return this.delegate.query(ms, parameterObject, rowBounds, resultHandler, key, boundSql);
}

query

 try {
                ++this.queryStack;
     //从一级缓存中取,取不到就走else
                list = resultHandler == null ? (List)this.localCache.getObject(key) : null;
                if (list != null) {
                    this.handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
                } else {
                    list = this.queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
                }
            }

private <E> List<E> queryFromDatabase(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, CacheKey key, BoundSql boundSql) throws SQLException {
    //先把Object中key放进去,ExecutionPlaceholder.EXECUTION_PLACEHOLDER是个空的
    this.localCache.putObject(key, ExecutionPlaceholder.EXECUTION_PLACEHOLDER);

    List list;
    try {
        list = this.doQuery(ms, parameter, rowBounds, resultHandler, boundSql); //第一次查询的时候得到list
    } finally {
        //移除之前的
        this.localCache.removeObject(key);
    }
//重新放进这个key
    this.localCache.putObject(key, list);//把list放进去
    if (ms.getStatementType() == StatementType.CALLABLE) {
        this.localOutputParameterCache.putObject(key, parameter);
    }

    return list;
}

public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
    Statement stmt = null;

    List var9;
    try {
        Configuration configuration = ms.getConfiguration();
        StatementHandler handler = configuration.newStatementHandler(this.wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
        stmt = this.prepareStatement(handler, ms.getStatementLog());
        var9 = handler.query(stmt, resultHandler);
    } finally {
        this.closeStatement(stmt);
    }

    return var9;
}

//这样调用到java.sql的PreparedStatement,然后调用其execute方法
public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
    PreparedStatement ps = (PreparedStatement)statement;
    ps.execute();
    return this.resultSetHandler.handleResultSets(ps);
}

//返回查询结果的
public List<Object> handleResultSets(Statement stmt) throws SQLException {
    ErrorContext.instance().activity("handling results").object(this.mappedStatement.getId());
    List<Object> multipleResults = new ArrayList();
    int resultSetCount = 0;
    ResultSetWrapper rsw = this.getFirstResultSet(stmt);
    List<ResultMap> resultMaps = this.mappedStatement.getResultMaps();
    int resultMapCount = resultMaps.size();
    this.validateResultMapsCount(rsw, resultMapCount);

    while(rsw != null && resultMapCount > resultSetCount) {
        ResultMap resultMap = (ResultMap)resultMaps.get(resultSetCount);
        this.handleResultSet(rsw, resultMap, multipleResults, (ResultMapping)null);
        rsw = this.getNextResultSet(stmt);
        this.cleanUpAfterHandlingResultSet();
        ++resultSetCount;
    }

    String[] resultSets = this.mappedStatement.getResultSets();
    if (resultSets != null) {
        while(rsw != null && resultSetCount < resultSets.length) {
            ResultMapping parentMapping = (ResultMapping)this.nextResultMaps.get(resultSets[resultSetCount]);
            if (parentMapping != null) {
                String nestedResultMapId = parentMapping.getNestedResultMapId();
                ResultMap resultMap = this.configuration.getResultMap(nestedResultMapId);
                this.handleResultSet(rsw, resultMap, (List)null, parentMapping);
            }

            rsw = this.getNextResultSet(stmt);
            this.cleanUpAfterHandlingResultSet();
            ++resultSetCount;
        }
    }

    return this.collapseSingleResultList(multipleResults);
}

ORM:用于实现面向对象编程语言,不同类型系统的数据之间的转换

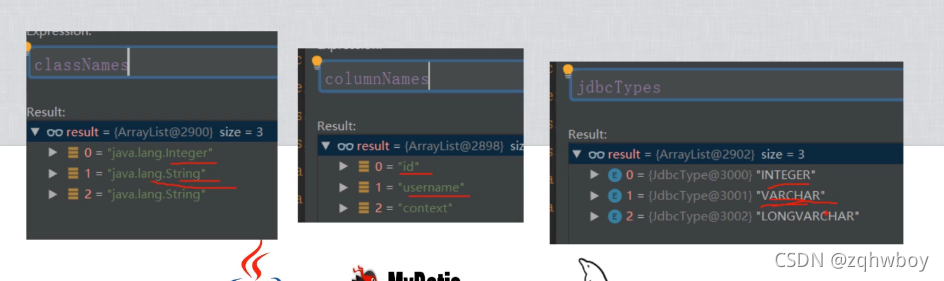

通过下面图片你会发现,mybatis中间做的就是将sql语言与java语言之间进行转换

8.数据库与缓存一致性解决问题

list = resultHandler == null ? (List)this.localCache.getObject(key) : null;//从缓存中取,有了直接返回
if (list != null) {
    this.handleLocallyCachedOutputParameters(ms, key, parameter, boundSql);
} else {
    list = this.queryFromDatabase(ms, parameter, rowBounds, resultHandler, key, boundSql);
}

4个字段用来确保key,

查询条件一样 查询数据库一样 查询分页一样 id(mapper方法的名字)一样

9.来看看getMaper的源码

1.
UserMapper mapper = sqlSession.getMapper(UserMapper.class);
        List<User> userList = mapper.orderUser("desc");

DefaultSqlSession中

public <T> T getMapper(Class<T> type) {
    return this.configuration.getMapper(type, this);
}

MapperRegistry 中的方法

public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
        MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory)this.knownMappers.get(type);
        if (mapperProxyFactory == null) {
            throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
        } else {
            try {
                return mapperProxyFactory.newInstance(sqlSession);
            } catch (Exception var5) {
                throw new BindingException("Error getting mapper instance. Cause: " + var5, var5);
            }
        }
    }

走到下面执行的还是selectOne方法

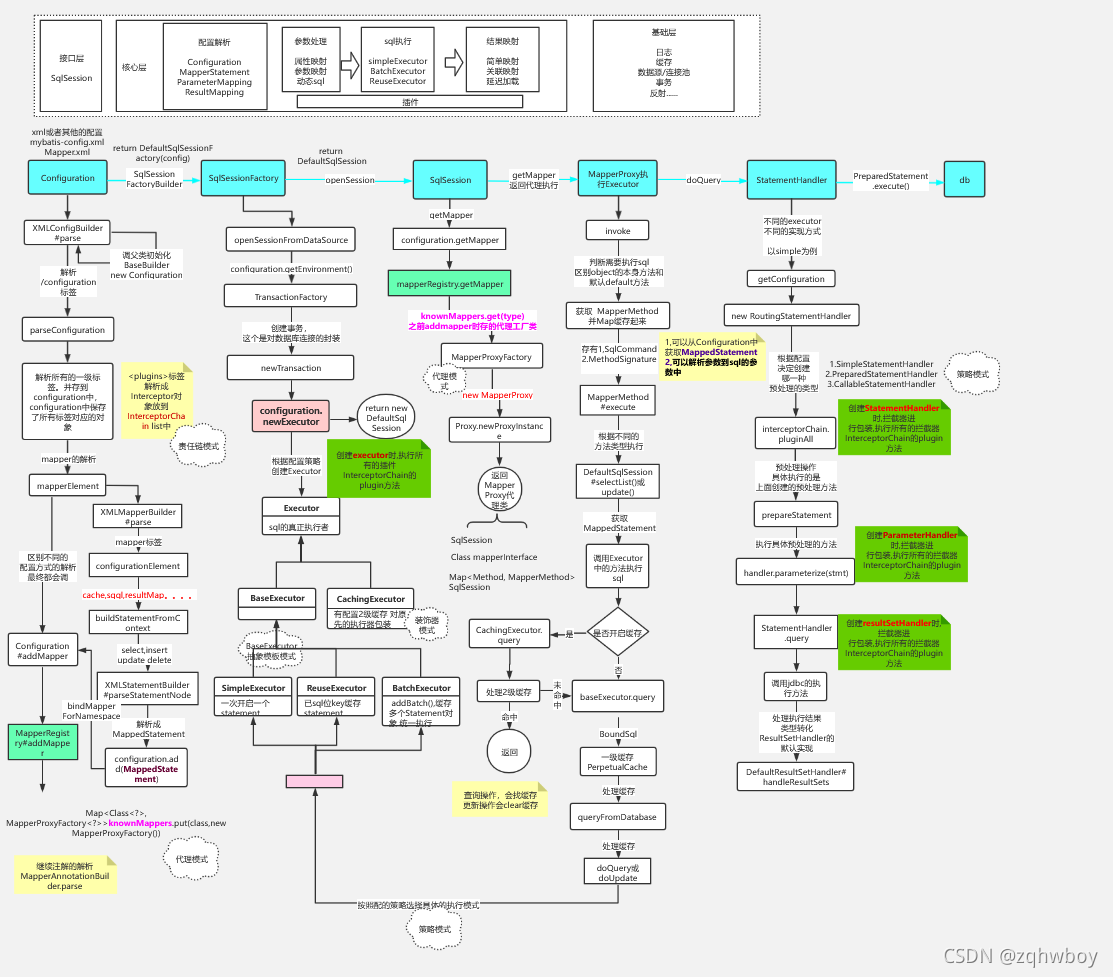

下面图片链接
