Custom Nodes 自定义节点

Goto Tree List 树列表

Custom Nodes 自定义节点

自定义节点是 TreeListNode 的后代，允许您扩展默认节点功能。本主题介绍如何创建自定义节点并在 Tree List 控件中使用它们。

Custom Nodes 自定义节点

树列表控件（TreeListNode 对象）的节点不是直接创建的。Tree List 控件不调用 TreeListNode 构造函数。相反，每次需要创建新节点时，它都会调用受保护的 CreateNode 方法。此方法具有以下语法：

protected virtual TreeListNode CreateNode(int nodeID, TreeListNodes owner);

该方法必须返回新创建的节点。nodeID 和 owner 参数指定节点的标识符和拥有集合。第一个参数对应于 TreeListNode.Id 属性。第二个参数是父节点的 TreeListNode.Nodes 属性值。（如果创建了根级别节点，则 owner 参数等于 TreeList.Nodes 属性值。

以下技术允许您创建自定义节点：

• 创建具有所需功能的 TreeListNode 后代。
• 创建 TreeList 控件后代，并重写 CreateNode 方法，以返回新创建的自定义类型的节点。
• 将派生控件添加到窗体中。

Example 例

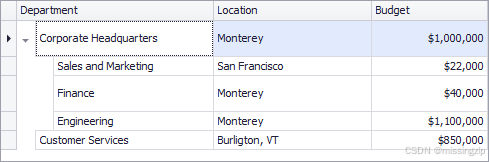

此示例说明如何创建引入 Height 属性的自定义节点类。此属性将允许为单个节点设置高度。

using DevExpress.XtraTreeList;
using DevExpress.XtraTreeList.Nodes;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace CustomTreeList_NodeHeight {
    public partial class Form1 : Form {
        public Form1() {
            InitializeComponent();

            List<MyRecord> list = new List<MyRecord>();
            list.Add(new MyRecord(0, -1, "Corporate Headquarters", 1000000, "Monterey"));
            list.Add(new MyRecord(1, 0, "Sales and Marketing", 22000, "San Francisco"));
            list.Add(new MyRecord(2, 0, "Finance", 40000, "Monterey"));
            list.Add(new MyRecord(3, 0, "Engineering", 1100000, "Monterey"));
            list.Add(new MyRecord(4, -1, "Customer Services", 850000, "Burlington, VT"));

            treeList1.DataSource = list;
            treeList1.Columns["Budget"].Format.FormatType = DevExpress.Utils.FormatType.Numeric;
            treeList1.Columns["Budget"].Format.FormatString = "c0";




        }

        private void Form1_Load(object sender, EventArgs e) {
            treeList1.ForceInitialize();
            treeList1.ExpandAll();
            ((MyTreeListNode)treeList1.Nodes[0]).Height = 35;
            ((MyTreeListNode)treeList1.Nodes[0].Nodes[1]).Height = 35;

        }
    }


    public class MyTreeList : TreeList {
        public MyTreeList() : base() {
            OptionsBehavior.AutoNodeHeight = false;
        }

        protected override TreeListNode CreateNode(int nodeID, TreeListNodes owner, object tag) {
            return new MyTreeListNode(nodeID, owner);
        }
        protected override void InternalNodeChanged(TreeListNode node, TreeListNodes nodes, NodeChangeTypeEnum changeType) {
            if (changeType == NodeChangeTypeEnum.User1)
                LayoutChanged();
            base.InternalNodeChanged(node, nodes, changeType);
        }
        protected override void RaiseCalcNodeHeight(TreeListNode node, ref int nodeHeight) {
            MyTreeListNode myNode = node as MyTreeListNode;
            if (myNode != null)
                nodeHeight = myNode.Height;
            else
                base.RaiseCalcNodeHeight(node, ref nodeHeight);
        }
        public virtual int DefaultNodesHeight { get { return 18; } }
    }
    public class MyTreeListNode : TreeListNode {
        const int minHeight = 5;
        int height;
        public MyTreeListNode(int id, TreeListNodes owner) : base(id, owner) {
            this.height = (owner.TreeList as MyTreeList).DefaultNodesHeight;
        }
        public int Height {
            get { return height; }
            set {
                if (Height == value || value < minHeight) return;
                height = value;
                Changed(NodeChangeTypeEnum.User1);
            }
        }
    }

    public class MyRecord {
        public int ID { get; set; }
        public int ParentID { get; set; }

        public string Department { get; set; }
        public string Location { get; set; }
        public decimal Budget { get; set; }

        public MyRecord(int id, int parentID, string department, decimal budget, string location) {
            ID = id;
            ParentID = parentID;
            Department = department;
            Budget = budget;
            Location = location;
        }
    }

}
