Gateway中引入Sentinel进行路由限流

依赖引入

<dependency>
            <groupId>com.alibaba.csp</groupId>
            <artifactId>sentinel-spring-cloud-gateway-adapter</artifactId>
            <version>1.7.2</version>
        </dependency>

在yml中配置路由

必须显式配置路由

spring:
  application:
    name: gateway
  cloud:
    nacos:
      discovery:
        server-addr: IP:8848
    gateway:
      discovery:
        locator:
          enabled: true
      routes:
        - id: provider_route
          uri: http://localhost:8081
          predicates:
              - Path=/provider/**
          filters:
            - StripPrefix=1

编写配置类 配置过滤规则

import com.alibaba.csp.sentinel.adapter.gateway.common.rule.GatewayFlowRule;
import com.alibaba.csp.sentinel.adapter.gateway.common.rule.GatewayRuleManager;
import com.alibaba.csp.sentinel.adapter.gateway.sc.SentinelGatewayFilter;
import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.BlockRequestHandler;
import com.alibaba.csp.sentinel.adapter.gateway.sc.callback.GatewayCallbackManager;
import com.alibaba.csp.sentinel.adapter.gateway.sc.exception.SentinelGatewayBlockExceptionHandler;
import org.springframework.beans.factory.ObjectProvider;
import org.springframework.cloud.gateway.filter.GlobalFilter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.codec.ServerCodecConfigurer;
import org.springframework.web.reactive.function.BodyInserters;
import org.springframework.web.reactive.function.server.ServerResponse;
import org.springframework.web.reactive.result.view.ViewResolver;
import org.springframework.web.server.ServerWebExchange;
import reactor.core.publisher.Mono;

import javax.annotation.PostConstruct;
import java.util.*;

@Configuration
public class GatewayConfiguration {

    private final List<ViewResolver> viewResolvers;
    private final ServerCodecConfigurer serverCodecConfigurer;


    public GatewayConfiguration(ObjectProvider<List<ViewResolver>> viewResolversProvider,
                                ServerCodecConfigurer serverCodecConfigurer) {
        this.viewResolvers = viewResolversProvider.getIfAvailable(Collections::emptyList);
        this.serverCodecConfigurer = serverCodecConfigurer;
    }

    //配置限流的异常处理
    @Bean
    @Order(Ordered.HIGHEST_PRECEDENCE)
    public SentinelGatewayBlockExceptionHandler sentinelGatewayBlockExceptionHandler() {
        return new SentinelGatewayBlockExceptionHandler(viewResolvers, serverCodecConfigurer);
    }

    //配置初始化的限流参数
    @PostConstruct
    public void initGatewayRules(){
        Set<GatewayFlowRule> rules = new HashSet<>();
        rules.add(
                new GatewayFlowRule("provider_route") //路由名称
                        .setCount(1)  //数量
                        .setIntervalSec(1) //每秒
        );
        GatewayRuleManager.loadRules(rules);
    }

    //初始化限流过滤器
    @Bean
    @Order(Ordered.HIGHEST_PRECEDENCE)
    public GlobalFilter sentinelGatewayFilter() {
        return new SentinelGatewayFilter();
    }

    //自定义限流异常页面
    @PostConstruct
    public void initBlockHandlers(){
        BlockRequestHandler blockRequestHandler = new BlockRequestHandler() {
            @Override
            public Mono<ServerResponse> handleRequest(ServerWebExchange serverWebExchange, Throwable throwable) {
                Map map = new HashMap();
                map.put("code",0);
                map.put("msg","被限流了");
                return ServerResponse.status(HttpStatus.OK)
                        .contentType(MediaType.APPLICATION_JSON)
                        .body(BodyInserters.fromObject(map));
            }
        };
        GatewayCallbackManager.setBlockHandler(blockRequestHandler);
    }
}

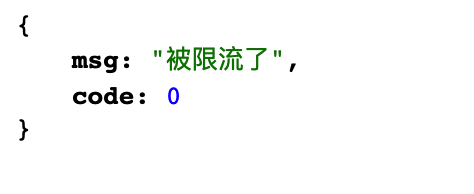

实现效果

注：限流仅对通过路由的访问生效，如果不通过Gateway直接访问微服务本身，则无法限流。
