本文介绍了一个自定义Android视图MyRectView的实现，该视图用于展示用户姓名和分数的条形图。通过MainActivity接收输入并更新视图，展示了如何在Android中创建自定义视图并与数据进行绑定。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

布局文件

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <com.qh.***.lmx1607makeview2.MyRectView
        android:id="@+id/my_rect_view"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />


    <EditText
        android:id="@+id/txt_name"
        android:layout_width="90dp"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_marginLeft="40dp"
        android:layout_marginTop="5dp"
        android:hint="Name" />

    <EditText
        android:id="@+id/txt_score"
        android:layout_width="90dp"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_marginLeft="150dp"
        android:layout_marginTop="5dp"
        android:hint="Score" />

    <Button
        android:id="@+id/btn_add"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignTop="@+id/txt_name"
        android:layout_alignParentEnd="true"
        android:layout_alignParentRight="true"
        android:layout_marginEnd="23dp"
        android:layout_marginRight="23dp"
        android:text="Add" />


</RelativeLayout>

自定义Class

package com.qh.***.lmx1607makeview2;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Rect;
import android.support.annotation.Nullable;
import android.util.AttributeSet;
import android.view.View;

import java.util.ArrayList;
import java.util.List;

public class MyRectView extends View {

    private Paint mLinePaint, mTextPaint, mRectPaint;
    private List<User> userList;


    public MyRectView(Context context) {
        super(context);
        init();
    }

    public MyRectView(Context context, @Nullable AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    public MyRectView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        init();
    }


    private void init() {
        //初始化画笔
        mLinePaint = new Paint();
        mLinePaint.setColor(Color.BLUE);
        mLinePaint.setStyle(Paint.Style.STROKE);
        mLinePaint.setStrokeWidth(2);

        mTextPaint = new Paint();
        mTextPaint.setColor(Color.BLUE);
        mTextPaint.setStyle(Paint.Style.STROKE);
        mTextPaint.setTextSize(25);

        mRectPaint = new Paint();
        mRectPaint.setColor(Color.RED);
        mRectPaint.setStyle(Paint.Style.FILL);

        userList = new ArrayList<>();

    }

    //注意方法的修饰符public
    public void addUser(User user) {
        userList.add(user);
        this.invalidate();
    }

    //绘制图形
    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);

        //绘制线条
        //x轴
        canvas.drawLine(100, 800, 800, 800, mLinePaint);
        //y轴
        canvas.drawLine(100, 800, 100, 100, mLinePaint);

        //添加y轴数字
        for (int i = 0; i < 8; i++) {
            int a = i * 100;
            canvas.drawText(String.valueOf(a), 100 - 50, 800 + 25 - a, mTextPaint);
        }

        //添加X轴的姓名
//        String[] nameArray = new String[]{"秦琦", "姝婳", "伯通"};
        //分数
//        int[] scoreArray = new int[]{300, 600, 500};

        for (int i = 0; i < userList.size(); i++) {
            //设置名称之间的间隔为 200
            int a = i * 200;
            float textWidth = mTextPaint.measureText(userList.get(i).getName());
            canvas.drawText(userList.get(i).getName(), 200 - textWidth + a + 25, 800 + 50, mTextPaint);

            //添加条形图  矩形
            Rect rect = new Rect();
            //间距是a
            rect.left = 200 - 25 + a;
            rect.right = 200 + 25 + a;
            //矩形的底部，坐标不能改变
            rect.bottom = 800;
            rect.top = rect.bottom - userList.get(i).getScore();
            canvas.drawRect(rect, mRectPaint);


        }


    }

}

MainActivity

package com.qh.***.lmx1607makeview2;

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;

public class MainActivity extends AppCompatActivity implements View.OnClickListener {

    /**
     * Name
     */
    private EditText mTxtName;
    /**
     * Score
     */
    private EditText mTxtScore;
    /**
     * Add
     */
    private Button mBtnAdd;
    private MyRectView mMyRectView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initView();


    }

    private void initView() {
        mTxtName = findViewById(R.id.txt_name);
        mTxtScore = findViewById(R.id.txt_score);
        mBtnAdd = findViewById(R.id.btn_add);
        //以findViewById的形式找到MyRectView
        mMyRectView = findViewById(R.id.my_rect_view);
        mBtnAdd.setOnClickListener(this);


    }

    @Override
    public void onClick(View v) {

        switch (v.getId()) {
            case R.id.btn_add:
                String name = mTxtName.getText().toString();
                String score = mTxtScore.getText().toString();
                User user = new User(name, Integer.parseInt(score));
                mMyRectView.addUser(user);
                break;
        }
    }
}

自定义User类

package com.qh.***.lmx1607makeview2;

public class User {

    private String name;
    private int score;

    public User(String name, int score) {
        this.name = name;
        this.score = score;
    }



    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getScore() {
        return score;
    }

    public void setScore(int score) {
        this.score = score;
    }
}

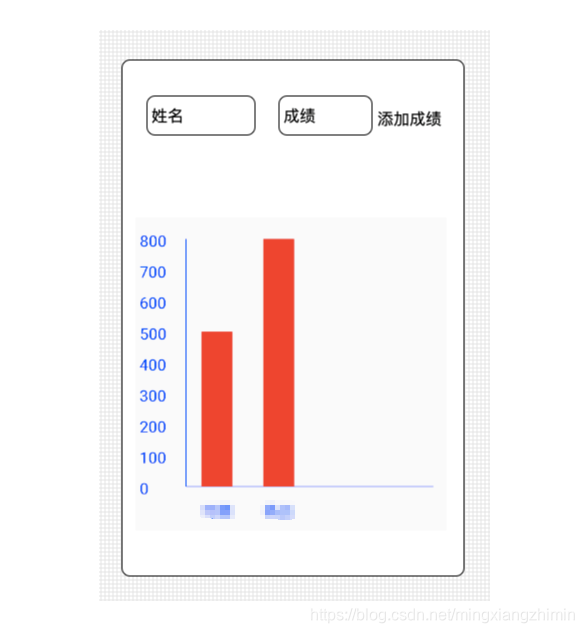

效果图
