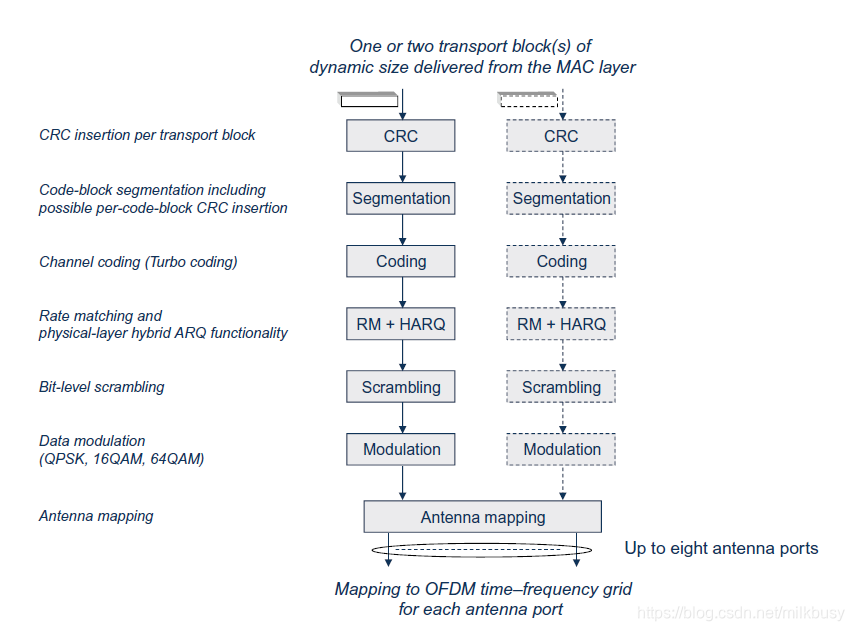

Within each Transmission Time Interval (TTI), corresponding to one subframe of length 1 ms, up
to two transport blocks of dynamic size are delivered to the physical layer and transmitted over the
radio interface for each component carrier.

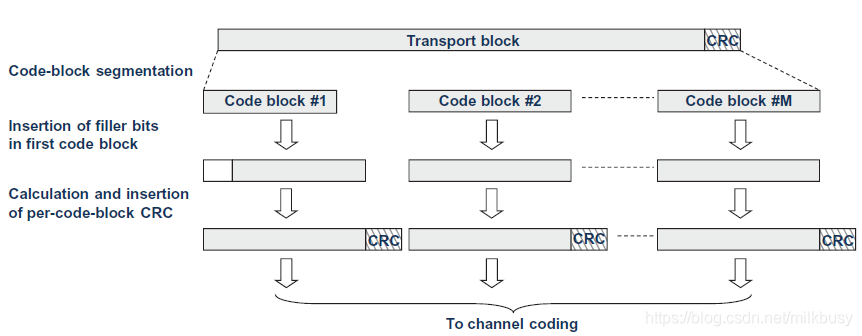

LTE Turbo编码有一段的长度限制,6144比特,如果TB+CRC很多。在turbo编码前需要分段。
这里留一个问题:在分段后的code block,有加上了CRS,这样的好处是可以及时发现错误,立即停止对TB的解码,从而减少终端的effort。但是从另一方面说,这样势必会增加很多头开销,但是这种情况是针对于附加的头比transport-block小很多。关于TB的大小会在PDCCH上传输。因此终端是可以决定code-block的大小和数量,终端是可以undo code-block segmentation的。

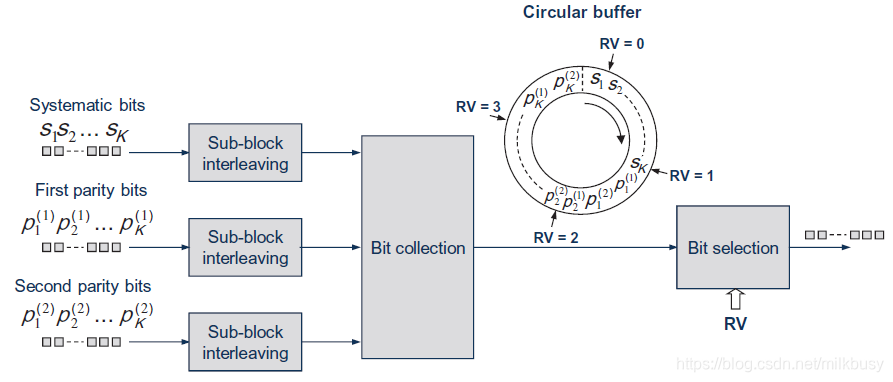

Note that the rate-matching and hybrid-ARQ functionality operates on the full set of code bits
corresponding to one transport block and not separately on the code bits corresponding to a single
code block.
