工厂模式

简单工厂模

定义一个工厂类，根据传入的参数不同创建不同的实例

package factoryPattern.simple;
public interface Shape{
     void draw();
}

package factoryPattern.simple;
// 画圆类
public class CircleShape implements Shape{

    @Override
    public void draw() {
        System.out.println("开始画圆");

    }

}

package factoryPattern.simple;

public class RectShape implements Shape{

    @Override
    public void draw() {
        System.out.println("绘制矩形");

    }

}

package factoryPattern.simple;

public class TangleShape implements Shape{

    @Override
    public void draw() {
        System.out.println("绘制三角形");

    }

}

package factoryPattern.simple;

public class ShapeFactory{
    public static final String TAG ="ShapeFactory";
    public static Shape getShape(String type){
        if(type.equals("circle")){
            return new CircleShape();
        }
        else if(type.equals("rect")){
            return new RectShape();
        }
        else{
            return new TangleShape();
        }

    }
}

package factoryPattern.simple;

public class Test {

    public static void main(String[] args) {
        Shape rectShape = ShapeFactory.getShape("rect");
        rectShape.draw();

        Shape circleShape = ShapeFactory.getShape("circle");
        circleShape.draw();

        Shape tangleShape = ShapeFactory.getShape("tangle");
        tangleShape.draw();

    }

}

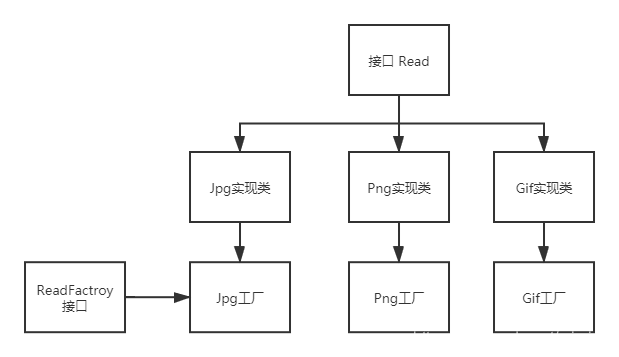

工厂方法模式

每个对象都有一个与之对应的工厂

在这里插入图片描述

package factoryPattern.factoryMethod;

public interface Read {
    void read();
}

package factoryPattern.factoryMethod;

public class PngRead implements Read{
    @Override
    public void read() {
        System.out.println("读取Png格式图片");
    }

}

package factoryPattern.factoryMethod;

public class JpgRead implements Read{
    @Override
    public void read() {
        System.out.println("读取Jpg图片");
    }

}

package factoryPattern.factoryMethod;

public interface ReadFactory {
    Read getRead();

}

package factoryPattern.factoryMethod;
public class GifGetReadFactory implements ReadFactory{
    @Override
    public Read getRead() {
        return new GifRead();
    }

}

package factoryPattern.factoryMethod;

public class PngGetReadFactory implements ReadFactory{
    @Override
    public Read getRead() {
        return new PngRead();
    }

}

package factoryPattern.factoryMethod;

public class JpgGetReadFactory implements ReadFactory{
    @Override
    public Read getRead() {
        return new JpgRead();
    }

}

package factoryPattern.factoryMethod;

public class Test {
    public static void main(String[] args) {
        ReadFactory jpgread = new JpgGetReadFactory();
        Read jRead =jpgread.getRead();
        jRead.read();
        ReadFactory pngread =new PngGetReadFactory();
        Read pRead =pngread.getRead();
        pRead.read();
        ReadFactory gifread =new GifGetReadFactory();
        Read gRead =gifread.getRead();
        gRead.read();
    }
}

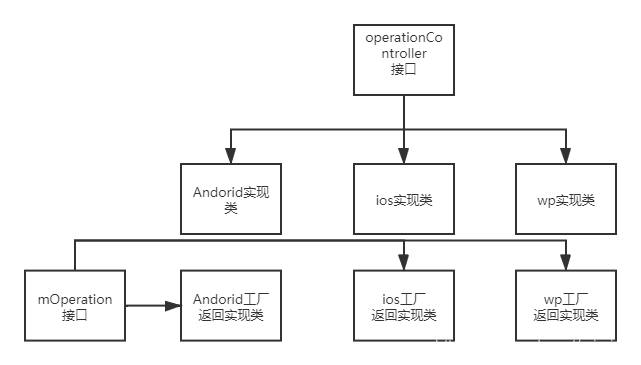

抽象工厂模式

提供一个创建一系列相关或相互依赖对象的接口，而无须指定它们具体的类
在这里插入图片描述

package factoryPattern.abstractFactory;

public interface operationController {
    void control();

}

package factoryPattern.abstractFactory;

public interface UiController {
    void display();

}

package factoryPattern.abstractFactory;

public class AndoridOperationFactroy implements operationController{
    @Override
    public void control() {
        System.out.println("Andorid平台操作");
    }

}

package factoryPattern.abstractFactory;

public class AndoridUIController implements UiController{
    @Override
    public void display() {
        System.out.println("Andorid界面");
    }
}

package factoryPattern.abstractFactory;

public class iosOperationFactory implements operationController{
    @Override
    public void control() {
        System.out.println("ios平台操作");
    }
}

package factoryPattern.abstractFactory;

public class iosUIController implements UiController{
    @Override
    public void display() {
        System.out.println("ios界面");
    }
}

package factoryPattern.abstractFactory;

public class WpOperationFactroy implements operationController{
    @Override
    public void control() {
        System.out.println("window平台操作");
    }

}

package factoryPattern.abstractFactory;

public class WpUIController implements UiController{
    @Override
    public void display() {
        System.out.println("window界面");
    }
}

package factoryPattern.abstractFactory;

public class WpUIController implements UiController{
    @Override
    public void display() {
        System.out.println("window界面");
    }
}

package factoryPattern.abstractFactory;

public interface SystemFactory {
    public operationController cOperationController();
    public UiController cUiController();
}

package factoryPattern.abstractFactory;

public class AndoridFactory implements SystemFactory{

    @Override
    public operationController cOperationController() {
        return new AndoridOperationFactroy();
    }

    @Override
    public UiController cUiController() {
        return new AndoridUIController();
    }

}

package factoryPattern.abstractFactory;

public class iosFactory implements SystemFactory{
    @Override
    public operationController cOperationController() {
        return new iosOperationFactory();
    }
    @Override
    public UiController cUiController() {
        return new iosUIController();
    }
}

package factoryPattern.abstractFactory;

public class WpFactor implements SystemFactory{
    @Override
    public operationController cOperationController() {
        return new WpOperationFactroy();
    }
    @Override
    public UiController cUiController() {
        return new iosUIController();
    }

}

package factoryPattern.abstractFactory;

public class AndoridFactory implements SystemFactory{

    @Override
    public operationController cOperationController() {
        return new AndoridOperationFactroy();
    }

    @Override
    public UiController cUiController() {
        return new AndoridUIController();
    }

}

package factoryPattern.abstractFactory;

public class iosFactory implements SystemFactory{
    @Override
    public operationController cOperationController() {
        return new iosOperationFactory();
    }
    @Override
    public UiController cUiController() {
        return new iosUIController();
    }
}

package factoryPattern.abstractFactory;

public class WpFactor implements SystemFactory{
    @Override
    public operationController cOperationController() {
        return new WpOperationFactroy();
    }
    @Override
    public UiController cUiController() {
        return new iosUIController();
    }

}

package factoryPattern.abstractFactory;

public class Test {
    public static void main(String[] args) {
        SystemFactory systemFactory;
        UiController uiController;
        operationController operationcontroller;

        systemFactory = new AndoridFactory();

        uiController = systemFactory.cUiController();
        operationcontroller= systemFactory.cOperationController();
        uiController.display();
        operationcontroller.control();
    }

}
