最新若依SpringCloud分布式整合xxl-job2.4.0实战案例

---

一、xxl-job部分

1、xxl-job下载地址

官网地址：https://www.xuxueli.com/index.html
代码地址：https://github.com/xuxueli/xxl-job/

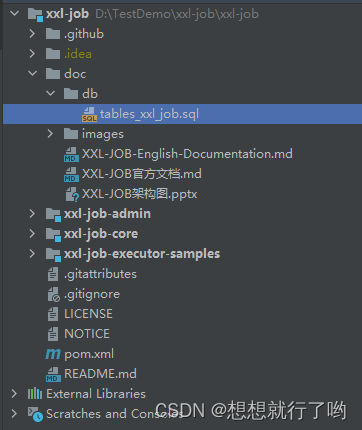

2、执行 tables_xxl_job.sql 文件

3、修改 xxl-job-admin 中 application.properties数据库地址

spring.datasource.url=jdbc:mysql://127.0.0.1:3306/xxl_job?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&serverTimezone=Asia/Shanghai
spring.datasource.username=root
spring.datasource.password=root_pwd
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver

建议serverTimezone=UTC

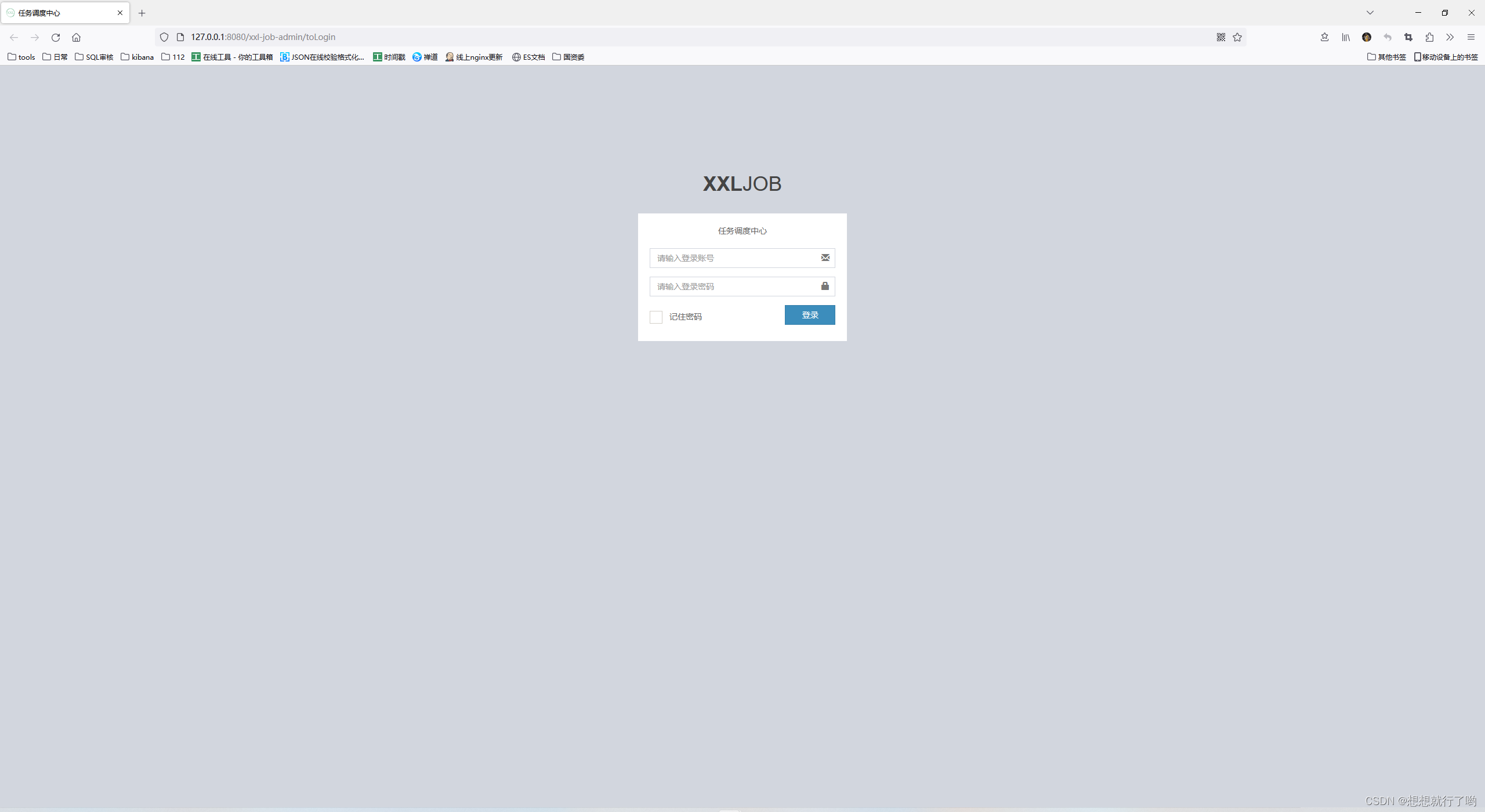

4、启动xxl-job-admin

访问地址：http://127.0.0.1:8080/xxl-job-admin
账号：admin
密码：123456

二、XxlJobExecutorApplication部分

1.创建测试demo

import com.xxl.job.core.context.XxlJobHelper;
import com.xxl.job.core.handler.annotation.XxlJob;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

import java.io.BufferedInputStream;
import java.io.BufferedReader;
import java.io.DataOutputStream;
import java.io.InputStreamReader;
import java.net.HttpURLConnection;
import java.net.URL;
import java.util.Arrays;
import java.util.concurrent.TimeUnit;

@Component
public class SampleXxlJob {
    private static Logger logger = LoggerFactory.getLogger(SampleXxlJob.class);
    /**
     * 1、简单任务示例（Bean模式）
     */
    @XxlJob("demoJobHandler")
    public void demoJobHandler() throws Exception {
        XxlJobHelper.log("XXL-JOB, Hello World.");
        System.out.println("helloWord");
        for (int i = 0; i < 5; i++) {
            XxlJobHelper.log("beat at:" + i);
            TimeUnit.SECONDS.sleep(2);
        }
        // default success
    }


    /**
     * 2、分片广播任务
     */
    @XxlJob("shardingJobHandler")
    public void shardingJobHandler() throws Exception {

        // 分片参数
        int shardIndex = XxlJobHelper.getShardIndex();
        int shardTotal = XxlJobHelper.getShardTotal();

        XxlJobHelper.log("分片参数：当前分片序号 = {}, 总分片数 = {}", shardIndex, shardTotal);

        // 业务逻辑
        for (int i = 0; i < shardTotal; i++) {
            if (i == shardIndex) {
                XxlJobHelper.log("第 {} 片, 命中分片开始处理", i);
            } else {
                XxlJobHelper.log("第 {} 片, 忽略", i);
            }
        }

    }


    /**
     * 3、命令行任务
     */
    @XxlJob("commandJobHandler")
    public void commandJobHandler() throws Exception {
        String command = XxlJobHelper.getJobParam();
        int exitValue = -1;

        BufferedReader bufferedReader = null;
        try {
            // command process
            ProcessBuilder processBuilder = new ProcessBuilder();
            processBuilder.command(command);
            processBuilder.redirectErrorStream(true);

            Process process = processBuilder.start();
            //Process process = Runtime.getRuntime().exec(command);

            BufferedInputStream bufferedInputStream = new BufferedInputStream(process.getInputStream());
            bufferedReader = new BufferedReader(new InputStreamReader(bufferedInputStream));

            // command log
            String line;
            while ((line = bufferedReader.readLine()) != null) {
                XxlJobHelper.log(line);
            }

            // command exit
            process.waitFor();
            exitValue = process.exitValue();
        } catch (Exception e) {
            XxlJobHelper.log(e);
        } finally {
            if (bufferedReader != null) {
                bufferedReader.close();
            }
        }

        if (exitValue == 0) {
            // default success
        } else {
            XxlJobHelper.handleFail("command exit value("+exitValue+") is failed");
        }

    }


    /**
     * 4、跨平台Http任务
     *  参数示例：
     *      "url: http://www.baidu.com\n" +
     *      "method: get\n" +
     *      "data: content\n";
     */
    @XxlJob("httpJobHandler")
    public void httpJobHandler() throws Exception {

        // param parse
        String param = XxlJobHelper.getJobParam();
        if (param==null || param.trim().length()==0) {
            XxlJobHelper.log("param["+ param +"] invalid.");

            XxlJobHelper.handleFail();
            return;
        }

        String[] httpParams = param.split("\n");
        String url = null;
        String method = null;
        String data = null;
        for (String httpParam: httpParams) {
            if (httpParam.startsWith("url:")) {
                url = httpParam.substring(httpParam.indexOf("url:") + 4).trim();
            }
            if (httpParam.startsWith("method:")) {
                method = httpParam.substring(httpParam.indexOf("method:") + 7).trim().toUpperCase();
            }
            if (httpParam.startsWith("data:")) {
                data = httpParam.substring(httpParam.indexOf("data:") + 5).trim();
            }
        }

        // param valid
        if (url==null || url.trim().length()==0) {
            XxlJobHelper.log("url["+ url +"] invalid.");

            XxlJobHelper.handleFail();
            return;
        }
        if (method==null || !Arrays.asList("GET", "POST").contains(method)) {
            XxlJobHelper.log("method["+ method +"] invalid.");

            XxlJobHelper.handleFail();
            return;
        }
        boolean isPostMethod = method.equals("POST");

        // request
        HttpURLConnection connection = null;
        BufferedReader bufferedReader = null;
        try {
            // connection
            URL realUrl = new URL(url);
            connection = (HttpURLConnection) realUrl.openConnection();

            // connection setting
            connection.setRequestMethod(method);
            connection.setDoOutput(isPostMethod);
            connection.setDoInput(true);
            connection.setUseCaches(false);
            connection.setReadTimeout(5 * 1000);
            connection.setConnectTimeout(3 * 1000);
            connection.setRequestProperty("connection", "Keep-Alive");
            connection.setRequestProperty("Content-Type", "application/json;charset=UTF-8");
            connection.setRequestProperty("Accept-Charset", "application/json;charset=UTF-8");

            // do connection
            connection.connect();

            // data
            if (isPostMethod && data!=null && data.trim().length()>0) {
                DataOutputStream dataOutputStream = new DataOutputStream(connection.getOutputStream());
                dataOutputStream.write(data.getBytes("UTF-8"));
                dataOutputStream.flush();
                dataOutputStream.close();
            }

            // valid StatusCode
            int statusCode = connection.getResponseCode();
            if (statusCode != 200) {
                throw new RuntimeException("Http Request StatusCode(" + statusCode + ") Invalid.");
            }

            // result
            bufferedReader = new BufferedReader(new InputStreamReader(connection.getInputStream(), "UTF-8"));
            StringBuilder result = new StringBuilder();
            String line;
            while ((line = bufferedReader.readLine()) != null) {
                result.append(line);
            }
            String responseMsg = result.toString();

            XxlJobHelper.log(responseMsg);

            return;
        } catch (Exception e) {
            XxlJobHelper.log(e);

            XxlJobHelper.handleFail();
            return;
        } finally {
            try {
                if (bufferedReader != null) {
                    bufferedReader.close();
                }
                if (connection != null) {
                    connection.disconnect();
                }
            } catch (Exception e2) {
                XxlJobHelper.log(e2);
            }
        }
    }

    /**
     * 5、生命周期任务示例：任务初始化与销毁时，支持自定义相关逻辑；
     */
    @XxlJob(value = "demoJobHandler2", init = "init", destroy = "destroy")
    public void demoJobHandler2() throws Exception {
        XxlJobHelper.log("XXL-JOB, Hello World.");
    }
    public void init(){
        logger.info("init");
    }
    public void destroy(){
        logger.info("destroy");
    }
}

2.检查并配置调度中心

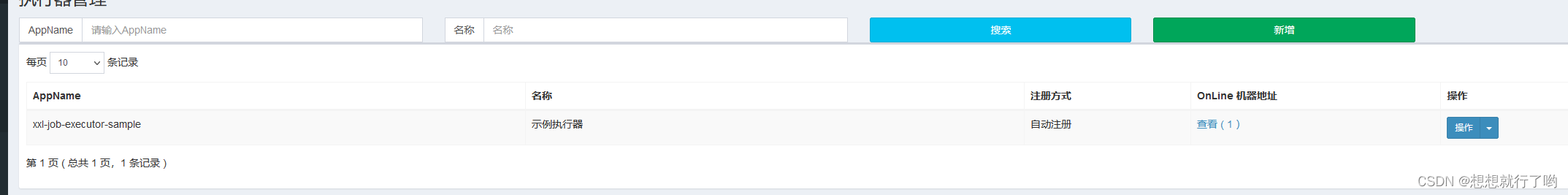

检查XxlJobExecutorApplication服务启动是否成功，是否注册进xxl-job-admin

如果没有需要手动创建

application.properties文件中xxl.job.executor.appname=xxl-job-executor-sample 对应AppName(必须保持一致)不然找不到服务

### xxl-job admin address list, such as "http://address" or "http://address01,http://address02"
xxl.job.admin.addresses=http://127.0.0.1:8080/xxl-job-admin

### xxl-job, access token
xxl.job.accessToken=default_token

### xxl-job executor appname
xxl.job.executor.appname=xxl-job-executor-sample
### xxl-job executor registry-address: default use address to registry , otherwise use ip:port if address is null
xxl.job.executor.address=
### xxl-job executor server-info
xxl.job.executor.ip=
xxl.job.executor.port=9999
### xxl-job executor log-path
xxl.job.executor.logpath=/data/applogs/xxl-job/jobhandler
### xxl-job executor log-retention-days
xxl.job.executor.logretentiondays=30

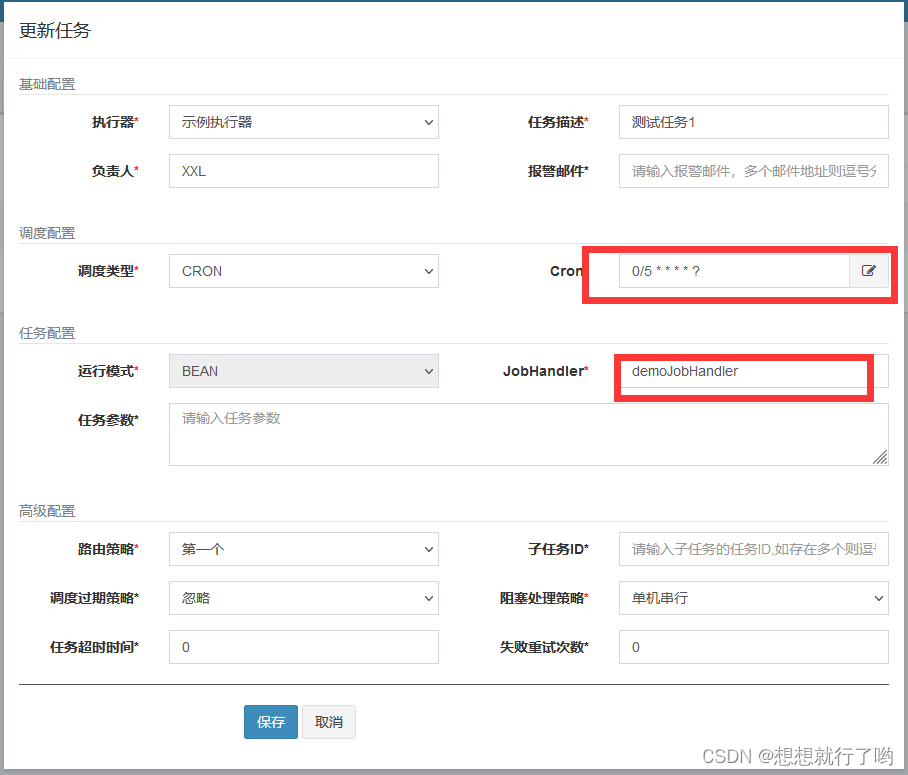

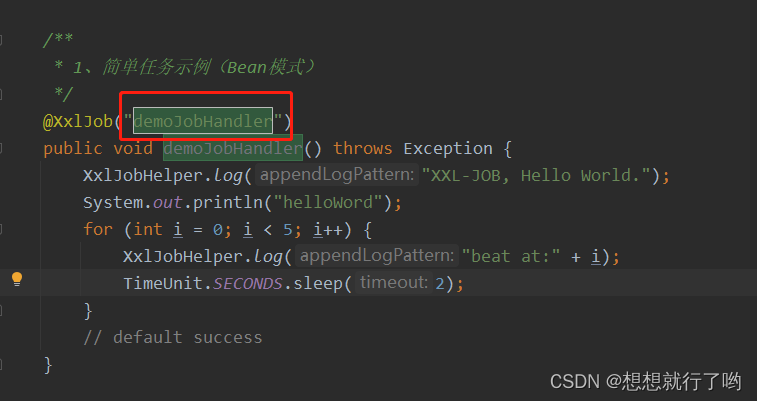

创建定时任务设置cron，JobHandler名必须@XxlJob(“demoJobHandler”)保持一致

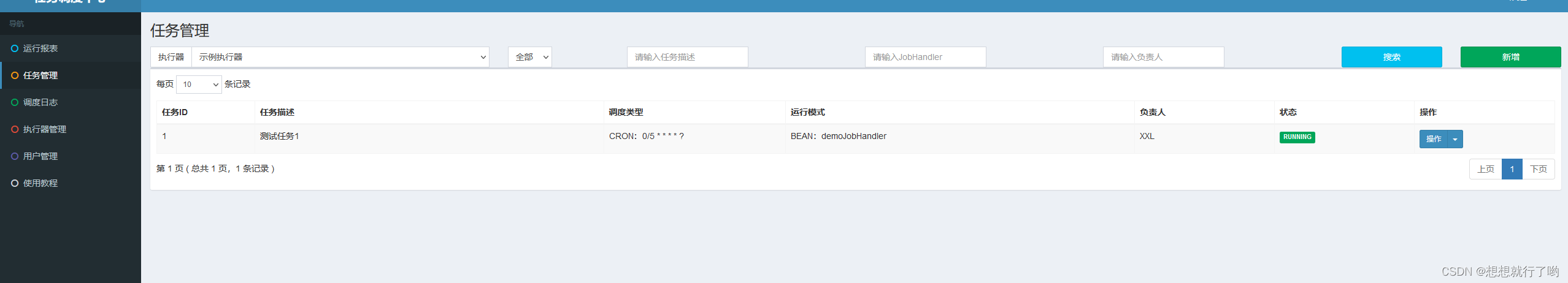

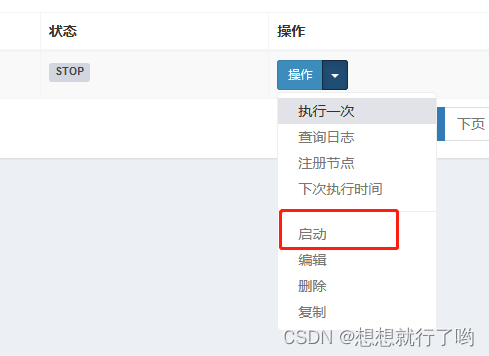

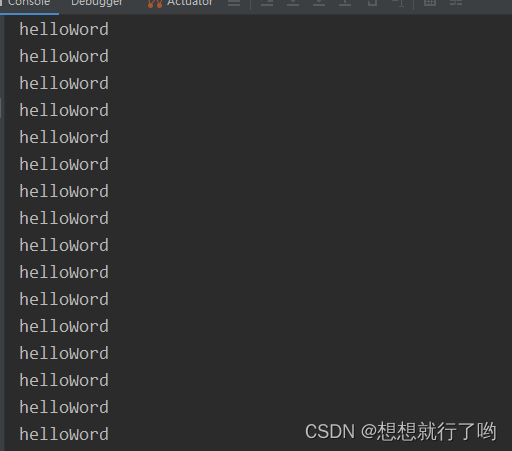

配置完成后的结果


以上是 xxl-job内部调用

三、SpringCloud整合xxl-job实现跨服务调用

1.创建SpringCloud配置yml文件

xxl:
  job:
    admin:
      addresses: http://127.0.0.1:9090/xxl-job-admin
    executor:
      address:
      appname: guoziwei-modules-job
      ip:
      port: 9999
      logpath: /data/applogs/xxl-job/jobhandler
      logretentiondays: 15
    accessToken: default_token

pom文件添加依赖

<!-- xxl-job-core -->
        <dependency>
            <groupId>com.xuxueli</groupId>
            <artifactId>xxl-job-core</artifactId>
            <version>2.4.0</version>
        </dependency>

重点1：addresses配置xxl-job-admin的服务地址
重点2：appname配置本服务的appname以便在执行器管理中新增服务

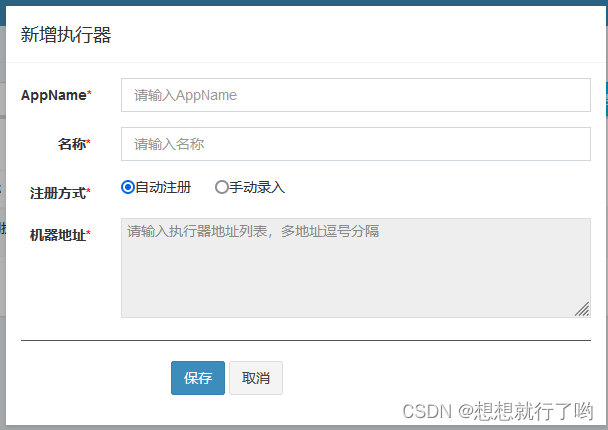

重点3：配置完成后启动服务需要在xxl-job-admin执行器管理中新增 选择 自动注册即可 输入的AppName必须与yml文件配置的appname一样

最后新建一个测试类重复XxlJobExecutorApplication部分即可

---
