【PID优化】基于蝙蝠 粒子群 花卉授粉算法和布谷鸟搜索算法实现热交换器的PI控制器优化

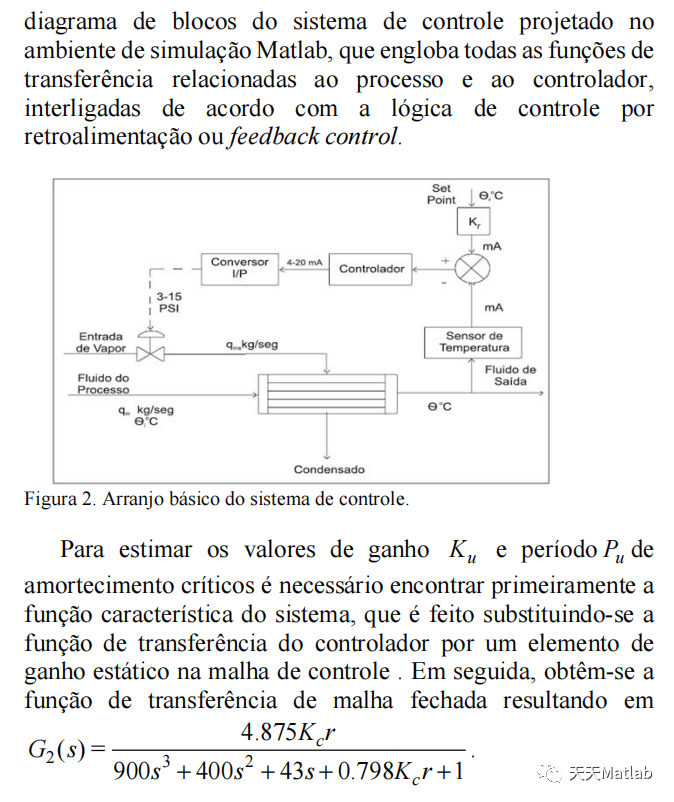

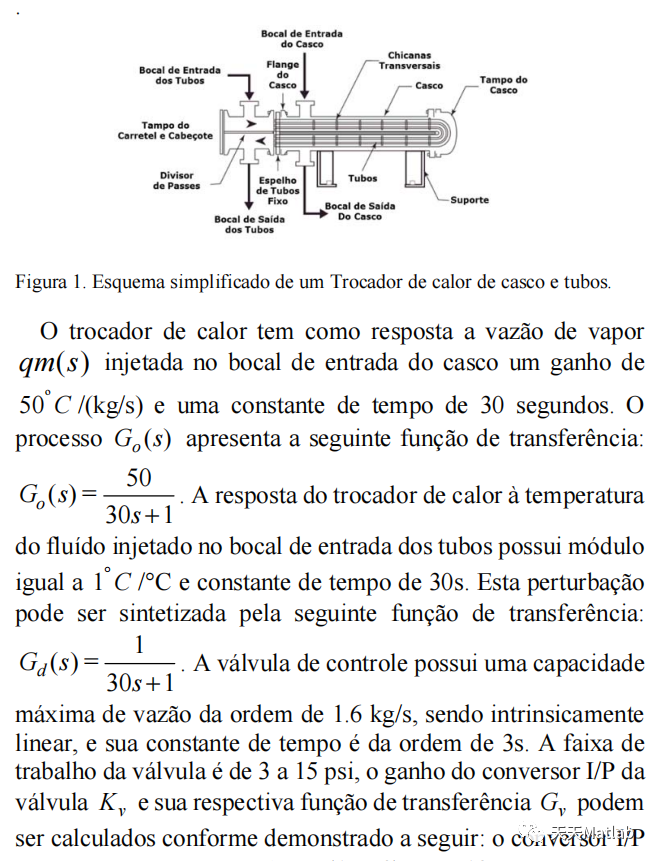

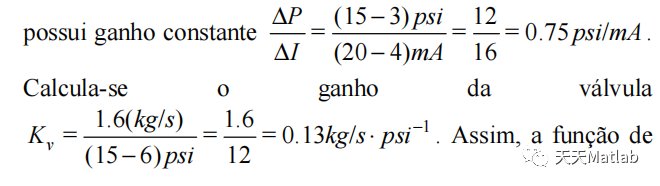

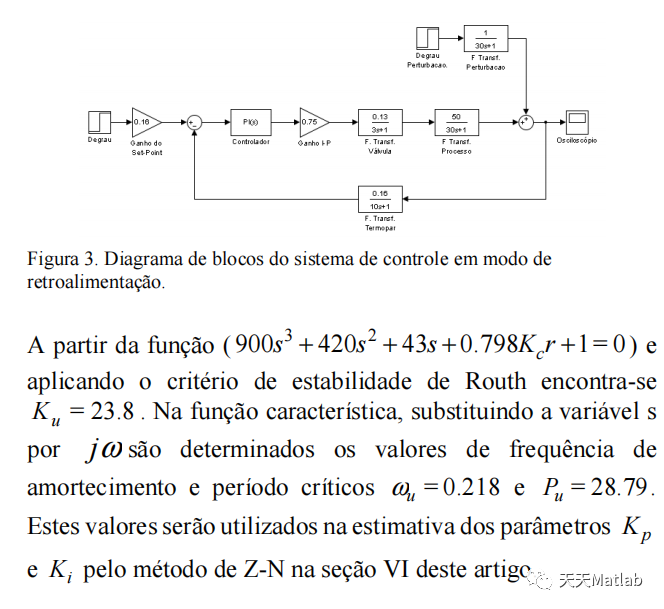

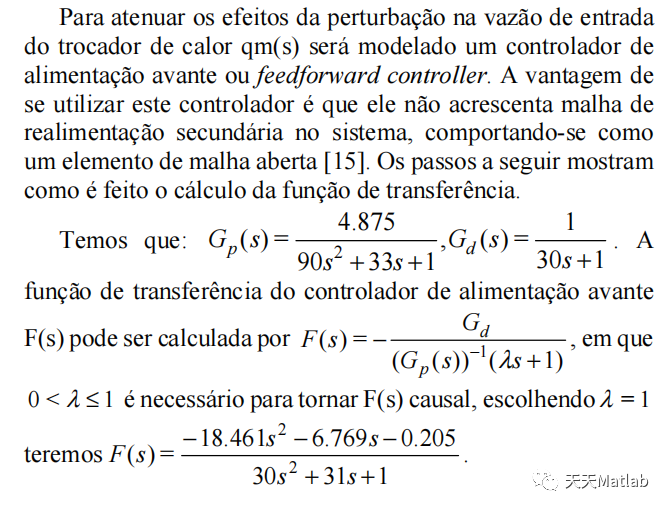

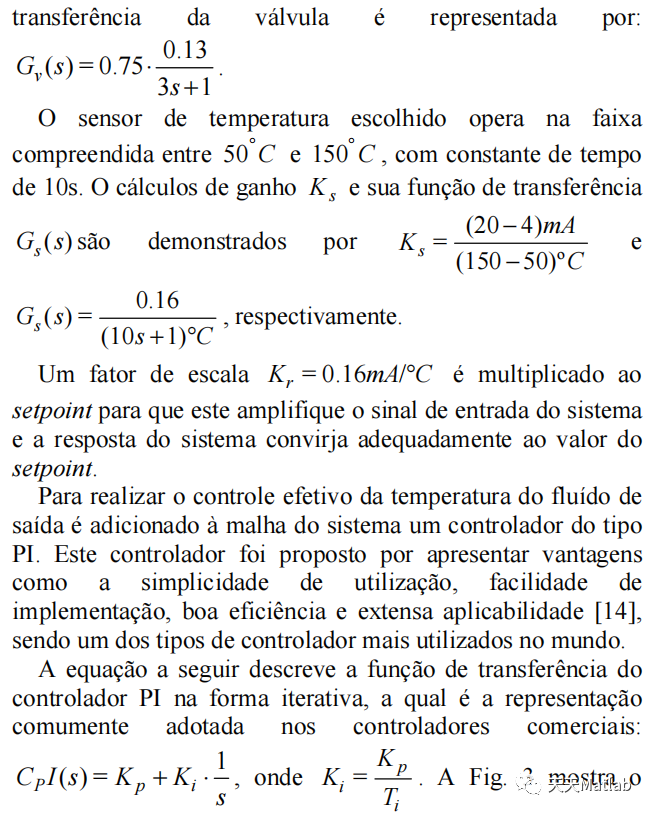

​1 简介

2 部分代码

%% --------------- All subfunctions are list below ------------------%% Get cuckoos by ramdom walkfunction nest=get_cuckoos(nest,best,Lb,Ub)% Levy flightsn=size(nest,1);% Levy exponent and coefficient% For details, see equation (2.21), Page 16 (chapter 2) of the book% X. S. Yang, Nature-Inspired Metaheuristic Algorithms, 2nd Edition, Luniver Press, (2010).beta=3/2;sigma=(gamma(1+beta)*sin(pi*beta/2)/(gamma((1+beta)/2)*beta*2^((beta-1)/2)))^(1/beta);​for j=1:n,    s=nest(j,:);    % This is a simple way of implementing Levy flights    % For standard random walks, use step=1;    %% Levy flights by Mantegna's algorithm    u=randn(size(s))*sigma;    v=randn(size(s));    step=u./abs(v).^(1/beta);      % In the next equation, the difference factor (s-best) means that     % when the solution is the best solution, it remains unchanged.         stepsize=0.01*step.*(s-best);    % Here the factor 0.01 comes from the fact that L/100 should the typical    % step size of walks/flights where L is the typical lenghtscale;     % otherwise, Levy flights may become too aggresive/efficient,     % which makes new solutions (even) jump out side of the design domain     % (and thus wasting evaluations).    % Now the actual random walks or flights    s=s+stepsize.*randn(size(s));   % Apply simple bounds/limits   nest(j,:)=simplebounds(s,Lb,Ub);endend

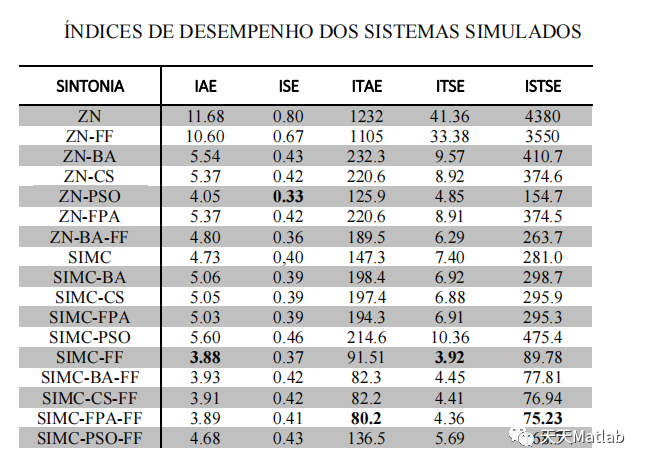

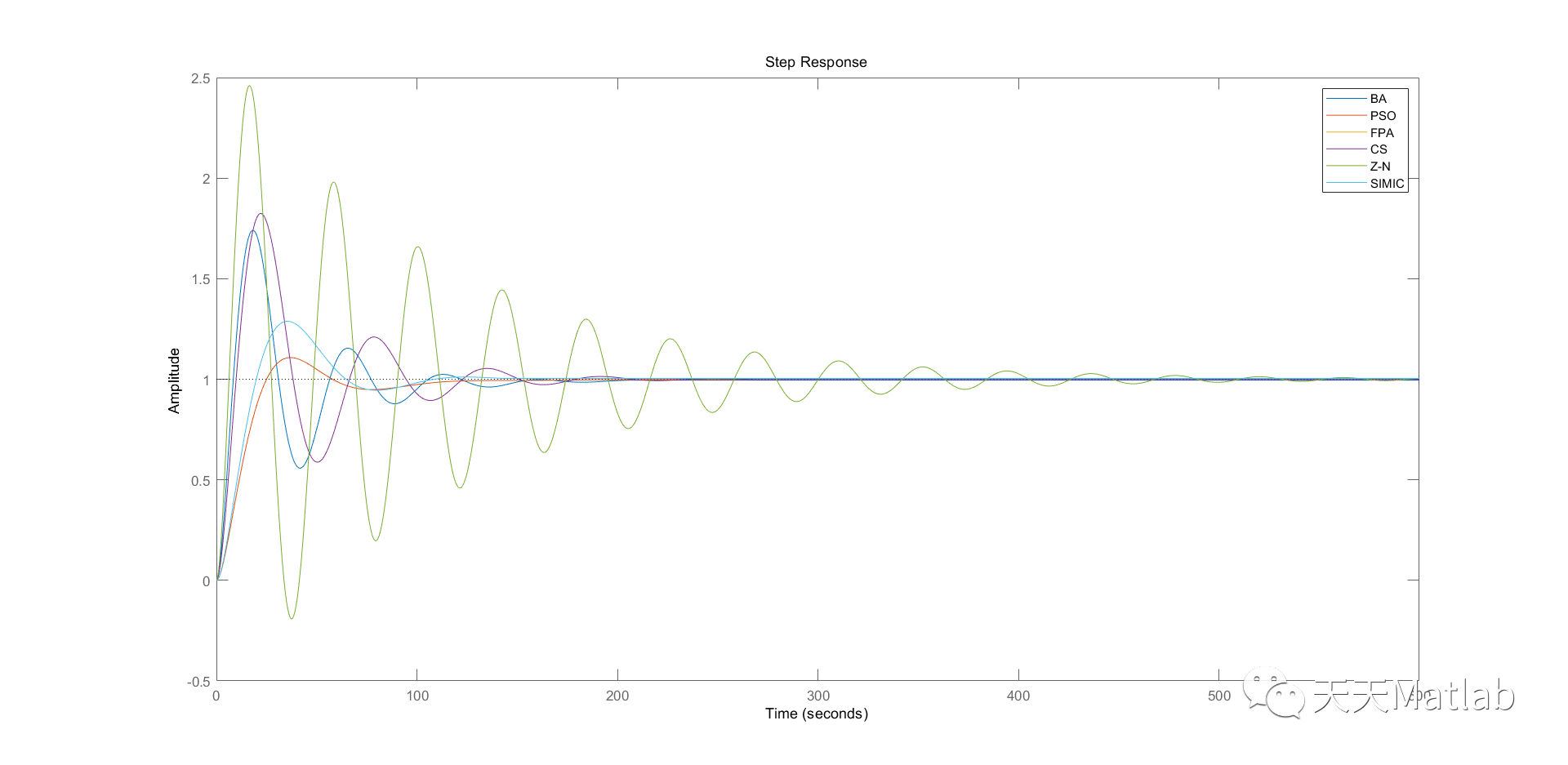

3 仿真结果

4 参考文献

[1]王庆喜, 储泽楠. 基于动态布谷鸟搜索算法的PID控制器参数优化[J]. 计算机测量与控制, 2015, 23(4):4.

博主简介：擅长智能优化算法、神经网络预测、信号处理、元胞自动机、图像处理、路径规划、无人机等多种领域的Matlab仿真，相关matlab代码问题可私信交流。

部分理论引用网络文献，若有侵权联系博主删除。
