SE11 集中帮助/基本搜索帮助

业务要求场景，在CN22创建预留List新增一列并且有搜索帮助多个标签

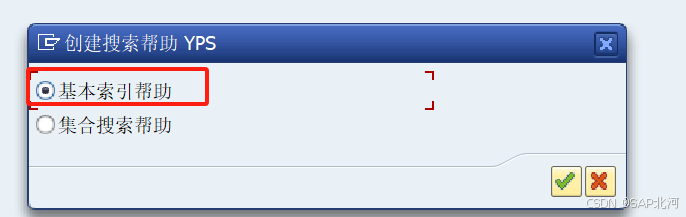

一、创建两个基本搜索帮助（拿其中一个为例)

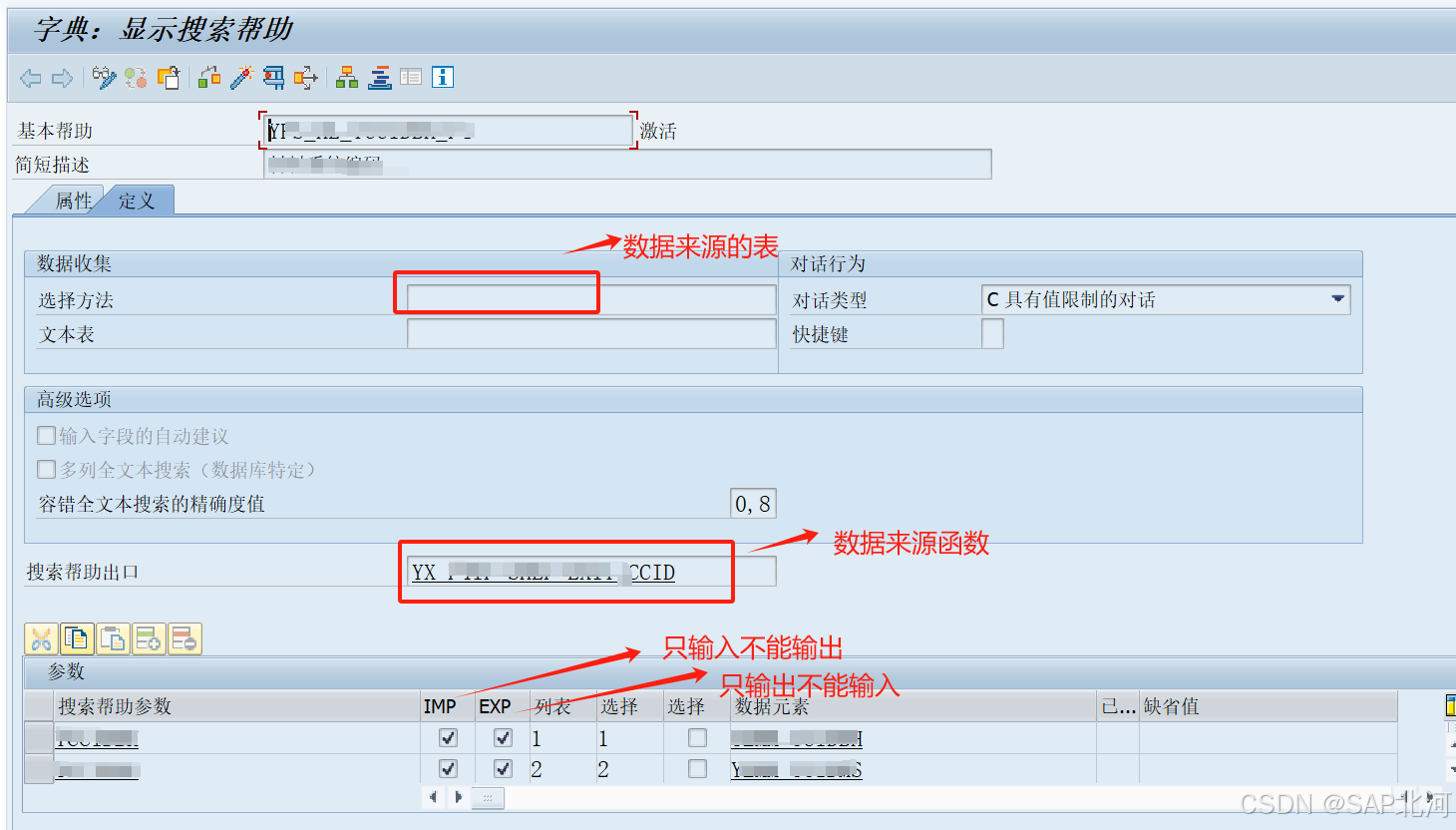

因为我这个需求是根据多张表关联获取搜索帮助数据，所以选择方法为空

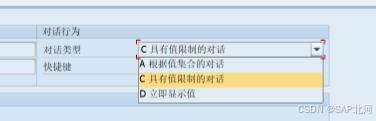

1、根据值集合的对话：如果数据量大于100条就不会直接展示数据，会先展示一个筛选界面
2、 立即显示值：就是立即展示数据源表中的全部数据

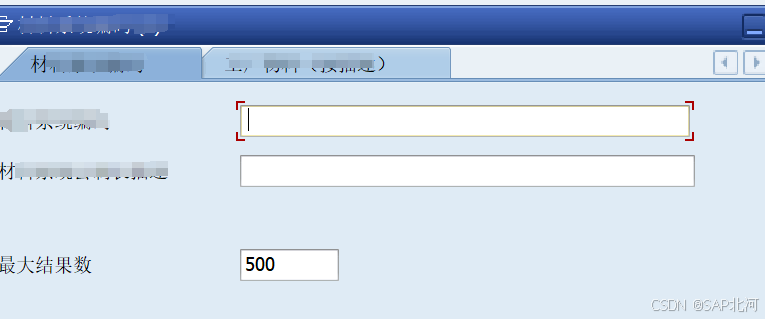

3、 具有值限制的对话：搜索帮助一开始不会将数据表中的全部数据展示出了，会给个筛选条件

搜索帮助出口：通过SE37 参考函数F4IF_SHLP_EXIT_EXAMPLE拷贝新建一个常规函数

代码如下：

FUNCTION yx_f4if_shlp_exit_ccid.
*"----------------------------------------------------------------------
*"*"本地接口：
*"  TABLES
*"      SHLP_TAB TYPE  SHLP_DESCT
*"      RECORD_TAB STRUCTURE  SEAHLPRES
*"  CHANGING
*"     VALUE(SHLP) TYPE  SHLP_DESCR
*"     VALUE(CALLCONTROL) LIKE  DDSHF4CTRL STRUCTURE  DDSHF4CTRL
*"----------------------------------------------------------------------
  DATA: ls_thead TYPE thead.
  DATA: lt_thead TYPE TABLE OF thead.
  DATA: lt_text_headers TYPE TABLE OF thead,
        lt_text_table   TYPE text_lh.
  DATA: s_ccid   TYPE RANGE OF yemm_ccidbh,
        s_ccidms TYPE RANGE OF yemm_ccidms.
  DATA: BEGIN OF ls_ktab,
          ccid   TYPE yemm_ccidbh,
          ccidms TYPE yemm_ccidms,
        END OF ls_ktab,
        lt_ktab LIKE TABLE OF ls_ktab.

* EXIT immediately, if you do not want to handle this step
  IF callcontrol-step <> 'SELONE' AND
     callcontrol-step <> 'SELECT' AND
     " AND SO ON
     callcontrol-step <> 'DISP'.
    EXIT.
  ENDIF.

*"----------------------------------------------------------------------
* STEP SELONE  (Select one of the elementary searchhelps)
*"----------------------------------------------------------------------
* This step is only called for collective searchhelps. It may be used
* to reduce the amount of elementary searchhelps given in SHLP_TAB.
* The compound searchhelp is given in SHLP.
* If you do not change CALLCONTROL-STEP, the next step is the
* dialog, to select one of the elementary searchhelps.
* If you want to skip this dialog, you have to return the selected
* elementary searchhelp in SHLP and to change CALLCONTROL-STEP to
* either to 'PRESEL' or to 'SELECT'.
  IF callcontrol-step = 'SELONE'.
*   PERFORM SELONE .........
    EXIT.
  ENDIF.

*"----------------------------------------------------------------------
* STEP PRESEL  (Enter selection conditions)
*"----------------------------------------------------------------------
* This step allows you, to influence the selection conditions either
* before they are displayed or in order to skip the dialog completely.
* If you want to skip the dialog, you should change CALLCONTROL-STEP
* to 'SELECT'.
* Normaly only SHLP-SELOPT should be changed in this step.
  IF callcontrol-step = 'PRESEL'.
*   PERFORM PRESEL ..........
    EXIT.
  ENDIF.
*"----------------------------------------------------------------------
* STEP SELECT    (Select values)
*"----------------------------------------------------------------------
* This step may be used to overtake the data selection completely.
* To skip the standard seletion, you should return 'DISP' as following
* step in CALLCONTROL-STEP.
* Normally RECORD_TAB should be filled after this step.
* Standard function module F4UT_RESULTS_MAP may be very helpfull in this
* step.
  IF callcontrol-step = 'SELECT'.
*   PERFORM STEP_SELECT TABLES RECORD_TAB SHLP_TAB
*                       CHANGING SHLP CALLCONTROL RC.
*   IF RC = 0.
*     CALLCONTROL-STEP = 'DISP'.
*   ELSE.
*     CALLCONTROL-STEP = 'EXIT'.
*   ENDIF.
    CLEAR: record_tab[].
    LOOP AT shlp-selopt INTO DATA(ls_selopt).
      CASE ls_selopt-shlpfield.
        WHEN 'YCCIDBH'.
          APPEND INITIAL LINE TO s_ccid ASSIGNING FIELD-SYMBOL(<s_ccid>).
          MOVE-CORRESPONDING ls_selopt TO <s_ccid>.
        WHEN 'YCCIDMS'.
          APPEND INITIAL LINE TO s_ccid ASSIGNING FIELD-SYMBOL(<s_ccidms>).
          MOVE-CORRESPONDING ls_selopt TO <s_ccidms>.
      ENDCASE.
    ENDLOOP.

    IF callcontrol-maxrecords IS INITIAL.
      callcontrol-maxrecords = 9999999.
    ENDIF.


    SELECT ccidbh,ccidms
        FROM ytmm_mrdm_ccid
        WHERE ccidbh IN @s_ccid
        INTO TABLE @DATA(lt_ccid).


    SELECT wrkst AS ccidbh
      FROM mara
      WHERE wrkst IN @s_ccid
      APPENDING TABLE @lt_ccid.
    IF sy-subrc EQ 0."获取描述
      REFRESH:lt_thead,lt_text_headers.
      "1、批量放入ID
      LOOP AT lt_ccid INTO DATA(ls_ccid) WHERE ccidms IS INITIAL.
        ls_thead-tdobject = 'MATERIAL'.
        ls_thead-tdname = ls_ccid-ccidbh.
        ls_thead-tdid = 'GRUN'.
        ls_thead-tdspras = 1.
*        APPEND ls_thead TO lt_thead.
        ls_thead-tdspras = 'Z1'.
        APPEND ls_thead TO lt_thead.
        CLEAR ls_thead.
      ENDLOOP.
      lt_text_headers = CORRESPONDING #( lt_thead[] ).
      "2、批量读取长文本数据
      IF lt_thead[] IS NOT INITIAL.
        CALL FUNCTION 'READ_TEXT_TABLE'
          IMPORTING
            text_table              = lt_text_table
          TABLES
            text_headers            = lt_text_headers
          EXCEPTIONS
            wrong_access_to_archive = 1.
        IF sy-subrc EQ 0.
          "3、生成需要需要的长文本
          LOOP AT lt_ccid ASSIGNING FIELD-SYMBOL(<fs_ccid>).
            LOOP AT lt_text_table INTO DATA(ls_text_table) WHERE header-tdname EQ <fs_ccid>-ccidbh.
              LOOP AT ls_text_table-lines ASSIGNING FIELD-SYMBOL(<ls_line>).
                <fs_ccid>-ccidms = <fs_ccid>-ccidms && <ls_line>-tdline.
              ENDLOOP.
            ENDLOOP.
          ENDLOOP.
        ENDIF.
      ENDIF.
    ENDIF.

    SORT lt_ccid BY ccidbh.
    DELETE ADJACENT DUPLICATES FROM lt_ccid COMPARING ccidbh.
    IF s_ccid[] IS NOT INITIAL.
      DELETE lt_ccid WHERE ccidms NOT IN s_ccid.
    ENDIF.

    DESCRIBE TABLE lt_ccid LINES DATA(lv_lin).
    IF lv_lin < 1.
      RETURN.
    ENDIF.

    LOOP AT lt_ccid INTO ls_ccid
      FROM 1 TO callcontrol-maxrecords.
      record_tab-string(48) = ls_ccid-ccidbh.
      record_tab-string+49(200) = ls_ccid-ccidms.
      APPEND record_tab.
      CLEAR: record_tab.
    ENDLOOP.
    IF record_tab[] IS NOT INITIAL.
      callcontrol-step = 'DISP'.
    ENDIF.
    EXIT. "Don't process STEP DISP additionally in this call.
  ENDIF.
*"----------------------------------------------------------------------
* STEP DISP     (Display values)
*"----------------------------------------------------------------------
* This step is called, before the selected data is displayed.
* You can e.g. modify or reduce the data in RECORD_TAB
* according to the users authority.
* If you want to get the standard display dialog afterwards, you
* should not change CALLCONTROL-STEP.
* If you want to overtake the dialog on you own, you must return
* the following values in CALLCONTROL-STEP:
* - "RETURN" if one line was selected. The selected line must be
*   the only record left in RECORD_TAB. The corresponding fields of
*   this line are entered into the screen.
* - "EXIT" if the values request should be aborted
* - "PRESEL" if you want to return to the selection dialog
* Standard function modules F4UT_PARAMETER_VALUE_GET and
* F4UT_PARAMETER_RESULTS_PUT may be very helpfull in this step.
  IF callcontrol-step = 'DISP'.
*   PERFORM AUTHORITY_CHECK TABLES RECORD_TAB SHLP_TAB
*                           CHANGING SHLP CALLCONTROL.
  ENDIF.

ENDFUNCTION.

类似在创建一个基本搜索帮助2

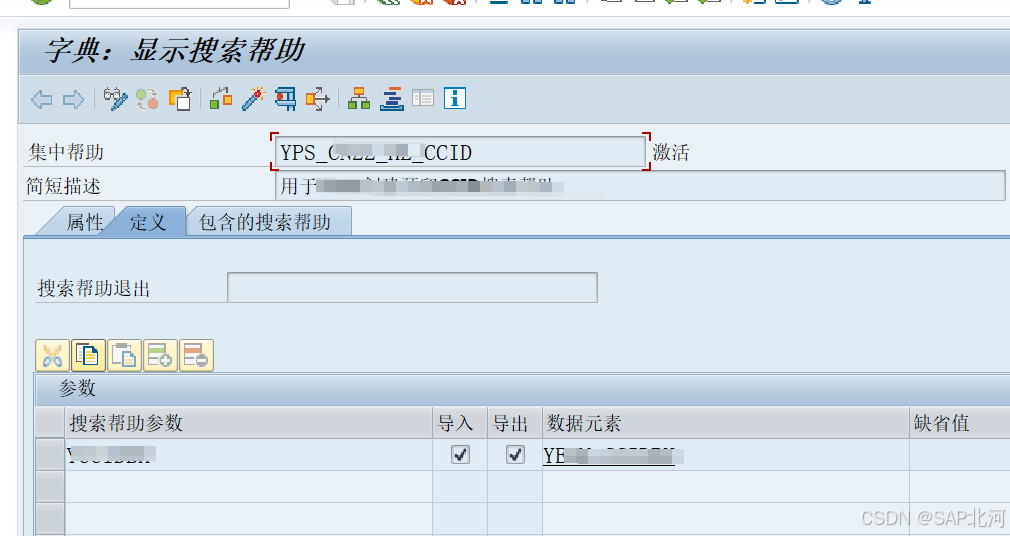

二、创建集中搜索帮助（注意点一定要要点击分配 不然一切都正常就是没办法把选择的数据带到页面上

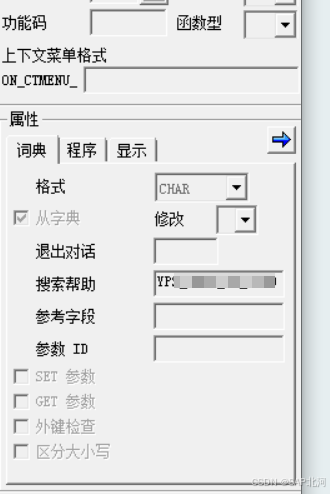

三、绑定（也可以绑定表的元素里面）我这面是在dialog页面里面

如果在创建过程中有问题欢迎大家评论区留言一块讨论一块提高，感谢查看 希望对您有帮助
