Framework系统架构

Android系统架构

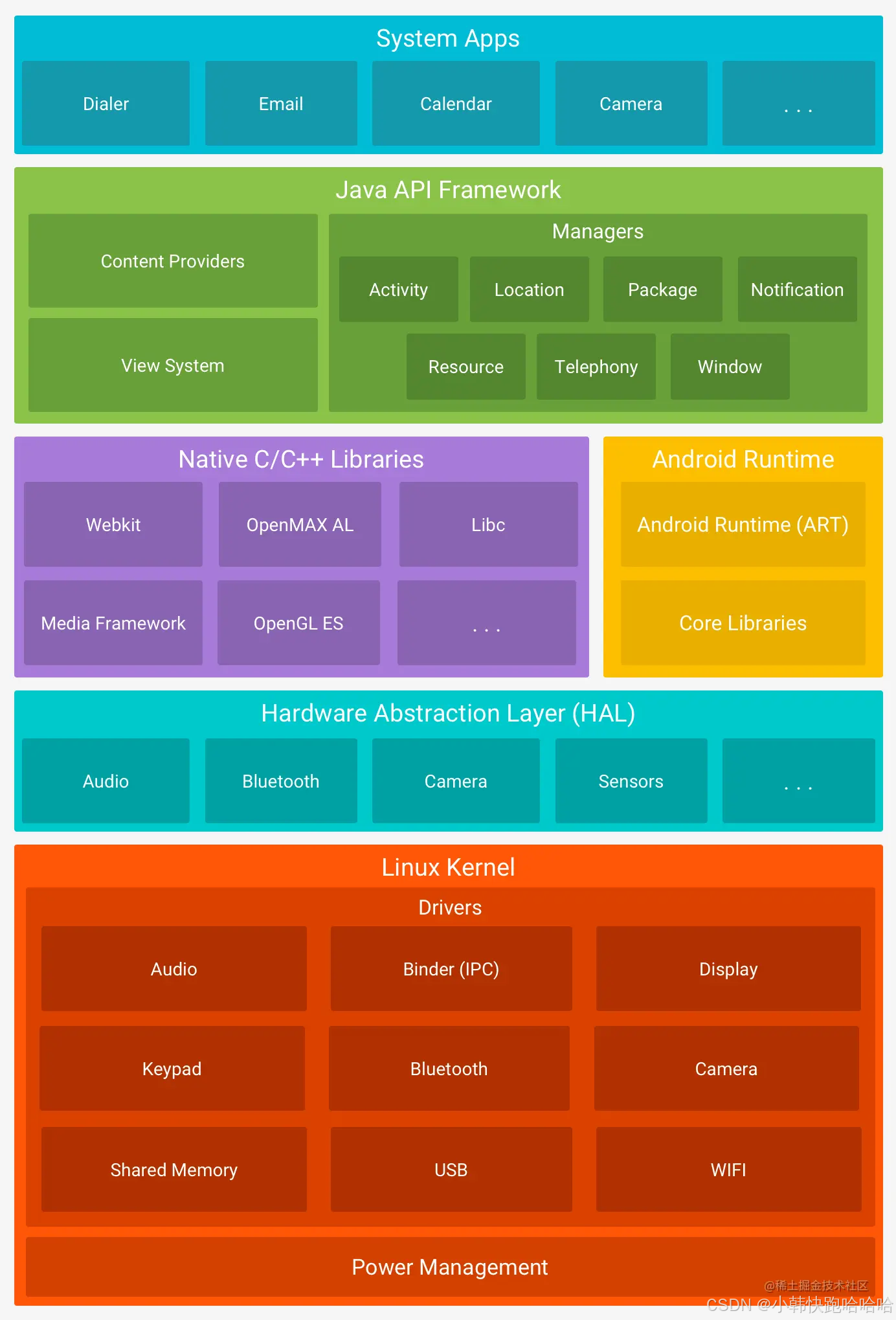

Android系统架构分层一共五层，从上到下依次是应用层、应用框架层、系统运行库层、硬件抽象层和Linux内核层。

其中Framework层也就是应用框架层

Framework系统框架层

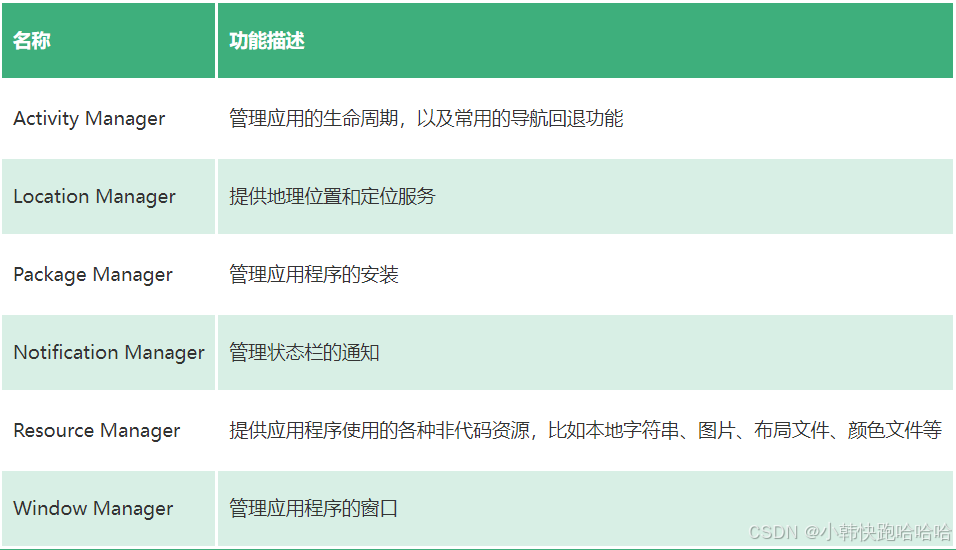

这个层面提供所需要的Java API,主要由JAVA所编写，主要功能如下所示：

AMS

AMS就是ActivityManagerService,是Android系统的核心，管理了四大组件Activity、Service、ContentProvider、Broadcast,同时也负责管理和调度所有的进程。

AMS启动是在system_server中运行的

文件目录:/frameworks/base/services/core/java/com/android/server/am/ActivityManagerService.java
private void startBootstrapServices() {
//……………………
//创建ActivityTaskManagerService  ActivityManagerService 并关联     mSystemServiceManager installer
ActivityTaskManagerService atm = mSystemServiceManager.startService(
        ActivityTaskManagerService.Lifecycle.class).getService();
mActivityManagerService = ActivityManagerService.Lifecycle.startService(
        mSystemServiceManager, atm);
mActivityManagerService.setSystemServiceManager(mSystemServiceManager);
mActivityManagerService.setInstaller(installer);
//将服务添加到ServiceManager
mActivityManagerService.setSystemProcess();
//……………………
}

public Lifecycle(Context context) {
    super(context);
    //创建了AMS的实例
    mService = new ActivityManagerService(context, sAtm);
}

public ActivityManagerService(Context systemContext, ActivityTaskManagerService atm) {
    LockGuard.installLock(this, LockGuard.INDEX_ACTIVITY);
    mInjector = new Injector();
    mContext = systemContext;//设置context 这里的context 不是我们应用的context是framework-res.apk

    mFactoryTest = FactoryTest.getMode();
    //获取system_server中的ActivityThread
    mSystemThread = ActivityThread.currentActivityThread();
    mUiContext = mSystemThread.getSystemUiContext();

    Slog.i(TAG, "Memory class: " + ActivityManager.staticGetMemoryClass());
    //创建处理消息的线程和Handler
    mHandlerThread = new ServiceThread(TAG,
            THREAD_PRIORITY_FOREGROUND, false /*allowIo*/);
    mHandlerThread.start();
    mHandler = new MainHandler(mHandlerThread.getLooper());
    mUiHandler = mInjector.getUiHandler(this);

    //创建管理广播的队列 前台和后台
    mFgBroadcastQueue = new BroadcastQueue(this, mHandler,
            "foreground", foreConstants, false);
    mBgBroadcastQueue = new BroadcastQueue(this, mHandler,
            "background", backConstants, true);
    mOffloadBroadcastQueue = new BroadcastQueue(this, mHandler,
            "offload", offloadConstants, true);
    mBroadcastQueues[0] = mFgBroadcastQueue;
    mBroadcastQueues[1] = mBgBroadcastQueue;
    mBroadcastQueues[2] = mOffloadBroadcastQueue;
    //管理service的对象
    mServices = new ActiveServices(this);
    //管理ContentProvider的对象
    mProviderMap = new ProviderMap(this);
    mPackageWatchdog = PackageWatchdog.getInstance(mUiContext);
    mAppErrors = new AppErrors(mUiContext, this, mPackageWatchdog);
    //获取系统目录
    final File systemDir = SystemServiceManager.ensureSystemDir();
    //创建电池状态管理的service
    mBatteryStatsService = new BatteryStatsService(systemContext, systemDir,
            BackgroundThread.get().getHandler());
     //创建进程状态管理的服务
    mProcessStats = new ProcessStatsService(this, new File(systemDir, "procstats"));

    mAppOpsService = mInjector.getAppOpsService(new File(systemDir, "appops.xml"), mHandler);

    mUgmInternal = LocalServices.getService(UriGrantsManagerInternal.class);
    //创建UserController
    mUserController = new UserController(this);

    mPendingIntentController = new PendingIntentController(
            mHandlerThread.getLooper(), mUserController);

    if (SystemProperties.getInt("sys.use_fifo_ui", 0) != 0) {
        mUseFifoUiScheduling = true;
    }

    mTrackingAssociations = "1".equals(SystemProperties.get("debug.track-associations"));
    mIntentFirewall = new IntentFirewall(new IntentFirewallInterface(), mHandler);
    //赋值ActivityTaskManagerService
    mActivityTaskManager = atm;
    //进行初始化
    mActivityTaskManager.initialize(mIntentFirewall, mPendingIntentController,
            DisplayThread.get().getLooper());
    mAtmInternal = LocalServices.getService(ActivityTaskManagerInternal.class);
    //创建CPU的统计线程
    mProcessCpuThread = new Thread("CpuTracker") {
        @Override
        public void run() {
            synchronized (mProcessCpuTracker) {
                mProcessCpuInitLatch.countDown();
                mProcessCpuTracker.init();
            }
            while (true) {
                try {
                    try {
                        synchronized(this) {
                            final long now = SystemClock.uptimeMillis();
                            long nextCpuDelay = (mLastCpuTime.get()+MONITOR_CPU_MAX_TIME)-now;
                            long nextWriteDelay = (mLastWriteTime+BATTERY_STATS_TIME)-now;
                            //Slog.i(TAG, "Cpu delay=" + nextCpuDelay
                            //        + ", write delay=" + nextWriteDelay);
                            if (nextWriteDelay < nextCpuDelay) {
                                nextCpuDelay = nextWriteDelay;
                            }
                            if (nextCpuDelay > 0) {
                                mProcessCpuMutexFree.set(true);
                                this.wait(nextCpuDelay);
                            }
                        }
                    } catch (InterruptedException e) {
                    }
                    updateCpuStatsNow();
                } catch (Exception e) {
                    Slog.e(TAG, "Unexpected exception collecting process stats", e);
                }
            }
        }
    };

    mHiddenApiBlacklist = new HiddenApiSettings(mHandler, mContext);
    //添加到看门狗 进行检测
    Watchdog.getInstance().addMonitor(this);
    Watchdog.getInstance().addThread(mHandler);

    updateOomAdjLocked(OomAdjuster.OOM_ADJ_REASON_NONE);
    try {
        Process.setThreadGroupAndCpuset(BackgroundThread.get().getThreadId(),
                Process.THREAD_GROUP_SYSTEM);
        Process.setThreadGroupAndCpuset(
                mOomAdjuster.mAppCompact.mCompactionThread.getThreadId(),
                Process.THREAD_GROUP_SYSTEM);
    } catch (Exception e) {
        Slog.w(TAG, "Setting background thread cpuset failed");
    }

}


private void start() {
    removeAllProcessGroups();
    //开启cpu线程
    mProcessCpuThread.start();
    //把电池状态管理添加到ServiceManager中
    mBatteryStatsService.publish();
    //把AppOpsService添加到ServiceManager中
    mAppOpsService.publish(mContext);
    Slog.d("AppOps", "AppOpsService published");
    LocalServices.addService(ActivityManagerInternal.class, new LocalService());
    mActivityTaskManager.onActivityManagerInternalAdded();
    mUgmInternal.onActivityManagerInternalAdded();
    mPendingIntentController.onActivityManagerInternalAdded();
    // Wait for the synchronized block started in mProcessCpuThread,
    // so that any other access to mProcessCpuTracker from main thread
    // will be blocked during mProcessCpuTracker initialization.
    try {
        mProcessCpuInitLatch.await();
    } catch (InterruptedException e) {
        Slog.wtf(TAG, "Interrupted wait during start", e);
        Thread.currentThread().interrupt();
        throw new IllegalStateException("Interrupted wait during start");
    }
}


public static ActivityManagerService startService(
        SystemServiceManager ssm, ActivityTaskManagerService atm) {
    sAtm = atm;
    //反射创建，并添加到mServices中，调用onStart函数
    return ssm.startService(ActivityManagerService.Lifecycle.class).getService();
}


private void startOtherServices() {
//……………………
    // 调用 AMS 的 systemReady
    mActivityManagerService.systemReady(...);
}

通过反射构建了ActivityManagerService.Lifecycle对象，初始化了管理四大组件的对象以及一些服务。然后调用setSystemProcess。

public void setSystemProcess() {
    try {
    //添加自己到ServiceManager
        ServiceManager.addService(Context.ACTIVITY_SERVICE, this, /* allowIsolated= */ true,
                DUMP_FLAG_PRIORITY_CRITICAL | DUMP_FLAG_PRIORITY_NORMAL | DUMP_FLAG_PROTO);
       //添加进程管理服务 可以获取每个进程内存使用情况
        ServiceManager.addService(ProcessStats.SERVICE_NAME, mProcessStats);
        //添加 MemBinder，是用来dump每个进程内存信息的服务
        ServiceManager.addService("meminfo", new MemBinder(this), /* allowIsolated= */ false,
                DUMP_FLAG_PRIORITY_HIGH);
        //添加GraphicsBinder 可以获取每个进程图形加速的服务
        ServiceManager.addService("gfxinfo", new GraphicsBinder(this));
        //添加 DbBinder  获取每个进程数据库的服务
        ServiceManager.addService("dbinfo", new DbBinder(this));
        if (MONITOR_CPU_USAGE) {
            ServiceManager.addService("cpuinfo", new CpuBinder(this),
                    /* allowIsolated= */ false, DUMP_FLAG_PRIORITY_CRITICAL);
        }
        //权限服务
        ServiceManager.addService("permission", new PermissionController(this));
        //进程相关信息
        ServiceManager.addService("processinfo", new ProcessInfoService(this));
        //获取到当前的ApplicationInfo 也就是framework-res.apk
        ApplicationInfo info = mContext.getPackageManager().getApplicationInfo(
                "android", STOCK_PM_FLAGS | MATCH_SYSTEM_ONLY);
        mSystemThread.installSystemApplicationInfo(info, getClass().getClassLoader());

        synchronized (this) {
        //把system_server添加到AMS的process管理者中
            ProcessRecord app = mProcessList.newProcessRecordLocked(info, info.processName,
                    false,
                    0,
                    new HostingRecord("system"));
            app.setPersistent(true);
            app.pid = MY_PID;
            app.getWindowProcessController().setPid(MY_PID);
            app.maxAdj = ProcessList.SYSTEM_ADJ;
            app.makeActive(mSystemThread.getApplicationThread(), mProcessStats);
            mPidsSelfLocked.put(app);
            mProcessList.updateLruProcessLocked(app, false, null);
            updateOomAdjLocked(OomAdjuster.OOM_ADJ_REASON_NONE);
        }
    } catch (PackageManager.NameNotFoundException e) {
        throw new RuntimeException(
                "Unable to find android system package", e);
    }
    //应用启动的监听
    mAppOpsService.startWatchingMode(AppOpsManager.OP_RUN_IN_BACKGROUND, null,
            new IAppOpsCallback.Stub() {
                @Override public void opChanged(int op, int uid, String packageName) {
                    if (op == AppOpsManager.OP_RUN_IN_BACKGROUND && packageName != null) {
                        if (mAppOpsService.checkOperation(op, uid, packageName)
                                != AppOpsManager.MODE_ALLOWED) {
                            runInBackgroundDisabled(uid);
                        }
                    }
                }
            });
}

在systemProcess中，又注册了一些服务，获取到了当前的ApplicationInfo对象，然后把ApplicationInfo转换成ProcessRecord对象，添加到AMS的mPidsSelfLocked管理中。接着在system_server的startOtherServices中调用了systemReady。

在systemReady中，调用了ATMS(ActivityTaskManagerService)的onSystemReady，以及AppopsService、UserController进行初始化工作，接着从mPidsSelfLocked集合中查找非FLAG_PERSISTENT标志的进程，并且进行清理。开启需要开机启动的应用( android:persistent)，接着开启Launcher,发送ACTION_USER_STARTED和ACTION_USER_STARTING广播。这个标记和PMS相关了，简单看一下就是在updatePackagesIfNeeded . getPackagesForDexopt的方法中发送一个ACTION_PRE_BOOT_COMPLETED的广播，如果应用相应这个广播并且加入FLAG_PERSISTENT标志，就可以存活下来。对接收这个广播的package加载要优先于systemReady，也就是优先其他package的加载。用于开机优先打开的app flag_persistent/
