lnmp+高可用+负载均衡

实验目标：高可用，负载均衡，网站加密，lnmp

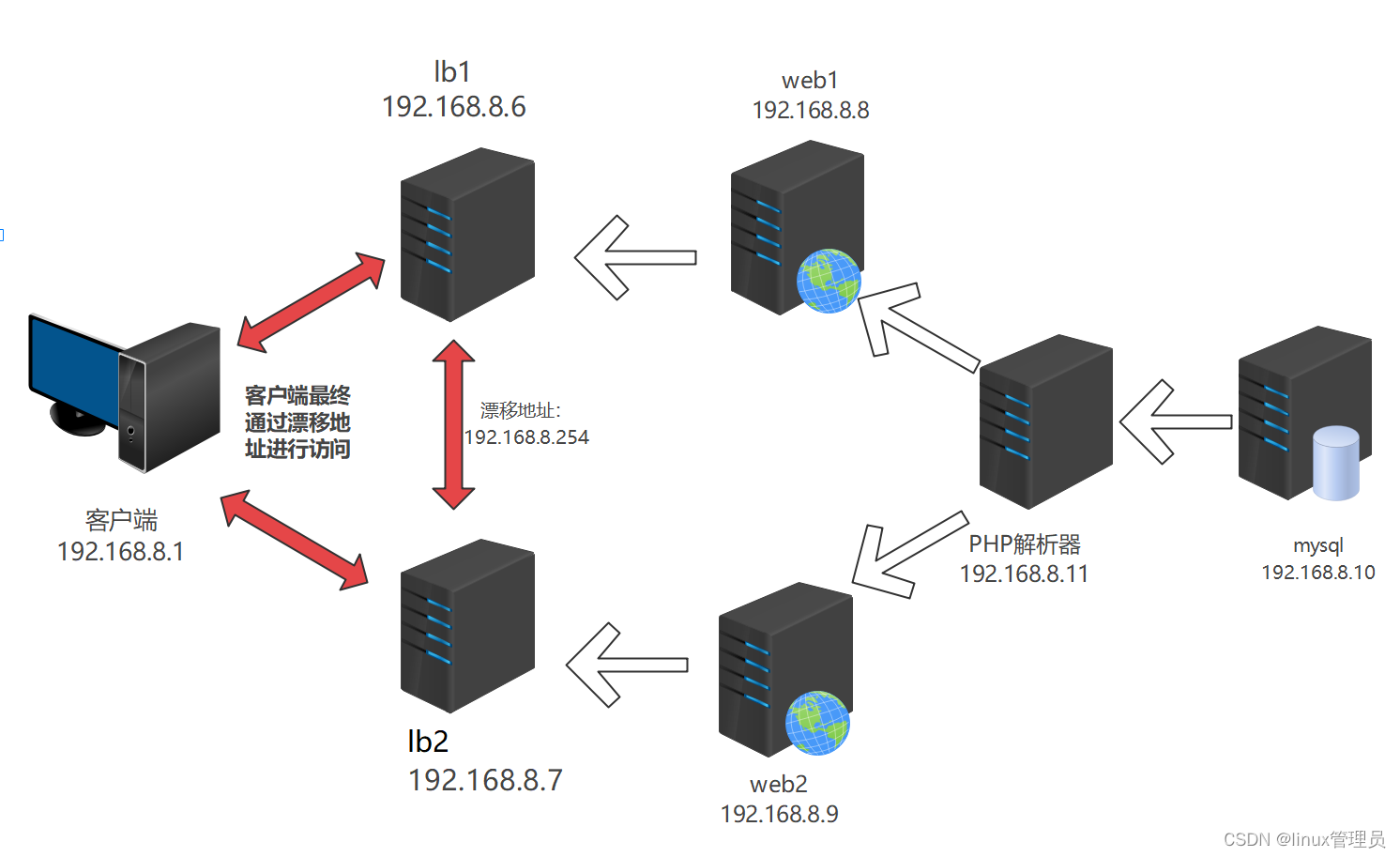

实验拓扑：

实验步骤：

一、搭建负载均衡

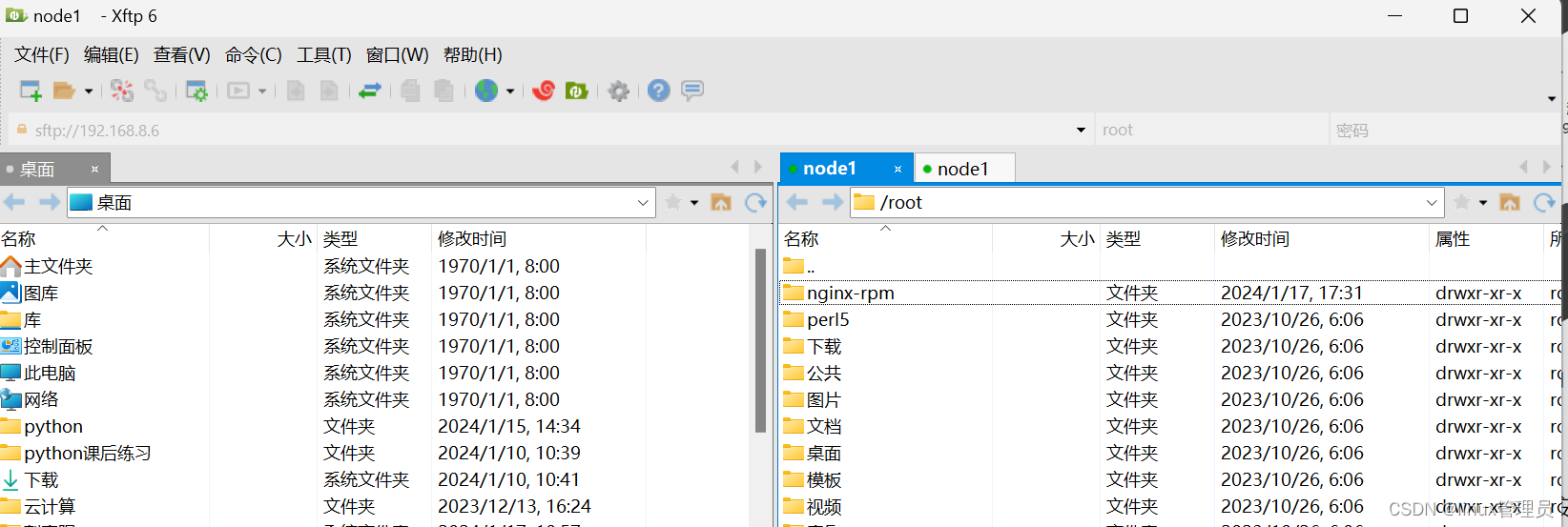

使用xftp上传nginx-rpm安装包到lb1,lb2,web1,web2主机上

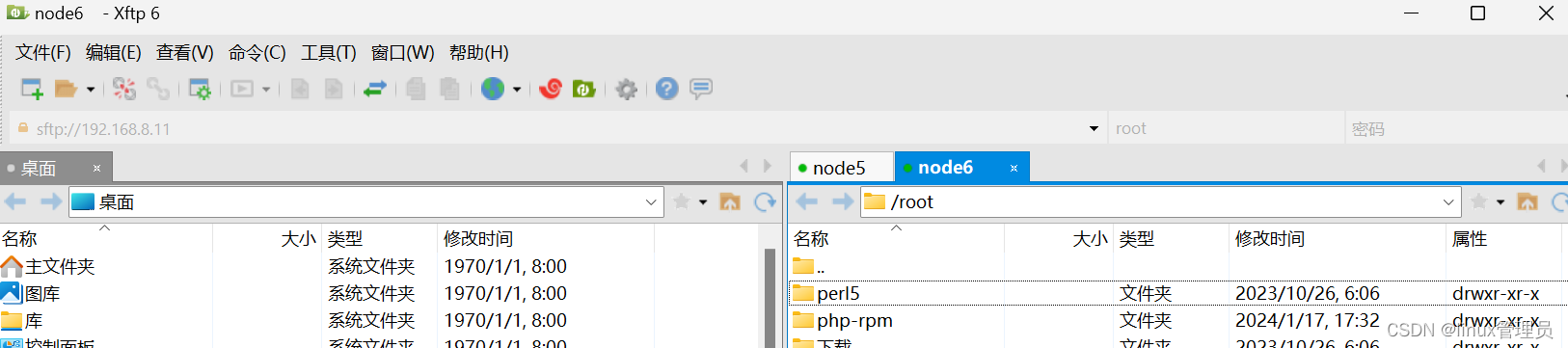

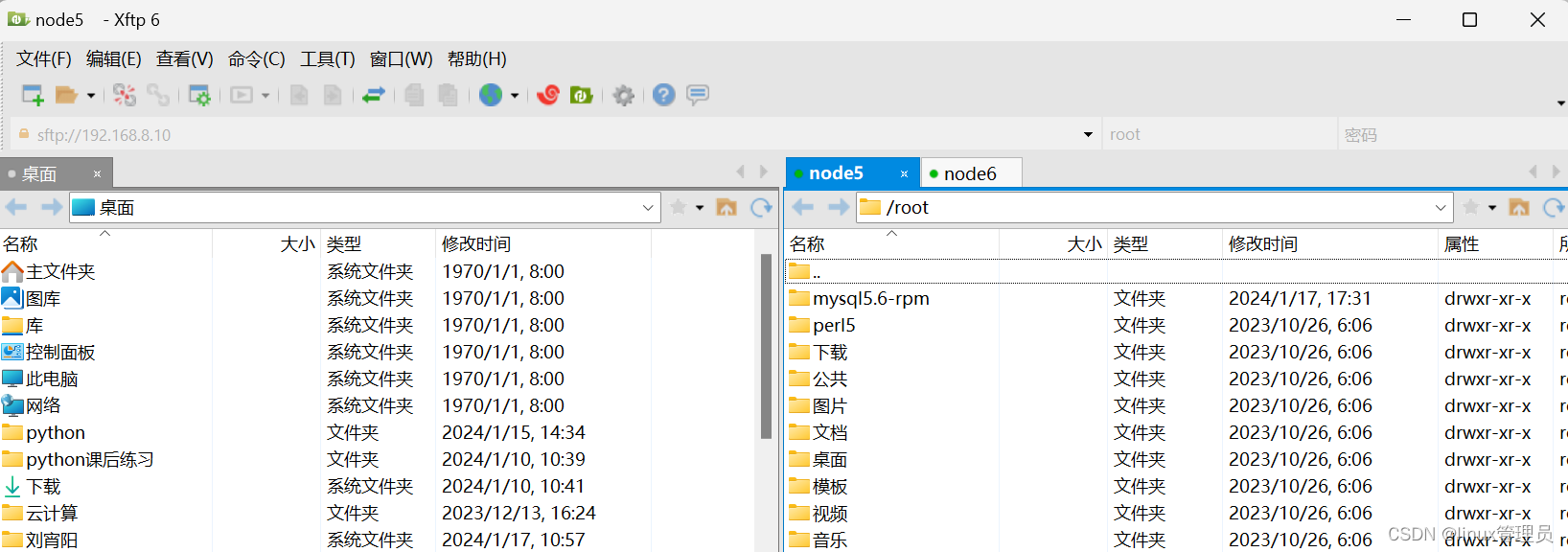

使用xftp上传mysql-rpm包到8.11主机上，mysql-rpm包到8.10主机上

在四台nginx主机上安装nginx软件

[root@lb1 ~]# cd nginx-rpm/

[root@lb1 nginx-rpm]# rpm -ivh *.rpm --nodeps –force

[root@lb2 ~]# cd nginx-rpm/

[root@lb2 nginx-rpm]# rpm -ivh *.rpm --nodeps –force

[root@web1 ~]# cd nginx-rpm/

[root@web1nginx-rpm]# rpm -ivh *.rpm --nodeps –force

[root@web2 ~]# cd nginx-rpm/

[root@web2 nginx-rpm]# rpm -ivh *.rpm --nodeps –force

配置lb1主机：

[root@lb1 ~]# cd /etc/nginx/conf.d/

[root@lb1 conf.d]# rm -rf *        #删除default默认配置文件

[root@lb1 conf.d]# vim lb.conf   #编写负载均衡配置文件

upstream webcluster {

        server 192.168.8.8:80;

        server 192.168.8.9:80;

}

server {

        listen 80;

        server_name blog.benet.com;

        location / {

                proxy_pass      http://webcluster;

                proxy_set_header Host $http_host;

                proxy_set_header X-Real-IP $remote_addr;

                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;

        }

}

重新启动nginx

[root@lb1 ~]# systemctl restart nginx

[root@lb1 ~]# systemctl enable nginx #开机自启

上传lb.conf配置文件到lb2主机上

[root@lb1 ~]# scp -rp /etc/nginx/conf.d/lb.conf root@192.168.8.7:/etc/nginx/conf.d

配置lb2主机

[root@lb1 ~]# rm -rf /etc/nginx/conf.d/default.conf             #删除default默认文件

第一台lb1配置和第二台lb2文件一样，已经上传到lb2无需编写，重启服务

[root@lb2 ~]# systemctl restart nginx

[root@lb2 ~]# systemctl enable nginx #开机自启

二、搭建高可用

1、[root@lb1 ~]# yum -y install keepalived



       配置lb1主机：

       [root@lb1 ~]# vim /etc/keepalived/keepalived.conf

       global_defs {

            router_id lb1                       #master名称为lb1，两台不能重名

}

vrrp_script check_nginx_proxy {

        script “/sh/check_nginx_proxy.sh”             #nginx网站异常自动关闭漂移地址

        interval 2

        weight 5

        }

vrrp_instance VI_1 {

           state MASTER                                          #主服务器为大写master

           interface ens33                                        #网卡名称

           virtual_router_id 51

           priority 100                                              #优先级，backup优先级不能高于master

           advert_int 1

           authentication {

        auth_type PASS

        auth_pass 1111

    }

    virtual_ipaddress {

        192.168.8.254                                          #漂移地址

    }

    track_script {

        check_nginx_proxy

    }

}

2、创建检测nginx是否存活脚本，如果不存活自动关闭keepalived

       [root@lb1 ~]# mkdir /sh

       [root@lb1 ~]# vim /sh/check_nginx_proxy.sh

#！/bin/bash

killall  -0  nginx

if  [ $? -ne 0 ];then

       systemctl stop keepalived

fi

保存退出

[root@lb1 ~]#  chmod  +x  /sh/check_nginx_proxy.sh #设置脚本执行权限

设置每秒每分钟每天每月运行

[root@lb1 ~]# crontab -e

* * * * * /bin/bash /sh/check_nginx_proxy.sh

配置lb2主机keepalived：

1、[root@lb2 ~]# yum -y install keepalived

2、[root@lb2 ~]# vim /etc/keepalived/keepalived.conf

global_defs {

   router_id lb2

}

vrrp_instance VI_1 {

    state BACKUP

    interface ens33

    virtual_router_id 51

    priority 99

    advert_int 1

    authentication {

        auth_type PASS

        auth_pass 1111

    }

    virtual_ipaddress {

        192.168.8.254

    }

}

重启两台高可用服务

[root@lb1 ~]# systemctl restart keepalived

[root@lb2 ~]# systemctl restart keepalived

查看漂移地址：ip a show dev ens33

搭建nginx网站：

配置web1

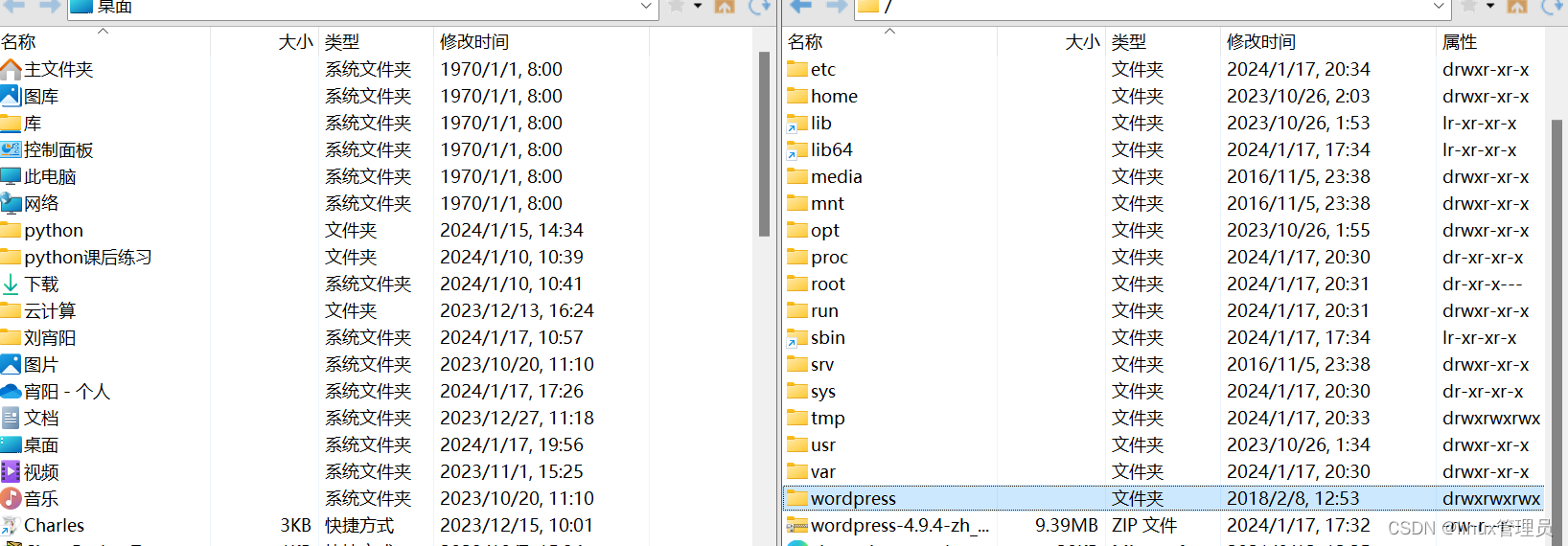

使用xftp上传WordPress论坛到，web1根目录

[root@web1 /]# unzip wordpress-4.9.4-zh_CN.zip

[root@web1 /]# chmod -R 777 /wordpress   #设置可读可写

上传到web2主机上

[root@web1 /]# scp -rp /wordpress root@192.168.8.9:/

在web1上创建nginx配置文件

删除默认default文件

[root@web1 ~]# rm -rf /etc/nginx/conf.d/default.conf

编写配置文件：

vim /etc/nginx/conf.d/blog.conf

server {

        listen 80;

        server_name blog.benet.com;

        root /wordpress;

        index index.php index.html;

        location ~ \.php$ {

                root /wordpress;

                fastcgi_pass 192.168.8.60:9000;                #指向php服务器

                fastcgi_index index.php;

                fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;

                include fastcgi_params;

        }

       }

       保存退出

systemctl restart nginx  #重启nginx服务

上传nginx配置文件到web2主机/etc/nginx/conf.d/目录下：

[root@web1 ~]# scp -rp /etc/nginx/conf.d/* root@192.168.8.9:/etc/ nginx/conf.d/*

删除web2默认文件：

[root@web2 ~]# rm -rf /etc/nginx/conf.d/default.conf

       重启web2主机nginx服务：

       [root@web2 ~]# systemctl restart nginx

搭建mysql

进入mysql-rpm目录中

[root@mysql ~]# cd mysql5.6-rpm/

[root@mysql mysql5.6-rpm]# rpm -ivh *.rpm --nodeps --force

启动mysql并进入mysql创建blog数据库：

[root@mysql ~]# systemctl start mysqld         #启动mysqld

[root@mysql ~]# mysql #进入数据库

创建blog数据库：

mysql> create database blog;

创建blog数据库管理员：

       grant all on blog.* to lisi@'%' identified by '123.com';

搭建php解析器：

1、安装php：

[root@php ~]# cd php-rpm/

[root@php php-rpm]# rpm -ivh *.rpm --nodeps –force

2、启动php

[root@php ~]# systemctl start php-fpm

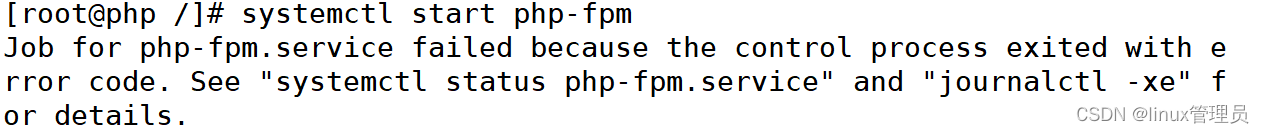

启动php如果报错

[root@php ~]# systemctl start php-fpm

              #安装yum -y install openssl 解决报错问题

修改配置文件：

[root@php ~]# vim /etc/php-fpm.d/www.conf

定位并修改为：

listen = 192.168.8.11:9000

listen.allowed_clients = 192.168.8.8,192.168.8.9   #指向web1和web2主机ip

在web1上传WordPress论坛到php主机根目录

[root@web1 ~]# scp -rp /wordpress root@192.168.8.11:/

重启php，测试lnmp

[root@php ~]# systemctl restart php-fpm

打开浏览器访问web1和web2主机ip

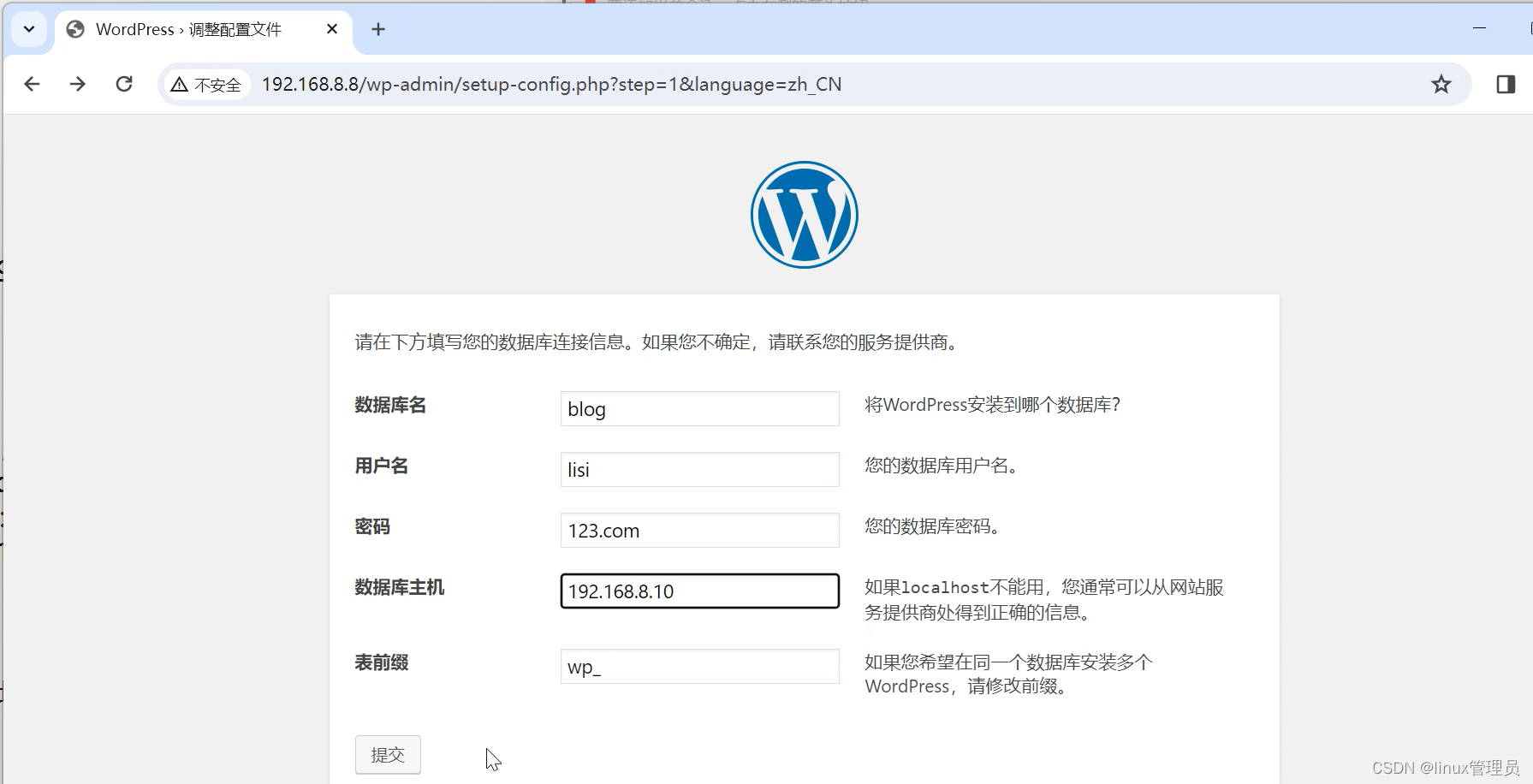

                            #数据库名一定是blog和mysql主机上的库一致

                            #数据库主机指定：192.168.8.10  mysql主机ip地址

                            #用户名和密码是blog管理员lisi

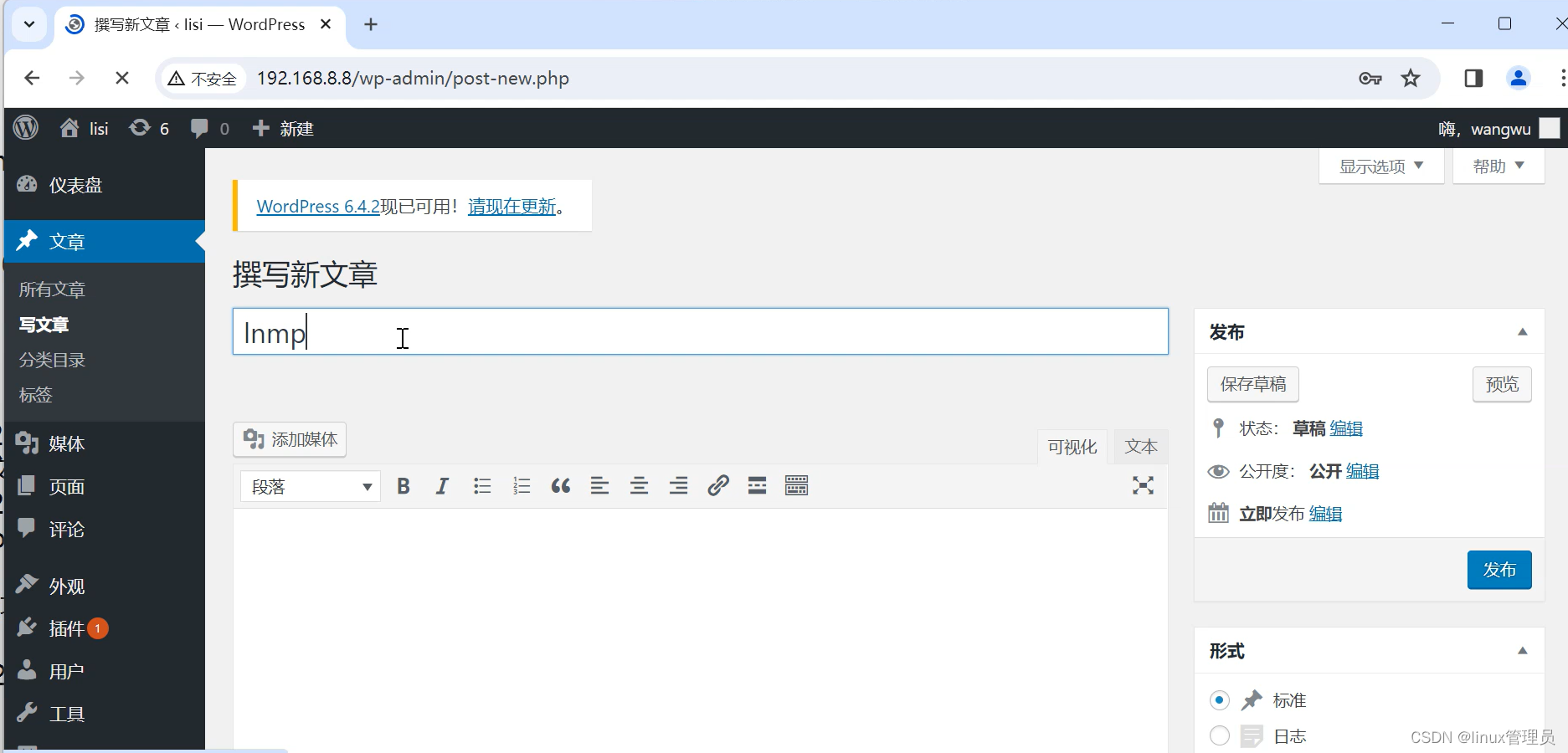

登录之后写篇文章

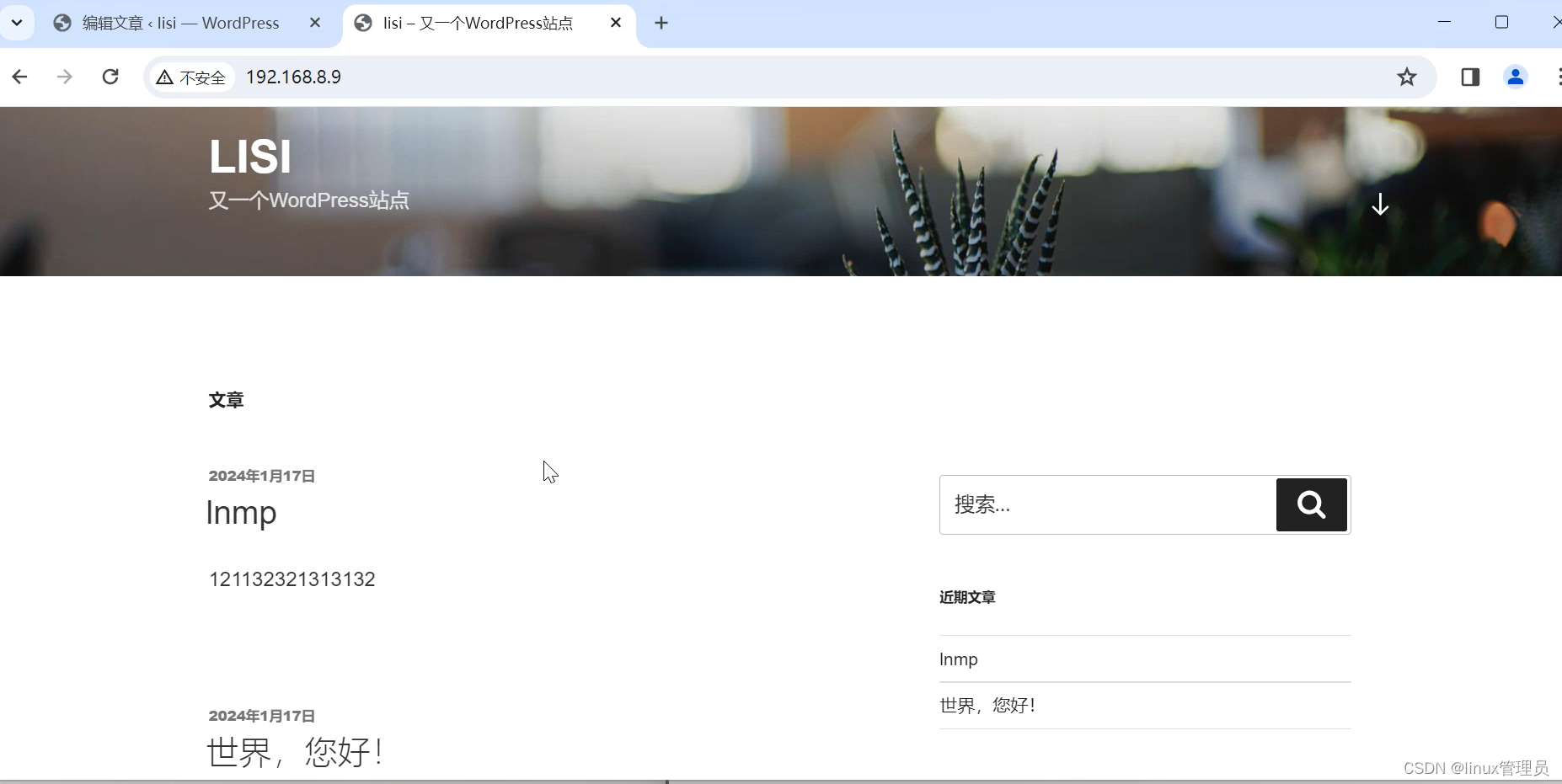

测试web2网站

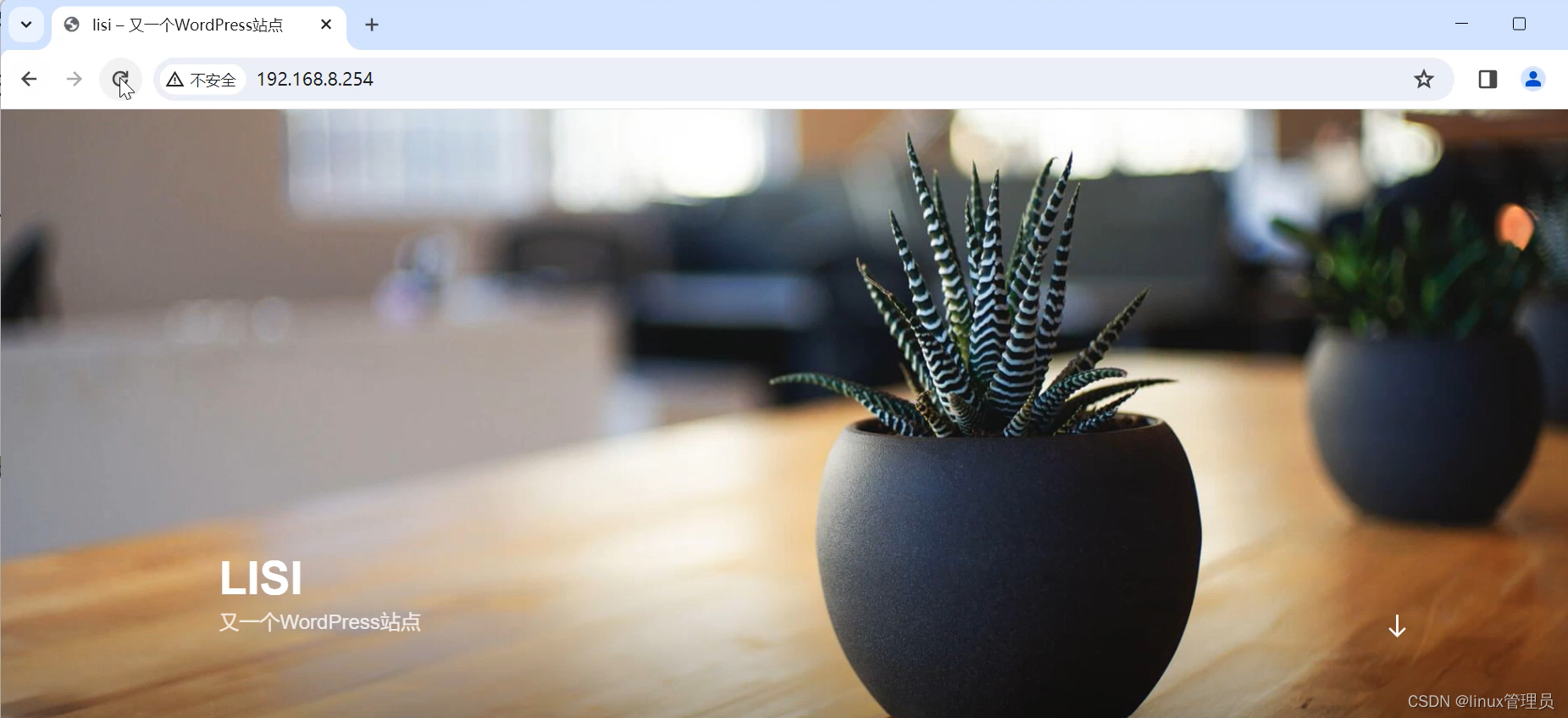

测试负载均衡输入web1和web2的IP地址，测试高可用输入漂移地址8.254

搭建ssl加密

创建目录

1、[root@web1 ~]# mkdir -p /etc/nginx/ssl_key

2、[root@web1 ~]# cd /etc/nginx/ssl_key/  #进入目录

生成私钥需要输入密码

3、[root@web1 ssl_key]# openssl genrsa -idea -out server.key 2048

4、生成证书

[root@web1 ssl_key]#openssl req -days 3650 -x509 -sha256 -nodes -newkey rsa:2048 -keyout server.key -out server.crt

删除/etc/nginx/conf.d/目录下的所有文件，添加加密文件

[root@web1 ~]# rm -rf /etc/nginx/conf.d/*

[root@web1 ~]# vim /etc/nginx/conf.d/https.conf

server {

        listen 443 ssl;

        server_name blog.benet.com;

              ssl_certificate ssl_key/server.crt;

        ssl_certificate_key ssl_key/server.key;

        root /wordpress;

        index index.php index.html;

        location ~ \.php$ {

                root /wordpress;

                fastcgi_pass 192.168.8.11:9000;

                fastcgi_index index.php;

                fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;

                include fastcgi_params;

        }

       }

server {

        listen 80;

        server_name blog.benet.com;

        rewrite .* https://$server_name$1 redirect;

}

保存退出

上传证书到lb1，lb2，web2主机上

[root@web1 ~]#scp -rp /etc/nginx/ssl_key root@192.168.8.6:/etc/nginx/

[root@web1 ~]#scp -rp /etc/nginx/ssl_key root@192.168.8.7:/etc/nginx/

[root@web1 ~]#scp -rp /etc/nginx/ssl_key root@192.168.8.9:/etc/nginx/

删除web2主机/etc/nginx/conf.d/目录下的所有文件，上传web1主机上的文件

[root@web2 ~]# rm -rf /etc/etc/nginx/conf.d/*

[root@web1 ~]# scp -rp /etc/nginx/conf.d/* root@192.168.8.9:/etc/nginx/conf.d/

配置lb1和lb2文件/etc/nginx/conf.d/添加lb.conf，删除原有的文件创建lb.conf

[root@lb1 ~]# rm -rf /etc/nginx/conf.d/*

[root@lb1 ~]# vim /etc/nginx/conf.d/lb.conf

upstream webcluster {

        server 192.168.8.8:443;

        server 192.168.8.9:443;

}

server {

        listen 443 ssl;

        server_name blog.benet.com;

        ssl_certificate ssl_key/server.crt;

        ssl_certificate_key ssl_key/server.key;

        location / {

                proxy_pass      https://webcluster;

        }

}

server {

        listen 80;

        server_name blog.benet.com;

        return 302 https://$server_name$1;

}

配置lb2

[root@lb2 ~]# rm -rf /etc/nginx/conf.d/*

[root@lb2 ~]# vim /etc/nginx/conf.d/lb.conf

upstream webcluster {

        server 192.168.8.8:443;

        server 192.168.8.9:443;

}

server {

        listen 443 ssl;

        server_name blog.benet.com;

        ssl_certificate ssl_key/server.crt;

        ssl_certificate_key ssl_key/server.key;

        location / {

                proxy_pass      https://webcluster;

        }

}

server {

        listen 80;

        server_name blog.benet.com;

        return 302 https://$server_name$1;

}

测试：

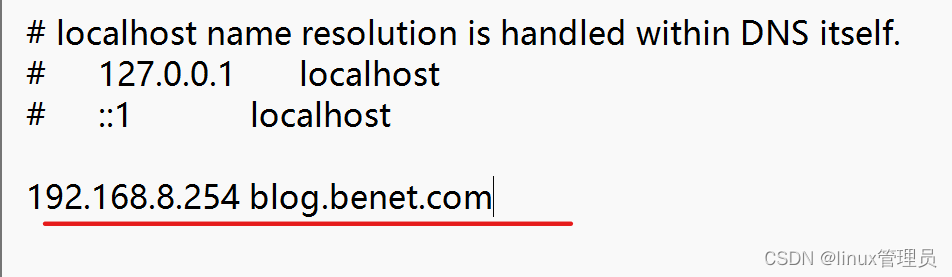

没有搭建dns无法解析域名，打开hosts文件添加漂移地址和域名

在客户端中找红线目录

添加blog.benet.com

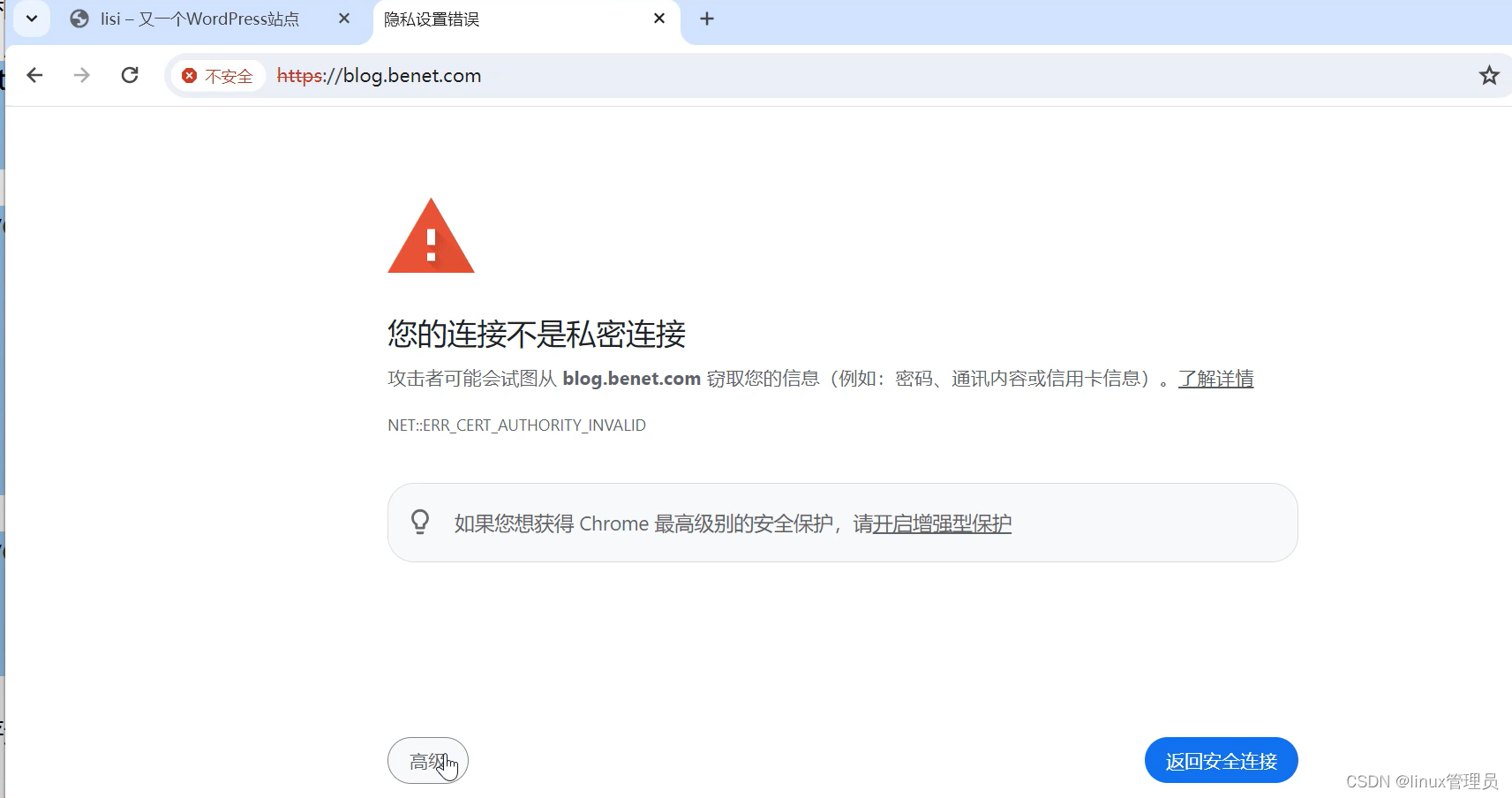

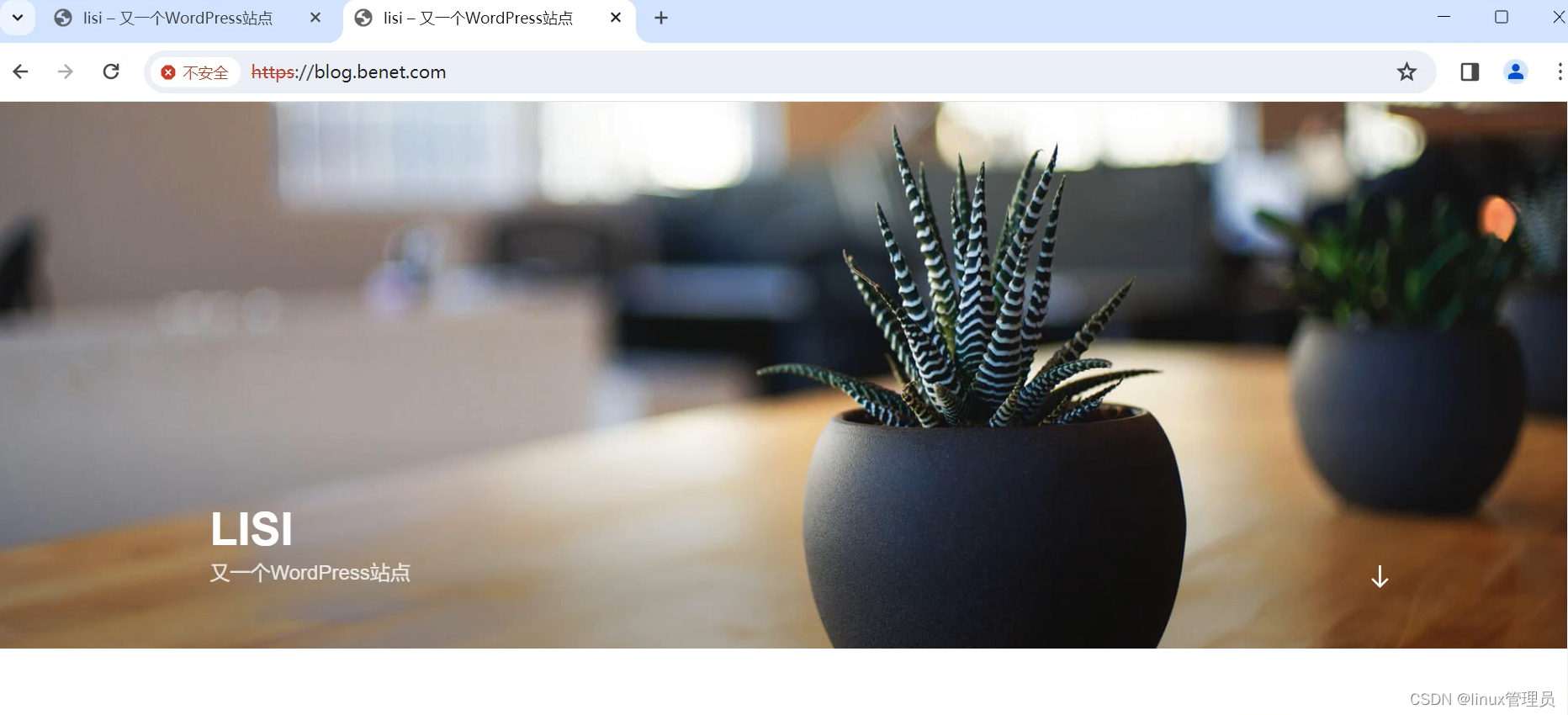

点击高级添加例外，就能进入网站首页

关闭lb1主机keepalived服务，在lb2主机上查看有没有出现漂移地址

[root@lb2 ~]# ip a show dev ens33

会出现192.168.8.254漂移地址
