jenkins+gitlab+docker+harbor+k8s终结篇

 之前我们已经把相关环境，持续集成这一块都实现了。详细内容可查看我cicd专栏前三篇的内容。

kubeadm 部署k8s-优快云博客

 harbor部署-优快云博客

Jenkins+gitlab持续集成_gitlab jenkins 集成-优快云博客

本篇内容主要是讲解持续集成和持续交付是如何实现和部署的。

概念

持续交付建立在持续集成的基础上，通过自动化的流程确保软件可以随时随地进行部署。

流程
这时，持续交付后的代码已经在主分支上了，这处于某个版本的待发布的状态，随时可以将开发环境的功能部署到生产环境中（部署到生成环境前还需要在测试环境性能测试、回归测试、自动化测试、人工测试等），运行脚本构建打包应用，通过自动化部署工具部署到生产环境运行应用，监控生产环境指标，如出现问题和错误，可以触发手动或自动回滚，如系统正常，则定期回顾，收集反馈，优化，并持续改进

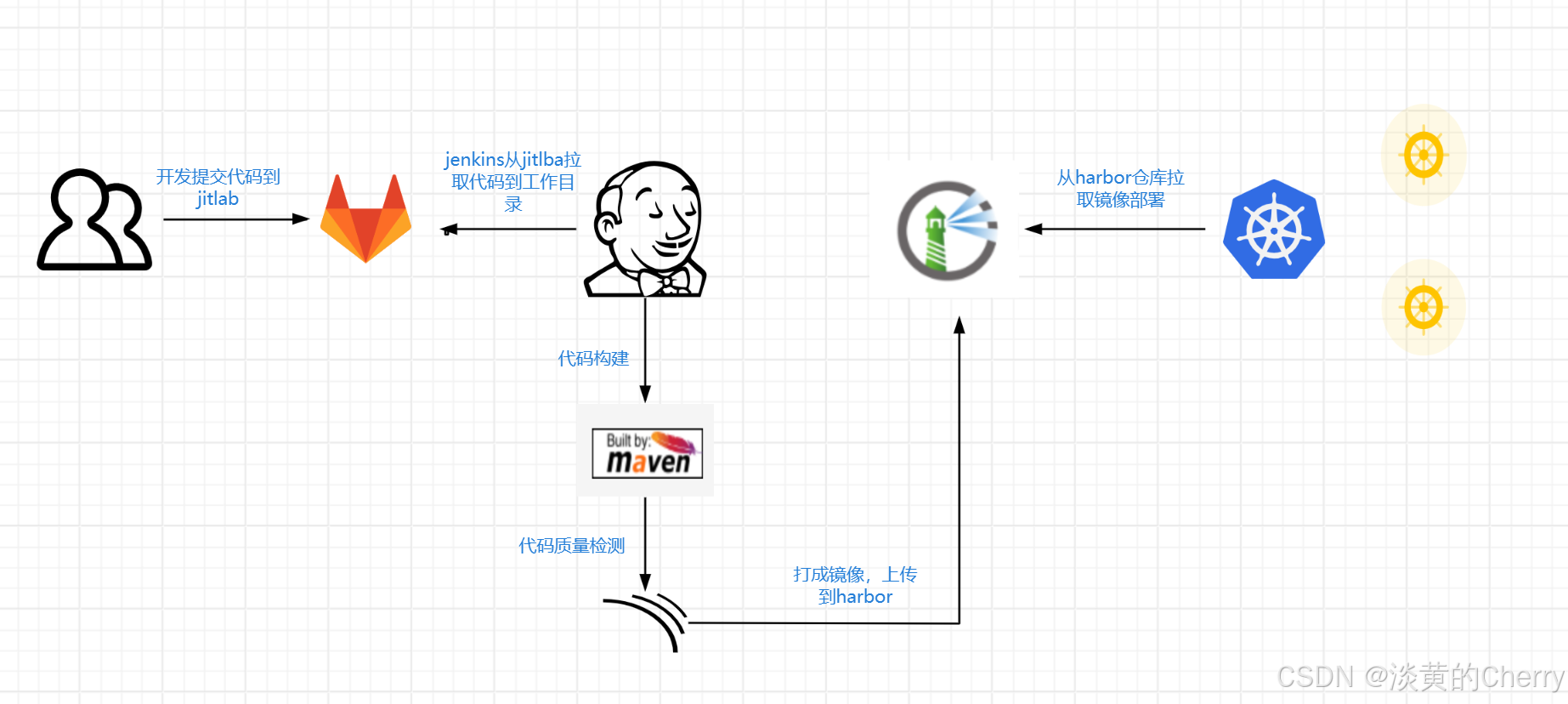

流程图



机器规划如下

设备名称	ip地址	配置
master231	10.0.0.231	2核，4GiB，系统盘 20GiB
worken232	10.0.0.232	2核，4GiB，系统盘 20GiB
worken233	10.0.0.233	2核，4GiB，系统盘 20GiB
jenkins211	10.0.0.211	2核，4GiB，系统盘 20GiB
gitlab212	10.0.0.212	4核，4GiB，系统盘 20GiB
harbor	10.0.0.250	2核，4GiB，系统盘 20GiB

一、编写dockerfile

[root@gitlab212 project]# pwd
/root/project

[root@gitlab212 project]# vim Dockerfile
FROM registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v1

EXPOSE 80

WORKDIR /usr/share/nginx/html/

ADD . /usr/share/nginx/html/

本地打镜像测试

[root@gitlab212 project]# docker image build -t yiliao:v1 .

运行镜像

[root@gitlab212 project]# docker run -d -p 88:80  yiliao:v1

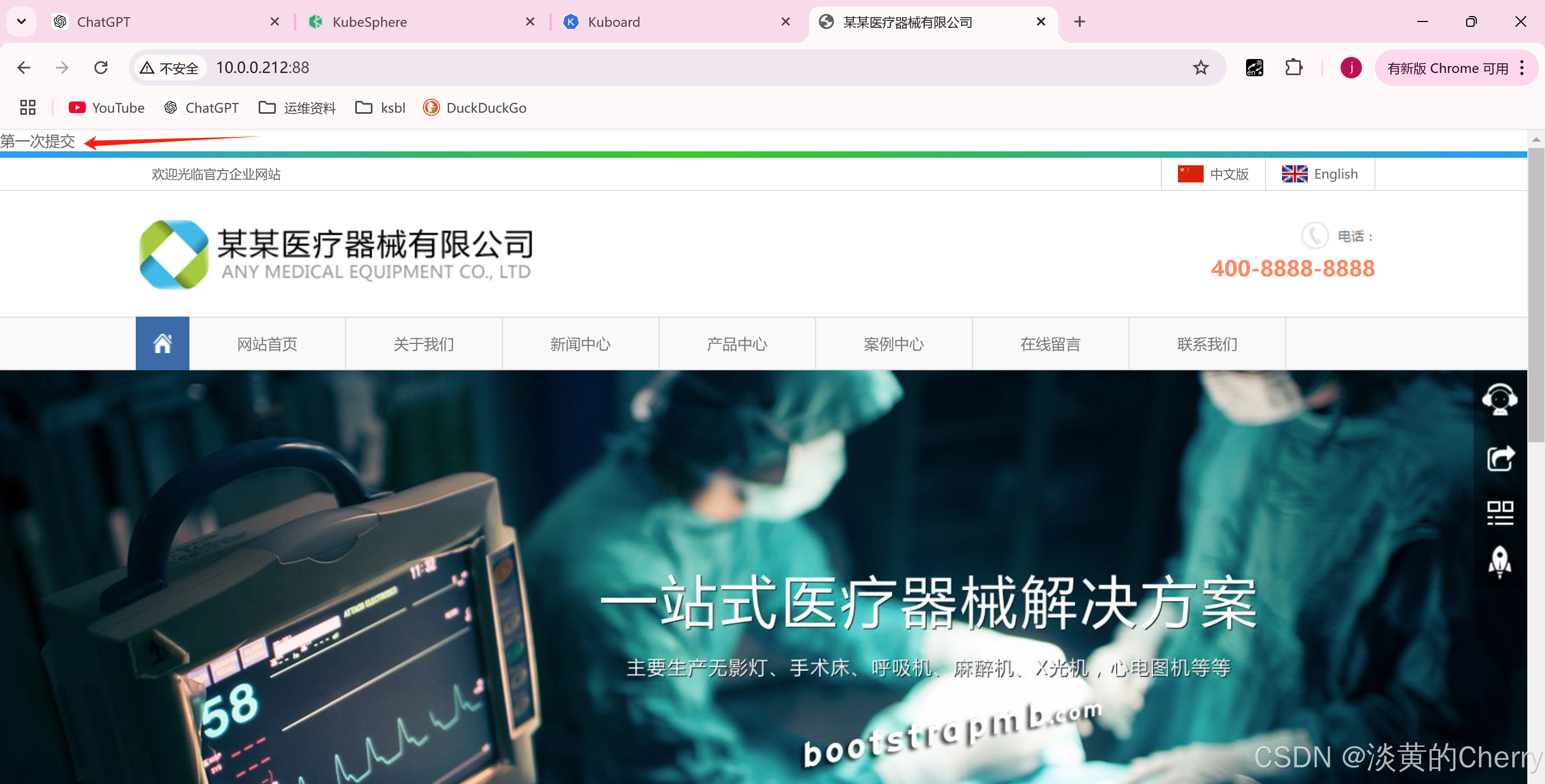

访问

http://10.0.0.212:88/

二、集成harbor

1.启动harbor仓库

[root@harbor.oldboyedu.com harbor]# docker-compose down -t 0
[root@harbor.oldboyedu.com harbor]# docker-compose up -d

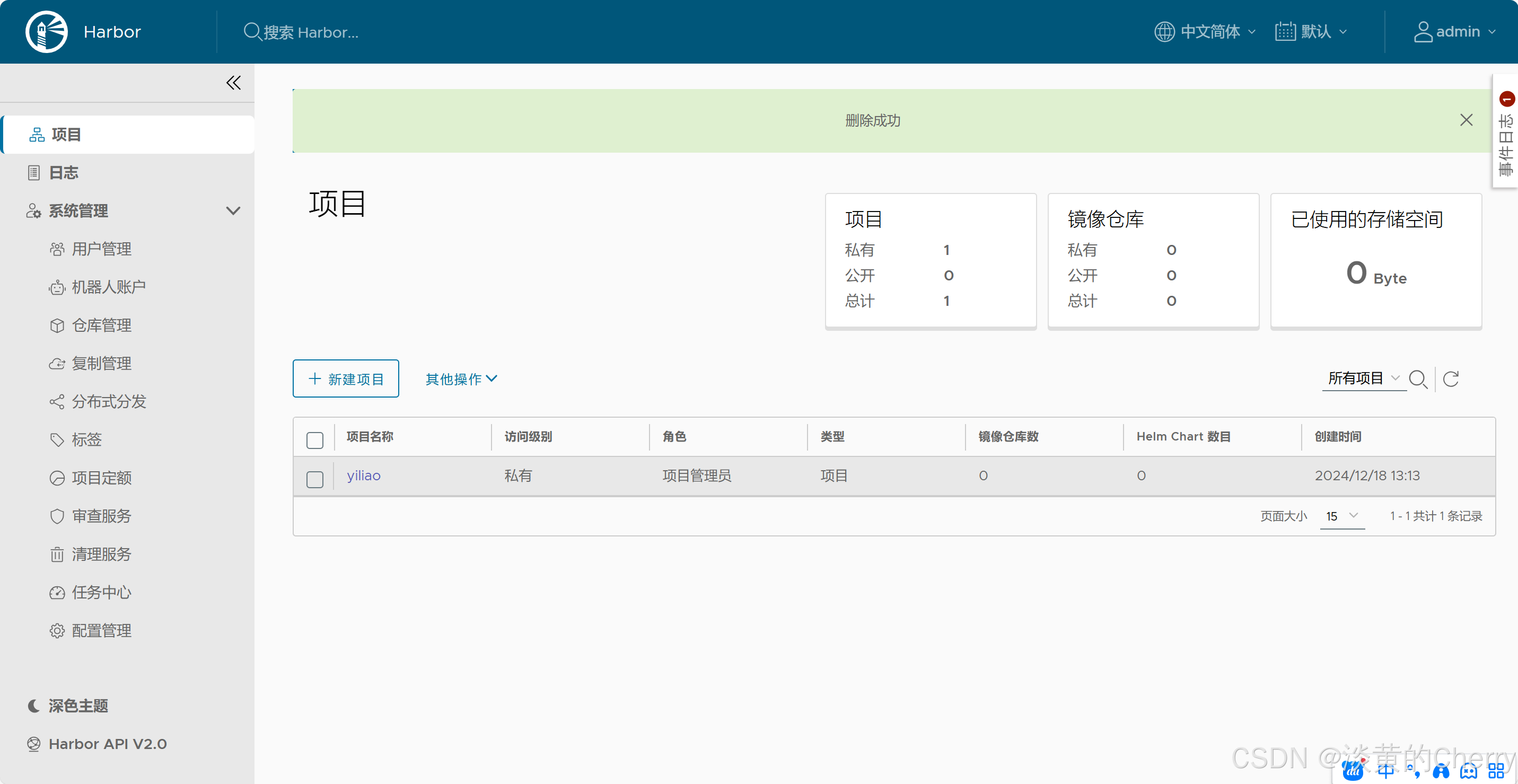

2.harbor新建仓库

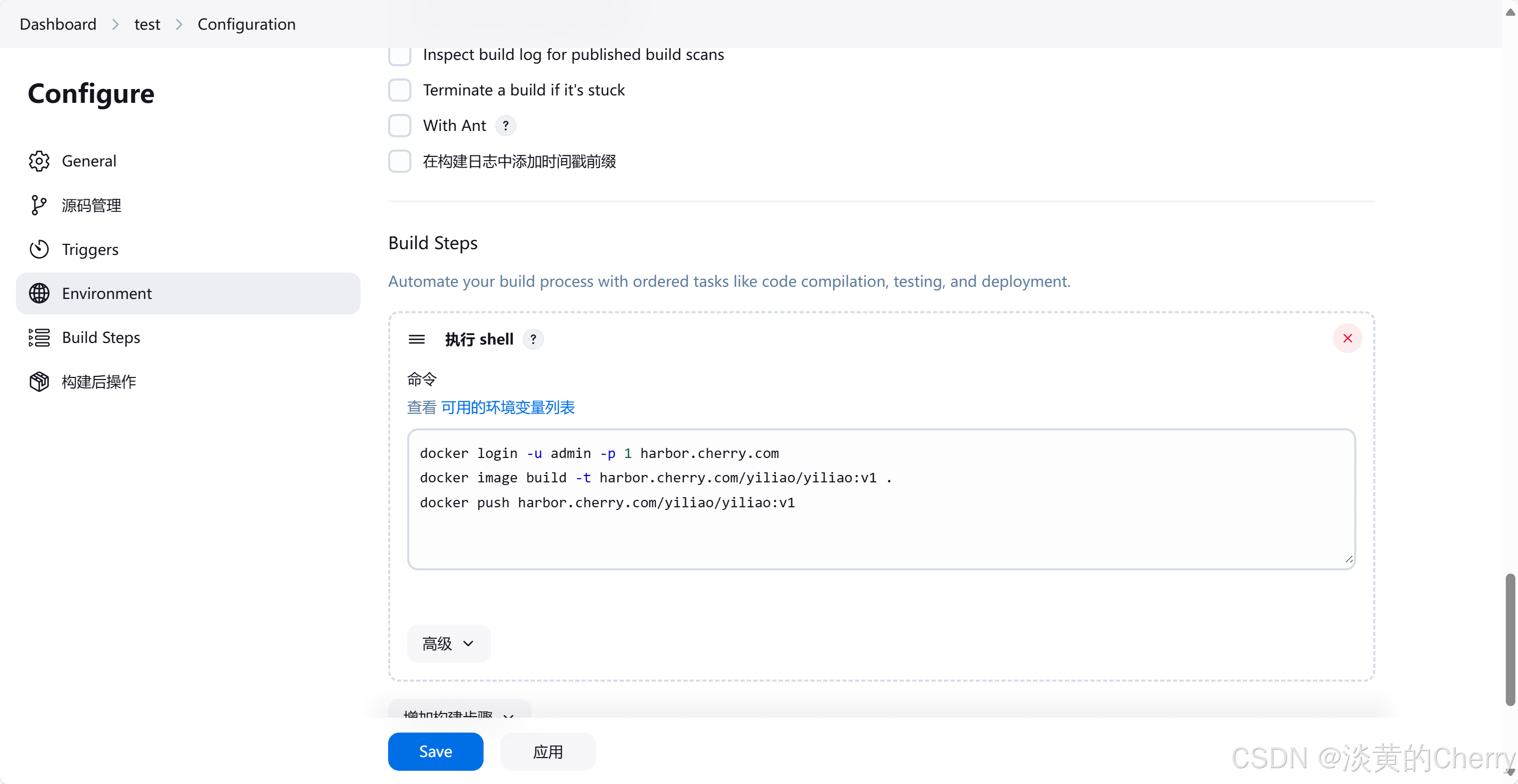

 3.jenkins编写shell

docker login -u admin -p 1 harbor.cherry.com
docker image build -t harbor.cherry.com/yiliao/yiliao:v1 .
docker push harbor.cherry.com/yiliao/yiliao:v1

 4.推送故障排查

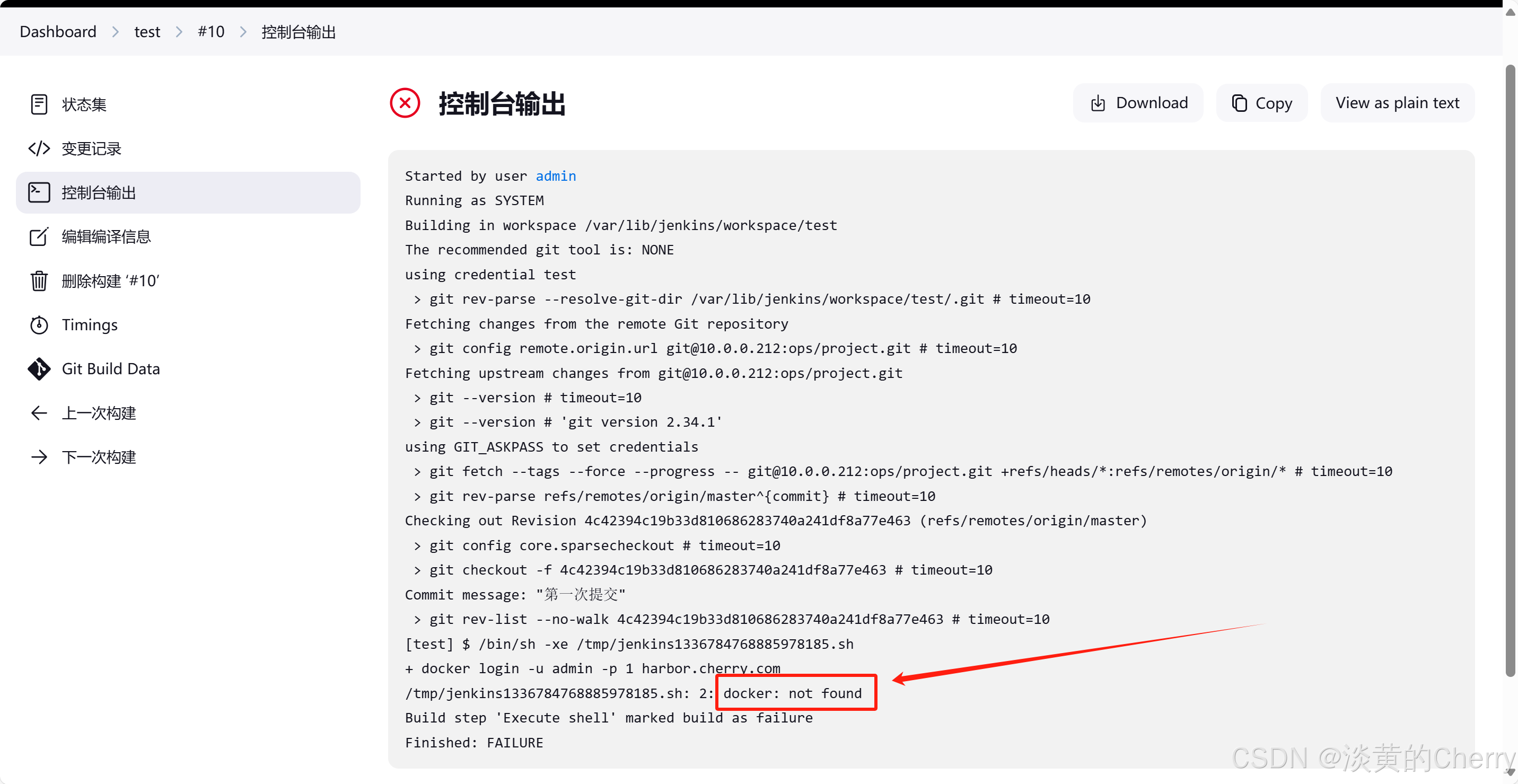

没有docker命令，只需要在jenkins上安装docker



jenkins上做harbor的hosts解析

[root@jenkins211 ~]# echo 10.0.0.250 harbor.cherry.com >>/etc/hosts

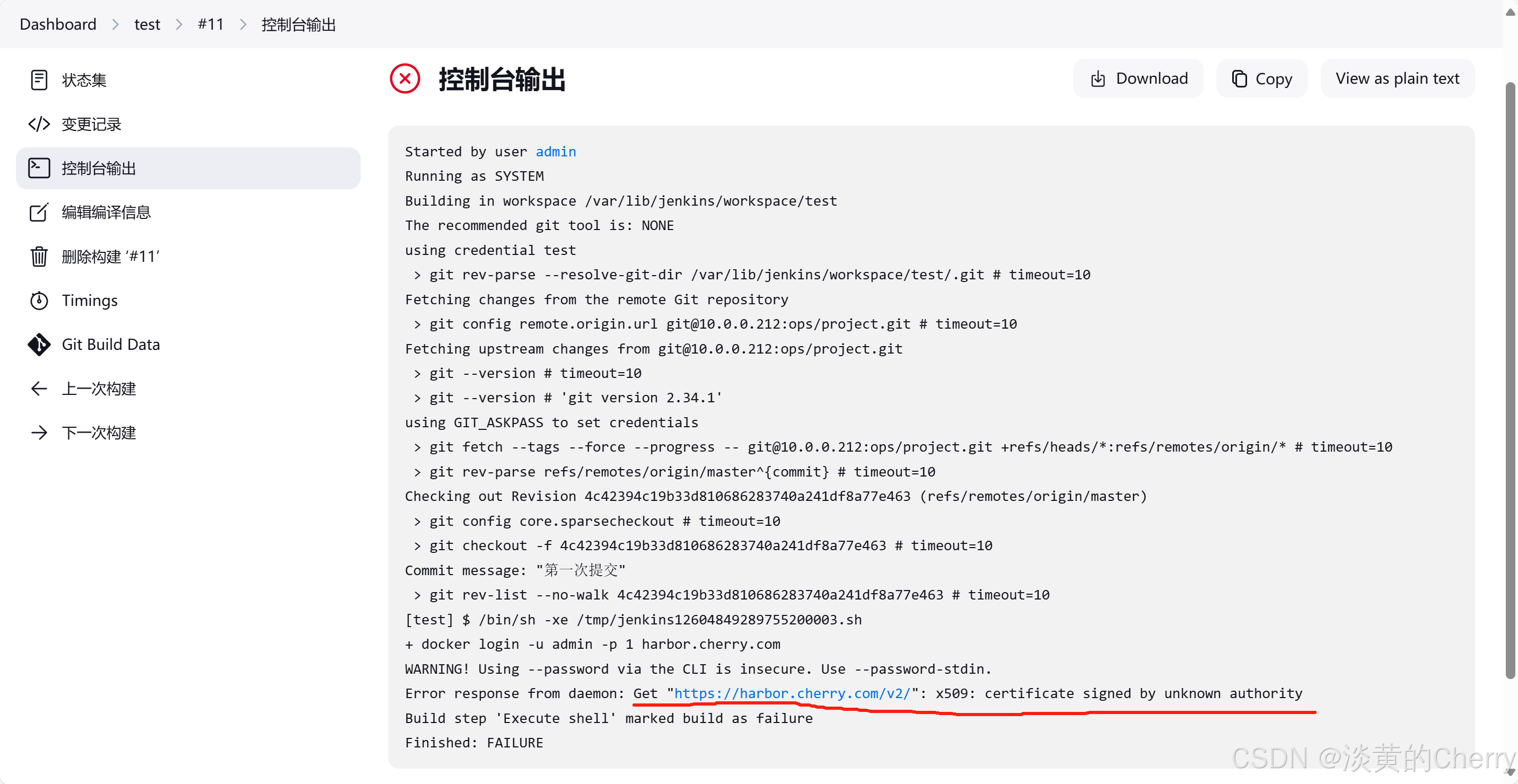

 x509证书问题

创建harbor客户端证书存放目录
[root@jenkins211 ~]# mkdir -pv /etc/docker/certs.d/harbor.cherry.com

harbor上需要准备客户端证书
[root@harbor certs]# ll
total 20
drwxr-xr-x 5 root root 4096 Dec 10 08:26 ./
drwxr-xr-x 4 root root 4096 Dec 10 08:45 ../
drwxr-xr-x 2 root root 4096 Dec 10 08:31 ca/
drwxr-xr-x 2 root root 4096 Dec 18 05:55 docker-client/
drwxr-xr-x 2 root root 4096 Dec 10 08:32 harbor-server/

[root@harbor.oldboyedu.com certs]# openssl x509 -inform PEM -in harbor-server/harbor.cherry.com.crt -out docker-client/harbor.cherry.com.cert
#查看证书一致性
[root@harbor.oldboyedu.com certs]# md5sum docker-client/harbor.cherry.com.cert harbor-server/harbor.cherry.com.crt
cp harbor-server/harbor.cherry.key /docker-client/
cp ca/ca.crt docker-client/

[root@harbor certs]# cd docker-client/
[root@harbor docker-client]# ll
total 20
drwxr-xr-x 2 root root 4096 Dec 18 05:55 ./
drwxr-xr-x 5 root root 4096 Dec 10 08:26 ../
-rw-r--r-- 1 root root 2041 Dec 18 05:55 ca.crt
-rw-r--r-- 1 root root 2134 Dec 18 05:38 harbor.cherry.com.cert
-rw------- 1 root root 3272 Dec 18 05:54 harbor.cherry.com.key

#拷贝证书到jenkins
[root@jenkins211 ~]# scp harbor.cherry.com:/softwares/harbor/certs/docker-client/* /etc/docker/certs.d/harbor.cherry.com
[root@jenkins211 ~]# ll /etc/docker/certs.d/harbor.cherry.com

登录harbor仓库

[root@jenkins211 harbor.cherry.com]# docker login -u admin -p 1 harbor.cherry.com
WARNING! Using --password via the CLI is insecure. Use --password-stdin.
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

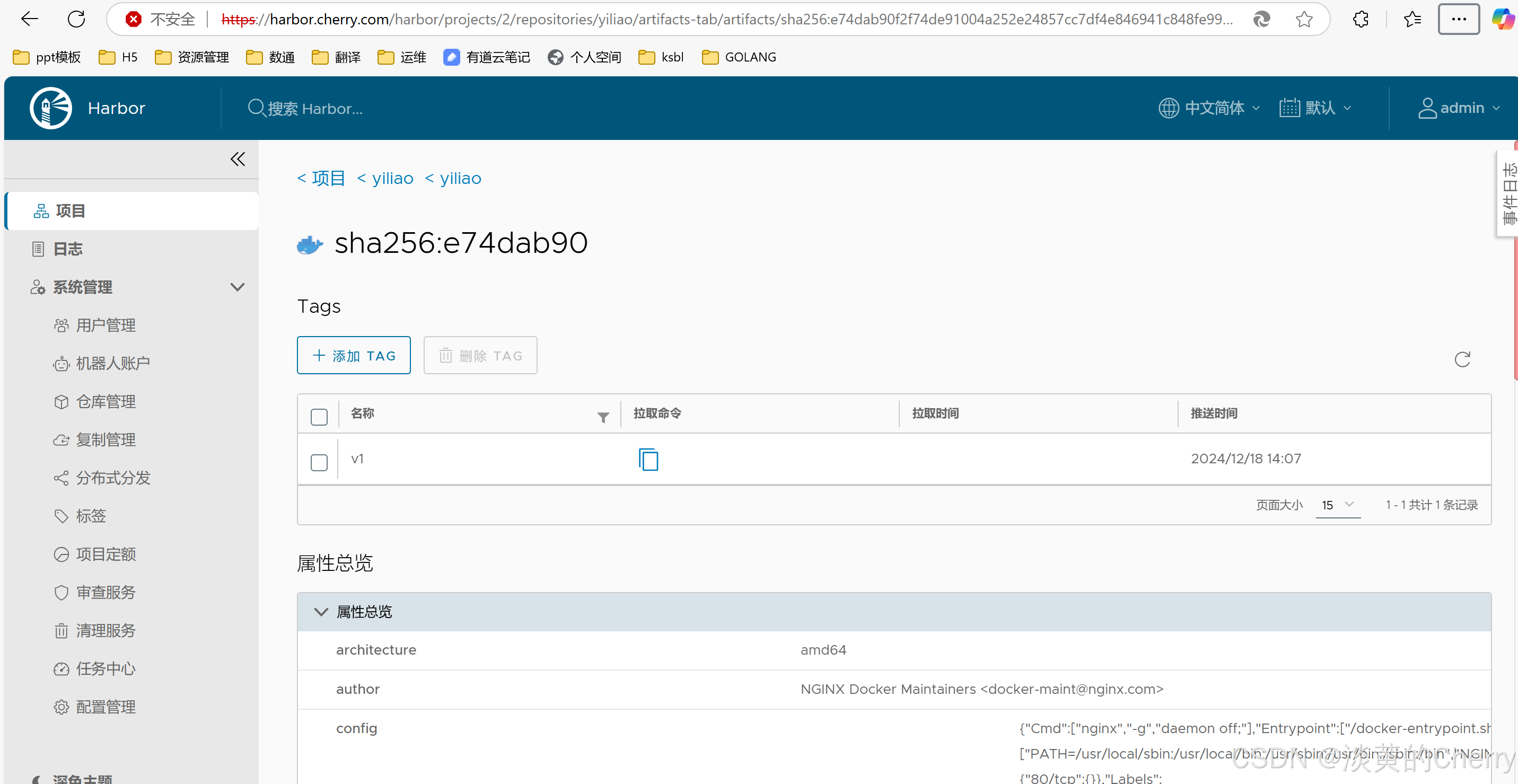

 5.harbor仓库查看镜像

这时候镜像已经推送到harbor仓库了



三、jenkins一键更新k8s项目

1.新建yiliao名称空间

[root@master231 01-yiliao]# cat 01-ns-yiliao.yaml
apiVersion: v1
kind: Namespace
metadata:
  labels:
    school: cherry
    class: cherry
  name: yiliao

2.使用deploy控制器编写资源清单

[root@master231 01-yiliao]# cat 02-deploy-yiliao.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-yiliao
  namespace: yiliao
spec:
  replicas: 3
  selector:
    matchLabels:
      apps: yiliao
  template:
    metadata:
      labels:
        apps: yiliao
    spec:
       containers:
       - name: yiliao
         image: harbor.cherry.com/yiliao/yiliao:v1

3.编写svc

[root@master231 01-yiliao]# cat 03-svc-yiliao.yaml
apiVersion: v1
kind: Service
metadata:
  name: yiliao-svc
  namespace: yiliao
spec:
  type: NodePort
  selector:
    apps: yiliao
  ports:
  - port: 80
    targetPort: 80
    nodePort: 30080

4.部署

#创建资源
[root@master231 01-yiliao]# kubectl apply -f .

#指定名称空间查看
[root@master231 01-yiliao]# kubectl get svc,po -n yiliao

5.创建secret

kubectl create secret docker-registry harbor-secret \
  --docker-server=harbor.cherry.com \
  --docker-username=admin \
  --docker-password=1 \
  --namespace=yiliao

创建工作负载

[root@master231 yiliao]# ll
total 20
drwxr-xr-x  2 root root 4096 Dec 18 15:30 ./
drwx------ 10 root root 4096 Dec 18 15:30 ../
-rw-r--r--  1 root root  103 Dec 18 14:44 01-ns-yiliao.yaml
-rw-r--r--  1 root root  378 Dec 18 15:20 02-deploy-yiliao.yaml
-rw-r--r--  1 root root  191 Dec 18 15:30 03-svc-yiliao.yaml


[root@master231 yiliao]# kubectl apply -f .
namespace/yiliao created
deployment.apps/deploy-yiliao created
service/yiliao-svc created


//所有节点都需要harbor客户端证书，不然镜像拉取会失败

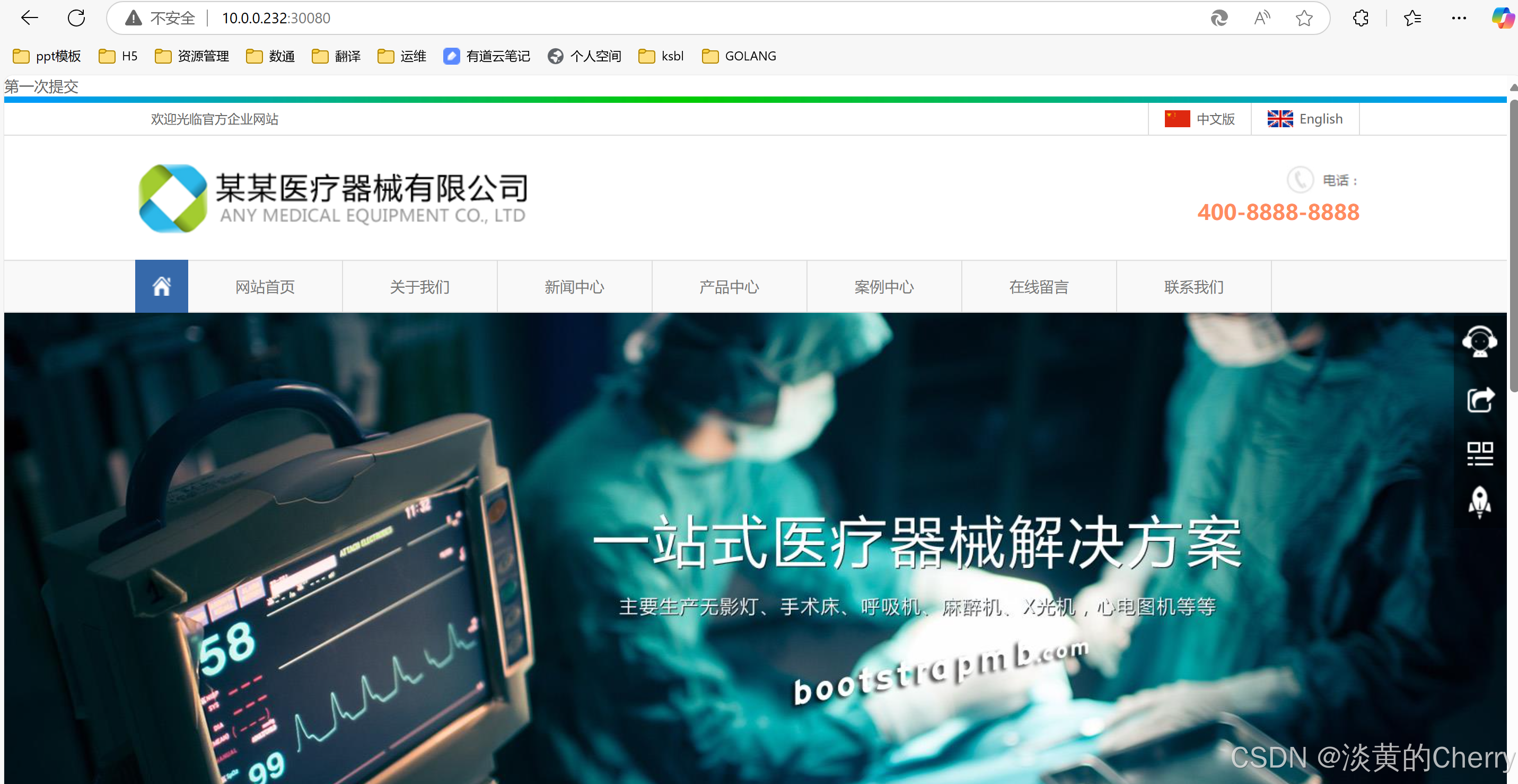

5.访问

http://10.0.0.232:30080/

 四、更新项目

1.jenkins安装kubectl工具

我本地已经下载了，这里就直接上传到jenkins中

#将kubectl放到PATH环境变量
[root@jenkins211 ~]# mv kubectl-1.23.17 /usr/local/sbin/kubectl
[root@jenkins211 ~]# chmod +x /usr/local/sbin/kubectl

2.pod创建的时候会携带https证书，所以我们需要拷贝231节点证书到jenkins

[root@jenkins211 ~]# mkdir -pv ~/.kube/
[root@jenkins211 ~]# scp 10.0.0.231:/root/.kube/config ~/.kube/

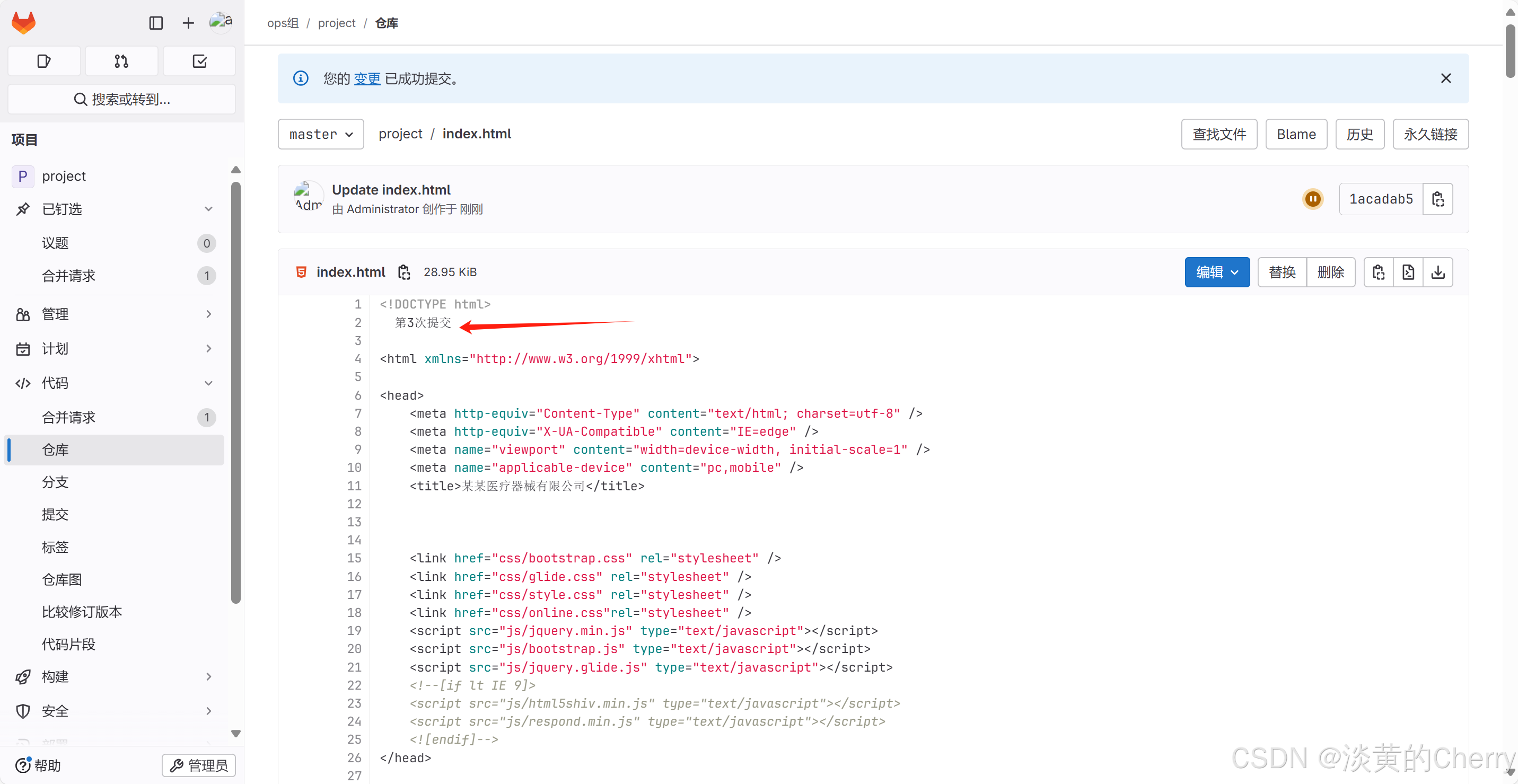

3.gitlab修改项目

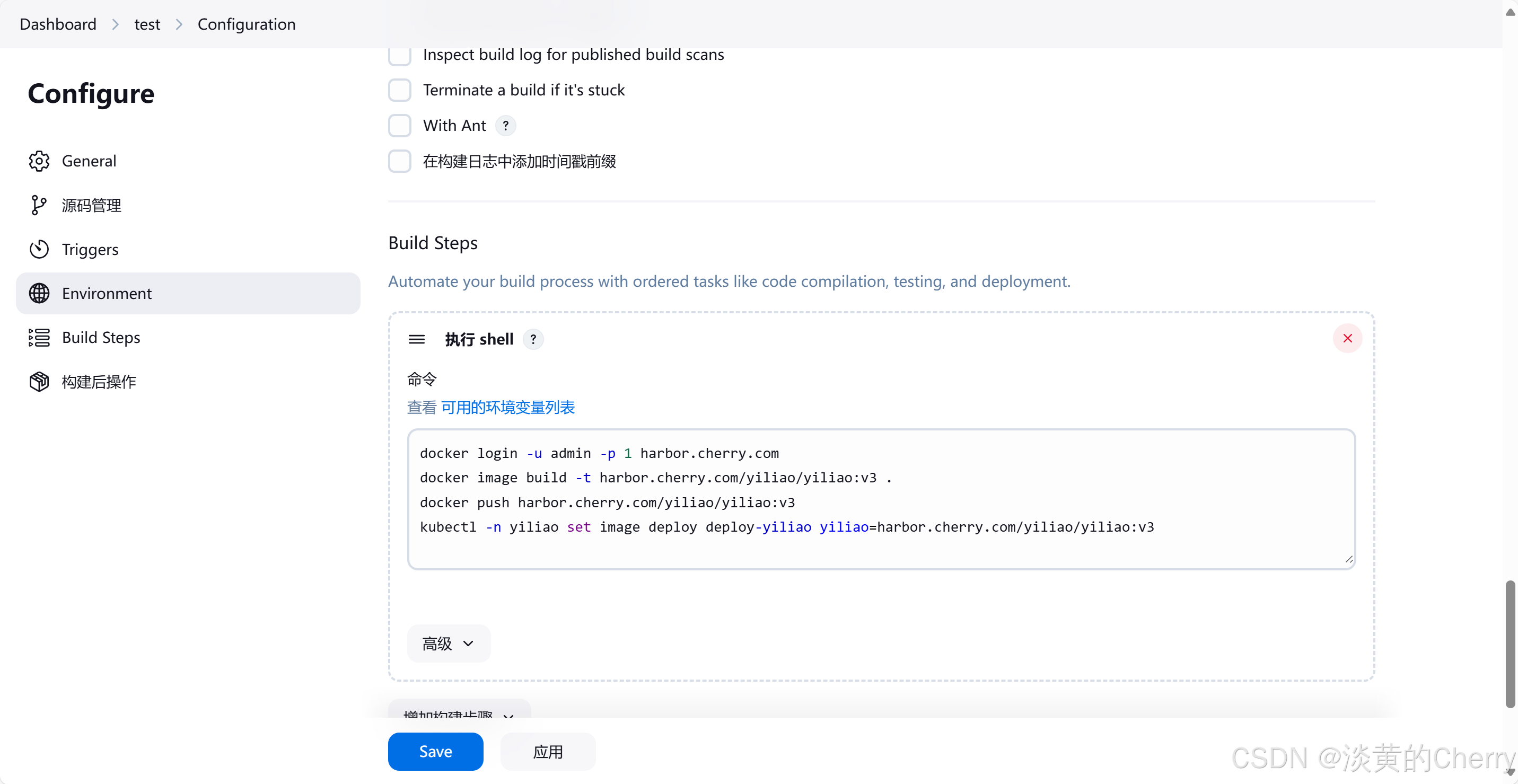

4.jenkins构建项目，测试

docker login -u admin -p 1 harbor.cherry.com
docker image build -t harbor.cherry.com/yiliao/yiliao:v3 .
docker push harbor.cherry.com/yiliao/yiliao:v3
kubectl -n yiliao set image deploy deploy-yiliao yiliao=harbor.cherry.com/yiliao/yiliao:v3

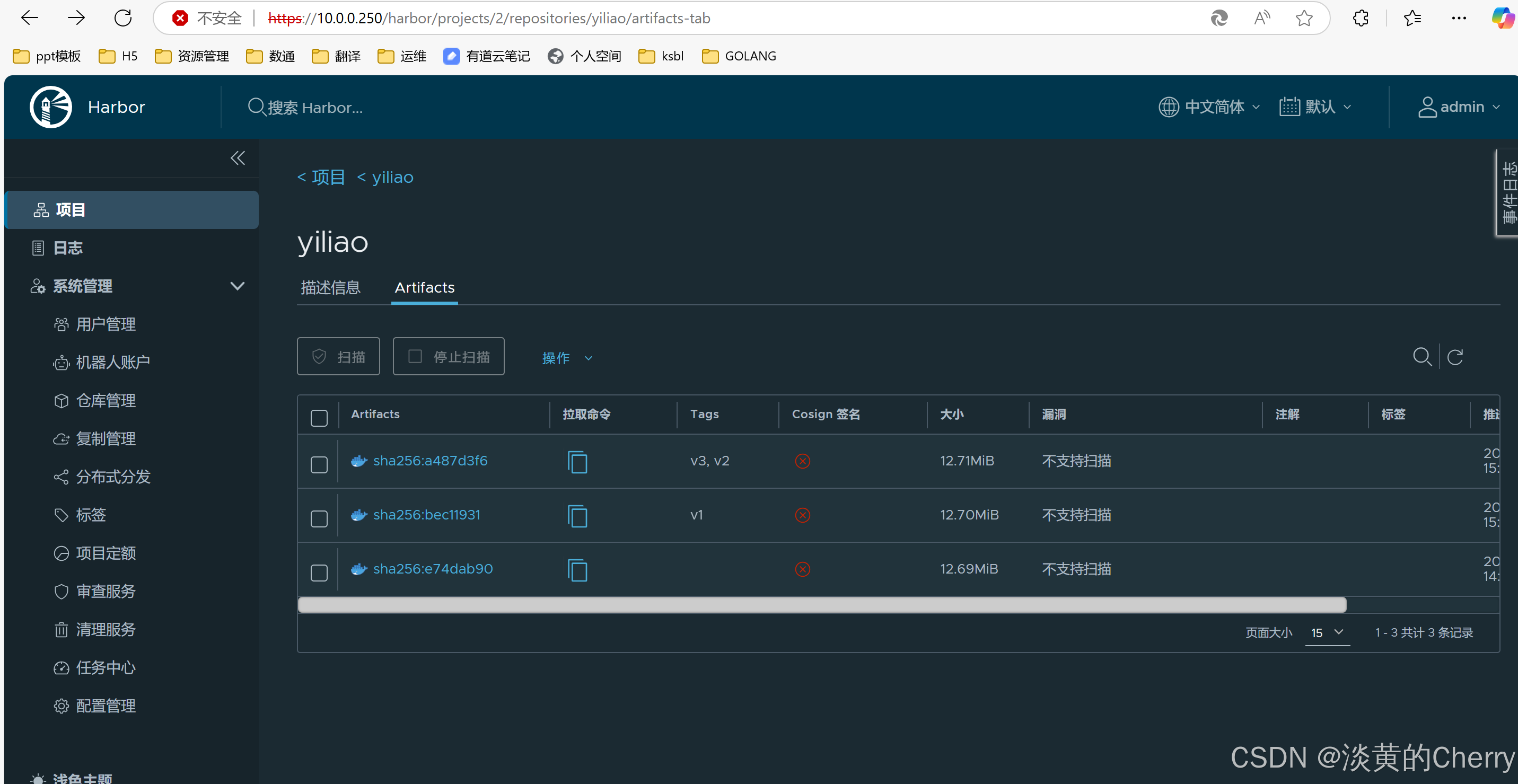

 查看harbor仓库，我们打的镜像都成功推上来了

 访问

五、自动构建

我们每次都需要手动更改jenkins版本号，这是件麻烦的事，我们可以选择git参数构建的方式，这样就不需要手动更改版本号

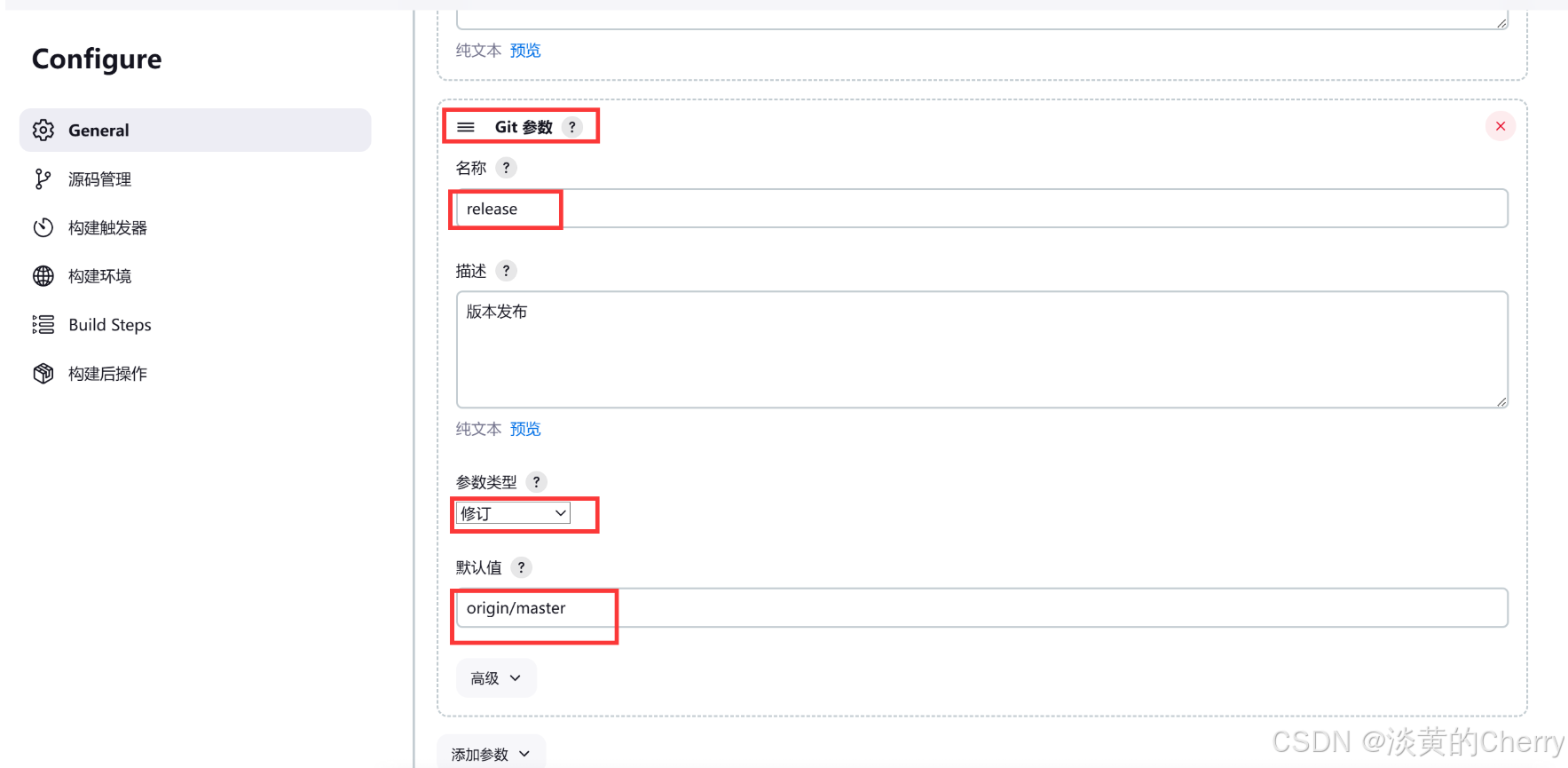

1.git参数填写

 2.修改jenkins中shell脚本

docker login -u admin -p 1 harbor.cherry.com
docker image build -t harbor.cherry.com/yiliao/yiliao:$release .
docker push harbor.cherry.com/yiliao/yiliao:$release
kubectl -n yiliao set image deploy deploy-yiliao yiliao=harbor.cherry.com/yiliao/yiliao:$release

4.jenkins选择版本构建

5.harbor仓库查看最新镜像
