GD32使用固件库通过DMA进行串口通信

无情哥

已于 2023-09-06 16:39:45 修改

阅读量1.1k

点赞数 3

文章标签：单片机 c语言 mcu stm32

于 2023-09-06 16:11:37 首次发布

本文链接：https://blog.youkuaiyun.com/m0_64812660/article/details/132717222

版权

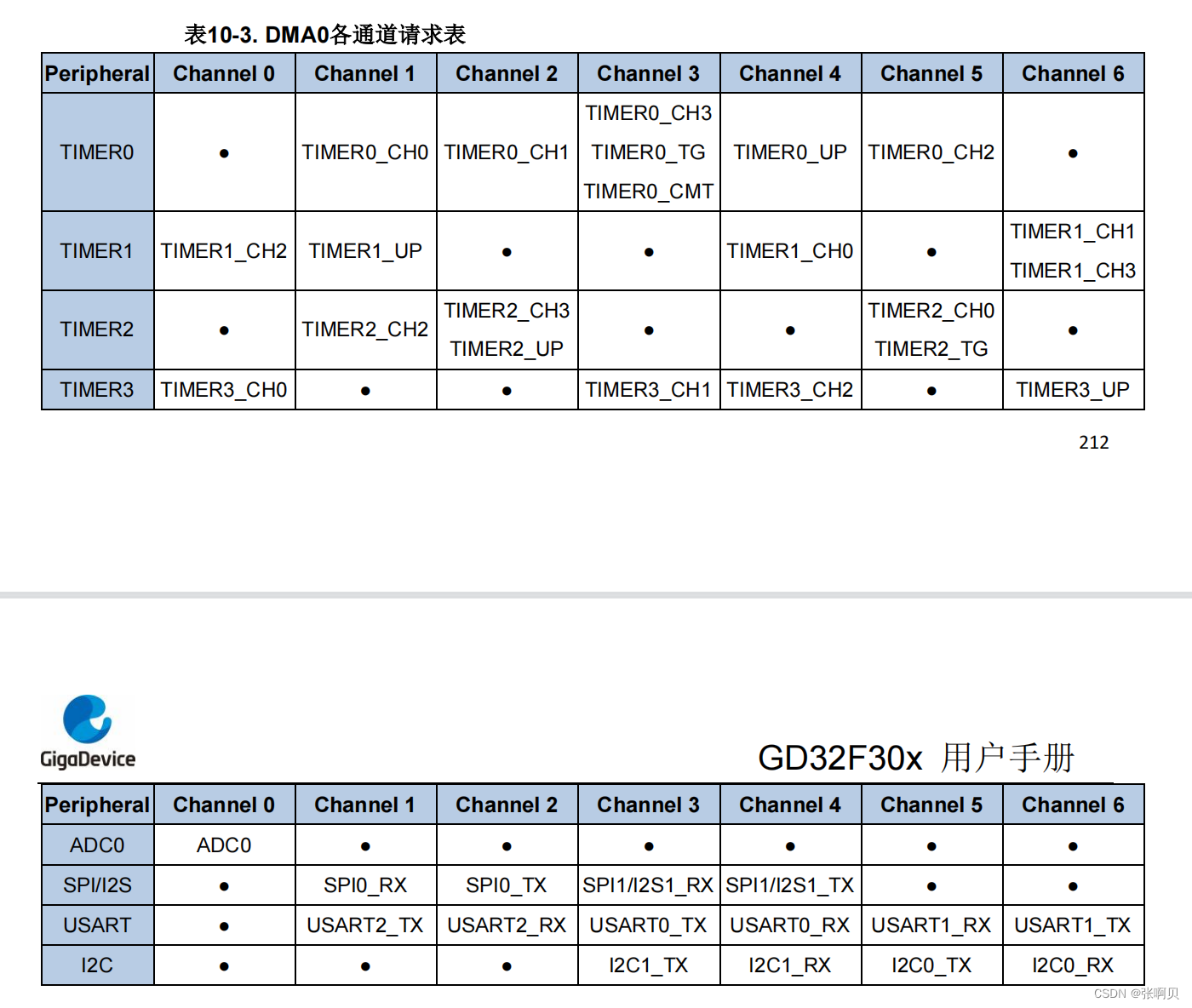

1、由编程手册可知DMA0_CH5对应USART1_RT，DMA0_CH6对应USART1_TX.

2、配置串口

void gd_eval_com_init(void)
{
	/* enable GPIO & USART clock */
    rcu_periph_clock_enable(RCU_GPIOA);//使能GPIO时钟
    rcu_periph_clock_enable(RCU_USART1);//使能USART时钟

	/* config GPIO, Rx as alternate function push-pull */
    gpio_init(GPIOA, GPIO_MODE_AF_PP, GPIO_OSPEED_50MHZ,GPIO_PIN_2);//输出
    gpio_init(GPIOA, GPIO_MODE_IPU, GPIO_OSPEED_50MHZ,GPIO_PIN_3);//输入

	/* USART configure */
    usart_deinit(USART1);
    usart_baudrate_set(USART1,115200);
	usart_word_length_set(USART1, USART_WL_8BIT);
    usart_stop_bit_set(USART1, USART_STB_1BIT);
    usart_parity_config(USART1, USART_PM_NONE);
	usart_hardware_flow_rts_config(USART1, USART_RTS_DISABLE);
    usart_hardware_flow_cts_config(USART1, USART_CTS_DISABLE);
    usart_transmit_config(USART1, USART_TRANSMIT_ENABLE);
    usart_receive_config(USART1, USART_RECEIVE_ENABLE);

	//start uart
	usart_enable(USART1);//使能USART

}

3、配置DMA0

void dma_config(void)
{
    rcu_periph_clock_enable(RCU_DMA0);//开启时钟
    /* ADC_DMA_channel configuration */
    dma_parameter_struct dma_data_parameter;
    /* ADC DMA_channel configuration */
    dma_deinit(DMA0, DMA_CH5);
		dma_struct_para_init(&dma_data_parameter);
    /* initialize DMA single data mode */
    dma_data_parameter.periph_addr  = (uint32_t)(&USART_DATA(USART1));
    dma_data_parameter.periph_inc   = DMA_PERIPH_INCREASE_DISABLE;
    dma_data_parameter.memory_addr  = (uint32_t)(receiver_buffer);
    dma_data_parameter.memory_inc   = DMA_MEMORY_INCREASE_ENABLE;
    dma_data_parameter.periph_width = DMA_PERIPHERAL_WIDTH_8BIT;
    dma_data_parameter.memory_width = DMA_MEMORY_WIDTH_8BIT;
    dma_data_parameter.direction    = DMA_PERIPHERAL_TO_MEMORY;
    dma_data_parameter.number       = BUFFER_SIZE;
    dma_data_parameter.priority     = DMA_PRIORITY_HIGH;
    dma_init(DMA0, DMA_CH5, &dma_data_parameter);
    dma_circulation_enable(DMA0, DMA_CH5);//使能

	dma_deinit(DMA0, DMA_CH6);
	dma_data_parameter.periph_addr  = (uint32_t)(&USART_DATA(USART1));
    dma_data_parameter.periph_inc   = DMA_PERIPH_INCREASE_DISABLE;
    dma_data_parameter.memory_addr  = (uint32_t)(transmitter_buffer);
    dma_data_parameter.memory_inc   = DMA_MEMORY_INCREASE_ENABLE;
    dma_data_parameter.periph_width = DMA_PERIPHERAL_WIDTH_8BIT;
    dma_data_parameter.memory_width = DMA_MEMORY_WIDTH_8BIT;
    dma_data_parameter.direction    = DMA_MEMORY_TO_PERIPHERAL;
    dma_data_parameter.number       = BUFFER_SIZE;
    dma_data_parameter.priority     = DMA_PRIORITY_HIGH;
    dma_init(DMA0, DMA_CH6, &dma_data_parameter);
    dma_circulation_disable(DMA0, DMA_CH6);//失能

    usart_dma_receive_config(USART1, USART_DENR_ENABLE);
	usart_dma_transmit_config(USART1, USART_DENT_ENABLE);
    /* enable DMA channel */
    dma_channel_enable(DMA0, DMA_CH5);
	dma_channel_disable(DMA0, DMA_CH6);

}

4、main.c的while(1)

while(1)
{
    /* 等待DMA传输完成 */
     while (RESET == dma_flag_get(DMA0,DMA_CH5, DMA_FLAG_FTF));

    /* 打印接收到的数据 */

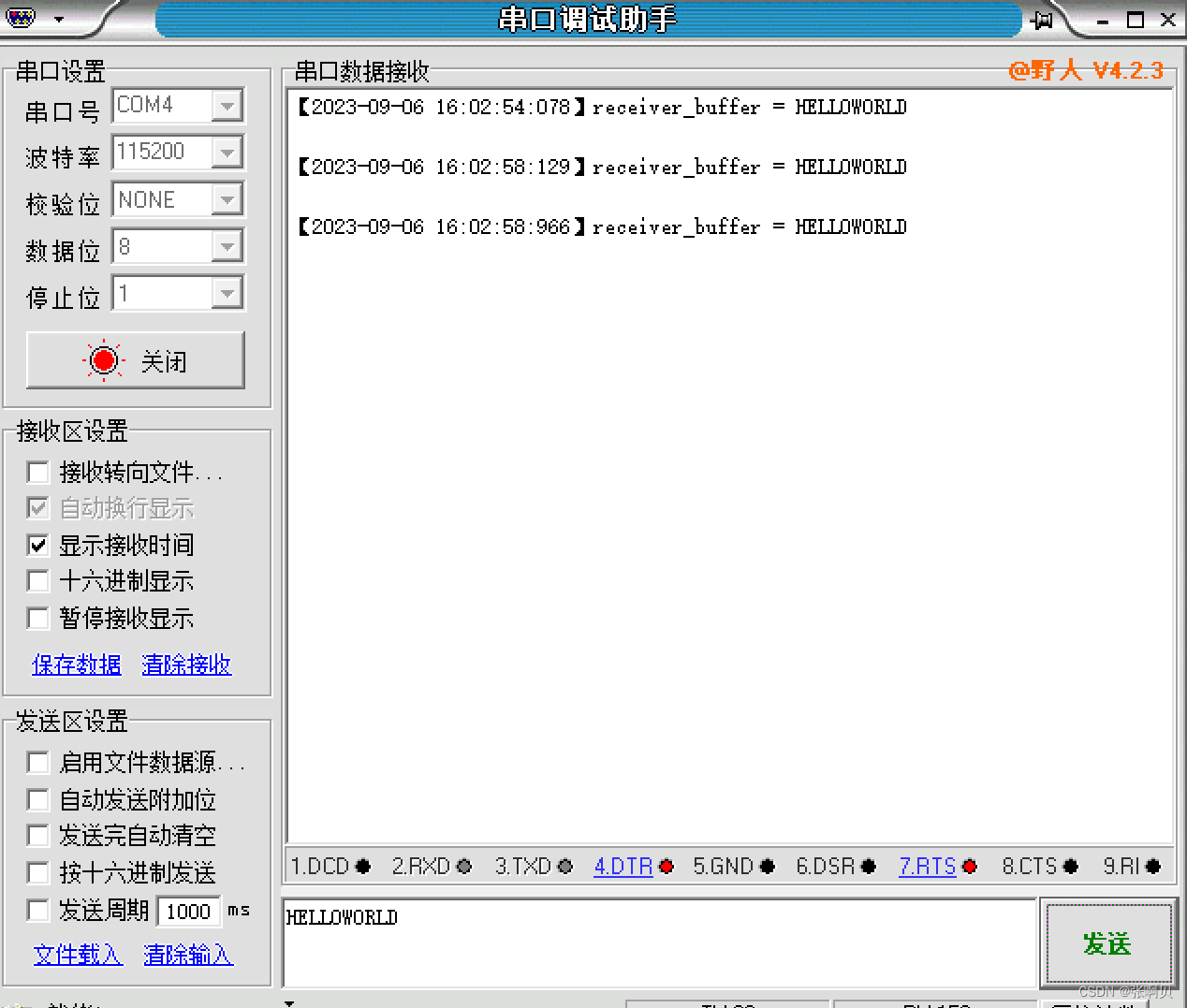

    printf("receiver_buffer = %s\n", receiver_buffer);

    /* 清除DMA传输完成标志位 */
    dma_flag_clear(DMA0,DMA_CH5, DMA_FLAG_FTF);

	memset(receiver_buffer,0,sizeof(receiver_buffer));

}
