OSPF高级组网

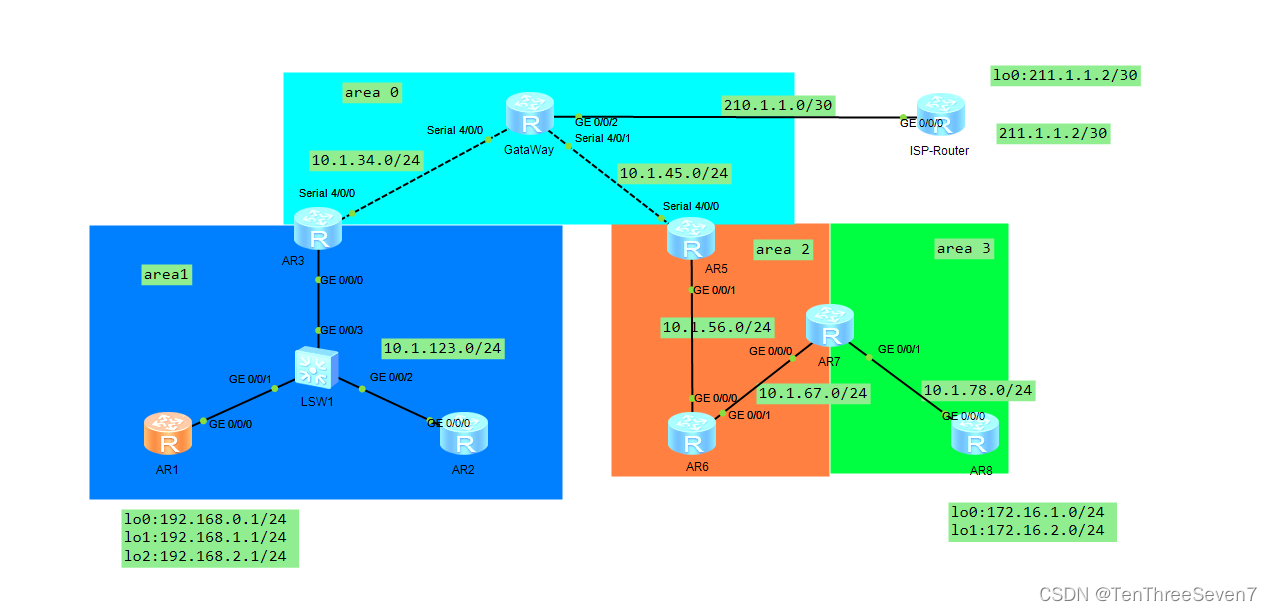

1.实验拓扑

2.实验要求

1.IP地址配置

GataWay:

[GataWay]int s4/0/0
[GataWay-Serial4/0/0]ip address 10.1.34.2 24
[GataWay-Serial4/0/0]q
[GataWay]int s4/0/1
[GataWay-Serial4/0/1]ip address 10.1.45.2 24
[GataWay-Serial4/0/1]q
[GataWay]int g0/0/2
[GataWay-GigabitEthernet0/0/2]ip address 210.1.1.1 30

ISP:

[ISP]int g0/0/0
[ISP-GigabitEthernet0/0/0]ip address 210.1.1.2 30
[ISP-GigabitEthernet0/0/0]q
[ISP]int LoopBack 0
[ISP-LoopBack0]ip address 211.1.1.2 30
[ISP-LoopBack0]q

R1:

[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]ip address 10.1.123.1 24
[R1-GigabitEthernet0/0/0]q
[R1]int LoopBack 0
[R1-LoopBack0]ip address 192.168.0.1 24
[R1-LoopBack0]q
[R1]int LoopBack 1
[R1-LoopBack1]ip address 192.168.1.1 24
[R1-LoopBack1]q
[R1]int L
