华为设备ensp做STP配置及抓包分析

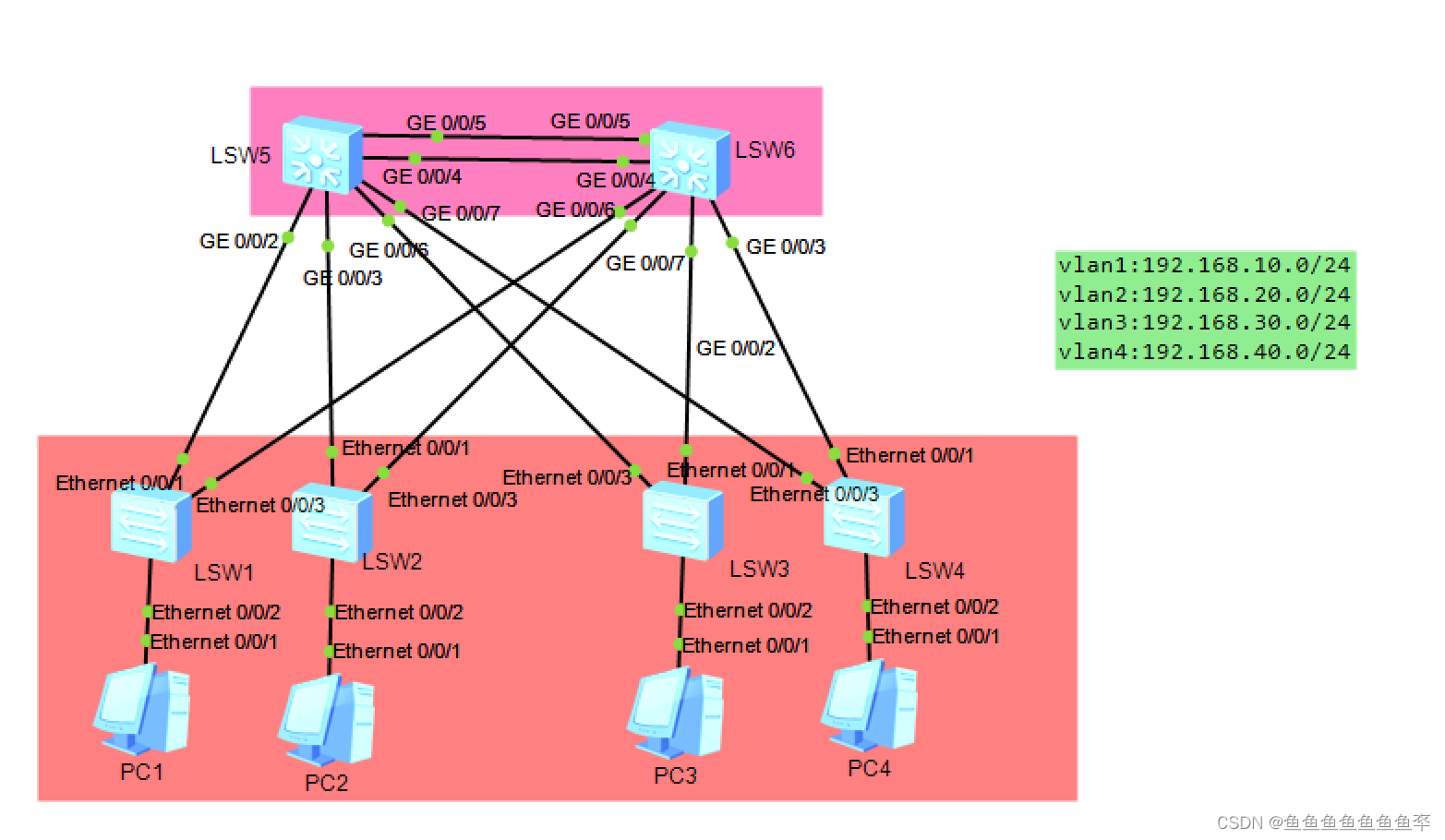

一、网络拓扑

二、各个设备的配置

PC1：

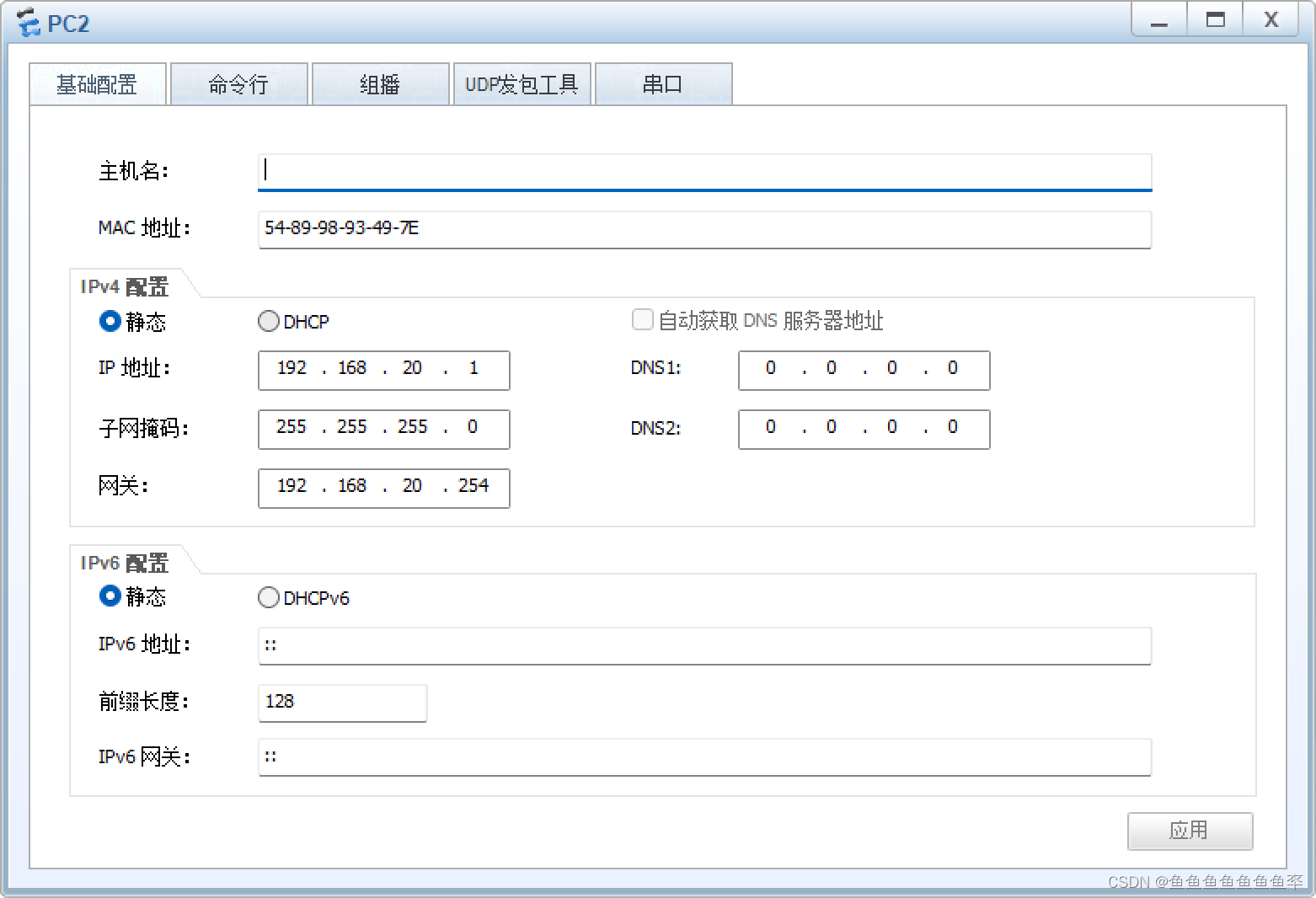

PC配置：

PC3配置：

PC4配置：

LSW1与LSW2、LSW3、LSW4配置一样如下：

#
sysname LSW1
#
undo info-center enable
#
vlan batch 10 20 30 40
#
stp region-configuration
 instance 1 vlan 10 20
 instance 2 vlan 30 40
 active region-configuration
#
interface Ethernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface Ethernet0/0/2
 port link-type access
 port default vlan 10
#
interface Ethernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#

LSW5与LSW6配置一样如下：

#
sysname LSW 5
#
undo info-center enable
#
vlan batch 10 20 30 40
#
stp mode stp
stp instance 1 root primary
stp instance 2 root secondary
#
stp region-configuration
 region-name huawei
 revision-level 5
 instance 1 vlan 10 20
 instance 2 vlan 30 40
 active region-configuration
#
interface Vlanif10
 ip address 192.168.10.254 255.255.255.0
#
interface Vlanif20
 ip address 192.168.20.254 255.255.255.0
#
interface Vlanif30
 ip address 192.168.30.254 255.255.255.0
#
interface Vlanif40
 ip address 192.168.40.254 255.255.255.0
#
interface Eth-Trunk1
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/4
 eth-trunk 1
#
interface GigabitEthernet0/0/5
 eth-trunk 1
#
interface GigabitEthernet0/0/6
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/7
 port link-type trunk
 port trunk allow-pass vlan 2 to 4094
#

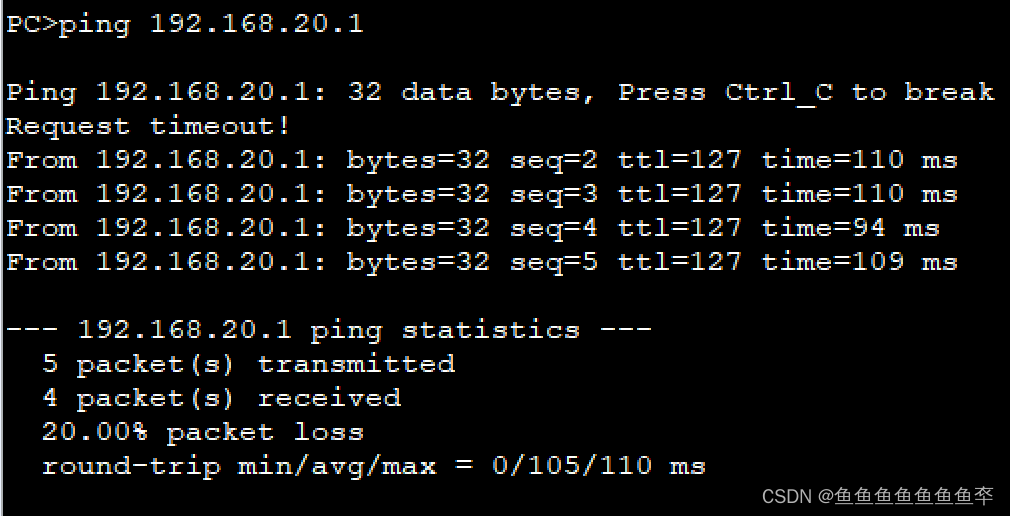

三、ping通测试

四、抓包

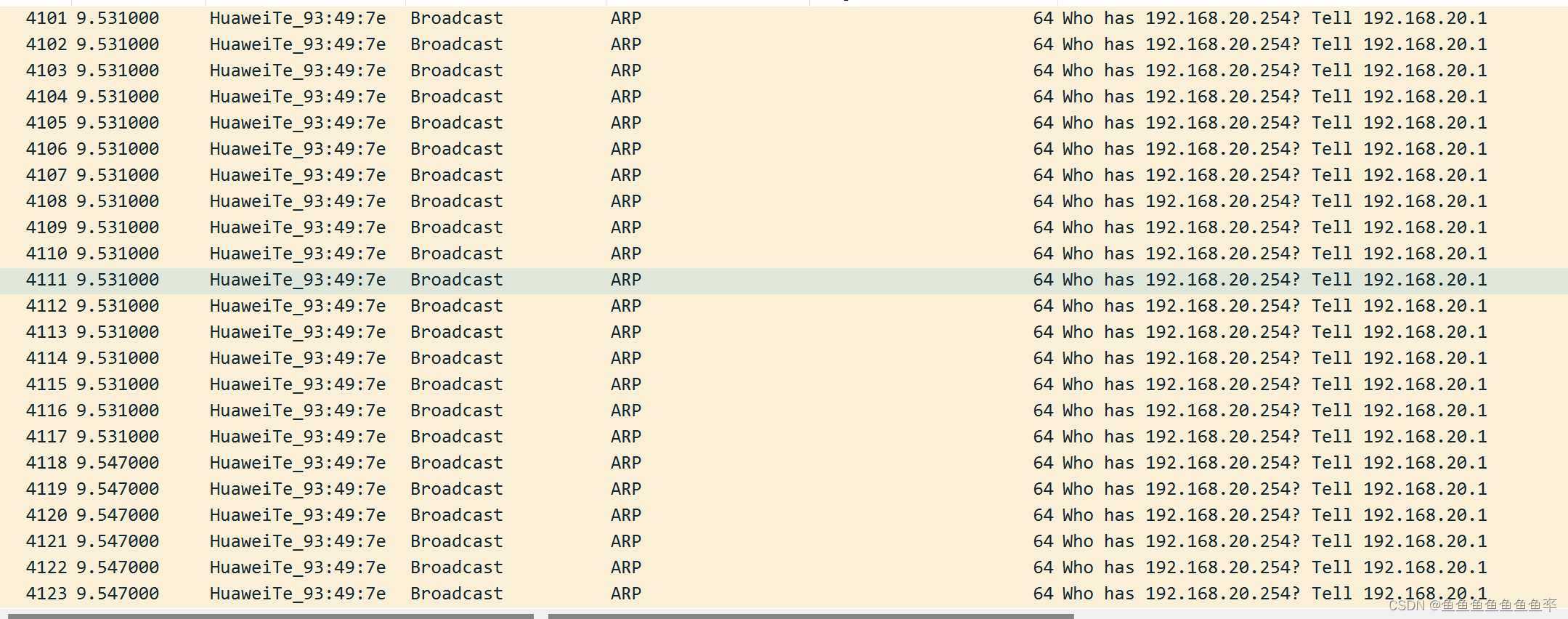

无stp时的抓包会发现在短时间内有大量的ARP报文

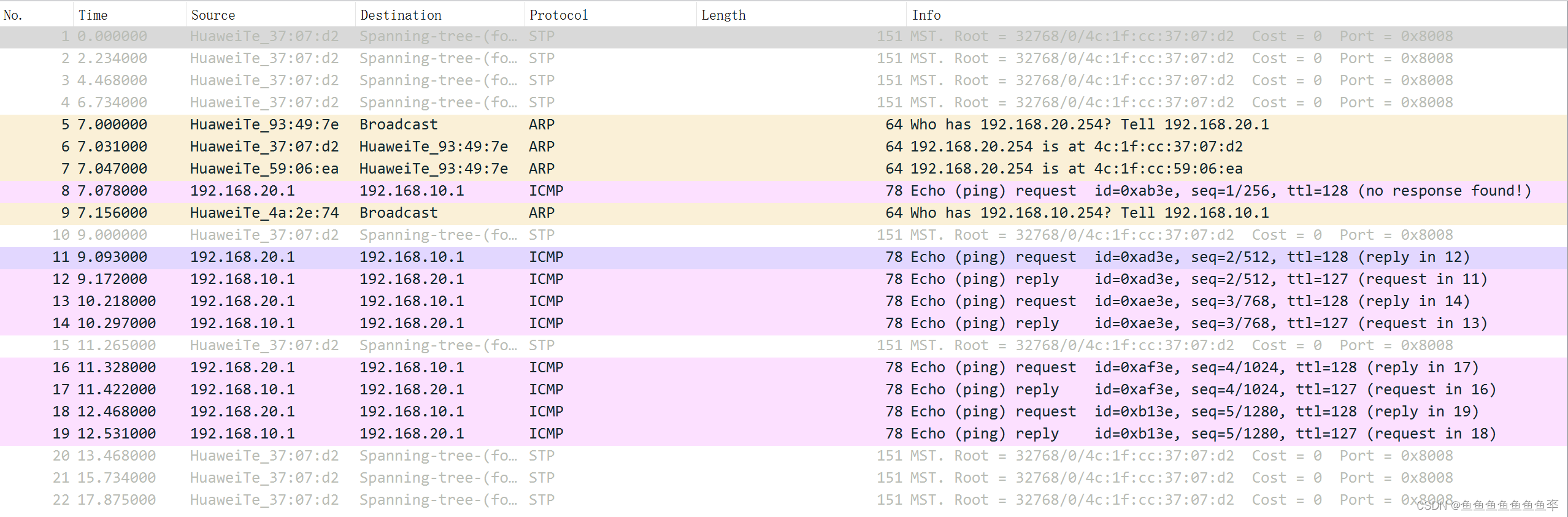

有stp时的抓包：
