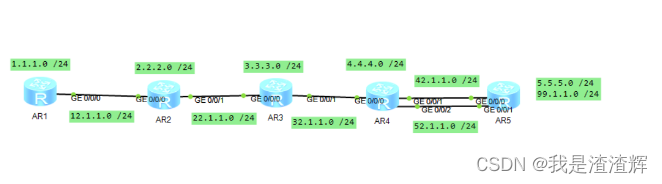

实验拓扑

在这里插入图片描述

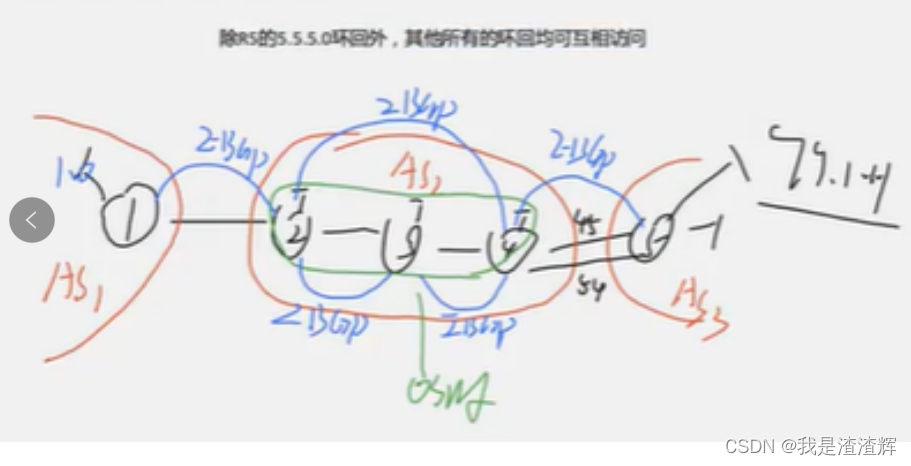

实验要求

除R5的5.5.5.0环回外，其他所有的环回均可以互相访问

实验配置

[r1-bgp]display this
[V200R003C00]
#
bgp 1
 router-id 1.1.1.1
 peer 12.1.1.2 as-number 2
 #
 ipv4-family unicast
  undo synchronization
  deterministic-med
  network 1.1.1.0 255.255.255.0
  peer 12.1.1.2 enable
#
return

[r2-bgp]display th
[V200R003C00]
#
bgp 2
 router-id 2.2.2.2
 peer 3.3.3.3 as-number 2
 peer 3.3.3.3 connect-interface LoopBack0
 peer 4.4.4.4 as-number 2
 peer 4.4.4.4 connect-interface LoopBack0
 peer 12.1.1.1 as-number 1
 #
 ipv4-family unicast
  undo synchronization
  network 2.2.2.0 255.255.255.0
  peer 3.3.3.3 enable
  peer 3.3.3.3 next-hop-local
  peer 4.4.4.4 enable
  peer 4.4.4.4 next-hop-local
  peer 12.1.1.1 enable
#
return

[r3-bgp]display th
[V200R003C00]
#
bgp 2
 router-id 3.3.3.3
 peer 2.2.2.2 as-number 2
 peer 2.2.2.2 connect-interface LoopBack0
 peer 4.4.4.4 as-number 2
 peer 4.4.4.4 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 3.3.3.0 255.255.255.0
  peer 2.2.2.2 enable
  peer 4.4.4.4 enable
#
return

[r4-bgp]display th
[V200R003C00]
#
bgp 2
 router-id 4.4.4.4
 peer 2.2.2.2 as-number 2
 peer 2.2.2.2 connect-interface LoopBack0
 peer 3.3.3.3 as-number 2
 peer 3.3.3.3 connect-interface LoopBack0
 peer 5.5.5.5 as-number 3
 peer 5.5.5.5 ebgp-max-hop 2
 peer 5.5.5.5 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 4.4.4.0 255.255.255.0
  peer 2.2.2.2 enable
  peer 2.2.2.2 next-hop-local
  peer 3.3.3.3 enable
  peer 3.3.3.3 next-hop-local
  peer 5.5.5.5 enable
#
return

[r5-bgp]display th
[V200R003C00]
#
bgp 3
 router-id 5.5.5.5
 peer 4.4.4.4 as-number 2
 peer 4.4.4.4 ebgp-max-hop 2
 peer 4.4.4.4 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 99.1.1.0 255.255.255.0
  peer 4.4.4.4 enable
#
return
