HCIP第二天

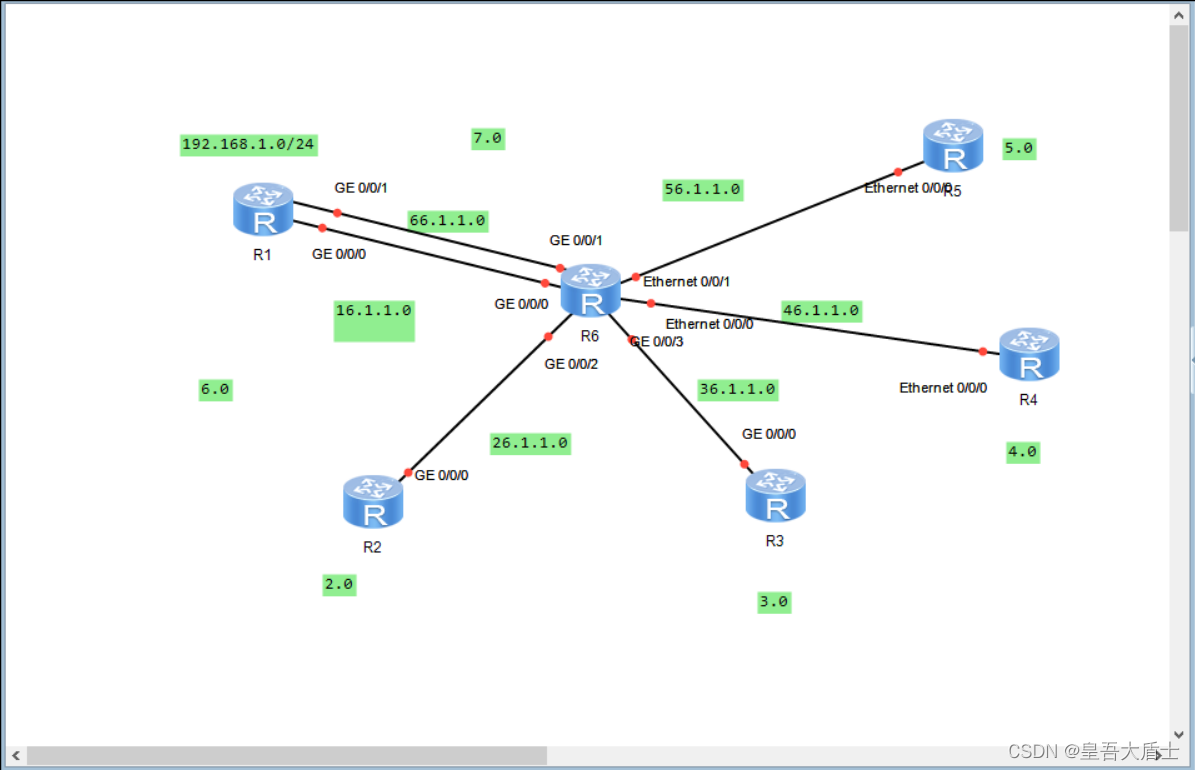

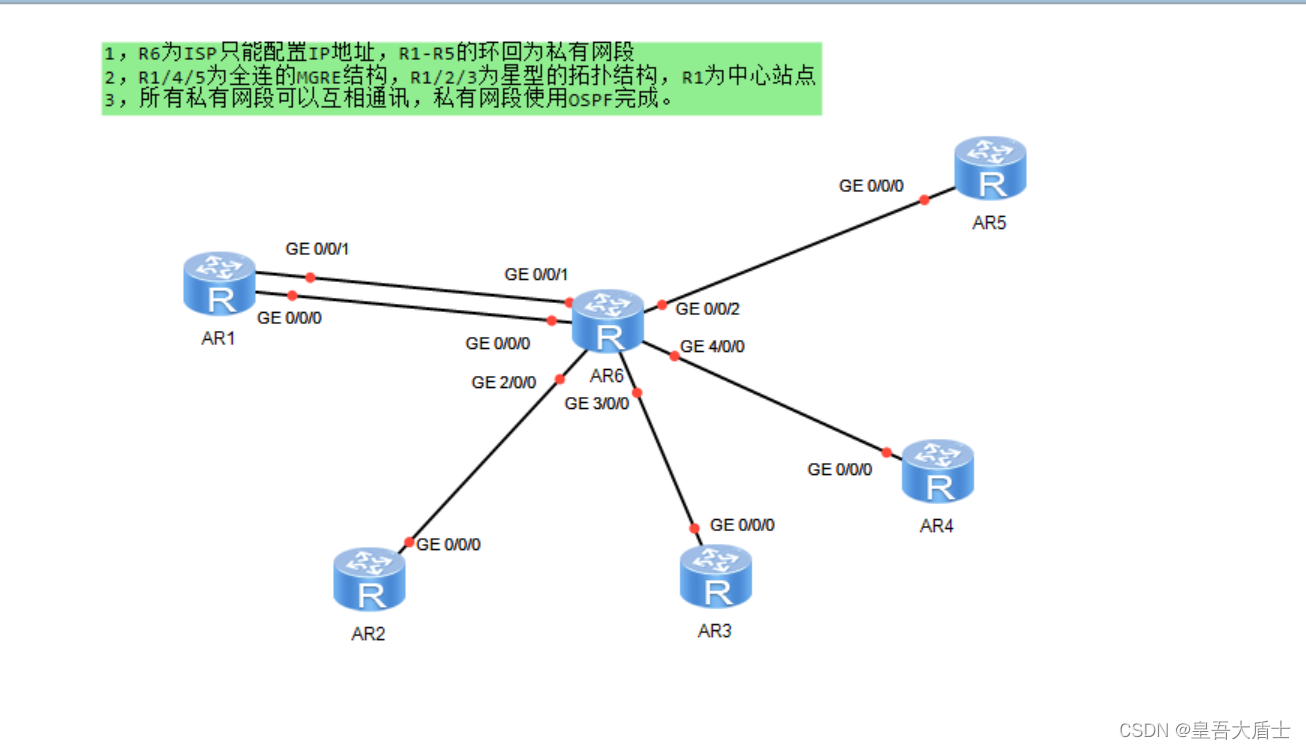

 r1r5r4mgre为7.0网段

r1r2r3   6.0网段

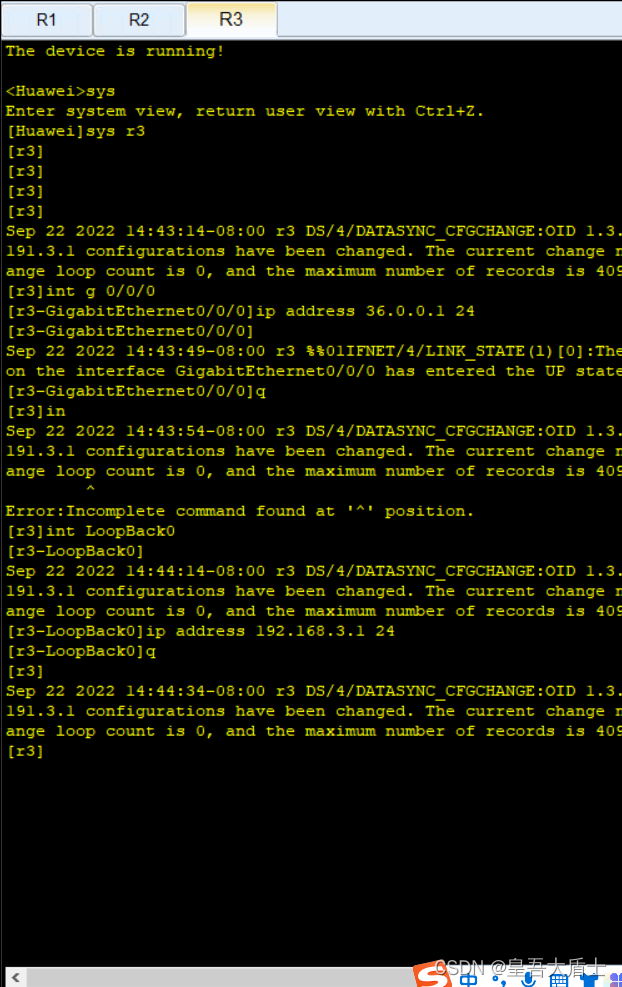

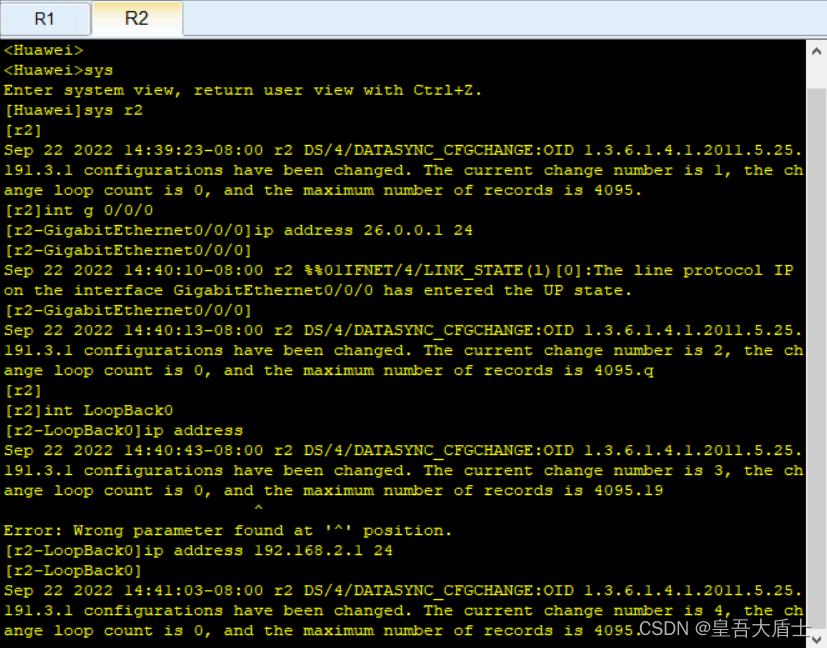

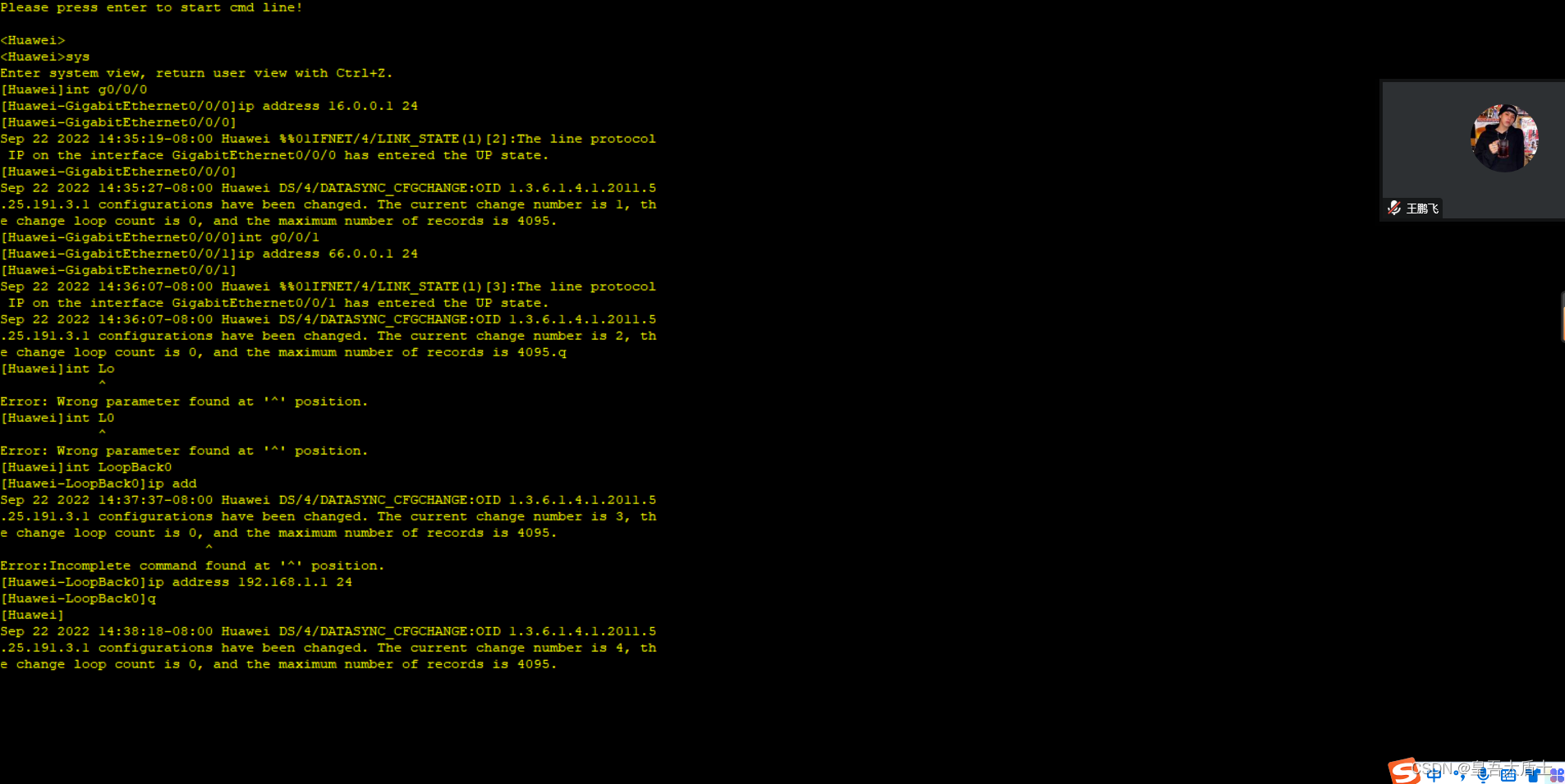

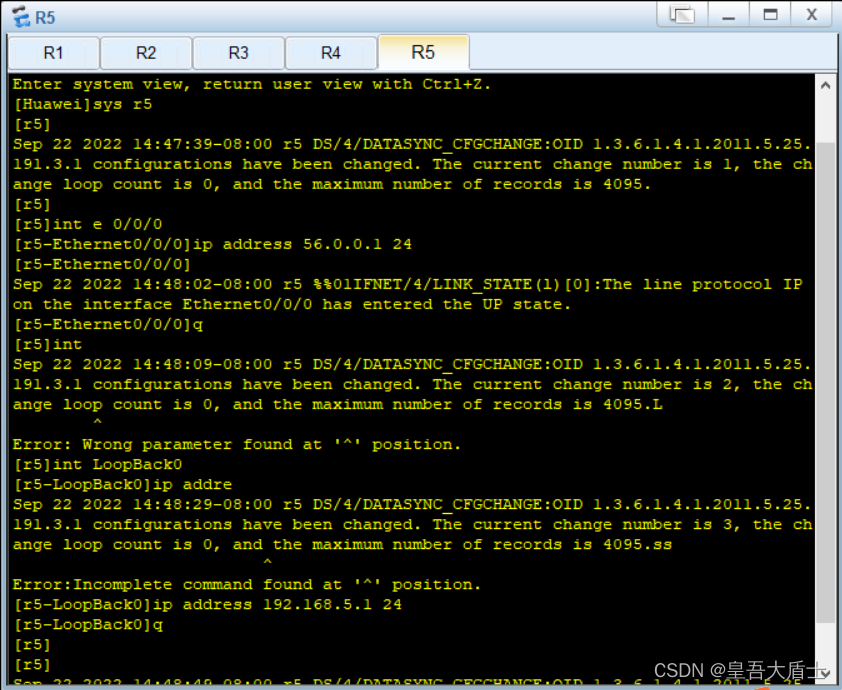

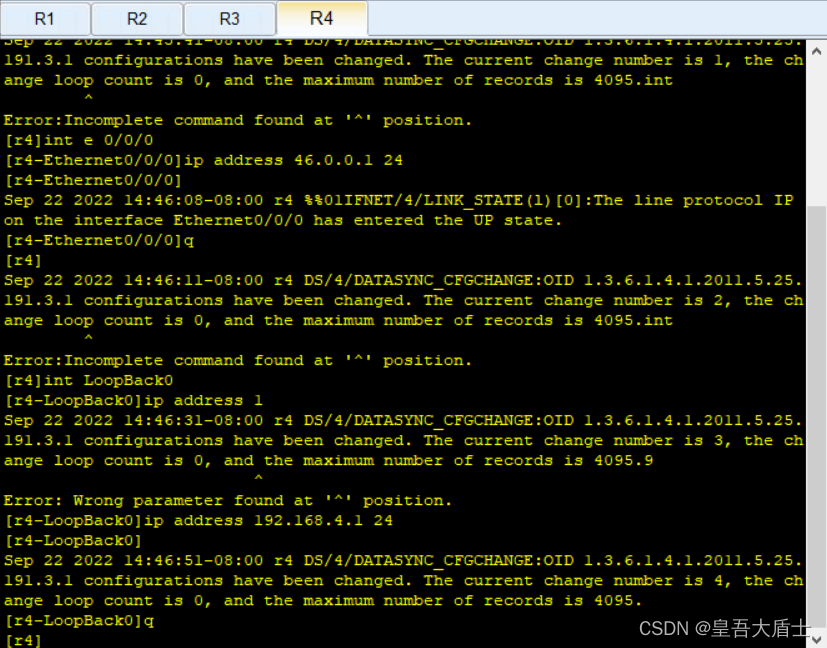

 配置公网与私网ip

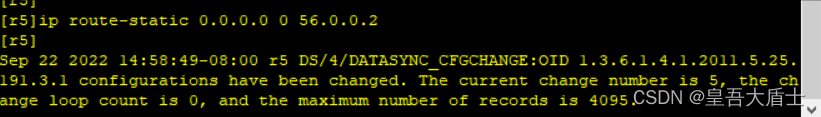

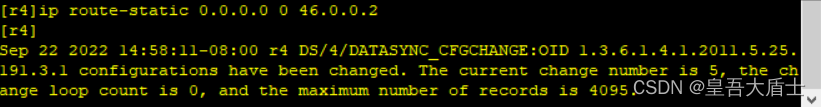

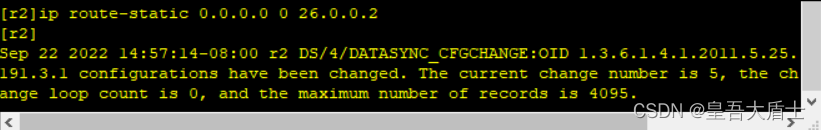

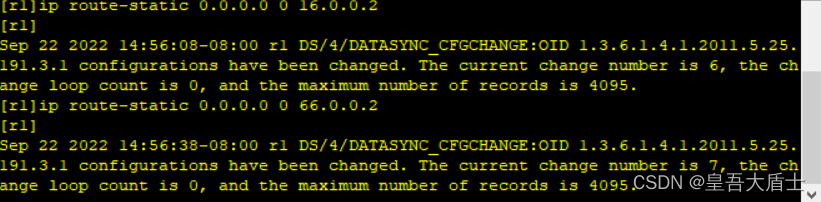

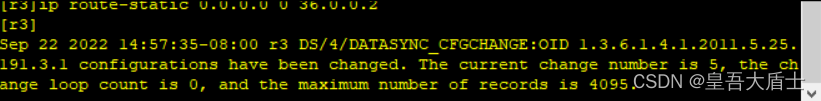

配置缺省路由











 制作r1r2r3星型拓扑

创建隧道，定义封装

ri为中心

[r1]int t 0/0/0
[r1-Tunnel0/0/0]ip address 192.168.6.1 24
[r1-Tunnel0/0/0]tunnel-protocol gre p2mp
[r1-Tunnel0/0/0]source 16.0.0.1

[r1-Tunnel0/0/0]nhrp network-id 100

[r1-Tunnel0/0/0]nhrp enty multicast dynamic

制作r1r4r5mgre

[r1]int t 0/0/1

[r1-Tunnel0/0/1]ip address 192.168.7.1 24

[r1-Tunnel0/0/0]tunnel-protocol gre p2mp

[r1-Tunnel0/0/0]source 56.0.0.1

[r1-Tunnel0/0/0]nhrp network-id 100

[r1-Tunnel0/0/0]nhrp enty multicast dynamic

软件出问题了，做不了了
