Zabbix 安装部署 [详细]

安装前准备

VMware Workstation Pro 15.0 版本
系统    Centos7
内存    4G
处理器  2G
硬盘    50G
网络适配器    NAT

清空 /etc/yum.repos.d/ 下面的所有文件，并下载阿里云的centos7镜像和epel7镜像

rm -rf /etc/yum.repos.d/*
wget -O /etc/yum.repos.d/Centos-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
wget -O /etc/yum.repos.d/epel-7 http://mirrors.aliyun.com/repo/epel-7

查看 /etc/yum.repos.d/ 下面的文件，源文件已经下载完成

[root@成长 ~]# ll /etc/yum.repos.d/
-rw-r--r-- 1 root root 614 Feb 11 14:46 CentOS-Base.repo
-rw-r--r-- 1 root root 230 Feb 11 14:46 epel-7

清空缓存，生成缓存

yum clean all
yum makecache

下载httpd，关闭防火墙并开启httpd服务

systemctl stop firewalld
systemctl disable firewalld
systemctl enable httpd
systemctl start httpd

安装MySQL

yum install -y mariadb mariadb-server
systemctl enable mariadb
systemctl start mariadb

安装php环境

yum install -y php php-mysql

下载安装包

rpm -ivh http://repo.zabbix.com/zabbix/3.4/rhel/7/x86_64/zabbix-release-3.4-2.el7.noarch.rpm

安装zabbix包

yum install -y zabbix-server-mysql zabbix-get zabbix-web zabbix-web-mysql zabbix-agent zabbix-sender

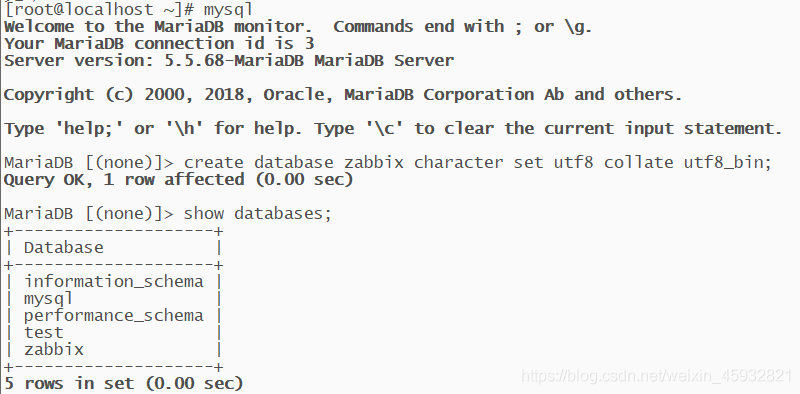

创建一个zabbix库并设置为utf8的字符编码格式

创建账户并且授权设置密码，刷新并退出

切换到此目录下并查看文件

[root@成长 ~]# cd /usr/share/doc/zabbix-server-mysql-3.4.15/
[root@成长 zabbix-server-mysql-3.4.15]# ls
AUTHORS  ChangeLog  COPYING  create.sql.gz  NEWS  README

进行解压

[root@成长 zabbix-server-mysql-3.4.15]# gunzip create.sql.gz
[root@成长 zabbix-server-mysql-3.4.15]# ls
AUTHORS  ChangeLog  COPYING  create.sql  NEWS  README

使用zabbix表对表进行导入

mysql
user zabbix;
source create.sql;

配置zabbix server配置文件

配置文件目录

[root@成长 zabbix-server-mysql-3.4.15]# cd /etc/zabbix
[root@成长 zabbix]# vi zabbix_server.conf
对zabbix_server.conf进行配置
set nu 显示行数
91 DBHost=localhost
100 DBName=zabbix
116 DBUser=zabbix
125 DBPassword=zabbix
131 DBSocket=/var/lib/mysql/mysql.sock

运行zabbix-server服务，开机自启zabbix-server服务如图

[root@成长 zabbix]# systemctl start zabbix-server.service
[root@成长 zabbix]# systemctl enable zabbix-server.service

进入 /etc/httpd/conf.d/zabbix.conf 配置时间

配置数据库密码,使用mysql_secure_installation，

[root@成长 ~]# mysql_secure_installation
NOTE: RUNNING ALL PARTS OF THIS SCRIPT IS RECOMMENDED FOR ALL MySQL
SERVERS IN PRODUCTION USE! PLEASE READ EACH STEP CAREFULLY!
In order to log into MySQL to secure it, we'll need the current
password for the root user. If you've just installed MySQL, and
you haven't set the root password yet, the password will be blank,
so you should just press enter here.
Enter current password for root (enter for none):<–初次运行直接回车
OK, successfully used password, moving on…
Setting the root password ensures that nobody can log into the MySQL
root user without the proper authorisation.
Set root password? [Y/n]    #是否设置root用户密码，输入y并回车或直接回车
New password:               #设置root用户的密码
Re-enter new password:      #再输入一次你设置的密码
Password updated successfully!
Reloading privilege tables..
… Success!
By default, a MySQL installation has an anonymous user, allowing anyone
to log into MySQL without having to have a user account created for
them. This is intended only for testing, and to make the installation
go a bit smoother. You should remove them before moving into a
production environment.
Remove anonymous users? [Y/n]   #是否删除匿名用户,生产环境建议删除，所以直接回车
… Success!
Normally, root should only be allowed to connect from 'localhost'. This
ensures that someone cannot guess at the root password from the network.
Disallow root login remotely? [Y/n] #是否禁止root远程登录,根据自己的需求选择Y/n并回车,建议禁止
… Success!
By default, MySQL comes with a database named 'test' that anyone can
access. This is also intended only for testing, and should be removed
before moving into a production environment.
Remove test database and access to it? [Y/n] #是否删除test数据库,直接回车
- Dropping test database…
… Success!
- Removing privileges on test database…
… Success!
Reloading the privilege tables will ensure that all changes made so far
will take effect immediately.
Reload privilege tables now? [Y/n] #是否重新加载权限表，直接回车
… Success!
Cleaning up…
All done! If you've completed all of the above steps, your MySQL
installation should now be secure.
Thanks for using MySQL!

重启httpd服务

systemctl restart httpd

查看 本机IP

登陆zabbix网址：http://IP地址/zabbix

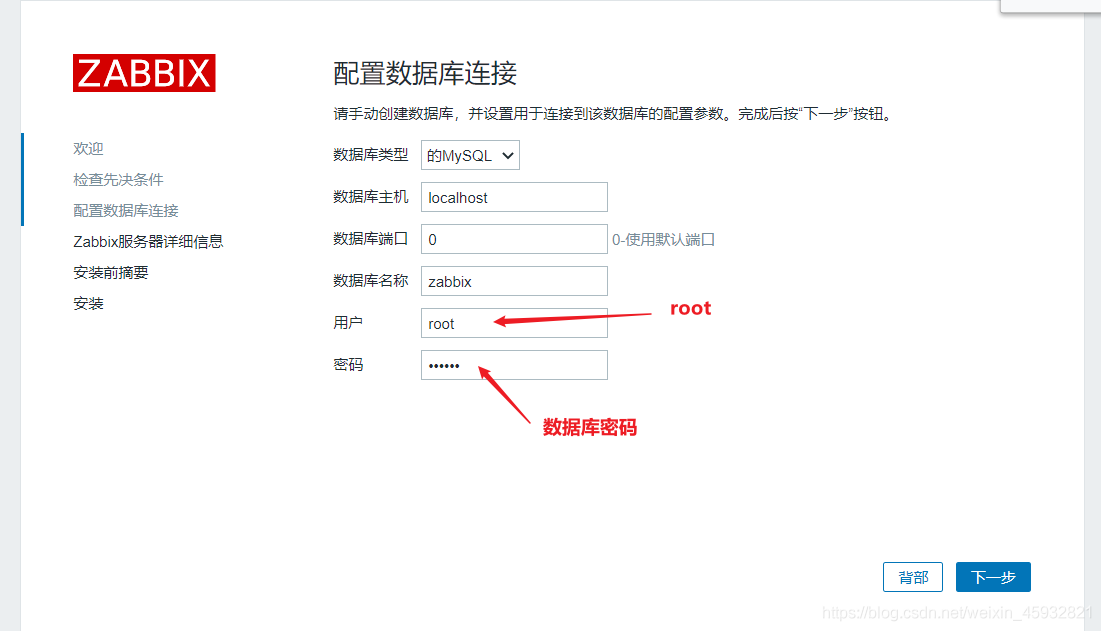

点击 Next step

点击下一步

点击下一步

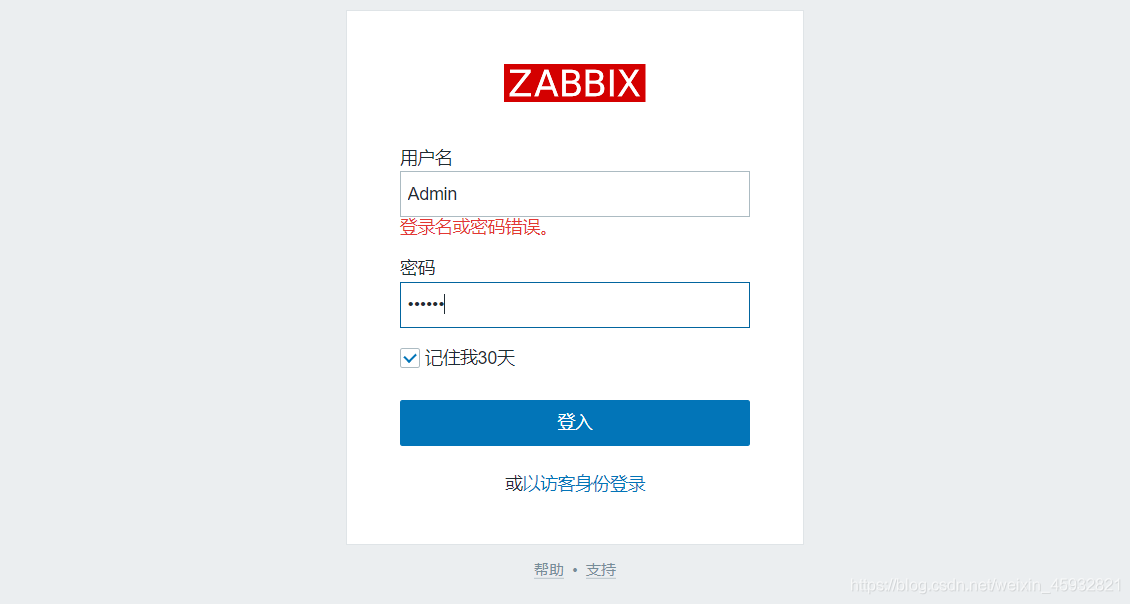

登陆账户是Admin

密码是zabbix

安装完成
