OpenCv基础

void filter2D( InputArray src, OutputArray dst, int ddepth,
                            InputArray kernel, Point anchor=Point(-1,-1),
                            double delta=0, int borderType=BORDER_DEFAULT );

参数解释：

InputArray src : 输入图像

OutputArray dst : 输出图像，和输入图像具有相同的尺寸和通道数量

int ddepth : 目标图像深度，如果没写，将生成与原图像深度相同的图像。当ddepth输入值为-1时，目标图像和原图像深度保持一致。

InputArray kernel : 卷积核（或者是相关核）,一个单通道浮点型矩阵。如果想在图像不同的通道使用不同的kernel，可以先使用split()函数将图像通道事先分开。

Point anchor : 内核的基准点(anchor)，其默认值为(-1,-1)，说明位于kernel的中心位置。基准点即kernel中与进行处理的像素点重合的点。

double delta : 在储存目标图像前可选的添加到像素的值，默认值为0

int borderType : 像素向外逼近的方法，默认值是BORDER_DEFAULT，即对全部边界进行计算。

定义掩膜：

eg:

Mat kern = (Mat_<char>(3,3) << 0, -1 ,0,
                                   -1, 5, -1,
                                   0, -1, 0);

getTickCount()：用于返回从操作系统启动到当前所经的计时周期总数

getTickFrequency()：用于返回CPU的频率。get Tick Frequency。这里的单位是秒，也就是一秒内重复的次数。

所以总次数 / 一秒内重复的次数 = 时间(s)

1.4 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, char**argv)
{
	Mat src, dst;
	src = imread("E:/技能学习/opencv基础/fruits.jpg");
	if (!src.data)
	{
		cout << "could not load image!" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	//方法一：传统方式 通过指针
	//int cols = (src.cols - 1) * src.channels();  //获取像素的列，三通道
	//int offsetx = src.channels(); //有几个通道
	//int rows = src.rows;  //获取图像的行

	//dst = Mat::zeros(src.size(), src.type());

	//for (int row = 1; row < (rows - 1); row++)
	//{
	//	const uchar* current = src.ptr<uchar>(row); //指针   获取当前行
	//	const uchar* previous = src.ptr<uchar>(row - 1); ////获取当前行的上一行指针
	//	const uchar* next = src.ptr<uchar>(row + 1); ////获取当前行的下一行指针

	//	uchar* output = dst.ptr<uchar>(row);

	//	for (int col = offsetx; col < cols; col++)
	//	{
	//		output[col] = saturate_cast<uchar>(5 * current[col] -
	//			(current[col - offsetx] + current[col + offsetx] + previous[col] + next[col]));
	//	}
	//}

	//方法二：通过opencv中的API函数
	double t = getTickCount();
	Mat kernel = (Mat_<char>(3, 3) << 0, -1, 0,
		-1, 5, -1,
		0, -1, 0);
	filter2D(src, dst, -1, kernel);

	double timeconsume = (getTickCount() - t) / getTickFrequency();

	cout << "时间消耗"<< timeconsume << endl;

	namedWindow("output image", WINDOW_AUTOSIZE);
	imshow("output image", dst);
	waitKey(0);
	destroyAllWindows();
	return 0;


}

2. Mat对象

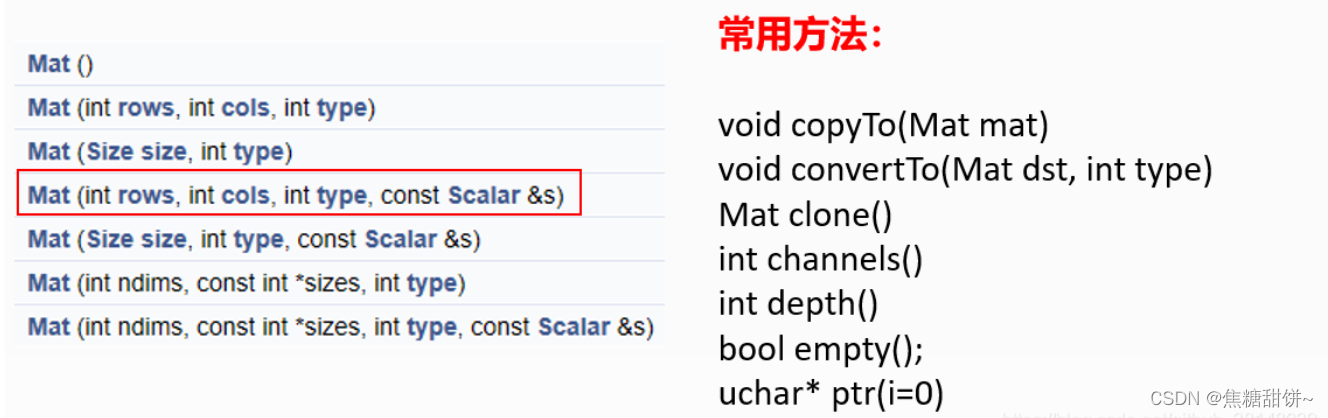

2.1 Mat对象构造函数与常用方法

2.2 Mat对象使用

Mat对象使用4个要点：
输出图像的内存是自动分配的；

使用OpenCv的C++接口，不需要考虑内存分配的问题；

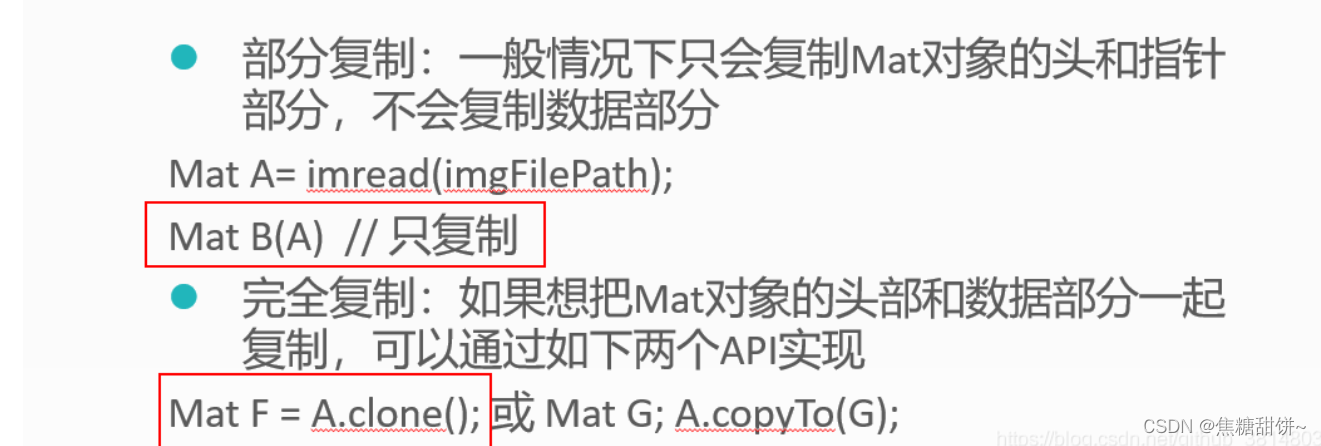

赋值操作和拷贝构造函数只会复制头部分；

使用clone与copyTo两个函数实现数据完全复制。

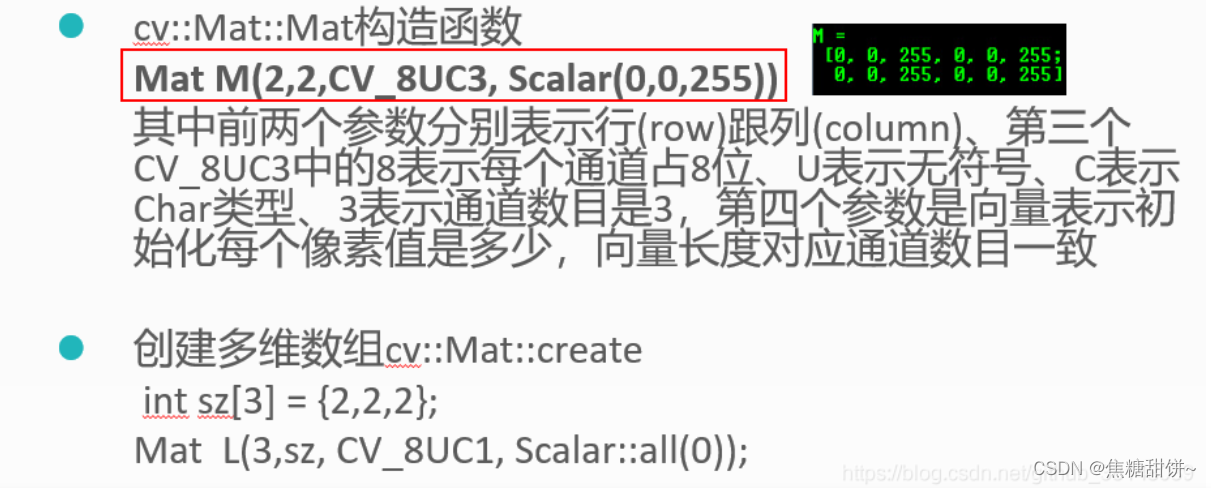

2.3 Mat对象创建

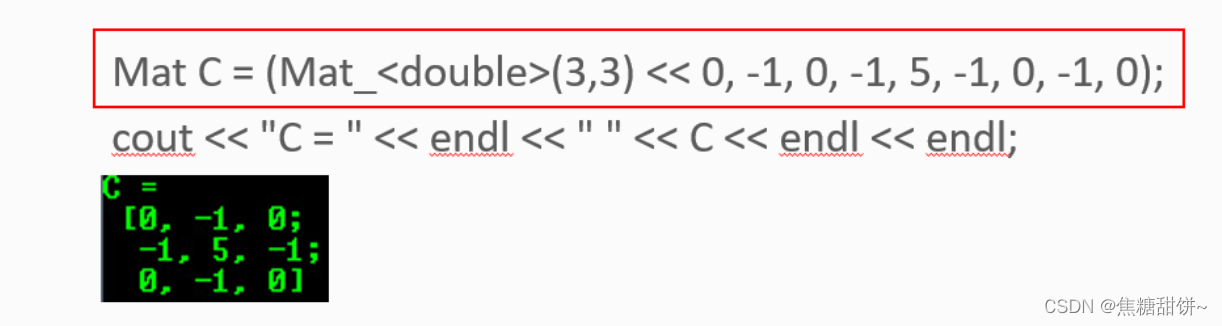

2.4 定义小数组

2.5 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, char**argv)
{
	Mat src;
	src = imread("E:/技能学习/opencv基础/fruits.jpg");
	if (src.empty())
	{
		cout << "could not load image!" << endl;
		return -1;
	}
	namedWindow("input", WINDOW_AUTOSIZE);
	imshow("input", src);

	//矩阵初始化 ，赋值
	/*Mat dst;
	dst = Mat(src.size(), src.type());
	dst = Scalar(127, 0, 255);
	namedWindow("output", WINDOW_AUTOSIZE);
	imshow("output", dst);*/

	//克隆
	/*Mat dst = src.clone();
	namedWindow("output", WINDOW_AUTOSIZE);
	imshow("output", dst);*/

	//拷贝
	/*Mat dst;
	src.copyTo(dst);
	namedWindow("output", WINDOW_AUTOSIZE);
	imshow("output", dst); */

	//空间颜色转换
	Mat dst;
	cvtColor(src, dst, COLOR_BGR2GRAY);
	namedWindow("output", WINDOW_AUTOSIZE);
	imshow("output", dst);

	//获取输入输出图像的通道数
	cout << "input image channels:" << src.channels() << endl;
	cout << "output image channels:" <<dst.channels() << endl;

	const uchar* firstrow = dst.ptr<uchar>(0);
	//printf("first pixel value:%d\n", *firstrow);
	cout << "first pixel value: " << (int)firstrow[0] << endl; //与48行等价

	int row = dst.rows;
	int col = dst.cols;
	cout << "row = " << row << "  col = " << col << endl;

	//创建一个Mat对象
	Mat m(3, 3, CV_8UC3,Scalar(0,0,255));
	cout << "m = " << m << endl;

	//创建Mat
	Mat m1;
	m1.create(src.size(), src.type());
	m1 = Scalar(0, 0, 255);
	imshow("output", m1);

	//定义一个小数组
	Mat kernel = (Mat_<float>(3, 3) << 0, -1, 0, -1, 5, -1, 0, -1, 0);
	cout << " kernel = " << endl << "  " << kernel  << endl;

	waitKey(0);
	system("pause");
	destroyAllWindows();
	return 0;
}

3. 图像操作

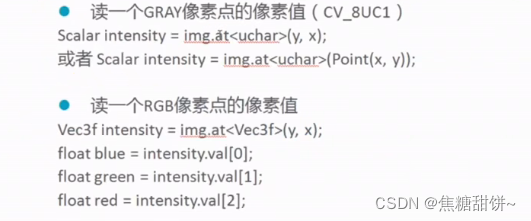

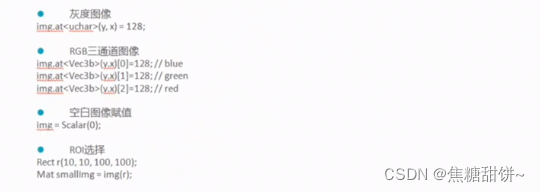

3.1 读写像素

3.2 修改像素值

eg:

3.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, char**argv)
{
	Mat src, gray_src;
	src = imread("E:/技能学习/opencv基础/fruits.jpg");
	if (src.empty())
	{
		cout << "could not load image!" << endl;
		return -1;
	}
	namedWindow("input", WINDOW_AUTOSIZE);
	imshow("input", src);

	cvtColor(src, gray_src, COLOR_BGR2GRAY);

	int height = gray_src.rows;
	int width = gray_src.cols;

	/*namedWindow("gray invert", WINDOW_AUTOSIZE);
	imshow("gray invert", gray_src);*/

	Mat dst;
	dst.create(src.size(), src.type());
	height = src.rows;
	width = src.cols;

	int channnel = src.channels();

	for (int row = 0; row < height; row++)
	{
		for (int col = 0; col < width; col++)
		{
			if (channnel == 1)  //单通道   读取和改变像素值
			{
				int gray = src.at<uchar>(row, col);
				dst.at<uchar>(row, col) = 255 - gray;
			}
			else if (channnel == 3)  //三通道   读取和改变像素值
			{
				//读取
				int b = src.at<Vec3b>(row, col)[0];
				int g = src.at<Vec3b>(row, col)[1];
				int r = src.at<Vec3b>(row, col)[2];

				//写
				dst.at<Vec3b>(row, col)[0] = 255 - b;
				dst.at<Vec3b>(row, col)[1] = 255 - g;
				dst.at<Vec3b>(row, col)[2] = 255 - r;

				gray_src.at<uchar>(row, col) = min(r, max(g, b)); //取b, g, r中最大的两个赋给gray_src
			}
		}
	}

	namedWindow("output", WINDOW_AUTOSIZE);
	//imshow("output", dst);
	imshow("output", gray_src);

	waitKey(0);
	system("pause");
	destroyAllWindows();
	return 0;
}

4. 图像混合

4.1 理论 --- 线性混合操作

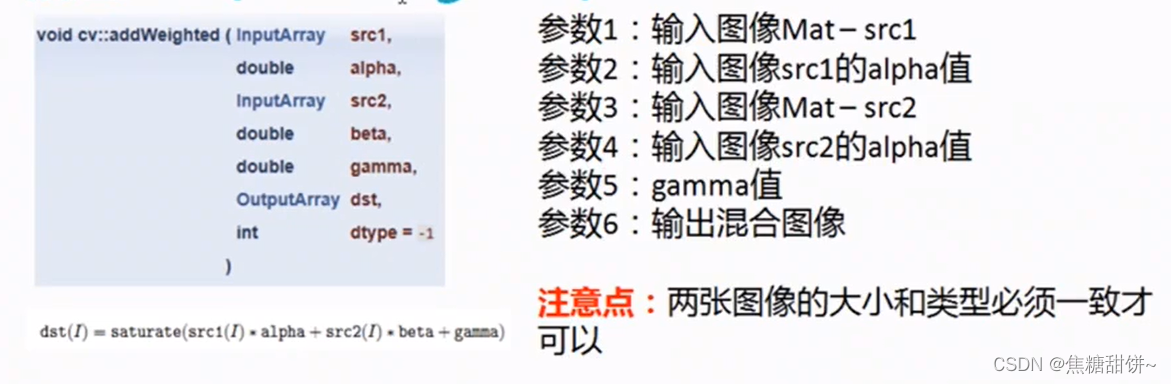

4.2 相关API --- addWeighted

4.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, char**argv)
{
	Mat src1, src2,dst;
	src1 = imread("E:/技能学习/opencv基础/lena.jpg");
	src2 = imread("E:/技能学习/opencv基础/baboon.jpg");

	if (src1.empty())
	{
		cout << "could not load image lena!" << endl;
		return -1;
	}
	if (src2.empty())
	{
		cout << "could not load image baboon!" << endl;
		return -1;
	}

	double alpha = 0.5;
	if (src1.size() == src2.size() && src1.type() == src2.type())
	{
		addWeighted(src1, alpha, src2, (1 - alpha),0.0, dst); // 线性混合
		//add(src1, src2, dst); //图像直接相加
		//multiply(src1, src2, dst);  //图像直接相乘

		imshow("input image1", src1);
		imshow("input image2", src2);
		imshow("blend demo", dst);
	}
	else
	{
		cout << "could not blend image!" << endl;
		return -1;
	}

	waitKey(0);
	system("pause");
	destroyAllWindows();
	return 0;
}

5. 调整图像亮度与对比度

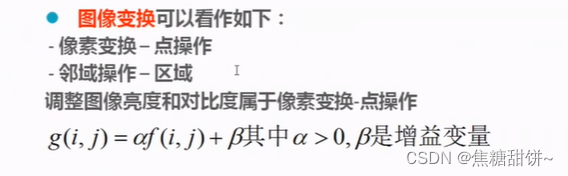

5.1 理论

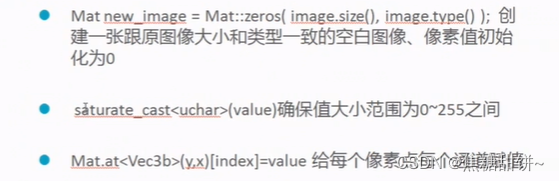

5.2 相关API

5.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src, dst;
	src = imread("E:/技能学习/opencv基础/lena.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	char input_win[] = "input image";
	namedWindow(input_win, WINDOW_AUTOSIZE);

	imshow(input_win, src);

	//contrast and brightness change demo
	int height = src.rows;
	int width = src.cols;
	dst = Mat::zeros(src.size(), src.type());

	float alpha = 1.2;
	float beta = 30;

	for (int row = 0; row < height; row++)
	{
		for (int col = 0; col < width; col++)
		{
			if (src.channels() == 1)
			{
				float v = src.at<uchar>(row, col);
				dst.at<uchar>(row, col) = saturate_cast<uchar>(v * alpha + beta);
			}
			else if (src.channels() == 3)
			{
				float b = src.at<Vec3b>(row, col)[0];
				float g = src.at<Vec3b>(row, col)[1];
				float r = src.at<Vec3b>(row, col)[2];

				dst.at<Vec3b>(row, col)[0] = saturate_cast<uchar>(b * alpha + beta);
				dst.at<Vec3b>(row, col)[1] = saturate_cast<uchar>(g * alpha + beta);
				dst.at<Vec3b>(row, col)[2] = saturate_cast<uchar>(r * alpha + beta);

			}
		}
	}

	char output_title[] = "contrast and brightness change demo";
	namedWindow(output_title, WINDOW_AUTOSIZE);
	imshow(output_title, dst);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

6. 绘制形状和文字

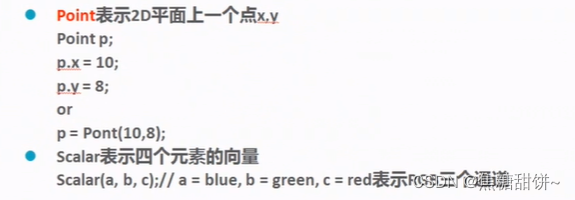

6.1 使用CV::Point 与CV::Scalar

6.2 绘制线，圆，矩形，椭圆等基本几何形状

绘制文字：putText()

函数原型：

	void cv::putText(
		cv::Mat& img, // 待绘制的图像
		const string& text, // 待绘制的文字
		cv::Point origin, // 文本框的左下角
		int fontFace, // 字体 (如cv::FONT_HERSHEY_PLAIN)
		double fontScale, // 尺寸因子，值越大文字越大
		cv::Scalar color, // 线条的颜色（RGB）
		int thickness = 1, // 线条宽度
		int lineType = 8, // 线型（4邻域或8邻域，默认8邻域）
		bool bottomLeftOrigin = false // true='origin at lower left'
	);

6.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat bgImage;
const char drawdemo_win[] = "draw shapes and test demo";

//函数声明
void Mylines();
void MyRectangle();
void MyEllipse();
void MyCircle();
void MyCircle();
void MyPolygon();
void RandomLineDemo();

int main(int argc, uchar** urgv)
{
	bgImage = imread("E:/技能学习/opencv基础/lena.jpg");
	if (bgImage.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	//Mylines();
	//MyRectangle();
	//MyEllipse();
	//MyCircle();
	//MyPolygon();

	////绘制字体
	//putText(bgImage, "Hello World", Point(300, 300), FONT_HERSHEY_COMPLEX, 1.0, Scalar(0, 255, 255), 1, 8);

	//namedWindow(drawdemo_win, WINDOW_AUTOSIZE);
	//imshow(drawdemo_win, bgImage);

	RandomLineDemo();

	waitKey(0);
	destroyAllWindows();
	return 0;
}

//函数定义

void Mylines()
{
	Point p1 = Point(20, 30);
	Point p2;
	p2.x = 300;
	p2.y = 300;
	Scalar color = Scalar(0, 0, 255);

	//画线
	line(bgImage, p1, p2, color, 1, LINE_AA);
}

void MyRectangle()
{
	Rect rect = Rect(200, 100, 300, 300);  //定义矩形的范围 起始点（200，100），宽300，高300
	Scalar color = Scalar(0, 255, 0);

	//画矩形
	rectangle(bgImage, rect, color, 2, 8);
}

void MyEllipse()
{
	Scalar color = Scalar(255, 0, 0);

	//画椭圆
	ellipse(bgImage, Point(bgImage.cols / 2, bgImage.rows / 2),
		Point(bgImage.cols / 4, bgImage.rows / 8),
		90, 0, 360, color, 1, 8);
}

void MyCircle()
{
	Scalar color = Scalar(0, 255, 255);

	//画圆
	circle(bgImage, Point(bgImage.cols / 2, bgImage.rows / 2), 150, color, 2, 8);
}

void MyPolygon()
{
	Point p1(100, 100);
	Point p2(100, 200);
	Point p3(200, 200);
	Point p4(200, 100);
	Point p5(100, 100);

	std::vector<Point> pts;
	pts.push_back(p1);
	pts.push_back(p2);
	pts.push_back(p3);
	pts.push_back(p4);
	pts.push_back(p5);

	//填充多边形
	fillPoly(bgImage, pts, Scalar(255, 255, 0), 8, 0);
}

void RandomLineDemo()
{
	//随机数
	RNG rng(123456);
	Point pt1;
	Point pt2;

	Mat bg = Mat::zeros(bgImage.size(), bgImage.type());
	namedWindow("random line demo", WINDOW_AUTOSIZE);

	for (int i = 0; i < 10000; i++)
	{
		//uniform函数可以返回指定范围的随机数
		pt1.x = rng.uniform(0, bgImage.cols);
		pt2.x = rng.uniform(0, bgImage.cols);
		pt1.y = rng.uniform(0, bgImage.rows);
		pt2.y = rng.uniform(0, bgImage.rows);

		//生成随机颜色
		Scalar color = Scalar(rng.uniform(0, 255), rng.uniform(0, 255), rng.uniform(0, 255));

		if (waitKey(50) > 0)
		{
			break;
		}

		line(bg, pt1, pt2, color, 1, 8);

		imshow("random line demo", bg);
	}

}

7. 模糊图像一

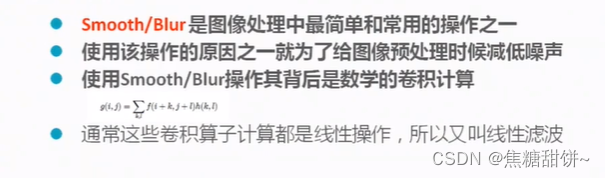

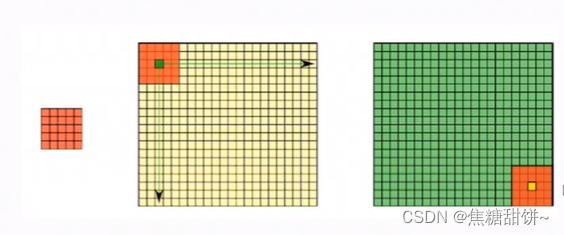

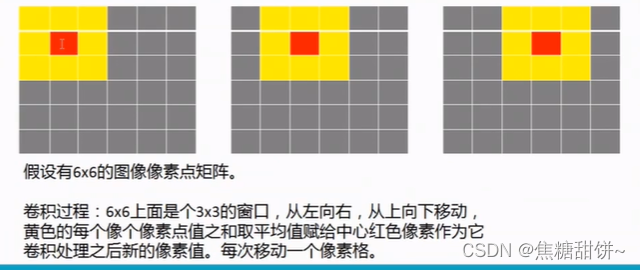

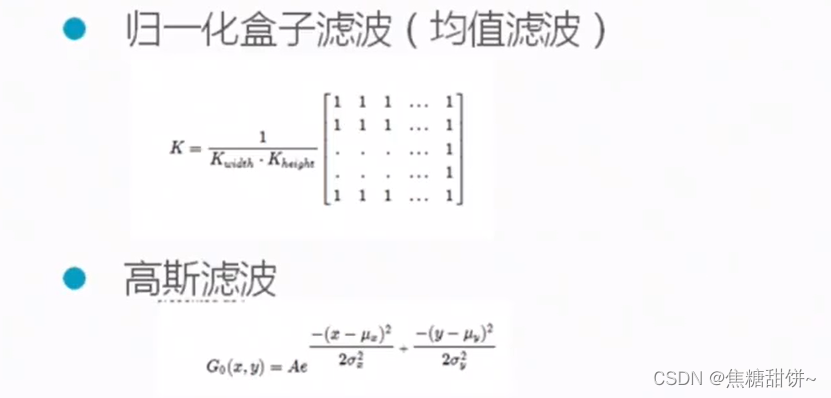

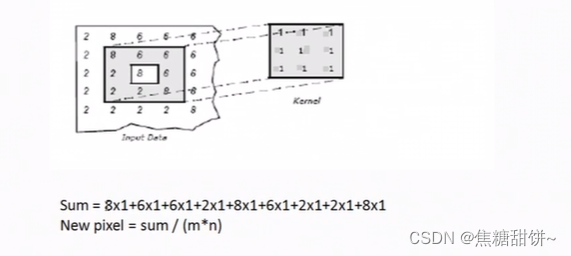

7.1 模糊原理

7.2 相关API

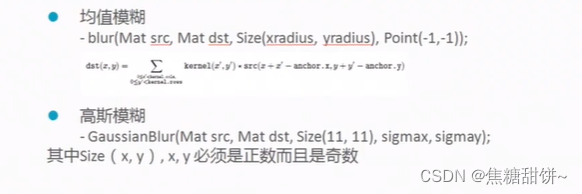

blur() --- 模糊函数

作用：对输入的图像src进行均值滤波后用dst输出。

函数原型：

void blur(InputArray src, OutputArray dst, Size ksize,
Point anchor=Point(-1,-1), int borderType=BORDER_DEFAULT )

参数解释：

src：输入图像，即源图像，填Mat类的对象即可。该函数对通道是独立处理的，且可以处理任意通道数的图片，但需要注意，待处理的图片深度应该为CV_8U, CV_16U, CV_16S, CV_32F 以及 CV_64F之一。

dst：即目标图像，需要和源图片有一样的尺寸和类型。比如可以用Mat::Clone，以源图片为模板，来初始化得到如假包换的目标图。

ksize：卷积核。一般这样写Size( w,h )来表示内核的大小( 其中，w 为像素宽度， h为像素高度)。Size（3,3）就表示3x3的核大小，Size（5,5）就表示5x5的核大小，默认系数全是1，就是均值卷积。

anchor，表示锚点（即被平滑的那个点），注意它有默认值Point(-1,-1)。如果这个点坐标是负值的话，就表示取核的中心为锚点，所以默认值Point(-1,-1)表示这个锚点在核的中心。

borderType，图像边缘处理方式。有默认值BORDER_DEFAULT，我们一般不去管它。

注：

卷积核10x1 就是在水平方向上的一维卷积

卷积核1x10 就是在竖直方向上的一维卷积

GaussianBlur() --- 高斯模糊

函数原型：

void GaussianBlur(InputArray src, OutputArray dst,
 Size ksize, double sigmaX, double sigmaY=0,
int borderType=BORDER_DEFAULT )

参数解释：

InputArray src: 输入图像，可以是Mat类型，图像深度为CV_8U、CV_16U、CV_16S、CV_32F、CV_64F。

OutputArray dst: 输出图像，与输入图像有相同的类型和尺寸。

Size ksize: 高斯内核大小。ksize.width和ksize.height可以不相同但是这两个值必须为正奇数，如果这两个值为0，他们的值将由sigma计算。

double sigmaX: 高斯核函数在X方向上的标准偏差。

double sigmaY: 高斯核函数在Y方向上的标准偏差，如果sigmaY是0，则函数会自动将sigmaY的值设置为与sigmaX相同的值，如果sigmaX和sigmaY都是0，这两个值将由ksize.width和ksize.height计算而来。具体可以参考getGaussianKernel()函数查看具体细节。建议将size、sigmaX和sigmaY都指定出来。

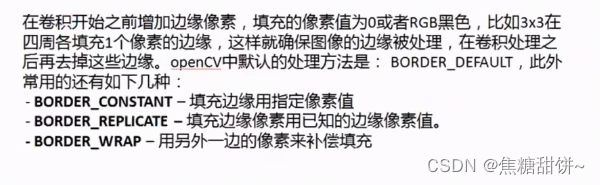

int borderType=BORDER_DEFAULT: 推断图像外部像素的某种便捷模式，有默认值BORDER_DEFAULT，如果没有特殊需要不用更改，具体可以参考borderInterpolate()函数。

7.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src,dst;

	src = imread("E:/技能学习/opencv基础/lena.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("output image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	//均值模糊
	blur(src, dst, Size(11, 11), Point(-1, -1));
	imshow("output image", dst);

	//高斯模糊
	Mat gblur;
	GaussianBlur(src, gblur, Size(11,11), 11, 11);
	imshow("GaussianBlur image", gblur);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

8. 图像模糊二

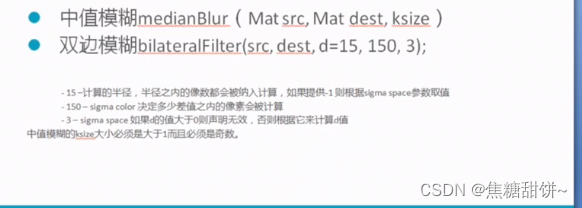

8.1 中值滤波

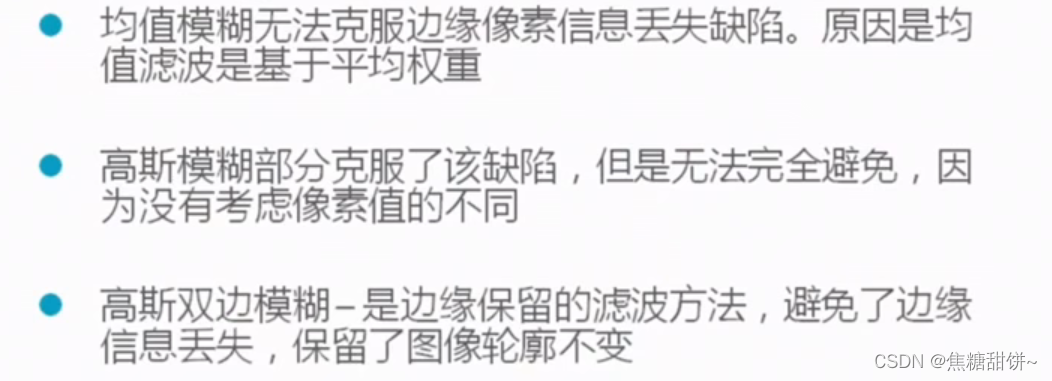

8.2 高斯双边滤波

8.3 相关API

8.4 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src, dst1,dst2;

	src = imread("E:/技能学习/opencv基础/jiaoyan.png");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	//中值滤波
	medianBlur(src, dst1, 3);
	namedWindow("median Filter output image", WINDOW_AUTOSIZE);
	imshow("median Filter output image", dst1);

	//高斯双边滤波
	bilateralFilter(src, dst2, 15, 150, 3);
	namedWindow("bilateralFilter output image", WINDOW_AUTOSIZE);
	imshow("bilateralFilter output image", dst2);

	//高斯模糊
	Mat gblur;
	GaussianBlur(src, gblur, Size(15, 15), 3, 3);
	namedWindow("GaussianBlur output image", WINDOW_AUTOSIZE);
	imshow("GaussianBlur output image", gblur);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

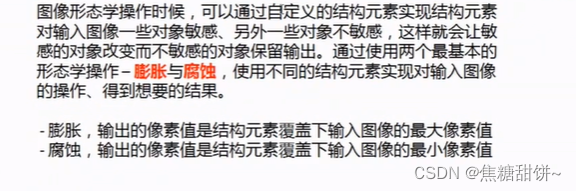

9. 膨胀与腐蚀

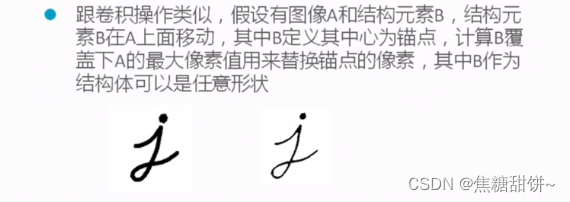

9.1 形态学操作 -- 膨胀

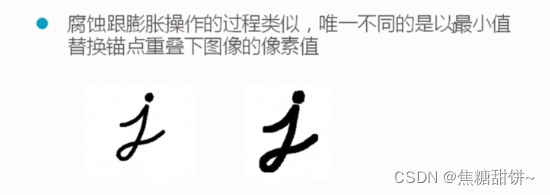

9.2 形态学操作 -- 腐蚀

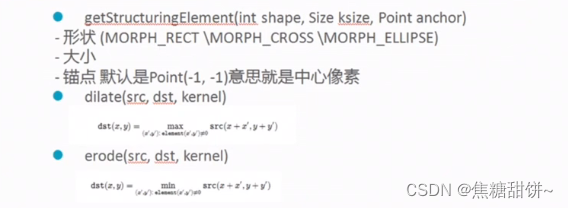

9.3 相关API

getStructuringElement()函数：
用于构造一个特定大小和形状的结构元素，可以被作为参数传递给 erode，dilate或morphologyEx函数。用于图像形态学处理。

9.4 动态调整结构元素大小

9.5 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, dst;
int element_size = 3;
int max_size = 21;
void CallBack_Demo(int, void*);

int main(int argc, uchar** urgv)
{
	src = imread("E:/技能学习/opencv基础/jiaoyan.png");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	namedWindow("output image", WINDOW_AUTOSIZE);

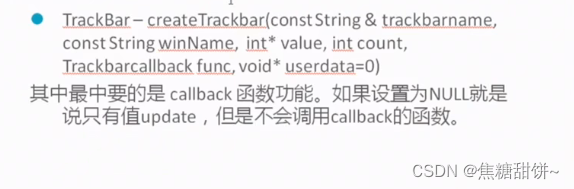

	//创建滚动条
	createTrackbar("Element Size:", "output image", &element_size, max_size, CallBack_Demo);
	CallBack_Demo(0, 0);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

void CallBack_Demo(int, void*)
{
	int s = element_size * 2 + 1;

	Mat structuringElement = getStructuringElement(MORPH_RECT, Size(s, s), Point(-1, -1));

	//膨胀操作
	//dilate(src, dst, structuringElement, Point(-1, -1),1);

	//腐蚀操作
	erode(src, dst, structuringElement, Point(-1, -1), 1);
	imshow("output image", dst);
}

10. 形态学操作

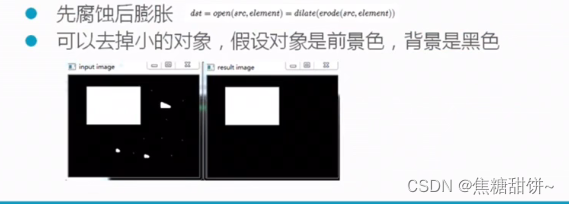

10.1 开操作 -- open

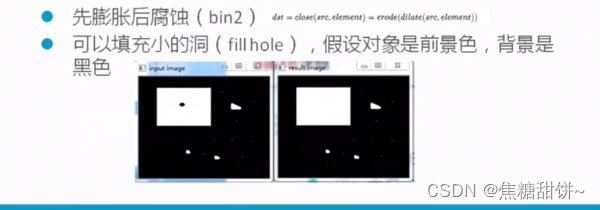

10.2 闭操作 --- close

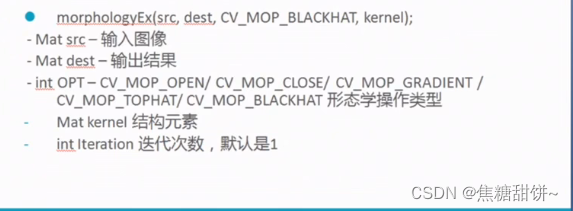

10.3 相关API

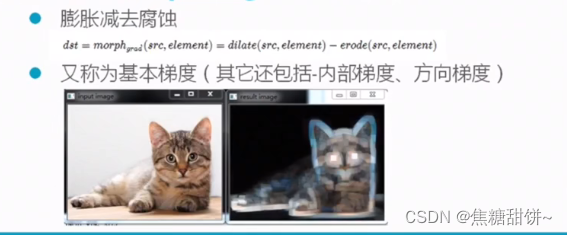

10.4 形态学梯度 --- Morphological Gradient

10.5 顶帽操作--- top hat

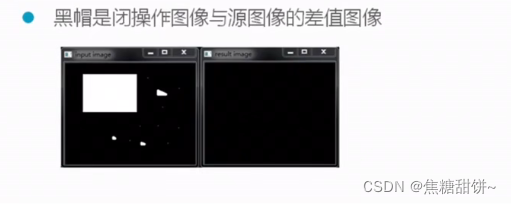

10.6 黑帽操作（底帽操作）--- BLACKHAT

10.7 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src1, src2,dst;
	src1 = imread("E:/技能学习/opencv基础/164.jpg");
	src2 = imread("E:/技能学习/opencv基础/HappyFish.jpg");

	if (src1.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	if (src2.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}
	namedWindow("input image1", WINDOW_AUTOSIZE);
	imshow("input image1", src1);

	namedWindow("input image2", WINDOW_AUTOSIZE);
	imshow("input image2", src2);

	namedWindow("morphology demo", WINDOW_AUTOSIZE);

	Mat kernel = getStructuringElement(MORPH_RECT, Size(3, 3), Point(-1, -1));

	//开操作  MORPH_OPEN
	morphologyEx(src1, dst, MORPH_OPEN, kernel);
	//imshow("morphology demo", dst);

	//闭操作  MORPH_CLOSE
	morphologyEx(src1, dst, MORPH_CLOSE, kernel);
	//imshow("morphology demo", dst);

	//形态学梯度    MORPH_GRADIENT
	morphologyEx(src2, dst, MORPH_GRADIENT, kernel);
	imshow("morphology demo", dst);

	//顶帽    MORPH_TOPHAT
	morphologyEx(src1, dst, MORPH_TOPHAT, kernel);
	imshow("morphology demo", dst);

	//黑帽    MORPH_BLACKHAT
	morphologyEx(src1, dst, MORPH_BLACKHAT, kernel);
	imshow("morphology demo", dst);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

11. 形态学操作应用 --- 提取水平与垂直线

11.1 原理方法

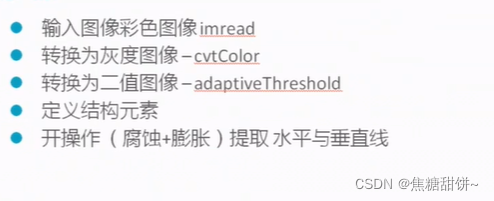

11.2 提取步骤

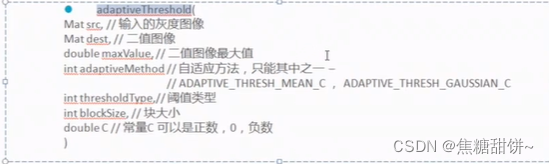

11.3 转为二值图像 --- adaptiveThreshold

11.4 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src, dst;

	//src = imread("E:/技能学习/opencv基础/bin1.jpg");
	src = imread("E:/技能学习/opencv基础/chars.png");

	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	Mat gray_src;
	//RGB图像转灰度图
	cvtColor(src, gray_src, COLOR_BGR2GRAY);
	imshow("gray image", gray_src);

	Mat binImg;
	//灰度图转为二值图像
	adaptiveThreshold(gray_src, binImg, 255, ADAPTIVE_THRESH_GAUSSIAN_C, THRESH_BINARY, 15, -2);

	//二值图像取反
	adaptiveThreshold(~gray_src, binImg, 255, ADAPTIVE_THRESH_GAUSSIAN_C, THRESH_BINARY, 15, -2);
	imshow("binary image", binImg);

	//水平结构元素
	Mat hline = getStructuringElement(MORPH_RECT, Size(src.cols / 16, 1), Point(-1, -1));
	//垂直结构元素
	Mat vline = getStructuringElement(MORPH_RECT, Size(1, src.rows / 16), Point(-1, -1));
	//矩形结构
	Mat kernel = getStructuringElement(MORPH_RECT, Size(3,3), Point(-1, -1));

	//提取出水平线
	//Mat temp;
	////腐蚀
	//erode(binImg, temp, hline);
	////膨胀
	//dilate(temp, dst, hline);
	//bitwise_not(dst, dst);
	//imshow("Final Result", dst);

	//提取出垂直线
	//Mat temp;
	//腐蚀
	//erode(binImg, temp, vline);
	//膨胀
	/*dilate(temp, dst, vline);
	bitwise_not(dst, dst);
	imshow("Final Result", dst); */

	Mat temp;
	//腐蚀
	erode(binImg, temp, kernel);
	//膨胀
	dilate(temp, dst, kernel);
	bitwise_not(dst, dst);
	imshow("Final Result", dst);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

12. 图像金字塔 --- 上采样与降采样

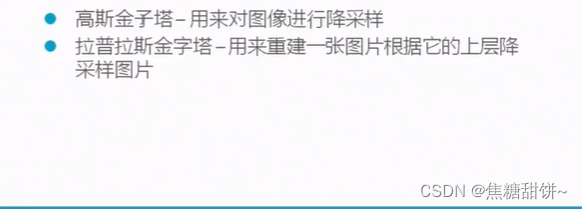

12.1 图像金字塔概念

图像金字塔保证图像的特征一直存在。

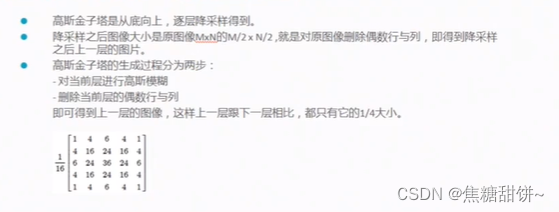

12.1.1 图像金字塔概念 --- 高斯金字塔

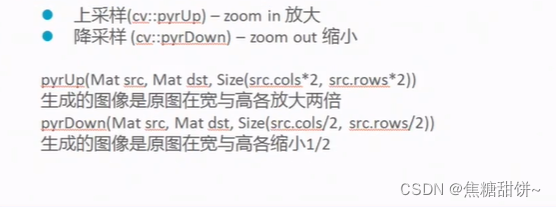

12.2 采样相关API

12.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src, dst;
	src = imread("E:/技能学习/opencv基础/HappyFish.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	imshow("input image", src);
	namedWindow("output image", WINDOW_AUTOSIZE);

	//上采样
	pyrUp(src, dst, Size(src.cols * 2, src.rows * 2));
	imshow("output image", dst);

	//降采样
	Mat s_down;
	pyrDown(src, s_down, Size(src.cols / 2, src.rows / 2));
	imshow("sample down", s_down);

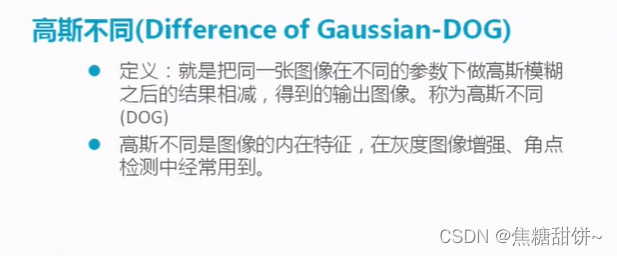

	//高斯不同
	Mat gray_src,g1, g2,dogImg;
	cvtColor(src, gray_src, COLOR_BGR2GRAY);  //颜色转换
	GaussianBlur(gray_src, g1, Size(5, 5), 0, 0);  //高斯模糊
	GaussianBlur(gray_src, g2, Size(5, 5), 0, 0);   //高斯模糊
	subtract(g1, g2, dogImg,Mat());
	//归一化显示
	normalize(dogImg, dogImg, 2,255, NORM_MINMAX);
	imshow("DOG Image", dogImg);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

13. 基本阈值操作

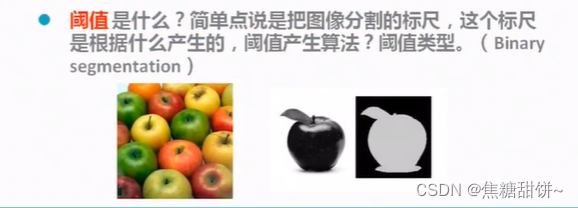

13.1 图像阈值

13.2 阈值类型

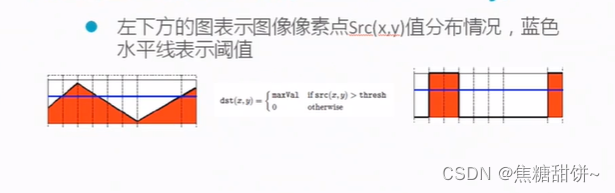

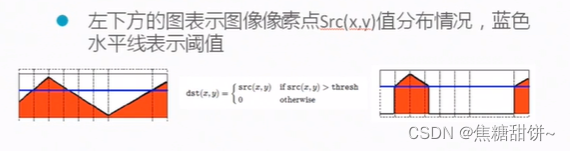

13.2.1 阈值二值化 (threshold binary)

13.2.2 阈值反二值化 (threshold binary Inverted)

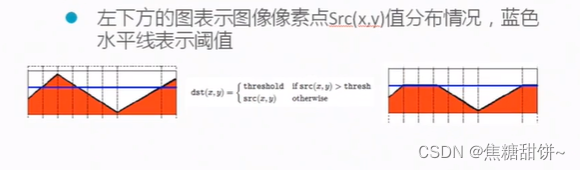

13.2.3 截断 (truncate)

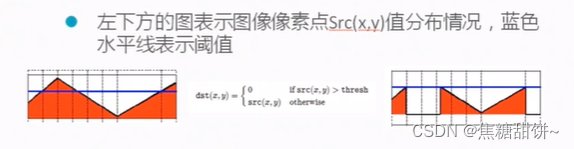

13.2.4 阈值取零 (threshold to zero)

13.2.5 阈值反取零 (threshold to zero inverted)

图像二值化 --- threshold()函数

函数原型：

double threshold( InputArray src, OutputArray dst,
                               double thresh, double maxval, int type );

参数解释：

src：源图像，可以为8位的灰度图，也可以为32位的彩色图像。

dst：输出图像

thresh：当前阈值

maxval：最大阈值，一般为255

type：阈值类型，主要有下面几种：

enum ThresholdTypes {
    THRESH_BINARY     = 0,
    THRESH_BINARY_INV = 1,
    THRESH_TRUNC      = 2,
    THRESH_TOZERO     = 3,
    THRESH_TOZERO_INV = 4,
    THRESH_MASK       = 7,
    THRESH_OTSU       = 8,
    THRESH_TRIANGLE   = 16
};

注意：

THRESH_OTSU和THRESH_TRIANGLE是作为优化算法配合THRESH_BINARY、THRESH_BINARY_INV、THRESH_TRUNC、THRESH_TOZERO以及THRESH_TOZERO_INV来使用的。

当使用了THRESH_OTSU和THRESH_TRIANGLE两个标志时，输入图像必须为8位单通道。

13.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, gray_src, dst;
int threshold_value = 127; //定义阈值
int threshold_max = 255;
int type_value = 2;
int type_max = 4;

const char* output_title = "binary image";

void Threshold_Demo(int, void*);

int main(int argc, uchar** urgv)
{
	src = imread("E:/技能学习/opencv基础/HappyFish.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow(output_title, WINDOW_AUTOSIZE);
	imshow("input image", src);

	//转为灰度图
	cvtColor(src, gray_src, COLOR_BGR2GRAY);
	//创建滚动条
	createTrackbar("Threshold Value", output_title, &threshold_value, threshold_max, Threshold_Demo);
	createTrackbar("Type Value", output_title, &type_value, type_max, Threshold_Demo);
	Threshold_Demo(0, 0);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

void Threshold_Demo(int, void*)
{
	cvtColor(src, gray_src, COLOR_BGR2GRAY);

	//threshold(gray_src, dst, threshold_value, threshold_max, type_value);
	//threshold(gray_src, dst, 0, 255, THRESH_OTSU | type_value); // THRESH_OTSU可以自动计算阈值
	threshold(gray_src, dst, 0, 255, THRESH_TRIANGLE | type_value); //THRESH_TRIANGLE也可以自动计算阈值
	imshow(output_title, dst);

}

14. 自定义线性滤波

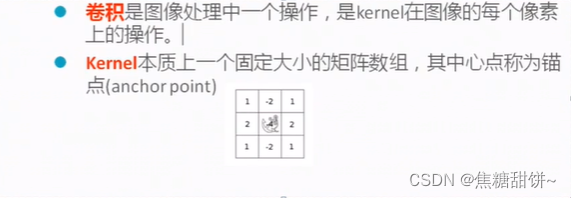

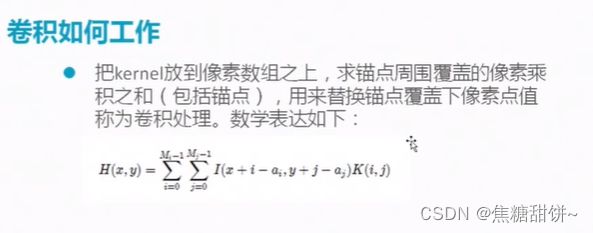

14.1 卷积概念

卷积的作用：

模糊图像、提取边缘、图像增强（锐化）

卷积核又称为算子

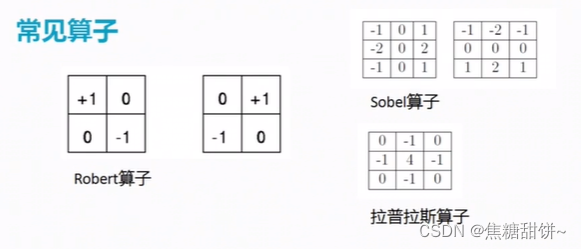

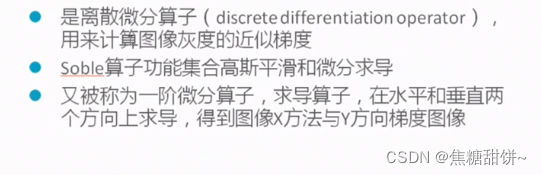

14.2 常见算子

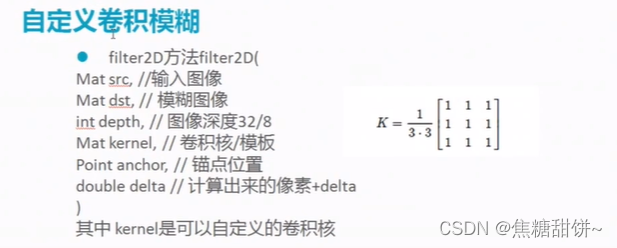

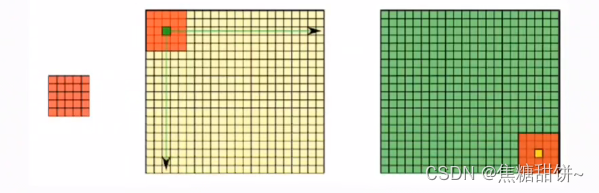

14.3 自定义卷积模糊

卷积核（滤波器/kernel）的规则要求：

卷积核的大小应该是奇数，这样它才有一个中心，例如3x3，5x5或者7x7。有中心也就有了半径的称呼，例如5x5大小的核的半径就是2。

卷积核所有的元素之和应该要等于1，这是为了保证卷积前后图像的亮度保持不变。但这不是硬性要求。

如果卷积核所有元素之和大于1，那么卷积后的图像就会比原图像更亮，反之，如果小于1，那么得到的图像就会变暗。如果和为0，图像不会变黑，但也会非常暗。

对于卷积后的结构，可能会出现负数或者大于255的数值。这种情况将它们直接截断到0和255之间即可。对于负数，也可以取绝对值。

14.4 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;


const char* output_title = "Robert X";

int main(int argc, uchar** urgv)
{
	Mat src, dst;
	src = imread("E:/技能学习/opencv基础/HappyFish.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow(output_title, WINDOW_AUTOSIZE);
	imshow("input image", src);

	//Robert算子  x方向
	/*Mat kernel_x = (Mat_<int>(2, 2) << 1, 0, 0, -1);
	filter2D(src, dst, -1, kernel_x, Point(-1, -1),0.0);
	imshow(output_title, dst);*/

	//Robert算子  y方向
	/*Mat yImg;
	Mat kernel_y = (Mat_<int>(2, 2) << 0, 1, -1, 0);
	filter2D(src, yImg, -1, kernel_y, Point(-1, -1), 0.0);
	imshow("Robert Y", yImg);*/

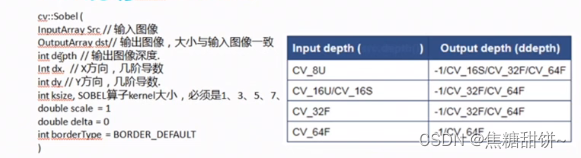

	//Sobel算子  x方向
	/*Mat SImgx;
	Mat kernel_x = (Mat_<int>(3, 3) << -1, 0, 1, -2, 0, 2, -1, 0, 0);
	filter2D(src, SImgx, -1, kernel_x, Point(-1, -1), 0.0);
	imshow("Sobel X", SImgx);*/

	//Sobel算子  y方向
	/*Mat SImgy;
	Mat kernel_y = (Mat_<int>(3, 3) << -1, -2, -1, 0, 0, 0, 1, 2, 1);
	filter2D(src, SImgy, -1, kernel_y, Point(-1, -1), 0.0);
	imshow("Sobel Y", SImgy);*/

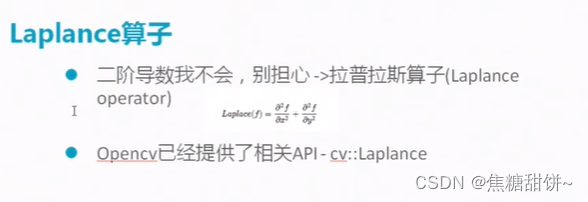

	//拉普拉斯算子
	/*Mat lImgy;
	Mat kernel = (Mat_<int>(3, 3) << 0, -1, 0, -1, 4, -1, 0, -1, 0);
	filter2D(src, lImgy, -1, kernel, Point(-1, -1), 0.0);
	imshow("拉普拉斯算子", lImgy);*/

	//自定义卷积模糊
	int c = 0;
	int index = 0;
	int ksize = 0;

	while (true)
	{
		c = waitKey(500);
		if (c == 27)
		{
			break;
		}
		ksize = 4 + (index % 5) * 2 + 1;

		Mat kernel = Mat::ones(Size(ksize, ksize), CV_32F) / (float)((ksize * ksize));
		filter2D(src, dst, -1, kernel, Point(-1, -1));
		index++;
		imshow(output_title, dst);


	}
	//waitKey(0);
	destroyAllWindows();
	return 0;
}

15. 处理边缘

15.1 卷积边缘问题

图像卷积的时候边界像素不能被卷积操作，原因在于边界像素没有完全跟kernel重叠，所以当3 * 3滤波时会有1个像素的边缘没有被处理，5 * 5滤波时会有2个像素的边缘没有被处理.

15.2 处理边缘

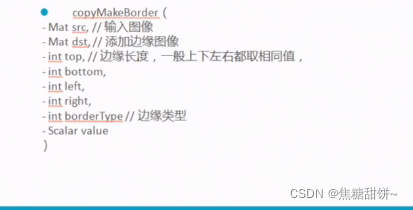

15.3 API --- 给图像增加边缘API

15.4 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;


const char* output_title = "output image";

int main(int argc, uchar** urgv)
{
	Mat src, dst;
	src = imread("E:/技能学习/opencv基础/baboon.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow(output_title, WINDOW_AUTOSIZE);
	imshow("input image", src);

	/*int top = (int)(0.05 * src.rows);
	int bottom = (int)(0.05 * src.rows);
	int right = (int)(0.05 * src.cols);
	int left = (int)(0.05 * src.cols);
	RNG rng(12345);
	int borderType = BORDER_DEFAULT;
	int c = 0;
	while (true)
	{
		c = waitKey(500);
		if (c == 27)
		{
			break;
		}
		if ((char)c == 'r')
		{
			borderType = BORDER_REPLICATE;
		}
		else if ((char)c == 'w')
		{
			borderType = BORDER_WRAP;
		}
		else if ((char)c == 'c')
		{
			borderType = BORDER_CONSTANT;
		}

		Scalar color = Scalar(rng.uniform(0, 255), rng.uniform(0, 255), rng.uniform(0,255));

		copyMakeBorder(src, dst, top, bottom, left, right, borderType, color);

		imshow(output_title, dst);
	}*/

	//高斯模糊
	GaussianBlur(src, dst, Size(5, 5), 0, 0, BORDER_DEFAULT);
	imshow(output_title, dst);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

16. Sobel算子

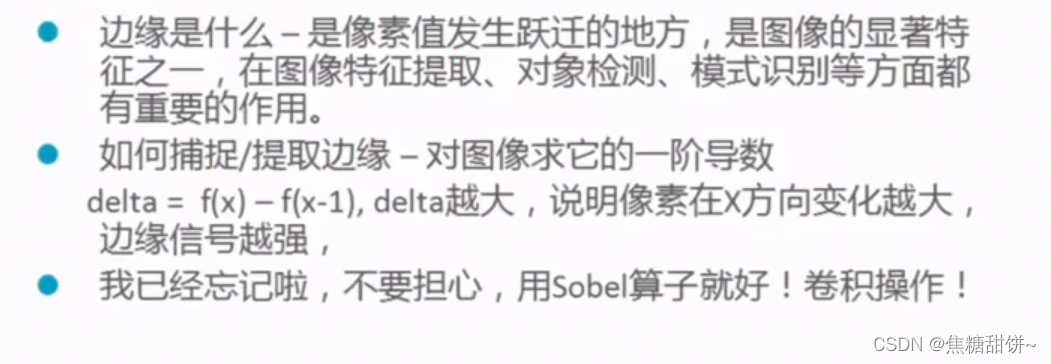

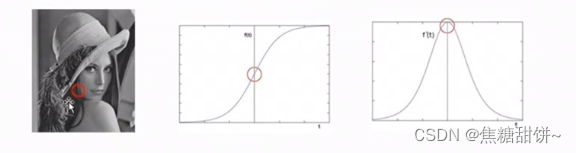

16.1 卷积应用 --- 图像边缘提取

16.2 Sobel算子

对噪声比较敏感，容易受到噪声的干扰，所以在用Sobel算子之前要先对图像降噪。

16.3 API

16.4 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src, dst;
	src = imread("E:/技能学习/opencv基础/lena.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	Mat gray_src;
	//步骤1：高斯平滑
	GaussianBlur(src, dst, Size(3, 3), 0, 0);

	//步骤2：转灰度图
	cvtColor(src, gray_src, COLOR_BGR2GRAY);
	imshow("gray image", gray_src);

	//步骤3：求梯度X和Y

	Mat xgrad, ygrad;
	//Sobel算子
	//Sobel(gray_src, xgrad, CV_16S, 1, 0, 3);
	//Sobel(gray_src, ygrad, CV_16S, 0, 1, 3);

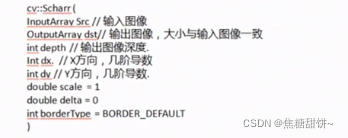

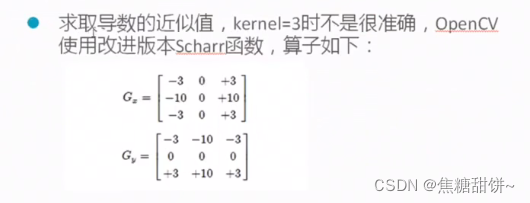

	//Scharr算子
	Sobel(gray_src, xgrad, CV_16S, 1, 0, 3);
	Sobel(gray_src, ygrad, CV_16S, 0, 1, 3);

	convertScaleAbs(xgrad, xgrad);  //convertScaleAbs()用于实现对整个图像数组中的每一个元素取绝对值
	convertScaleAbs(ygrad, ygrad);

	imshow("xgrad image", xgrad);
	imshow("ygrad image", ygrad);

	//步骤4：得到振幅图像
	Mat xygrad = Mat(xgrad.size(), xgrad.type());
	/*cout << "type : " << xygrad.type() << endl;

	int width = xgrad.cols;
	int height = ygrad.rows;
	for (int row = 0; row < height; row++)
	{
		for (int col = 0; col < width; col++)
		{
			int xg = xgrad.at<uchar>(row, col);   //signed char   取值范围是-128-127；

                                                  //unsigned char 取值范围是0-255；
			int yg = ygrad.at<uchar>(row, col);
			int xy = xg + yg;
			xygrad.at<uchar>(row, col) = saturate_cast<uchar>(xy);

		}
	}*/

	add(xgrad, ygrad, xygrad);//与上面for循环等价

	imshow("Final result", xygrad);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

17. Laplance算子

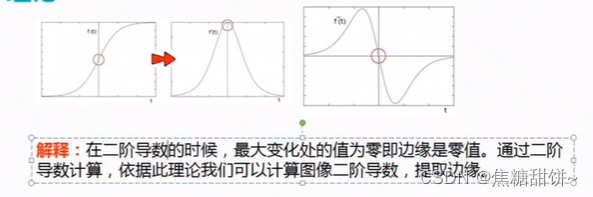

17.1 理论

17.2 API

函数原型：

Laplacian( src_gray, dst, ddepth, kernel_size,
scale, delta, BORDER_DEFAULT );

参数解释：

src_gray，输入图像

dst，Laplace操作结果

ddepth，输出图像深度，因为输入图像一般为CV_8U，为了避免数据溢出，输出图像深度应该设置为CV_16S

kernel_size，filter mask的规模，我们的mask时3x3的，所以这里应该设置为3

scale,delta,BORDER_DEFAULT，默认设置就好

17.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src, dst;
	src = imread("E:/技能学习/opencv基础/lena.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	Mat gray_src, edg_image;
	//高斯模糊
	GaussianBlur(src, dst, Size(3, 3), 0, 0);
	//转灰度图
	cvtColor(dst, gray_src, COLOR_BGR2GRAY);
	//拉普拉斯变换
	Laplacian(gray_src, edg_image, CV_16S, 3);
	//取绝对值
	convertScaleAbs(edg_image, edg_image);
	//二值化
	threshold(edg_image, edg_image, 0, 255, THRESH_OTSU);
	imshow("output image", edg_image);


	waitKey(0);
	destroyAllWindows();
	return 0;
}

18. Canny边缘检测

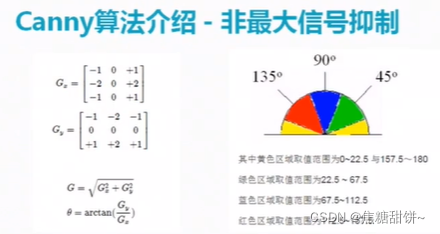

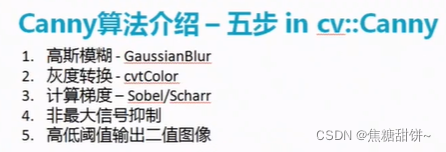

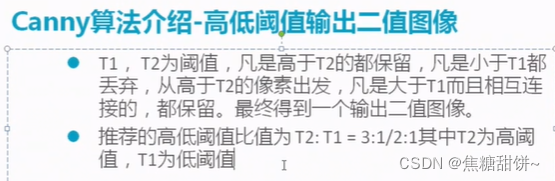

18.1 Canny算法介绍

18.2 API

输入图像为灰度图

L2是用公式

L1是用公式

默认情况一般选择是L1，参数设置为false。

18.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, dst;
Mat gray_src;
int t1_value = 50;
int max_value = 255;

void Canny_Demo(int, void*);

int main(int argc, uchar** urgv)
{

	src = imread("E:/技能学习/opencv基础/lena.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("output image", WINDOW_AUTOSIZE);
	imshow("input image", src);


	cvtColor(src, gray_src, COLOR_BGR2GRAY);
	createTrackbar("Threshold Value: ", "output image", &t1_value, max_value, Canny_Demo);
	Canny_Demo(0, 0);


	waitKey(0);
	destroyAllWindows();
	return 0;
}

void Canny_Demo(int, void*)
{
	Mat edg_output;
	blur(gray_src, gray_src, Size(3, 3), Point(-1, -1));  //均值滤波
	Canny(gray_src, edg_output, t1_value, t1_value * 2, 3, false);

	//image.copyTo(imageROI，mask)  作用是把mask和image重叠以后
	//把mask中像素值为0（black）的点对应的image中的点变为透明，而保留其他点。
	/*dst.create(src.size(), src.type());
	src.copyTo(dst, edg_output);*/

	imshow("output image", edg_output);

}

19. 霍夫变换 --- 直线检测

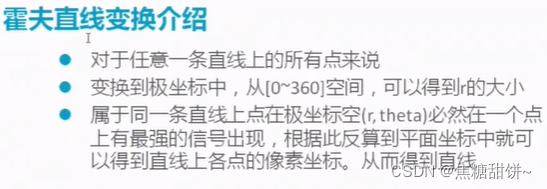

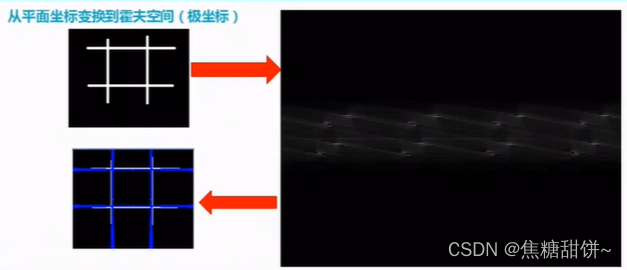

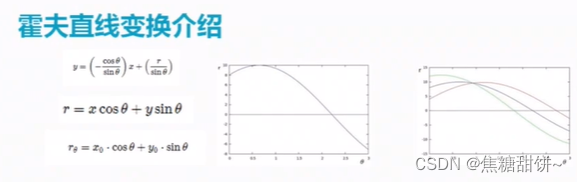

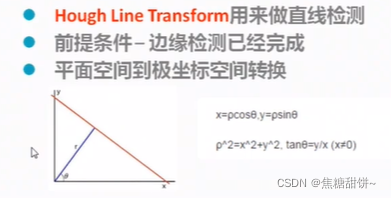

19.1 霍夫直线变换介绍

使用霍夫变换检测直线具体步骤：
1.彩色图像转灰度图

2.高斯去噪

3.边缘提取（梯度算子、拉普拉斯算子、canny、sobel）

4.二值化（判断此处是否为边缘点，就看灰度值==255）

5.映射到霍夫空间（准备两个容器，一个用来展示hough-space概况，一个数组hough-space用来储存voting的值，因为投票过程往往有某个极大值超过阈值，多达几千，不能直接用灰度图来记录投票信息）

6.取局部极大值，设定阈值，过滤干扰直线

7.绘制直线、标定角点

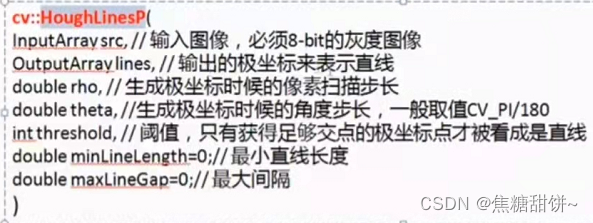

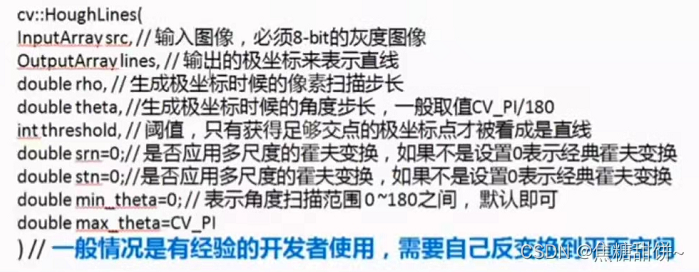

19.2 API

19.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src, gray_src, dst;

	src = imread("E:/技能学习/opencv基础/bin1.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("output image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	//边缘检测
	Canny(src, gray_src, 100, 200);
	cvtColor(gray_src, dst, COLOR_GRAY2BGR);
	imshow("edge image", gray_src);

	//二维直线类型为cv::Vec4f，输出参数的前半部分给出的是直线的方向，
	//而后半部分给出的是直线上的一点（即通常所说的点斜式直线）。
	vector<Vec4f> pline;
	HoughLinesP(gray_src, pline, 1, CV_PI / 180.0, 10, 0, 10);

	Scalar color = Scalar(0, 0, 255);
	for (size_t i = 0; i < pline.size(); i++) //size_t 可以理解为int
	{
		Vec4f hline = pline[i];
		line(dst, Point(hline[0], hline[1]), Point(hline[2], hline[3]), color, 3, 8);

	}

	imshow("output image", dst);


	waitKey(0);
	destroyAllWindows();
	return 0;
}

20. 霍夫圆检测

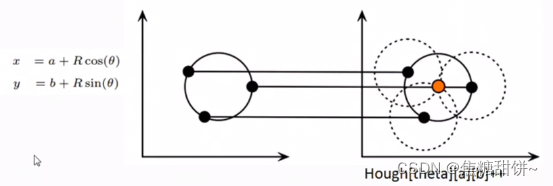

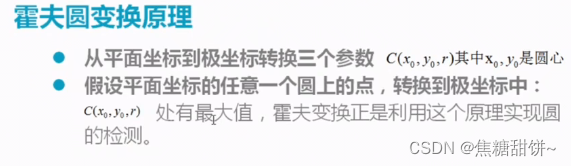

20.1 霍夫圆检测原理

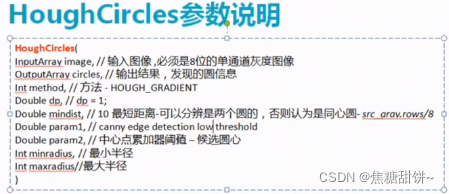

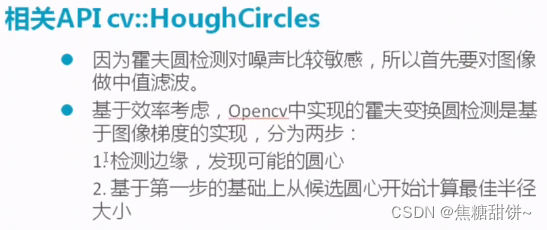

20.2 API

20.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int hough_value = 30;
Mat src, dst;
Mat moutput;

void hough_change(int, void*)
{
	//霍夫圆检测
	vector<Vec3f> pcircles;
	HoughCircles(moutput, pcircles, HOUGH_GRADIENT, 1, 30, 110, hough_value, 0, 0);

	src.copyTo(dst);

	for (size_t i = 0; i < pcircles.size(); i++)
	{
		Vec3f cc = pcircles[i];
		//画圆
		circle(dst, Point(cc[0], cc[1]), cc[2], Scalar(0, 0, 255), 2, LINE_AA);
		//将圆心位置标出来
		circle(dst, Point(cc[0], cc[1]), 2, Scalar(198, 23, 255), 2, LINE_AA);

	}

	imshow("Hough circle image", dst);
}


int main(int argc, uchar** urgv)
{
	src = imread("E:/技能学习/opencv基础/test1.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("Hough circle image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	//中值滤波

	medianBlur(src, moutput, 3);

	//转灰度
	cvtColor(moutput, moutput, COLOR_BGR2GRAY);

	createTrackbar("hough value", "Hough circle image", &hough_value, 200, hough_change);
	hough_change(0, 0);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

21. 像素重映射

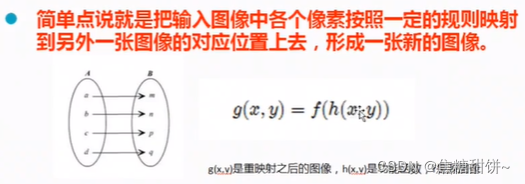

21.1 像素重映射

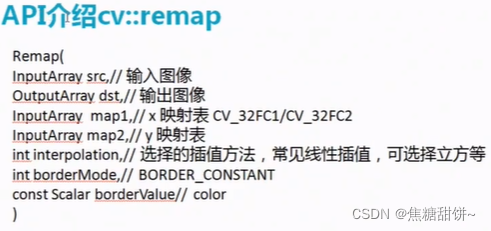

21.2 API

21.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, dst, map_x, map_y;
int index = 0;

void updata_map(int, void*)
{
	for (int row = 0; row < src.rows; row++)
	{
		for (int col = 0; col < src.cols; col++)
		{
			switch (index)
			{
			case 0:
				if (col >= (src.cols * 0.25) && col <= (src.cols * 0.75) && row >=(src.rows * 0.25) && row <= (src.rows * 0.75))
				{
					map_x.at<float>(row, col) = 2 * (col - (src.cols * 0.25) + 0.5);
					map_y.at<float>(row, col) = 2 * (row - (src.rows * 0.25) + 0.5);
				}
				else
				{
					map_x.at<float>(row, col) = 0;
					map_y.at<float>(row, col) = 0;
				}
				break;
			case 1:   //行不变，列变
			{
				map_x.at<float>(row, col) = (src.cols - col - 1);
				map_y.at<float>(row, col) = row;
			}
			case 2:   //行变，列不变
			{
				map_x.at<float>(row, col) = col;
				map_y.at<float>(row, col) = (src.rows - row - 1);
			}
			case 3:   //行，列都变
			{
				map_x.at<float>(row, col) = (src.cols - col - 1);
				map_y.at<float>(row, col) = (src.rows - row - 1);
			}
			}
		}
	}
}


int main(int argc, uchar** urgv)
{
	src = imread("E:/技能学习/opencv基础/lena.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("remap image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	map_x.create(src.size(), CV_32FC1);
	map_y.create(src.size(), CV_32FC1);

	while (true)
	{
		int c = waitKey(500);
		index = c % 4;
		if (c == 27)
		{
			break;
		}

		updata_map(0, 0);
		remap(src, dst, map_x, map_y, INTER_LINEAR, BORDER_CONSTANT, Scalar(0, 255, 255));

		imshow("remap image", dst);
	}



	waitKey(0);
	destroyAllWindows();
	return 0;
}

22. 直方图均衡化

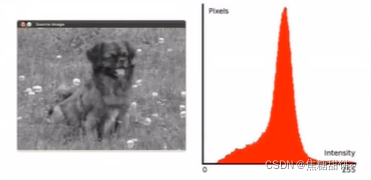

22.1 直方图（Histogram）

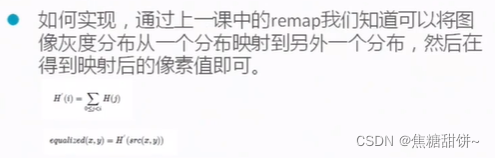

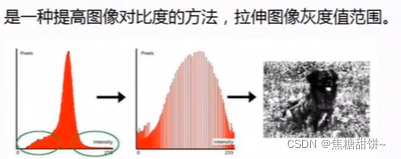

22.2 直方图均衡化

22.3 直方图均衡化API

22.4 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;



int main(int argc, uchar** urgv)
{
	Mat src, dst;
	src = imread("E:/技能学习/opencv基础/lena.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	cvtColor(src, src, COLOR_BGR2GRAY);

	equalizeHist(src, dst);

	imshow("equalizeHist image", dst);



	waitKey(0);
	destroyAllWindows();
	return 0;
}

23. 直方图计算

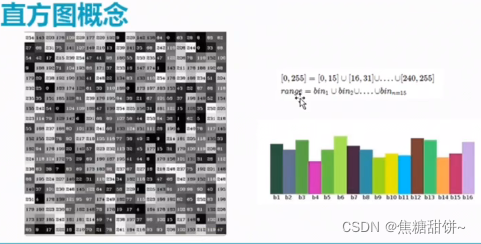

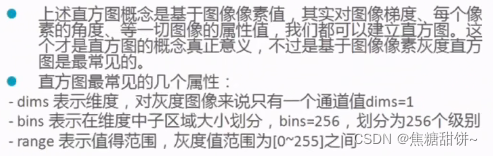

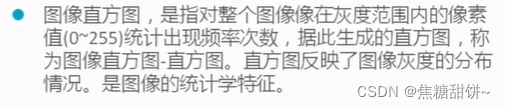

23.1 直方图概念（Histogram）

23.2 API

23.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

int main(int argc, uchar** urgv)
{
	Mat src, dst;
	src = imread("E:/技能学习/opencv基础/lena.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	imshow("input image", src);

	vector<Mat> bgr_planes;
	//通道分离
	split(src, bgr_planes);
	int histSize = 256;
	float range[] = { 0,256 }; //左闭右开
	const float *histRanges = { range };

	Mat b_hist, g_hist, r_hist;
	//直方图计算
	calcHist(&bgr_planes[0], 1, 0, Mat(), b_hist, 1, &histSize, &histRanges, true, false);
	calcHist(&bgr_planes[1], 1, 0, Mat(), g_hist, 1, &histSize, &histRanges, true, false);
	calcHist(&bgr_planes[2], 1, 0, Mat(), r_hist, 1, &histSize, &histRanges, true, false);

	int hist_h = 400;
	int hist_w = 512;
	int bin_w = hist_w / histSize;
	//归一化
	normalize(b_hist, b_hist, 0, hist_h, NORM_MINMAX, -1, Mat());  //将值归一化到0 - hist_h范围内
	normalize(g_hist, g_hist, 0, hist_h, NORM_MINMAX, -1, Mat());
	normalize(r_hist, r_hist, 0, hist_h, NORM_MINMAX, -1, Mat());

	//绘制直方图
	Mat histImage(hist_w, hist_h, CV_8UC3, Scalar(0,0,0));
	for (int i = 1; i < histSize; i++)
	{
		line(histImage, Point((i - 1) * bin_w, hist_h - cvRound(b_hist.at<float>(i - 1))),
			Point((i)* bin_w, hist_h - cvRound(b_hist.at<float>(i))), Scalar(255, 0, 0), 2, LINE_AA);

		line(histImage, Point((i - 1) * bin_w, hist_h - cvRound(g_hist.at<float>(i - 1))),
			Point((i)* bin_w, hist_h - cvRound(g_hist.at<float>(i))), Scalar(0, 255, 0), 2, LINE_AA);

		line(histImage, Point((i - 1) * bin_w, hist_h - cvRound(r_hist.at<float>(i - 1))),
			Point((i)* bin_w, hist_h - cvRound(r_hist.at<float>(i))), Scalar(0, 0, 255), 2, LINE_AA);
	}

	//显示结果
	imshow("直方图显示", histImage);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

24. 直方图比较

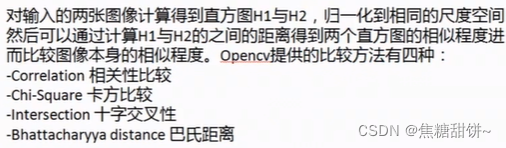

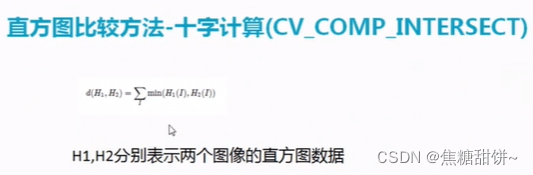

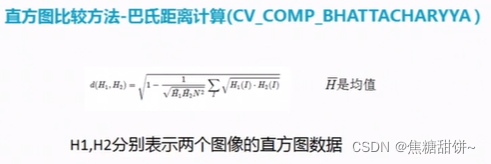

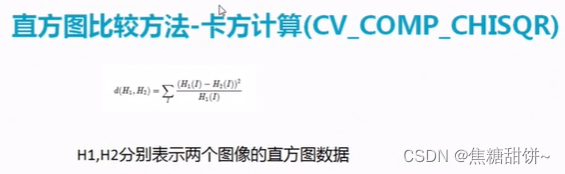

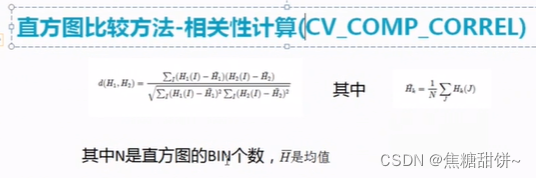

24.1 直方图比较方法

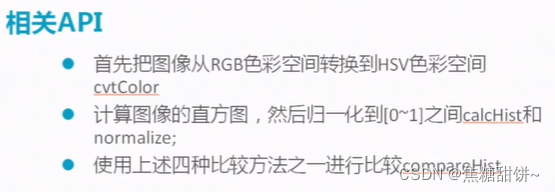

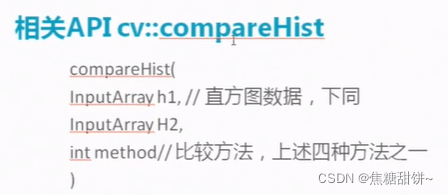

24.2 API

compareHist 输出结果是一个double值，将double值变为string

24.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

string convertToString(double d)
{
	ostringstream os;
	if (os << d)
	{
		return os.str();
		return "invalid conversion";
	}
}
int main(int argc, uchar** urgv)
{
	Mat base, test1, test2;

	base = imread("E:/技能学习/opencv基础/test.jpg");
	if (base.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	test1 = imread("E:/技能学习/opencv基础/lena.jpg");
	test2 = imread("E:/技能学习/opencv基础/lenanoise.jpg");

	//RGB转HSV
	cvtColor(base, base, COLOR_BGR2HSV);
	cvtColor(test1, test1, COLOR_BGR2HSV);
	cvtColor(test2, test2, COLOR_BGR2HSV);

	int h_bins = 50;
	int s_bins = 60;
	int histSize[] = { h_bins , s_bins };

	//H 0 - 180  S 0 - 256
	float h_ranges[] = { 0, 180 };
	float s_ranges[] = { 0, 256 };
	const float *ranges[] = { h_ranges, s_ranges };

	int channels[] = { 0, 1 };

	//因为求出来的直方图是一个多维的，所以类型定义为MatND
	MatND hist_base; //ND表示多维的
	MatND hist_test1;
	MatND hist_test2;

	//直方图计算 并 归一化
	calcHist(&base, 1, channels, Mat(), hist_base, 2, histSize, ranges, true, false);
	normalize(hist_base, hist_base, 0, 1, NORM_MINMAX, -1, Mat());  //将值归一化到0 - 1范围内

	calcHist(&test1, 1, channels, Mat(), hist_test1, 2, histSize, ranges, true, false);
	normalize(hist_test1, hist_test1, 0, 1, NORM_MINMAX, -1, Mat());  //将值归一化到0 - 1范围内

	calcHist(&test2, 1, channels, Mat(), hist_test2, 2, histSize, ranges, true, false);
	normalize(hist_test2, hist_test2, 0, 1, NORM_MINMAX, -1, Mat());  //将值归一化到0 - 1范围内

	//直方图比较
	double basebase = compareHist(hist_base, hist_base, HISTCMP_CORREL); //base与base做直方图相关性比较
	double basetest1 = compareHist(hist_base, hist_test1, HISTCMP_CORREL);//base与test1做直方图相关性比较
	double basetest2 = compareHist(hist_base, hist_test2, HISTCMP_CORREL);//base与test2做直方图相关性比较
	double test1test2 = compareHist(hist_test1, hist_test2, HISTCMP_CORREL);//test1与test2做直方图相关性比较

	//putText是写文本
	putText(base, convertToString(basebase), Point(50, 50), FONT_HERSHEY_COMPLEX, 1, Scalar(0, 0, 255), 2, LINE_AA);
	putText(test1, convertToString(basetest1), Point(50, 50), FONT_HERSHEY_COMPLEX, 1, Scalar(0, 0, 255), 2, LINE_AA);
	putText(test2, convertToString(basetest2), Point(50, 50), FONT_HERSHEY_COMPLEX, 1, Scalar(0, 0, 255), 2, LINE_AA);

	//显示结果
	imshow("base", base);
	imshow("test1", test1);
	imshow("test2", test2);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

25. 直方图反向投影(Back Projection)

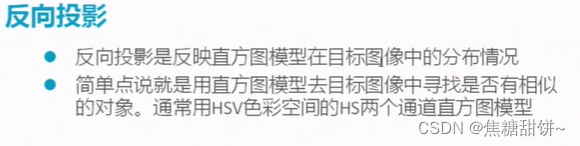

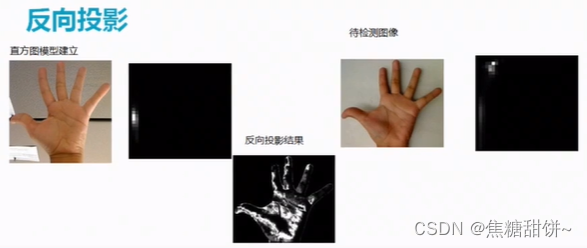

25.1 反向投影

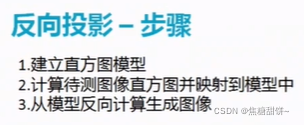

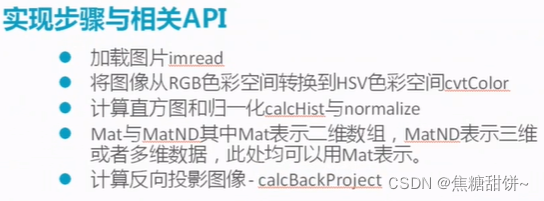

25.2 实现步骤与API

calcBackProject()函数：

void calcBackProject( const Mat* images, int nimages,
                                 const int* channels, InputArray hist,
                                 OutputArray backProject, const float** ranges,
                                 double scale = 1, bool uniform = true );

25.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, hsv, hue;
int bins = 12;
void Hist_And_Backprojection(int, void*);


int main(int argc, uchar** urgv)
{
	src = imread("E:/技能学习/opencv基础/t1.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	imshow("input image", src);

	//RGB转HSV
	cvtColor(src, hsv, COLOR_BGR2HSV);
	//分离hue色调通道
	hue.create(hsv.size(), hsv.depth());
	int nchannels[] = { 0,0 };
	mixChannels(&hsv, 1, &hue, 1, nchannels, 1);

	createTrackbar("Histogram bins", "input image", &bins, 180, Hist_And_Backprojection);
	Hist_And_Backprojection(0, 0);


	waitKey(0);
	destroyAllWindows();
	return 0;
}

void Hist_And_Backprojection(int, void*)
{
	float range[] = { 0,180 };
	const float *HistRanges = { range };
	Mat h_hist;
	//直方图计算
	calcHist(&hue, 1, 0, Mat(), h_hist, 1, &bins, &HistRanges, true, false);
	//归一化
	normalize(h_hist, h_hist, 0, 255, NORM_MINMAX, -1, Mat());
	//计算反向投影图像
	Mat backPrjImage;
	calcBackProject(&hue, 1, 0, h_hist, backPrjImage, &HistRanges, 1, true);
	//显示图像
	imshow("BackPro", backPrjImage);

	//绘制直方图
	int hist_h = 400;
	int hist_w = 512;
	Mat histImage(hist_w, hist_h, CV_8UC3, Scalar(0, 0, 0));
	int bin_w = (hist_w / bins);
	for (int i = 1; i < bins; i++)
	{
		rectangle(histImage,
			Point((i - 1) * bin_w, hist_h - cvRound(h_hist.at<float>(i - 1) * (400 / 255))),
			//Point((i)* bin_w, hist_h - cvRound(h_hist.at<float>(i) * (400 / 255))),
			Point(i * bin_w, hist_h),
			Scalar(0, 0, 255), -1);

	}
	imshow("直方图", histImage);

	return;

}

26. 模板匹配(Template Match)

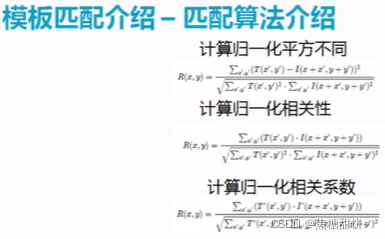

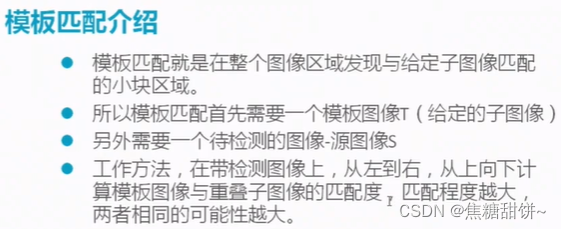

26.1 模板匹配介绍

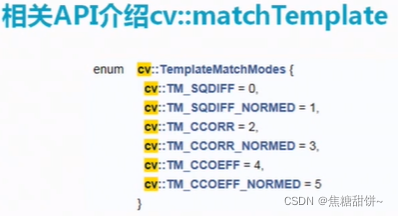

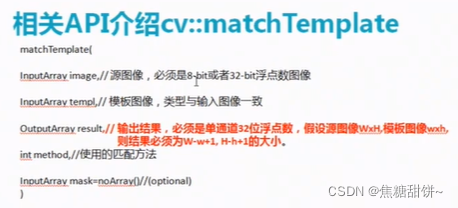

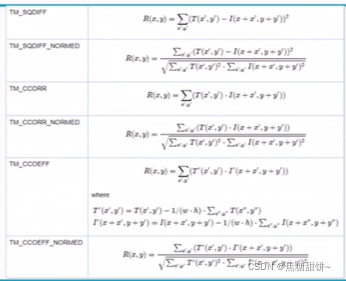

26.2 API

26.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, temp, dst;
int match_method = TM_SQDIFF;
int max_track = 5;

void max_demo(int, void*)
{
	int width = src.cols - temp.cols + 1;
	int heigh = src.rows - temp.rows + 1;
	Mat result(width, heigh, CV_32FC1);

	//模板匹配
	matchTemplate(src, temp, result, match_method, Mat());
	//结果归一化
	normalize(result, result, 0, 1, NORM_MINMAX, -1, Mat());

	Point minLoc;
	Point maxLoc;
	double min, max;
	src.copyTo(dst);
	Point temLoc;

	//找出最大最小值和最大最小值的位置
	minMaxLoc(result, &min, &max, &minLoc, &maxLoc, Mat());

	if (match_method == TM_SQDIFF || match_method == TM_SQDIFF_NORMED)
	{
		temLoc = minLoc;
	}
	else
	{
		temLoc = maxLoc;
	}
	//把最大最小值的位置绘制出来
	rectangle(dst, Rect(temLoc.x, temLoc.y, temp.cols, temp.rows), Scalar(0, 0, 255), 2, 8);

	rectangle(result, Rect(temLoc.x, temLoc.y, temp.cols, temp.rows), Scalar(0, 0, 255), 2, 8);

	//显示
	imshow("output image", dst);
	imshow("result image", result);

}

int main(int argc, uchar** urgv)
{

	//待检测图像
	src = imread("E:/技能学习/opencv基础/baboon.jpg");
	//模板图像
	temp = imread("E:/技能学习/opencv基础/sample.jpg");
	if (src.empty() || temp.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}
	namedWindow("output image", WINDOW_AUTOSIZE);
	imshow("input image", src);
	imshow("input sample image",temp);

	createTrackbar("匹配算法类型", "output image", &match_method, max_track, max_demo);
	max_demo(0, 0);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

27. 轮廓发现

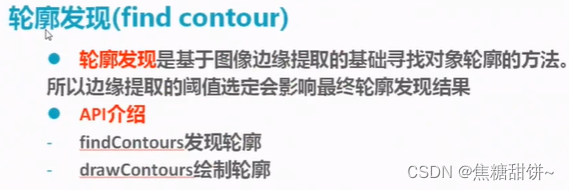

27.1 轮廓发现

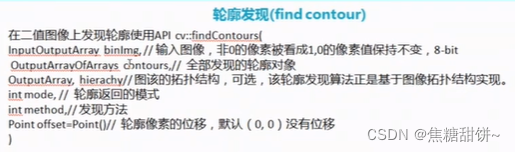

27.2 API

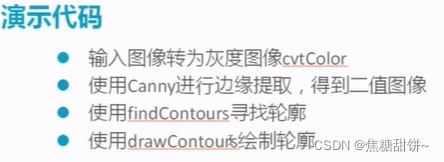

27.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, dst;
int threshold_value = 100;
int threshold_max = 255;

RNG rng(12345);

void Demo_Contours(int, void*)
{
	Mat canny_output;
	vector<vector<Point>>contoursPoints;
	vector<Vec4i>hierachy; //vector<Vec4i>：放了4维int向量

	//边缘检测
	Canny(src, canny_output, threshold_value, threshold_value * 2, 3, false);
	//发现轮廓
	findContours(canny_output, contoursPoints, RETR_TREE, CHAIN_APPROX_SIMPLE, Point(0, 0));

	dst = Mat::zeros(src.size(), CV_8UC3);
	for (size_t i = 0; i < contoursPoints.size(); i++)
	{
		//生成随机颜色
		Scalar color = Scalar(rng.uniform(0, 255), rng.uniform(0, 255), rng.uniform(0, 255));

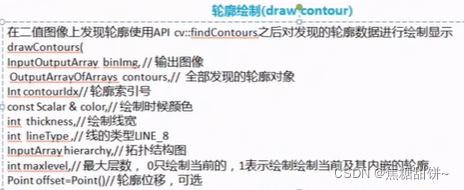

		//绘制轮廓
		drawContours(dst, contoursPoints, i, color, 2, 8, hierachy, 0, Point(0, 0));
	}
	imshow("output image", dst);
}

int main(int argc, uchar** urgv)
{
	src = imread("E:/技能学习/opencv基础/HappyFish.jpg");

	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}
	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("output image", WINDOW_AUTOSIZE);
	imshow("input image", src);
	//转灰度图
	cvtColor(src, src, COLOR_BGR2GRAY);

	createTrackbar("Threshold_Value", "output image", &threshold_value, threshold_max, Demo_Contours);
	Demo_Contours(0, 0);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

28. 凸包 --- Convex Hull

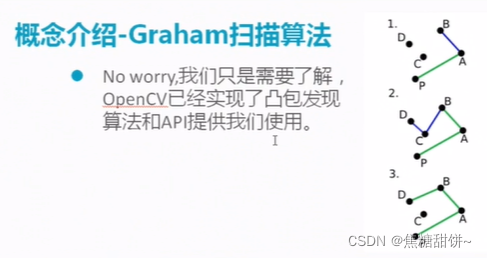

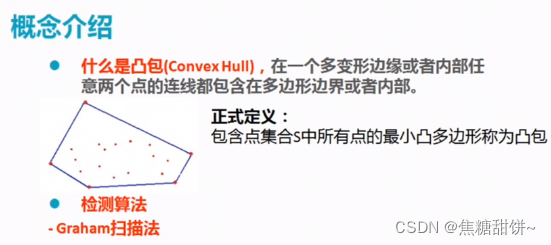

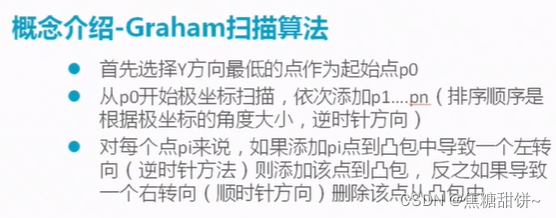

28.1 凸包概念

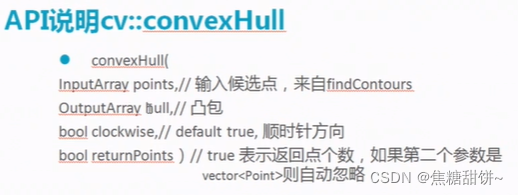

28.2 API

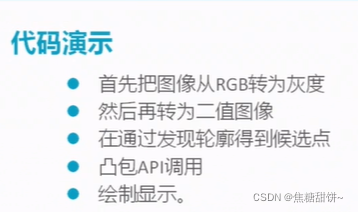

28.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, src_gray, dst;
int threshold_value = 100;
int threshold_max = 255;

RNG rng(12345);

void Threshold_Callback(int, void*)
{
	Mat bin_output;
	vector<vector<Point>>contoursPoints;
	vector<Vec4i>hierachy; //vector<Vec4i>：放了4维int向量

	//变为二值图像
	threshold(src_gray, bin_output, threshold_value, threshold_max, THRESH_BINARY);

	//发现轮廓
	findContours(bin_output, contoursPoints, hierachy, RETR_TREE, CHAIN_APPROX_SIMPLE, Point(0, 0));

	vector<vector<Point>>convexs(contoursPoints.size());

	for (size_t i = 0; i < contoursPoints.size(); i++)
	{
		//计算凸包
		convexHull(contoursPoints[i], convexs[i], false, true);
	}

	dst = Mat::zeros(src.size(), CV_8UC3);
	vector<Vec4i> empty(0);
	for (size_t k = 0; k < contoursPoints.size(); k++)
	{
		//绘制显示

		//生成随机颜色
		Scalar color = Scalar(rng.uniform(0, 255), rng.uniform(0, 255), rng.uniform(0, 255));
		//绘制轮廓
		drawContours(dst, contoursPoints, k, color, 2, LINE_8, hierachy, 0, Point(0, 0));
		drawContours(dst, convexs, k, color, 2, LINE_8, empty, 0, Point(0, 0));

	}

	imshow("convex hull demo", dst);
	return;
}

int main(int argc, uchar** urgv)
{
	src = imread("E:/技能学习/opencv基础/HappyFish.jpg");

	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}
	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("convex hull demo ", WINDOW_AUTOSIZE);
	imshow("input image", src);
	//转灰度图
	cvtColor(src, src_gray, COLOR_BGR2GRAY);
	//去噪
	blur(src_gray, src_gray, Size(3, 3), Point(-1, -1), BORDER_DEFAULT);
	//创建滑动条
	createTrackbar("Threshold", "convex hull demo ", &threshold_value, threshold_max, Threshold_Callback);
	Threshold_Callback(0, 0);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

29. 轮廓周围绘制矩形框和圆形框

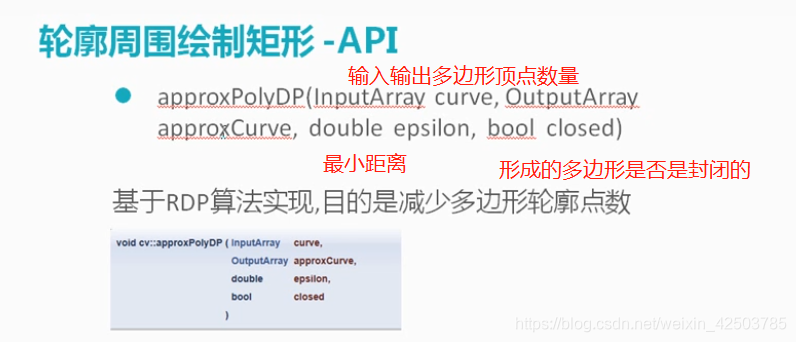

29.1 API

第一个参数 InputArray curve：输入的点集
第二个参数OutputArray approxCurve：输出的点集，当前点集是能最小包容指定点集的。画出来即是一个多边形；
第三个参数double epsilon：指定的精度，也即是原始曲线与近似曲线之间的最大距离。
第四个参数bool closed：若为true,则说明近似曲线是闭合的，反之，若为false，则断开。

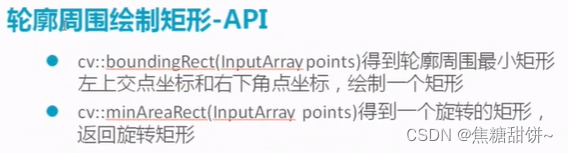

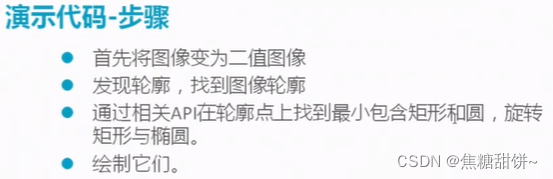

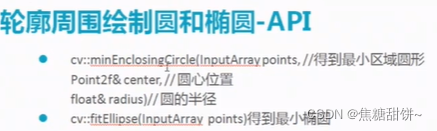

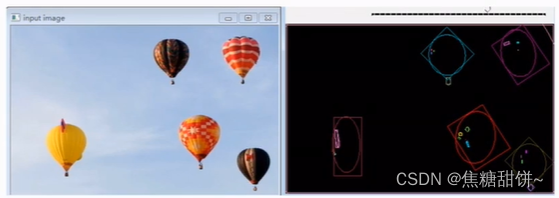

29.2 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, gray_src, drawImg;
int threshold_v = 170;
int threshold_max = 255;

RNG rng(12345);

void Contours_Callback(int, void*)
{

	Mat bin_output;
	vector<vector<Point>> contours;
	vector<Vec4i>hierachy; //vector<Vec4i>：放了4维int向量

	//变为二值图像
	threshold(gray_src, bin_output, threshold_v, threshold_max, THRESH_BINARY);
	imshow("binary image", bin_output);

	//发现轮廓
	findContours(bin_output, contours, hierachy, RETR_TREE, CHAIN_APPROX_SIMPLE, Point(-1, -1));

	vector<vector<Point>>contours_ploy(contours.size());
	vector<Rect>ploy_rects(contours.size());
	vector<Point2f>ccs(contours.size()); //Point2f表示Point类的两个数据x,y为float类型；
	vector<float>radius(contours.size());

	vector<RotatedRect> minRects(contours.size());
	vector<RotatedRect> myellipse(contours.size());

	for (size_t i = 0; i < contours.size(); i++)
	{
		approxPolyDP((contours[i]), contours_ploy[i], 3, true);
		ploy_rects[i] = boundingRect(contours_ploy[i]); //得到轮廓周围最小矩形
		minEnclosingCircle(contours_ploy[i], ccs[i], radius[i]); //得到最小区域圆形

		if (contours_ploy[i].size() > 5)
		{
			myellipse[i] = fitEllipse(contours_ploy[i]); //得到最小椭圆
			minRects[i] = minAreaRect(contours_ploy[i]);  //得到旋转矩形
		}

	}

	//src.copyTo(drawImg);
	drawImg = Mat::zeros(src.size(), src.type());
	Point2f pts[4];

	for (size_t t = 0; t < contours.size(); t++)
	{
		//生成随机颜色
		Scalar color = Scalar(rng.uniform(0, 255), rng.uniform(0, 255), rng.uniform(0, 255));
		//绘制显示
		//rectangle(drawImg, ploy_rects[t], color, 2, 8);
		//circle(drawImg, ccs[t], radius[t], color, 2, 8);

		if (contours_ploy[t].size() > 5)
		{
			ellipse(drawImg, myellipse[t], color, 1, 8);

			minRects[t].points(pts);  //把最小矩形的点都放到pts中

			for (int r = 0; r < 4; r++)
			{
				line(drawImg, pts[r], pts[(r + 1) % 4], color, 1, 8); //对四取余是为了第一个点和最后一个点相连接
			}
		}
	}

	imshow("rectangle demo ", drawImg);
	return;
}

int main(int argc, uchar** urgv)
{
	src = imread("E:/技能学习/opencv基础/hotball.jpg");

	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}
	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("rectangle demo ", WINDOW_AUTOSIZE);
	imshow("input image", src);
	//转灰度图
	cvtColor(src, gray_src, COLOR_BGR2GRAY);
	//去噪
	blur(gray_src, gray_src, Size(3, 3), Point(-1, -1), BORDER_DEFAULT);

	//创建滑动条
	createTrackbar("Threshold", "rectangle demo ", &threshold_v, threshold_max, Contours_Callback,nullptr);
	Contours_Callback(0, 0);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

30. 图像矩

30.1 矩的概念

30.2 API

30.2.1 矩的计算： moments()函数

moments()函数用来计算多边形和光栅形状的最高达三阶的所有矩。用来计算形状的重心、面积、主轴和其他形状特征。

函数原型：

Moments moments( InputArray array, //输入图像
bool binaryImage = false ); //是否为二值图像，默认值是false，取true，所有的非零元素为1

输出参数：moments 是一个类

30.2.2 计算轮廓面积：contourArea() 函数

用来计算整个轮廓或部分轮廓的面积

函数原型：

double contourArea( InputArray contour, //输入轮廓数据
bool oriented = false );  //默认false，返回绝对值

30.2.3 计算轮廓长度：arcLength()函数

用来计算封闭轮廓的周长或曲线的长度

函数原型：

double arcLength( InputArray curve, //输入曲线数据
bool closed ); //是否为封闭曲线

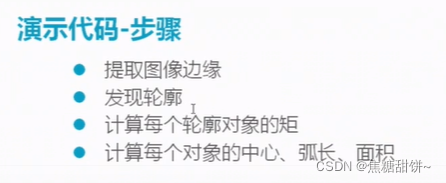

30.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;

Mat src, gray_src;
int threshold_value = 80;
int threshold_max = 255;

RNG rng(12345);

void Demo_Moment(int, void*)
{
	Mat canny_output;
	vector<vector<Point>>contours;
	vector<Vec4i>hierachy;

	//边缘检测
	Canny(gray_src, canny_output, threshold_value, threshold_value * 2, 3, false);

	//找到轮廓
	findContours(canny_output, contours, hierachy, RETR_TREE, CHAIN_APPROX_SIMPLE, Point(0, 0));


	vector<Moments> contours_moments(contours.size());
	vector<Point2f> ccs(contours.size()); //Point2f表示Point类的两个数据x,y为float类型；


	for (size_t i = 0; i < contours.size(); i++)
	{
		//计算每个轮廓对象的矩
		contours_moments[i] = moments(contours[i]);
		//计算中心位置
		ccs[i] = Point(static_cast<float>(contours_moments[i].m10 / contours_moments[i].m00),
			static_cast<float>(contours_moments[i].m01 / contours_moments[i].m00));
	}

	Mat drawImg;
	src.copyTo(drawImg);

	for (size_t i = 0; i < contours.size(); i++)
	{
		Scalar color = Scalar(rng.uniform(0, 255), rng.uniform(0, 255));
		cout << "center point x = " << ccs[i].x << "  y = " << ccs[i].y << endl;
		cout << i << "  contours area:" << contourArea(contours[i]) << "  arc length"
			<< arcLength(contours[i],true) << endl;
		drawContours(drawImg, contours, i, color, 2, 8, hierachy, 0, Point(0, 0));
		circle(drawImg, ccs[i], 2, color, 2, 8);
	}

	imshow("image moment demo", drawImg);

}

int main(int argc, uchar** urgv)
{
	src = imread("E:/技能学习/opencv基础/hotball.jpg");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("image moment demo", WINDOW_AUTOSIZE);
	imshow("input image", src);

	//RGB转GRAY
	cvtColor(src, gray_src, COLOR_BGR2GRAY);

	//高斯模糊
	GaussianBlur(gray_src, gray_src, Size(3, 3), 0, 0);

	//创建滚动条
	createTrackbar("threshold value: ", "image moment demo", &threshold_value, threshold_max, Demo_Moment);


	waitKey(0);
	destroyAllWindows();
	return 0;
}

31. 点多边形测试

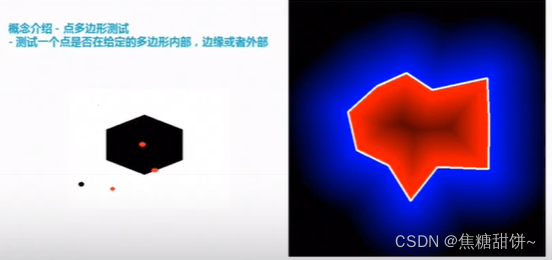

31.1 概念

31.2 API

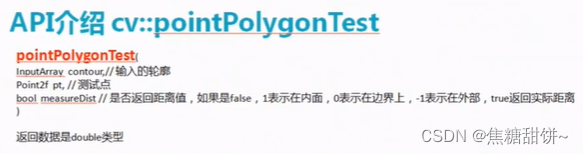

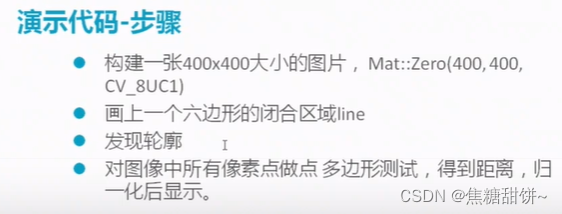

31.3 代码演示

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;


int main(int argc, uchar** urgv)
{
	const int r = 100;
	Mat src = Mat::zeros(r * 4, r * 4, CV_8UC1); //构建一张图片

	//六边形的六个顶点
	vector<Point2f> vert(6);
	vert[0] = Point(3 * r / 2, static_cast<int>(1.34 * r));
	vert[1] = Point(1 * r, 2 * r);
	vert[2] = Point(3 * r / 2, static_cast<int>(2.866 * r));
	vert[3] = Point(5 * r / 2, static_cast<int>(2.866 * r));
	vert[4] = Point(3 * r , 2 * r);
	vert[5] = Point(5 * r / 2, static_cast<int>(1.34 * r));

	for (int i = 0; i < 6; i++)
	{
		line(src, vert[i], vert[(i + 1) % 6], Scalar(255), 3, 8, 0); //画六边形

	}
	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("point polygon test demo", WINDOW_AUTOSIZE);
	imshow("input image", src);

	vector < vector<Point>> contours;
	vector<Vec4i>hierachy;
	Mat csrc;
	src.copyTo(csrc);

	//找到轮廓
	findContours(csrc, contours, hierachy, RETR_TREE, CHAIN_APPROX_SIMPLE, Point(0, 0));

	Mat raw_dist = Mat::zeros(csrc.size(), CV_32FC1);

	for (int row = 0; row < raw_dist.rows; row++)
	{
		for (int col = 0; col < raw_dist.cols; col++)
		{
			double dist = pointPolygonTest(contours[0], Point2f(static_cast<float>(col), static_cast<float>(row)), true);
			//contours[0]: 输入的轮廓
			//Point2f(static_cast<float>(col), static_cast<float>(row)): 测试点
			//true:是否返回距离值，如果是false，1表示在内面，0表示在边界上，-1表示在外部，true返回实际距离

			raw_dist.at<float>(row, col) = static_cast<float>(dist); //把每一个像素点都用距离值代替
		}
	}

	double minvalue, maxvalue;

	//minMaxLoc  在一个数组中找到全局最小值和全局最大值,该函数不能用于多通道数组
	minMaxLoc(raw_dist, &minvalue, &maxvalue, 0, 0, Mat());
	Mat drawImg = Mat::zeros(src.size(), CV_8UC3);

	for (int row = 0; row < drawImg.rows; row++)
	{
		for (int col = 0; col < drawImg.cols; col++)
		{
			float dist = raw_dist.at<float>(row, col); //读取每一个点到轮廓的距离
			if (dist > 0) //点在轮廓内
			{
				drawImg.at<Vec3b>(row, col)[0] = (uchar)(abs(dist / maxvalue) * 255); //abs是取绝对值
			   //蓝色：离轮廓越远，蓝色越深
			}
			else if (dist < 0) //点在轮廓外
			{
				drawImg.at<Vec3b>(row, col)[2] = (uchar)(abs(dist / minvalue) * 255);
				//红色：离轮廓越远，红色越深
			}
			else //点在轮廓上dist=0
			{
				drawImg.at<Vec3b>(row, col)[0] = (uchar)(abs(255 - dist));
				drawImg.at<Vec3b>(row, col)[1] = (uchar)(abs(255 - dist));
				drawImg.at<Vec3b>(row, col)[2] = (uchar)(abs(255 - dist));
				// 255,255,255 白色
			}
		}
	}

	imshow("point polygon test demo", drawImg);

	waitKey(0);
	destroyAllWindows();
	return 0;
}

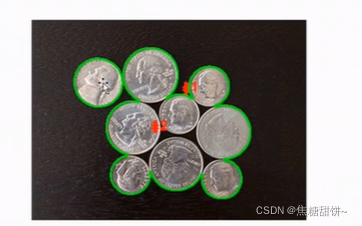

32. 基于距离变换与分水岭的图像分割

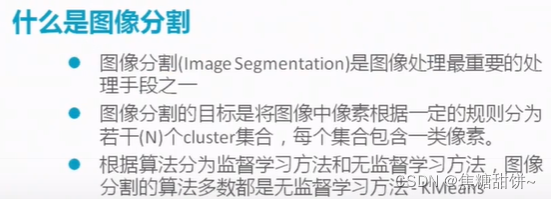

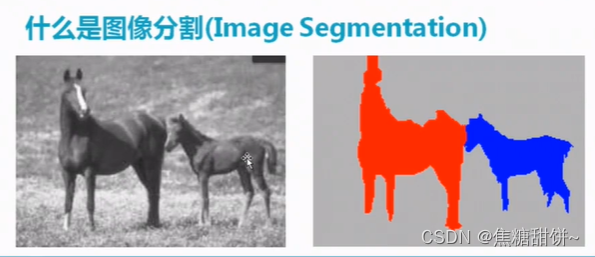

32.1 图像分割

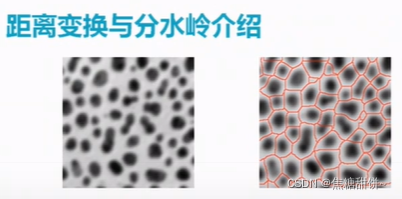

32.2 距离变换与分水岭

距离变换的定义：计算图像中像素点到最近零像素点的距离，也就是零像素点的最短距离。

距离变换的方法：首先对图像进行二值化处理，然后给每个像素赋值为离它最近的背景像素点与其距离（Manhattan距离or欧氏距离），得到distance metric(距离矩阵)，那么离边界越远的点越亮。

距离变换常用应用：

细化轮廓；
寻找质心；

分水岭变换常见的算法：

- 基于浸泡理论实现，假设图像每个位置的像素值为不同的地貌势必会形成山峰和山谷，在山底不停加水，直到各大山头之间形成了明显的分水线——分水岭算法的基本思想。

32.3 API

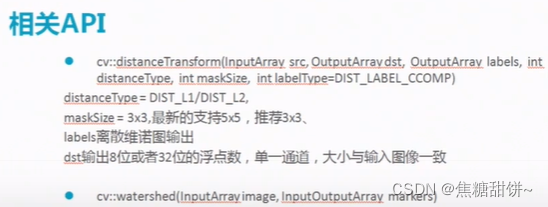

32.4 代码演示

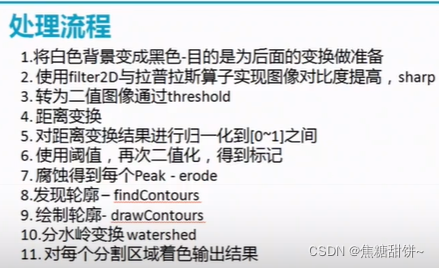

//基于距离变换和分水岭的图像分割（image segmentation）
//图像分割的目标是将图像中像素根据一定的规则分为若干(N)个cluster集合，每个集合包含一类像素。
//步骤：1.将白色背景变成黑色-目的是为后面的变换做准备
//2. 使用filter2D与拉普拉斯算子实现图像对比度提高，sharp
//3. 转为二值图像通过threshold
//4. 距离变换
//5. 对距离变换结果进行归一化到[0~1]之间
//6. 使用阈值，再次二值化，得到标记
//7. 腐蚀得到每个Peak - erode
//8.发现轮廓 – findContours
//9. 绘制轮廓 - drawContours
//10.分水岭变换 watershed
//11. 对每个分割区域着色输出结果

#include<iostream>
#include<opencv2/opencv.hpp>

using namespace std;
using namespace cv;


int main(int argc, uchar** urgv)
{
	Mat src = imread("E:/技能学习/opencv基础/stars.png");
	if (src.empty())
	{
		cout << "could not load image" << endl;
		return -1;
	}

	namedWindow("input image", WINDOW_AUTOSIZE);
	namedWindow("demo", WINDOW_AUTOSIZE);

	//显示输入图像
	imshow("input image", src);

	//1. 将输入图像的白色背景改为黑色
	for (int row = 0; row < src.rows; row++)
	{
		for (int col = 0; col < src.cols; col++)
		{
			if (src.at<Vec3b>(row, col)[0]>200 && src.at<Vec3b>(row, col)[1]>200
				&& src.at<Vec3b>(row, col)[2]>200)
			{
				src.at<Vec3b>(row, col)[0] = 0;
				src.at<Vec3b>(row, col)[1] = 0;
				src.at<Vec3b>(row, col)[2] = 0;
			}
		}
	}

	namedWindow("black background", WINDOW_AUTOSIZE);
	imshow("black background", src);

	//2. 使用filter2D与拉普拉斯算子实现图像对比度提高，sharp
	Mat kernel = (Mat_<float>(3, 3) << 1, 1, 1, 1, -8, 1, 1, 1, 1);
	Mat imgLaplance;
	Mat sharpenImg = src;

	/*为什么用CV_32F，因为拉普拉斯计算的是浮点数，有正值有负值，可能会超0~255范围*/
	filter2D(src, imgLaplance, CV_32F, kernel, Point(-1, -1), 0, BORDER_DEFAULT);
	src.convertTo(sharpenImg, CV_32F);
	Mat resultImg = sharpenImg - imgLaplance;

	resultImg.convertTo(resultImg, CV_8UC3);
	imgLaplance.convertTo(imgLaplance, CV_8UC3);

	imshow("sharpen image", resultImg);
	src = resultImg; // copy back

	//3. 转为二值图像 通过threshold
	Mat binaryImg;
	   //转灰度图
	cvtColor(src, binaryImg, COLOR_BGR2GRAY);
	threshold(binaryImg, binaryImg, 40, 255, THRESH_OTSU | THRESH_BINARY);
	imshow("binary image", binaryImg);

	//4. 距离变换
	Mat distImg;
	distanceTransform(binaryImg, distImg, DIST_L1, 3, 5);

	//5. 对距离变换结果进行归一化到[0~1]之间
	normalize(distImg, distImg, 0, 1, NORM_MINMAX);
	imshow("distance result", distImg);

	//6. 使用阈值，再次二值化，得到标记
	threshold(distImg, distImg, .2, 1, THRESH_BINARY);
	imshow("distance binary result", distImg);

	//7. 腐蚀(erode)得到每个 Peak
	Mat k1 = Mat::ones(5, 5, CV_8UC1);
	erode(distImg, distImg, k1, Point(-1, -1));
	imshow("distance binary  erode image", distImg);

	//8.发现轮廓 – findContours  finContours只支持CV_8UC1的格式，所以要进行通道转换
	Mat dist_8u;
	distImg.convertTo(dist_8u, CV_8U);
	vector<vector<Point>> contours;
	findContours(dist_8u, contours, RETR_EXTERNAL, CHAIN_APPROX_SIMPLE, Point(0, 0));

	//9. 绘制轮廓 - drawContours
	Mat markers = Mat::zeros(src.size(), CV_8UC1);

	for (size_t i = 0; i < contours.size(); i++)
	{
		drawContours(markers, contours, static_cast<int>(i), Scalar::all(static_cast<int>(i) + 1), -1); // -1 是将轮廓填充
	}
	circle(markers, Point(5, 5), 3, Scalar(255, 255, 255), -1);

	imshow("markers", markers * 1000);  //因为makers的值很低很低，所以这里乘1000

	markers.convertTo(markers, CV_32SC1); // 如果使用CV_8UC1 ，watershed 函数会报错
										//因为masker最后的边缘存储是-1，所以必须使用有符号的


	//10.分水岭变换 watershed
	watershed(src, markers);
	Mat mark = Mat::zeros(markers.size(), CV_8UC1);
	markers.convertTo(mark, CV_8UC1);
	bitwise_not(mark, mark); //取反
	imshow("watershed image", mark);

	// 产生随机颜色
	vector<Vec3b> colors;
	for (size_t i = 0; i < contours.size(); i++) {
		int r = theRNG().uniform(0, 255); //theRNG()，自带的函数，随机数生成器
		int g = theRNG().uniform(0, 255);
		int b = theRNG().uniform(0, 255);
		colors.push_back(Vec3b((uchar)b, (uchar)g, (uchar)r));
	}

	//11. 对每个分割区域着色  输出结果
	Mat dst = Mat::zeros(markers.size(), CV_8UC3);
	for (int row = 0; row < markers.rows; row++)
	{
		for (int col = 0; col < markers.cols; col++) {
			int index = markers.at<int>(row, col);
			if (index > 0 && index <= static_cast<int>(contours.size())) {
				dst.at<Vec3b>(row, col) = colors[index - 1];
			}
			else {
				dst.at<Vec3b>(row, col) = Vec3b(0, 0, 0);
			}
		}
	}
	imshow("Final Result", dst);

	waitKey(0);
	destroyAllWindows();
	return 0;
}
