cortex-A7 按钮中断实验

实现按下KEY1、2、3键时发送不同数据

.h

#ifndef __UART4_H__
#define __UART4_H__

#include "./stm32mp1xx_exti.h"
#include "./stm32mp1xx_gpio.h"
#include "./stm32mp1xx_rcc.h"
#include "./stm32mp1xx_gic.h"


//初始化函数

void key_exti_init();


void key1_gicd_init();



void key2_gicd_init();


void key3_gicd_init();

void key_gicc_init();

#endif

.c

#include "uart4.h"

//初始化函数
void key_exti_init()
{
 		/******RCC章节初始化*******/
	//1.设置GPIOF时钟使能

	RCC->MP_AHB4ENSETR |= (0X1 << 5);



		/******GPIO章节初始化*******/
	//设置PF7、8、9引脚为输入模式

	GPIOF->MODER &= (~(0X3 << 18));
	GPIOF->MODER &= (~(0X3 << 16));
	GPIOF->MODER &= (~(0X3 << 14));
	/****************EXTI章节***********/
	//1.设置pf7、8、9引脚与EXTI9控制器链接

	EXTI->EXTICR3 &= (~(0xff << 8));
	EXTI->EXTICR3 |= (0X05 << 8);
	EXTI->EXTICR3 &= (~(0xff << 0));
	EXTI->EXTICR3 |= (0X05 << 0);
	EXTI->EXTICR2 &= (~(0xff << 24));
	EXTI->EXTICR2 |= (0X05 << 24);

	//2.设置pf7、8、9下降沿检测

	EXTI->FTSR1 |= (0X1 <<7);
	EXTI->FTSR1 |= (0X1 <<8);
	EXTI->FTSR1 |= (0X1 <<9);
	//3.设置pf7、8、9引脚中断不屏蔽

	EXTI->C1IMR1 |= (0X1 <<7);
	EXTI->C1IMR1 |= (0X1 <<8);
	EXTI->C1IMR1 |= (0X1 <<9);
}

void key1_gicd_init()
{
	//1.设置GICD全局中断使能

	GICD->CTRL |= (0X1 <<0);
	//2.设置GICD中断使能寄存器（中断号使能）

	GICD->ISENABLER[3] |= (0X1 <<3);
	//3.设置GICD层中断优先级

	GICD->IPRIORITYR[24] &= (~(0X1F <<27));
	//4.设置GICD层中断目标分配寄存器
	GICD->ITARGETSR[24] |= (0X1 <<24);


}



void key2_gicd_init()
{
	//1.设置GICD全局中断使能

	GICD->CTRL |= (0X1 <<0);
	//2.设置GICD中断使能寄存器（中断号使能）

	GICD->ISENABLER[3] |= (0X1 <<1);
	//3.设置GICD层中断优先级

	GICD->IPRIORITYR[24] &= (~(0X1F <<11));
	//4.设置GICD层中断目标分配寄存器
	GICD->ITARGETSR[24] |= (0X1 <<8);


}



void key3_gicd_init()
{
	//1.设置GICD全局中断使能

	GICD->CTRL |= (0X1 <<0);
	//2.设置GICD中断使能寄存器（中断号使能）

	GICD->ISENABLER[3] |= (0X1 <<2);
	//3.设置GICD层中断优先级

	GICD->IPRIORITYR[24] &= (~(0X1F <<19));
	//4.设置GICD层中断目标分配寄存器
	GICD->ITARGETSR[24] |= (0X1 <<16);


}


void key_gicc_init()
{
	//1.设置GICC中断全局寄存器
	GICC->CTRL |= (0X1 <<0);
	//2.设置中断优先级
	GICC->PMR |= (0X3 <<3);

}

main.c

#include "uart4.h"

extern void printf(const char *fmt, ...);

void delay_ms(int ms)

{

	int i,j;

	for(i = 0; i < ms;i++)

		for (j = 0; j < 1800; j++);

}



int main()

{

	//1.EXTI初始化

	//2.GICD初始化

	//3.GICC初始化

	key_exti_init();

	key1_gicd_init();



	key2_gicd_init();



	key3_gicd_init();

	key_gicc_init();





	while(1)

	{

	}











	return 0;

}

do_irq.c

#include "uart4.h"
extern void printf(const char *fmt, ...);

extern void delay_ms(int ms);

unsigned int i = 0;
void do_irq(void)
{
	unsigned int num=0;
	//获取中断号
	num=(GICC->IAR & 0X1FF);
	//清除EXTI层中断挂起标志位
	EXTI->FPR1 |= (0x1 <<7);
	EXTI->FPR1 |= (0x1 <<8);
	EXTI->FPR1 |= (0x1 <<9);
	//清除GICD层中断挂起标志位

	GICD->ICPENDR[3] |= (0X1 <<3);
	GICD->ICPENDR[3] |= (0X1 <<1);
	GICD->ICPENDR[3] |= (0X1 <<2);
	switch(num)
	{
		case 97:
			delay_ms(500);
			printf("key2 按键已按下\n");
			break;
		case 98:
			delay_ms(500);
			printf("key3 按键已按下\n");
			break;

		case 99:   //key 1
			delay_ms(500);
			printf("key1 按键已按下\n");
			break;

	}
	//清除中断号

	GICC->EOIR |= num;




}

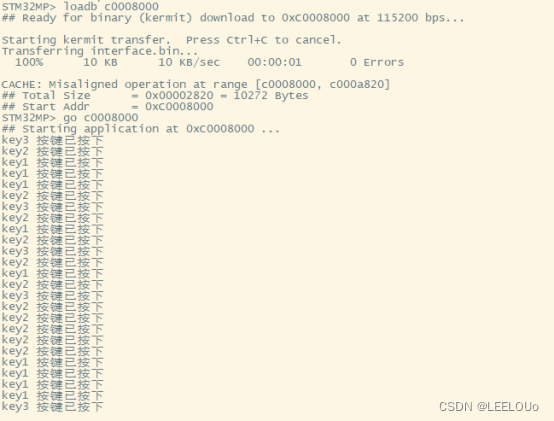

使用串口工具测试结果:

已完成需求功能
