基于ESP32的智能鱼缸系统

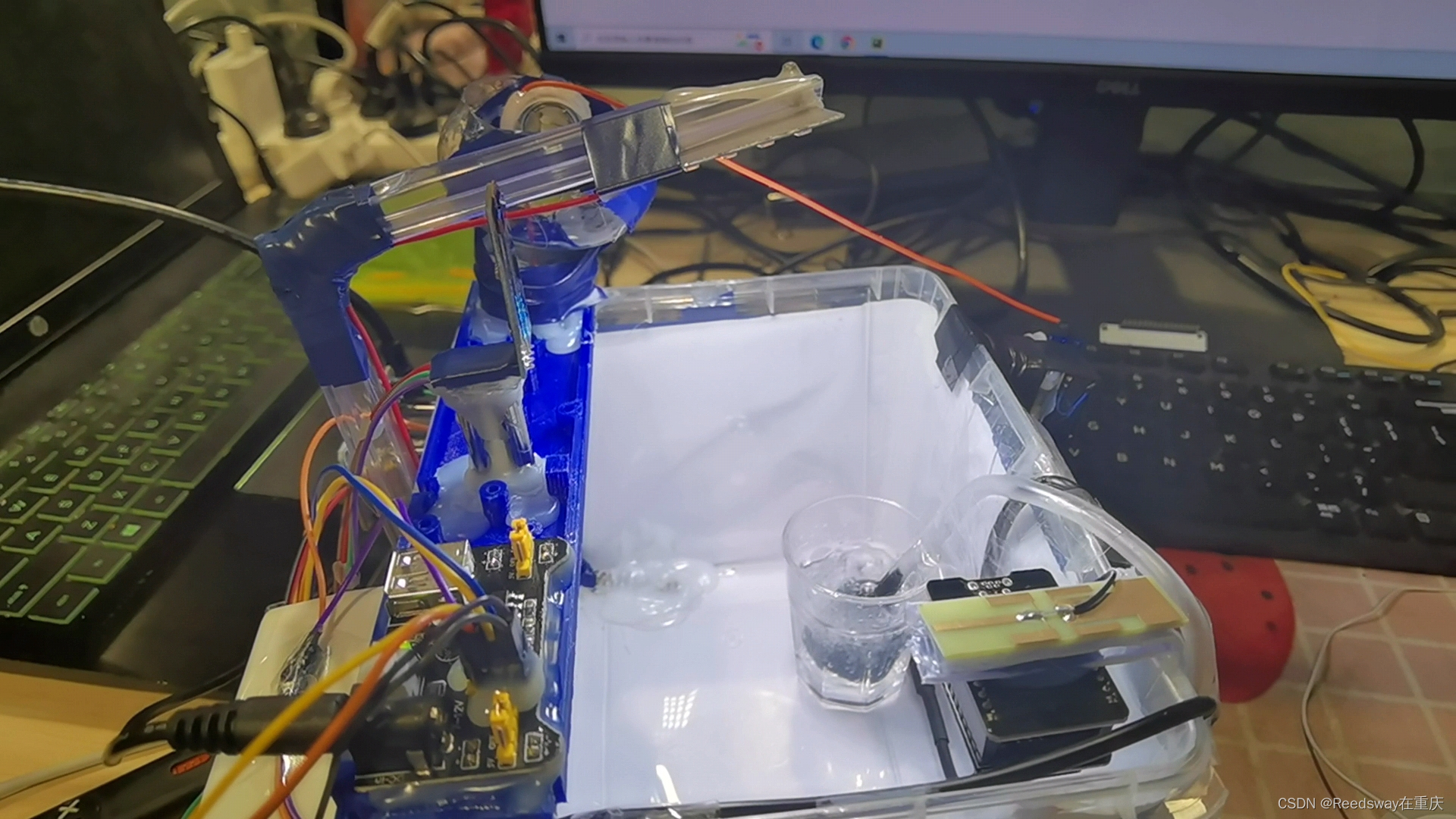

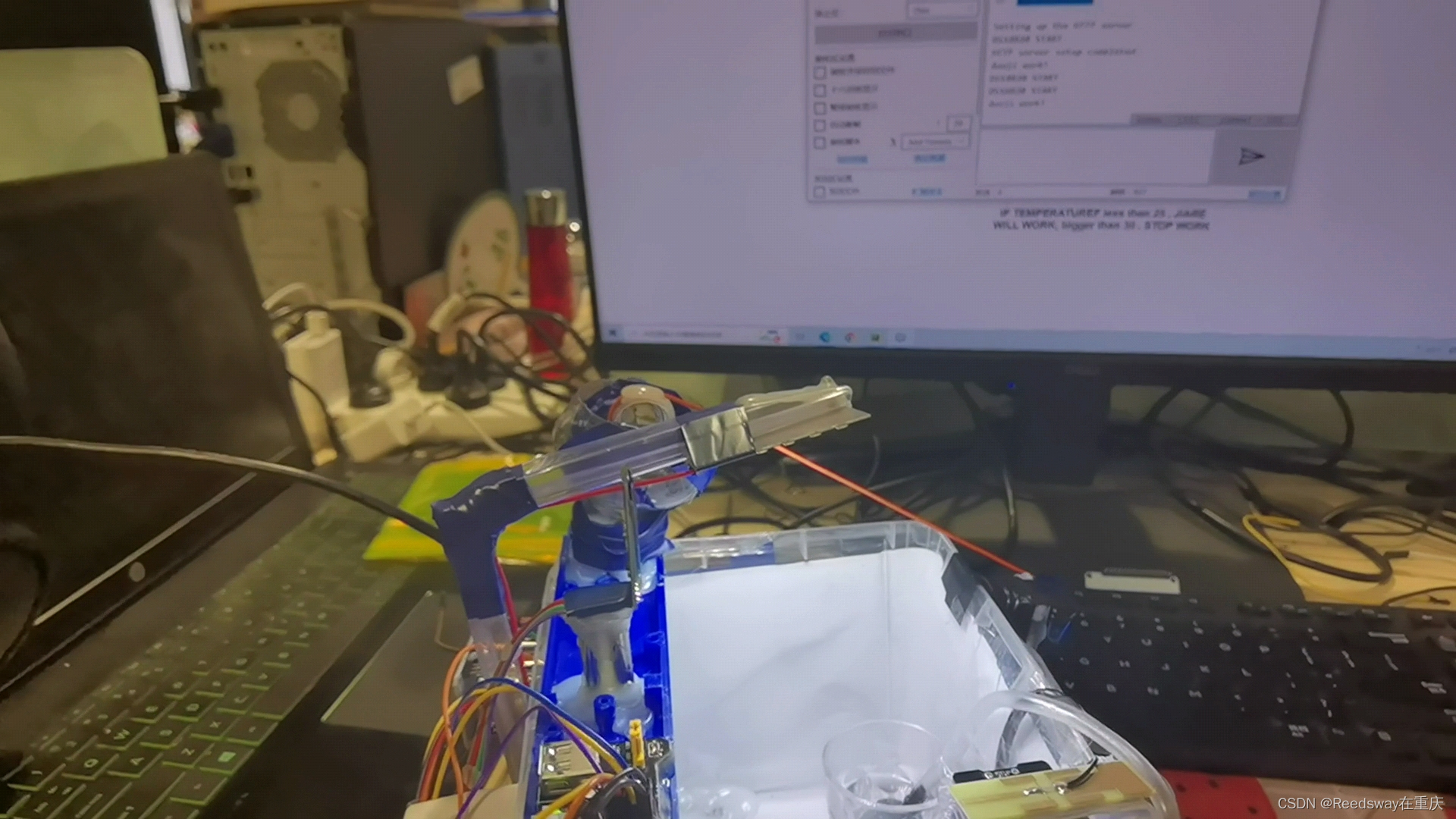

前几天做了一个基于ESP32的智能鱼缸，现在跟大家分享一下。





这个系统分为六个部分，智能喂食、智能供氧，智能显示时间，智能加热和只能测温和网页端实时显示 。

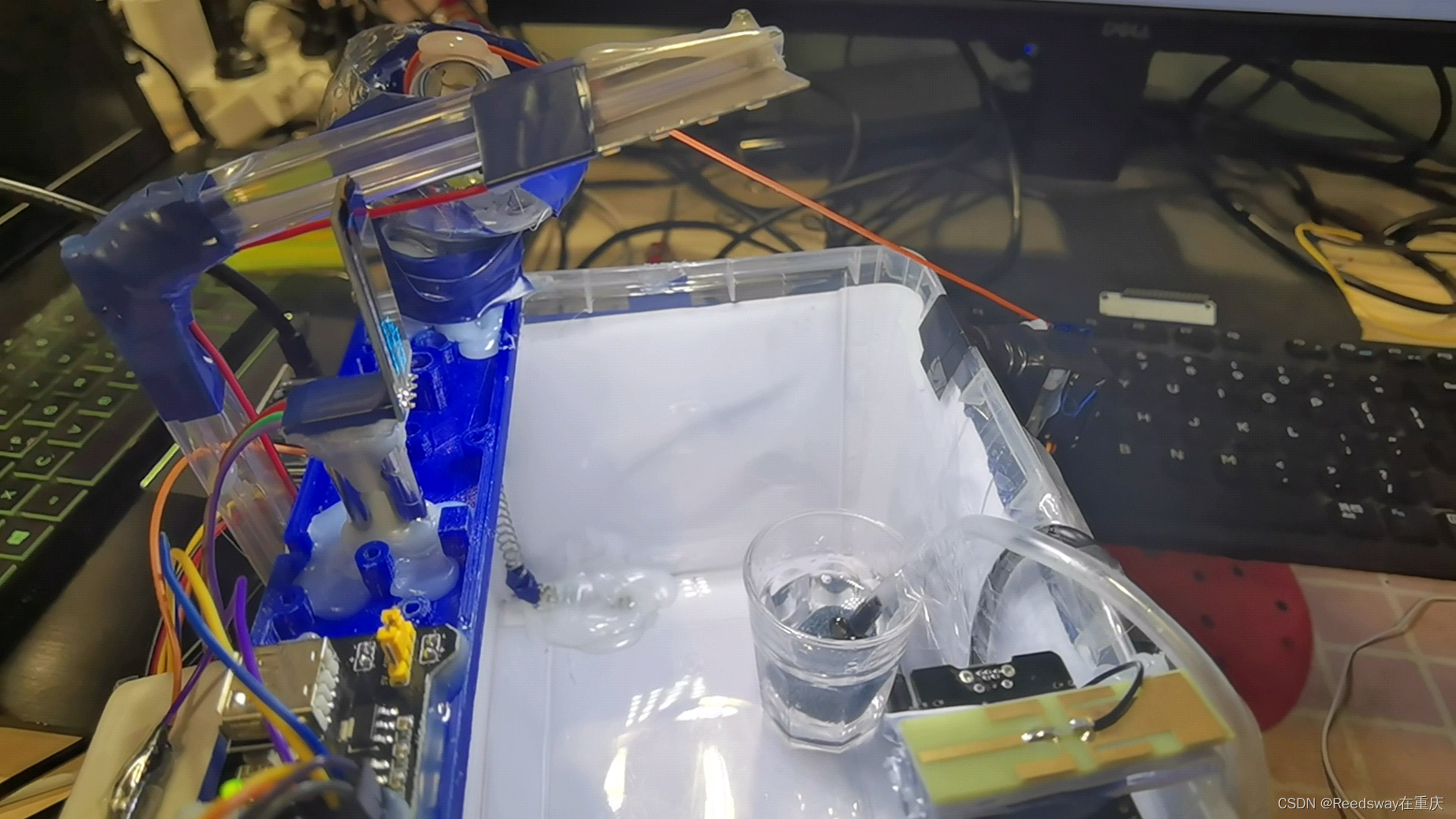

智能喂食我设计了一个简单的机械装置，利用弹簧瞬间弹起后释放鱼食。

智能供氧和加热就不说了，就是继电控制IO口。

智能测温，也不说了，DS18B20，非常简单。

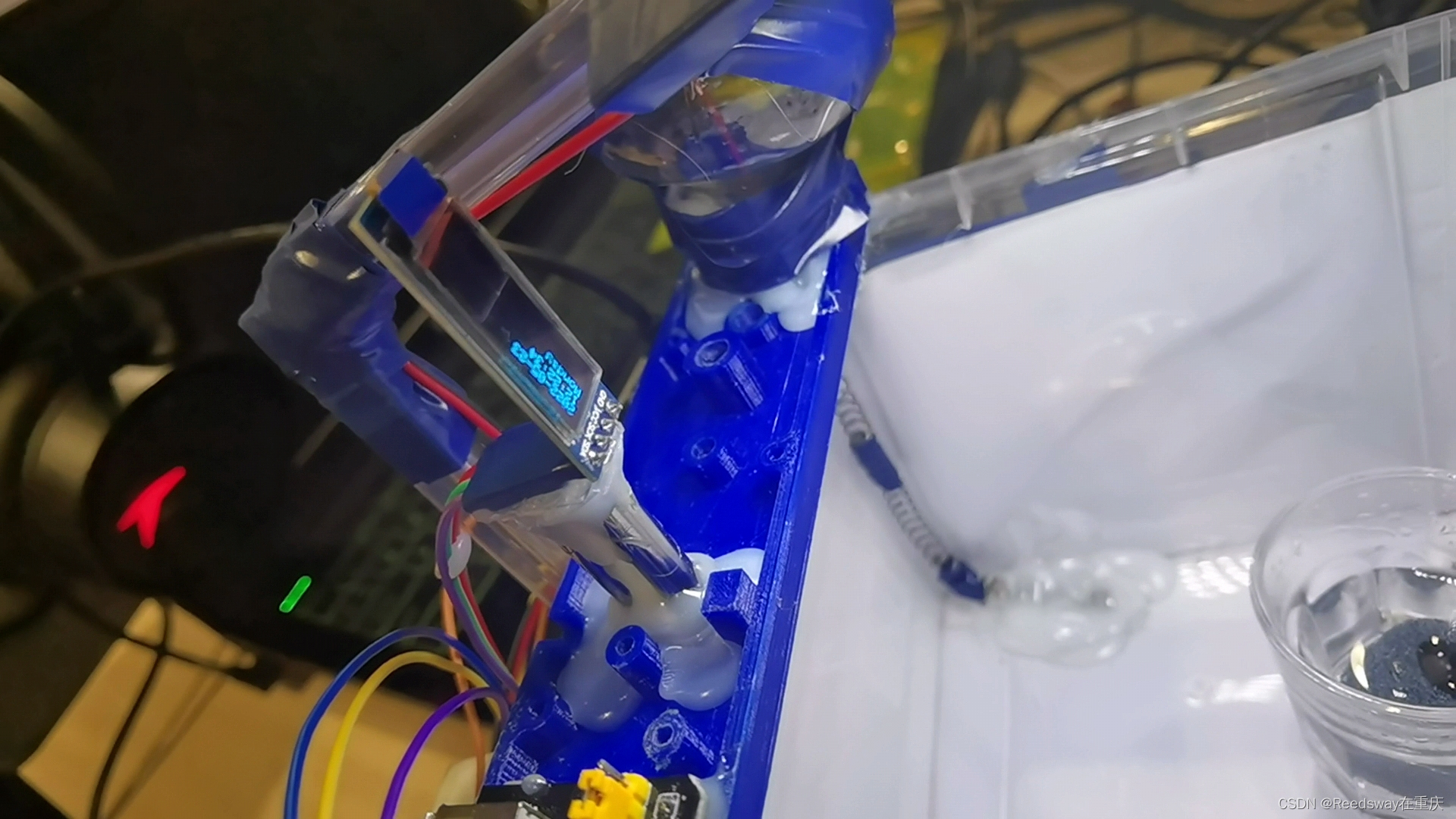

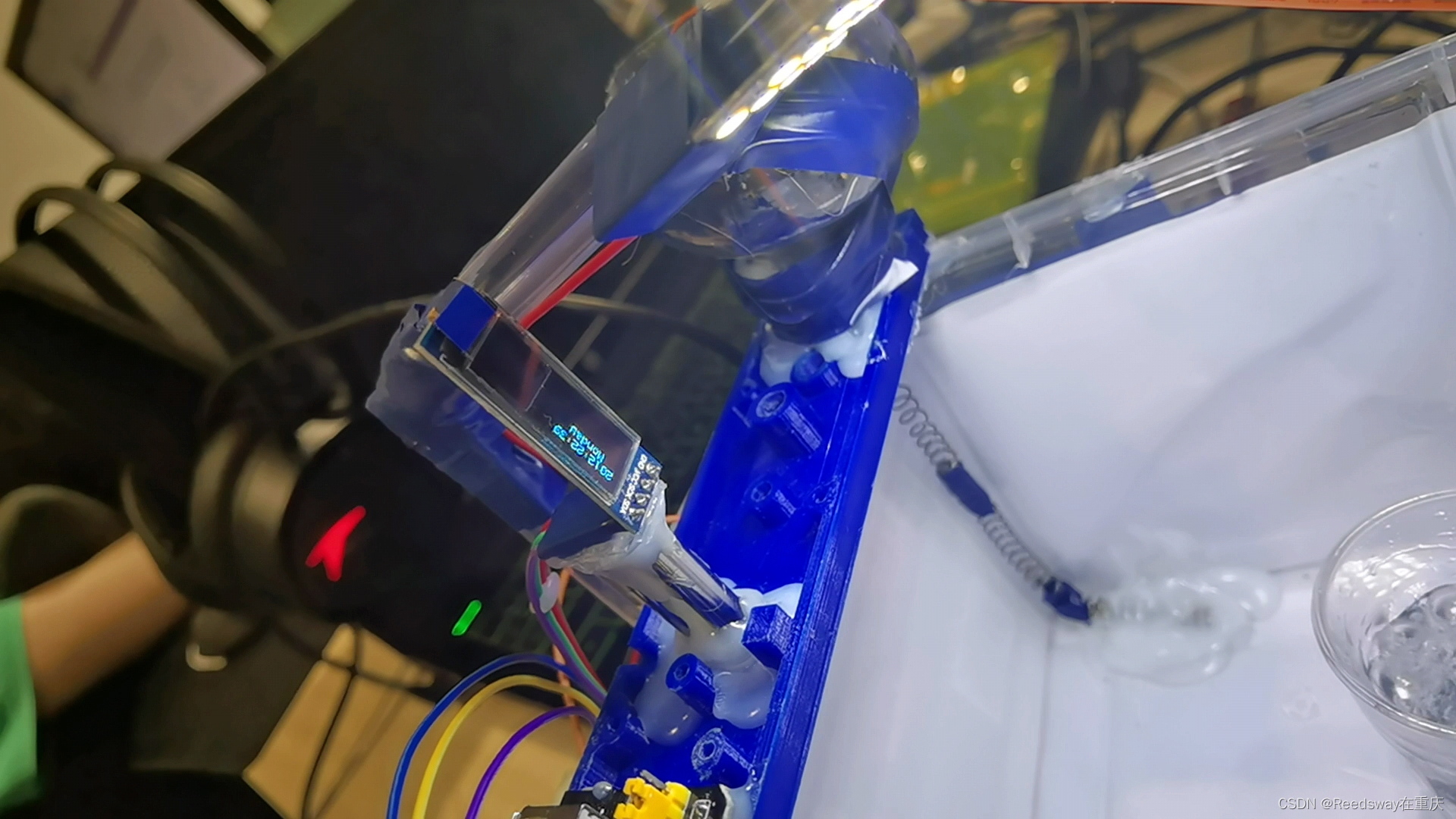

最后就是，智能显示时间，这个就是获取的实时时间，年月日周几还是实时时间，然后直接display出来。

最后我们看一下代码。

//网络库
#include <WiFi.h>
#include <HTTPClient.h>
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
#include <ESPAsyncWebServer.h>
#include <AsyncTCP.h>
#include <ArduinoJson.h>





// 引入驱动OLED0.91所需的库
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>


//舵机库
#include <Arduino.h>
#include <time.h>
#include <soc/rtc_cntl_reg.h>
#include <ESP32Servo.h>



#define OLED_RESET 14

#define ONE_WIRE_BUS 4


//DS18B20
#include <OneWire.h>
#include <DallasTemperature.h>


//舵机初始建立项目
Servo myservo;
//DS18B20建立项目
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);












/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
//cpu分配
#define pro_cpu   0
#define app_cpu   1



//定义的是OLED的长和宽
#define SCREEN_WIDTH 128 // 设置OLED宽度,单位:像素
#define SCREEN_HEIGHT 32 // 设置OLED高度,单位:像素





//舵机部分引脚变量声明
const int servoPin = 12;
unsigned int Duoji_delay = 1000;
String DuojiValue = "1000";//起始值

//氧气泵部分声明
const int YangPin = 5;//氧气泵引脚
unsigned int Yang_delay = 1000;
String YangValue = "1000";


//DS18B20部分


String temperatureF = "";
String temperatureC = "";
unsigned long lastTime = 0;
unsigned long timerDelay = 10000;//每十秒更新一次















/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);//ssd设置规范化






//网络声明
const  char  *ssid = "esp32"; //你的网络名称
const  char *password = "esp12345678"; //你的网络密码
const  char  *ntpServer = "pool.ntp.org"; //ntpserver的类型
const  long  gmtOffset_sec = 8 * 3600; //声明变量
const int daylightOffset_sec = 0;










//html输入文本
/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
//舵机
const char* PARAM_INPUT = "value";
//氧气泵
const char* PARAM_INPUT1 = "value1";


























/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
AsyncWebServer server(80);//将WEB服务器的端口pnning到80，就是服务器初始化的标准





















/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
//定时器详情
static const uint16_t timer_divider = 80;//所有的定时器频率
static uint64_t alarm_timer_exact_count;//实际的计时器


















/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
//这里的STATIC以及后面的函数，使用多任务进程
//任务处理的程序相关定义，也是声明一些内存任务的意思
static TaskHandle_t yang_task_handler;//主时钟任务
static TaskHandle_t duoji_task_handler;//普通时钟任务
static TaskHandle_t web_server_task_handler;//网页任务
static TaskHandle_t DS18B20_task_handler;//中断设置任务
static TaskHandle_t oled_task_handler;//oled网页任务


















/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
//定时器程序的相关定义，这里主要是声明的意思
static hw_timer_t* sync_timer_handler = NULL; //固定声明一个定时器









/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
// HTML web page界面的设置
const char index_html[] PROGMEM = R"rawliteral(
<!DOCTYPE HTML><html>
<head>
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <title>ESP SMART FISH-TANK</title>
  <style>
    html {font-family: Arial; display: inline-block; margin: 0px auto; text-align: center;}
    h2 {font-size: 2.3rem;}
    p {font-size: 1.9rem;}
    body {max-width: 400px; margin:0px auto; padding-bottom: 25px;}
    .slider { -webkit-appearance: none; margin: 14px; width: 360px; height: 25px; background: #FFD65C;
      outline: none; -webkit-transition: .2s; transition: opacity .2s;}
    .slider::-webkit-slider-thumb {-webkit-appearance: none; appearance: none; width: 35px; height: 35px; background: #003249; cursor: pointer;}
    .slider::-moz-range-thumb { width: 35px; height: 35px; background: #003249; cursor: pointer; }

    .units { font-size: 1.2rem; }
    .ds-labels{ font-size: 1.5rem; vertical-align:middle; padding-bottom: 15px; }
  </style>

</head>
<body>

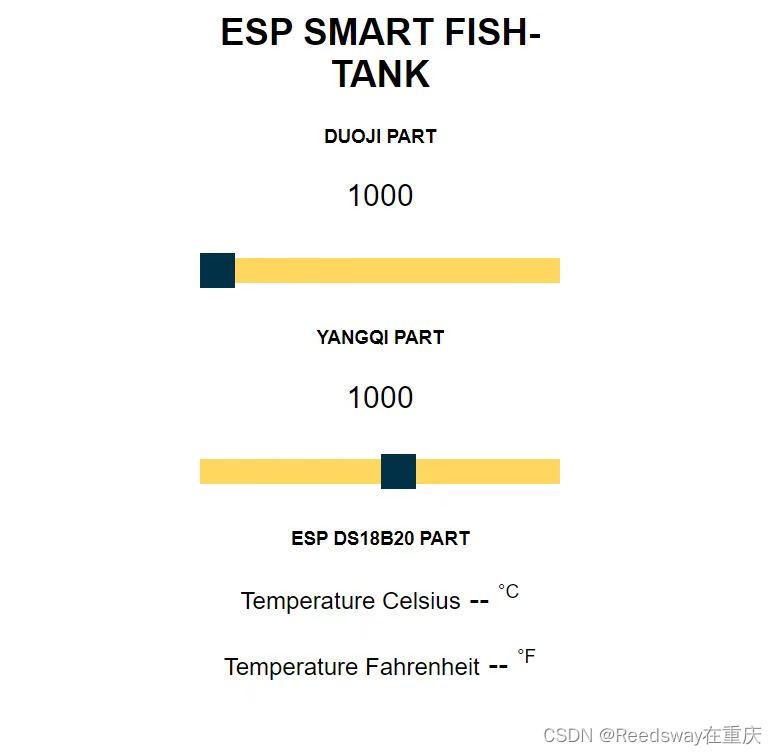

  <h2>ESP SMART FISH-TANK</h2>




  <h3>DUOJI PART</h3>
  <p><span id="textDuojiValue">%DUOJIVALUE%</span></p>
  <p><input type="range" onchange="updateDuojiPWM(this)" id="pwmDuoji" min="1000" max="10000" value="%DUOJIVALUE%" step="1000" class="slider"></p>
<script>
function updateDuojiPWM(element) {
  var DuojiValue = document.getElementById("pwmDuoji").value;
  document.getElementById("textDuojiValue").innerHTML = DuojiValue;
  console.log(DuojiValue);
  var xhr = new XMLHttpRequest();
  xhr.open("GET", "/Duoji?value="+DuojiValue, true);
  xhr.send();
}
</script>



  <h3>YANGQI PART</h3>
  <p><span id="textYangValue">%YANGVALUE%</span></p>
  <p><input type="range" onchange="updateYangPWM(this)" id="pwmYang" min="1000" max="10000" value1="%YANGVALUE%" step="1000" class="slider"></p>
<script>
function updateYangPWM(element) {
  var YangValue = document.getElementById("pwmYang").value;
  document.getElementById("textYangValue").innerHTML = YangValue;
  console.log(YangValue);
  var xhr = new XMLHttpRequest();
  xhr.open("GET", "/Yang?value1="+YangValue, true);
  xhr.send();
}
</script>



  <h3>ESP DS18B20 PART</h3>
  <p>
    <i class="fas fa-thermometer-half" style="color:#059e8a;"></i>
    <span class="ds-labels">Temperature Celsius</span>
    <span id="temperaturec">%TEMPERATUREC%</span>
    <sup class="units">&deg;C</sup>
  </p>
  <p>
    <i class="fas fa-thermometer-half" style="color:#059e8a;"></i>
    <span class="ds-labels">Temperature Fahrenheit</span>
    <span id="temperaturef">%TEMPERATUREF%</span>
    <sup class="units">&deg;F</sup>
  </p>



<script>
setInterval(function ( ) {
  var xhttp = new XMLHttpRequest();
  xhttp.onreadystatechange = function() {
    if (this.readyState == 4 && this.status == 200) {
      document.getElementById("temperaturec").innerHTML = this.responseText;
    }
  };
  xhttp.open("GET", "/temperaturec", true);
  xhttp.send();
}, 10000) ;
setInterval(function ( ) {
  var xhttp = new XMLHttpRequest();
  xhttp.onreadystatechange = function() {
    if (this.readyState == 4 && this.status == 200) {
      document.getElementById("temperaturef").innerHTML = this.responseText;
    }
  };
  xhttp.open("GET", "/temperaturef", true);
  xhttp.send();
}, 10000) ;
</script>


<h3>IF TEMPERATUREF less than 25 , JIARE WILL WORK, bigger than 30 , STOP WORK </h3>



</body>
</html>
)rawliteral";



//字符读取
String processor(const String& var){
  //Serial.println(var);
  if(var == "DUOJIVALUE"){
    return DuojiValue;
  }
  else if(var == "YANGVALUE"){
    return YangValue;
    }
  else if(var == "TEMPERATUREC"){
    return temperatureC;
  }
  else if(var == "TEMPERATUREF"){
    return temperatureF;
  }

  return String();
}
/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
//DS18B20 STRING
String readDSTemperatureC() {
  // Call sensors.requestTemperatures() to issue a global temperature and Requests to all devices on the bus
  sensors.requestTemperatures();
  float tempC = sensors.getTempCByIndex(0);

  if(tempC == -127.00) {
    Serial.println("Failed to read from DS18B20 sensor");
    return "--";
  } else {
    Serial.print("Temperature Celsius: ");
    Serial.println(tempC);
  }
  return String(tempC);
}



String readDSTemperatureF() {
  // Call sensors.requestTemperatures() to issue a global temperature and Requests to all devices on the bus
  sensors.requestTemperatures();
  float tempF = sensors.getTempFByIndex(0);

  if(int(tempF) == -196){
    Serial.println("Failed to read from DS18B20 sensor");
    return "--";
  } else {
    Serial.print("Temperature Fahrenheit: ");
    Serial.println(tempF);
  }
  return String(tempF);
}
/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
//实时时间获取
//实时时间获取
//实时时间获取
void printLocalTime()
{
  struct tm timeinfo;
  if (!getLocalTime(&timeinfo))
  {
    display.println("Failed to obtain time");
    return;
  }
  display.println(&timeinfo, "%F"); // 格式化输出
  display.println(&timeinfo, "%T"); // 格式化输出
  display.println(&timeinfo, "%A"); // 格式化输出
}

void OLED_Function(void *pvParameters){
  for(;;){
  vTaskDelay(1000);
  //清除屏幕
  display.clearDisplay();
  //设置光标位置
  display.setCursor(0, 0);
  printLocalTime();
  display.display();
    }
  }










/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
//网页服务
void web_server_task_function(void* paramters)
{
  Serial.println("Setting up the HTTP server");//串口打印设置HTTP服务器
 // Send web page with input fields to client
   // Route for root / web page
  server.on("/", HTTP_GET, [](AsyncWebServerRequest *request){
    request->send_P(200, "text/html", index_html, processor);
  });



  // Send a GET request to <ESP_IP>/slider?value=<inputMessage>
  server.on("/Duoji", HTTP_GET, [] (AsyncWebServerRequest *request) {
    String inputMessage;
    // GET input1 value on <ESP_IP>/slider?value=<inputMessage>
    if (request->hasParam(PARAM_INPUT)) {
      inputMessage = request->getParam(PARAM_INPUT)->value();
      DuojiValue = inputMessage;
      Duoji_delay = DuojiValue.toInt();
      Serial.println("duoji change");
    }
    else {
      inputMessage = "No message sent";
    }
    Serial.println(inputMessage);
    request->send(200, "text/plain", "OK");
  });


  server.on("/Yang", HTTP_GET, [] (AsyncWebServerRequest *request) {
    String inputMessage1;
    // GET input1 value on <ESP_IP>/slider?value=<inputMessage1>
    if (request->hasParam(PARAM_INPUT1)) {
      inputMessage1 = request->getParam(PARAM_INPUT1)->value();
      YangValue = inputMessage1;
      Yang_delay = YangValue.toInt();
      Serial.println("yang qi change");
    }
    else {
      inputMessage1 = "No message sent";
    }
    Serial.println(inputMessage1);
    request->send(200, "text/plain", "OK");
  });

  server.on("/temperaturec", HTTP_GET, [](AsyncWebServerRequest *request){
    request->send_P(200, "text/plain", temperatureC.c_str());
  });

  server.on("/temperaturef", HTTP_GET, [](AsyncWebServerRequest *request){
    request->send_P(200, "text/plain", temperatureF.c_str());
  });
  // Start server
  server.begin();
  Serial.println("HTTP server setup completed");
  vTaskDelete(NULL);

}


/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/

void DuojiWeishi(){
  myservo.write(0);
  myservo.write(90);
  vTaskDelay(500/portTICK_PERIOD_MS);
  myservo.write(0);
  vTaskDelay(50/portTICK_PERIOD_MS);
  }

void Duoji_Function(void *pvParameters){
  while(1){
  DuojiWeishi();
  Serial.println("duoji work!");
//  delay(Duoji_delay);
  vTaskDelay(Duoji_delay/portTICK_PERIOD_MS);
  }
    }


/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/

void yangqigongzuoyici(){

  digitalWrite(YangPin,LOW);
  //延迟1秒钟
  vTaskDelay(2000/portTICK_PERIOD_MS);
  //向io 口写入底电平
  digitalWrite(YangPin,HIGH);
  //延迟1秒钟
  vTaskDelay(2000/portTICK_PERIOD_MS);

  }

void yang_task_function(void *pvParameters){
  while(1){
    yangqigongzuoyici();
    //delay(Yang_delay);
    Serial.println("yangqi work!");
    vTaskDelay(Yang_delay/portTICK_PERIOD_MS);
  }
}




/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/
void DS18B20_function(void *pvParameters){
  while(1){
    if ((millis() - lastTime) > timerDelay) {
    temperatureC = readDSTemperatureC();
    temperatureF = readDSTemperatureF();
    lastTime = millis();
    }
    Serial.println("DS18B20 START");
    vTaskDelay(1000/portTICK_PERIOD_MS);
  }
}

/*----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------*/





void setup() {
  //串口监视器
  Serial.begin(115200);
    while(!Serial)
  {
    vTaskDelay(100/portTICK_PERIOD_MS);
  }
  vTaskDelay(100/portTICK_PERIOD_MS);
  Serial.println("executing the setup task..");
  Serial.println("('_')7");
  sensors.begin();

  temperatureC = readDSTemperatureC();
  temperatureF = readDSTemperatureF();
  //设置I2C的两个引脚SDA和SCL，这里用到的是17作为SDA，16作为SCL
  Wire.setPins(/*SDA*/21,/*SCL*/22);
  //初始化OLED并设置其IIC地址为 0x3C
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  //清除屏幕
  display.clearDisplay();
  //设置字体颜色,白色可见
  display.setTextColor(WHITE);
  //设置字体大小
  display.setTextSize(1.6);
  //设置光标位置
  display.setCursor(0, 0);
  //wifi设置
  Serial.printf("Connecting to %s ", ssid);



  WiFi.begin(ssid, password);
  while(WiFi.status() != WL_CONNECTED)
  {
    Serial.print(".");
    vTaskDelay(250/portTICK_PERIOD_MS);
  }
  Serial.println();
  Serial.println("Connected to WiFi");
  Serial.printf("WiFi: %s\n", ssid);
  Serial.print("IP: ");
  Serial.println(WiFi.localIP());
  Serial.println();
  configTime(gmtOffset_sec, daylightOffset_sec, ntpServer);
  WiFi.mode(WIFI_STA);
  myservo.setPeriodHertz(70);
  myservo.attach(servoPin);



 //GPIO初始化
  pinMode(servoPin, OUTPUT);
  pinMode(YangPin,OUTPUT);






//  pinMode(dismiss_button, INPUT_PULLUP);
//  pinMode(Yuyin_IO, OUTPUT);
  WRITE_PERI_REG(RTC_CNTL_BROWN_OUT_REG, 0);//关闭低电压检测,避免无限重启

  //中断源只想cpu0
  xTaskCreatePinnedToCore(yang_task_function, "yang_task", 2048, NULL, 1, &yang_task_handler, app_cpu);//yang task
  xTaskCreatePinnedToCore(Duoji_Function, "duoji_task", 2048, NULL, 1, &duoji_task_handler, app_cpu);//alarm task
  xTaskCreatePinnedToCore(web_server_task_function, "server_task", 6000, NULL, 1, &web_server_task_handler, pro_cpu);//web server tasks
  xTaskCreatePinnedToCore(OLED_Function, "oled_task", 2048, NULL, 1, &oled_task_handler, app_cpu);
  xTaskCreatePinnedToCore(DS18B20_function, "DS18B20_task", 2048, NULL, 1, &DS18B20_task_handler, app_cpu);

  //NTPClient初始化
  vTaskDelay(100/portTICK_PERIOD_MS);
  vTaskDelete(NULL);//删除主要任务

  WRITE_PERI_REG(RTC_CNTL_BROWN_OUT_REG, 0);//关闭低电压检测,避免无限重启


}


void loop() {

}

 利用FreeRTOS建立了5个大的任务，达成了这个效果。希望大家喜欢。

强烈推荐，直接加上本人的视觉水质评估系统，就可以实现这个鱼缸的远程监控和水质评估。这样就真正实现了，魔改版的究极无敌鱼缸了。

(10条消息) 基于ESP32CAM的水质评估_Reedsway在重庆的博客-优快云博客https://blog.youkuaiyun.com/m0_57628341/article/details/124935099?spm=1001.2014.3001.5501本代码，可直接在我的资源里下载：

优快云:

(10条消息) 基于ESP32的智能鱼缸系统-智能家居文档类资源-优快云文库https://download.youkuaiyun.com/download/m0_57628341/85446618

GITHUB:

chenyuhan1997/ESP32_SMART_FISH_TANK: Using ESP32, a smart fish tank based on FREERTOS for feeding, oxygen supply, temperature measurement and heating. The web page can perform timing operations and customer options, and display temperature measurement data in real time. In conjunction with the open source project of water quality assessment of ESP32CAM that I uploaded, a remote monitoring and water quality assessment function can be added on the basis of the smart fish tank, which is especially user-friendly. (github.com)https://github.com/chenyuhan1997/ESP32_SMART_FISH_TANK
