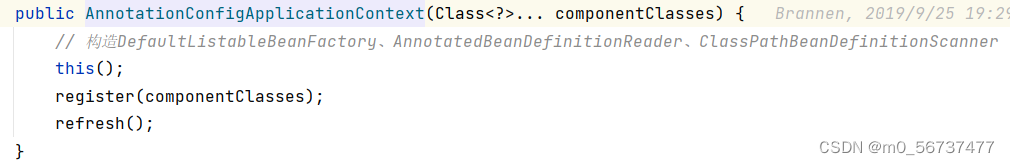

创建一个Spring容器：AnnotationConfigApplicationContext

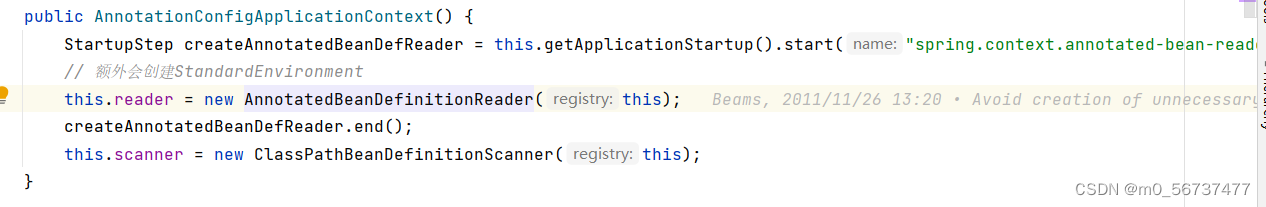

this()

1、先调用父类构造方法GenericApplicationContext

 1.1、构造一个beanFactory对象：DefaultListableBeanFactory

 2、调用本类构造方法

 2.1、构造AnnotatedBeanDefinitionReader

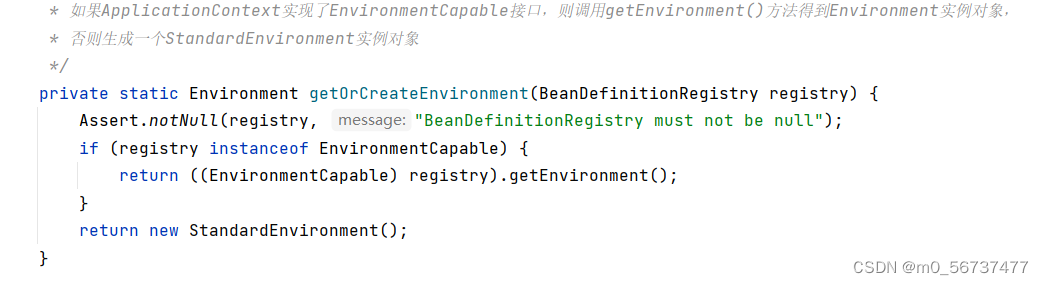

getOrCreateEnvironment()：

如果ApplicationContext实现了EnvironmentCapable接口，则调用getEnvironment()方法得到Environment实例对象，否则生成一个StandardEnvironment实例对象（Environment 是一个关键的接口，它代表了应用程序的运行环境）

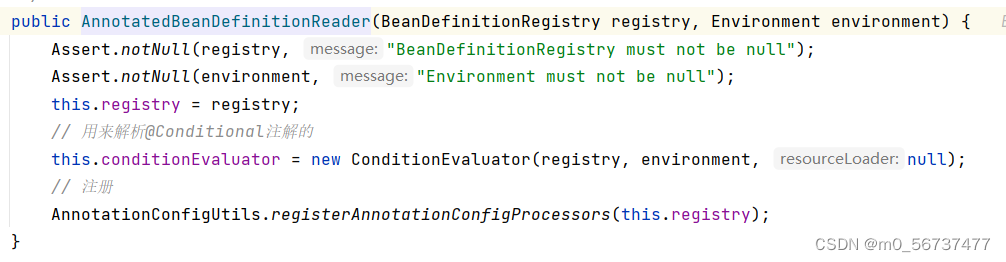

 真正执行的构造方法：

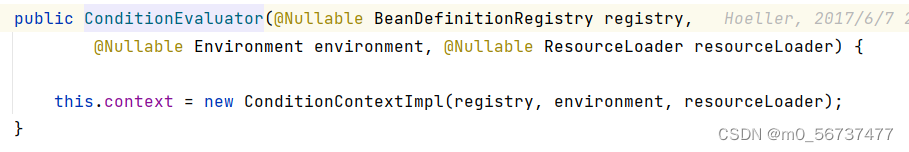

 2.1.1、new ConditionEvaluator

用来解析@Conditional注解的

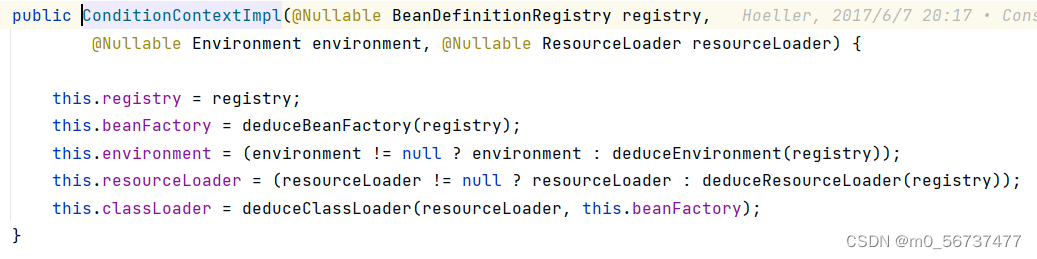

初始化 ConditionContextImpl 的各个成员变量

2.1.2、AnnotationConfigUtils.registerAnnotationConfigProcessors()
public static void registerAnnotationConfigProcessors(BeanDefinitionRegistry registry) {
   registerAnnotationConfigProcessors(registry, null);
}
public static Set<BeanDefinitionHolder> registerAnnotationConfigProcessors(
			BeanDefinitionRegistry registry, @Nullable Object source) {

		DefaultListableBeanFactory beanFactory = unwrapDefaultListableBeanFactory(registry);
		if (beanFactory != null) {

			// 设置beanFactory的OrderComparator为AnnotationAwareOrderComparator
			// 它是一个Comparator，是一个比较器，可以用来进行排序，比如new ArrayList<>().sort(Comparator);
			if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
				beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
			}
			// 用来判断某个Bean能不能用来进行依赖注入
			if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
				beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
			}
		}

		Set<BeanDefinitionHolder> beanDefs = new LinkedHashSet<>(8);

		// 注册ConfigurationClassPostProcessor类型的BeanDefinition
		if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

		// 注册AutowiredAnnotationBeanPostProcessor类型的BeanDefinition
		if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

		// 注册CommonAnnotationBeanPostProcessor类型的BeanDefinition
		// Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
		if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

		// 注册PersistenceAnnotationBeanPostProcessor类型的BeanDefinition
		// Check for JPA support, and if present add the PersistenceAnnotationBeanPostProcessor.
		if (jpaPresent && !registry.containsBeanDefinition(PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition();
			try {
				def.setBeanClass(ClassUtils.forName(PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME,
						AnnotationConfigUtils.class.getClassLoader()));
			}
			catch (ClassNotFoundException ex) {
				throw new IllegalStateException(
						"Cannot load optional framework class: " + PERSISTENCE_ANNOTATION_PROCESSOR_CLASS_NAME, ex);
			}
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, PERSISTENCE_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

		// 注册EventListenerMethodProcessor类型的BeanDefinition，用来处理@EventListener注解的
		if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
		}

		// 注册DefaultEventListenerFactory类型的BeanDefinition，用来处理@EventListener注解的
		if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
		}

		return beanDefs;
	}

a、设置dependencyComparator：AnnotationAwareOrderComparator

它是一个Comparator，是用来进行排序的，会获取某个对象上的Order注解或者通过实现Ordered接口所定义的值进行排序，在日常开发中可以利用这个类来进行排序。

			// 设置beanFactory的OrderComparator为AnnotationAwareOrderComparator
			// 它是一个Comparator，是一个比较器，可以用来进行排序，比如new ArrayList<>().sort(Comparator);
			if (!(beanFactory.getDependencyComparator() instanceof AnnotationAwareOrderComparator)) {
				beanFactory.setDependencyComparator(AnnotationAwareOrderComparator.INSTANCE);
			}

b、设置autowireCandidateResolver：ContextAnnotationAutowireCandidateResolver

用来解析某个Bean能不能进行自动注入，比如某个Bean的autowireCandidate属性是否等于true

// 用来判断某个Bean能不能用来进行依赖注入
if (!(beanFactory.getAutowireCandidateResolver() instanceof ContextAnnotationAutowireCandidateResolver)) {
				beanFactory.setAutowireCandidateResolver(new ContextAnnotationAutowireCandidateResolver());
}

c、向BeanFactory中添加ConfigurationClassPostProcessor对应的BeanDefinition

它是一个BeanDefinitionRegistryPostProcessor，并且实现了PriorityOrdered接口

// 注册ConfigurationClassPostProcessor类型的BeanDefinition
if (!registry.containsBeanDefinition(CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME)) {
		RootBeanDefinition def = new RootBeanDefinition(ConfigurationClassPostProcessor.class);
		def.setSource(source);
		beanDefs.add(registerPostProcessor(registry, def, CONFIGURATION_ANNOTATION_PROCESSOR_BEAN_NAME));
}

d、向BeanFactory中添加AutowiredAnnotationBeanPostProcessor对应的BeanDefinition

它是一个InstantiationAwareBeanPostProcessorAdapter，MergedBeanDefinitionPostProcessor

// 注册AutowiredAnnotationBeanPostProcessor类型的BeanDefinition
		if (!registry.containsBeanDefinition(AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(AutowiredAnnotationBeanPostProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, AUTOWIRED_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

e、向BeanFactory中添加CommonAnnotationBeanPostProcessor对应的BeanDefinition

它是一个InstantiationAwareBeanPostProcessor，InitDestroyAnnotationBeanPostProcessor

// 注册CommonAnnotationBeanPostProcessor类型的BeanDefinition
		// Check for JSR-250 support, and if present add the CommonAnnotationBeanPostProcessor.
		if (jsr250Present && !registry.containsBeanDefinition(COMMON_ANNOTATION_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(CommonAnnotationBeanPostProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, COMMON_ANNOTATION_PROCESSOR_BEAN_NAME));
		}

f、向BeanFactory中添加EventListenerMethodProcessor对应的BeanDefinition

它是一个BeanFactoryPostProcessor，SmartInitializingSingleton

// 注册EventListenerMethodProcessor类型的BeanDefinition，用来处理@EventListener注解的
		if (!registry.containsBeanDefinition(EVENT_LISTENER_PROCESSOR_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(EventListenerMethodProcessor.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_PROCESSOR_BEAN_NAME));
		}

g、向BeanFactory中添加DefaultEventListenerFactory对应的BeanDefinition

它是一个EventListenerFactory

// 注册DefaultEventListenerFactory类型的BeanDefinition，用来处理@EventListener注解的
		if (!registry.containsBeanDefinition(EVENT_LISTENER_FACTORY_BEAN_NAME)) {
			RootBeanDefinition def = new RootBeanDefinition(DefaultEventListenerFactory.class);
			def.setSource(source);
			beanDefs.add(registerPostProcessor(registry, def, EVENT_LISTENER_FACTORY_BEAN_NAME));
		}

2.2、构造ClassPathBeanDefinitionScanner

	public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry) {
		this(registry, true);
	}
	public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters) {
		this(registry, useDefaultFilters, getOrCreateEnvironment(registry));
	}
	public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters,
			Environment environment) {

		this(registry, useDefaultFilters, environment,
				(registry instanceof ResourceLoader ? (ResourceLoader) registry : null));
	}

真正调用的构造方法

	public ClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry, boolean useDefaultFilters,
			Environment environment, @Nullable ResourceLoader resourceLoader) {

		Assert.notNull(registry, "BeanDefinitionRegistry must not be null");
		this.registry = registry;

		if (useDefaultFilters) {
			registerDefaultFilters();
		}
		setEnvironment(environment);
		setResourceLoader(resourceLoader);
	}
2.2.1、registerDefaultFilters()

用来注册默认的类过滤器的方法

为了控制哪些类应该被注册，可以使用不同类型的扫描过滤器。默认情况下，这些过滤器会根据特定的条件来确定哪些类应该被扫描并注册为 Bean

2.2.2、setEnvironment(environment);

        设置environment

Environment 是一个核心的接口，它提供了一种统一的方式来访问应用程序运行时的环境配置信息，包括属性、配置、环境变量等。

2.2.3、setResourceLoader(resourceLoader)

        设置resourceLoader

ResourceLoader 是一个接口，它提供了一种用于加载资源（如文件、类路径资源等）的统一机制。ResourceLoader 的主要作用在于将资源的加载与具体的资源类型和位置解耦，使得应用程序可以更灵活地获取所需的资源

register()

@Override
	public void register(Class<?>... componentClasses) {
		Assert.notEmpty(componentClasses, "At least one component class must be specified");
		StartupStep registerComponentClass = this.getApplicationStartup().start("spring.context.component-classes.register")
				.tag("classes", () -> Arrays.toString(componentClasses));
		this.reader.register(componentClasses);
		registerComponentClass.end();
	}

这段代码的作用是将一个或多个组件类注册到 Spring 容器中，以便后续的初始化和管理。

refresh()

refresh()方法为spring启动主体方法，内容较多，另起一章介绍

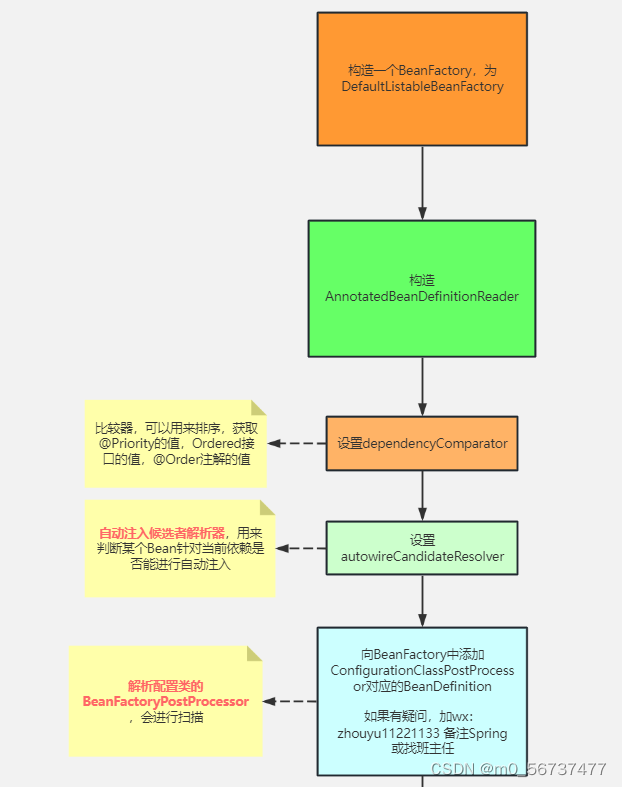

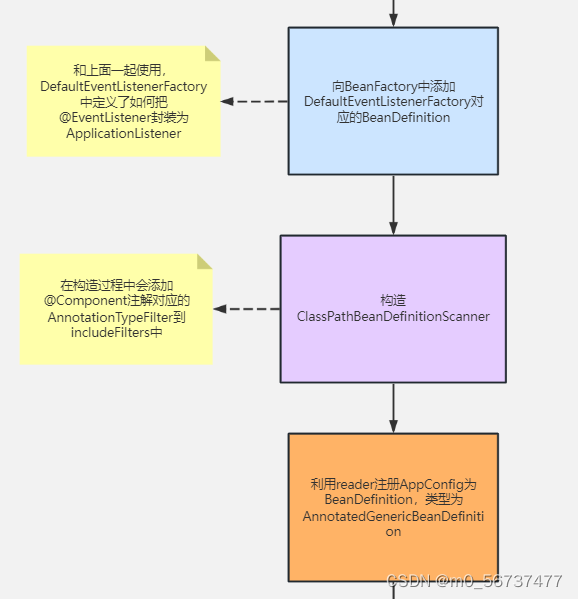

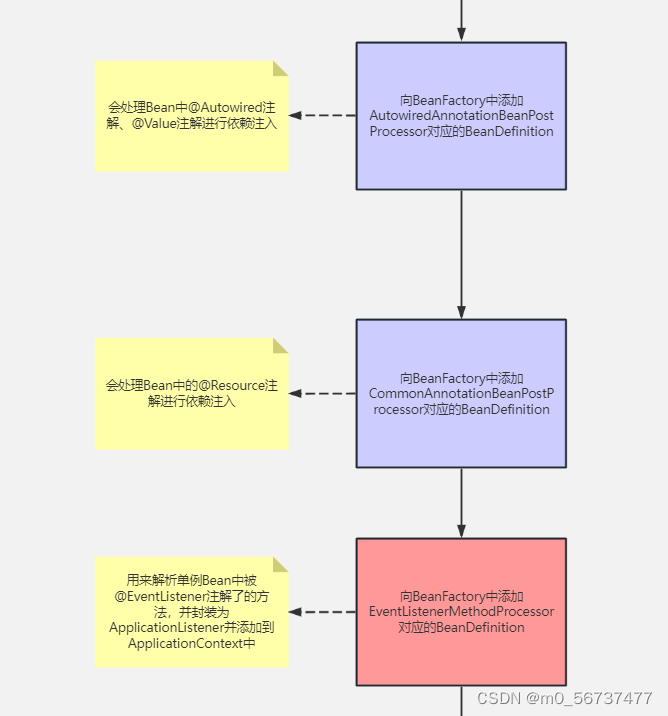

this()方法和register()方法大致流程如下：
