基于SSM框架的图书管理系统

9号楼的喵sir

已于 2023-08-11 15:00:07 修改

阅读量1.6k

点赞数 6

文章标签： mybatis java spring

于 2023-03-18 20:30:39 首次发布

本文链接：https://blog.youkuaiyun.com/m0_56428218/article/details/129640270

版权

环境：IntelliJ IDEA Community Edition 2021.3.3、MySQL、MySQL连接驱动：mysql-connector-java-5.1.32.jar、Spring、SpringMvc、mybatis-3.5.5、javax.servlet-3.1.0、vue2

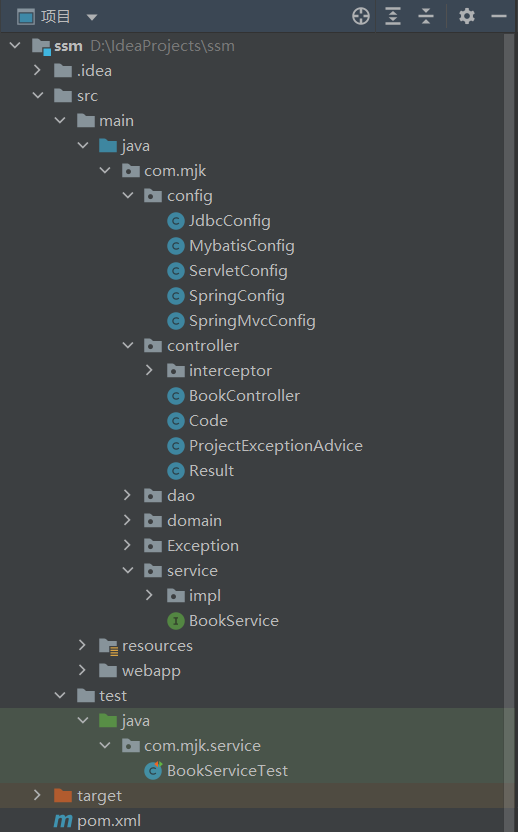

包结构

SSM整合配置

创建工程

导入依赖

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>org.example</groupId>
  <artifactId>ssm</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>ssm Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.7</maven.compiler.source>
    <maven.compiler.target>1.7</maven.compiler.target>
  </properties>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>test</scope>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.2.10.RELEASE</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.2.10.RELEASE</version>
    </dependency>

    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>5.2.10.RELEASE</version>
    </dependency>

    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.5.6</version>
    </dependency>

    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.3.0</version>
    </dependency>

    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>3.1.0</version>
      <scope>provided</scope>
    </dependency>

    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid</artifactId>
      <version>1.1.16</version>
    </dependency>

    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>5.1.47</version>
    </dependency>

    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.9.0</version>
    </dependency>
  </dependencies>

  <build>
    <plugins>
      <plugin>
        <groupId>org.apache.tomcat.maven</groupId>
        <artifactId>tomcat7-maven-plugin</artifactId>
        <version>2.2</version>

      </plugin>
    </plugins>
  </build>

</project>

2. SSM整合

2.1 Spring

SpringConfig


package com.mjk.config;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.context.annotation.PropertySource;
import org.springframework.transaction.annotation.EnableTransactionManagement;

/**
 * @author: 缪锦康
 * @date 2023/3/14 20:11
 */
@Configuration
@ComponentScan("com.mjk.service")
@PropertySource("classpath:jdbc.properties")
@Import({JdbcConfig.class,MybatisConfig.class})
@EnableTransactionManagement
public class SpringConfig {
}

2.2 SpringMVC

ServletConfig


package com.mjk.config;

import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

/**
 * @author: 缪锦康
 * @date 2023/3/14 20:46
 */
public class ServletConfig extends AbstractAnnotationConfigDispatcherServletInitializer {
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[] {SpringConfig.class};
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[] {SpringMvcConfig.class};
    }

    @Override
    protected String[] getServletMappings() {
        return new String[] {"/"};
    }
}

SpringMvcConfig


package com.mjk.config;

import com.mjk.controller.interceptor.ProjectInterceptor;
import com.mjk.controller.interceptor.ProjectInterceptor2;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.*;

/**
 * @author: 缪锦康
 * @date 2023/3/14 20:48
 */
@Configuration
@ComponentScan({"com.mjk.controller","com.mjk.config"})
@EnableWebMvc
public class SpringMvcConfig implements WebMvcConfigurer {
    @Autowired
    private ProjectInterceptor projectInterceptor;
    @Autowired
    private ProjectInterceptor2 projectInterceptor2;

    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/pages/**").addResourceLocations("/pages/");
        registry.addResourceHandler("/css/**").addResourceLocations("/css/");
        registry.addResourceHandler("/js/**").addResourceLocations("/js/");
        registry.addResourceHandler("/plugins/**").addResourceLocations("/plugins/");
    }

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(projectInterceptor).addPathPatterns("/books","/books/*");
        registry.addInterceptor(projectInterceptor2).addPathPatterns("/books","/books/*");
    }
}

2.3 Mybatis

MybatisConfig


package com.mjk.config;

import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.mapper.MapperScannerConfigurer;
import org.springframework.context.annotation.Bean;

import javax.sql.DataSource;

/**
 * @author: 缪锦康
 * @date 2023/3/14 20:15
 */
public class MybatisConfig {
    @Bean
    public SqlSessionFactoryBean sqlSessionFactory(DataSource dataSource){
        SqlSessionFactoryBean factoryBean = new SqlSessionFactoryBean();
        factoryBean.setDataSource(dataSource);
        factoryBean.setTypeAliasesPackage("com.mjk.domain");
        return factoryBean;
    }

    @Bean
    public MapperScannerConfigurer mapperScannerConfigurer(){
        MapperScannerConfigurer msc =new MapperScannerConfigurer();
        msc.setBasePackage("com.mjk.dao");
        return msc;
    }
}

JdbcConfig


package com.mjk.config;

import com.alibaba.druid.pool.DruidDataSource;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.transaction.PlatformTransactionManager;

import javax.sql.DataSource;

/**
 * @author: 缪锦康
 * @date 2023/3/14 20:15
 */
public class JdbcConfig {
    @Value("${jdbc.drive}")
    private String driver;
    @Value("${jdbc.url}")
    private String url;
    @Value("${jdbc.username}")
    private String username;
    @Value("${jdbc.password}")
    private String password;

    @Bean
    public DataSource dataSource(){
        DruidDataSource dataSource = new DruidDataSource();
        dataSource.setDriverClassName(driver);
        dataSource.setUrl(url);
        dataSource.setUsername(username);
        dataSource.setPassword(password);
        return dataSource;
    }

    @Bean
    public PlatformTransactionManager transactionManager (DataSource dataSource){
        DataSourceTransactionManager dtm = new DataSourceTransactionManager();
        dtm.setDataSource(dataSource);
        return dtm;
    }
}

jdbc.properties


jdbc.drive=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/db1?characterEncoding=UTF-8&useSSL=false
jdbc.username=root
jdbc.password=123456

3. 功能模块

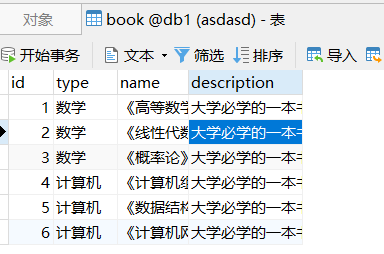

表与实体类


package com.mjk.domain;

/**
 * @author: 缪锦康
 * @date 2023/3/14 21:00
 */
public class Book {
    private int id;
    private String type;
    private String name;
    private String description;

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getType() {
        return type;
    }

    public void setType(String type) {
        this.type = type;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getDescription() {
        return description;
    }

    @Override
    public String toString() {
        return "Book{" +
                "id=" + id +
                ", type='" + type + '\'' +
                ", name='" + name + '\'' +
                ", description='" + description + '\'' +
                '}';
    }

    public void setDescription(String description) {
        this.description = description;
    }
}

dao(接口+自动代理)


package com.mjk.dao;

import com.mjk.domain.Book;
import org.apache.ibatis.annotations.Delete;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Select;
import org.apache.ibatis.annotations.Update;

import java.util.List;

/**
 * @author: 缪锦康
 * @date 2023/3/14 21:08
 */
@Mapper
public interface BookDao {
    @Insert("insert into book values(null,#{type},#{name},#{description})")
    public int save(Book book);

    @Update("update book set type=#{type},name=#{name},description=#{description} where id = #{id}")
    public int update(Book book);

    @Delete("delete from book where id=#{id}")
    public int delete(Integer id);

    @Select("select * from book where id =#{id}")
    public Book getById(Integer id);
    @Select("select * from book")
    public List<Book> getAll();
}

service(接口+业务实现)


package com.mjk.service;

import com.mjk.domain.Book;
import org.apache.ibatis.annotations.Delete;
import org.apache.ibatis.annotations.Insert;
import org.apache.ibatis.annotations.Select;
import org.apache.ibatis.annotations.Update;
import org.springframework.transaction.annotation.Transactional;

import java.util.List;

/**
 * @author: 缪锦康
 * @date 2023/3/14 21:08
 */
@Transactional
public interface BookService {
    public boolean save(Book book);

    public boolean update(Book book);

    public boolean delete(Integer id);

    public Book getById(Integer id);

    public List<Book> getAll();
}


package com.mjk.service.impl;

import com.mjk.dao.BookDao;
import com.mjk.domain.Book;
import com.mjk.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Service;
import org.springframework.util.backoff.BackOff;

import java.util.List;

/**
 * @author: 缪锦康
 * @date 2023/3/14 21:09
 */
@Service
public class BookServiceImpl implements BookService {
    @Autowired
    private BookDao bookDao;
    @Override
    public boolean save(Book book) {
        return bookDao.save(book)>0;
    }

    @Override
    public boolean update(Book book) {
        return bookDao.update(book)>0;
    }

    @Override
    public boolean delete(Integer id) {
        return bookDao.delete(id)>0;
    }

    @Override
    public Book getById(Integer id) {
        return bookDao.getById(id);
    }

    @Override
    public List<Book> getAll() {
        return bookDao.getAll();
    }
}

controller


package com.mjk.controller;

import com.mjk.domain.Book;
import com.mjk.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

/**
 * @author: 缪锦康
 * @date 2023/3/14 21:09
 */
@RestController
@RequestMapping("/books")
public class BookController {
    @Autowired
    private BookService bookService;

    @PostMapping
    public Result save(@RequestBody Book book) {
        boolean flag = bookService.save(book);
        return new Result(flag ? Code.SAVE_OK : Code.SAVE_err, flag);
    }

    @PutMapping
    public Result update(@RequestBody Book book) {
        boolean flag = bookService.update(book);
        return new Result(flag ? Code.upd_OK : Code.upd_err, flag);
    }

    @DeleteMapping("/{id}")
    public Result delete(@PathVariable Integer id) {
        boolean flag = bookService.delete(id);
        return new Result(flag ? Code.DEl_OK : Code.DEl_err, flag);
    }

    @GetMapping("/{id}")
    public Result getById(@PathVariable Integer id) {
        Book book = bookService.getById(id);
        Integer code = book!=null?Code.get_OK:Code.get_err;
        String msg=book!=null?"查询成功":"查询失败";
        return new Result(code,book,msg);
    }

    @GetMapping
    public Result getAll() {
        List<Book> all = bookService.getAll();
        Integer code = all!=null?Code.get_OK:Code.get_err;
        String msg=all!=null?"查询成功":"查询失败";
        return new Result(code,all,msg);
    }
}

4.设置统一数据返回结果类

Result类


package com.mjk.controller;

/**
 * @author: 缪锦康
 * @date 2023/3/15 21:43
 */
public class Result {
    private Object data;
    private Integer code;
    private String dsm;

    public Result() {
    }

    public Result(Integer code,Object data ) {
        this.data = data;
        this.code = code;
    }

    public Result(Integer code,Object data,  String dsm) {
        this.data = data;
        this.code = code;
        this.dsm = dsm;
    }

    public Object getData() {
        return data;
    }

    public void setData(Object data) {
        this.data = data;
    }

    public Integer getCode() {
        return code;
    }

    public void setCode(Integer code) {
        this.code = code;
    }

    public String getDsm() {
        return dsm;
    }

    public void setDsm(String dsm) {
        this.dsm = dsm;
    }
}

Code类


package com.mjk.controller;

/**
 * @author: 缪锦康
 * @date 2023/3/15 21:46
 */
public class Code {
    public static final Integer SAVE_OK = 20011;
    public static final Integer DEl_OK = 20021;
    public static final Integer upd_OK = 20031;
    public static final Integer get_OK = 20041;

    public static final Integer SAVE_err = 20010;
    public static final Integer DEl_err = 20020;
    public static final Integer upd_err = 20030;
    public static final Integer get_err = 20040;

    public static final Integer System_err=50001;
    public static final Integer Business_err=50002;
    public static final Integer unknow_err=50002;

}

5.异常处理器


package com.mjk.controller;

import com.mjk.Exception.BusinessException;
import com.mjk.Exception.SystemException;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

/**
 * @author: 缪锦康
 * @date 2023/3/16 15:36
 */
@RestControllerAdvice
public class ProjectExceptionAdvice {
//系统异常
    @ExceptionHandler(SystemException.class)
    public Result doSystemException(SystemException ex){
        //记录日志
        //发消息给运维
        //发送消息给开发人员
        return new Result(ex.getCode(),null,ex.getMessage());
    }
//业务异常
    @ExceptionHandler(BusinessException.class)
    public Result doBusinessException(BusinessException ex){
        return new Result(ex.getCode(), null,ex.getMessage());
    }
//其他异常
    @ExceptionHandler(Exception.class)
    public Result doOtherException(Exception ex){
        return new Result(Code.unknow_err,null,"系统繁忙，请稍后再试");
    }
}

业务异常


package com.mjk.Exception;

/**
 * @author: 缪锦康
 * @date 2023/3/16 15:58
 */
public class BusinessException extends RuntimeException{
    private Integer code;

    public Integer getCode() {
        return code;
    }

    public BusinessException(Integer code) {
        this.code = code;
    }

    public BusinessException(Integer code,String message) {
        super(message);
        this.code = code;
    }

    public BusinessException( Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }

}

系统异常


package com.mjk.Exception;

/**
 * @author: 缪锦康
 * @date 2023/3/16 15:58
 */
public class SystemException extends RuntimeException{
    private Integer code;

    public Integer getCode() {
        return code;
    }

    public BusinessException(Integer code) {
        this.code = code;
    }

    public BusinessException(Integer code,String message) {
        super(message);
        this.code = code;
    }

    public BusinessException( Integer code, String message, Throwable cause) {
        super(message, cause);
        this.code = code;
    }
}

6.拦截器


package com.mjk.controller.interceptor;

import org.springframework.stereotype.Component;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.ModelAndView;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * @author: 缪锦康
 * @date 2023/3/18 16:32
 */
@Component
public class ProjectInterceptor implements HandlerInterceptor {

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        System.out.println("preHandle...");
        return true;//放行原始方法
        //return false; -----终止原始操作
    }

    @Override
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
        System.out.println("postHandle...");
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        System.out.println("afterCompletion...");
    }
}

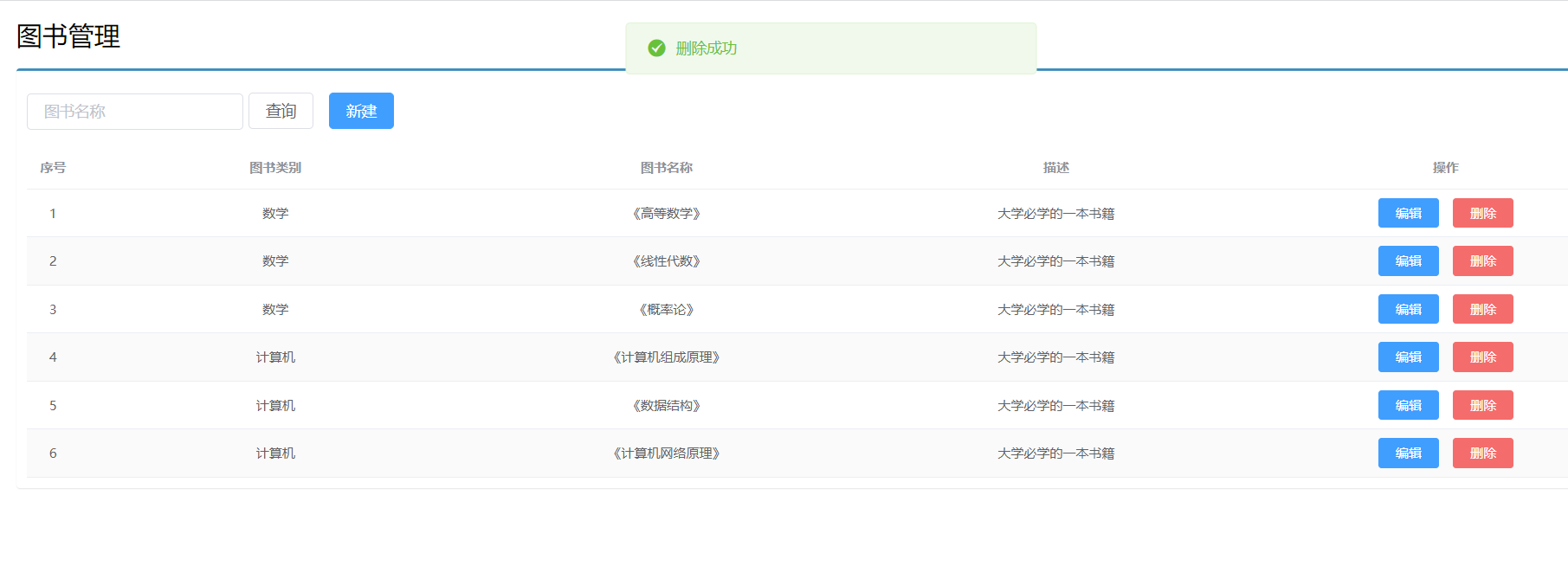

7.前后端联调

<!DOCTYPE html>

<html>

    <head>

        <!-- 页面meta -->

        <meta charset="utf-8">

        <meta http-equiv="X-UA-Compatible" content="IE=edge">

        <title>SpringMVC案例</title>

        <meta content="width=device-width,initial-scale=1,maximum-scale=1,user-scalable=no" name="viewport">

        <!-- 引入样式 -->

        <link rel="stylesheet" href="../plugins/elementui/index.css">

        <link rel="stylesheet" href="../plugins/font-awesome/css/font-awesome.min.css">

        <link rel="stylesheet" href="../css/style.css">

    </head>

    <body class="hold-transition">

        <div id="app">

            <div class="content-header">

                <h1>图书管理</h1>

            </div>

            <div class="app-container">

                <div class="box">

                    <div class="filter-container">

                        <el-input placeholder="图书名称" v-model="pagination.queryString" style="width: 200px;" class="filter-item"></el-input>

                        <el-button @click="getAll()" class="dalfBut">查询</el-button>

                        <el-button type="primary" class="butT" @click="handleCreate()">新建</el-button>

                    </div>

                    <el-table size="small" current-row-key="id" :data="dataList" stripe highlight-current-row>

                        <el-table-column type="index" align="center" label="序号"></el-table-column>

                        <el-table-column prop="type" label="图书类别" align="center"></el-table-column>

                        <el-table-column prop="name" label="图书名称" align="center"></el-table-column>

                        <el-table-column prop="description" label="描述" align="center"></el-table-column>

                        <el-table-column label="操作" align="center">

                            <template slot-scope="scope">

                                <el-button type="primary" size="mini" @click="handleUpdate(scope.row)">编辑</el-button>

                                <el-button type="danger" size="mini" @click="handleDelete(scope.row)">删除</el-button>

                            </template>

                        </el-table-column>

                    </el-table>

                    <!-- 新增标签弹层 -->

                    <div class="add-form">

                        <el-dialog title="新增图书" :visible.sync="dialogFormVisible">

                            <el-form ref="dataAddForm" :model="formData" :rules="rules" label-position="right" label-width="100px">

                                <el-row>

                                    <el-col :span="12">

                                        <el-form-item label="图书类别" prop="type">

                                            <el-input v-model="formData.type"/>

                                        </el-form-item>

                                    </el-col>

                                    <el-col :span="12">

                                        <el-form-item label="图书名称" prop="name">

                                            <el-input v-model="formData.name"/>

                                        </el-form-item>

                                    </el-col>

                                </el-row>


                                <el-row>

                                    <el-col :span="24">

                                        <el-form-item label="描述">

                                            <el-input v-model="formData.description" type="textarea"></el-input>

                                        </el-form-item>

                                    </el-col>

                                </el-row>

                            </el-form>

                            <div slot="footer" class="dialog-footer">

                                <el-button @click="dialogFormVisible = false">取消</el-button>

                                <el-button type="primary" @click="handleAdd()">确定</el-button>

                            </div>

                        </el-dialog>

                    </div>

                    <!-- 编辑标签弹层 -->

                    <div class="add-form">

                        <el-dialog title="编辑图书" :visible.sync="dialogFormVisible4Edit">

                            <el-form ref="dataEditForm" :model="formData" :rules="rules" label-position="right" label-width="100px">

                                <el-row>

                                    <el-col :span="12">

                                        <el-form-item label="图书类别" prop="type">

                                            <el-input v-model="formData.type"/>

                                        </el-form-item>

                                    </el-col>

                                    <el-col :span="12">

                                        <el-form-item label="图书名称" prop="name">

                                            <el-input v-model="formData.name"/>

                                        </el-form-item>

                                    </el-col>

                                </el-row>

                                <el-row>

                                    <el-col :span="24">

                                        <el-form-item label="描述">

                                            <el-input v-model="formData.description" type="textarea"></el-input>

                                        </el-form-item>

                                    </el-col>

                                </el-row>

                            </el-form>

                            <div slot="footer" class="dialog-footer">

                                <el-button @click="dialogFormVisible4Edit = false">取消</el-button>

                                <el-button type="primary" @click="handleEdit()">确定</el-button>

                            </div>

                        </el-dialog>

                    </div>

                </div>

            </div>

        </div>

    </body>

    <!-- 引入组件库 -->

    <script src="../js/vue.js"></script>

    <script src="../plugins/elementui/index.js"></script>

    <script type="text/javascript" src="../js/jquery.min.js"></script>

    <script src="../js/axios-0.18.0.js"></script>

    <script>
        var vue = new Vue({

            el: '#app',
            data:{
                pagination: {},
                dataList: [],//当前页要展示的列表数据
                formData: {},//表单数据
                dialogFormVisible: false,//控制表单是否可见
                dialogFormVisible4Edit:false,//编辑表单是否可见
                rules: {//校验规则
                    type: [{ required: true, message: '图书类别为必填项', trigger: 'blur' }],
                    name: [{ required: true, message: '图书名称为必填项', trigger: 'blur' }]
                }
            },

            //钩子函数，VUE对象初始化完成后自动执行
            created() {
                this.getAll();
            },

            methods: {
                //列表

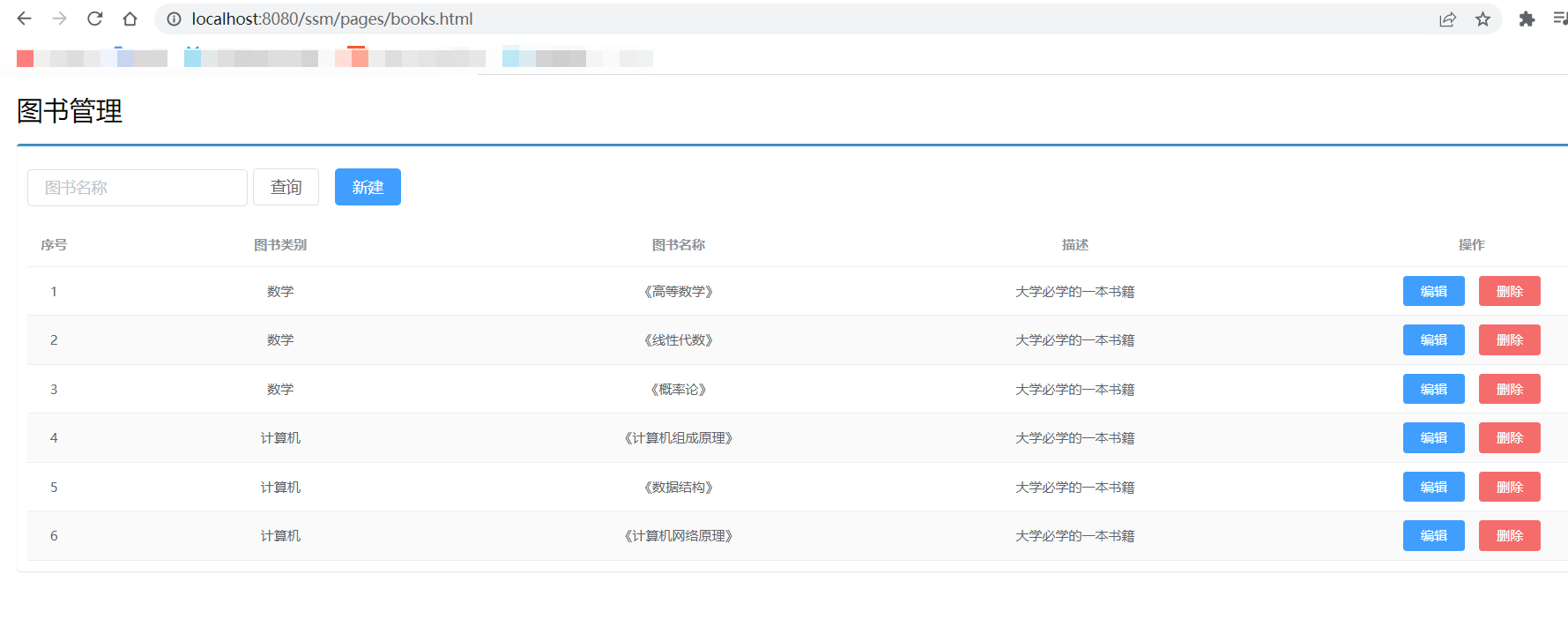

                getAll() {
                    axios.get("../books").then((res)=>{
                       this.dataList = res.data.data;
                    });
                },

                //弹出添加窗口

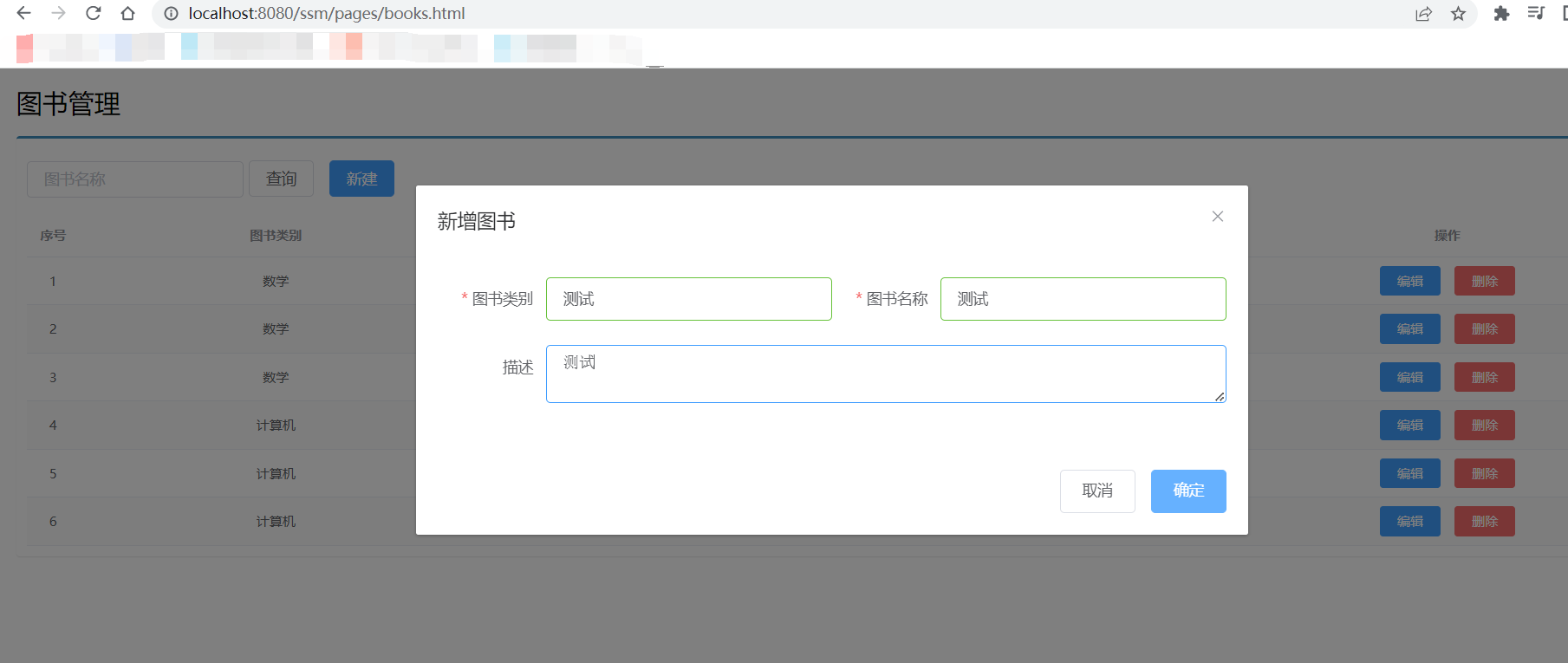

                handleCreate() {
                    this.dialogFormVisible = true;
                    this.resetForm();
                },

                //重置表单
                resetForm() {
                    this.formData = {};
                },

                //添加

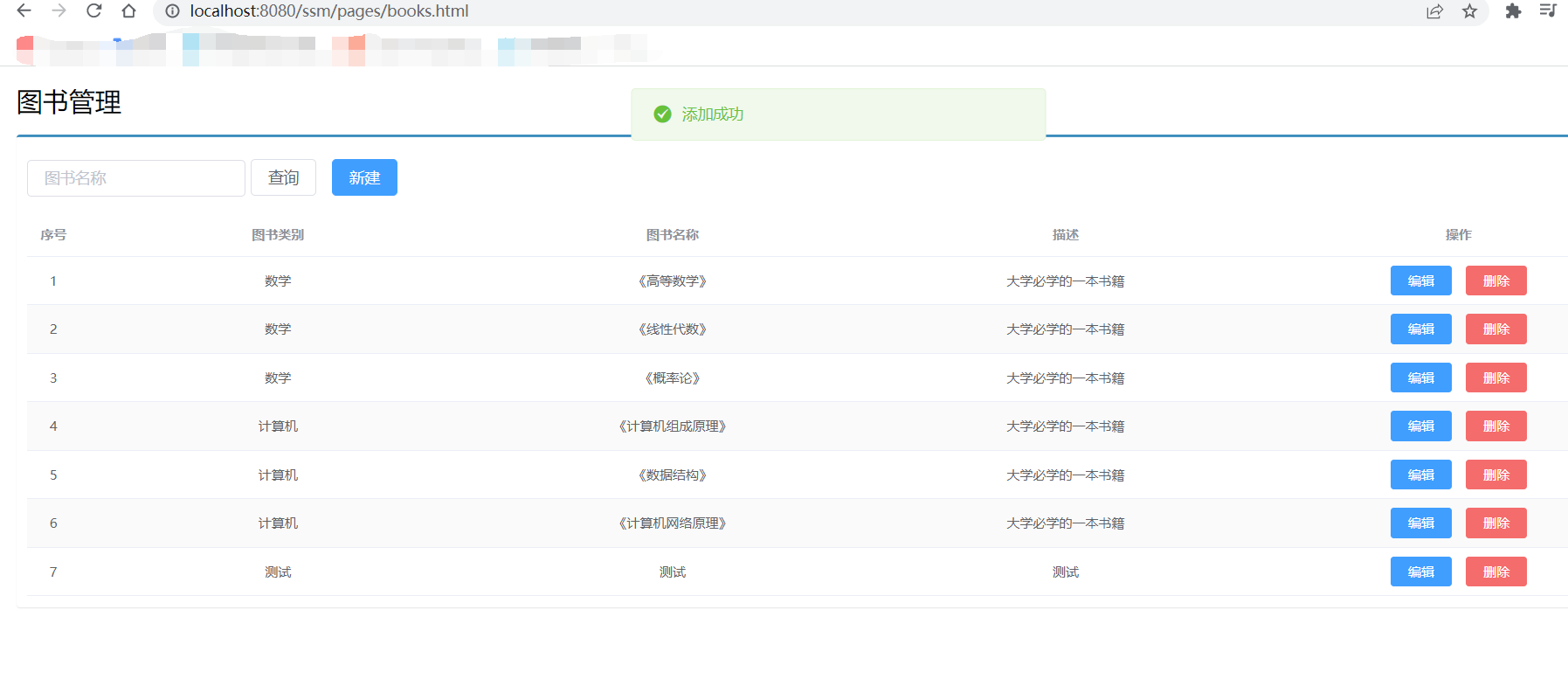

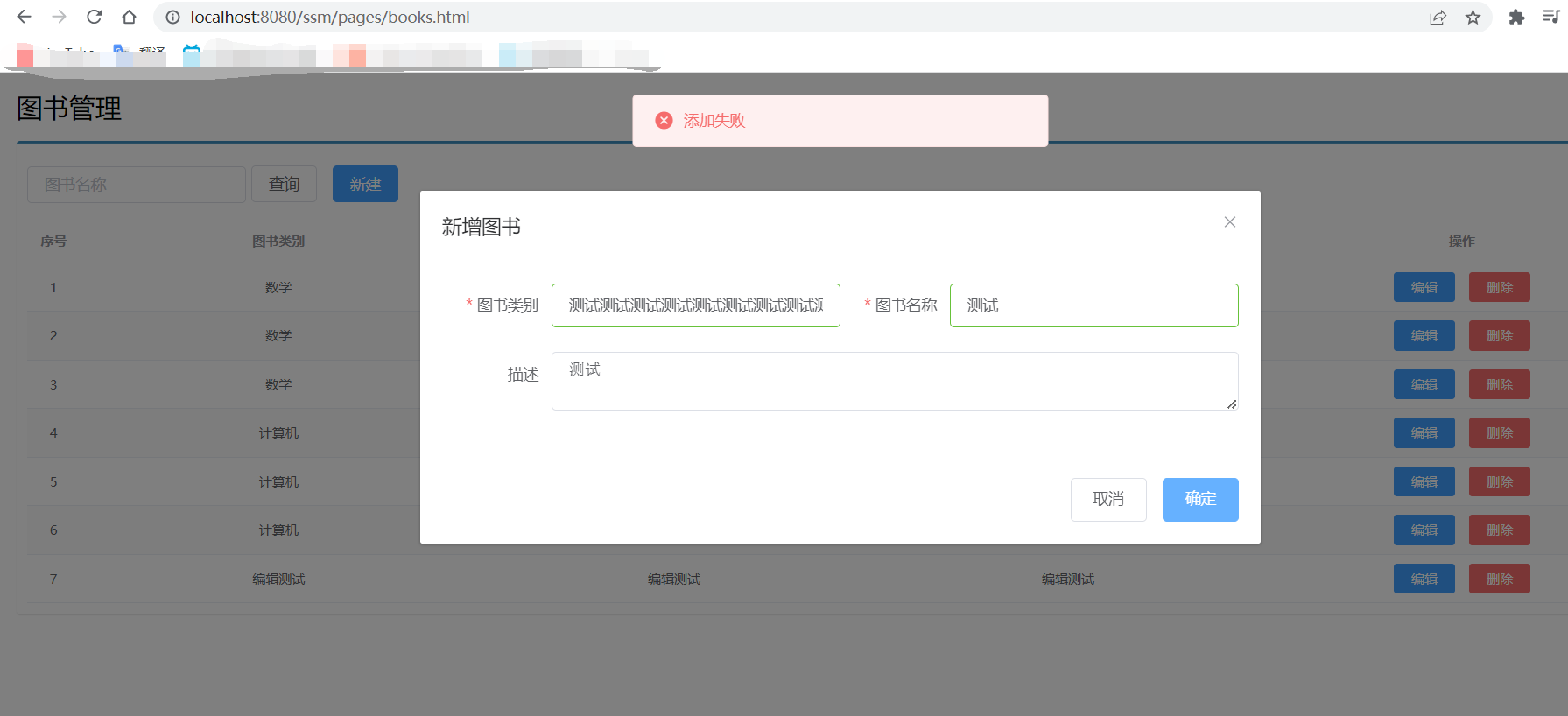

                handleAdd () {
                    axios.post("../books",this.formData).then((res)=>{
                        if(res.data.code==20011){
                            this.dialogFormVisible=false;
                            this.$message.success("添加成功");
                        }else if(res.data.code==20010){
                            this.$message.error("添加失败");
                        }else{
                            this.$message.error("添加失败");
                        }
                    }).finally(()=>{
                        this.getAll();
                    });
                },

                //弹出编辑窗口
                handleUpdate(row) {
                    axios.get("../books/"+row.id).then((res)=>{
                        if(res.data.code==20041){
                            this.formData = res.data.data;
                            this.dialogFormVisible4Edit=true;
                        }else{
                            this.$message.error("添加失败");
                        }

                    });
                },

                //编辑

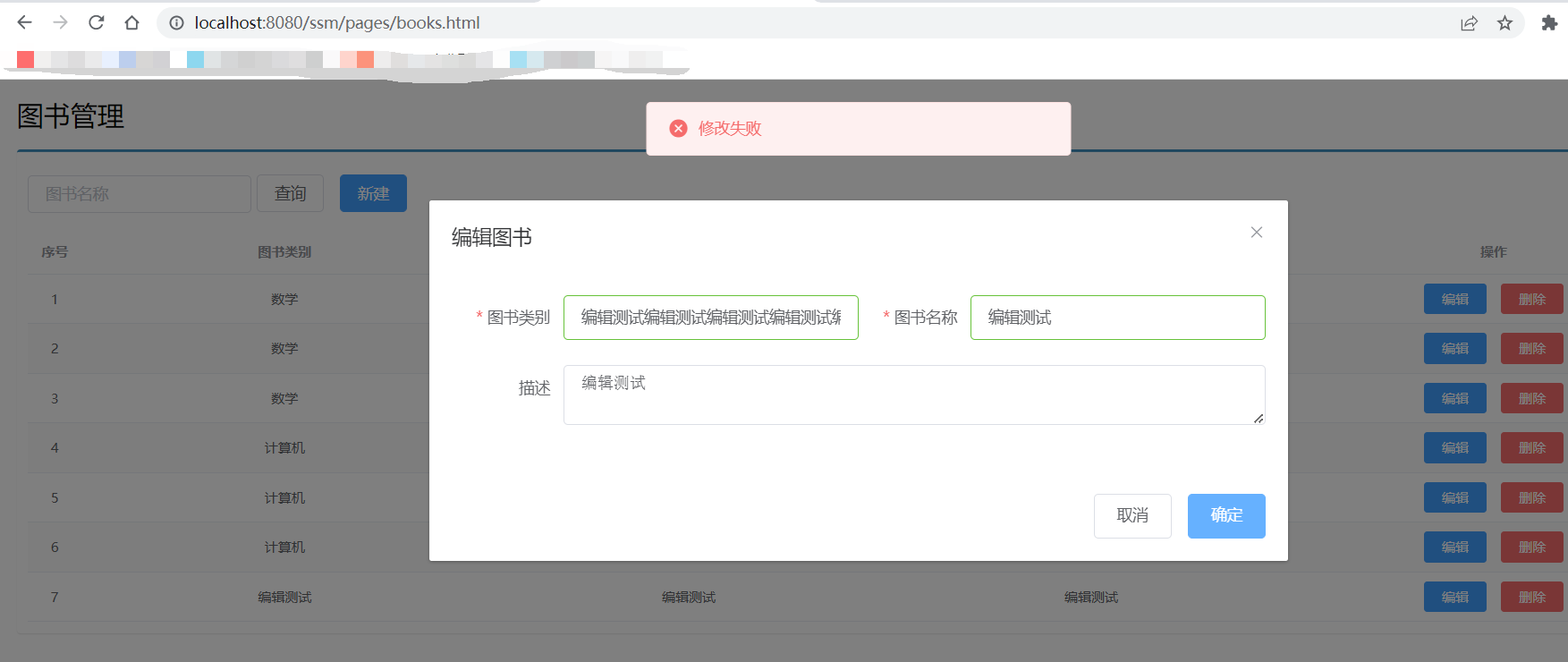

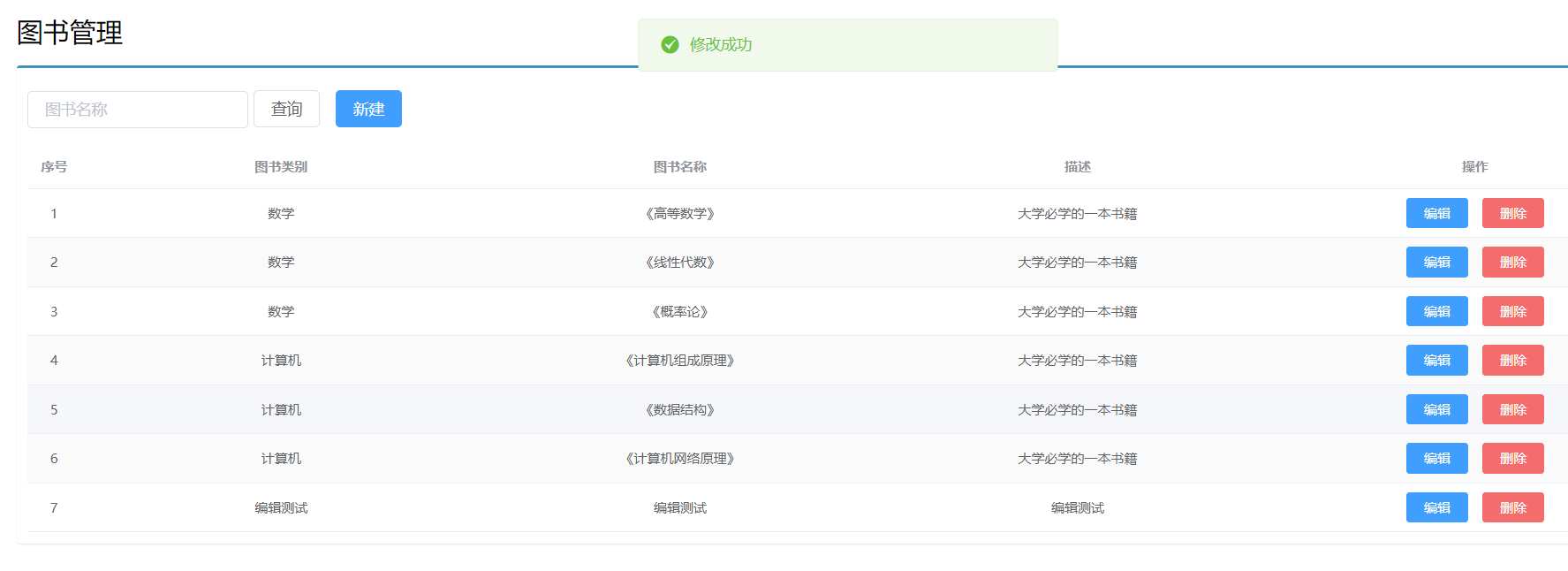

                handleEdit() {
                    axios.put("../books",this.formData).then((res)=>{
                        if(res.data.code==20031){
                            this.dialogFormVisible4Edit=false;
                            this.$message.success("修改成功");
                        }else if(res.data.code==20030){
                            this.$message.error("修改失败");
                        }else{
                            this.$message.error("修改失败");
                        }
                    }).finally(()=>{
                        this.getAll();
                    });
                },

                // 删除

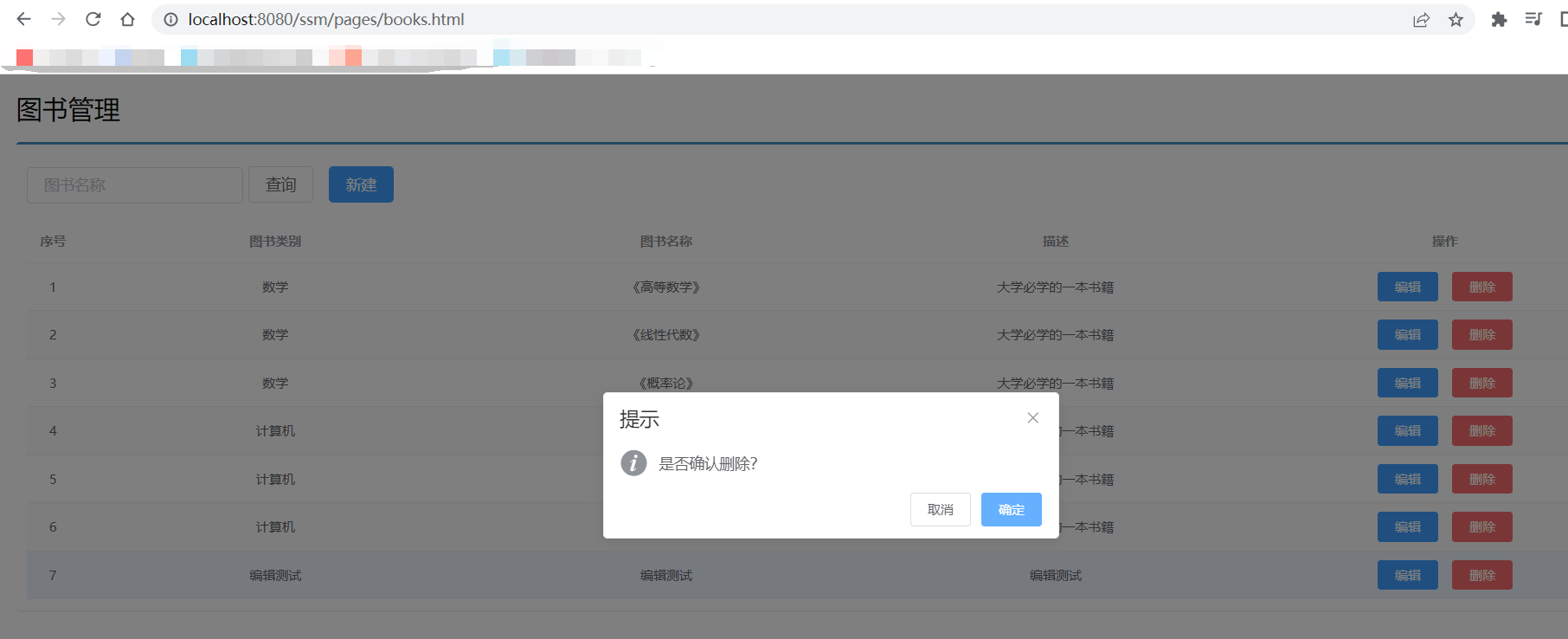

                handleDelete(row) {
                    this.$confirm("是否确认删除？","提示",{type:'info'}).then(()=>{
                    axios.delete("../books/"+row.id).then((res)=>{
                        if(res.data.code==20021){
                            this.$message.success("删除成功");
                        }else{
                            this.$message.error("删除失败");
                        }}).finally(()=>{
                            this.getAll();
                        });

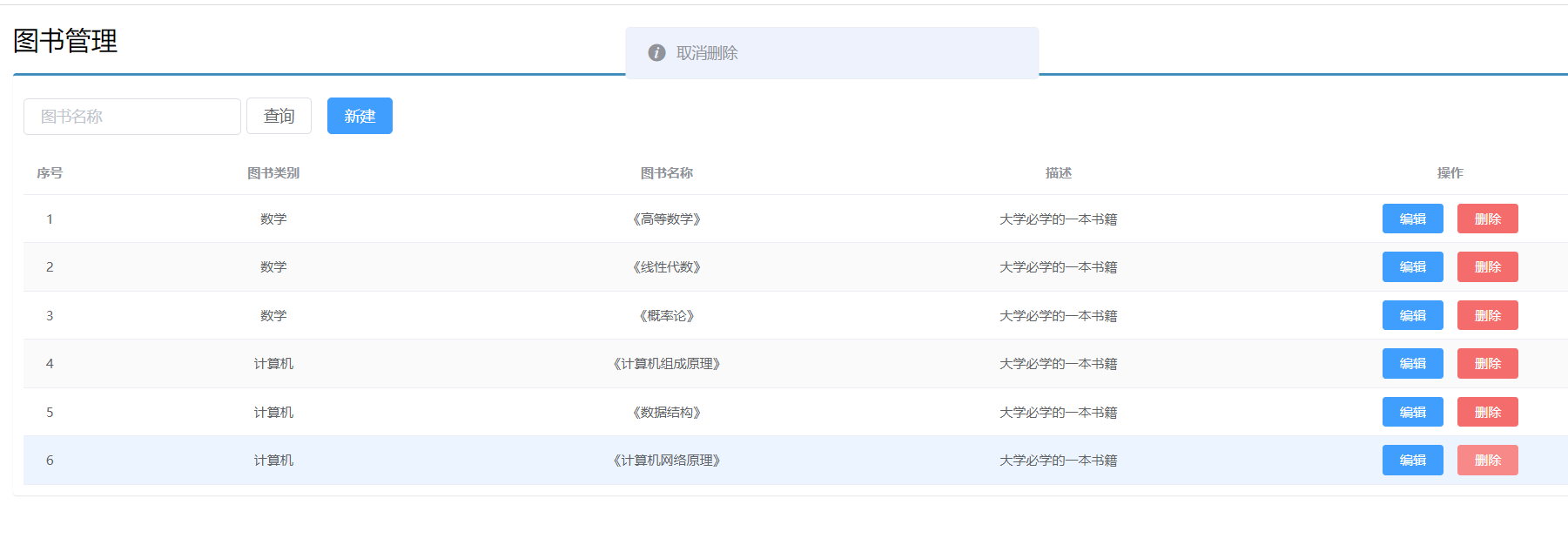

                        }).catch(()=>{
                            this.$message.info("取消删除");
                        });
                }
            }
        })

    </script>

</html>
