简介

Harbor 是 VMware 公司开源的企业级 Docker Registry 项目，其目标是帮助用户迅速搭建一个企业级的 Docker Registry 服务

Harbor以 Docker 公司开源的 Registry 为基础，提供了图形管理 UI 、基于角色的访问控制(Role Based AccessControl) 、AD/LDAP 集成、以及审计日志(Auditlogging) 等企业用户需求的功能，同时还原生支持中文

- helm安装harbor仓库

#创建harbor namespace
kubectl create ns harbor

helm repo add harbor https://helm.goharbor.io
helm fetch harbor/harbor --untar

##会在你路径目录下生成一个harbor目录
[root@k8s-master helm]# ll
total 0
drwxr-xr-x. 5 root root 135 Jan 16 18:15 harbor

2. 修改harbor的配置文件

###主要修改四个地方(该方法适用于nodePort方式及没有存储卷的方式)
type: nodePort
commonName: "core.harbor.domain"
externalURL: https://34.150.64.0:30003
persistence:
  enabled: false

第一个是类型选择使用nodePort方式
第二个是tls的域名(可自己定义)
第三个是https方式的web访问界面
第四个是不适用存储卷

###由于配置文件的内容过多，所以简单截取修改的一部分

###这一部分主要修改第一点和第二点
expose:
  # Set how to expose the service. Set the type as "ingress", "clusterIP", "nodePort" or "loadBalancer"
  # and fill the information in the corresponding section
  type: nodePort
  tls:
    # Enable TLS or not.
    # Delete the "ssl-redirect" annotations in "expose.ingress.annotations" when TLS is disabled and "expose.type" is "ingress"
    # Note: if the "expose.type" is "ingress" and TLS is disabled,
    # the port must be included in the command when pulling/pushing images.
    # Refer to https://github.com/goharbor/harbor/issues/5291 for details.
    enabled: true
    # The source of the tls certificate. Set as "auto", "secret"
    # or "none" and fill the information in the corresponding section
    # 1) auto: generate the tls certificate automatically
    # 2) secret: read the tls certificate from the specified secret.
    # The tls certificate can be generated manually or by cert manager
    # 3) none: configure no tls certificate for the ingress. If the default
    # tls certificate is configured in the ingress controller, choose this option
    certSource: auto
    auto:
      # The common name used to generate the certificate, it's necessary
      # when the type isn't "ingress"
      commonName: "core.harbor.domain"
    secret:
      # The name of secret which contains keys named:
      # "tls.crt" - the certificate
      # "tls.key" - the private key
      secretName: ""
      # The name of secret which contains keys named:
      # "tls.crt" - the certificate
      # "tls.key" - the private key
      # Only needed when the "expose.type" is "ingress".
      notarySecretName: ""

###这一部分主要修改的是第三点

# The external URL for Harbor core service. It is used to
# 1) populate the docker/helm commands showed on portal
# 2) populate the token service URL returned to docker/notary client
#
# Format: protocol://domain[:port]. Usually:
# 1) if "expose.type" is "ingress", the "domain" should be
# the value of "expose.ingress.hosts.core"
# 2) if "expose.type" is "clusterIP", the "domain" should be
# the value of "expose.clusterIP.name"
# 3) if "expose.type" is "nodePort", the "domain" should be
# the IP address of k8s node
#
# If Harbor is deployed behind the proxy, set it as the URL of proxy
externalURL: https://34.150.64.0:30003


###这一部分主要修改第四点

# The persistence is enabled by default and a default StorageClass
# is needed in the k8s cluster to provision volumes dynamically.
# Specify another StorageClass in the "storageClass" or set "existingClaim"
# if you already have existing persistent volumes to use
#
# For storing images and charts, you can also use "azure", "gcs", "s3",
# "swift" or "oss". Set it in the "imageChartStorage" section
persistence:
  enabled: false
  # Setting it to "keep" to avoid removing PVCs during a helm delete
  # operation. Leaving it empty will delete PVCs after the chart deleted
  # (this does not apply for PVCs that are created for internal database
  # and redis components, i.e. they are never deleted automatically)
  resourcePolicy: "keep"
  persistentVolumeClaim:
    registry:

3.启动harbor

helm install harbor ./harbor -n harbor

查找pod

[root@k8s-master helm]# kubectl  get pod -n harbor
NAME                                    READY   STATUS    RESTARTS   AGE
harbor-chartmuseum-5fffc5b687-mjhmm     1/1     Running   1          15h
harbor-core-7585f98869-9lxt6            1/1     Running   1          15h
harbor-database-0                       1/1     Running   1          15h
harbor-jobservice-67958b97f5-sw2lk      1/1     Running   3          15h
harbor-nginx-7dc9667c7b-rnvdz           1/1     Running   1          15h
harbor-notary-server-78d95d9d85-v297n   1/1     Running   3          15h
harbor-notary-signer-645bd5b8cf-lkhw6   1/1     Running   3          15h
harbor-portal-6489d955c5-l48zq          1/1     Running   1          15h
harbor-redis-0                          1/1     Running   1          15h
harbor-registry-7b677467b4-99g77        2/2     Running   2          15h
harbor-trivy-0                          1/1     Running   1          15h

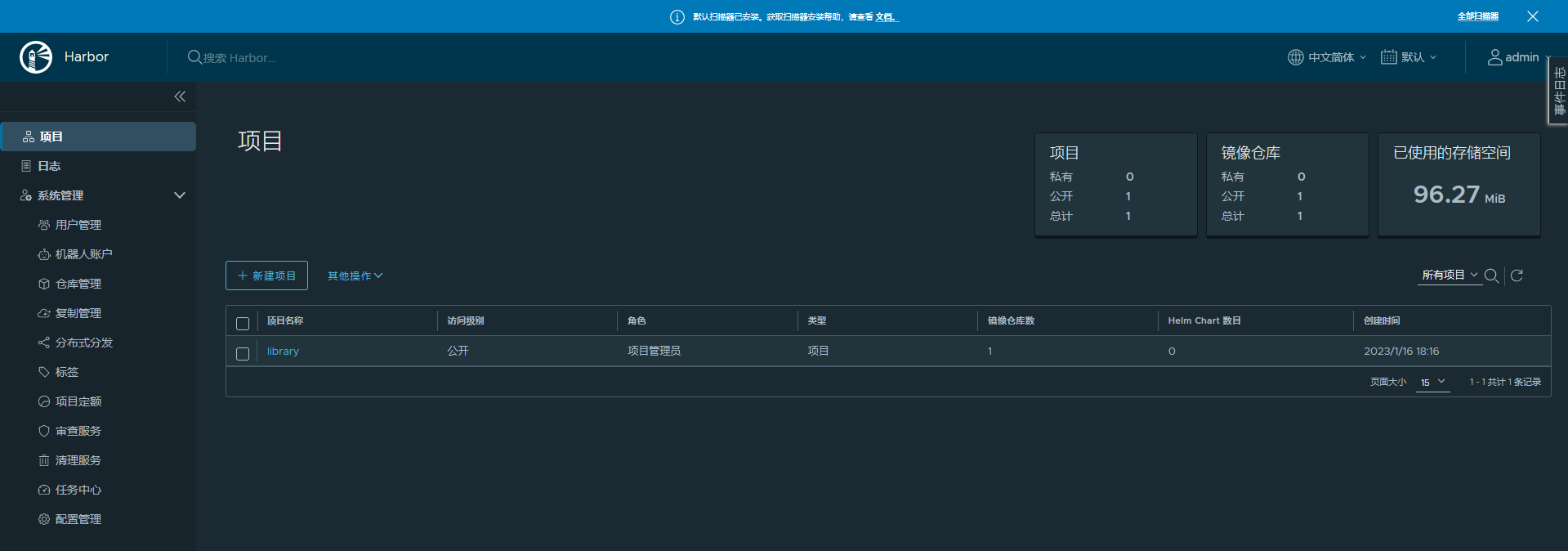

4.访问harbor的web页面

https://IP:30003
admin
Harbor12345

5.使用harbor证书

将下载的ca.crt复制到docker certs配置文件夹

mkdir -p /etc/docker/certs.d/core.harbor.domain
mv ca.crt /etc/docker/certs.d/core.harbor.domain
systemctl restart docker

配置hosts(可以给每个node节点都配置，方便其他node登录harbor)

[root@k8s-master helm]# kubectl  get svc -n harbor
NAME                   TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)                                     AGE
harbor                 NodePort    10.1.215.186   <none>        80:30002/TCP,443:30003/TCP,4443:30004/TCP   15h

###将harbor的culster-ip写入到hosts解析中
vim /etc/hosts
10.1.215.186 core.harbor.domain

配置不安全认证

机器登录harbor时可能会出现报错，这个时候需要配置insecure-registries,文件名称是daemon.json，路径在/etc/docker目录下

[root@k8s-master helm]# cat /etc/docker/daemon.json
{
    "registry-mirrors": ["https://registry.cn-hangzhou.aliyuncs.com"],
    "exec-opts": ["native.cgroupdriver=systemd"],
    "insecure-registries": ["https://core.harbor.domain"]
}

这一步建议所有node节点都配置好，方便其他node节点登录harbor

测试节点登录harbor仓库

[root@k8s-node01 ~]# docker login core.harbor.domain
Authenticating with existing credentials...
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

显示登录成功

测试打包上传

docker tag registry.aliyuncs.com/google_containers/etcd:3.4.3-0   core.harbor.domain/library/etcd:laster
docker push core.harbor.domain/library/etcd:laster

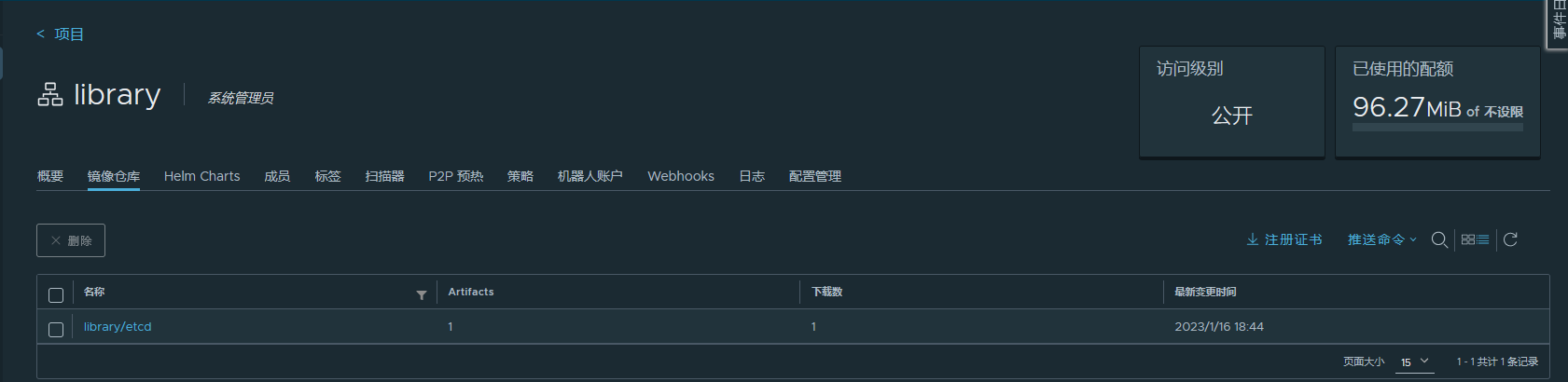

显示上传成功

测试下载

[root@k8s-node01 ~]# docker pull  core.harbor.domain/library/etcd@sha256:4198ba6f82f642dfd18ecf840ee37afb9df4b596f06eef20e44d0ae1kc47fstr
sha256:4198ba6f82f642dfd18ecf840ee37afb9df4b596f06eef20e44d0ae1kc47fstr: Pulling from library/etcd
39fafc05754f: Pull complete
3736e1e115b8: Pull complete
79de61f59f2e: Pull complete
Digest: sha256:4198ba6f82f642dfd18ecf840ee37afb9df4b596f06eef20e44d0ae1kc47fstr
Status: Downloaded newer image for core.harbor.domain/library/etcd@sha256:4198ba6f82f642dfd18ecf840ee37afb9df4b596f06eef20e44d0ae1kc47fstr

显示下载成功

到这一步就表示harbor仓库的基本使用已经完成啦

参考于博主平凡似水的人生，按照本机当时环境做了小部分修改及补充。
