BGP相关实验

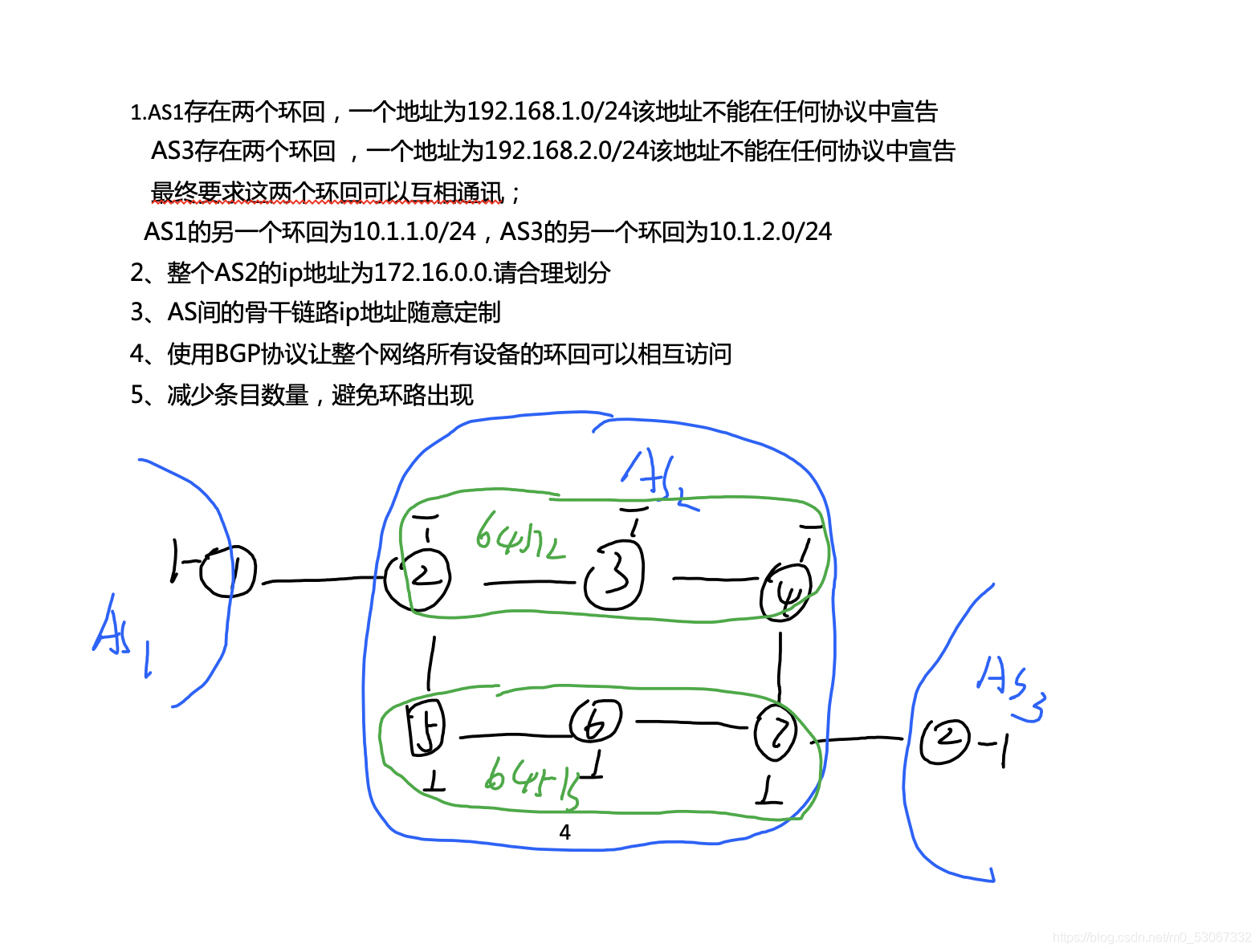

一、实验要求

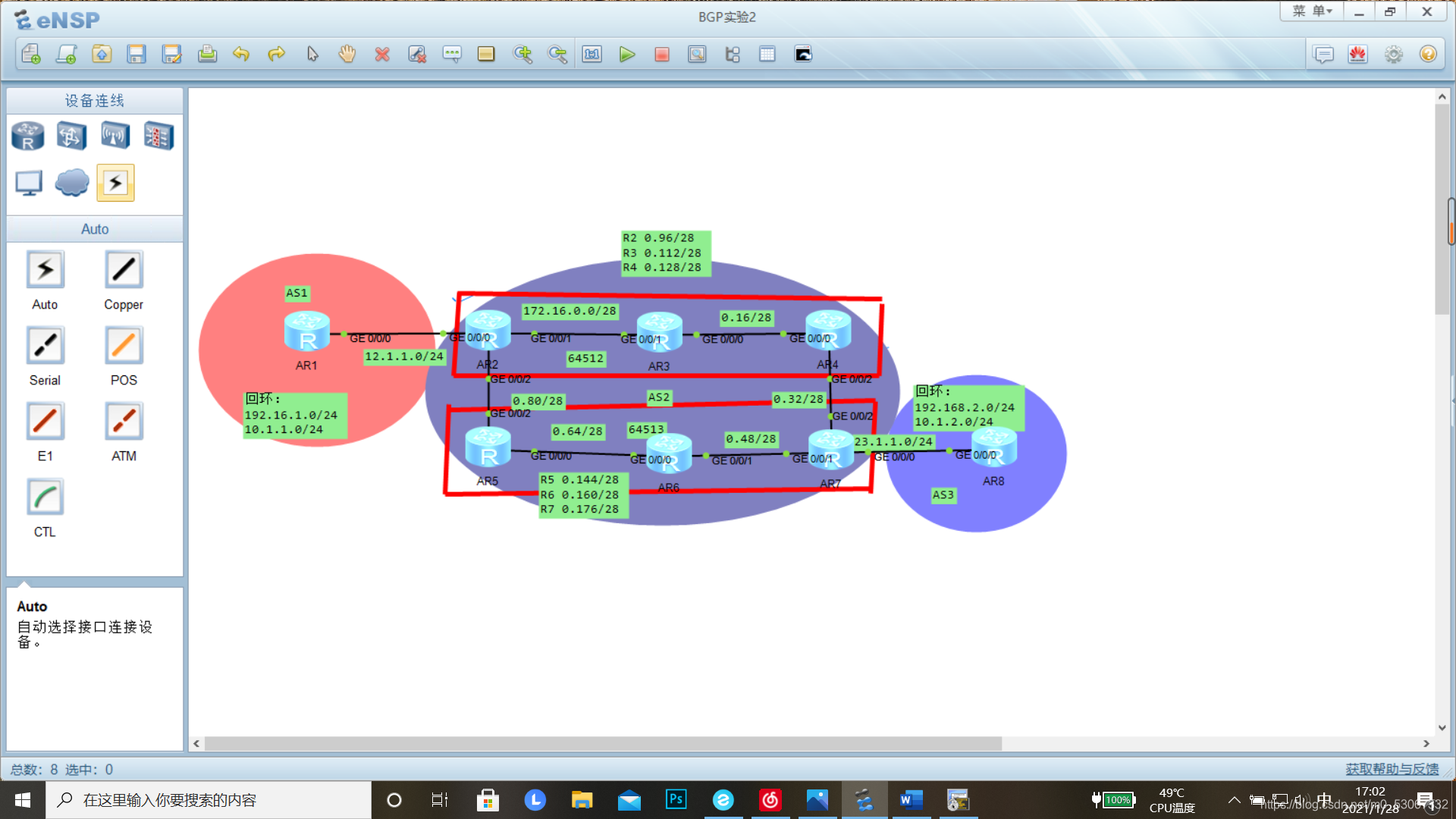

二、拓扑搭建及IP地址规划

三、相关配置

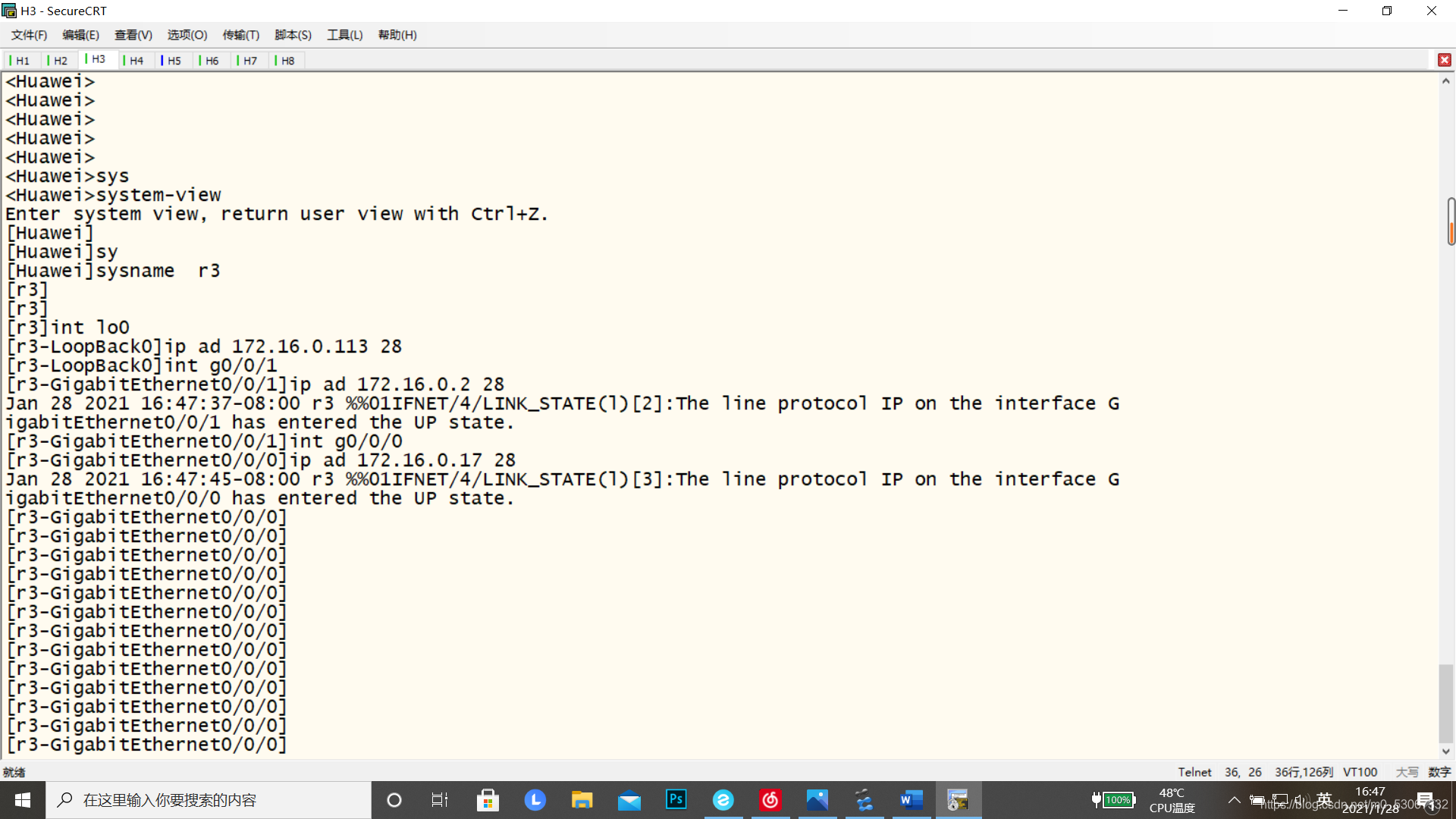

IP地址及回环配置

interface GigabitEthernet0/0/0
ip address 12.1.1.1 255.255.255.0

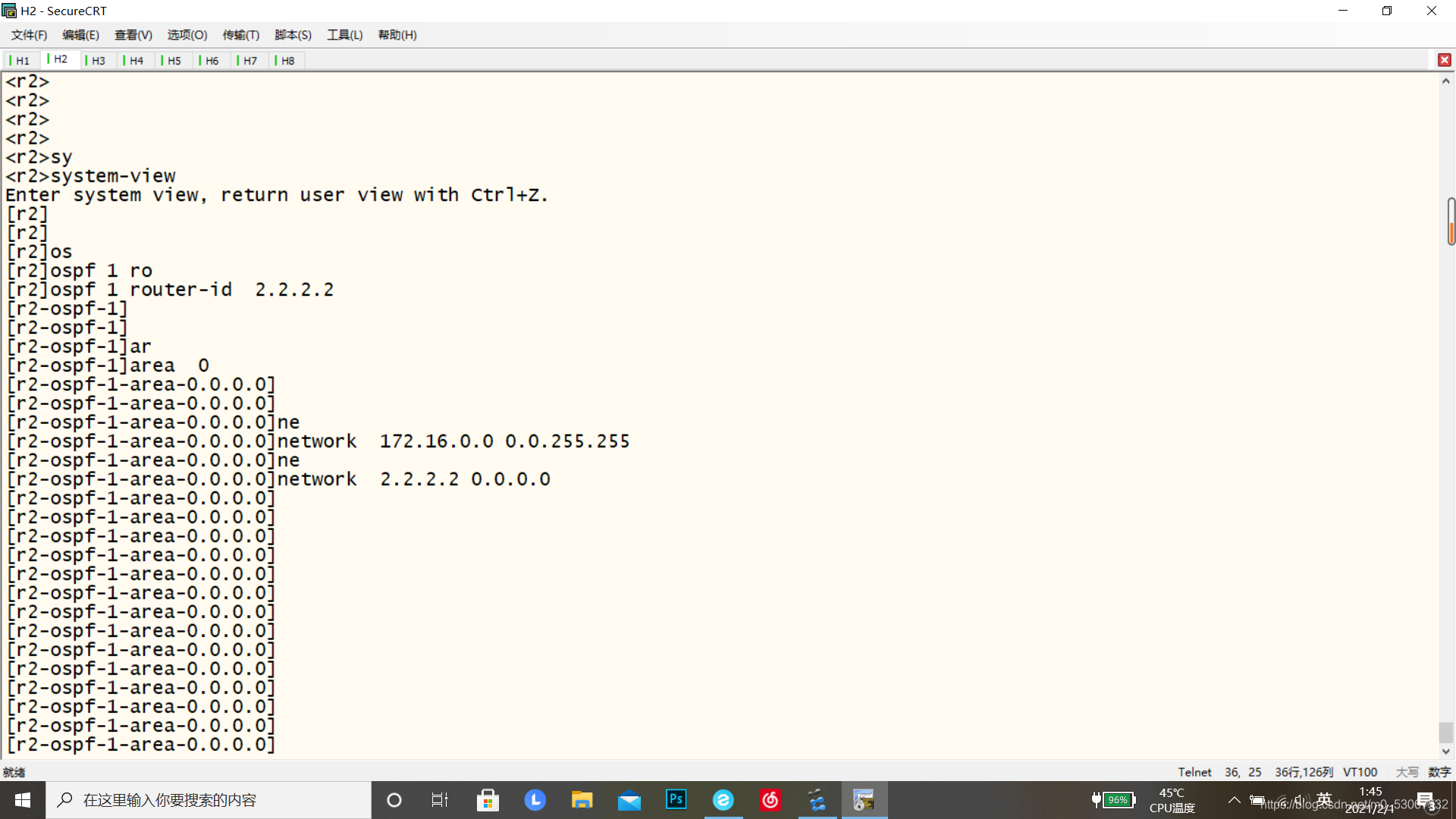

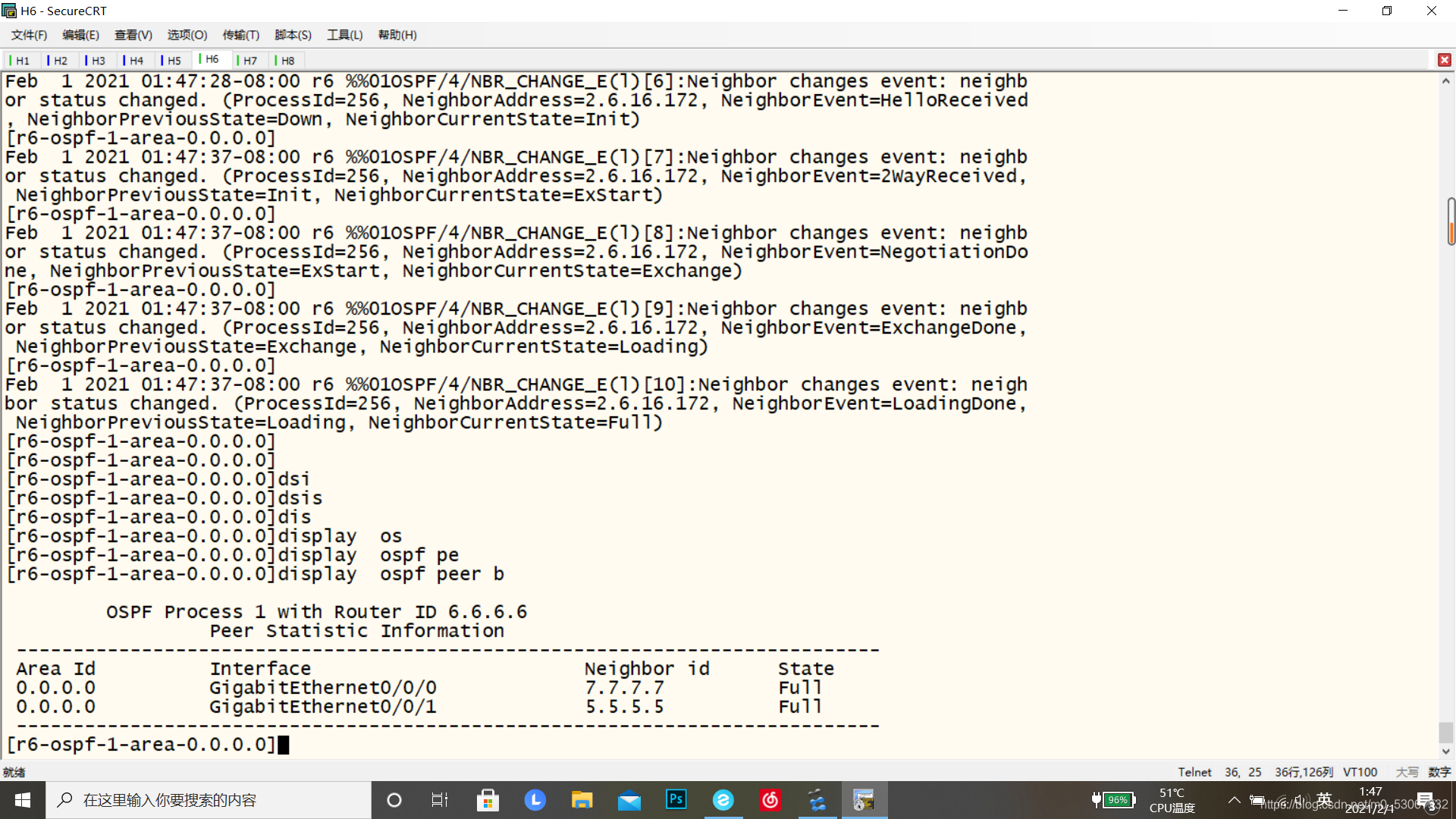

AS2区域内宣告OSPF


ospf 1 router-id 2.2.2.2
area 0.0.0.0
network 2.2.2.2 0.0.0.0
network 172.16.0.0 0.0.255.255

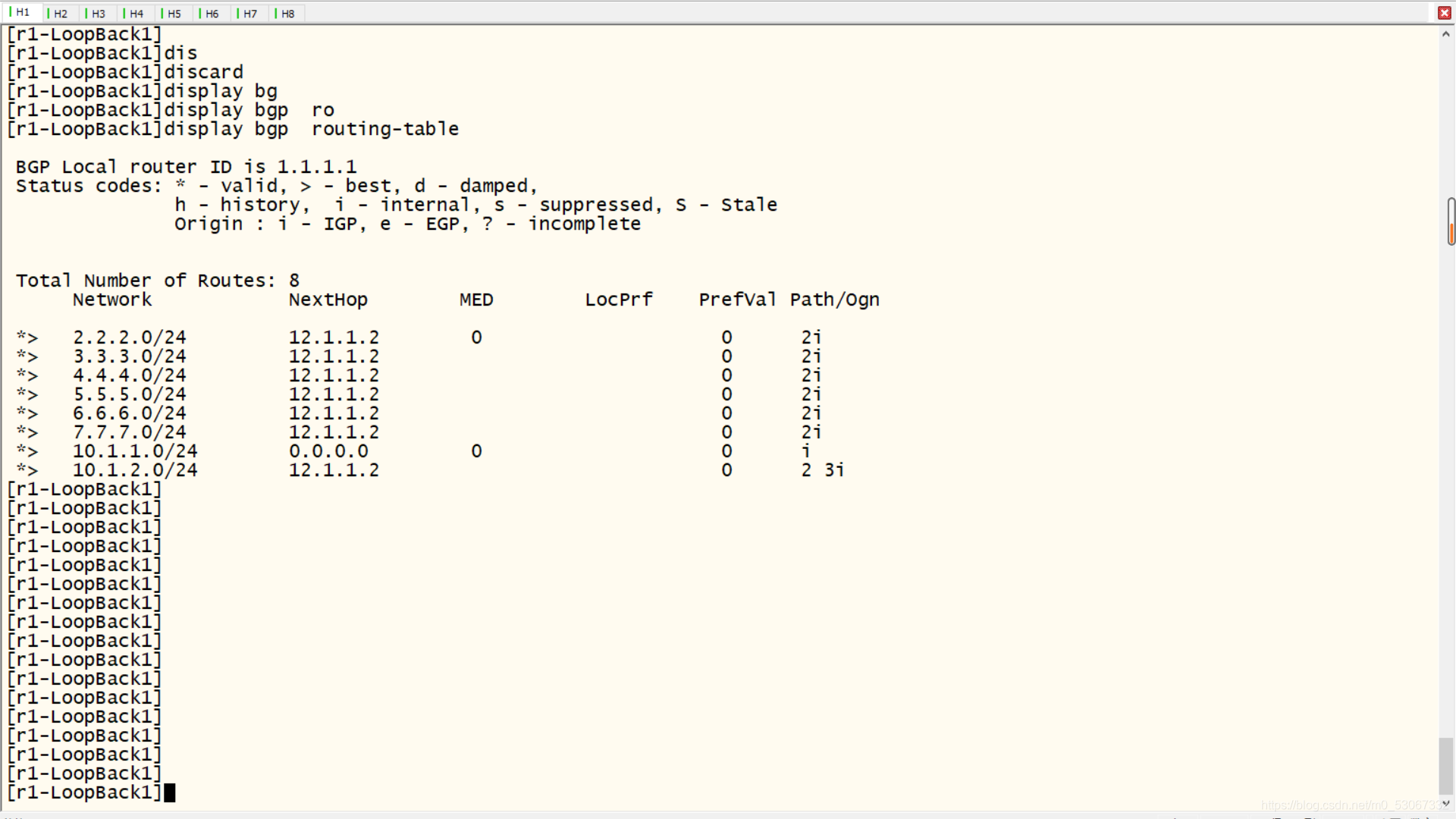

AS1、AS3与AS2建立EBGP关系

bgp 1
router-id 1.1.1.1
peer 12.1.1.2 as-number 2
peer 12.1.1.2 ebgp-max-hop 255
network 10.1.1.0 255.255.255.0

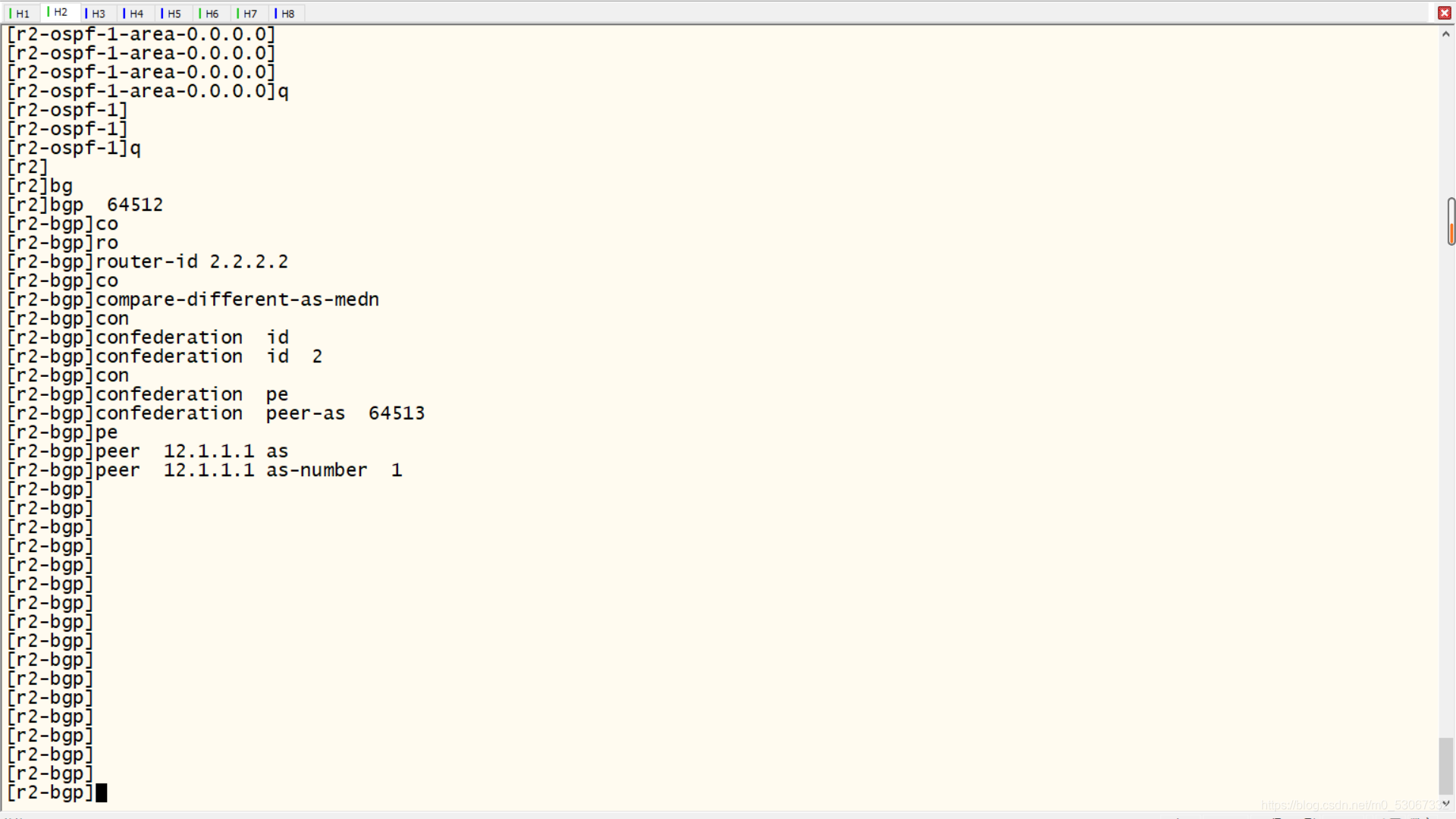

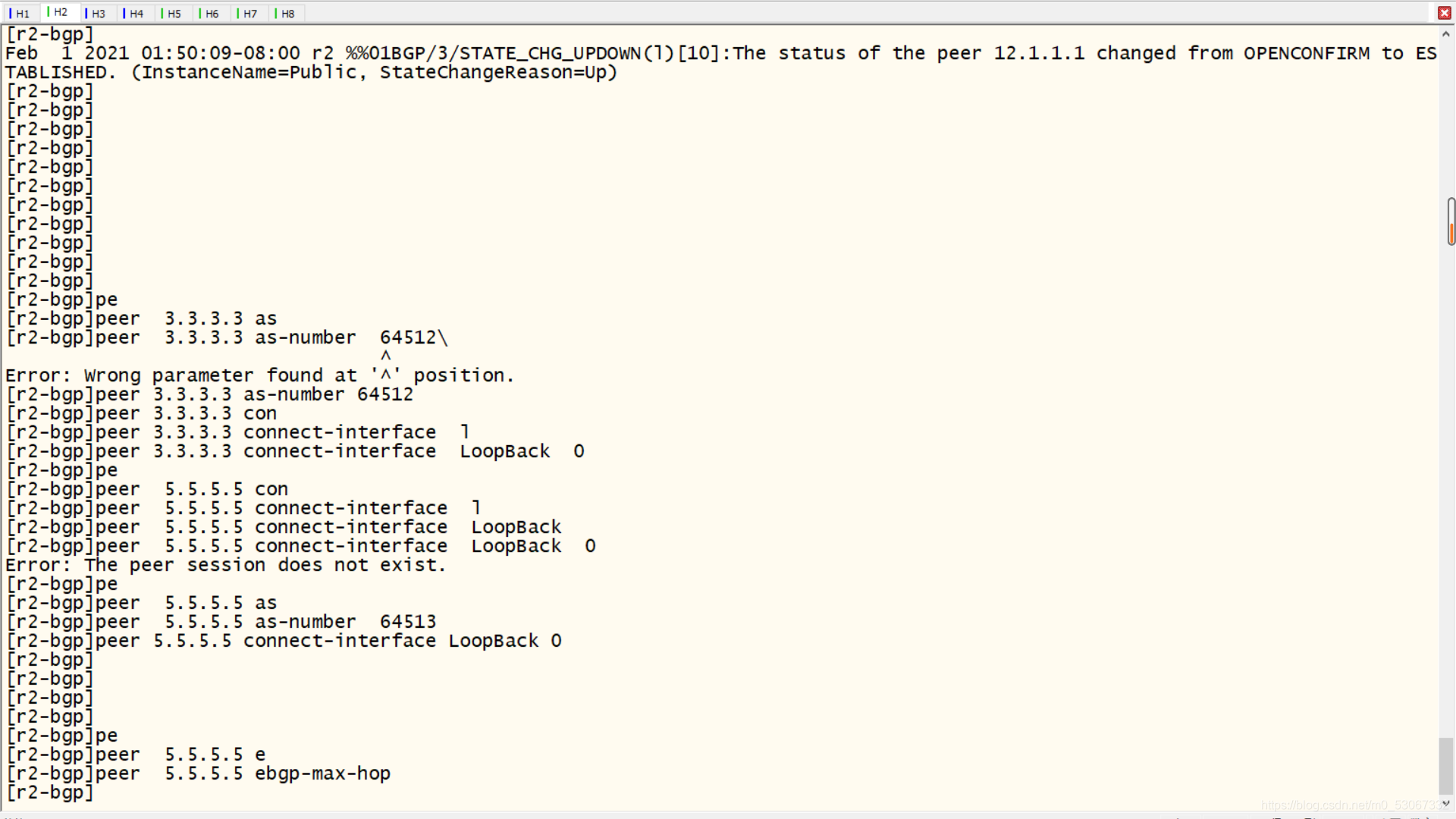

AS2内部建立IBGP关系

bgp 64512
router-id 2.2.2.2
confederation id 2
confederation peer-as 64513
peer 3.3.3.3 as-number 64512
peer 3.3.3.3 connect-interface LoopBack0
peer 5.5.5.5 as-number 64513
peer 5.5.5.5 ebgp-max-hop 255
peer 5.5.5.5 connect-interface LoopBack0
peer 12.1.1.1 as-number 1
peer 12.1.1.1 ebgp-max-hop 255
undo synchronization
network 2.2.2.0 255.255.255.0
network 3.3.3.0 255.255.255.0
peer 3.3.3.3 next-hop-local
peer 5.5.5.5 next-hop-local

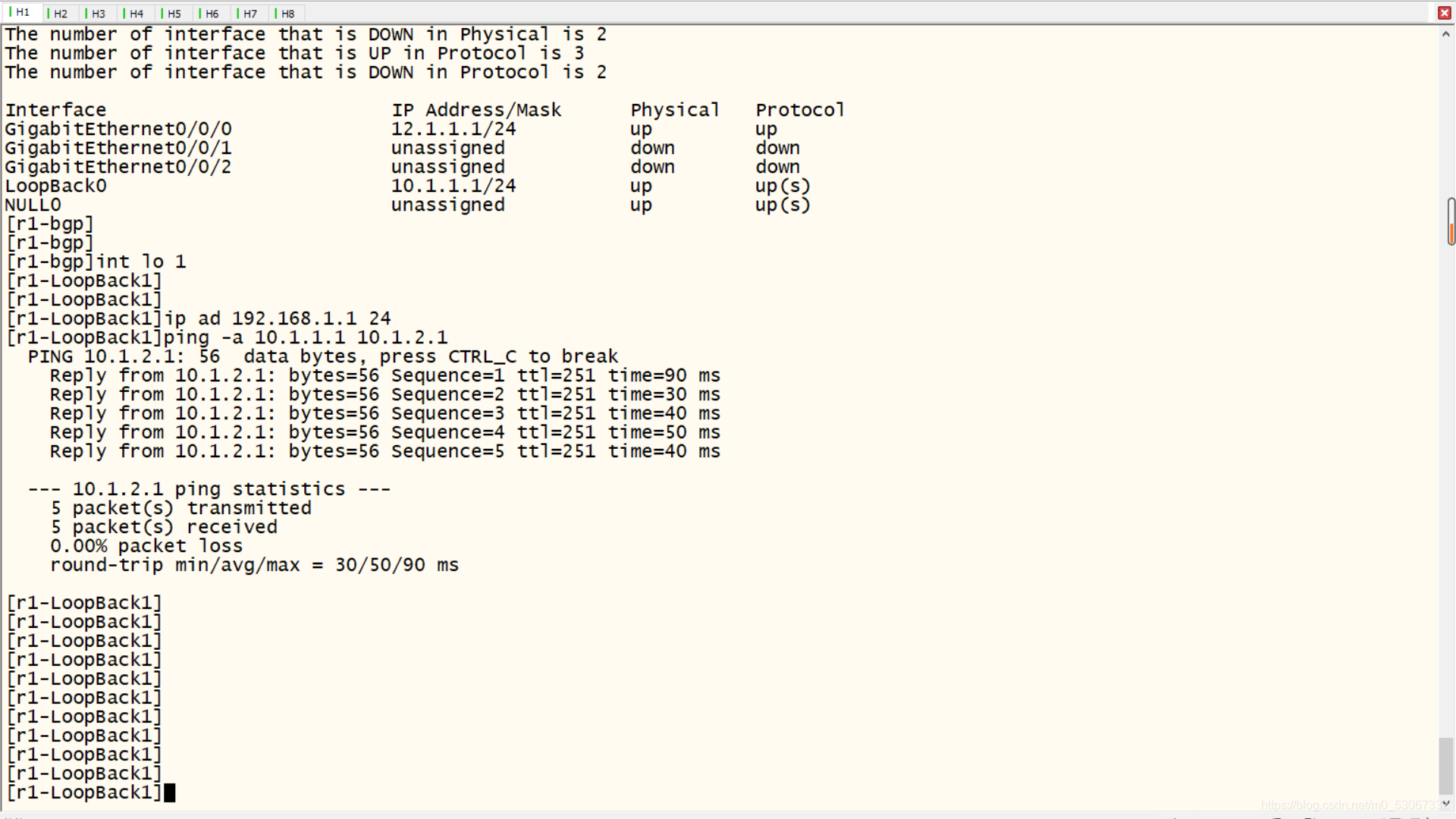

测试R1与R8回环是否可互通

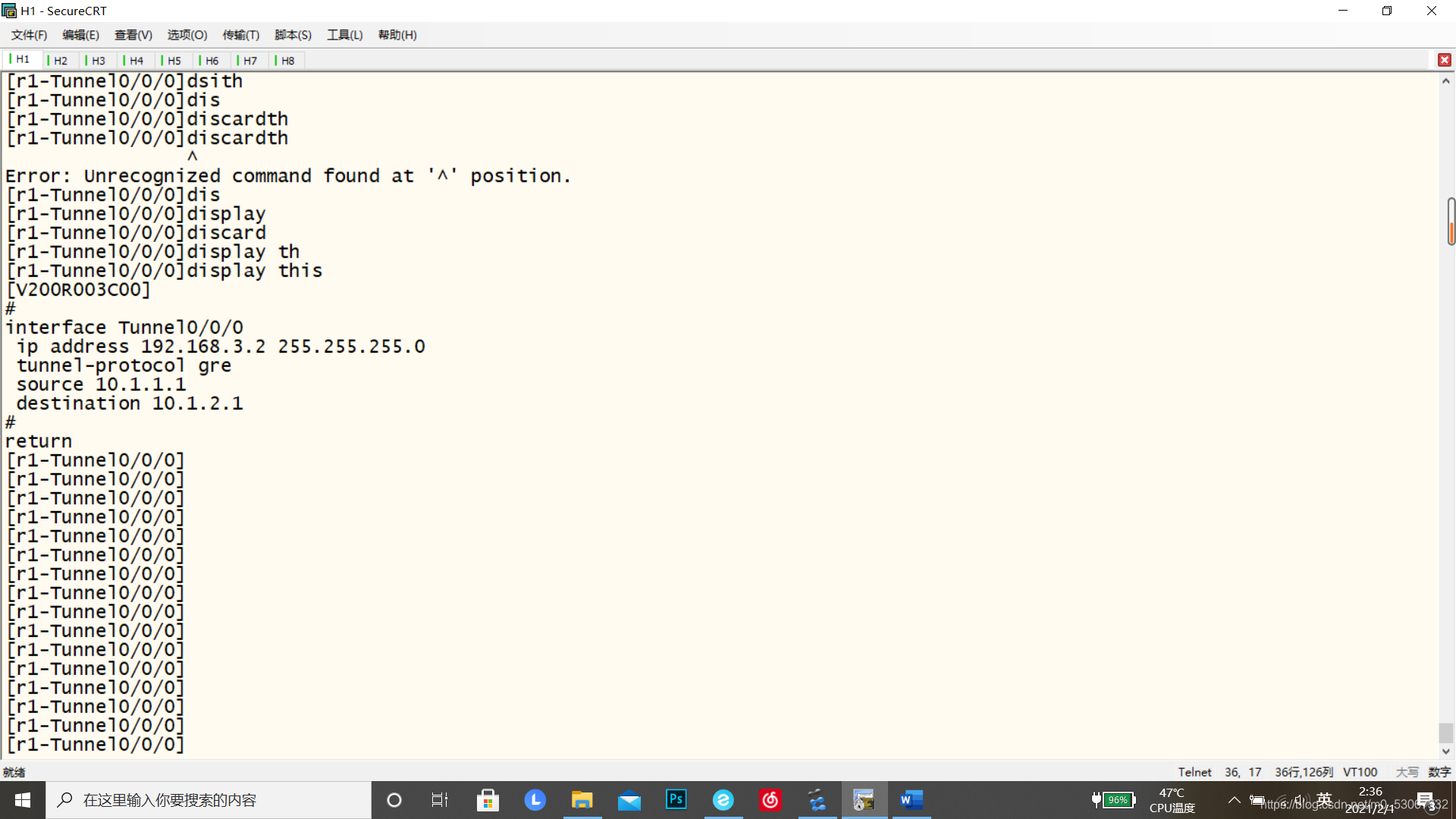

R1与R8另外两个环回通过GRE技术来实现互通

interface Tunnel0/0/0
ip address 192.168.3.2 255.255.255.0
tunnel-protocol gre
source 10.1.1.1
destination 10.1.2.1
ip route-static 192.168.2.0 255.255.255.0 Tunnel0/0/0

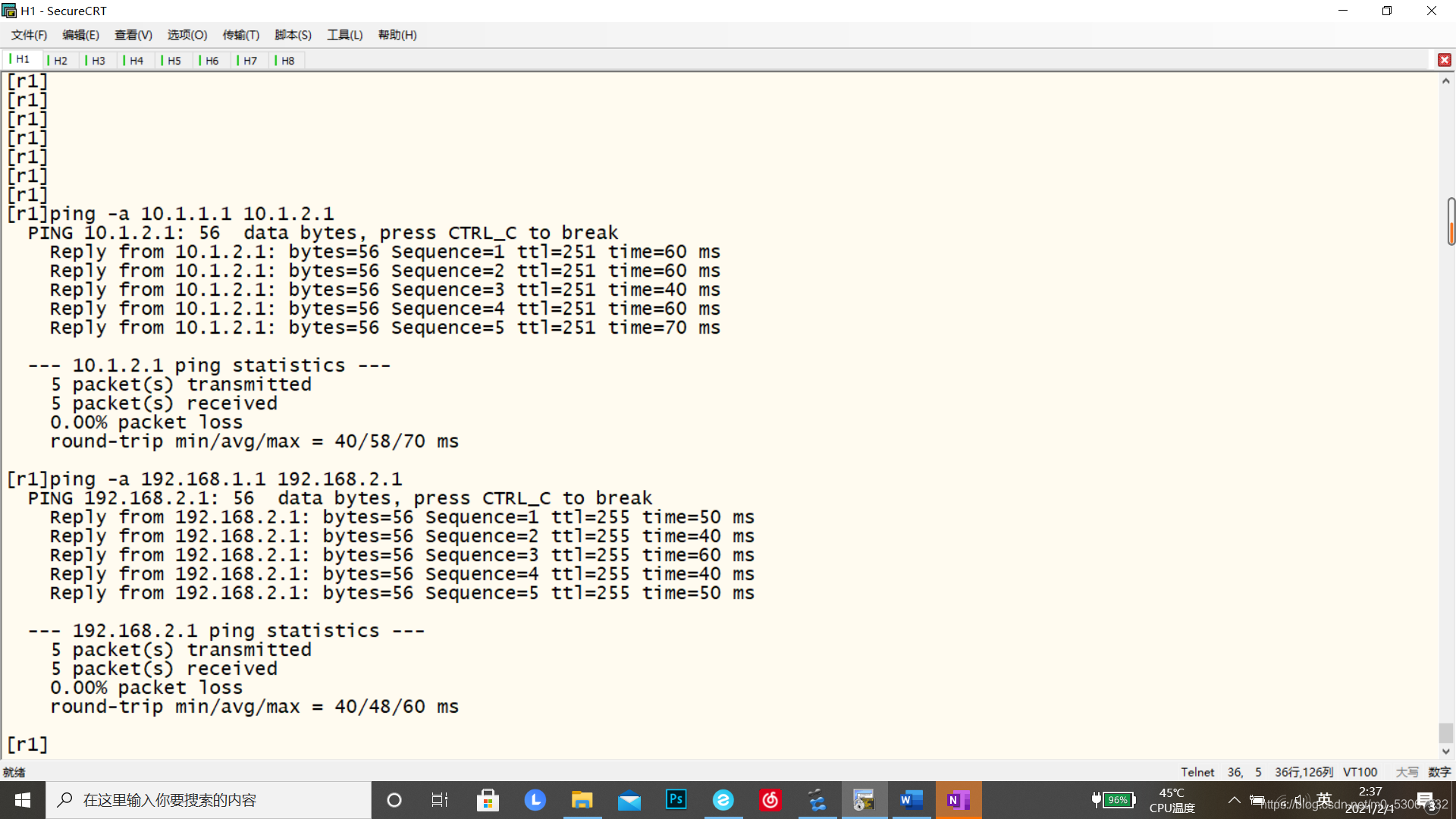

测试192.168.1.0/24与192.168.2.0/24
